dji OSMO ACTION User manual
Charging Hub
v1.2 2019.06
User Guide
使用说明
使用說明
ユーザーガイド
사용자 가이드
Bedienungsanleitung
Guía del usuario
Guide de l'utilisateur
Guida dell'utente
Gebruiksaanwijzing
Manual do utilizador
Guia do usuário
Руководство пользователя
OSMO ACTION
EN
2
Disclaimer and Warning
Congratulations on purchasing your new DJI OSMOTM product.
The information in this document affects your safety, legal
rights, and responsibilities. Read this entire document carefully
to ensure proper conguration before use. Failure to read and
follow the instructions and warnings in this document may
result in serious injury to yourself or others, damage to your DJI
OSMO product, or damage to other objects in the vicinity. This
document and all other collateral documents are subject to
change at the sole discretion of DJI OSMO.
By using this product, you hereby signify that you have read
this disclaimer and warning carefully and that you understand
and agree to abide by the terms and conditions herein. You
agree that you are solely responsible for your own conduct
while using this product, and for any consequences thereof.
You agree to use this product only for purposes that are
proper and in accordance with all applicable laws, rules, and
regulations, and all terms, precautions, practices, policies, and
guidelines DJI OSMO has made and may make available.
DJI OSMO accepts no liability for damage, injury, or any legal
responsibility incurred directly or indirectly from the use of
this product. The user shall observe safe and lawful practices
including, but not limited to, those set forth in this document.
Notwithstanding the above, your statutory rights under
the applicable national legislation are not affected by this
disclaimer.
OSMO is a trademark of SZ DJI OSMO TECHNOLOGY
CO., LTD. (abbreviated as “DJI OSMO”) and its affiliated
companies. Names of products, brands, etc., appearing
in this document are trademarks or registered trademarks
of their respective owner companies. This product and
document are copyrighted by DJI OSMO with all rights
reserved. No part of this product or document shall be
reproduced in any form without prior written consent of or
authorization from DJI OSMO.
EN
3
Safety Guidelines
1. The Osmo Action Charging Hub is only compatible with
the supported battery adapters. Refer to the Specications
section for a list of supported battery adapters.
2. The Osmo Action Charging Hub is only compatible with
AB1-1300mAh-3.85V batteries. DO NOT use the charging
hub with other battery models.
3. Place the Osmo Action Charging Hub on a at and stable
surface when in use. Make sure the device is properly
insulated to prevent re hazards.
4. DO NOT touch the metal terminals on the charging hub.
5. Clean the metal terminals with a clean, dry cloth if there is
any noticeable buildup.
6. If the battery falls into water, put it in a safe and open area
immediately. Maintain a safe distance from the battery until
it is completely dry. DO NOT use the battery again, and
properly dispose of the battery as described in point 30.
7. Put out a battery re using water, sand, a re blanket, or
a dry powder re extinguisher.
8. DO NOT use a non-DJI OSMO battery. DJI OSMO takes
no responsibility for any damage caused by a non-DJI
OSMO battery. Purchase a new battery at www.dji.com.
9. DO NOT use or charge swollen, leaky, or damaged battery.
10. The battery should be used in a temperature range from
14° to 104° F (-10° to 40° C). Use of the battery in an
environment above 104° F (40° C) can lead to a fire or
explosion. Use of the battery below 14° F (-10° C) can lead
to permanent damage.
11. DO NOT use the battery in a strong electrostatic or
electromagnetic environment.
12. DO NOT disassemble or pierce the battery in any way.
Otherwise, the battery may leak, catch re, or explode.
13. DO NOT drop or strike the battery. DO NOT place heavy
objects on the battery or charger.
EN
4
14. Electrolytes in the battery are highly corrosive. If any
electrolytes make contact with your skin or eyes,
immediately wash the affected area with fresh running
water for at least 15 minutes, and then see a doctor
immediately.
15. DO NOT use the battery if it is dropped or impacted in
any way.
16. DO NOT heat the battery. DO NOT use a hairdryer to
dry the battery or put the battery in a microwave oven or
a pressurized container.
17. DO NOT manually short-circuit the battery.
18. DO NOT attach the battery to a power outlet or car
charger socket directly. The battery must be charged
through Osmo Action or the Osmo Action Charging
Hub. DJI OSMO takes no responsibility if the battery is
charged using a non-DJI OSMO charger.
19. DO NOT charge the battery near ammable materials or
on ammable surfaces such as carpet or wood. DO NOT
leave the battery unattended during charging.
20. DO NOT charge the battery immediately after use, as the
battery temperature may be too high.
21. DO NOT charge the battery until it cools down to near
room temperature. Charging the battery outside of the
temperature range of 41° to 104° F (5 to 40° C) may lead
to leakage, overheating, or battery damage.
22. Disconnect the charger when not in use. Examine the
charger regularly for damage to the cord, plug, and other
parts of the charger. DO NOT clean the charger with
denatured alcohol or other ammable solvents. DO NOT
use a damaged charger.
23. Keep the battery out of the reach of children and animals.
24. DO NOT leave the battery near heat sources such as
a furnace or heater. DO NOT leave the battery inside
of a vehicle on hot days. DO NOT store the battery in an
EN
5
environment with a temperature higher than 140° F (60° C).
The ideal storage temperature range is 71.6° to 82.4° F (22°
to 28° C).
25. Store the battery in a ventilated location and keep the
battery dry.
26. DO NOT store a fully discharged battery for an extended
period. Otherwise, it will over discharge, which will lead
to permanent damage to the battery.
27. Before taking a battery on an airline ight, fully discharge
the battery. Make sure to discharge the battery in
a reproof location.
28. Keep the battery away from metal objects such as
glasses, watches, jewelry, and hairpins.
29. DO NOT transport a damaged battery or a battery with
a power level higher than 50%.
30. Only dispose of a battery after completely discharging it.
DO NOT dispose of a battery in a regular trash container.
Strictly follow your local regulations regarding the
disposal and recycling of the battery.
31. The battery is designed to stop charging when it is fully
charged. It is a good practice, however, to monitor the
charging progress and disconnect the battery when it is
fully charged.
32. Discharge the battery to 40-65% if it will not be used for
10 days or more. This can greatly extend the battery life.
33. The battery will enter hibernation mode if depleted and
stored for an extended period. Recharge the battery to
bring it out of hibernation.
34. Remove the battery from Osmo Action when it is stored
for an extended period.
35. The battery life may be reduced if it is not used for an
extended period.
36. Discharge and charge the battery completely once every
three months to keep it in good condition.
EN
6
Introduction
The Osmo Action Charging Hub can charge up to three
batteries for Osmo Action. When using an ofcial DJI USB
adapter, the charging hub charges the two batteries with
the higher battery level simultaneously first, and takes
approximately 130 minutes to fully charge three batteries.*
When using a non-ofcial DJI USB adapter, the charging hub
charges the batteries one at a time in order of the battery
level from high to low. The three LED indicators indicate the
battery level and the charging status.

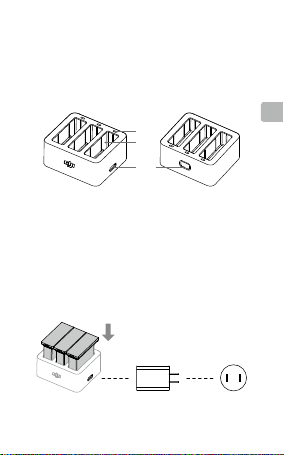

1
2
3 4
1. LED Indicators
2. Battery Ports
3. USB-C Port
4. Button
* Charging time is for reference only.
Usage

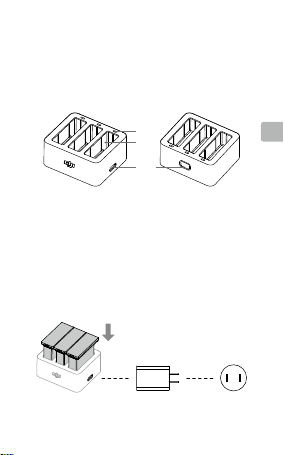

Place the battery into the battery ports as shown in the gure
below. Connect the USB adapter to the USB-C port on the
charging hub to begin charging. Refer to the LED Indicators
Description section for more information about charging.
EN
7
LED Indicators Description
When a battery is attached but there is no power source, hold
the button for one second. The LED indicator will display the
battery level twice. When there is no battery attached, the
corresponding LED indicator will be off.
Blinking Patterns Battery Level
Off 0%<Battery Level≤3%
Blinks green once 3%< Battery Level≤25%
Blinks green twice 25%< Battery Level≤50%
Blinks green three times 50%< Battery Level≤75%
Blinks green four times 75%< Battery Level≤98%
Solid green 98%< Battery Level≤100%
When a battery is attached and there is a power source, the
LED indicators shows the following information.
Blinking Patterns Descriptions
Three LEDs blink green
in order No batteries attached.
Off
No battery attached to the
corresponding battery port or the
battery has entered Hibernation
mode after an extended period
with 0% battery level.
Solid yellow
Battery is queued to be charged
and the battery level is more
than 0%
Battery is charging and the
number of blinks displays the
current battery level.
Blinks green once 0< Battery Level≤25%
EN
8
• The button is disabled when a power source is
connected.
• If the battery is in hibernation mode, charging will
automatically wake up the battery. No further action
is required.
• The battery level displayed may not be completely
accurate.
Specications
Model OA1CH
Supported DJI Batteries AB1-1300mAh-3.85V
Supported USB Adapters
QC18-CN/QC18-EU
Intelligent Adapter, 5 V / 2 A
USB Adapter
Operating Temperature 41° to 113° F (5° to 45° C )
Input 5 V 3 A / 9 V 2 A / 12 V 1.5 A
Output 4.4 V 2 A
Battery
Capacity 1300 mAh
Blinks green twice 25%< Battery Level≤50%
Blinks green three times 50%< Battery Level≤75%
Blinks green four times 75%< Battery Level≤98%
Solid green 98%< Battery Level≤100%
Blinks red quickly
Battery is abnormal due to
overheating or not being
properly connected
Three LEDs blink red
quickly
Charging hub and/or all batteries
are abnormal.
EN
9
This content is subject to change.
Download the latest version from
https://www.dji.com/osmo-action
OSMO is a trademark of DJI OSMO.
Copyright © 2019 DJI OSMO All Rights Reserved.
Voltage 3.85 V
Charging Limit Voltage 4.4 V
Type LiPo 1S
Energy 5.005 Wh
