djm direct 01985-V2 User manual

0

1
1.Introduction
MANUFACTURER:
DJM Direct.com
Unit 43 Churchill Way,
Lomeshaye Industrial Estate,
Nelson, Lancashire BB9 6RT UK
DEAR CUSTOMER
We hope your new tool brings you much enjoyment and success.
NOTE:
According to the applicable product liability laws, the manufacturer
of the device does not assume liability for damages to the product or
damages caused by the product that occurs due to:
●Improper handling,
●Non-compliance of the operating instructions,
●Repairs by third parties, not by authorized service technicians,
●Installation and replacement of non-original spare parts, .
●Application other than specified,
WE RECOMMEND:
Read through the complete text in the operating instructions before
installing and commissioning the device. The operating instructions
are intended to help the user to become familiar with the machine
and take advantage of its application possibilities in accordance with
the recommendations. The operating instructions contain important
information on how to operate the machine safely, professionally
and economically, how to avoid danger, costly repairs, reduce
downtimes and how to increase reliability and service life of the
machine. In addition to the safety regulations in the operating
instructions, you have to meet the applicable regulations that apply
for the operation of the machine in your country. Keep the operating
instructions package with the machine at all times and store it in a
plastic cover to protect it from dirt and moisture. Read the
instruction manual each time before operating the machine and
carefully follow its information. The machine can only be operated by
persons who are instructed concerning the operation of the machine
and who are informed about the associated dangers. The minimum
age requirement must be complied with. In addition to the safety
requirements in these operating instructions and your country’s
applicable regulations, you should observe the generally recognized
technical rules concerning the operation of machines.
2.Device Description
1. Saw table
2. Table insert
3. Saw blade
4. Blade guard
5. Suction hose
6. Riving knife
7. Mitre gauge
8. Table extension
9. Push stick
10. Under frame
11. On-Off switch
12. Reset button for motor
overload cut out
13. Blade height hand wheel
14. Blade tilt lock knob
15. Guide rail
16. Rip fence
17. Legs
17a. Rubber feet
17b.Leg support stay
18.Long cross brace
19.Short cross brace
20.Hexagon head screw
21.Hexagon nut
22a.Saw blade spanner
22b.Saw blade spanner
23.Support struts
24. Extension table support rod

2
3. Unpacking
●Open the packaging and remove the device carefully.
●Remove the packaging material as well as the packaging and
transport bracing (if available).
●Check if the delivery is complete.
●Check the device and accessory parts for transport damage.
●If possible, store the packaging until the warranty period has
expired.
ATTENTION
The device and packaging materials are not toys! Children must not
be allowed to play with plastic bags, film and small parts! There is a
risk of swallowing and suffocation!
4. Intended Use
The power tool is intended as a stationary machine for making
straight lengthways and crossways cuts in wood.
The capacity of the power tool is designed for sawing hardwood and
softwood.
The power tool is not suitable for cutting aluminium or other
non-ferrous metals or alloys.
5. General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference. The term
"power tool" in the warnings refers to your electric (corded) power
tool or battery-operated (cordless) power tool.
5.1 Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
5.2 Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will reduce risk of electric
shock.
b) Avoid body contact with grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
5.3 Personal safety
a) Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off
position before connecting to power source and/or battery pack,
picking up or carrying the tool. Carrying power tools with your finger
on the switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.

3
f) Dress properly. Do not wear loose clothing or jewellery. Keep
your hair, clothing and gloves away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
5.4 Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these instructions
to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e) Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working conditions
and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
5.5 Service
a) Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of
the power tool is maintained.
b) If the replacement of the supply cord is necessary, this has to be
done by the manufacturer or its agent in order to avoid a safety
hazard.
6 Safety instructions for table saws
6.1 Guarding related Warnings
a) Keep guards in place. Guards must be in working order and be
properly mounted. A guard that is loose, damaged, or is not
functioning correctly must be repaired or replaced.
b) Always use a saw blade guard and riving knife for every
through-cutting operation. For through-cutting operations where
the saw blade cuts completely throught the thickness of the
workpiece, the guard and other safety devices help reduce the risk of
injury.
c) After completing working procedures where the removal of the
blade guard and/or riving knife is necessary(e.g. rebating, cutting
grooves or other procedures where the workpiece needs to be
turned over), the guard must be reattached immediately. The guard
helps to reduce the risk of injury.
d) Make sure the saw blade is not touching the guard, riving knife or
the workpiece before the switch is turned on. Inadvertent contact of
these items with the saw blade could cause a hazardous condition.
e) Adjust the riving knife as described in this instruction manual.
Incorrect spacing, positioning and alignment can make the riving
knife ineffective in reducing the likelihood of kickback.
f) For the riving knife to work, it must be engaged in the workpicece.
The riving knife is ineffective when cutting workipieces that are too
short to be engaged with the riving knife. Under these conditions a
kickback cannot be prevented by the riving knife.
g) Use the appropriate saw blade for the riving knife. For the riving
knife to function properly, the saw blade diameter must match the
appropriate riving knife and the body of the saw blade must be
thinner than the thickness of the riving knife
6.2 Cutting procedure warnings
a) Danger: Never place your hands and fingers in the sawing area or
close to the saw blade. A moment of carelessness or a slip could
steer your hand towards the saw blade and result in serious
injuries.
b) Feed the workpiece into the saw blade only against the direction
of rotation. Feeding the workpiece in the same direction as the saw
blade is roating above the table may lead to the workpiece and
your hand being drawn into the saw blade.
C) Never use the mitre gauge to feed the workpiece when ripping
and do not use the rip fence as a length stop when cross cutting
with the mitre gauge. Guiding the workpiece with the rip fence and
the mitre gauge at the same time increases the likelihood of saw
blade binding and kickback.
d) When ripping, always apply the workpiece feeding force between
the fence and the saw blade. Use a push stick when the distance
between the fence and the saw blade is less than 150mm, and use a
push block when this distance is less than 50mm. These working

4
aids will help ensure that your hands remain a safe distance from the
saw blade.
e) Only use the push stick provided by the manufacturer, or a push
stick that has been produced in accordance with the instructions.
The push stick ensures a sufficient distance between the hand and
saw blade.
f) Never use a damaged or partially sawn push stick. A damaged
push stick may break and lead to your hand running into the saw
blade.
g) Never work “freehand”. Always use either the rip fence or the
mitre gauge to position and guide the workpiece. “Freehand”
means using your hands to support or guide the workpiece, in lieu
of a rip fence or mitre gauge. Free-handed sawing leads to incorrect
alignment, jamming and kickback.
h)Never reach around or over a rotating saw blade. Reaching for a
workpiece can lead to accidental contact with the rotating saw blade.
i) Support long and/or wide workpieces at the rear and/or side of
the saw table, so that they remain horizontal. Long and/or wide
workpieces tend to tilt at the edge of the saw table; this leads to a
loss of control, jamming of the saw blade and kickback
j) Feed the workpiece steadily and evenly. Do not bend or twist the
workpiece. If the saw blade jams, switch off the saw immediately,
unplug the saw and remedy the cause of the jam. I jamming of the
saw blade by the workpiece can cause kickback or stall the motor.
k) Do not remove pieces of cut-off material whilst the saw is
running. The material may become trapped between the saw blade
guard and the fence the saw blade and may draw your fingers into
the saw blade during removal. Switch off the saw immediately,
unplug the saw and remedy the cause of the jam.
i) When ripping workpieces that are thinner than 2 mm, use an
additional fence in contact with the table surface. Thin workpieces
can wedge under the rip fence and lead to kickback.
6.3 Kickback – causes and related warnings
Kickback is a sudden reaction of the workpiece to a catching or
jamming saw blade, or a cut created in the workpiece at an angle to
the saw blade, or if part of the workpiece becomes jammed between
the saw blade and the rip fence or other fixed object.
In the majority of cases,with kickback the workpiece is caught by the
rear part of the saw blade, lifted off the saw table and thrust in the
direction of the operator. Kickback is the result of saw misuse and/or
incorrect operating procedures or conditions and can be avoided by
taking proper precautions as given below.
a) Never stand directly in line with the saw blade. Always position
your body on the same side of the saw blade as the fence. With
kickback, the workpiece may be thrust at high speed towards those
persons who stand in front of, or in line wih the saw blade.
b) Never reach over or behind the saw blade to pull or support the
workpiece. This can result in accidental contact with the saw blade,
or kickback can lead to your fingers being drawn into the saw blade.
c) Never hold and push the workpiece against the rotating saw
blade during sawing. Pushing the workpiece against the saw blade
during sawing will lead to jamming and kickback.
d) Align the fence parallel to the saw blade. A misaligned fence will
push the workpiece against the saw blade and create kickback.
e) Use a featherboard to hold the workpiece against the table when
not sawing completely through the workpiece such as in rebating,
cutting slots or ripping. The featherboard will help to hold the
workpiece in the event of kickback.
f) Use extra caution when making a cut into bind areas of
assembled workpieces. The protruding saw blade can saw into
objects that could cause a kickback.
g) Support large panels, in order to avoid the risk of kickback due to
a pinched saw blade. Large panels may bend under their own weight
panels must be supported in all areas where they overhang the table
surface.
h) Use extra caution when cutting a workpiece that is twisted,
knotted, warped or does not have a straight edge to guide it with a
mitre gauge or along the fence. A twisted, knotted or warped
workpiece is unstable and results in incorrect alignment of the kerf
with the saw blade, jamming and kickback.
i) Never saw multiple workpieces stacked on top of each other, or
one behind the other. The saw blade could engage in one or more
parts and result inkickback.
j)When restarting the saw with the saw blade in the workpiece,
centre the saw blade in the kerf so that the saw teeth are not
engaged in the material. If the saw blade binds, it can lift the
workpiece and cause kickback when the saw is restarted.
k) Always keep saw blades clean, sharp and sufficiently set. Never
use warped saw blades or saw blades with cracked or broken teeth.
Sharp and correctly set saw blades minimise binding, stalling and
kickback.
6.4 Table saw operating procedure warnings
a) Switch off the table saw and disconnect it from the power supply
before removing the table insert, changing the saw blade, making
adjustments to the riving knife or the saw blade guard, and if the
machine is left unattended. Precautionary measures serve to
prevent accidents.
b) Never leave the table saw running unattended. Switch the saw
off and don’t leave it until it has come to a complete standstill. An
unatended running saw poses an uncontrolled hazard.
c) Set up the table saw in a location that is level and well ventilated,
and where it can stand safely and remain balanced. The installation
site must provide sufficient space for easily handling the size of

5
your workpieces. Cramped, dark working areas, and uneven,
slippery floors may lead to accidents.
d) Regularly clean and remove sawdust from beneath the saw table
and/or from the dust extraction system.Accumulated sawdust is
flammable and can self-ignite.
e) Secure the table saw. A table saw that is not properly secured may
move or topple over.
f) Remove tools and scraps of wood from the table before switching
the saw on. Distractions and potential jams could be dangerous.
g) Always use saw blades with correct size and shape(diamond
versus round) of arbor holes.
Saw blades that do not match the mounting hardware of the saw will
run off-centre, causing loss of control.
h) Never use damaged or incorrect saw blade mounting materials,
such as flanges, washers, screws or nuts.
These saw blade mounting materials have been specially designed for
your saw, for optimum performance and operational safety.
i) Never stand on the table saw and don not use it as a step stool.
Serious injuries can arise if the tool topples or if you accidentally
come into contact with the saw blade.
j) Make sure that the saw blade is installed to rotate in the correct
direction. Do not use grinding discs, wire brushes or abrasive
wheels on the table saw. Incorrect fitting of the saw blade or the use
of accessories that have not been recommended can result in serious
injuries.
7. Safety instructions for handing saw blades
a) Only use tools which you know how to handle.
b) Pay attention to the maximum speed. The maximum speed stated
on the tool being used must not be exceeded. Keep within the speed
range if one is specified.
c) Note the direction of rotation of the motor and saw blade.
d) Do not use a cracked saw blade. Never attempt to repair a cracked
saw blade. Damaged blades must be replaced.
e) Do not use any loose reducing rings or bushes to reduce the size of
arbor holes on circular saw blades.
f) Handle saw blades with care. It is best to store them in their
original packaging or special containers. Always wear protective
gloves to improve your grip and further reduce the risk of injury.
g) Make sure that all safety devices are fitted correctly before
installing the saw blade.
h) Make sure that the saw blade fulfills the technical specifications
and is correctly fitted.
i) The saw blade supplied should only be used for sawing wood,
never for sawing metal.
j) Always select the correct saw blade for the material to be cut.
k) Make sure that the diameter of the saw blade corresponds to the
specifications of the saw.
l) Use only saw blades that are marked with an equal or higher
rotation speed than that marked on the saw.
m) Use only saw blades recommended by the manufacturer which
conform to EN 847-1, if intended for cutting wood or similar
materials.
n) Wear suitable personal protective equipment, such as:
- hearing protection
- Protective gloves when handling saw blades.
o) WARNING:when changing the saw blade, make sure that the kerf
of the blade is not less than the thickness of the riving knife and that
the thickness of the blades is not greater than the thickness of the
riving knife.
p) When sawing wood and plastics, avoid overheating the saw teeth,
Reduce the feed speed to avoid the plastic melting.
8. Residual Risks
This table saw has been constructed in accordance with the latest
technology and generally recognised safety regulations. Nevertheless,
hazardous situations cannot be ruled out during operation.
- There is a risk of electirc shock if unsuitable electrical equipment is
used to connect the saw to the power supply.
- In addition, concealed residual risks may be present in spite of all
the precautions that have been taken.
- Residual risks can be minimised by observing the safety warnings
and by using the table saw for the correct purpose and in the manner
described in this instruction manual.
- Excessive feed speed and force on the workpiece during sawing will
quickly damage the saw blade. This may result in a reduction in the
performance of the machine, as well as a reduction in the cutting
accuracy.
- Avoid switching the machine on by accident:the power button must
not be pressed in when the plug is inserted into the wall socket.
- Use the saw blade which is recommended in this manual. This will
ensure the optimal performance of your saw.
- Keep your hands away from the working area when the machine is
in operation.
- Before you carry out any adjustments or servicing work, turn the
device off and remove the mains plug.

6
9. Technical Data
Specifications:
Mains Voltage - 220-240V / 50Hz
Power Consumption - S1 1800W;
S6 25% 2000W
No Load Speed - 5000rpm
Blade Spec -250x30x24T
Cutting Capacity:
At 90 degrees - 85mm
At 45 degrees - 65mm
Height adjustment - 0-85mm
Saw blade swivel - 0-45°
10. Assembly & Installation
Avoid unintentional starting of the machine. During assembly and
for all work on the machine, the power plug must not be connected
to the mains supply.
Carefully remove all parts included in the delivery from their
packaging.
Remove all packaging material from the machine and the accessories
provided.
Before starting the operation of the machine for the first time, check
if all parts listed in the box content section have been supplied
Note: Check the power tool for possible damage. Before further use
of the machine, check that all protective devices are fully functional.
Any lightly damaged parts must be carefully checked to ensure
flawless operation of the tool. All parts must be properly mounted
and all conditions fulfilled that ensure faultless operation.
Damaged protective devices and parts must be immediately replaced
by an authorised service centre.
Dust extraction
Dust from materials such as lead-containing paint, different kinds of
wood, minerals and metal maybe harmful to health. Touching of
inhaling the dust can cause allergic reactions and/or ailments of the
respiratory tract of the user or persons in the vicinity. Certain dust
such as oak or beech dust is considered carcinogenic, particularly in
combination with wood treatment additives (chromate, wood
preservatives). Materials containing asbestos may only be processed
by experts.
– Always use a dust extraction facility.
– Make sure the workplace is well ventilated.
– Always wear a dust protection mask.
– Observe the regulations valid in your country for the materials to
be processed.
Attach the Table Extensions
1. Make sure that the saw blade is at its lowest setting. Turn the saw
upside down and place it on the floor with the table facing down.
2.Line the table extension (8) up with the edge of the saw table (1).
3. Loosely fasten the extension to the table using hexagon head
screws (20) and nuts (21) or Extension table support rod(24). Repeat
the procedure on the opposite side of the table.

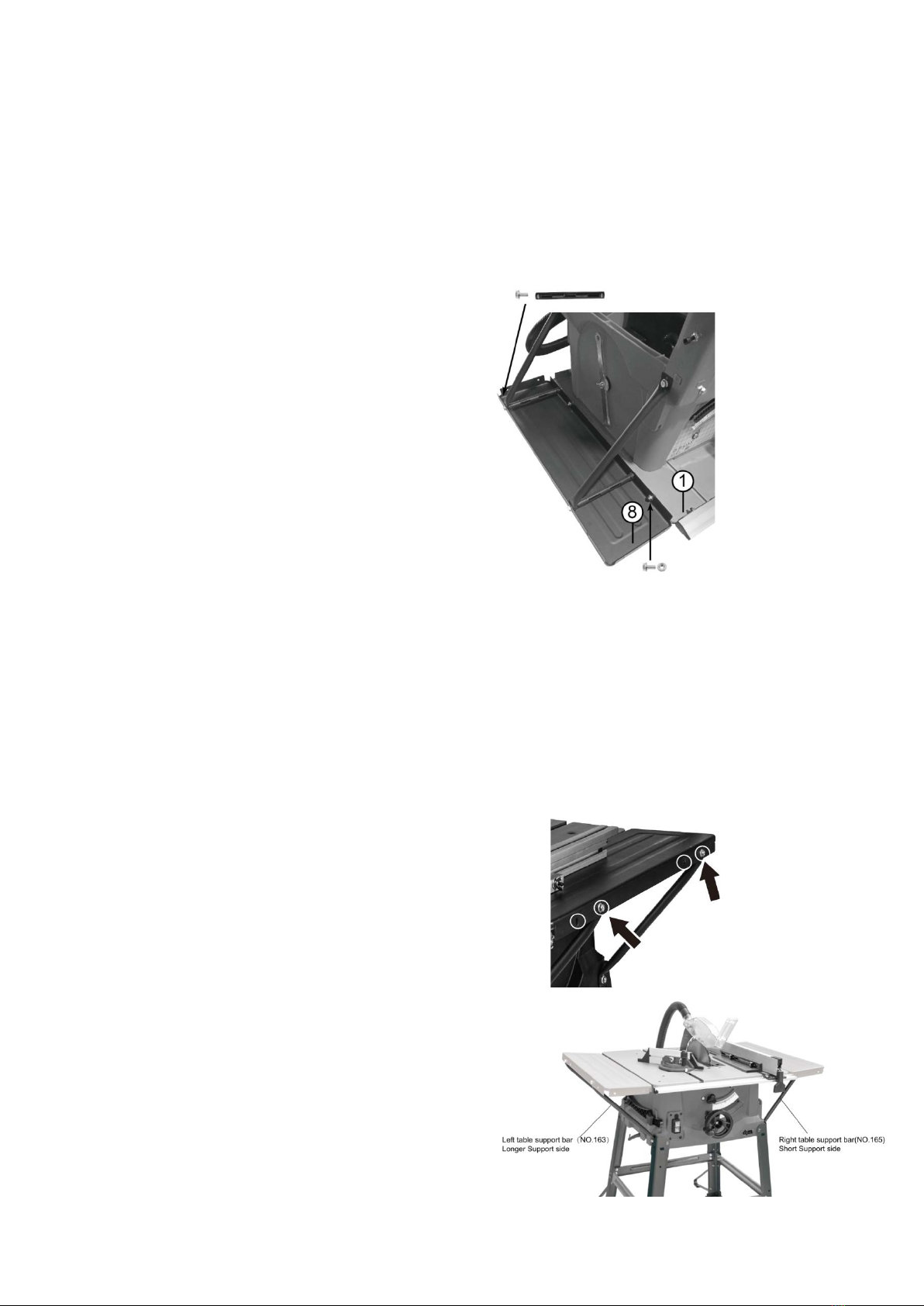

4. Screw the support struts (23) to the table extensions with washers
and nuts.
5. Tighten the nuts when both extensions have been attached.
Note: The side table support struts (23) are supplied in two sizes. The
longer 2 should be fitted to the left hand side of the machine, the
shorter two on the right, and should be attached to the outer flange
of the extension panels. Fasten one end of the support strut to the
inside of the extension panel using the rearmost hole. Repeat this
step on both sides.
The other end of the support strut attaches to the top of its
accompanying corner leg.
•Carefully remove the relevant machine screw from the top of the
corner leg.

7
Attaching the Sub-Frame
1.Attach the legs(17) as shown in the picture. The ends of the
support struts are fastened using the same screws as the legs, as
shown in the picture.
2.Push the rubber feet (17a) onto the ends of the legs.
3.Screw on the cross braces (18 and 19). The long cross braces should
be installed parallel to the control/front side of the saw.
4.Screw on the leg support stays (17b) as shown in the picture. They
should be installed on the rear legs.
Riving knife and saw blade
Riving knife
Remove the saw table insert by undoing the screw (see picture) and
lifting out the insert.
Set the saw blade to its maximum height setting by turning the hand
wheel (13) clockwise.
Make sure that the tilt angle is set to 0° and locked using the lock
knob (14).
Place the riving knife over the alignment lugs.
5.Secure the riving knife with the washer and set screw making sure
that the arrow on the washer point s to the saw blade as shown in
the picture.

8
Adjusting the riving knife
Ensure that the mounting blocks projecting lugs engage with the slot
in the riving knife. Adjust the riving knife so that it is between 3-5mm
from the saw blade. The blade guard mounting hole on the riving
knife should be at least 10 mm higher than the tooth peak.
Blade guard and Dust extraction port adaptor
When correct alignment is achieved tighten the fixing bolt. Check the
saw blade rotates freely and teeth are within 3-5mm of the riving
knife. Re-install the table access plate. The guards locating pin should
be positioned through the hole machined in the top edge of the
riving knife. Secure using the thumb screw, do not over tighten. crew,
do not over tighten.
Note: Adjust the blade guard for the material you are cutting. To
adjust to the thickness of the material being cut, the blade guard
must pivot up and down easily and smoothly, so do not over-tighten
this wing nut.
Check the operation of the blade guard. Ensure that it is working
efficiently and covers the blade at the sides as well as the crown.
Lower the blade a little and recheck that the blade guard operation.
When satisfied that the blade guard works throughout the blades
height adjustment range, check that the guard works equally well
with the blade set to a bevel angle.
Check that when the blade is fully lowered, the blade guard is in
contact with the table top.
Note: The top blade guard is equipped with a dust extraction port .
Connect the supplied dust extraction hose to the top blade
guard. The hose is a ‘push fit’ onto the extraction port.
Connect the other end of the hose to the 2 way connector found to
the rear of the machines main body.
Note: The ‘free’ port of the 2 way connector can be used to attach a
workshop dust extraction machine to this Evolution machine. If such
a machine is connected to this Table Saw follow the Instructions
provided by the supplier/manufacturer of the dust extraction
equipment.
Use of such equipment will ensure that the workplace is kept clean
and tidy, and that dust is kept to a minimum.
Saw blade
1.Make sure that the inner flange washer(the inner washer has a
round hole in the centre) is placed on the drive shaft.
2. Place the saw blade onto the flange of the support washer. Make
sure that the saw blade is facing the right way. The direction of
rotation markings on the blade should be facing outwards and
correspond with the markings on the saw.

9
3. Fit the outer flange washer and screw in the lock nut. Hold the
drive shaft with one of the spanners on the outer flange washer
whilst simultaneously tightening the lock nut (clockwise).
Changing the blade
Warning: Make sure that the saw is disconnected from the power
supply before starting to change the saw blade. Wear safety gloves.
1. Remove the saw table insert by undoing the screw (see picture)
and lifting out the table insert.
2. Set the saw blade to its maximum height setting by turning the
hand wheel (13) clockwise.
3. Remove the old saw blade using the two spanners. Then following
the saw blade installation instructions above, making sure to adjust
the riving knife if necessary (instructions below).
11.Operation
. Make sure that the saw is completely intact and correctly
assembled before commencing work.
. Check that the saw blade is vertical (90°) and is not set higher than
is necessary to just manage to saw through the thickness of the
workpiece.
. Regularly check that all nuts and screws are tight.
ON/OFF switch (start/stop)
Plug the mains lead into a wall socket.
Switching on: Push the green button [I] to start the motor.
Switching off: Push the red button [0] to turn the motor off.
No-volt release switch
The saw is equipped with a no-volt release switch which prevents it
from starting automatically when the power comes back on following
a power cut. Once power has been restored the saw must be
switched on again by pressing [l].
Motor overload cut-out
If the motor is overloaded due to incorrect workpiece feed or the
saw blade being
obstructed by debris, the overload cut-out may be triggered.
If the overload safety cut-off switch is triggered:
Unplug the mains lead and let the saw cool down for at least 10
minutes.
Make sure that no contaminants hinder the rotation of the saw blade,
brush off and vacuum saw dust as and when required.
Press the overload cut-out reset button (a) pictured.
Switch the saw on by pressing [I].
Setting the saw blade height
Turn the hand wheel (13) to set the desired height. Never set the
blade higher than is necessary to saw through the workpiece.
Adjusting the Parallel
Pull the clamping lever (b) upwards.
Move the cross stop (16) into the required position.
The set position can be read from the scale .
Press the clamping lever (b) down.

10
Mitre gauge
Slide the mitre gauge into one of the slots on the table.
Undo the locking knob (c) and set the desired angle. Tighten the
locking knob again.

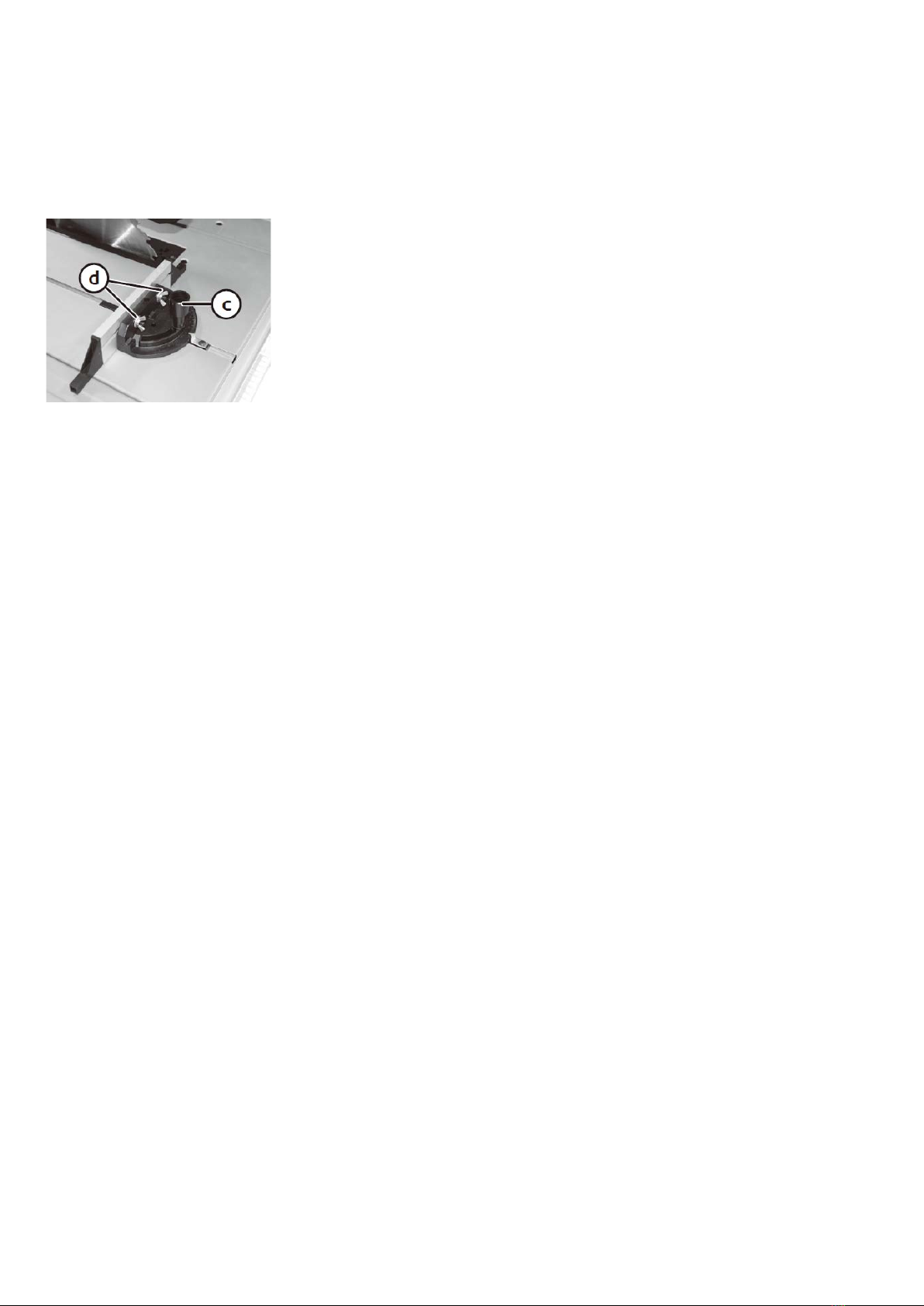

If necessary, undo the two wing nuts (d) and move the rip fence to
the side so that it does not catch on the blade, then tighten the wing
nuts again.
Setting the blade tilt
Note: Check all the angles before starting to saw.
Undo the locking knob (14) and set the desired angle.
Tighten the locking knob again.
Rip cutting
Note:
Rehearse every step of the cutting task without turning the saw on
if you are unsure how to hold the workpiece and work safely.
Make a test cut and measure before starting to rip cut on the actual
workpiece.
Always let the saw come up to full speed before starting to cut.
Be extra careful at the beginning of every cut.
When rip-cutting thick workpieces where the saw blade is set to its
maximum height: check that the riving knife is set to its maximum
height setting otherwise there is a risk of the workpiece fastening on
the blade guard. Refer to the Adjusting the riving knife section.
Hold one side of the material against the rip fence and the flat face
against the surface of the table.
Do not stand directly behind the workpiece when rip cutting. The
workpiece can be thrown back towards the operator.
Place your hands on the workpiece and press it against the table
and the rip fence. Feed the workpiece into the blade in a controlled
and smooth motion.
Warning: Always use a push-stick if any of your hands comes closer
than 125.mm to the saw blade during the. cutting process. Never use
a damaged push-stick, replace a damaged stick before resuming
work.
12. Maintenance and Cleaning
Before any work on the machine itself, pull the mains plug.
If the machine should fail despite the care taken in manufacturing
and testing procedures, repair should be carried out by an approve
service centre.
– Store the tool, instruction manual and accessories in a secure place.
In this way you will always have all the information and parts on
hand.
Cleaning
– For safe and proper working, always keep the power too land its
ventilation slots clean.
– Remove dust and chips after each working procedure by blowing
out with compressed air or with a brush.

11
14.Parts List and Parts Diagram
No. Description No. Description
1 Spring 32 Carbon brush
2 Rear clamping
plate
33 Brush holder
3 Spring holder 34 Cross head screws
4 Block 35 Motor house
5 Rip fence 36 Strain relief
6 Connector 37 Motor connect line
7 Spring pin 38 Self tapping screws
8 Lock handle 39 Left label
9 End cap 40 Set screws
10 Bracket 41 Left blade guard
11 Screws 42 Lock nut
12 Rip fence indicator 43 Right blade guard
13 Wing nut 44 Right label
14 Cross head screws 45 Spring
15 Nut 46 Knob
16 Table insert 47 Riving knife bracket
17 Table 48 Riving knife
18 Screw 49 Hex screws
19 Screw 50 Riving knife clamp
20 Hex nut 51 Socket screws
21 Carriage bolt 52 Spring washer
22 Left End cap 53 Screws
23 Left guide rail 54 Rear mount plate
24 Left scale 55 Pin
25 Right End cap 56 C-ring
26 Push sticker holder 57 Rear Bevel shaft
support
27 Hex nut 58 Locking plate
28 Table support
block
59 Hex nut
29 Self tapping screws 60 Dust cover
30 Motor end cap 61 Cross head screws
31 Self tapping screws 62 Plate
No. Description No. Description
63 Washer 93 Bushing - driving rod
64 Blade guard plate 94 Self tapping screws
65 Extraction hose 95 Actuating arm
66 Bearing sleeve 96 Spring pin
67 Bearing 97 Washer
68 Motor housing
field assembly
98 Spring
69 Self tapping screws 99 Bevel lock knob
70 Armature
assembly
100 Spring
71 Bearing 101 Bevel gear wheel
72 Baffle 102 Bevel crank wheel
73 Gear housing 103 Knob
74 C-ring 104 Screws
75 Gear 105 End cap
76 Screw 106 Front Bevel shaft
support
77 Bearing 107 Front mount plate
78 Bearing cover plate 108 Blade guard
79 Arbor 109 Extension table
support rod
80 Flat key 110 Lock nut
81 Cross head
assembly
111 Lower blade guard
82 Motor bracket 112 Double nut
83 Inner blade flange 113 Threaded rod
84 Blade 114 Washer
85 Outter blade
flange
115 Hex bolt
86 Hex bolt 116 Main casing
87 Cross head
assembly
117 Data label
88 Bevel indicator 118 Label
89 Mount plate 119 Cord protector
90 Bracket - driving
rod
120 Cable clamp
91 Washer 121 Power cord
92 Bevel gear 122 Capacitor

12
No. Description No. Description
123 Self tapping screws 155 Miter gauge
indicator
124 Switch 156 Self tapping screws
125 Switch box 157 Miter gauge
126 Switch box cover 158 Knob
127 Screws 159 End cap
128 Gear rack 160 Miter gauge stop
rail
129 Hex nut 161 Carriage bolt
130 Hex screws 162 Rod - rip fence
131 Washer 163 Left table support
bar
132 45° bush 164 Left extension table
133 90° bush 165 Right Table support
bar
134 Logo 166 Over-load switch
135 Carriage bolt 167 Rip fence holder
136 Threaded spacer 168 Rip fence slider
137 Washer 169 Nut
138 Blade spanner a 170 Extension fence
139 Blade spanner b
140 Rubber foot
141 Push sticker
142 Leg A
143 Hex screws
144 Socket screws
145 Beam B
146 Square nut
147 Beam C
148 Cross head screws
149 Washer
150 Stability Support
foot
151 Stability support
152 Hex bolt
153 Self tapping screws
154 Rod - miter gauge

13

14
Data: 18/11/2020
Table SAW – Part. No. DJM01985-V2
EN IEC 62841-1:2014+C1:2014
EN 55014-1:2017
EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-11:2000
EN 61000-3-2:2014
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive

15
8-1/4”Mitre Saw – Part. No. DJMSL8
EN 62841-1 :2015+AC:15
EN 62841-3-9 : 2015+AC:16+A11:17
EN 55014-1:2017
EN 55014-2 : 2015
EN 61000-3-2:2014
EN 61000-3-3:2013
