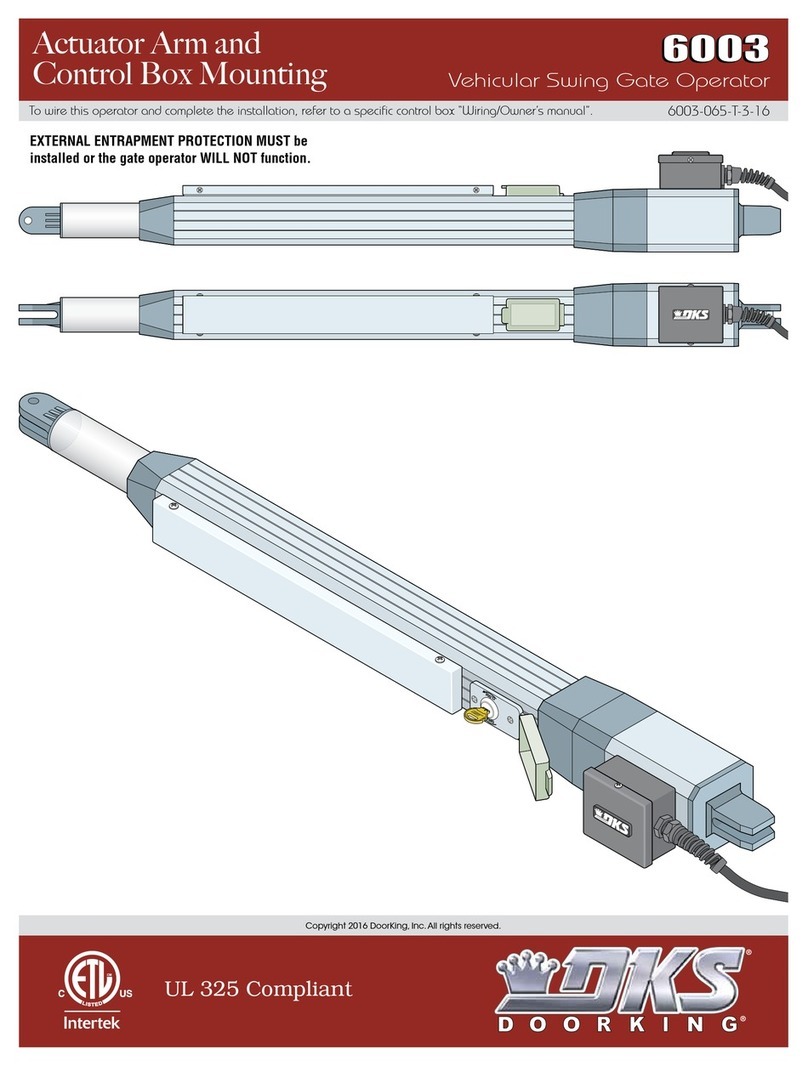

DKS 6003 Operating instructions

Use this manual for circuit board 4302-010 Revision A or higher.
Installation/Owner’s Manual
6003
6003
6003
Copyright 2009 DoorKing, Inc.All rights reserved.
TM
Copyright 2010 DoorKing, Inc.All rights reserved.
Date Installed:
Installer/Company Name:
Phone Number:
Leave Manual with Owner
Vehicular Swing Gate Operator
UL 325 Compliant
Circuit Board
Serial Number
and Revision Letter:
OPEN
CLOSE
WARNING
MOVING GATE CAN CAUSE
Operategateonlywhengate areaisinsight
andfreeofpeopleandobstructions.
Donotallow childrentoplayingate area
oroperategate.
Donot standingate pathorwalkthrough
pathwhilegateismoving.
Readowner’smanualandsafetyinstructions.
SERIOUS INJURYOR DEATH
CLASS
CERTIFIEDTO
CAN/CSAC22.2NO. 247
CONFORMSTO
ANSI/UL-325
VEHICULARGATEOPERATOR
HP
53382
MODEL
SERIAL
VOLTSPHASE
AMPS60Hz
MAXGATELOAD
DoorKing,Inc.,Inglewood,CA
WARNING
MOVING GATE CANCAUSE
Operategateonlywhengate areaisinsight
andfreeofpeopleandobstructions.
Donotallow childrentoplayingate area
oroperategate.
Donot standingate pathorwalkthrough
pathwhilegateismoving.
Readowner’smanualandsafetyinstructions.
SERIOUS INJURY OR DEATH
CLASS
CERTIFIEDTO
CAN/CSAC22.2 NO. 247
CONFORMSTO
ANSI/UL-325
VEHICULARGATEOPERATOR
HP
53382
MODEL
SERIAL
VOLTSPHASE
AMPS60Hz
MAXGATELOAD
DoorKing, Inc., Inglewood, CA
Standard
Control
Box
Deluxe
Control
Box
6003-065-J-7-10

6003-065-J-7-10 1
6003 SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any
persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is
copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written
consent from DoorKing, Inc.
2.5”
Actuator Arm
Class of Operation Model 6003 - UL325 Class I
Type of Gate Residential Vehicular Swing Gates Only
Motor RPM 1400
Maximum Thrust 300 daN
Voltage / Phase 115 VAC Single Phase Input Power – 24 VDC Operating Power
Current 3 Amps
Max Gate Weight 300 Lbs.
Max Gate Length 10 Feet.
Useful Rod Stroke 14 inches
Cycles Per Hour 10 Per Hour with AC connected
Speed 90° in approximately 15 seconds
Entrapment Protection Primary - Inherent entrapment sensing system (Type A)
Secondary - Provision for connection of a non-contact sensor (Type B1)
Rod Extends 14”
32.5”
5”
3.25”
2.5”

6003-065-J-7-10
2
CONTROL BOXES SPECIFICATIONS
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any
persons of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is
copyrighted, all rights reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written
consent from DoorKing, Inc.
Class of Operation Models 6002, 6003, 6004 and 6400 - UL325 Class I
Type of Gate Residential Vehicular Swing Gates Only
Voltage / Phase 115 VAC 60 Hz Single Phase Input Power – 24 VDC Operating Power
Back-Up Power 24 VDC battery power during power outages.
Circuit Board Model 4302-010
Standard Control Box
P/N 4302-111
Deluxe Control Box
P/N 4302-112
4.25”
4.25”
16.5”
12.5”
24.5”
14.5”
1 2 3 4 5 6 7 8 9 10111213 14151617 1819 20
1
7
6
5
4
3
2
4302
1 2 3 4 5 6 7 8 9 10111213 14151617 1819 20
4302
115 VAC convenience outlets to
power auxiliary power transformers.
OFF
ON

6003-065-J-7-10 3
SPECIFICATIONS 1
6003 Specifications
Control Boxes Specifications
ASTM F2200 Standard for Gate Construction
Important Safety Instructions
Instructions regarding intended installation:
Important Notices
UL 325 Entrapment Protection
Glossary
Swing Gate Requirements
Swing Gate Protection
1
2
4
4
4
5
6
7
8
9
SECTION 1 - INSTALLATION 10
10
11
12
13
14
1.1 Manual Key Release
1.2 Gate “Opens to the Inside” Installation
1.3 Gate “Opens to the Outside” Installation
1.4 Mounting Actuator Arm
1.5 Mounting Control Box with Conduit and Warning Signs
SECTION 2 - WIRING 15
15
16
17
18
19
20
2.1 Wiring Actuator Arm(s)
2.2 Secondary Entrapment Protection Wiring
2.3 Main Terminal Description
2.4 Main Terminal Wiring
2.5 Loop Detector Wiring
2.6 High Voltage Wiring and Battery Connection
SECTION 3 - ADJUSTMENTS 21
21
22-23
23
24
25-26
3.1 3402 Circuit Board Description and Adjustments
3.2 DIP-Switch Descriptions and Functions
3.3 Limit Sensor Adjustments
3.4 Inherent Entrapment Sensing Adjustment
3.5 Shutdown Conditions
Soft Shutdown
Hard Shutdown
SECTION 4 - MAINTENANCE AND TROUBLESHOOTING 27
4.1 Maintenance
4.2 Diagnostics Check
4.3 Troubleshooting
4.4 Accessories
6003 with Standard or Deluxe Control Box Schematics
27
27-28
28-29
29
30
TABLE OF CONTENTS

6003-065-J-7-10
4
Instructions regarding intended installation:
Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated
Vehicular Gate Construction. For a copy of this standard, contact ASTM directly at 610-832-9585; [email protected]; or
www.astm.org.
Important Safety Instructions
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust
and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS!
•Install the gate operator only if:
1. The operator is appropriate for the construction of the gate and the usage class of the gate.
2. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 4 feet
(1.22 m) above the ground to prevent a 2 ¼ inch (57.2 mm) diameter sphere from passing through the openings
anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
•The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
•The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures
when opening and closing to reduce the risk of entrapment. Swinging gates should not open into public access areas.
•The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not
over-tighten the operator clutch, pressure relief valve or reduce reversing sensitivity to compensate for a damaged gate.
•For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving.
2. A warning placard shall be placed adjacent to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.
4. No other activation device shall be connected.
•Controls intended for user activation must be located at least ten feet (10’) away from any moving part of the gate and
where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or
easily accessible controls should have a security feature to prevent unauthorized use.
•The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not
cause the operator to start.
•A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
•For gate operators utilizing a non-contact sensor:
1. See the instructions on the placement of non-contact sensors for each type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate
is still moving in the opening direction.
3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the
perimeter reachable by a moving gate or barrier.
ASTM F2200 Standard for Gate Construction

6003-065-J-7-10 5
•For gate operators utilizing contact sensors:
1. One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the
leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor
and the gate operator is not subjected to mechanical damage.
5. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where the transmission of the signals are not obstructed or
impeded by building structures, natural landscaping or similar obstructions. A wireless contact sensor shall function
under the intended end-use conditions.
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
Vehicular gate operator products provide convenience and security. However, gate operators must use high levels of force
to move gates and most people underestimate the power of these systems and do not realize the potential hazards associ-
ated with an incorrectly designed or installed system. These hazards may include:
•Pinch points
•Entrapment areas
•Reach through hazards
•Absence of entrapment protection devices
•Improperly located access controls
•Absence of vehicle protection devices
•Absence of controlled pedestrian access
In addition to these potential hazards, automated vehicular gate systems must be installed in accordance with the UL 325
Safety Standard and the ASTM F2200 Construction Standard. Most lay persons are unaware of, or are not familiar with,
these standards. If an automated vehicular gate system is not properly designed, installed, used and maintained, serious
injuries or death can result. Be sure that the installer has instructed you on the proper operation of the gate and gate
operator system.
Be sure that the installer has trained you about the basic functions of the required reversing systems associated with your
gate operating system and how to test them. These include reversing loops, inherent reversing system, electric edges,
photoelectric cells, or other external devices.
•This Owner’s Manual is your property. Keep it in a safe place for future reference.
•Be sure that all access control devices are installed a minimum distance of 10 feet away from the gate and gate
operator, or in such a way that a person cannot touch the gate or gate operator while using the device. If access
control devices are installed in violation of these restrictions, immediately remove the gate operator from service
and contact your installing dealer.
•Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the gate from
closing on vehicular traffic.
•The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and signs to keep
vehicular traffic from speeding through the gate area. Failure to adhere to posted speed limits can result in
damage to the gate, gate operator, and to the vehicle.
•Be sure that all persons who will use the gate system are familiar with the proper use of the gate and gate
operator and are familiar with the possible hazards associated with the gate system.
•Be sure that warning signs are permanently installed on both sides of the gate in an area where they are fully
visible to traffic.
•It is your responsibility to periodically check all entrapment protection devices. If any of these devices are
observed to function improperly, remove the operator from service immediately and contact your installing or
servicing dealer.
•Follow the recommended maintenance schedule.
•Do not allow children to play in the area of the operator or to play with any gate-operating device.
•To remove the gate operator from service, operate the gate to the full open position and then shut off power to
the operator at the service panel.
Important Notices

6003-065-J-7-10
6
UL 325 Entrapment Protection
Class I
Class I and II
Class III
Class IV
Class II
Class III Class IV
A vehicular gate operator (or system) intended for use in a
home of one-to four single family dwelling, or a garage or
parking area associated therewith.
A vehicular gate operator (or system) intended for use in a
commercial location or building such as a multi-family
housing unit (five or more single family units) hotel,
garages, retail store or other building servicing the general
public.
A vehicular gate operator (or system) intended for use in a
industrial location or building such as a factory or loading
dock area or other locations not intended to service the
general public.
A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport
security area or other restricted access locations not
servicing the general public, in which unauthorized access
is prevented via supervision by security personnel.
This table illustrates the entrapment protection requirements for each of the four UL 325 classes.
A- Inherent entrapment protection system.
B1 - Provision for connection of, or supplied with, a non-contact sensor (photoelectric sensor or the equivalent).
When used as the PRIMARY device, must be monitored.
B2 - Provision for connection of, or supplied with, a contact sensor (edge device or the equivalent).
When used as the PRIMARY device, must be monitored.
C- Inherent adjustable clutch or pressure relief device.
D- Provision for connection of, or supplied with, an actuating device requiring continuous pressure to maintain
opening or closing motion of the gate.
E- An inherent audio alarm.
STATE PRISON
UL 325
Classifications
Horizontal Slide, Vertical Lift, Vertical Pivot Swing and Vertical Barrier (arm)
Primary Protection
A B1, B2 or D A, B1, B2, C or DA or C
A, B1 or B2 A, B1, B2, D or E A, B1, B2, C or DA, B1, B2 or C
A, B1, B2 or D A, B1, B2, D or E A, B1, B2, C, D or EA, B1, B2, C or D
Secondary Protection Primary Protection Secondary Protection

6003-065-J-7-10 7
Glossary
GATE - A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage
barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and
completes the perimeter of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I - A vehicular gate operator (or system) intended for use in a home
of one-to four single family dwelling, or garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II - A vehicular gate operator (or system)
intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units),
hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III - A vehicular gate operator (or system)
intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended
to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV - A vehicular gate operator (or system) intended for use in
a guarded industrial location or building such as an airport security area or other restricted access locations not servicing
the general public, in which unauthorized access is prevented via supervision by security personnel.
VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM) - An operator (or system) that controls a cantilever type device (or
system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for vehicular traffic flow at
entrances or exits to areas such as parking garages, lots or toll areas.
VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a
gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to a drive, parking lot, or
the like.
VEHICULAR SWING-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a gate which
moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a drive, parking lot, or the
like.
SYSTEM - In the context of these requirements, a system refers to a group of interacting devices intended to perform a
common function.
WIRED CONTROL - A control implemented in a form of fixed physical interconnections between the control, the associated
devices, and an operator to perform predetermined functions in response to input signals.
WIRELESS CONTROL - A control implemented in means other than fixed physical interconnections (such as radio waves or
infrared beams) between the control, the associated devices, and an operator to perform predetermined functions in
response to input signals.
INHERENT ENTRAPMENT PROTECTION SYSTEM - A system, examples being a motor current or speed sensing system,
which provides protection against entrapment upon sensing an object and is incorporated as a permanent and integral part
of the operator.
EXTERNAL ENTRAPMENT PROTECTION DEVICE - A device, examples being an edge sensor, a photoelectric sensor, or
similar entrapment protection device, which provides protection against entrapment when activated and is not incorporated
as a permanent part of an operator.
ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury.

6003-065-J-7-10
8
Swing Gate Requirements
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
(ref. UL325 56.8.4.b)
If space is greater than 4 inches,
entrapment protection in this area
is required. ASTM F2200 7.1.1.1
and 7.1.1.2
If space is less than 16 inches,
entrapment protection in this area
is required. ASTM F2200 7.1.1.1
and 7.1.1.2
A
A
B
Not Allowed OK
A
B
Closed Gate
Closed Gates
With the hinge mounted on
the corner of the pilaster,
the entrapment area is
eliminated and protection is
not required for this area.
Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches. ASTM F2200 4.3
Closed Gate
Opened Gate
Opened Gate

6003-065-J-7-10 9
Swing Gate Protection
Non-contact Sensor
Reverse Loop
Shadow Loop
Automatic Exit Loop
C
D
D
C
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
(Optional) will provide an open
command to the gate operator(s)
when a vehicle is exiting the
property.
Provides a hold open command to
the operator(s) only if the gate(s)
are at the full open position.
Separate Pedestrian
Walkway
Located so pedestrians
cannot come in contact
with the vehicular gate.
Minimizes the potential
of the gate closing on
vehicular or other traffic
that loops cannot sense.
Warning Signs
D
Permanently mounted
and easily visible from
either side of the gate.
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.

6003-065-J-7-10
10
OPEN
CLOSE
Sample Installation
Dual Gate Operators
SECTION 1 - INSTALLATION
1.1 Manual Key Release
Manually key release the actuator. Powered shaft can be
pulled out.
It is important to consider hinge placement on a pilaster
when installing the gate. Placing hinges close to the
edge of the pilaster can eliminate a potential entrapment
area (See Swing Gate Requirements on page 8).
Powered Shaft
Prior to
beginning the
installation of the swing
gate operator, we suggest
that you become familiar with the
instructions, illustrations, and wiring
guide-lines in this manual. This will help
insure that your installation is performed in an
efficient and professional manner compliant with
UL 325 safety and ASTM F2200 construction standards.
The proper installation of the vehicular slide gate operator is an
extremely important and integral part of the overall access control
system. Check all local building ordinances and building codes prior to
installing this operator. Be sure your installation is in compliance with local
codes.
The actuator arm can be manually operated in case of power failure. Never manually release the arm until you have verified that
ALL power has been shut-off to it (Including batteries).

6003-065-J-7-10 11
1.2 “Opening to the Inside” Installation
47.5” Closed Position
7”
7”
90°
Gate Hinge Pivot Point
Front Bracket Pivot Point
Front Bracket
Rear Bracket Pivot Point
Attaching Brackets to Surfaces
Bolt or weld brackets to gate and support post/wall.
Closed Position
Open Position
Actuator arm MUST be level!
A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
Gate in Closed Position
Do not install the actuator in
fully extended (Bottomed out)
position. This will damage the
arm. See page 13 to prevent
this from happening.
Hardware
(Not Supplied)
Front Bracket
Bolt or weld to gate.
Angles will reduce operators
distance from wall. See page 13.
Angled Configurations
Wall
2” 21/2”
51/2”
3”
Straight
Rear Bracket Options
Assemble straight out (shown)
or 3 different angles.
Sleeve Anchors
(Not Supplied)
Cut Off
Excess
Bracket
Cut Off
Excess
Bracket
Bottom Installation Note:
Make sure that the
operator is mounted high
enough off the ground
that it will NOT come in
contact with standing or
flowing water. This will
damage the operator.
Bottom
Middle
Top
Support Post
Note: The brackets must be perpendicular (Plumb) to the gate and wall/post and
horizontally level. If welding brackets to surfaces, weld completely around brackets.

6003-065-J-7-10
12
1.3 “Opening to the Outside” Installation
7”
Addition to
support bracket
must be
fabricated to
reach wall.
Gate Hinge Pivot Point
Front Bracket
Pivot Point
Gate in Closed Position
Rear Bracket Pivot Point
Closed Position
Open Position
Actuator arm MUST be level!
A support bar must span
the entire length of the
gate to support the gate
pickets. The pickets will
bend if not supported.
Support Bar
90°
7”
Rear Bracket
Do not install the
actuator in fully
extended (Bottomed out)
position. This will
damage the arm. See
next page to prevent this
from happening.
Hardware
(Not Supplied)
Front Bracket
Bolt or weld to gate.
Bolt rear support bracket
to fabricated steel plate
with supplied lock nuts.
Rear Support
Bracket
(Supplied)
Fabricated
Steel Plate
(Not Supplied)
Front Bracket
Cut Off
Excess
Bracket
Cut Off
Excess
Bracket
A rear bracket will need to be fabricated.
The bracket will vary in size depending on
the gate hinge inset. It can be attached to
the wall by welding or bolting, depending
on the type support post/wall.
The bracket MUST be level and VERY
secure to the wall. Extreme force will
be exerted on this bracket during gate
cycling.
Rear Bracket Fabrication
Bottom Installation
Note: Make sure
that the operator is
mounted high
enough off the
ground that it will
NOT come in
contact with
standing or flowing
water. This will
damage the
operator.
Bottom
Middle
Top
Weld directly to support post
OR reinforcing steel plate
Support Post
Reinforcing steel plate
for sleeve anchors
if desired.
(Not Supplied)
47.5” Open Position
Note: The brackets must be perpendicular (Plumb) to
the gate and wall/post and horizontally level. If welding
brackets to surfaces, weld completely around brackets.
Attaching Brackets to Surfaces
Bolt or weld brackets to gate and support post/wall.

6003-065-J-7-10 13
1.4 Mounting Actuator Arm
Gate must be in good working condition before the actuator arm can be installed. Determine what direction the actuator arm
will open the gate: “Opening to the Outside” or “Opening to the Inside” Installation (See 2 previous pages).
If brackets are going to be welded to the gate and/or wall, only tack weld the brackets with the arm attached. Protect the arm
from welding sparks during tack welding. Remove arm before completely welding around the brackets. Make sure the
brackets are level when tack welding them! The arm will not operate properly if not level.
It is very important that the powered shaft is not fully extended when installed on the gate (bottoming out). This will damage the
arm. To prevent this, manually release the arm and fully extend the powered shaft. Rotate it back two full turns before
installing the arm.
This illustrates when the gate is “Opening to the Inside” Only.
Front bracket and operator
always stay in a fixed location.
Rear bracket is adjusted for
gate hinge inset.
A support bar that spans the entire length of the gate must be installed to keep the pickets from bending. Do not mount the
front bracket directly to gate pickets!
Rear Bracket Configurations for Different Gate Hinge Insets
Welding Brackets to Surfaces
Gate Support Bar
Prevent Powered Shaft from Bottoming Out
Rotate back 2 turns before installing.
Manual Release
Fully Extended (Bottomed Out)
40.5” Fixed Distance
47.5”
OPEN
CLOSE
Powered Shaft
2”
21/2”
51/2”
Thin Wall
Thick Wall
Large Gate Hinge Inset
Medium Gate Hinge Inset
Small Gate Hinge Inset
No Gate Hinge Inset
Gate Hinge Pivot Point
Gate HingeClosed Gate Position
3”
7”
7”
7”
7” Fixed Distance
between gate hinge
pivot point and arm’s
rear pivot point.
7”
Rear Bracket Pivot Point

6003-065-J-7-10
14
Install Warning Signs
1.5 Mounting Control Box with Conduit
This DoorKing Swing Gate Operator is shipped with two warning signs. The
purpose of the warning sign is to alert uninformed persons, and to remind
persons familiar with the gate system, that a possible hazard exists so that
appropriate action can be taken to avoid the hazard or to reduce exposure
to the hazard. See page 9 for suggested mounting positions of signs.
•Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
•Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
Primary
Actuator
Cable
Secondary Actuator Cable Conduit
Control Box must be
properly grounded.
Power Conduit Loops Conduit
Position the control box on the wall, close enough to the operator so the primary operator cable can be easily routed inside
the box. Make sure that the control box is mounted high enough off the ground that it will NOT come in contact with standing or
flowing water. This will damage the internal components. Secure the control box to the wall with appropriate hardware (not
included). Control box has predrilled mounting holes. All power and control wires should be routed to control box in conduits
with sweeps. Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a licensed
electrical contractor perform this work. Check local building codes prior to installing any permanent wiring to ensure all wiring
and connections comply with local electrical code requirements.
•3/4” conduit recommended. Use only sweeps for conduit bends and NOT elbow connectors. Elbows will make
wire pulls very difficult and can cause damage to wire insulation.
•Remove fragile components from control box to protect them during installation if necessary.
Coaxial Cable Antenna Kit
P/N 1514-073 (Sold separately)
Elbow
NO
Sweep
YES

6003-065-J-7-10 15
2.1 Wiring Actuator Arm(s)
SECTION 2 - WIRING
Before attempting to connect any wiring to the control box, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the control box as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the control box (both high and low voltage) complies with
local code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!
Primary
Actuator
Cable
Secondary
Actuator
Cable
1
7
6
5
4
3
2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Brown
Blue
Orange
Red
Yellow
Green
Green/White
Not Used
Secondary Actuator Cable (Interconnection cable)
Primary or Secondary Cable Connection
Primary Actuator Cable
1
7
8
6
5
4
3
2
DoorKing interconnection cable (P/N 2600-75x) inside underground conduit (Sold separately)
1
7
6
5
4
3
2
Secondary Actuator ONLY
Primary Actuator ONLY

6003-065-J-7-10
16
2.2 Secondary Entrapment Protection Wiring
123456789 10 11 12 13 14 15 16 17 18 19 20
Safety Protection
Safety
Protection
Closed Gates
Entrapment Protection
Entrapment Protection
Photo Sensors
PHOTO OPEN (Photo Sensors)
Stops gate movement in the open cycle. Gate resumes
normal operation when the input (obstruction) is
cleared.
PHOTO CLOSE (Photo Sensors)
Stops the gate in the closing cycle. Gate resumes
closing when the input (obstruction) is cleared.
Not used
Not used
COMMON
Terminal for the secondary entrapment device input.
COMMON
1
1
2
3
4
5
6
SW 1
Switch 5 OFF
In addition to the inherent entrapment sensing system, this operator has provisions for the connection of a non-contact (type
B1) secondary entrapment protection device. This is required by UL 325 standards. DoorKing highly recommends installing
loops and loop detectors to enhance this secondary entrapment protection.
Entrapment protection devices are required to reduce the risk of injury. Install sensors where the risk of entrapment or obstruc-
tion exists while gate is moving.
Secondary Entrapment
Protection Terminal
1
ON
2 3 4 56 7 8
4302

6003-065-J-7-10 17
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
2.3 Main Terminal Description
Operation of relay is dependent on setting of
SW 2, switches 1 and 2. Relay contacts can be
set for Normally Open (NO) or Normally Closed
(NC) operation. Contact rating is 1 amp
maximum at 24 Volts.
SW 2
•SW 2, Switch 1 OFF, Switch 2 OFF:
Relay activates when gate is OPEN.
•SW 2, Switch 1 OFF, Switch 2 ON:
Relay activates when gate is OPEN, OPENING or CLOSING.
•SW 2, Switch 1 ON, Switch 2 OFF:
Relay activates when gate is OPEN or OPENING.
•SW 2, Switch 1 ON, Switch 2 ON:
Relay activates when gate is OPENING or CLOSING.
NO NC
SW 2
Maglock: SW 2,
Switch 3 ON, 1 sec.
delay at start.
SW 1
•When gate is closed, input will open gate.
•When gate is open and auto close
timer SW 1, switch 4 is turned ON,
input will re-set and hold timer.
•When gate is open and auto close
timer SW 1, switch 4 is turned OFF,
input will close gate.
•When gate is closing, input will
reverse gate.
•SW 1, switch 3 is ON, terminal #4
functions as a normal FULL open input
(Normal Setting).
•SW 1, switch 3 is OFF, terminal #4
becomes the output from a plug-in loop
detector installed in the EXIT loop port
of the circuit board. SW 1
•When gate is closed, this input has no
affect on the gate operator.
•When gate is open and auto close
timer SW 1, switch 4 is turned ON,
input will re-set and hold timer.
•When gate is open and auto close
timer SW 1, switch 4 is turned OFF,
input will prevent gate from closing.
•When gate is closing, input will
reverse gate if SW 1, switch 5 is OFF.
•When gate is closing, input has no
affect on the gate operator if SW 1,
switch 5 is ON (set for shadow input).
SW 1
SW 1
15 DC power is not present on the
board until first initial cycle of gate.
1
ON
2 3 45 6 7 8
1
ON
2 3 45 6 7 8 1
ON
2 3 4 56 7 8
1
ON
234 5 6 7 81
ON
23 41
ON
234
Low Voltage Common Low Voltage Common Low Voltage Common Low Voltage Common
Dry Relay Contact Alarm Reset Dry Relay Contact
24 VAC - 250 mamp max. Full Open Full Open Full Open Standard Reverse or Shadow Not Used Not Used DC Lock Power Common 24 VDC Maglock Power 12 Volt Battery Low Voltage Common 24 VAC Input 24 VAC Input
4
8
2
12
10
11
For specific wiring information, see next page.

6003-065-J-7-10
18
2.4 Main Terminal Wiring
Controls must be far enough from the gate so that the user is prevented from coming in contact with the gate while operating
the controls. Outdoor or easily accessible controls should have a security feature to prevent unauthorized use. When installing
electrical equipment make certain all wiring complies with local code requirements. Do not power any control devices from the
circuit board other than low voltage devices.
Key Switch
(Dry contact)
Keypad
(Dry contact)
123456789 10 11 12 13 14 15 16 17 18 19 20
SW 2, Switch 3 ON
Connect optional control devices to
the main terminal strip. Use 18 AWG
wire for all low voltage wiring,
maximum distance 3000 feet. Use a
low voltage surge suppressor,
(DoorKing P/N 1878-010) if low
voltage wire runs exceed 1000 feet.
All control device inputs to the
terminal strip must be NORMALLY
OPEN.
1. Com
Relay Com Relay N.O. 24 Volt Power Com 24 Volt Power
Com
Com
Com
N.O.
N.O.
N.O.
Com
N.C.
3. 24 Volt
2. Relay
Magnetic Lock
3-Wire Receiver
4-Wire
Receiver
Mount inside of
control box door.
Reversing input on
Terminal 8 only
functions while the
gate is at the full open
position or during the
closing cycle. It should
not be used as an
input for a secondary
entrapment protection
device during the
opening gate cycle.
Refer to Section 2.2,
page 16 Secondary
Entrapment Protection
Wiring.
Knox Box
(Dry contact)
SW 1,
Switch 3 ON
SW 1, Switch 3 ON
Telephone Entry
Note: Telephone entry device
must use a separate power
source.
Note: Circuit board
provides 24 VDC to
power maglock.
Com
N.O.
SW 1
1
ON
234 5 6 7 8
SW 1
1
ON
234 5 6 7 8
SW 2
1
ON
234
For individual terminal descriptions, see previous page.
