Martin M90 User manual
Important
MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO
CONTAMINATION OF THE MATERIAL; USER’S FAILURE TO INSPECT, MAINTAIN AND TAKE
REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR
APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS
CONTAINED HEREIN. MARTIN ENGINEERING’S LIABILITY SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.
Observe all safety rules given herein along with owner and Government standards and regulations. Know
and understand lockout/tagout procedures as defined by American National Standards Institute (ANSI)
z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources -
Minimum Safety Requirements and Occupational Safety and Health Administration (OSHA) Federal
Register, Part IV, 29 CFR Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule.
The following symbols may be used in this manual:
DANGER
!
Danger: Immediate hazards that will result in severe personal injury or death.
WARNING
!
Warning: Hazards or unsafe practices that could result in personal injury.
CAUTION
!
Caution: Hazards or unsafe practices that could result in product or property damages.
IMPORTANT
Important: Instructions that must be followed to ensure proper installation/operation of equipment.
NOTE
Note: General statements to assist the reader.
Martin Engineering M3203-08/12 iMartin®Gate Jack Opener
Table of Contents
Section Page
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Materials Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Before Installing Gate Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installing Gate Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Table of Contents
Martin Engineering M3203-08/12 ii Martin®Gate Jack Opener
List of Figures
Figure Title Page
1 Operating Martin®Gate Jack Opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2Martin
®Gate Jack Opener Rotation Direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3Martin
®Gate Jack Opener, P/N M90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4Martin
®Gate Jack Opener Assembly, P/N M950. . . . . . . . . . . . . . . . . . . . . . . . . . 6
5Martin
®Gate Jack Opener Assembly, P/N M950 (Repair Drawing) . . . . . . . . . . . 8
List of Tables
Table Title Page
IMartin
®Gate Jack Opener Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
List of Figures/Tables
Martin Engineering M3203-08/12 1Martin® Gate Jack Opener
Introduction
General The Martin®Gate Jack Opener is an air-powered wrench that opens the most
stubborn hopper gates. It comes complete with hoses and hand-held control
valve. Martin®Gate Jack Opener specifications are provided in Table I.
Table I. Martin®Gate Jack Opener Specifications
Safety All safety rules herein and all owner/employer safety rules must be strictly
followed when working on this equipment.
Material required In addition to standard hand tools, a strong, rigid bar is required to install and
operate this equipment.
Air Pressure 70 cfm at 80 to 125 psi
(1982 lpm at 5.5 to 8.5 bar)
Output above 1750 ft-lb (2373 N-m)
Weight 45 lb (20 kg)
Introduction
Martin Engineering M3203-08/12 2Martin® Gate Jack Opener
Before Installing Gate Opener
IMPORTANT
The delivery service is responsible for damage occurring in
transit. Martin Engineering CANNOT enter claims for
damages. Contact your transportation agent for more
information.
1. Inspect shipping box for damage. Report damage to delivery service and
fill out delivery service’s claim form. Keep any damaged goods subject to
examination.
2. Remove Martin®Gate Jack Opener from shipping box.
3. If anything is missing, contact Martin Engineering or representative.
Before Installation
Martin Engineering M3203-08/12 3Martin® Gate Jack Opener
Installing Gate Opener
IMPORTANT
Read entire section before beginning work.
Air supply must be between 80 and 125 psi (5.5 to 8.5 bar) at
the control valve, not at the air source, for the unit to
operate properly.
CAUTION
!
Do not exceed 125 psi (8.5 bar) air pressure. Excessive air
pressure may cause damage to the Martin®Gate Jack Opener.
Make sure air is filtered and lubricated.
1. See Figure 1. With control valve (A) in closed position, connect filtered
and lubricated 80- to 125-psi (5.5- to 8.5-bar) air supply to control
valve inlet.
2. Retract the dog (B) by moving the release lever (C) until it stops.
3. Place the Martin®Gate Jack Opener over the capstan (D) on the rail car.
With the stirrups (E) pointing down, release the dog into a capstan hole.
Figure 1. Operating Martin®Gate Jack Opener
80- to 125-psi
(5.5 to 8.5 bar)
Motor Side Rail Car Side
A
B
C
D
E
Alternate
stirrup
mounting
air supply
Installation
Martin Engineering M3203-08/12 4Martin® Gate Jack Opener
NOTE
Before inserting the bar, you may need to turn the Martin®
Gate Jack Opener to make the stirrups perpendicular to the
ground.
4. Slip a strong, rigid bar (F) through the stirrups, leaving most of the bar
length protruding on the force side.
Figure 2. Martin®Gate Jack Opener Rotation Direction According to Bar Position
5. Turn the control valve lever in the direction that moves the long end of the
bar against the ground. Check for dog engagement and general
alignment.
6. Open the control valve fully by turning the lever until it stops. (This
applies full force to turn the capstan.)
Troubleshooting
Bar Bar
Symptom Corrective Action
Martin®Gate Jack Opener will not
operate.
Muffler in control valve is clogged. Replace muffler.
Insufficient air pressure. Supply 80 to 125 psi (5.5 to 8.5
bar) at the control valve inlet, not at the air supply source.
Installation/Troubleshooting
Martin Engineering M3203-08/12 5Martin® Gate Jack Opener
Part Numbers
This section provides product names and corresponding part numbers for
Martin®Gate Jack Openers. Please reference part numbers when ordering
parts. See Figure 5 for repair assembly drawing.
Figure 3. Martin®Gate Jack Opener, P/N M90
Item Description Part No. Qty.
1Gate Opener Assembly M950 1
2Hand Valve M900 1
3Hose Assembly M910 2
4 Air Motor Assembly M980 1
5Capstan Extension 31627 1
1
2
3
4
5
Part Numbers
Martin Engineering M3203-08/12 6Martin® Gate Jack Opener

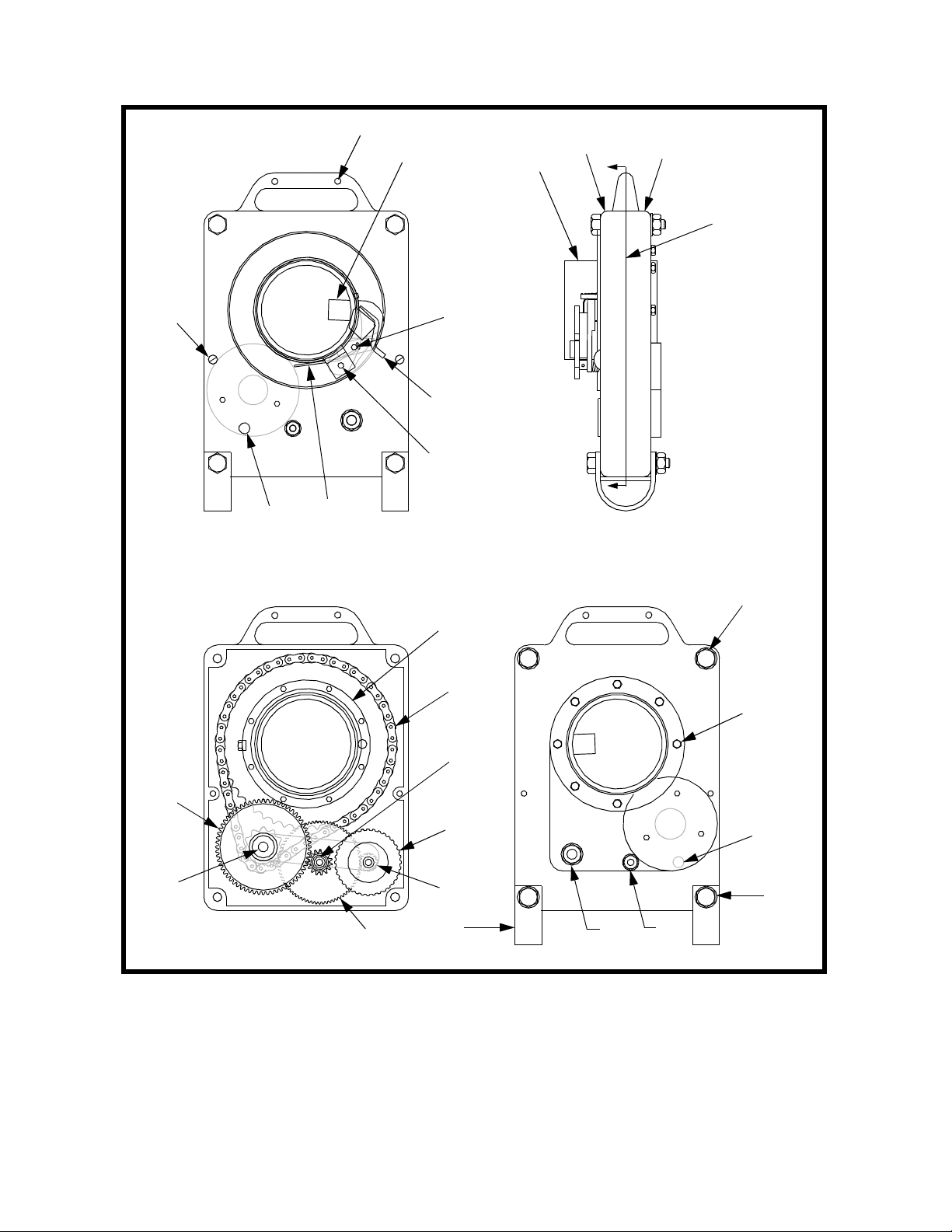

Figure 4. Martin®Gate Jack Opener Assembly, P/N M950-X (Sheet 1 of 2)
A
A
1
2
3
4
5
6
7
8
9
10
11
12
13 14
15
16
17
18
19
20
10
21
17
18
26 22
23
24
25
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Part Numbers
Martin Engineering M3203-08/12 7Martin® Gate Jack Opener
Figure 4. Martin®Gate Jack Opener Assembly, P/N M950-X (Sheet 2 of 2)
Item Description Part No. Qty. Item Description Part No. Qty.
15/16” -18NC x 5/8” Round
Head Screw M926 2 23 3/8” -24NF Hex Nut 13646 2
2Pawl M958 1 24 9/16” Internal Tooth Lock
Washer M446 2
3Spring Pin 5/16” x 1” M935 1 25 9/16” -18NC Hex Nut M451 2
4Dog Release Weldment M959-MF 1 26 Stirrup Weldment M964 2
5 Spacer M948 1 27 Outer Race Assembly M949 1
6 Clevis Pin M979 1 28 No. 50 Chain M960 1
7 Roll Pin 1/8” x 3/4” M518 1 29 Shaft M966 1
8 Spring M978 1 30 3/8” Flat Washer 18007 2
9 Bushing Cap M974 1 31 Oilite Washer 3/4” O.D. x
1/2” I.D. M971 2
10 5/16” Split Lock Washer M209 11 32 Gear Weldment M956 1
11 5/16” -18NC x 2” Round
Head Screw M925 2 33 Oilite Bushing M969 1
12 Hub Weldment M953 1 34 Gear Assembly 34237 1
13 Case Shell M952 1 35 Flat Washer 1-3/8” O.D. x
5/8” I.D. 16814 2
14 Case Shell—Motor Side M951-1 1 36 Oilite Washer 1-3/8” O.D.
x 3/4” I.D. M970 2
15 Gasket M945 1 37 Roller Tube M967B 1
16 1/2” -13NC x 3-1/2” Hex
Head Cap Screw M921 2 38 Inner Bearing M967A 2
17 1/2” -13NC Hex Nut 11771 4 39 Shaft M965 1
18 1/2” Split Lock Washer 17329 4 40 Gear Cluster M954 1
19 5/16” -18NC x 3/4” Hex
Head Cap Screw 12250 7 NS Roller Steel M961 18
20 Bushing Cap M975 1 NS Square Spacer M962 18
21 1/2” -13NC x 4” Hex Head
Cap Screw M920 2 NS Large Seal M976 1
22 3/8” Internal Tooth Lock
Washer M931 2 NS Small Seal M977 1
Part Numbers
Martin Engineering M3203-08/12 8Martin® Gate Jack Opener
35
36 37 38
28
40
24
25
39
22
23
29
33
20
30
31
9
34
32
12
C
LMotor
Part Numbers
Figure 5. Martin®Gate Jack Opener Assembly, P/N M950 (Repair Drawing)
Any product, process, or technology described here may be the subject of intellectual property rights reserved by
Martin Engineering Company. Trademarks or service marks designated with the ® symbol are registered with the U.S.
Patent and Trademark Office and may be proprietary in one or more countries or regions. Other trademarks and
service marks belonging to Martin Engineering Company in the United States and/or other countries or regions may
be designated with the “TM” and “SM” symbols. Brands, trademarks, and names of other parties, who may or may
not be affiliated with, connected to, or endorsed by Martin Engineering Company, are identified wherever possible.
Additional information regarding Martin Engineering Company’s intellectual property can be obtained at
www.martin-eng.com/trademarks.
Martin Engineering USA
One Martin Place
Neponset, IL 61345-9766 USA
800 544 2947 or 309 852 2384
Fax 800 814 1553
www.martin-eng.com
For nearly 20 years, Martin Engineering’s Foundations™ Books have taught industry
personnel to operate and maintain clean and safe belt conveyors. The Foundations™
Book, fourth edition, focuses on improving belt conveyors by controlling fugitive material.
“The Practical Resource for Total Dust and Material Control,” is a 576-page hard cover
volume that provides information of value to industries where the efcient handling of bulk
materials is a key to productivity and protability.
Expanding upon the book, our Foundations™ Training Program addresses the design
and development of more productive belt conveyors, and is offered in three customizable
seminars. Attendees gain a better understanding of conveyor safety and performance,
helping to justify upgrade investments and increase protability.
Form No. M3203-08/12 © Martin Engineering Company 1998, 2012
