DKS 9210 User manual

Model 9210, 9220, 9230
Vehicular Slide Gate Operators
Owner’s Manual
DoorKing, Inc.
120 Glasgow Avenue
Inglewood, California 90301
U.S.A.
Phone: [phone]
Fax: [phone]
www.doorking.com
P/N 9210-065 Rev H, 8/08
Copyright 2001 DoorKing, Inc. All rights reserved.

Page 29210-065-H-8-08

Use this manual with the following models only.
Models 9210-080, 9210-081, 9210-082, 9210-083, 9210-084, 9210-086, 9210-087, 9210-088,
9210-089, 9210-090, 9210-091, 9220-080, 9220-081, 9220-082, 9220-083, 9220-084, 9220-085,
9220-086, 9220-087, 9230-080, 9230-081 with circuit board 4404-010.
DoorKing, Inc. reserves the right to make changes in the products described in this manual
without notice and without obligation of DoorKing, Inc. to notify any persons of any such revisions
or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to
this manual. This manual is copyrighted, all rights reserved. No portion of this manual may be
copied, reproduced, translated, or reduced to any electronic medium without prior written consent
from DoorKing, Inc.
9210-065-H-8-08 Page 3

Glossary
GATE: A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone
passage barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or
vehicles and completes the perimeter of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I: A vehicular gate operator (or system) intended for
use in a home of one-to four single family dwelling, or garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II: A vehicular gate operator
(or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more
single family units), hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III: A vehicular gate operator (or
system) intended for use in an industrial location or building such as a factory or loading dock area or other
locations not intended to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV: A vehicular gate operator (or system)
intended for use in a guarded industrial location or building such as an airport security area or other restricted
access locations not servicing the general public, in which unauthorized access is prevented via supervision by
security personnel.
VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM): An operator (or system) that controls a cantilever
type device (or system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for
vehicular traffic flow at entrances or exits to areas such as parking garages, lots or toll areas.
VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM): A vehicular gate operator (or system)
that controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to
a drive, parking lot, or the like.
VEHICULAR SWING-GATE OPERATOR (OR SYSTEM): A vehicular gate operator (or system) that controls a
gate which moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a
drive, parking lot, or the like.
SYSTEM: In the context of these requirements, a system refers to a group of interacting devices intended to
perform a common function.
WIRED CONTROL: A control implemented in a form of fixed physical interconnections between the control, the
associated devices, and an operator to perform predetermined functions in response to input signals.
WIRELESS CONTROL: A control implemented in means other than fixed physical interconnections (such as
radio waves or infrared beams) between the control, the associated devices, and an operator to perform
predetermined functions in response to input signals.
INHERENT ENTRAPMENT PROTECTION SYSTEM: A system, examples being a motor current or speed
sensing system, which provides protection against entrapment upon sensing an object and is incorporated as a
permanent and integral part of the operator.
EXTERNAL ENTRAPMENT PROTECTION DEVICE: A device, examples being an edge sensor, a photoelectric
sensor, or similar entrapment protection device, which provides protection against entrapment when activated
and is not incorporated as a permanent part of an operator.
ENTRAPMENT: The condition when an object is caught or held in a position that increases the risk of injury.
Page 49210-065-H-8-08

Entrapment Protection
Protection Against Entrapment
TYPE A: Inherent entrapment protection system.
TYPE B1: Provision for connection of, or supplied with, a non-contact sensor
(photoelectric sensor or the equivalent). When used as the PRIMARY
device, must be monitored.
TYPE B2: Provision for connection of, or supplied with, a contact sensor (edge
device or the equivalent). When used as the PRIMARY device, must be
monitored.
TYPE C: Inherent adjustable clutch or pressure relief device.
TYPE D: Provision for connection of, or supplied with, an actuating device
requiring continuous pressure to maintain opening or closing motion of
the gate.
TYPE E: An inherent audio alarm.
Gate Operator Category
Horizontal Slide, Vertical Lift,
Vertical Pivot Swing and Vertical Barrier (arm)
Usage Class Primary Secondary Primary Secondary
Vehicular I and II A B1, B2 or D A or C A, B1, B2, C or D
Vehicular III A, B1 or B2 A, B1, B2, D or E A, B1, B2 or C A, B1, B2, C,
D or E
Vehicular IV A, B1, B2 or D A, B1, B2, D or E A, B1, B2, C or D A, B1, B2, C,
D or E
9210-065-H-8-08 Page 5

Important Notices
Vehicular gate operator products provide convenience and security. However, gate operators must
use high levels of force to move gates and most people underestimate the power of these systems
and do not realize the potential hazards associated with an incorrectly designed or installed system.
These hazards may include:
•Pinch points
•Entrapment areas
•Reach through hazards
•Absence of entrapment protection devices
•Improperly located access controls
•Absence of vehicle protection devices
•Absence of controlled pedestrian access
In addition to these potential hazards, automated vehicular gate systems must be installed in
accordance with the UL-325 Safety Standard and the ASTM F2200 Construction Standard. Most lay
persons are unaware of, or are not familiar with, these standards. If an automated vehicular gate
system is not properly designed, installed, used and maintained, serious injuries or death can result.
Be sure that the installer has instructed you on the proper operation of the gate and gate operator
system. Be sure that the installer has trained you about the basic functions of the required reversing
systems associated with your gate operating system and how to test them. These include reversing
loops, inherent reversing system, electric edges, photoelectric cells, or other external devices.
•This Owner’s Manual is your property. Keep it in a safe place for future reference.
•Be sure that all access control devices are installed a minimum distance of 10 feet
away from the gate and gate operator, or in such a way that a person cannot touch the
gate or gate operator while using the device. If access control devices are installed in
violation of these restrictions, immediately remove the gate operator from service and contact
your installing dealer.
Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the
gate from closing on vehicular traffic.
•The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and
signs to keep vehicular traffic from speeding through the gate area. Failure to adhere to
posted speed limits can result in damage to the gate, gate operator, and to the vehicle.
•Be sure that all persons who will use the gate system are familiar with the proper use of the
gate and gate operator and are familiar with the possible hazards associated with the gate
system.
•Be sure that warning signs are permanently installed on both sides of the gate in an area
where they are fully visible to traffic.
•It is your responsibility to periodically check all entrapment protection devices. If any of these
devices are observed to function improperly, remove the operator from service immediately
and contact your installing or servicing dealer.
•Follow the recommended maintenance schedule.
•Do not allow children to play in the area of the operator or to play with any gate-operating
device.
•To remove the gate operator from service, operate the gate to the full open position and then
shut off power to the operator at the service panel.
Page 69210-065-H-8-08

Important Safety Instructions
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away
from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE
PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact (contact sensors must
be installed) with a rigid object or stop or reverse when an object activates the non-
contact sensors. After adjusting the force or the limit of travel, retest the gate
operator. Failure to adjust and retest the gate operator properly can increase the risk
of injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a
qualified service person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS!
Gate Construction
Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard
Specification for Automated Vehicular Gate Construction. For a copy of this standard, contact ASTM
directly at 610-832-9585; [e-mail]; or www.astm.org.
9210-065-H-8-08 Page 7

Instructions regarding intended installation:
Install the gate operator only if:
1. The operator is appropriate for the construction of the gate and the usage class of
the gate.

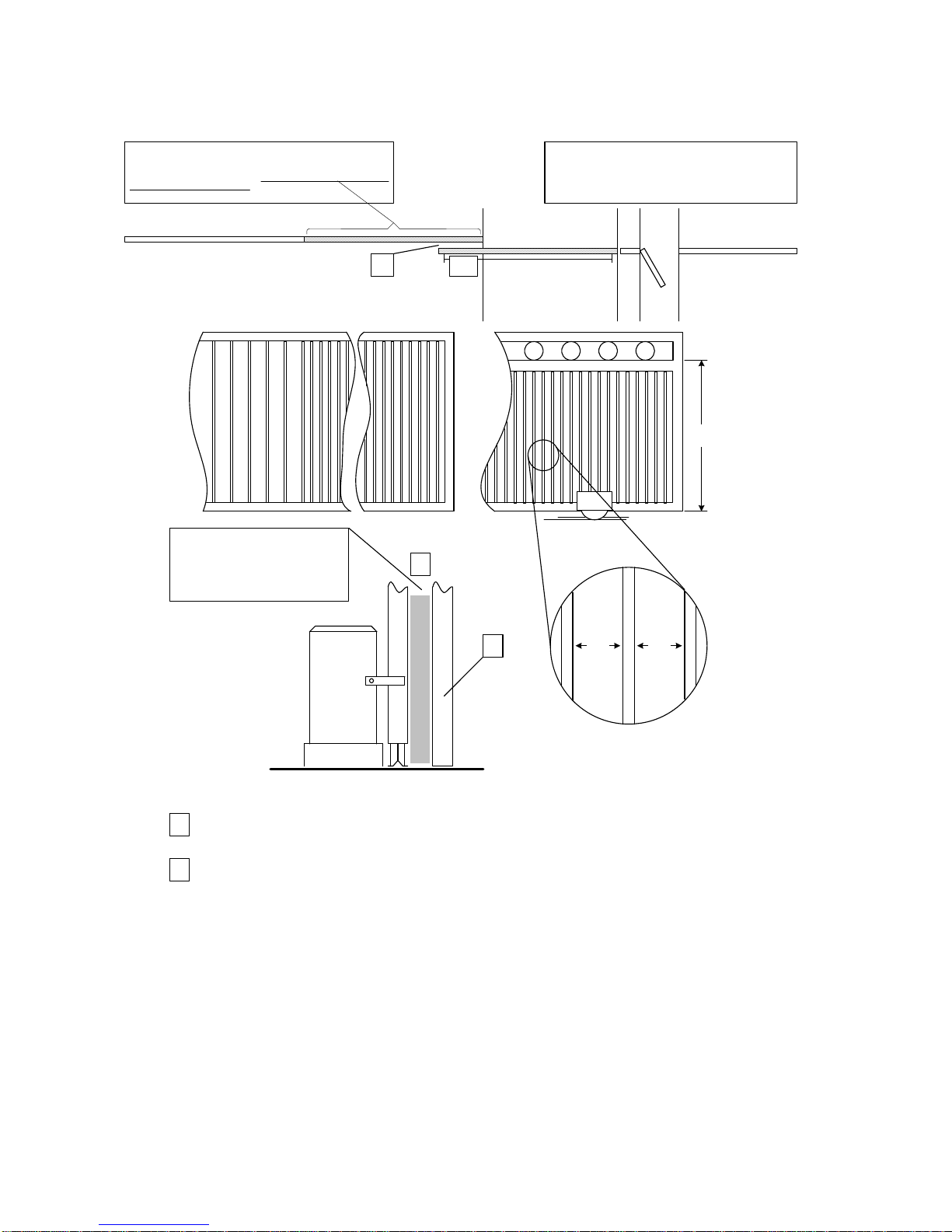

2. All openings of a horizontal slide gate are guarded or screened from the bottom of
the gate to a minimum of 4 feet (1.22 m) above the ground to prevent a 2 ¼ inch
(57.2 mm) diameter sphere from passing through the openings anywhere in the gate,
and in that portion of the adjacent fence that the gate covers in the open position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied
with a separate access opening. The pedestrian access opening shall be designed to promote
pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate
during the entire path of travel of the vehicular gate.
The gate must be installed in a location so that enough clearance is supplied between the gate and
adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates
should not open into public access areas.
The gate must be properly installed and work freely in both directions prior to the installation of the
gate operator. Do not over-tighten the operator clutch, pressure relief valve or reduce reversing
sensitivity to compensate for a damaged gate.
For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate
area when the gate is moving.
2. A warning placard shall be placed adjacent to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not
be employed.
4. No other activation device shall be connected.
Controls intended for user activation must be located at least ten feet (10’) away from any moving
part of the gate and where the user is prevented from reaching over, under, around or through the
gate to operate the controls. Outdoor or easily accessible controls should have a security feature to
prevent unauthorized use.
The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset
control shall not cause the operator to start.
A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily
visible.
For gate operators utilizing a non-contact sensor:
1. See the instructions on the placement of non-contact sensors for each type of
application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a
vehicle trips the sensor while the gate is still moving in the opening direction.
3. One or more non-contact sensors shall be located where the risk of entrapment or
obstruction exist, such as the perimeter reachable by a moving gate or barrier.
Page 89210-065-H-8-08

For gate operators utilizing contact sensors:
1. One or more contact sensors shall be located where the risk of entrapment or
obstruction exist, such as at the leading edge, trailing edge, and post mounted both
inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular
vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical
pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the
communication between the sensor and the gate operator is not subjected to
mechanical damage.
5. A wireless contact sensor such as one that transmits radio frequency (RF) signals to
the gate operator for entrapment protection functions shall be located where the
transmission of the signals are not obstructed or impeded by building structures,
natural landscaping or similar obstructions. A wireless contact sensor shall function
under the intended end-use conditions.
7. One or more contact sensors shall be located at the bottom edge of a vertical barrier
(arm).
9210-065-H-8-08 Page 9

Slide Gate Requirements
Gate
Roadway Pedestrian
Access
Fence
Vehicular Gate
Sidewalk
Operator
Fence
All openings of a horizontal slide gate are guarded or screened from the
bottom of the gate to a minimum of four (4) feet (1.22 m) above the ground to
prevent a 2 1/4 inch (57.2 mm) diameter sphere from passing through the
openings anywhere in the gate and in that portion of the adjacent fence that
the gate covers in the open position.
(ref. UL325 56.8.4.a.2 and ASTM F2200 6.1.2)
The operator is intended for installation only on gates used for vehicles.
Pedestrians must be supplied with a seperate access opening. The
pedestrian access opening shall be designed to promote pedestrian
usage. Locate the gate such that persons will not come in contact with
the vehicular gate during the entire path of travel of the vehicular gate.
(ref. UL325 56.8.4.b)
Fence
4 ft.
min
Gate
A gap, measured in the horizontal plane parallel to
the roadway, between a fixed stationary object
nearest the roadway (such as a gate support post)
and the gate frame when the gate is in either the
fully open position or the fully closed position, shall
not exceed 2 1/4 inch (57.2 mm).
(ref. ASTM F2200 6.1.4)
2 1/4"
Max 2 1/4" Max
Operator
Pad
Fence
A
A
Entrapment Area
A
B
B
This area between the gate and fence has a high risk of entrapment. The gap between the fence and gate should not exceed
2 ¼ inches. Install a filler or barrier in this area to reduce this gap to 2 ¼ inches or less.
Install a contact sensor (type B2) on the fence to help minimize the risk of entrapment in this area.
Page 10 9210-065-H-8-08

Slide Gate Protection
Fence
Operator
Pedestrian
Access
Fence
Sidewalk
Reverse
Loop
Reverse (Open)
Loop
Open Loop
(Optional)
1
1
1
2 3
4
Loops to help minimize the potential of the gate to
close when a vehicle is present. Number and
placement of loops is dependent on the application.
1
Contact sensor installed on the fence to help minimize
the potential of entrapment between the gate and
fence.
2
Non-contact sensor to help minimize the potential
of the gate closing on vehicular or other traffic that
loops cannot sense.
3
Non-contact sensor to help minimize the potential
of entrapment during the back travel of the gate.
4
5Warning signs are to be placed on each side of the
gate so that they are easily visible from either side
of the gate.
5
5
A separate pedestrian access located so
pedestrians cannot come in contact with the
vehicular gate.
6
6
9210-065-H-8-08 Page 11

Table of Contents
Section 1 – Installation
1.1 Specifications ...........................................................................................................................................15
1.2 Mounting Options .....................................................................................................................................16
1.3 Chain Guide Adjustment...........................................................................................................................17
1.4 Pad Mount Installation..............................................................................................................................18
1.5 Mounting Stand Installation......................................................................................................................20
1.6 Chain Installation......................................................................................................................................22
1.7 Warning Sign Installation..........................................................................................................................24
Section 2 – Wiring
Conduits ...................................................................................................................................................25
2.1 High Voltage Connections........................................................................................................................26
2.2 Control Wiring...........................................................................................................................................27
2.3 Loop Detector Wiring................................................................................................................................28
2.4 Auxiliary Device Wiring.............................................................................................................................29
2.5 Primary / Secondary (Bi-Parting) Wiring...................................................................................................30
2.6 Terminal Identification and Description
2.6.1 Main Terminals.........................................................................................................................31
2.6.2 Limit Switch Connector.............................................................................................................32
2.6.3 Reversing Device Connector....................................................................................................32
Section 3 – Adjustments
3.1 Circuit Board Adjustments........................................................................................................................33
3.2 Switch Settings.........................................................................................................................................34
3.2.1 SW 1 (Right Switch) Description and Function ........................................................................35
3.2.2 SW 2 (Left Switch) Description and Function...........................................................................35
3.3 Limit Switch Adjustment
3.3.1 Limit Switch Adjustment for 9210 Operator..............................................................................36
3.3.2 Limit Switch Adjustment for 9220 and 9230 Operators............................................................37
3.4 Reverse Adjustment.................................................................................................................................38
3.5 Speed Control...........................................................................................................................................39
3.6 Current Sensor Wiring Information...........................................................................................................39
Page 12 9210-065-H-8-08

Section 4 – Operating Instructions
4.1 Power and Reset Switches ......................................................................................................................41
4.2 Shutdown Conditions
4.2.1 Soft Shutdown..........................................................................................................................42
4.2.2 Resetting a Soft Shutdown.......................................................................................................42
4.2.3 Hard Shutdown ........................................................................................................................43
4.2.4 Resetting a Hard Shutdown .....................................................................................................43
4.3 Manual Gate Operation............................................................................................................................44
Section 5 – Maintenance and Troubleshooting
5.1 Maintenance Schedule.............................................................................................................................45
5.2 Operator Diagnostics................................................................................................................................46
5.3 Troubleshooting........................................................................................................................................47
5.4 Accessories..............................................................................................................................................49
Wire Diagrams
115 VAC .................................................................................................................................................50
230 VAC, 1-Phase....................................................................................................................................51
208 VAC, 3-Phase....................................................................................................................................52
230 VAC, 3-Phase....................................................................................................................................53
208 VAC, 1-Phase Variable Speed..........................................................................................................54
208 VAC, 3-Phase Variable Speed..........................................................................................................55
230 VAC, 1-Phase Variable Speed..........................................................................................................56
230 VAC, 3-Phase Variable Speed..........................................................................................................57
9210-065-H-8-08 Page 13

Page 14 9210-065-H-8-08

SECTION 1 - INSTALLATION
Prior to beginning the installation of the slide gate operator, we suggest that you become familiar with
the instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your
installation is performed in an efficient and professional manner. The proper installation of the
vehicular slide gate operator is an extremely important and integral part of the overall access control
system. Check all local building ordinances and building codes prior to installing this operator. Be
sure your installation is in compliance with local codes.
1.1 Specifications
Class of Operation: Class III, IV
Type of Gate: Vehicular Slide Gates Only
Horsepower: 9210/9220: 1 HP; 9230: 3 HP
Voltage / Phase: 9210/9220: 115, 208, 230 VAC 1Ø/ 208, 230 VAC 3Ø
9230: 208, 230 VAC 3Ø
Current: 9210/9220: 1Ø: 15 A @ 115V, 7.5 A @ 208V, 7.4 A @ 230V
9210/9220: 3Ø: 3.4 A @ 208V, 3.3 A @ 230V
9230 3Ø: 12.4 A @ 208/230V
Max Gate Wt.19210: 3000 Lbs; 9220: 2000 Lbs; 9230: 5000 Lbs.
Max Gate Length: 100 Feet
Cycles / Hr: 60/Hr
Speed: 9210: Approx 1 Ft./Sec.
9220/9230: Adjustable ½ - 2 Ft./Sec.
Entrapment Protection: Primary – Inherent (Type A)
Secondary – Provision for connection of a non-contact
sensor (Type B1) and/or a contact sensor (Type B2).
Secondary entrapment protection devices are not supplied
with the operator and must be ordered separately.
Note 1: Assumes gate is in good working condition installed on a
level surface.
35.25
16
2
16
9210-065-H-8-08 Page 15

1.2 Mounting Options
The 9210, 9220 and 9230 vehicular gate operators are designed to be mounted on the optional
mounting stand (p/n 9200-135) or directly to a concrete pad. The mounting stand option is
recommended if the gate length exceeds 30 feet since this mounting method will allow a “chain rest”
to be mounted on the gate.
Pad mounting is typically
used with gates that are less
than 30 feet in length.
Requires use of the pad
mounting plate that is
included with the operator.
Pedestal mounting is
typically used with gates that
are greater than 30 feet in
length since this method
allows a chain rest to be
installed on the gate.
Requires use of the pad
mounting plate that is
included with the operator.
Requires use of the
OPTIONAL operator
mounting stand.
Page 16 9210-065-H-8-08

1.3 Chain Guide Adjustment
After determining which mounting method is to be used (pad or mounting stand), adjust the chain
guides according to the mounting method being used.
OPEN
To gain access to the inside of the operator,
remove three hex-head nuts from the left side o
f
the control panel housing.
Pull the housing out and away.
For pad mounted operators, remove the UPPER
hole knockouts from each side of the operator.
Adjust the chain guides as shown.
Chain will be routed OVER the chain guides and
UNDER the drive sprocket.
For operators mounted on the mounting stand,
DO NOT remove any hole knockouts.
Adjust the chain guides as shown.
Chain will be routed UNDER the chain guides
and OVER the drive sprocket.
9210-065-H-8-08 Page 17

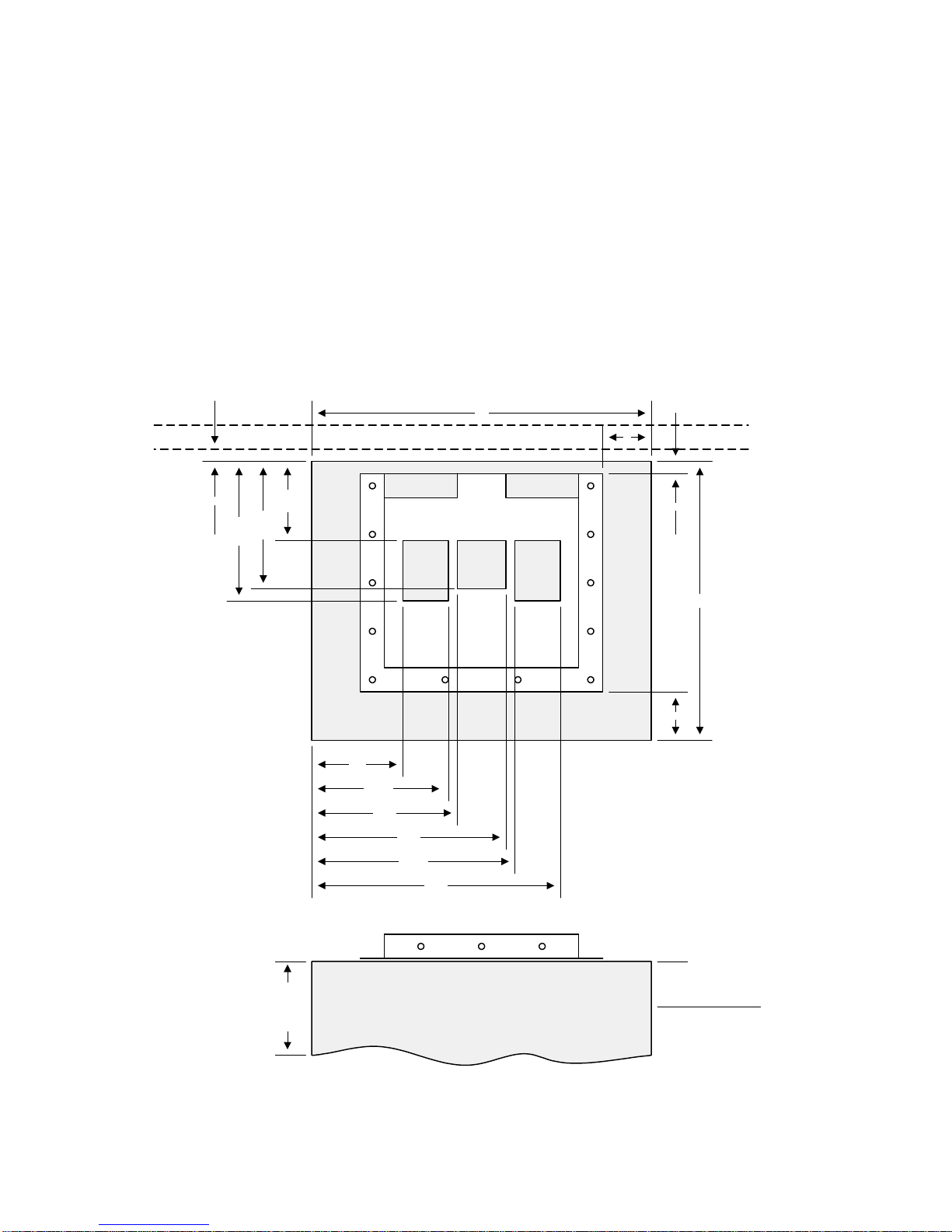

1.4 Pad Mount Installation
1. Construct a form for the mounting pad according to the specifications shown below. Be
sure to level the top edge of the form and that the top of the form is a minimum of four (4)
inches above ground level. We suggest that you contact the local building department to
determine the required depth of the pad since soil conditions and code requirements vary
from city to city.
2. Set conduits, reinforcing bars and/or wire mesh if required. The number of conduits is
determined by the application requirements. We suggest using a minimum of four (4)
conduits. 1-High voltage power lines; 2-Low voltage control lines; 3-Loop lead-in wires
(open loop); 4-Loop lead-in wires (reverse loops). Conduits can be set in the areas
indicated in the illustration. See SECTION 2. Set additional conduits as required for your
application. NOTE: If conduits are not set in the pad, they can be routed to a J box
where connections to the operator can be made after it is installed. There are four (4) ½-
inch knockouts in the operator for this purpose.
4
23
4
28
1
7.5
11.25
12.0
16.0
16.75
20.5
6.75
10.75
11.75
Pad depth determined by soil
conditions and local building codes.
Minimum depth is 18 inches.
Minimum 4 inches
above ground level.
GATE
1
GATE GATEGATE
3. Mix the concrete according to the manufacturers instructions. Pour the mixture into the
form and tamp. Level and finish the surface after pouring is complete. Do not set anchor
Page 18 9210-065-H-8-08

bolts in the concrete. Sleeve anchors should be used to secure the operator to the
pad. This allows greater flexibility in positioning the operator on the pad.
4. Allow the pad to cure for 48 hours before removing the forms or mounting the operator.
5. Once the pad has cured, place the operator / mounting plate on the pad in the proper
position; 4-inches from the front and sides of the pad and 1-inch from the rear of the pad.
The operator mounting plate must be parallel to the gate. CAUTION: the operator
is heavy. Two persons are required to lift the operator onto the mounting pad.
6. Once the operator is in the proper position on the pad, secure the operator mounting
plate directly to the pad using 3/8 or 1/2 x 3 sleeve anchors. Be sure that the operator
mounting plate is parallel to the gate.
9210-065-H-8-08 Page 19

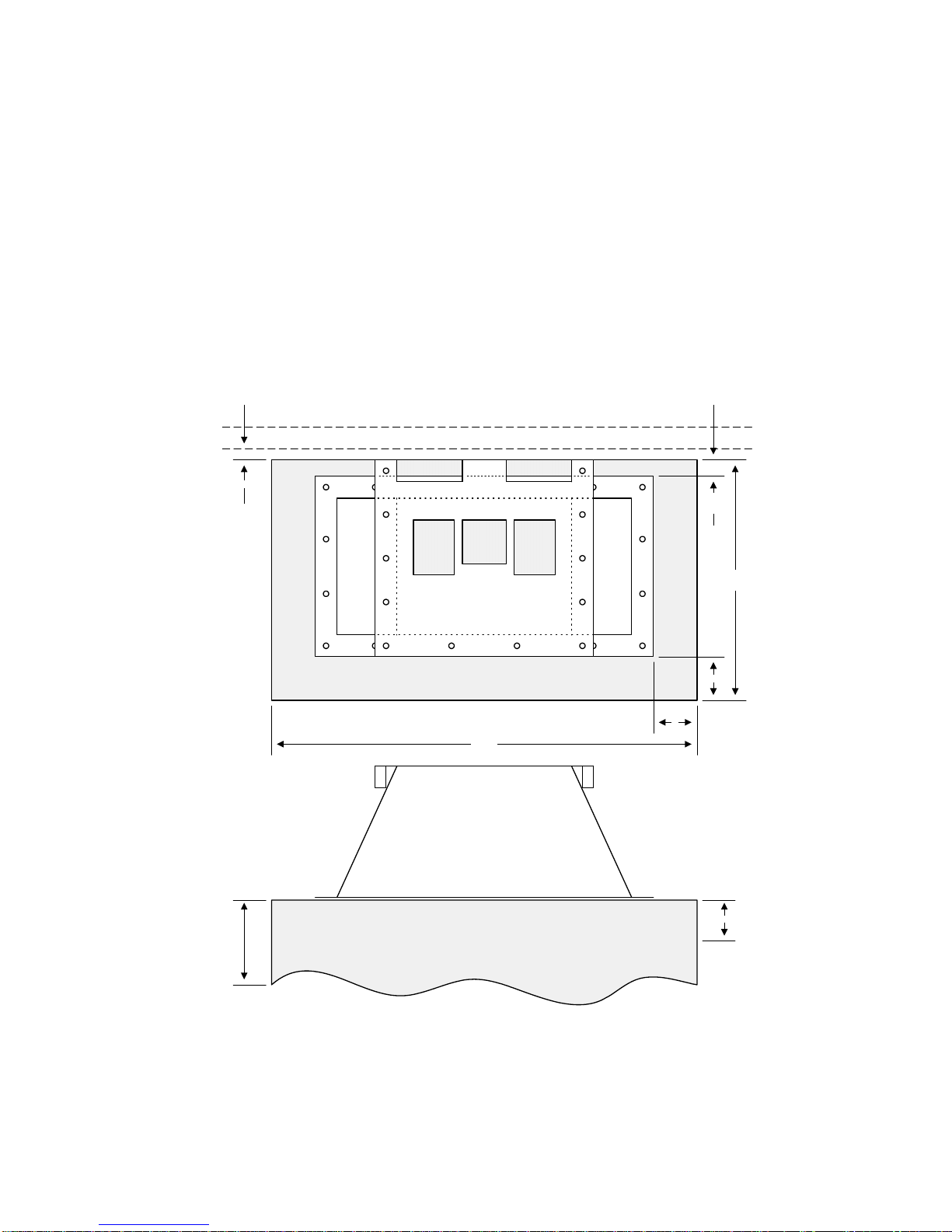

1.5 Mounting Stand Installation
1. Construct a form for the mounting pad according to the specifications shown below. Be
sure to level the top edge of the form and that the top of the form is a minimum of four (4)
inches above ground level. We suggest that you contact the local building department to
determine the required depth of the pad since soil conditions and code requirements vary
from city to city.
2. Set conduits, reinforcing bars and/or wire mesh if required. The number of conduits is
determined by the application requirements. We suggest using a minimum of four (4)
conduits. 1-High voltage power lines; 2-Low voltage control lines; 3-Loop lead-in wires
(open loop); 4-Loop lead-in wires (reverse loops). Conduits can be set in the areas
indicated in the illustration. See SECTION 2. Set additional conduits as required for your
application. NOTE: If conduits are not set in the pad, they can be routed to a J box
where connections to the operator can be made after it is installed. There are four (4) ½-
inch knockouts in the operator for this purpose.
4
39.25
4
22.0
1.75 4
Minimum 4
inches above
ground level.
Pad depth determined
by soil conditions and
local building codes.
Minimum depth is 18
inches.
GATEGATE GATE GATE
1
Page 20 9210-065-H-8-08
