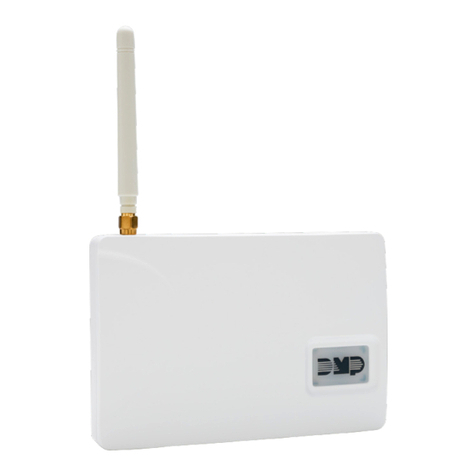

DMP Electronics CellComSLCF Installation and operating instructions

CellComSLCF Cellular
Communicator Dialer Capture
APPLICATION NOTE
Introduction
This Application Note is designed to quide technicians through
the process of installing the CellComSLCF with the Fire
Panels shown below. The information provided illustrates the
connection and programming of Fire Panels for CID Dialer
Capture using the CellComSLCF Cellular Communicator.
• Ademco Vista 128FBP
• Ademco Vista 128FBPT
• Bosch FPD-7024 Fire Control Panel
• Firelite MS-5UD
• Firelite MS-9200UDLS
• First Alert FA 1600C
• Silent Knight 5808
Introduction............................................. 1
Basic Programming for CellComSLCF
CID Dialer Capture Communication ......... 1
Wiring Diagrams ..................................... 2
Ademco Vista 128FBP........................... 2
Ademco Vista 128FBPT ......................... 3
Bosch FPD-7024 Fire Control Panel ........ 4
Firelite MS-9200UDLS ........................... 6
First Alert FA1600C............................... 7
Silent Knight 5808 ................................ 8
Congure a Single Path Alarm Connection.. 9
Basic Programming for CellComSLCF CID Dialer Capture Communication
This section provides the basic programming required for the CellComSLCF. Please see the CellComSL Series
Installation and Programming Guide (LT-1339) for complete information.
Communication:
Account No: 1 -65535
Test Time: Use entries between 12:00 to 11:59 and then choose AM or PM.
Cell TST DAYS: 1
CHECKIN: 58 minutes for NFPA 72 2013 & UL 864 10th edition
FAIL TIME: 60 minutes for NFPA 72 2013 & UL 864 10th edition
RECEIVER 1 PROG:
ALARM: YES
SPV/TRBL: YES
TEST RPT: YES
FIRST IP ADDR: XXX.XXX.XXX.XXX
FIRST IP PORT: Default is 2001
SYSTEM OPTIONS:
TIME CHG: YES
HRS FROM GMT: # Default is 6 for CST
OUTPUT OPTIONS:
COM FAIL OUT: Either 1 or 2. The default is 0 (zero), which disables this output.
Note: This output turns on if a commnicator fails to communicate with its receiver.

2
Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note
APPLICATION NOTE
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
TRNSFMR BELL OUTPUTS AUX. RELAY
KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3 ZONE 5
ZONE 4
ZONE 6 ZONE 7 ZONE 8 GND
1 2 3 4 5 6 7 8 9
J4
KEYPAD PORT #2
J2
1 2 3 4 5 6 7 8 9
J3
INTERFACE TO 5140DLM
W6
BLUE
BATTERY TABS
BLK - + RED
BELL 1 BELL 2
W1
(WHITE)
W4
(WHITE)
VOLTAGE
TRIGGERS
MAIN
PHONE JACK
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
Ademco
Vista 128FBP
Cut the W6
(BLUE) Jumper
Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to terminals 11
and 12 on the host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to
the Main Phone Jack on the host panel.
3. Cut the blue jumper on the host panel or disable the TLM.
To disable the TLM, follow these programming steps:
1. Enter programming.
2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.
3. Set to Conrm? 1 = YES 0 = NO. Select NO.
4. Enter Zone No. 000 = Quit.
5. Enter 974 then *. 974 Zone Type 24-Hour Trouble 19.
Change the zone type to 00. Press *.
6. Press * until Enter Zone No. 000 = Quit displays.
Enter 000 then *.
7. Conrm that you want to exit zone programming.
8. The default values for locations *30, *42, *43, *45
do not need to be changed.
9. Normal Central Station programming.
Wiring Diagrams
Ademco Vista 128FBP

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products
3
APPLICATION NOTE
Ademco Vista 128FBPT
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
TRNSFMR BELL OUTPUTS AUX. RELAY
KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3 ZONE 5
ZONE 4
ZONE 6 ZONE 7 ZONE 8 GND
1 2 3 4 5 6 7 8 9
J4
KEYPAD PORT #2
J2
1 2 3 4 5 6 7 8 9
J3
INTERFACE TO 5140DLM
W6
BLUE
BATTERY TABS
BLK - + RED
BELL 1 BELL 2
W1
(WHITE)
W4
(WHITE)
VOLTAGE
TRIGGERS
MAIN
PHONE JACK
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
Ademco
Vista 128FBPT
Cut the W6
(BLUE) Jumper
J13
TXD
RXD
RTS/OTR
CTS/DSR
PC
PRN
Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to terminals 11
and 12 on the host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to the
Main Phone Jack on the host panel.
3. Check that the CellComSLCF is communicating with the host panel. If
it is not, cut the blue jumper on the host panel or disable the TLM.
To disable TLM, follow these programming steps:
1. Enter programming.
2. *93 - Zone Prog? 1 = YES 0 = NO. Select YES.
3. Set to Conrm? 1 = YES 0 = NO. Select NO.
4. Enter Zone No. 000 = Quit. Enter 974 then *.
5. 974 Zone Type 24-Hour Trouble 19. Change the zone type to 00.
Press *.
6. Press * until Enter Zone No. 000 = Quit displays. Enter 000 then *.
7. Conrm that you want to exit zone programming.
8. The default values for locations *42 and *45 do not need to be
changed. Locations *30 and *43 do not exist on this panel.
9. Normal Central Station programming.

4
Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note
APPLICATION NOTE
Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to the R
and B connections on the Option Bus on the panel.
2. Connect the CellComSLCF Tip connection to the
T1 and T2 connections on the host panel.
3. Connect the CellComSLCF Ring connection to the R1
and R2 connections on the host panel.
4. Normal Central Station programming.
RESET
S1
LOAD
S2
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
MODEL CellCom
Must be installed
in conduit & located
in the same room
within 20 feet.
12 VDC nominal, 500 mA
Do not draw more than
500mA from option bus.
Bosch
FPD-7024
1
4
7
*
2
5
8
0
3
6
9
#
R B G Y OPTION BUS
AUX-
AUX+
A+
B+
B-
A-
A+
B+
B-
A-
BAT-
24V
BAT+ Power
Alarm
Supervisory
Trouble
Silenced
Gnd Flt
Drill
Disable
Test
History
Acknowledge
Silence
Reset
Back Prog Enter
R2
HR2
HT2
T2
R1
RH1
TH1
T1
NC3
COM3
NO3
NC2
COM2
NO2
NC1
COM1
NO1
SMK+
SMK-
4A+
4B+
4B-
4A-
3A+
3B+
3A-
3B-
2A+
2B+
2A-
2B-
1A+
1B+
1B-
1A-
Bosch FPD-7024 Fire Control Panel

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products
5
APPLICATION NOTE
Firelite MS-5UD
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
JP31
TB9
J3
J2
TB5 TB4 TB7 TB5 TB6 TB2 TB8
JP24
J4
J5
J6
JP30
J13 J11
J8 J9
TB3
J12
J15
- +
3
2
1
JP43
SW1
J7
4XTM OPT BD
Primary Secondary
- + ANN-BUS
GND PWR A B
NO NC C
RELAY 1
NO NC C
RELAY 2
NO NC C
RELAY 3
ZONE
6
ZONE
7
ZONE
8
ZONE
9
ZONE
10
ZONE
1
ZONE
2
ZONE
3
ZONE
4
ZONE
5
OUT3 OUT4OUT1 OUT2
ANN-SEC
RST AUX
PWR
RST/NONRS
AUXPWR
-
+
-
+
Firelite
MS-5UD
Connection Instructions:
1. Connect the 24VDC on CellComSLCF to the 24V Auxillary Power
header on the panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to
J8 on the host panel.
3. Normal Central Station programming.
Note: This only applies to CellCom SLCF Rev 4 Lev E.

6
Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note
APPLICATION NOTE
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
+ -
REMOTE PWR
SUPPLY SYNC
+ 24V
NON-RST
POWER
+ 24V
RST
POWER
1B+ 3B+ 3B- 1B- 2B+ 4B+ 4B- 2B- NO NC C NO NC C NO NC C Xmt Rcv Dtr Gnd
A B
In+ In- OUT+ Out-
+ -
A B
B+ A+ B- A- A B
Slc Slc Slc Slc SHIELD
J5 J6
J7 JP3
TB10TB9TB8TB6TB5TB7TB4TB3TB2 TB1
JP7
JP4
JP6 J14
JP2
J12
SW1
PH15 PH16
MIN DIN
KWYBOARD COMM.
SEC. PHONE LINE
J3
J8
J9
JP5
TB11
J10
J11
J1
LCD DISPLAY
BATTERY
- +
HOT NEUT EARTH
TRANSFORMER 1TRANSFORMER 2
J4
KEYPAD
IF
PRI. PHONE LINE
Must be installed in
conduit and located
in the same room
within 20 feet.
Firelite
MS-9200UDLS
Connection Instructions:
1. Connect the 24VDC on the CellComSLCF to the TB2 header on the
host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to PH15
on host panel.
3. Normal Central Station programming.
Firelite MS-9200UDLS

CellComSLCF Cellular Communicator Dialer Capture Application Note Digital Monitoring Products
7
APPLICATION NOTE
First Alert FA1600C
J2
123456789
123456789
J3
MAIN
INTERFACE TO 5140DLM
W6
BLUE
J4
KEYPAD PORT #2
BATTERY TABS
BLK - + RED
BELL 1 BELL 2
W1
(WHITE)
W4
(WHITE)
TRNSFMR BELL OUTPUTS
AUX. RELAY KEYPAD PORT #1 ZONE 1 ZONE 2 ZONE 3
ZONE 5 ZONE 6 ZONE 8 ZONE 7
PHONE JACK
W5
(RED)
VOLTAGE
TRIGGERS
1 2 3 4 5 6
7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
Cut the W6
(BLUE) Jumper
First Alert
FA 1600C
Connection Instructions:
1. Connect the 12VDC on the CellComSLCF to terminals 11 and 12
on the host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF
to the Main Phone Jack on the host panel.
3. Cut the blue jumper on the host panel.
4. Follow these programming steps:
1. *30 Main dialer. Default is 0 changed that to 1 for Touch
Tone.
2. *42 Dial tone pause 0=5 seconds
3. *43 Dial tone detection was a 0 which is pause, then dial.
Changed that to a 1=wait for true dial tone.
4. *45 Veried the proper format which is 1=Contact ID
5. Normal Central Station programming.

8
Digital Monitoring Products CellComSLCF Cellular Communicator Dialer Capture Application Note
APPLICATION NOTE
Silent Knight 5808
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
NAC4
+ -
NAC3
+ -
NAC2
+ -
NAC2
+ -
RELAY 2
NO COM NC
RELAY 1
NO COM NC
TROUBLE
NO COM NC
SBUS
- + A B
BATTERY
- +
AC INPUT
B EARTH W
SLC IN
- +
SLC OUT
- +
SLC PROG
- +
RING TIP
TELCO 1
RING TIP
PHONE 1
RING TIP
TELCO 2
RING TIP
PHONE 2
RING
Must be installed in
conduit and located
in the same room
within 20 feet.
Silent Knight
5808
Connection Instructions:
1. Connect the 24VDC on the CellComSLCF to the + and - terminals on the
host panel.
2. Connect the phone line from TIP and RING on the CellComSLCF to TIP
and RING on host panel.
3. Normal Central Station programming.

LT-2039 © 2017 Digital Monitoring Products, Inc.
17062
800-641-4282
INTRUSION • FIRE • ACCESS • NETWORKS
www.dmp.com 2500 North Partnership Boulevard
Designed, Engineered and
Assembled in U.S.A. Springeld, Missouri 65803-8877
TIP
RESET
S1
LOAD
S2
MODEL CellCom
PROG
S N
+12 G Z1 Z2 Z4-Z4+GZ3 RTO2O1
RB
J8
J9
S1
S2
S3
RING
SEC. PHONE LINEPRI. PHONE LINE
ALARM PANEL
1. Connect both phone lines on the host panel to TIP and
RING on the CellComSLCF.
Congure a Single Path Alarm Connection
Some re panels provide two telco connections. Because the CellComSLCF is equipped with a single telco
connection, the re panel must be congured accordingly. One method of installation is to disable the second
telco connection. If this option is not applicable due to panel limitations, both TIP and RING connections may be
connected from the panel into the CellComSLCF. The CellComSLCF has the capability of monitoring and providing a
dial tone to both telco connections.
