Doctor Life RevitaPump LX7 User manual

User Manual
Indications for safety use This product is intended for
use by medical professionals or patients who are under medical
supervision.
Caution : Federal law restricts this device to sale by or on the
order of a practitioner licensed by the law of the State in which
he/she practices to use or order the use of the device.

1. Instruction
Introduction .......................................................... 3
Safety Information ................................................ 4
2. Product Description
Device ................................................................. 8
Accesorries ....................................................... 10
3. How to use
Device ............................................................... 12
Cuffs (Leg, arm and centerbody) ......................... 16

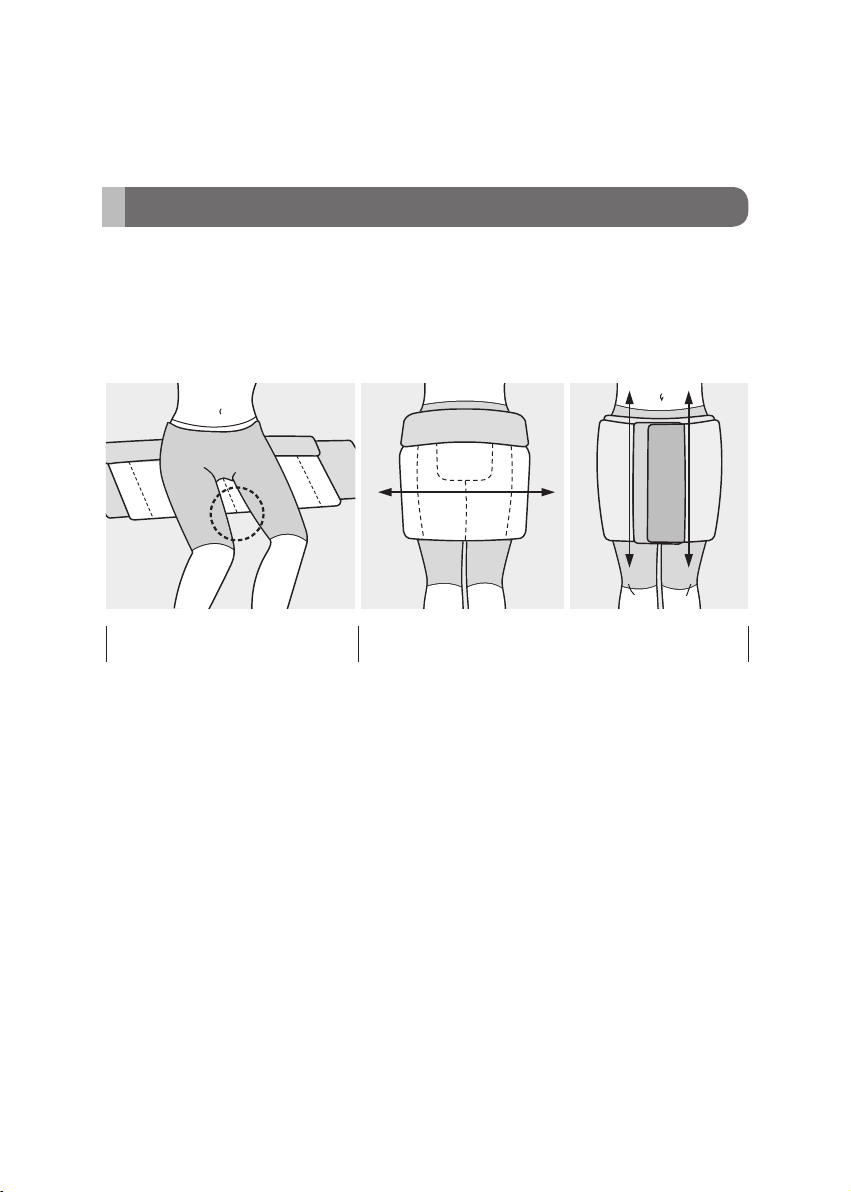

Cuffs (Pelvis) ..................................................... 17

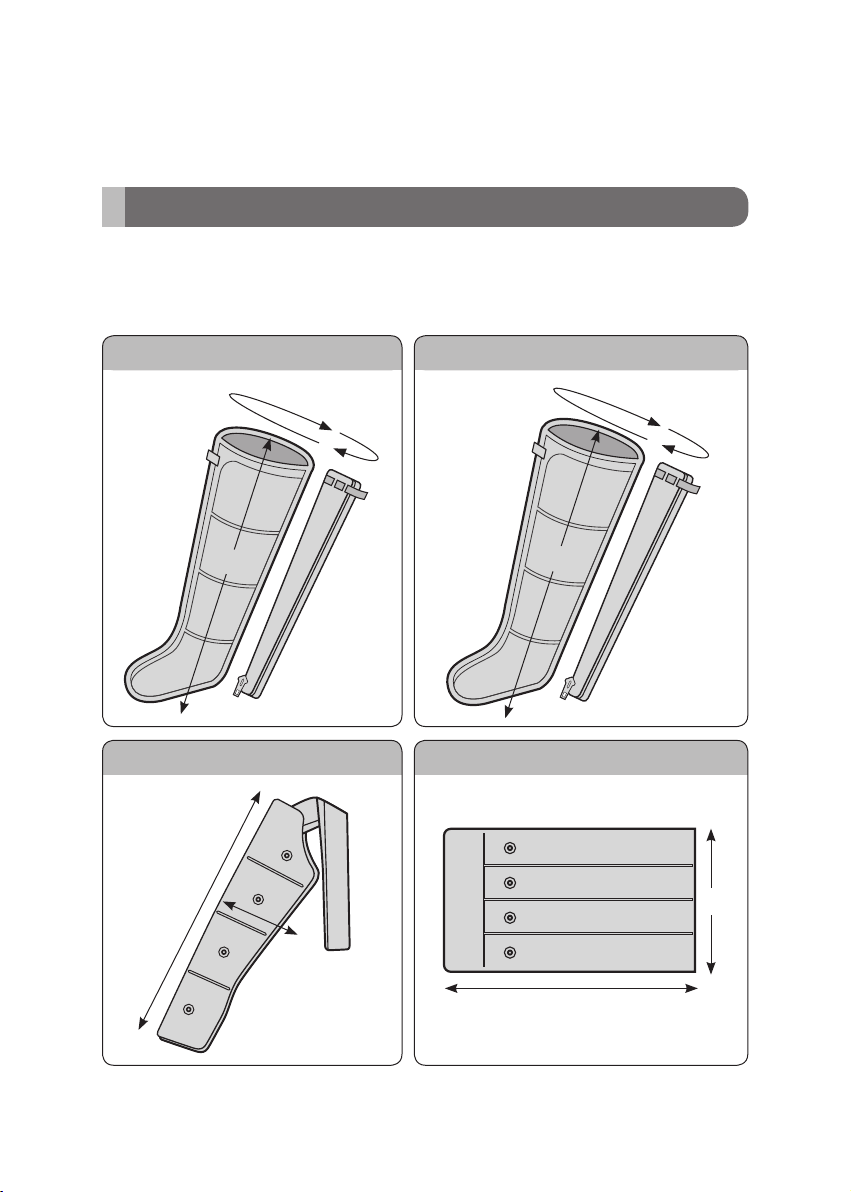

Cuffs size and Extension zipper .......................... 18
4. Reference
.......................................................
18
5. Self check before customer use .................. 25
6. Warranty ........................................................ 28
Contents
2

warning
prohibition
prohibition
of disjointing
caution
Thanks for purchasing our product. This product is an Air Compression Therapy System to
improve the blood circulation of the human body. Patient can also purchase or use it personally
after receiving doctor’s indications definitely.
The operating principle is that the air from the controller will be delivered to the cuff with 4 air
chambers and the air pressurizes sequentially the chambers from 1st to 4th.
This user’s manual contains the information how to use, keep and repair this product. Please, be
well informed of this manual to use this product correctly and to prevent the malfunction for the
best effect. Please keep this manual with this system always and please carefully read it before
using the system properly.
Wound or property-loss can be occurred in case of
disregarding the instruction
Death or serious wound can be occurred if users do not
follow the instruction.
Instruction to be prohibited.
Do not disjoint the device.
1. Instruction |Introduction
Introduction
Guidance for indication
3

- Please use a suitable AC cord for each country.
(Fire accidents and electric shocks possible)
- Stop using the device in case of smelling during using the device. In this
case, turn off the electric power and pull out plug from outlet,and then
inform it to service center. (Fire accidents & electric shocks possible
- Grip the plug, not a power cord with hands when you plug in or out
- Do not plug in or out with wet hands (Electric shocks possible)
- Do not bend or twist the power cord.
(Fire accidents & electric shocks possible)
- Do not touch signal input, signal output or other connectors, and the
patient simultaneously.
- External equipment intended for connection to signal input, signal
output or other connectors, shall comply with relevant IEC Standard(e.g.,
IEC60950 for IT equipment and IEC60601-1 series for medical electrical
equipment). In addition, all such combination-system-shall comply with
the standard IEC60601-1 and/or IEC60601-1-1 harmonized national
standard or the combination. If, in doubt, contact qualified technician or
your local representative.
- Pull out plug when not using or providing against lighting, thunder.
Electrical Safety
prohibition
caution
1. Instruction |Safety Information
4

- Do not use cuffs on undressed body.
Use the cuffs with wearing thin under wears.
(Cuff's endurance can be weakened due to sweat cosmetics and sebum)
- Do not use other tools, except our machines, to blow air into cuffs.
- Do not stain cuffs by oil, benzene, alcohol, gasoline etc.
(Anti-endurance possible)
- Do not use these cuffs together with accessories,watch etc.
(Physical damages, cuff breakage possible)
- Do not keep cuffs near to heating materials such as stove, cigarettes
etc.(Air leaking or fire accidents possible)
- Do not keep cuffs near to dangerous keen materials such as needle,
scissors. (Cuffs can be damaged and malfunctions possible)
Regarding cuff
prohibition
caution
5

warning
Safety for body
- Do not use the device in a drunken state.
- Forbid children to use the device.
Serious injuries can be occurred when the air blows into cuffs.
- Do not use air hose to nose, mouth or ears.(Any injuries possible)
- Prohibit to use the device in case of artificial-heart etc.
- Use the cuffs with wearing thin cloths. Zip up perfectly the cuff as the
unzipped zipper can damage the skin during using.
- Prohibit using the device to the patients having any artificial material
inserted like artificial-joint, metal-inserting, silicon,etc in their body.
(it can be the cause of inflammation can or otherside effects)
- Use the device after consulting to a doctor definitely before using the
device it in case of lymph edema, vein diseases vein, heart diseases,
vascular cancer, a patient under cancer therapy, variant, gangrene,
recent artificial skin graft, or deep vein thrombosis.
- Use the device after consulting to a doctor definitely before using the
device it in case of heart disease, hypertension, malignant tumor, acute
inflamed skin disease, high pyrexia, hyposthenia or a patient having
any diseases now.
- Stop using the device when you feel any abnormal condition during
using, and consult to doctor.
- Use the device according to a doctor’s prescription definitely
to a patient with any surgical operation, especially, internal organs,
nerve or brain surgery or a patient within 1 year after surgery.
prohibition
6

Use and Maintenance
Cleaning and Others
warning
warning
- Use the device indoors of 0~40℃
(If not, any defects or fire accidents possible)
- Do not use or keep the device near to heating equipments or a direct ray of
the sun. (Defects, fire accidents, or transformations possible)
- Forbid children to touch. Disorder can be happened due to children's touch.
- Do not use oil, benzene, alcohol, gasoline, chemicals when cleaning the
device and cuffs. (Use dry towels)
- Do not use oil, benzene, alcohol, gasoline, chemicals when cleaning cuffs.
(Use wet dust cloths.)
- Do not use the device in high humidity place(Bathroom and sauna etc).
(Fire accidents, electric shocks possible)
- Do not repair, reproduce or disjoint the device by yourself.
(Fire accidents, electric shocks possible)
- Keep the device horizontally.
(If leaning, defects or malfunctions possible)
- Be careful to not put clips, staples, needles, metals or food into the device.
(Short circuits, heating generations possible)
* If happened, inform it to concerned agent.
prohibition
prohibition
caution
caution
7

Use the device after consulting to a doctor definitely before using
the device in case of lymph edema, vein diseases vein, heart
diseases, vascular cancer, a patient under cancer therapy, variant,
gangrene, recent artificial skin graft, or deep vein thrombosis.
Operating time touch / Display
: Button to set up the operating time
Compression modes touch / display
: Button to set up the operating mode.
Optional care touch button / display
: Button to select or remove the chamber
wants to be operated.
Pressure intensity display
: Display to indicate the operating
pressure intensity.
Pressure control knob
: Knob to set up
the operating pressure.
Start/Stop button
: Button to start/stop the
compressor after set up
the options.
Power ON/OFF button
: Button to turn the
power on/off.
2. Product description |Device
8

Specifications
Clause 5
Power
Time range
Pressure range
AC 230V, 50/60Hz
10, 20, 30 min.
20~200mmHg ± 20mmHg
2kg (package 6.5kg)
260 × 160 ×120mm
50VA
Product weight
Product size
Power consumption
1. Type of protection against electric shock: Class II equipment.
2. Degree of protection against electric shock : Not classified - BF applied parts
3. Classification according to the degree of protection against ingress of water:
IPX0, ordinary equipment.
4. This equipment is not suitable for use in the presence of flammable anesthetics
or oxygen.
5. Mode of operation: continuous operation.
9

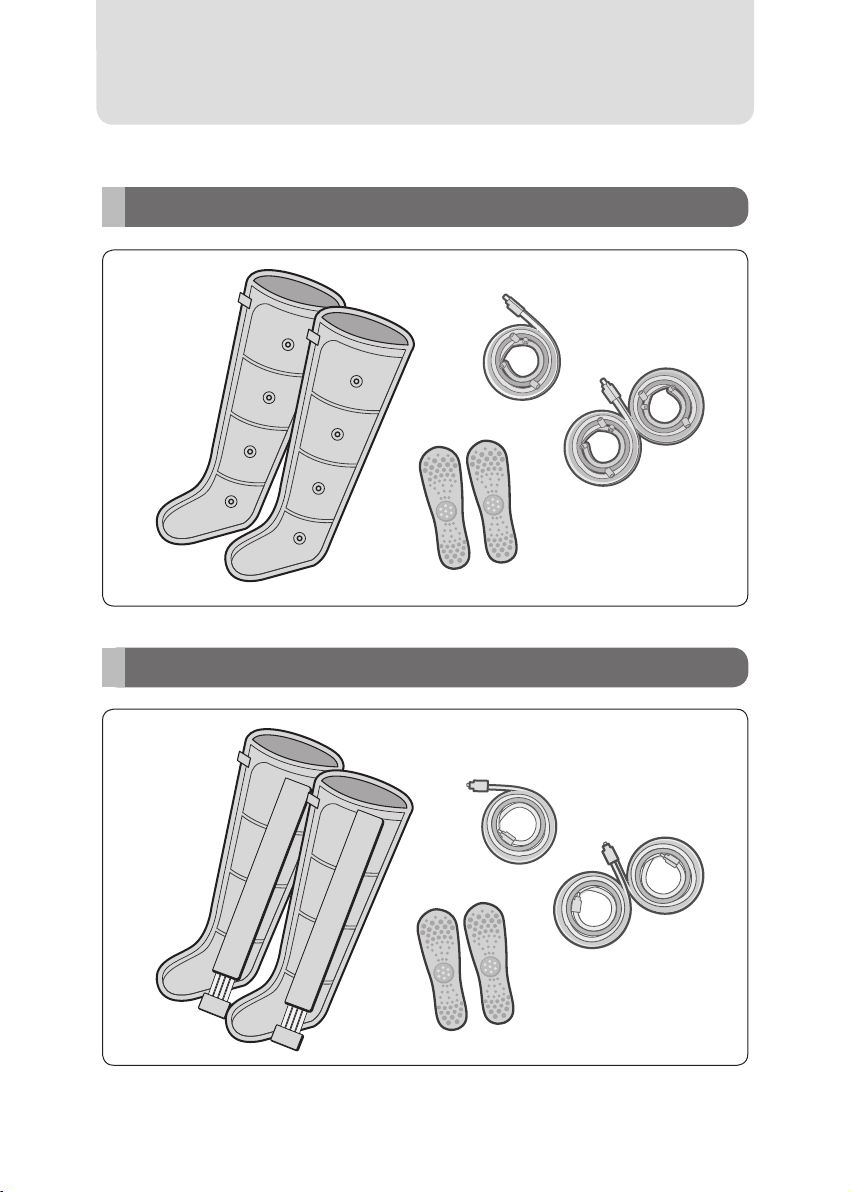

Leg cuff
(2EA)
One touch
Leg cuff
(2EA)
One touch basic set
Basic set
One touch
single hose
One touch
double hose
Single hose
Double
hose (1EA)
Foot pad
(2EA)
Foot pad
(2EA)
2. Product description |Accessories
10

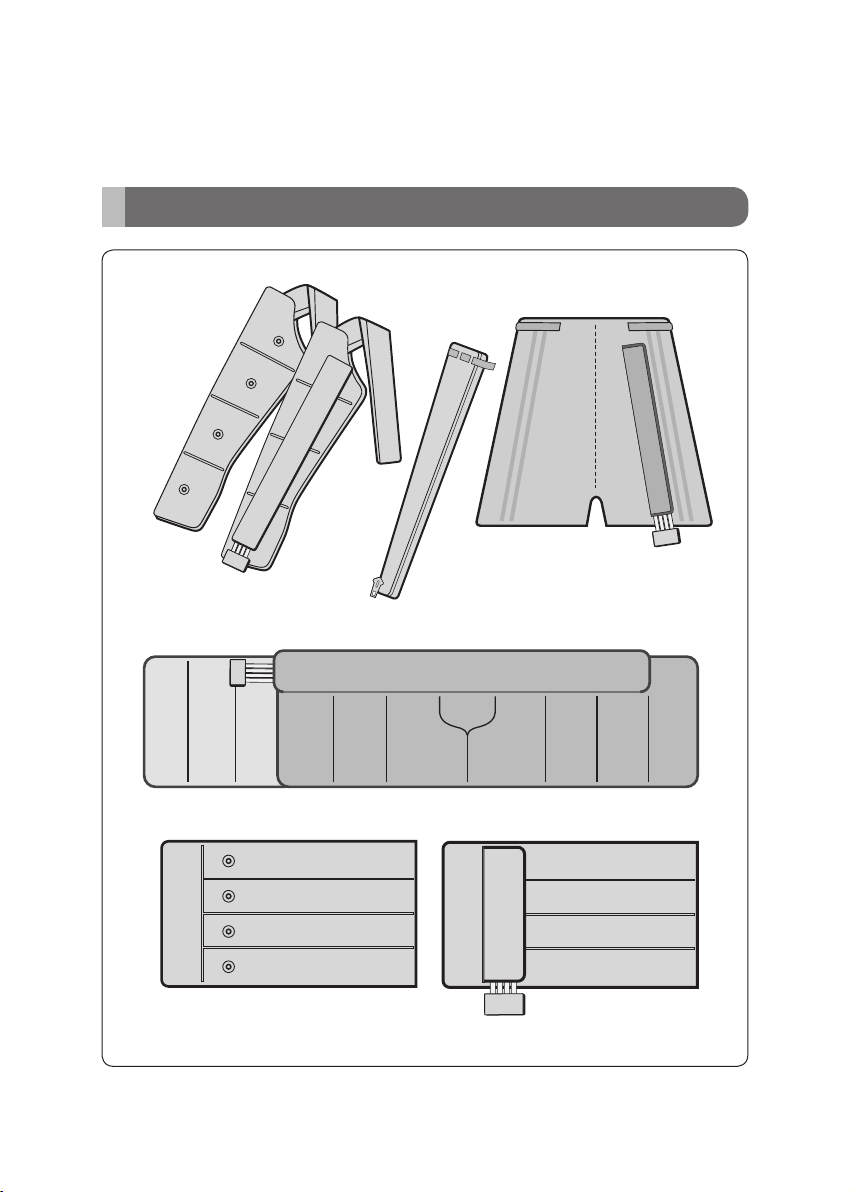

A centerbody cuff
Extension zipper
(Leg or arm, pants)
Optional Accessories
One touch
Arm cuff
Arm cuff
Waist cuff one touch waist cuff
Pelvis cuff
11

1. Two selectable modes
There are two operating modes you can select. (Massage mode, Circulation mode)
2. Optional care mode
A user can choose any chamber which the user wants to have the massage or to be skipped
for safe treatment on any part with a wound.
3. Touch screen / Setting buttons
A user can set up the operating time, modes and optional care modes by touching screen
lightly.
4. Digital pressure sensor
Digital pressure sensor keeps the set pressure equally without reference to any sizes of
body.
5. Digital timer
With a digital timer, a user can set the time up accurately and conveniently.
6. Safe function
The air will be discharged automatically in case of power failure.
1. For a beginner
It may cause a physical damage by using the compressor with the high pressure at the first
use. Try the compressor with less than 60mmHg and 10 minutes at the first use, and then
increase the pressure and operating time gradually.
2. For leg cuff use
Stretch the leg after cuff wearing. It may cause some pain around knee if not.
3. For waist cuff use
Wrap the cuff properly any part of abdomen, waist, or hips or thigh which you want to
care for.
Special Features
Notification for first use
3. How to use |Device
12

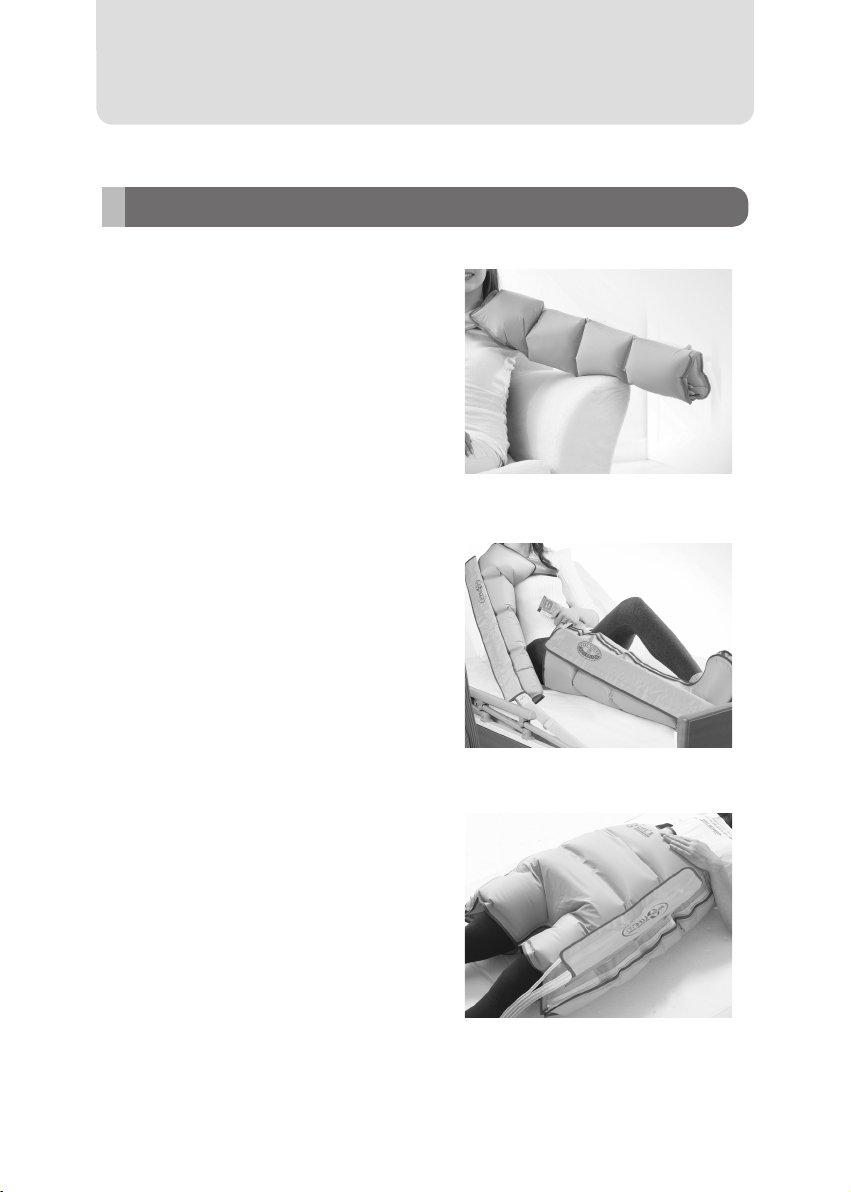

4. For arm cuff use
Use an attachable part of the arm cuff on a shoulder to be tied up.
If not, the cuff slip down during the operating.
We recommend using only one cuff if there is no any protector like a nurse or therapist
near to a user.
5. For air hose use
Use a single hose for one cuff and a double hose for two cuffs use and triple hose for three
cuffs use.
- Pressure range set up : 20~200mmHg
- The pressure sensor perceives the setting pressure automatically and pressurizes next
chamber.
- Check up the air leaking if the pressure is weaker than the setting pressure.
- In case of air leakage from the cuff or disconnection the hose from the cap, the sensor
pressurizes about 90 sec., and then progresses to next channel.
※ A beginner must start to use the compressor with the lowest pressure, and then control
the pressure according to the body condition.

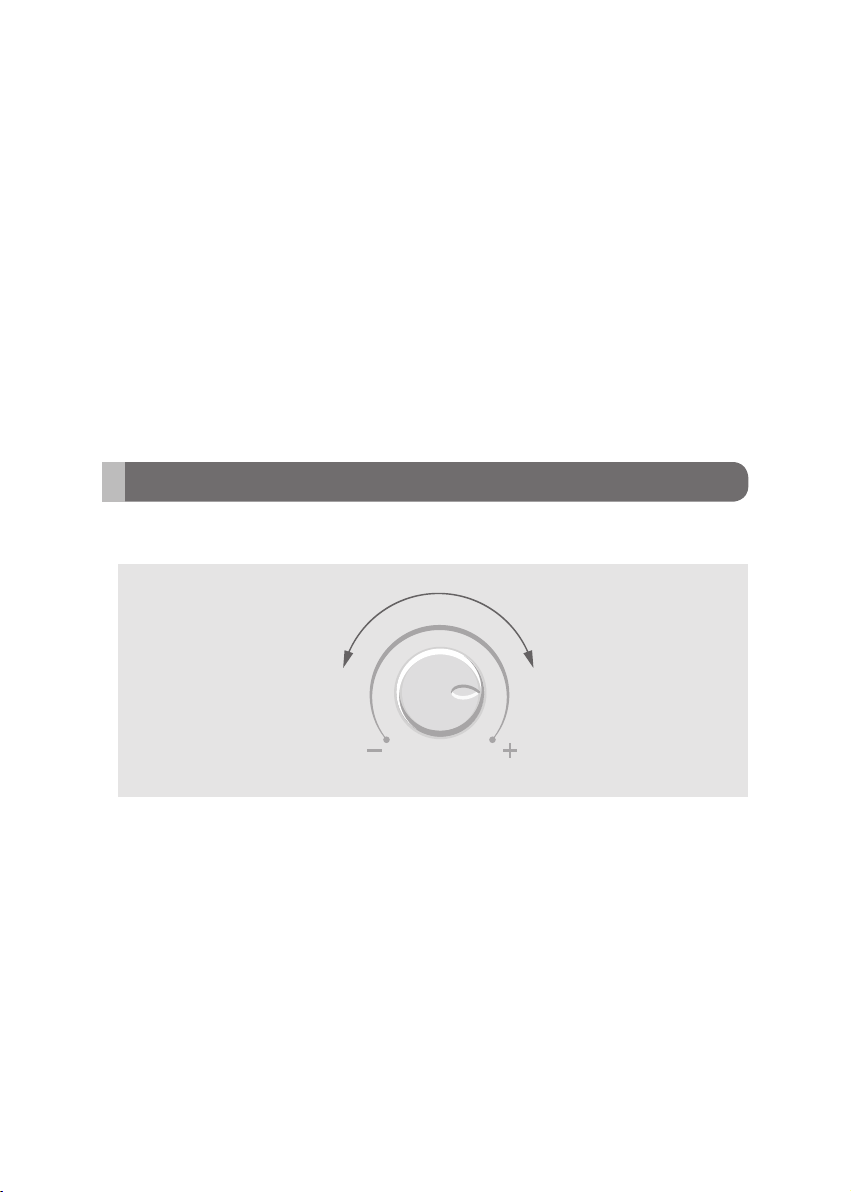

To set up the pressure intensity
To decrease the pressure
Turn the pressure controller
to the left for decreasing the
pressure intensity.
(Minimum 20mmHg)
To increase the pressure
Turn the pressure controller
to the right for increasing the
pressure intensity.
(Maximum 200mmHg)
13

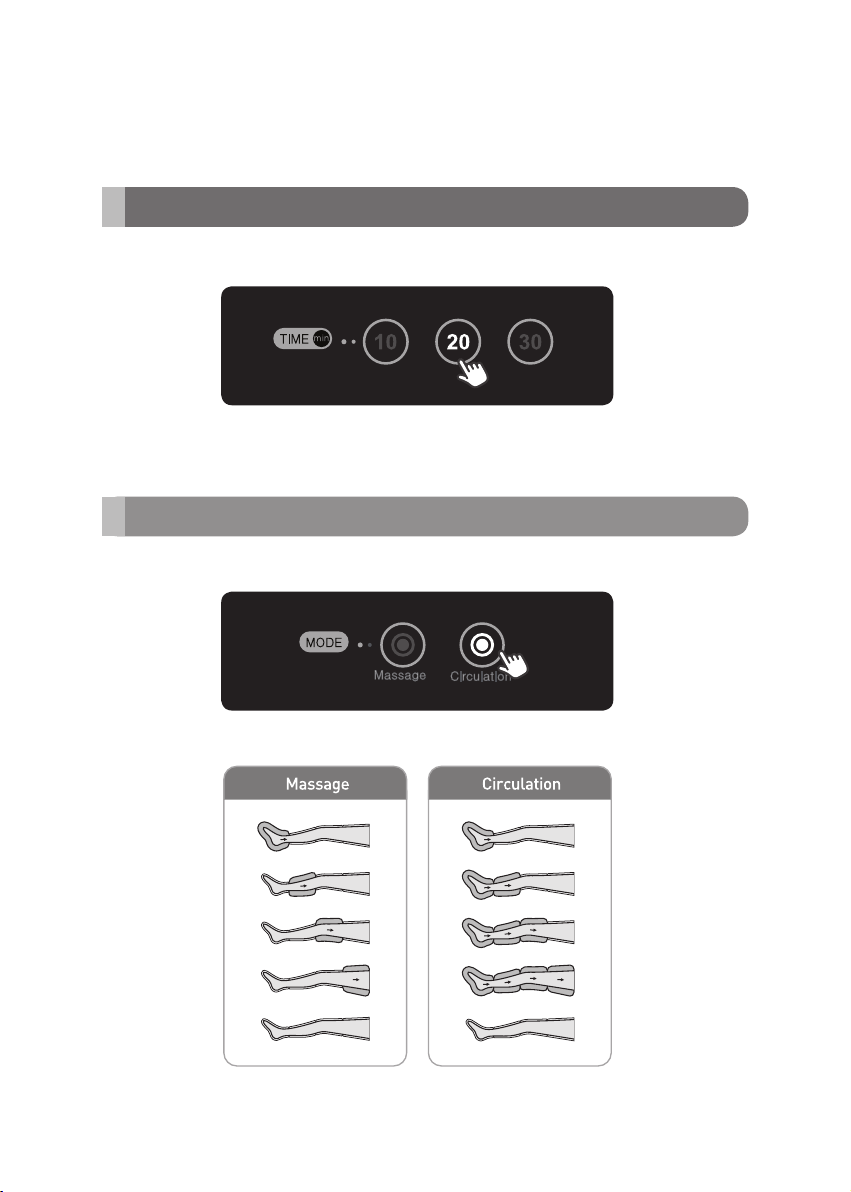

The timer is comprised of 10, 20, 30 min. buttons.
The compressor has two operating modes.
- Press any time button you want to have the operation for.
- It is able to change the time during the operating or pause.
- Press one of the modes you want to operate.
To set up the operating time
To set up the operating mode
14

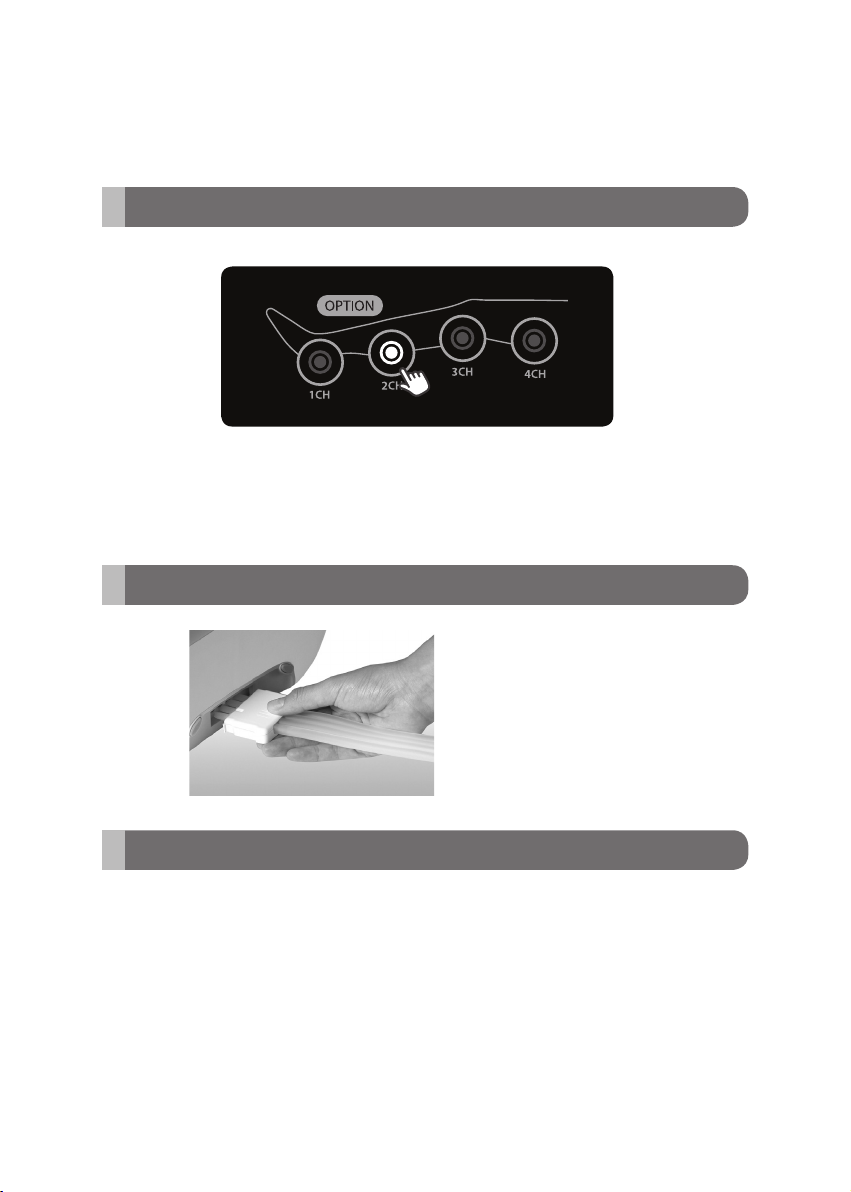

To set up the optional care mode
- Put a hose plug into the air socket
as the picture.
- Plug in completely for prevent
air leakage.
Connect hoses to cuff caps among same colors.
It not, there may not be any effects because of the change of pressurizing sequence.
*Pressurizing Sequence
- Leg cuff : foot > calf > knee > thigh
- Waist cuff : abdomen > waist > pelvis > hips
- Arm cuff : hand > elbow > forearm > shoulder
Optional care mode can choose any chamber you want to have the massage.
It is not only able to set up on each massage or circulation mode, but also able to
to set up during the operating.
To connect hose plug to air socket
To connect hoses to a cuff
15

To use one cuff only
- Put a cuff (Leg, arm or waist) on and plug in
a single hose to air socket.
- Plug in completely for prevent air leakage.
(Refer to picture).
To use two cuffs simultaneously
- Put each cuff on and plug in a doubled hose
to air socket.
- Plug in completely for prevent air leakage.
- Doctor's diagnosis needed for using both
side arm simultaneously to prevent the
higher blood pressure. (Refer to picture)
To use a centerbody cuff
- Put high waist half pants on and plug in a
doubled hose to air socket.
- Plug in completely for prevent air leakage.
How to use cuffs (arm, leg, centerbody)
3. How to use |Cuffs
16

1. Wrapping
- Please place the center of a pelvis cuff to the center of a hip by being symmetrical on the
either side of a pelvis for suitable compression of pelvis.
Check it is placed rightly to be symmetrical on the either
side of a pelvis to improve the effect of it.
Check the center of a cuff is placed
on the center of hip rightly.
2. Connection
- Put a single hose perfectly into air socket of a controller after wrapping the cuff,
or air can be leakage.
3. Operation
- Set the mode to the circulation mode and pressure to the below 100 mmHg.
And then please increase the pressure step by step.
How to use pelvis cuff
17

Cuff size and Using extension zipper
Extension cuff (Optional purchase)
- Use an extension zipper if the cuff does not fit you.
- Zip down completely and put the extension zipper between the cuff and zip up.
Arm cuff size (one size)
Leg cuff (L) and extension zipper
Waist cuff size (one size)
Leg cuff (XL) and extension zipper
38 cm
130 cm
86cm
29cm
65cm 76cm
+10cm +10cm
93cm 98cm
Extension
zipper Extension
zipper
18

4. Reference
Information regarding potential electromagnetic or other interference
This equipment has been tested and found to comply with the limits for medical devices in
IEC/EN 60601-1-2. These limits are designed to provide reasonable protection against harmful
interference in a typical medical installation.
This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference
to other devices in the vicinity. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to other devices, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
- Reorient or relocate the receiving device.
- Increase the separation between the equipment.
- Connect the equipment into an outlet on a circuit different from that to
which the other device(s) are connected.
- Consult the manufacturer or field service technician for help.
19

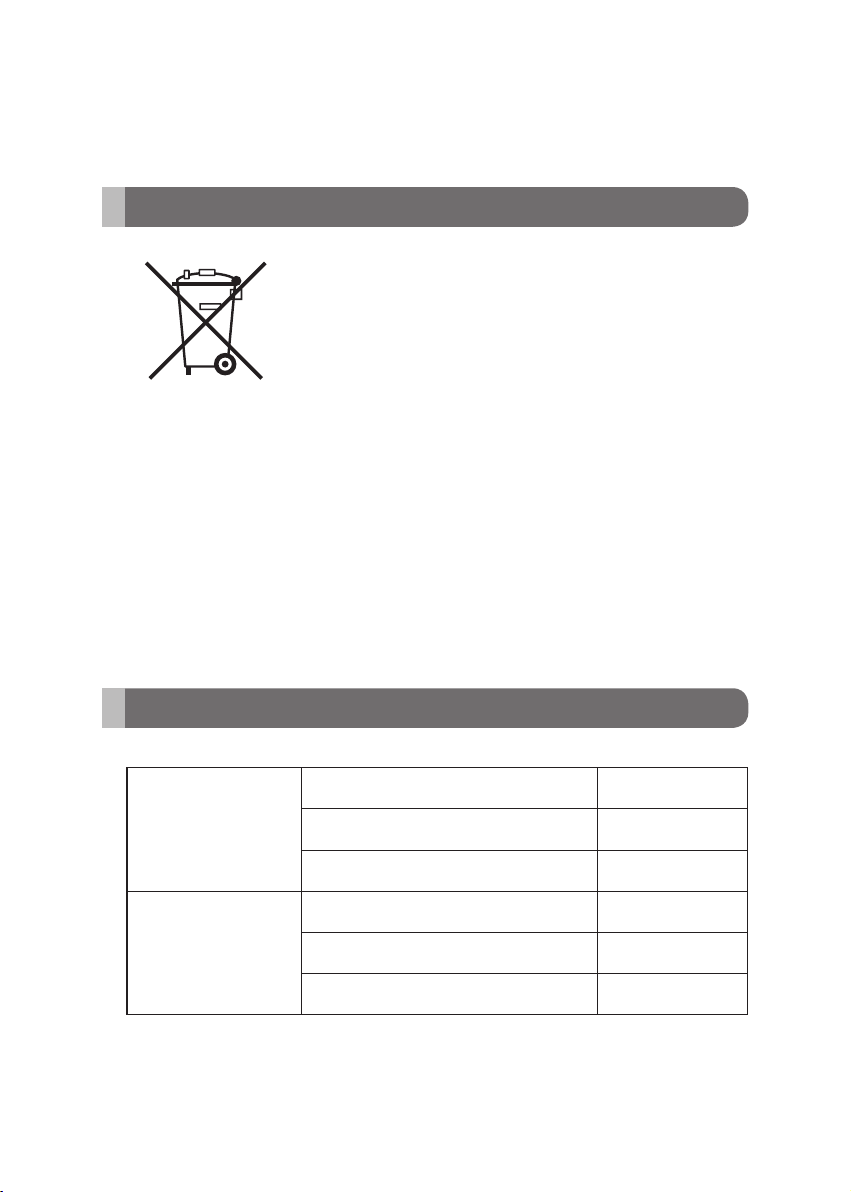

WEEE marking
Environmental conditions for transport and storage
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of
its working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate
this from other types of waste and recycle it responsibly to promote
the sustainable reuse of material resources.
Household users should contact either whether they purchased this product, or their local
government office, for details of where and how they can take this item for environmentally
safe recycling.
Business users should contact their supplier and check the items and conditions of the
purchase contract. This product should no be mixed with other commercial waste for
disposal.
Operating
condition
Transport and
storage condition
Temperature (℃)
Relative humidity (%)
Atmospheric Pressure (hPa)
Temperature (℃)
Relative humidity (%)
Atmospheric Pressure (hPa)
0-40
10-90
700 – 1060
-20 – 60
0-90
500 - 1060
20
