DOGA BSTP18-3 HD 1/4 User manual

Instructions manual / Position Controller
1
BSTP18-3 HD 1/4
BSTP18-6 HD 1/4
BSTP18-9 HD 1/4
BSTP18-12 HD 1/4
18V Cordless Shut Off Screwdrivers (Brushless motor)
INSTRUCTIONS MANUAL

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
2
I
IM MP PO OR RT TA AN NT T
The tool delivered with this manual may been modified for specific needs.
In that case, please give us the tool code number written on our shipping note or the approximate tool delivery date
when you place an order for a new similar tool or for spare parts.
In that way, you will be sure to get the required tool and/or spare part.
W
WA AR RN NI IN NG G
This information has to be kept in a location known by all users.
Each operator has to read carrefully this manual before installing, using, and
mending the product.
Be sure that the operator has understood using recommendations and the meaning of signs put on the product.
Most accidents could be avoided respecting this Manual Instructions. As a matter of fact, they were created according to
European laws and norms regarding products.
In each case, please respect and follow safety national norms. Do not take off nor damage the stickers or advise put on
the product and above all the details imposed by the law.

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
3

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
4

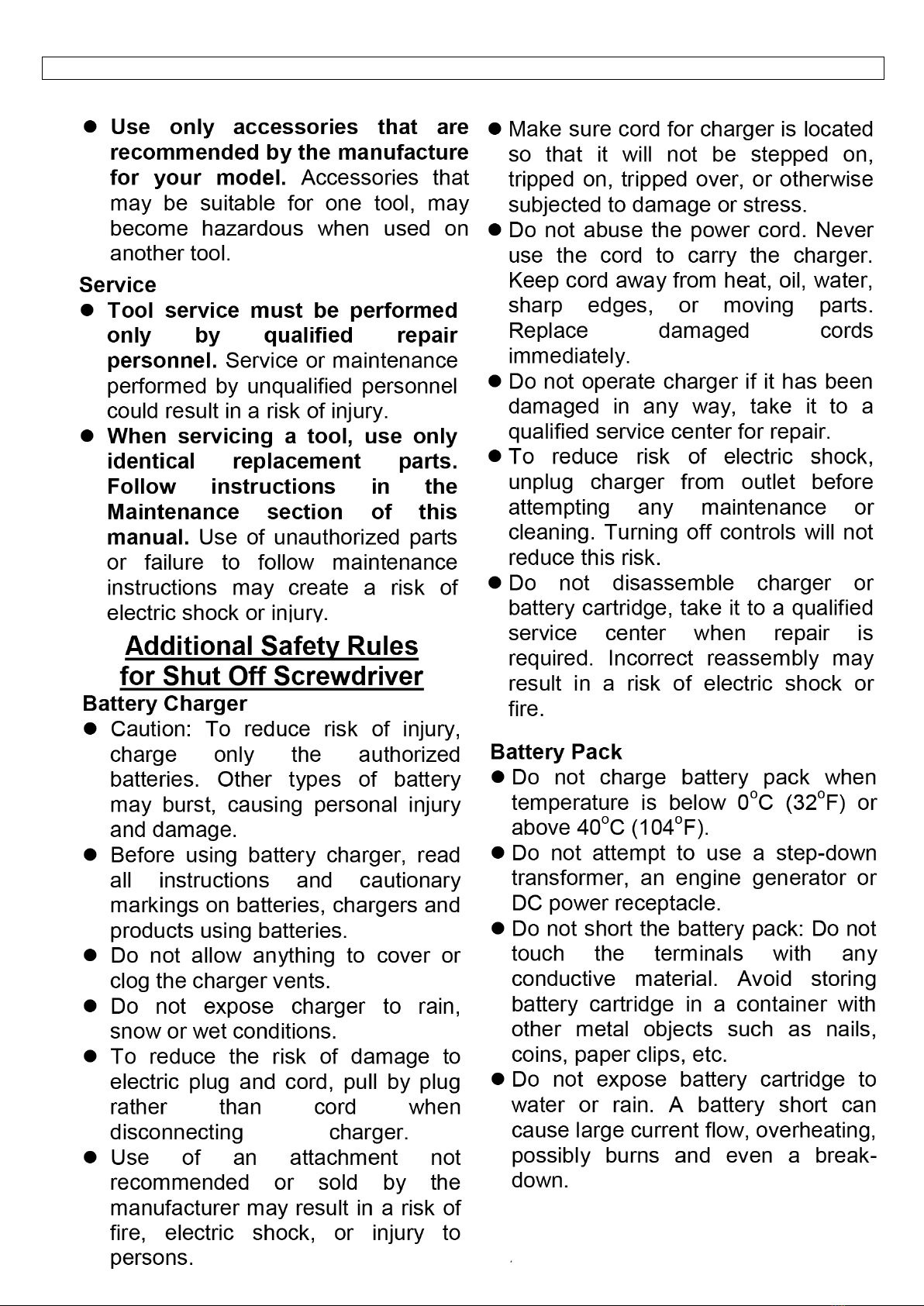

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
5

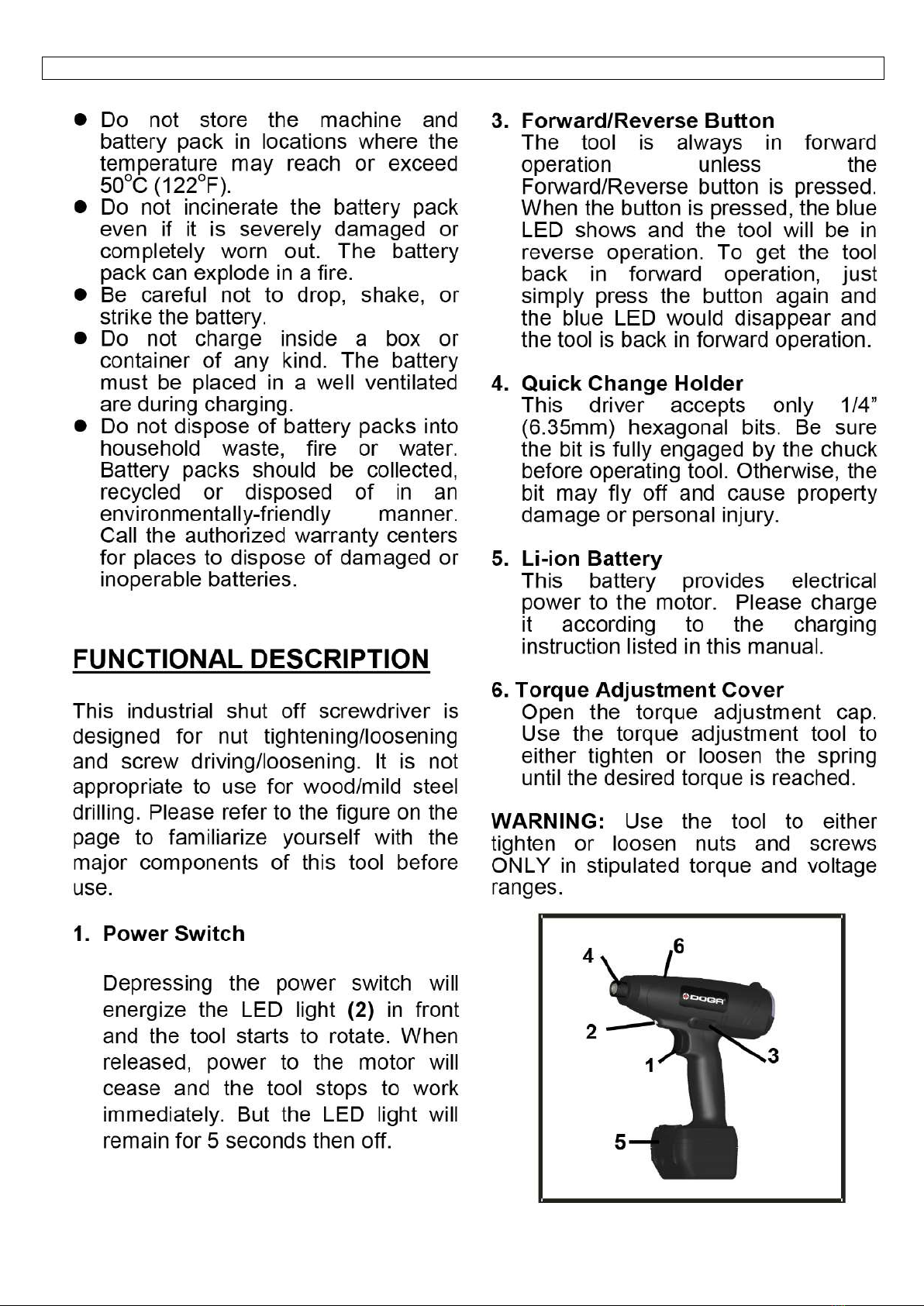

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
6

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
7

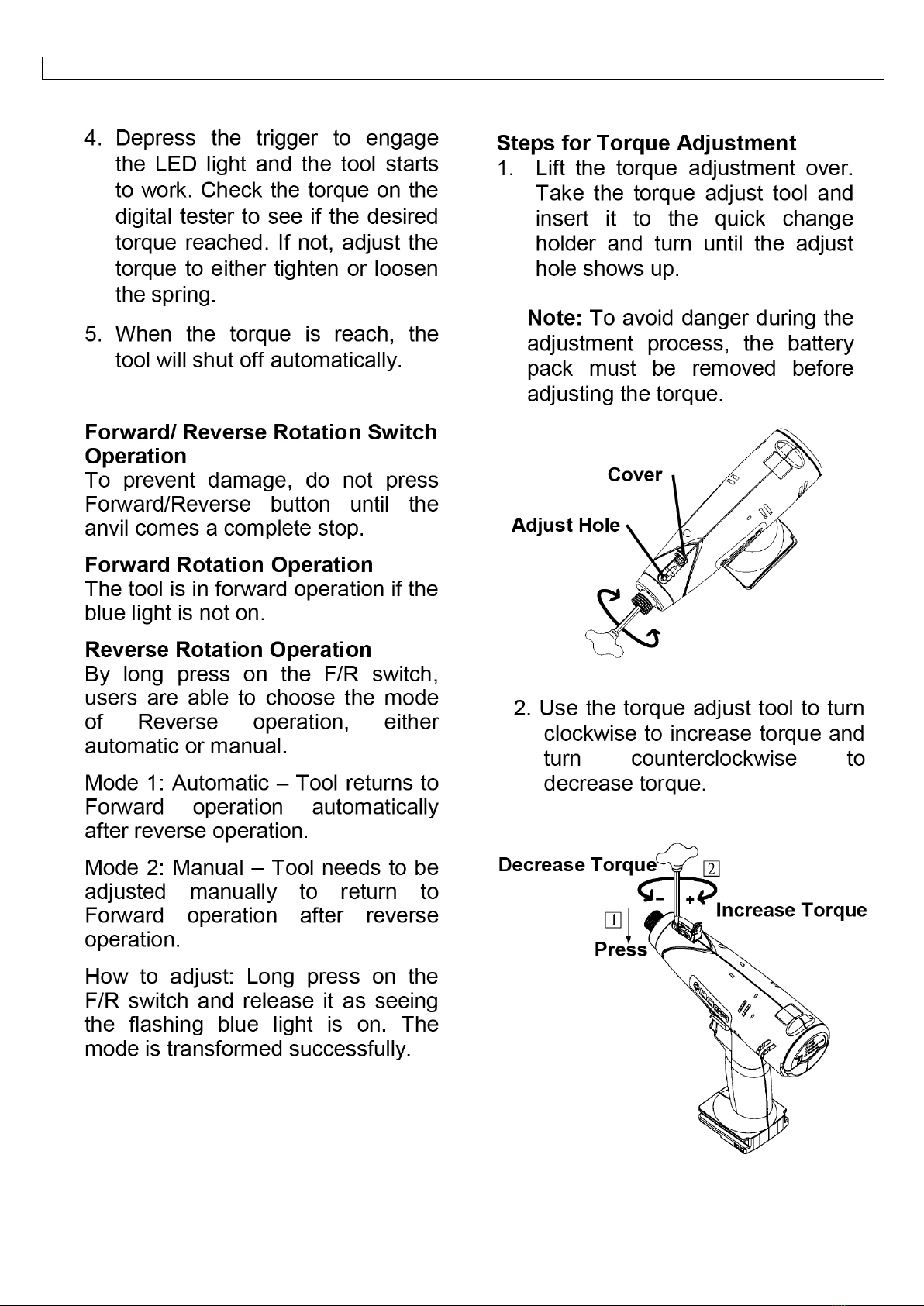

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
8

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
9

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
10
Charging the battery -
For Li-ion battery
[NOTE]
•When charging a cool battery pack (below 0°C
(32°F)) in a warm place, leave the battery
pack at the place and wait for more than one
hour to warm up the battery to the level of the
ambient temperature. Otherwise, battery pack
may not be fully charged.
•Cool down the charger when charging more
than two battery packs consecutively.
•Do not insert your fingers / nails into contact
hole, when
holding charger or any other
occasions.
1. Place charger in a relatively cool and well-
ventilated area.
2. Plug charger into the AC outlet.
CAUTION: Ensure that the power source to
be utilized conform
s to the power
requirement specified on the product
nameplate.
3. Turn the battery up-side-down and slide the
battery into charger while keeping the
alignment marks line up. Slide the forward in
the direction of the arrow.
Do not force
battery as it should slide easily into place
with nominal force. Any difficulty doing so
would indicate an incorrect alignment.
4. If the power lamp
(red) does not light
immediately or goes ou
t soon after the
charger is plugged in, consult an authorized
dealer.
5. During charging, the charging lamp (green)
will start flashing.
When charging is
completed, an internal electronic switch will
automatically be trig
gered to prevent
overcharging.
- Charging will not start if the battery pack is
warm. For example, immed
iately after
heavy-duty operation. The yellow standby
lamp will be flashing until the battery cools
down.
6. If the temperature of the battery pack is 0°C
or less, charging takes longer to fully charge
the battery pack than the standard charging
time. Even when the battery is fully charged,
it will have approximately 50% of the power
of a fully charged battery at normal operation
temperature.
7. Once the battery is fully charged, the green
lamp will be lit to indicate the gone into a
trickle charge mode.
8. The battery does not charge when placed on
its charger. This means that the battery has
suffered a “deep” discharge. This can
happen when you leave the battery on the
screwdriver for a long period of time while
the yellow LEDs are lit “battery discharged”
(for example, over a weekend). The battery
must then be left to rest for at least 48 hours
before being put on the charger.
If the
problem persists, contact Doga after-sales
service.
Li-ion battery Pack
[NOTE]
1. Your battery pack is not fully charged at the
time of purchase. Be sure to charge the
battery before first use.
2. To optimize battery life and avoid damage,
remove the battery from the tool when it is
not in use for a long period of time
(stopping for more than 2 hours) or as soon
as the screwdriver LEDs start flashing
yellow (yellow LEDs = discharged battery).
3. Recharge the battery pack once every 6
month even if the battery is not in use.

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
11

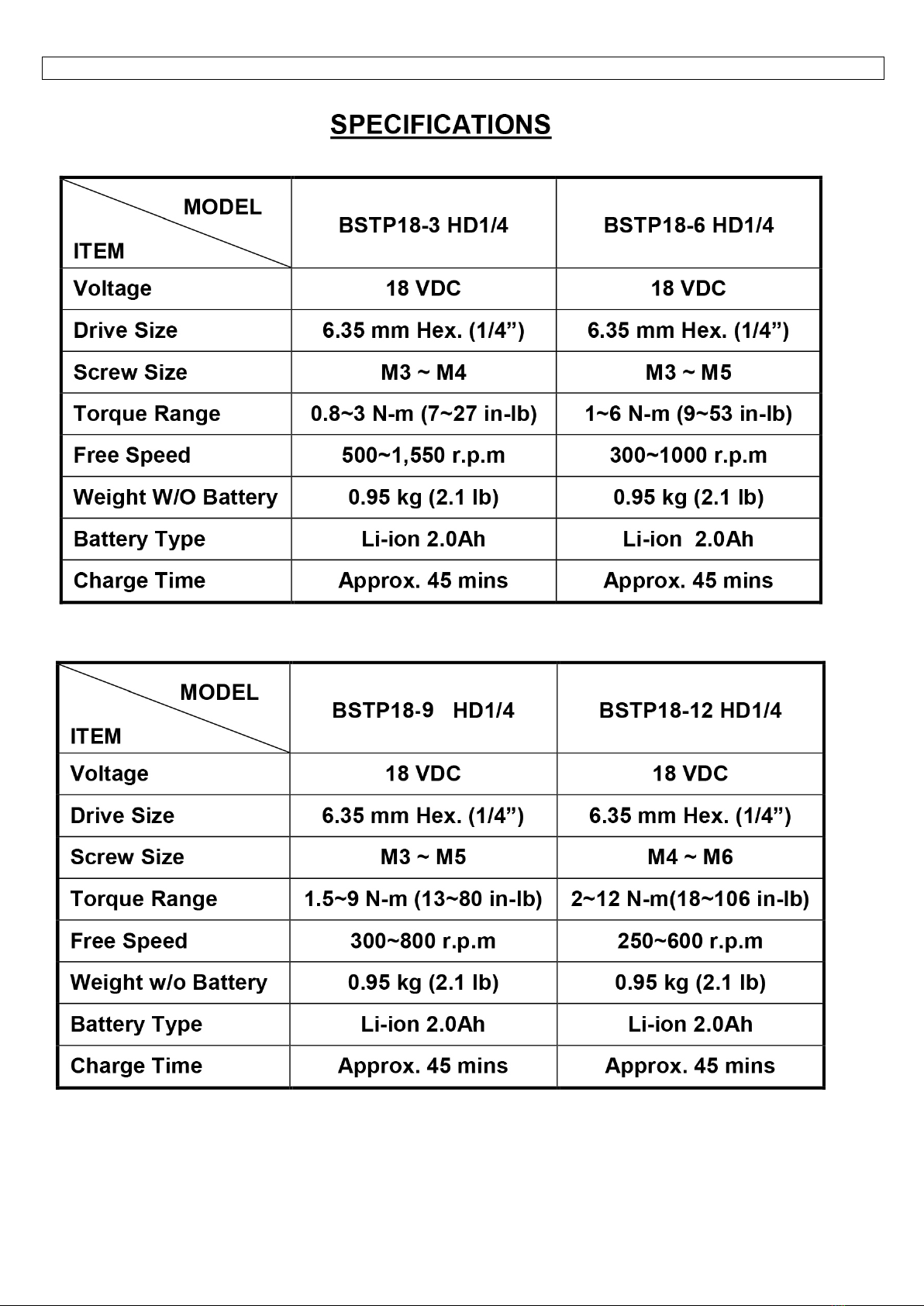

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
12

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
13

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
14

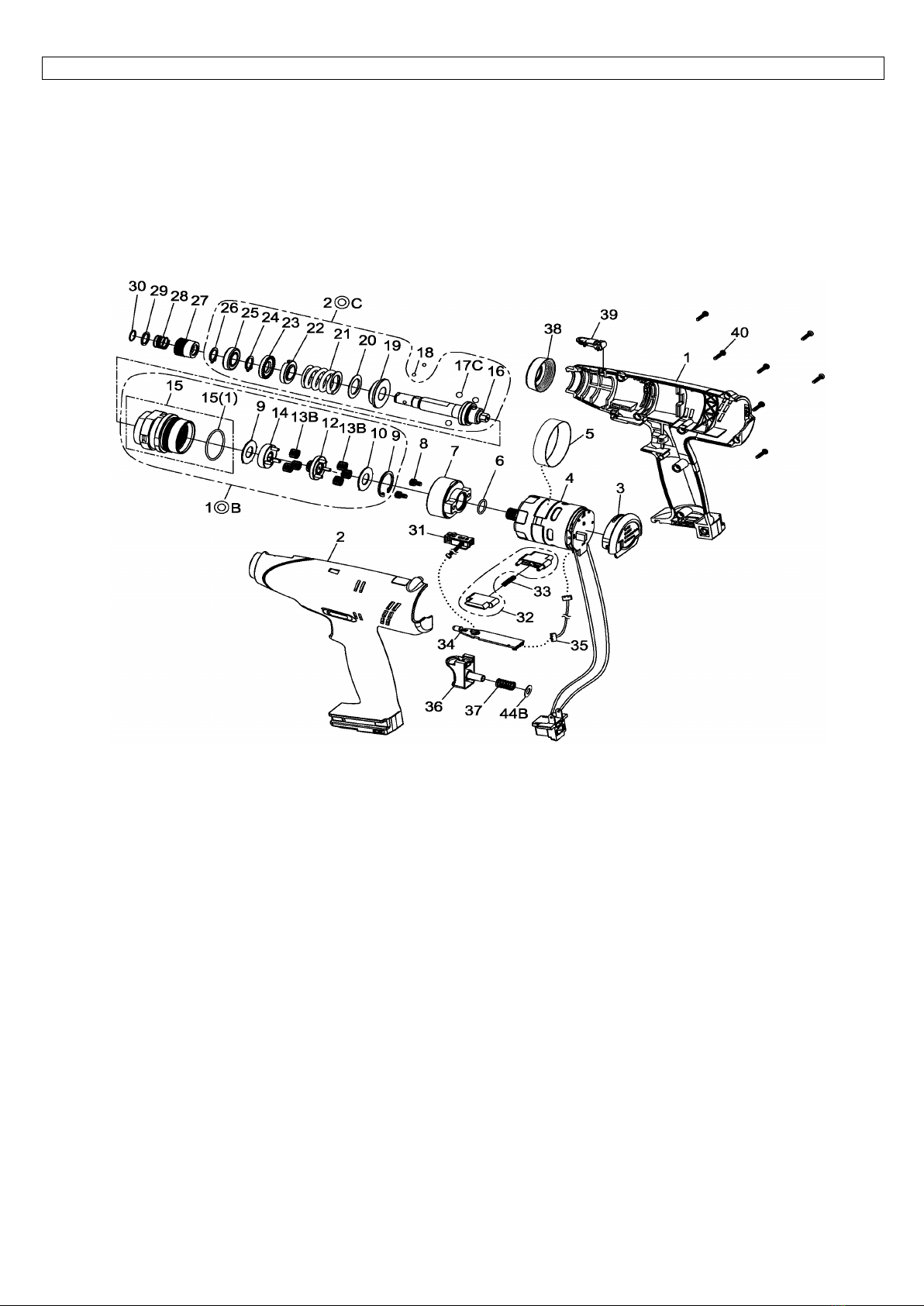

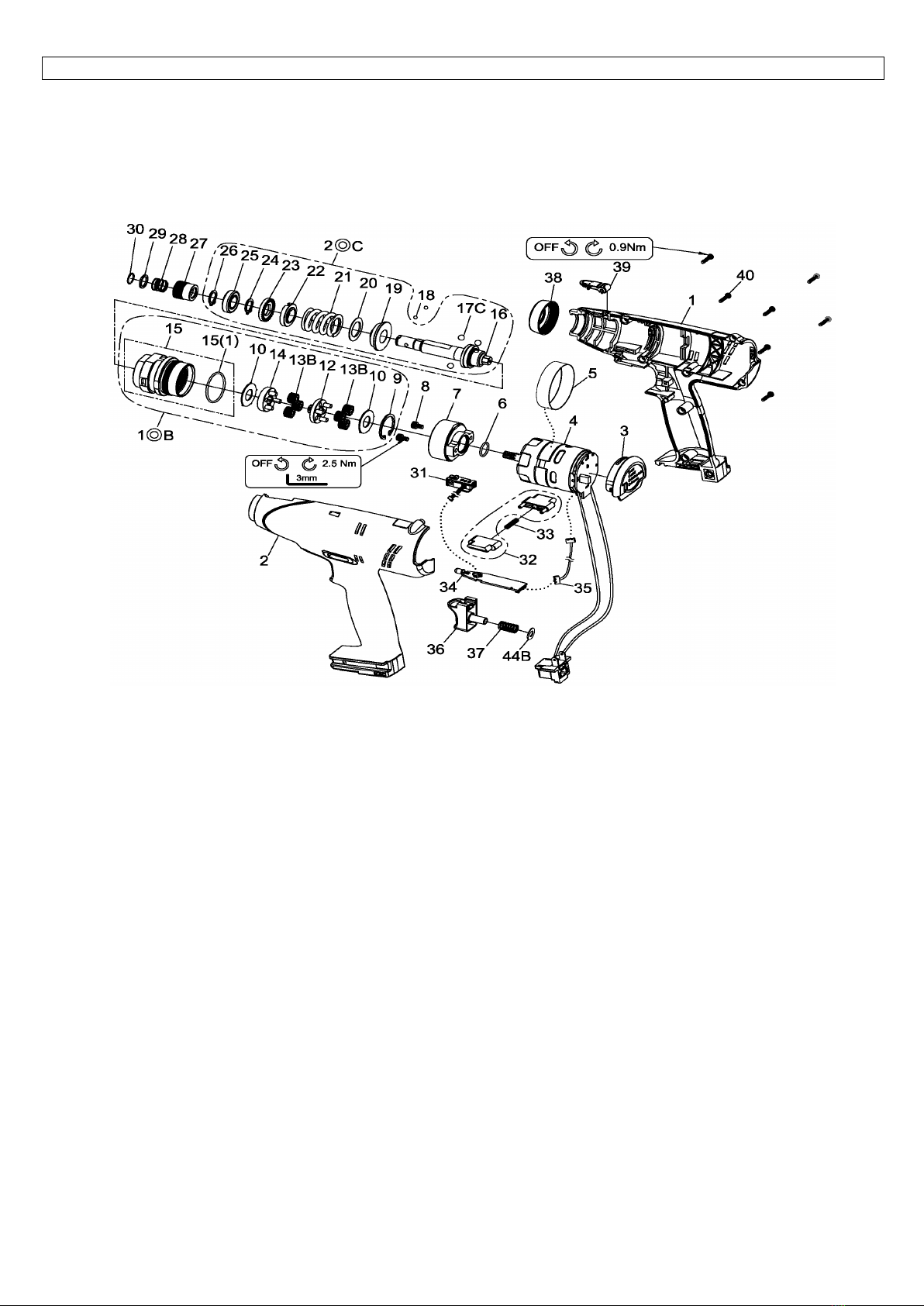

18V Cordless Shut off Screwdriver (1.5~9 N-m)- BSTP 18-3 HD1/4

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
15
Index
Part No.
Description
Q'ty
Index
Part No.
Description
Q'ty
No
No
1 C01SC#G2 Upper Housing 1 22 D39SC108B-2 Adjust Washer 1
2 C02SC#G2 Lower Housing 1 23 D54SC108B Adjust Nut 1
3 B10SC#W2 Cover 1 24 000-3012 Snap Ring (STW-12) 1
4 B83SC3 Brushless Motor ;w/driver 1 25 000-2305 Ball Bearing (6901) 1
5 C39PW15 Ring 1 26 000-3011 Snap Ring (STW-11) 1
6 000-4110 O-Ring (ψ16×ψ1.5)O-Ring (ψ16×ψ1.5) 1 18 000-3833 Steel Ball (ψ3)Steel Ball (ψ3) 2
7 D51SC108B Motor Holder 1 27 D42ID144A Quick Change Holder 1
8 000-0243 Screw(M4×6L)Screw(M4×6L) 2 28 D48ID144A Spring 1
1◎B1◎B B50SC180B3-2 Gear Box Units 1 29 D39ID144A Hold Spacer 1
9 000-3126I
Retaining Ring (IRTW-26)Retaining
Ring (IRTW-26)
1 30 D44ID144A Anvil Collar 1
10 D39SC180B-4 Washer 2 31 B75SC Sensor Assembly 1
12 B51SC180B3-B Gear Cage Assembly 1 32 B09PW15-1#B1
F/R Valve (1set×2pcs)F/R Valve
(1set×2pcs)
1
13B D49SC180B-2 Planet Gear 6 33 D48PW15-1 Spring 1
14 B51SC180B-7
Gear Plate AssemblyGear Plate
Assembly
1 34 E76SC PC Board 1
15 B50SC180B-1 Gear Box Assembly 1 35 E86SC Connector Wire 1
000-4117 (1) O-Ring(ψ24×ψ1.5) 1* 36 B09PW15#B1 Trigger Assembly 1
2◎C B43SC180B3 Clutch Units 1 37 D48PW15 Spring 1
16 B29SC180B Clutch Assembly 1 38 D54SC#BV Lock Nut 1
17C 000-3854 Steel Ball（ψ7/32〞） 3 39 C10SC108B-2#B1 Cover 1
19 D39SC180B-2 Washer 1 40 000-0930 Screw (ψ3×14L) 7
20 D39SC180B-3 Washer 1 44B C39PW15-3 Washer 1
21 D48SC108B-2 Spring (Red) 1

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
16

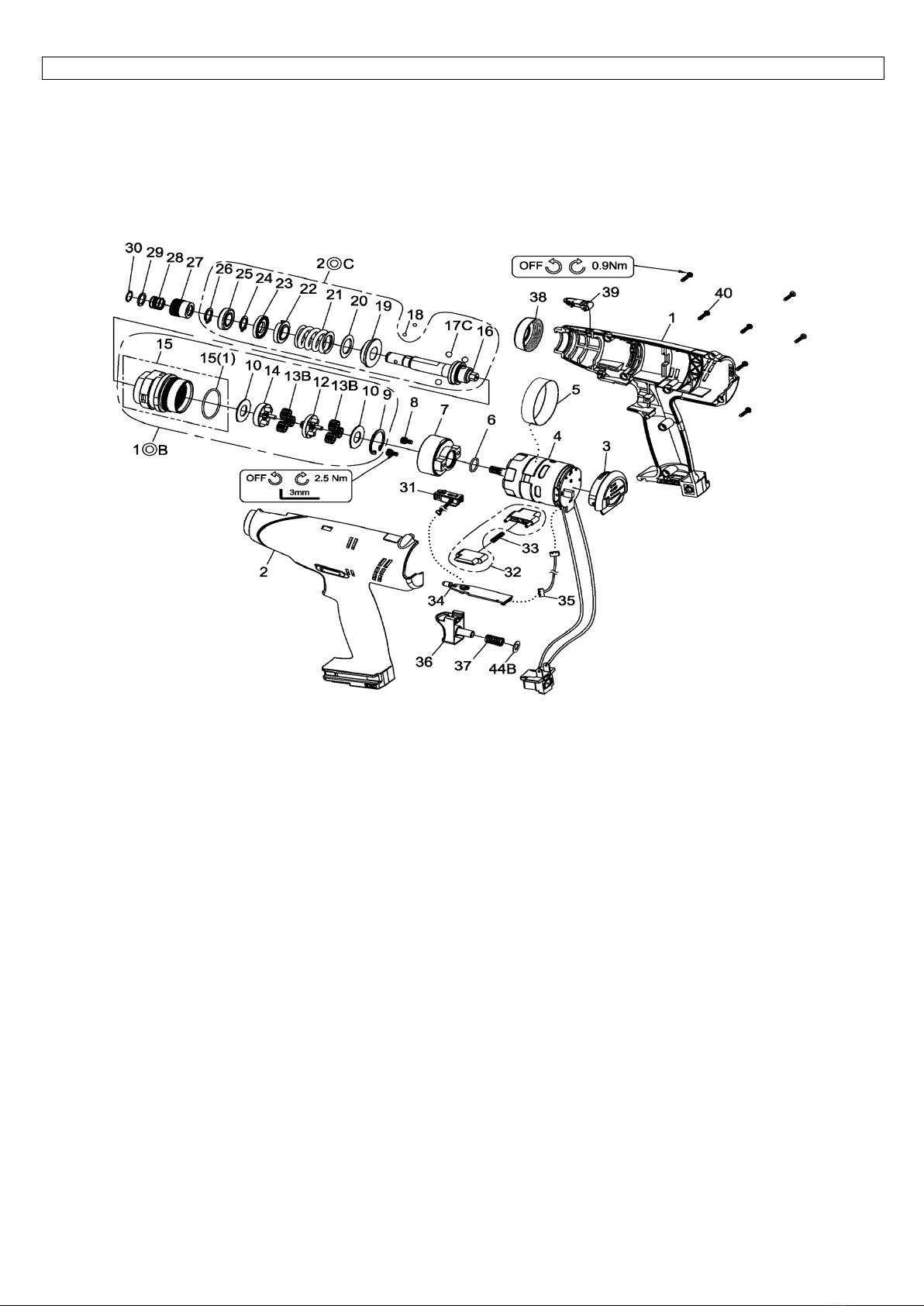

18V Cordless Shut off Screwdriver (1.5~9 N-m)- BSTP 18-6 HD1/4

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
17
Index
Part No.
Description
Q'ty
Index
Part No.
Description
Q'ty
No
No
1 C01SC#G2 Upper Housing 1 22 D39SC108B-2 Adjust Washer 1
2 C02SC#G2 Lower Housing 1 23 D54SC108B Adjust Nut 1
3 B10SC#W2 Cover 1 24 000-3012 Snap Ring (STW-12) 1
4 B83SC6 Brushless Motor ;w/driver 1 25 000-2305 Ball Bearing (6901) 1
5 C39PW15 Ring 1 26 000-3011 Snap Ring (STW-11) 1
6 000-4110 O-Ring (ψ16×ψ1.5)O-Ring (ψ16×ψ1.5) 1 18 000-3833 Steel Ball (ψ3)Steel Ball (ψ3) 2
7 D51SC108B Motor Holder 1 27 D42ID144A Quick Change Holder 1
8 000-0243 Screw(M4×6L)Screw(M4×6L) 2 28 D48ID144A Spring 1
1◎B1◎B B50SC180B6-2 Gear Box Units 1 29 D39ID144A Hold Spacer 1
9 000-3126I
Retaining Ring (IRTW-26)Retaining Ring
(IRTW-26)
1 30 D44ID144A Anvil Collar 1
10 D39SC180B-4 Washer 2 31 B75SC Sensor Assembly 1
12 B51SC180B6-B Gear Cage Assembly 1 32 B09PW15-1#B1
F/R Valve (1set×2pcs)F/R Valve
(1set×2pcs)
1
13B D49SC108B-9 Planet Gear 6 33 D48PW15-1 Spring 1
14 B51SC180B-6 Gear Plate AssemblyGear Plate Assembly 1 34 E76SC PC Board 1
15 B50SC180B-1 Gear Box Assembly 1 35 E86SC Connector Wire 1
000-4117 (1) O-Ring(ψ24×ψ1.5) 1* 36 B09PW15#B1 Trigger Assembly 1
2◎C B43SC180B6 Clutch Units 1 37 D48PW15 Spring 1
16 B29SC180B-1 Clutch Assembly 1 38 D54SC#BV Lock Nut 1
17C 000-3854 Steel Ball（ψ7/32〞） 3 39 C10SC108B-2#B1 Cover 1
19 D39SC180B Washer 1 40 000-0930 Screw (ψ3×14L) 7
20 D39SC180B-3 Washer 1 44B C39PW15-3 Washer 1
21 D48SC108B-4 Spring (Blue) 1

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
18
18V Cordless Shut off Screwdriver (1.5~9 N-m)- BSTP 18-9 HD1/4

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
19
Index
Part No.
Description
Q'ty
Index
Part No.
Description
Q'ty
No
No
1 C01SC#G2 Upper Housing 1 21 D48SC108B-3 Spring (Yellow) 1
2 C02SC#G2 Lower Housing 1 22 D39SC108B-2 Adjust Washer 1
3 B10SC#W2 Cover 1 23 D54SC108B Adjust Nut 1
4 B83SC9 Brushless Motor ;w/driver 1 24 000-3012 Snap Ring (STW-12) 1
5 C39PW15 Ring 1 25 000-2305 Ball Bearing (6901) 1
6 000-4110 O-Ring (ψ16×ψ1.5) 1 26 000-3011 Snap Ring (STW-11) 1
7 D51SC108B Motor Holder 1 18 000-3833 Steel Ball (ψ3) 2
8 000-0243 Screw(M4×6L) 2 27 D42ID144A Quick Change Holder 1
1◎B1◎B B50SC180B9-2 Gear Box Units 1 28 D48ID144A Spring 1
9 000-3126I
Retaining Ring (IRTW-26)Retaining Ring
(IRTW-26)
1 29 D39ID144A Hold Spacer 1
10 D39SC180B-4 Washer 2 30 D44ID144A Anvil Collar 1
11B D49SC108B-9 Planet Gear 3 31 B75SC Sensor Assembly 1
12 B51SC180B9-B Gear Cage Assembly 1 32 B09PW15-1#B1 F/R Valve (1set×2pcs) 1
13 D49SC108B-8 Planet Gear 3 33 D48PW15-1 Spring 1
14 B51SC180B-5 Gear Plate Assembly 1 34 E76SC PC Board 1
15 B50SC180B-1 Gear Box Assembly 1 35 E86SC Connector Wire 1
000-4117 (1) O-Ring(ψ24×ψ1.5) 1* 36 B09PW15#B1 Trigger Assembly 1
2◎C B43SC180B9 Clutch Units 1 37 D48PW15 Spring 1
16 B29SC180B Clutch Assembly 1 38 D54SC#BV Lock Nut 1
17C 000-3854 Steel Ball（ψ7/32〞） 3 39 C10SC108B-2#B1 Cover 1
19 D39SC180B Washer 1 40 000-0930 Screw (ψ3×14L) 7
20 D39SC180B-3 Washer 1 44B C39PW15-3 Washer 1

Instructions manual / BSTP Series
BSTP Series © DOGA I 60261-10/23
20
18V Cordless Shut off Screwdriver (2~12 N-m)- BSTP 18-12 HD1/4
