Doherty SCR01/WHITE User manual

www.sidhil.com
Doherty Panel
Screen
Instructions for use

3
Still making it better...
Welcome to Sidhil
Excellence in customer
service is our key objective.
Alongside our focus on
innovation, research and
product development, we
use our UK manufacturing
facility to ensure optimum
levels of product and
spares availability,
with unparalleled
levels of reliability and
performance.
Corporate social responsibility
is also an issue for Sidhil. We
have now received accreditation
to ISO 14001, underlining our
commitment to maintaining the
highest levels of environmental
awareness and sustainability
across our manufacturing
operation.
At Sidhil, everything we do
is designed around quality.
From our modern and ecient
manufacturing plant in Halifax,
West Yorkshire, we manufacture
a range of products for the
healthcare market using leading
edge production technology and
nishing processes.
We are the only remaining
volume manufacturer of
hospital beds in the UK,
bringing together innovation
in product development,
sales, customer service and
logistics to provide clear
benets for our customers
in terms of exibility, short
production timescales and
support for our nationwide
network of service and
maintenance centres.

4
1. INTRODUCTION............................................................................5
2. SPECIFICATION.......................................................................6
3. ASSEMBLY & PREPARING FOR USE.................................................7
4. CLEANING.......................................................................................10
5. GENERAL MAINTENANCE.............................................................10
6. WARRANTY.....................................................................................11

5
1. INTRODUCTION
Thank you for purchasing a Doherty Panel Screen System. The screen system is
designed to provide a modern alternative to the traditional plastic and polyester screen
curtains. Your screen system is part of a matching range of furniture, including fixed
height couches and a range of trolleys. Please speak to the Sidhil customer service team
for information with regards to the complete range (contact details can be found on
the back of this booklet).
The Panel Screen System is compatible with the Doherty epoxy coated frame
(purchased separately):
• SCR01/WHITE
These instructions for use should be read carefully before assembling your
new screen system.
The approximate time it will take you to assemble your screen is 45mins.
In line with our policy of continuous improvement we welcome any suggestions that
could lead to product improvement.
Screen Frame
Mount Clip
Solid Panel
Large 65mm twin
wheel castor
Screen system shown: SCR01/WHITE frame + SCRPK/BLUE panel kit
(screen frame sold seperately).

6

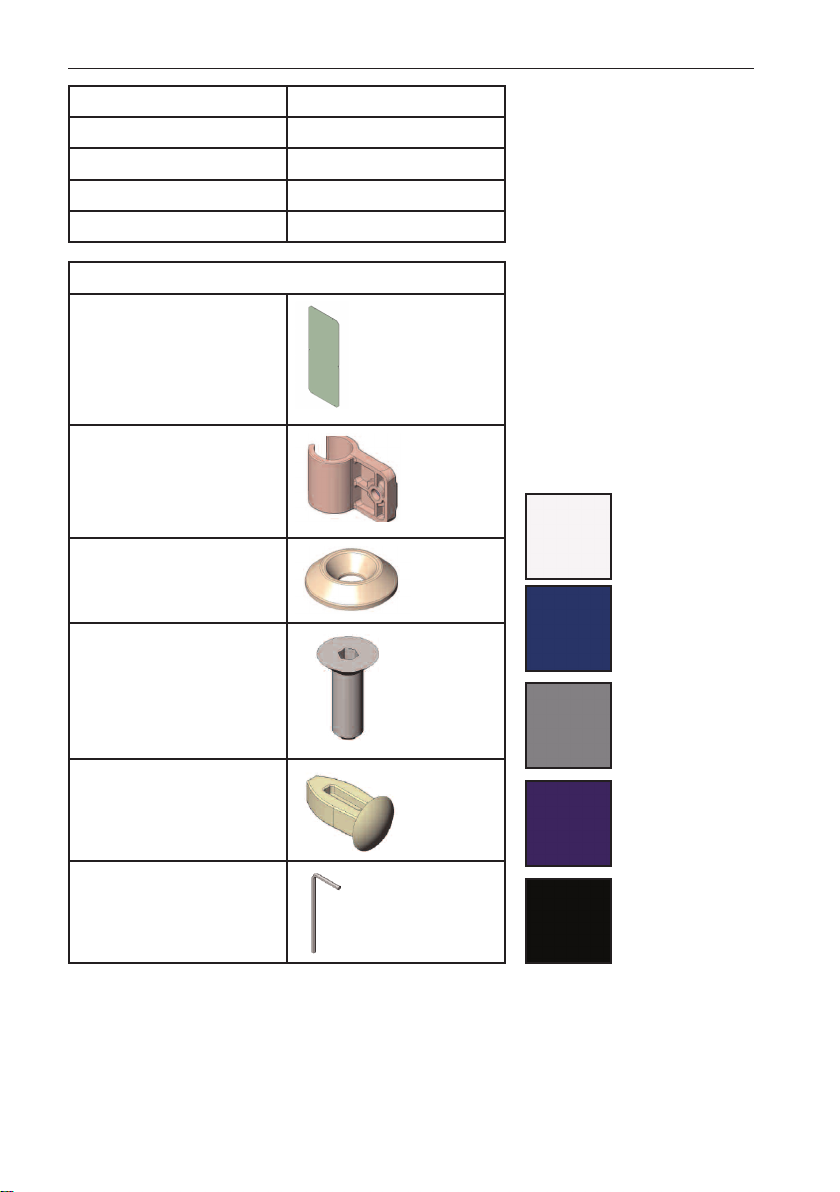

2. SPECIFICATION
Height 1720mm (67.7”)
Unfolded Length 2450mm (96.5”)
Folded Length 615mm (24.2”)
Unfolded Width 355mm (14.0”)
Folded Width 440mm (17.3”)
Screen System Contents
Screen Panels
Mount Clips
Finishing Washers
Countersunk Screws
Cover Caps
Allen Keys
All screen panels come in a range of 5 attractive colours.
White
Blue
Grey
Purple
Black

7
3. ASSEMBLY & PREPARING FOR USE
These instructions relate to assembling a screen system onto a frame.
The screen can be assembled stood up, but it is advisable to assemble it on the floor
where possible. If the screen is to be assembled standing up, perform step eleven first.
1. Ensure all components are present.
2. Carefully lie the frame flat on the floor. As the legs are in their ‘transport
position’, the screen will be unstable, it is advisable for two able bodied
people to perform this operation.
3. Remove the curtain wires from the frame and push a cover cap into each exposed
hole, as shown in figure 1. There are 4 cover caps per frame section.
Fig 1: Inserting cover caps
4. Snap the mount clips onto the frame in the approximate positions shown in figure 2.
Ensure the clips have the ‘webbed’ side pointing upwards. There are 6 clips per
frame section (24 clips in total).
Fig 2: Attaching the mount clips

8

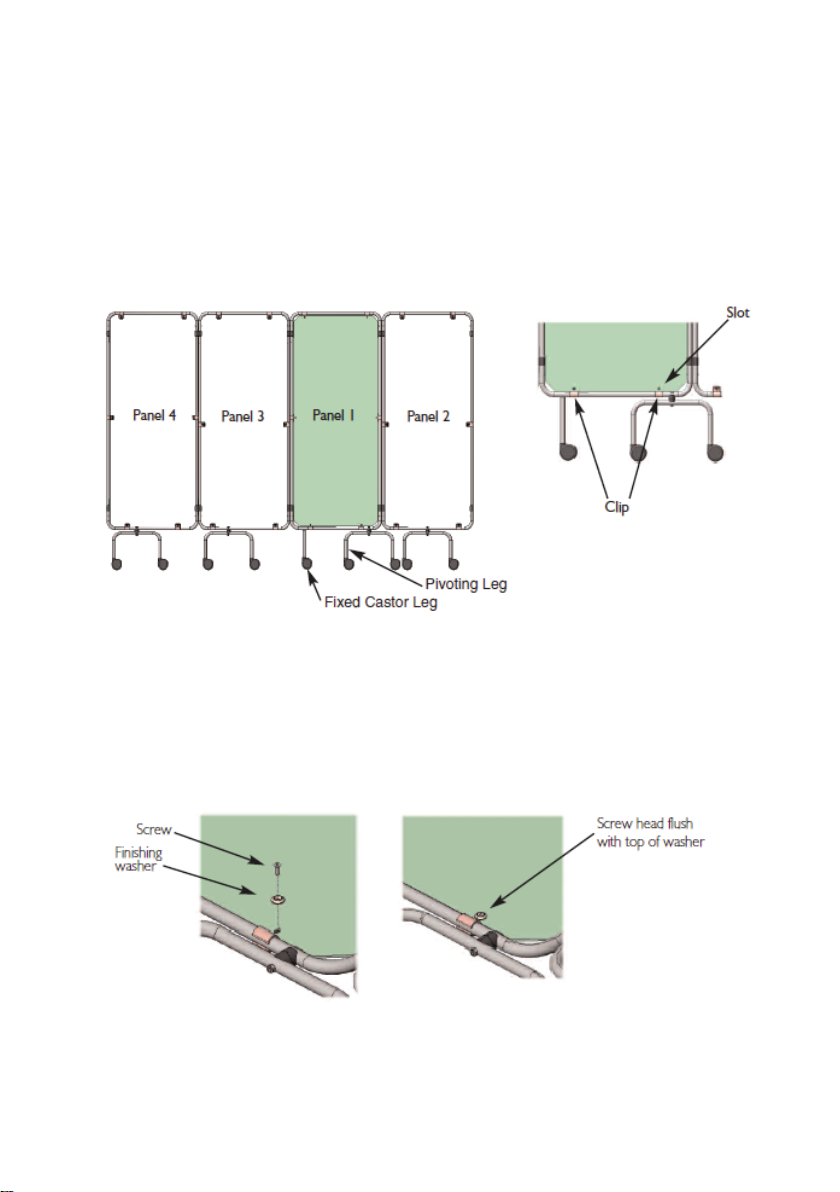

5. The panels must be fastened to the screen in a set order and orientation. Position
the first panel over the frame with the fixed castor leg and pivoting leg, as shown in
figure 3. Ensure the clips are to the inside of both legs as shown below. If the panel
slots do not line up with the clips to the bottom, you probably have the panel upside
down, rotate the panel through 180° and try again.
Fig 3: Aligning the panel to the bottom clips
6. Ensure the panel slot is aligned with the hole in the clip. Place a finishing washer
over the countersunk screw (ensure the countersunk hole in the washer is to the
same side as the countersunk head of the screw). With the allen key supplied
tightly screw the panel to the two bottom clips.
Fig 4: Screwing the panel to the frame
7. Slide the 4 remaining clips into the necessary positions and repeat step 6 for each clip.
8. Slide the panel/clips as necessary to centralise the panel in the frame.

9
9. Repeat stages 5-8 for the remaining panels, noting the panel order to assemble
in figure 3. There are 2 types of clip arrangement, this is necessary as each panel
must be rotated 180° to its neighbour, as shown below. Turn the panels round
so that panels 1 and 4 have distance ‘A’ between the edge of the frame and centre
of the screw and panels 2 and 3 have distance B.
Fig 5: Panel orientation
10. If the panel(s) appear slightly bowed once installed, slacken the top screws slightly
and pull the panel upwards, while holding retighten the screws, the panel should
now be flat.
11. The castor tubes must now be rotated into position:
 •Usingthespannerprovidedwiththescreenframe(notthepanelkit),loosenthe
nuts on the castor tubes.
 •Turnthecastortubesthrough90°.
 •Pressingtheboltdownwardstowardsthetube,re-tightenthenut.Tightening
fully may require the use of a 10mm socket and ratchet. Once tight ensure both
saddle clamps are seated correctly.
Fig 6: Orientating the castors
12. Your screen is now fully assembled. Carefully lift the screen onto its castors, this
may be easier if two able bodied people lift the screen together.
Please dispose of the packaging in a sensible and environmental fashion.

10
All surfaces to be wiped down with a disposable soft cleaning cloth, moistened with a
mild detergent and diluted in hot water (60°C). Extra care should be taken around
areas where excess dirt or dust may gather. Rinse down with clean water and dry off
with a paper towel.
Always ensure that the screen is dry before re-using.
Sidhil do not recommend the use of concentrated bleach or abrasive cloths as this
could mark the painted or plastic surfaces.
The Doherty panel screen system and frame require very little maintenance, however
if there are any signs of damage, or the screen is not performing as it should, please
contact your supplier for assistance. For Service & Support outside of the UK &
Northern Ireland please contact the local distribution company from where this
equipment was purchased.
Inspection points:
•Checktherearenoloose/missingpartsorfixings
•Checkthecastorsarecleanandfreerunning
Replacement/Spare Parts
Description Product Code
Grey panel SCR/PANEL/GREY
Blue panel SCR/PANEL/BLUE
Black panel SCR/PANEL/BLACK
Purple panel SCR/PANEL/PURPLE
White panel SCR/PANEL/WHITE
Mount clips SCR/CLIP/02
Finishing washer WFP/001
Countersunk screw SMSC05016
Cover caps TEI/061
Allen key AK/005
4. CLEANING
5. GENERAL MAINTENANCE

11
Sidhil Ltd guarantees this product is free from defects in material and workmanship
under normal use for 1 year (1 year full parts and labour) from the date of purchase from
Sidhil Ltd, its subsidiary companies, authorised dealers and international distributors.
Proof of purchase must be presented with any claim. Except as provided herein, Sidhil
Ltd, product warranty does not cover damage caused by misuse or abuse, accident,
the attachment of any unauthorised accessory, alteration to the product, or any
other conditions whatsoever that are beyond the control of Sidhil Ltd. Sidhil Ltd, its
subsidiary companies, authorised dealers and international distributors shall have no
liability or responsibility to the customers or any other person or entity with respect to
any liability, loss or damage caused directly or indirectly by use or performance of the
product or arising out of any breach of this warranty, including but not limited to any
damages resulting from inconvenience, loss of time, property, revenue, or profit or any
indirect, special, incidental or consequential damages, even if Sidhil Ltd, its subsidiary
companies, authorised dealers or international distributors has been advised of the
possibility of such damages.
In the event of a product defect during the warranty period you should contact your
supplier, whether it be Sidhil Ltd, its subsidiary companies, authorised dealers or
international distributors who will at their option unless otherwise provided by law;
a) correct the defect by product repair without charge for parts and labour b) replace
the product with one of the same or similar design or c) refund the purchase price.
All replaced parts and products on which a refund is made become the property of
Sidhil Ltd. New or reconditioned parts and products may be used in the performance
of the warranty service. Repaired or replaced parts and products are warranted
for the remainder of the original warranty period. You will be charged for repair or
replacement of the product made after the expiration of the warranty period.
This warranty does not cover; a) damage or failure by or attributes to acts of God,
abuse, accident, misuse, improper or abnormal usage, failure to follow instructions,
improperinstallationormaintenance,alterations,lightningorotherincidenceofexcess
voltage or current, b) any repairs other than those provided by a Sidhil Ltd authorised
technician, c) consumables such as fuses, d) cosmetic damage, e) transportation,
shipping or insurance costs or f) costs of product removal, installation setup service
adjustment or re-installation.
This limited 1 year warranty gives you specific legal rights and you may also have other
rights.
Sidhil Ltd cannot be held responsible for any injury or incident which relates to the use
of this screen in conjunction with accessories manufactured by companies other than
Sidhil Ltd.
All products carry the CE mark in accordance with EC Directive on Medical Devices
(93/42/EEC).
Sidhil has a policy of continual product improvement and reserves the right to amend
specifications covered in this brochure.
No part of this brochure may be reproduced without the written approval of Sidhil Ltd.
6. WARRANTY

CONTACT INFORMATION
Tel: [phone] Fax: [phone]
Email: [email protected] www.sidhil.com
Sidhil Business Park, Holmfield, Halifax, HX2 9TN
A member of the Siddall & Hilton Ltd. Group of Companies
Certificate No. FM14550
(93/42/EEC)
INSTRUC/SCRPK 19/11/2015 - rev.4
