Dolphin BC 2400 User manual

BC 2400
Dolphin Hot Air Hand Dryer
User Manual
Please read carefully before use
DOLPHIN

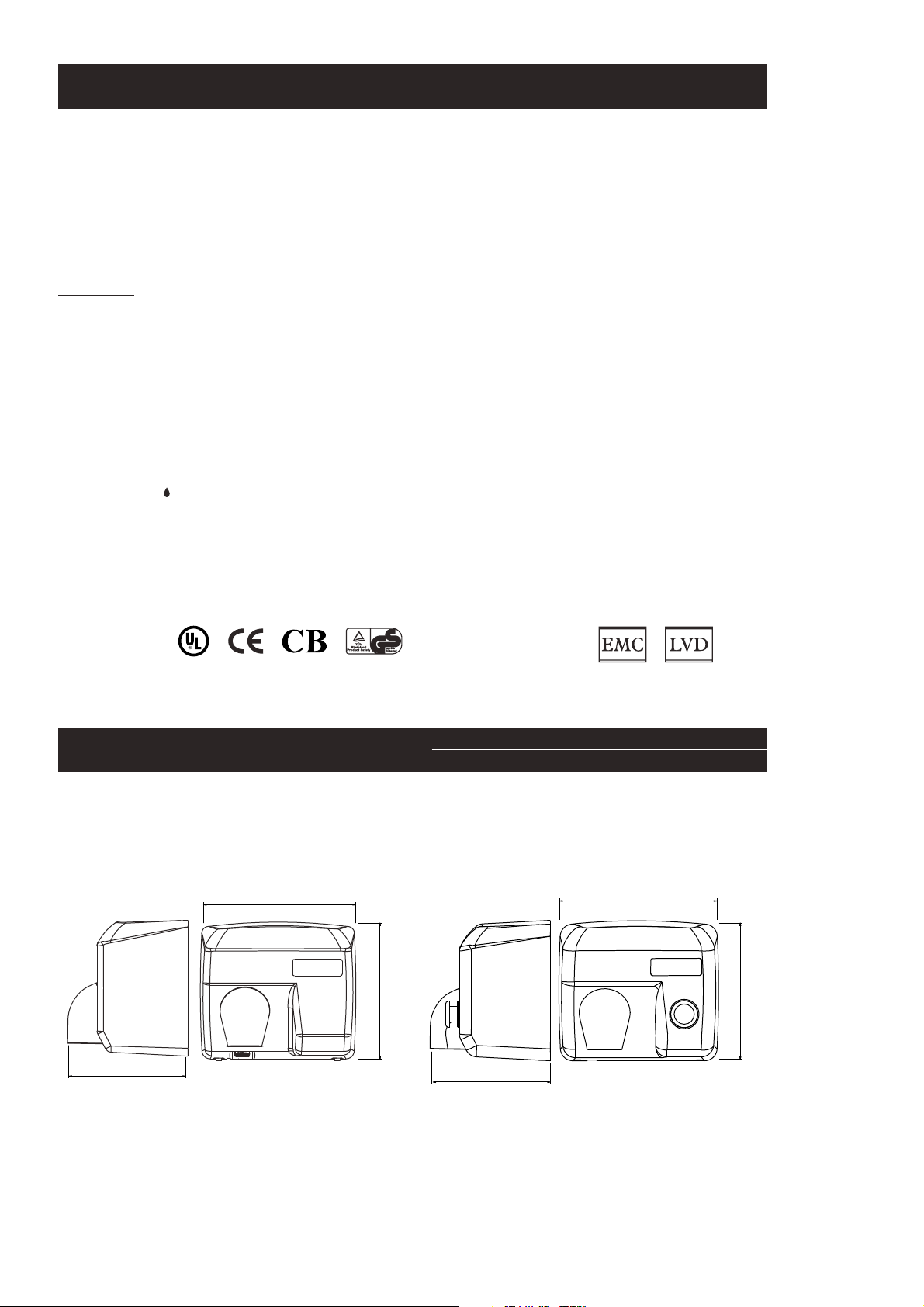

Certification:Specifications and DimensionsModel # Volts Watts Amps W H DHousing Dimensions: in (mm)Operating Instructions and Parts ManualHand DryerDescription: Automatic operation hand dryer.Casing : BC2400PA/PS - Steel cover; 2.0 mm thick, Porcelain enamelled coating. BC2400CA/CS - Steel cover; 2.0 mm thick, Satin chrome. BC2400MA/MS - Steel cover; 2.0 mm thick, Bright chrome. BC2400SA - Stainless Steel cover; 1.2 mm thick, satin finished. Brush motor : 1/4HP, 200W, 5500 R.P.M. oo Designed with 105 C (221 F) thermostat.ooHeater assembly : Designed with 65 C (149 F)thermostat, 1800-2200W.Air speed : 28 m/s (63 mi/hr). Dryer shall deliver : 345 m³/h (202 CFM).Air output Temperature : 53°C (137.4°F) – Ambient Temp. 20°C (68°F).Sound level : 70±3 dB.Approximately 20-25 seconds drying time.S,Standard 170 ± 20 mm {6"}, Adjustable,The range is 100 ~ 230 mm.Power cut off automatically in case of irregular use over 60 seconds. - AUTOMATICAdjustable timer control range from 20 to 55 seconds. - PUSH-BUTTONStandby Power : Less than 0.5W. - AUTOMATIC2 vandal-proof lock screws and key wrench.Drip proof : IPX1Nozzle : Nozzle in chrome plated zinc.Weight : 7.0 kgs (15.4 lbs) unpacked ; 7.5 kgs (16.5 lbs) packed. ensing distanceSurface Mount & Revolving NozzleDWHBC2400PA/PS 230/240Vac 2.2/2.4kw 9.6/10A 284 mm(11-3/16") 248 mm(9-3/4") 202 mm(8") BC2400MA/MS BC2400CA/CS BC2400SA DWHRoHSWEEEThe nozzles come in the fixed position for the automatic units and the swivel position for the pushbutton units, but that they can be adjusted in the field by removing the screw in the case of theautomatic units and adding the screw (available from your dealer) in the case of the swivel units.
BC 2400 User Manual www.dolphindispensers.co.uk

Operating Instructions and Parts ManualHand DryersInstallation1. Fix the position card on the wall. Suitable height for hole "D" is 50" (130 cm) from ground.2. Drill 4 holes (A. B. C. D. 5/16" (8 mm) diameter: 3/8" (35 mm) depth.)3. Take off the mounting instruction sheet. Hammer dowels into 4 holes.4. Remove the housing from the base plate; fix the base plate firmly on to the wall.5. Connections: A. Connect the live wire (colored red or brown) to the terminal block marked "L". B. Connect the neutral wire (colored black or blue) to the terminal block marked "N". C. Connect the ground wire (colored green and yellow) to the green screw marked " ". 6. Attach housing back to base plate.WARNINGWARNINGWARNING Disconnect power before installation or servicing. This product intended for installation by a qualified service person. Use AWG NO. 12 solid conductor for wiring.NOTE: Do not install dryer over washbasin. All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer's backplate. Failure to properly ground unit could result in severe electrical shock and/or death.General safety informationDANGERWiring DiagramsHeaterMotorRelay ContactTimerThermostatMGActuating switchNLAutomaticPush-buttonHow to adjust the drying timeof the push button dryers:Tool: flat blade screwdriverDecrease the drying time:Gently turn the VR counter clock-wiseIncrease the drying time:Gently turn the VR clock-wiseImportant InformationThis Product falls within the scope of the Waste Electrical & Electronic Equipment Directive 2002/96 EC. (WEEE)NOTE:This Product should not be disposedof with household wastePlease recycle where facilities exist.Check with your local authority forrecycling advice.‘Unit should be mounted to give no less than 300mm clearance from the bottom of the unit to the nearest surface below’Circuit Board ModuleMO2HE2NMO1HE1LTransistor Power SwitchGNLThermostat G/YBlueBrown
Motor With Thermal Switch 2A
BlackBlackSensor moduleG Y2 Filter G/YVRFOR SENSOR(ONLY 208~240V)
(ONLY 208~240V)
Black(120V/240V)Black(120V/240V)
BC 2400 User Manual www.dolphindispensers.co.uk

Trouble shooting ChartSymptom Corrective Action OperationShake excess water from hands.Place hands under the outlet to start operation.Rub hands lightly and rapidly.Stops automatically when hands are removed.MaintenanceEasy to maintain. If the surface is dirty or dustyjust wipe to clean.Blower motor stops runningTurn off power to the dryer at electrical panel. Remove cover. Check all wiring connections from terminal board to the motor. Check blower wheel and spin to make sure it rotates freely:Look for objects blocking the free movement. Replace cover and turn on power to the hand dryer. If motor fails to start, have a qualified electrician check the Push-On-Switch, thermostat, motor and capacitor for proper operation. Replace if necessary. Dryer blows cold airTurn off power to the dryer at the electrical panel. Remove cover.Check all wiring connections to make sure all terminals are firmly mounted in place and the wire insulation is in good condition. Have a qualified electrician check the thermal cut off andheating element. Replace cover, turn on power to the hand dryer. If dryercontinues to blow cold air, replace defective thermal cutoff and/or heating element. Dryer does not respond to hand movementMake sure power is on and available to the unit. Placehands under sensor. A clicking sound indicates sensor is functioning properly. No clicking sound would indicate a bad sensor and/or contactor.Replace if necessary.Dryer will not shut off or willnot run for a complete cycleReplace timer assembly Operating Instructions and Parts ManualHand DryersWarrantyLIMITED FIVE-YEAR WARRANTYPlease see our website by following this link: http://www.dolphindispensers.co.uk/or contact our customer service team on 01424 202224 for more details.Sensor range adjustment2.Clockwise: Lengthen the sensing range(+)3.Counterclockwise: Shorten the sensing range(-)4.DO NOT OVERTURN!1. The ranger 4" to 9" [100 mm to 230 mm], standard 6" [17 cm±2 cm]
VR.FOR SENSOR
BC 2400 User Manual www.dolphindispensers.co.uk

Operating Instructions and Parts ManualHand DryersBRUSHES REPLACEMENTFixed screw of brushBrushUsing the BLOW PIPE or BRANDING IRON to take off the wireUsing the screwdriver to take off the fixed screw from the brush motor for the two sides.Replace with new brush and fasten the fixed screw, then insert the connected wire on the motor.Periodic cleaning of the unit is recommended to ensure optimum performance.Cleaning and MaintenanceDisconnect the electrical supply.Remove the two cover-mounting screws.Remove the cover.Clean all dust lint from the interior of the dryer.Replace the cover. Do not over tighten the screws.Wipe the cover with a damp cloth and mild cleaning solution. Do not Soak. Never use abrasives to clean the cover.
BC 2400 User Manual www.dolphindispensers.co.uk

Operating Instructions and Parts ManualHand Dryers1234567891011121314151617181920212223Automatic
BC 2400 User Manual www.dolphindispensers.co.uk

BC 2400 User Manual www.dolphindispensers.co.uk
Repair parts listReferenceNumberQty.1234567891011121314151617181920212223 Operating Instructions and Parts ManualHand DryersDescriptionFix screw Fan blower Blower housing BThermostat Motor mounting bracket Motor rubberMotor1/4HP@120VAC1/4HP@240VACTimer assembly120VAC240VACFix shaft springL KeyCoverHK-2400CAHK-2400EAHK-2400MAHK-2400PANameplate Air outletBlower housing AHeater assembly2200W@120VAC2200W@240VACAir outlet rubber ringAir outlet holderBase plateGrounding screwSensorSensor rubberFix shaftSensor mounting bracket21111411211111111111121Automatic

BC 2400 User Manual www.dolphindispensers.co.uk
Operating Instructions and Parts ManualHand DryersPush-button1234567891011121314151617181920212223242526BC 2400PA / BC 2400MA / BC 2400CA / BC 2400SA User Manual www.dolphindispensers.co.ukBC 2400PS / BC 2400MS / BC 2400CS

BC 2400 User Manual www.dolphindispensers.co.uk
Repair parts listReferenceNumberQty.1234567891011121314151617181920212223242526 Operating Instructions and Parts ManualHand DryersDescriptionPush-button holder BFix screw Fan blower Blower housing BThermostat Motor mounting bracket Motor rubberMotor1/4HP@120VAC1/4HP@240VACTimer assembly120VAC240VACFix shaft springL KeyCoverHK-2400CSHK-2400ESHK-2400MSHK-2400PSNameplate Air outletPush-button holder APush-button springPush-buttonBlower housing AHeater assembly2200W@120VAC2200W@240VACAir outlet rubber ringAir outlet holderBase plateGrounding screwFix shaftMicro switchMicro switch mounting bracket12111141111111111111111211Push-button
DOLPHIN
Bell-Chem Products Company
Southpoint, Compass Park, Bodiam, Robertsbridge TN32 5BS
Tel: [phone]
Fax: [phone]
www: dolphindispensers.co.uk
[email protected]
