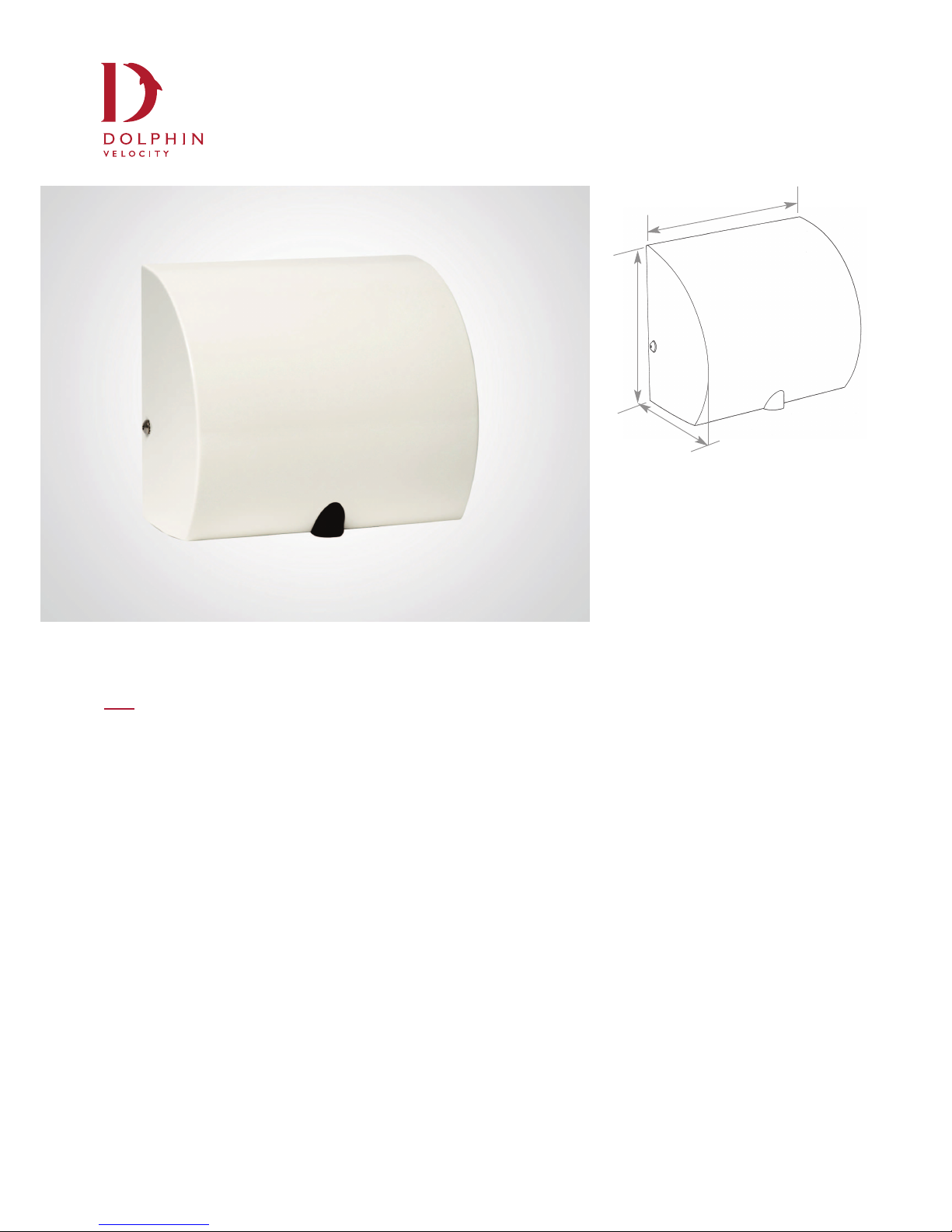

Dolphin Bc2002w User manual

BC2002W

DOLPHIN ECO HAND DRYER

› Quality stainless steel body with all metal back plate for excellent vandal

resistance

› Very low operating power saving 80% or more of user’s energy costs

› Infra red self adjusting sensor

› Heater on/off switch and adjustable airflow giving the potential for even

greater energy savings

› Dries hands in only 12-15 seconds with heater and full speed – reducing

CO2emissions drastically

› Outlet temperature 55ºC (131ºF) at 25ºC (77ºF) ambient temperature

with heater on and dryer at full speed

› Three year limited warranty

› IPX1 rated

› Class 1 rated isolation

› Average Reuse Rate under WEEE Directive: 78%

› Average Recovery Rate under WEEE Directive: 96%

› Complies with Ska rating criteria

› Unit should be mounted to give no less than 300mm clearance from the

bottom of the unit to the nearest surface below

HEIGHT 230 MM

WIDTH 246 MM

PROJECTION 145 MM

PRODUCT CODES

› Stainless steel version of this product BC2002

PLEASE NOTE: We strongly recommend that the surfaces

beneath and to either side of this dryer allow regular cleaning

(such as smooth cleanable paint, tile, Perspex, stainless steel

etc) to prevent staining from the water blown from users

hands. New generation high speed dryers such as this are

designed to blow the water off the hands so consideration

like this needs to be given to deal with the water deposits.

TECHNICAL HELPLINE 01424 202224

DOLPHINSOLUTIONS.CO.UK

145

230

246

248

220

145

BC 2002

Dolphin Eco Dryer

User Manual

Please read carefully before use

DOLPHIN

Operating Instructions and Parts Manual (Automatic) Surface Mount

ITEM CATEGORY

Operating VoltageCoverWarm Air Speed OutputDryer shall DeliverMotor TypeMotor Thermal ProtectionHeater ElementHeater Thermal ProtectionDrying TimeStand-by PowerCircuit OperationSensor RangeTiming ProtectionDrip proofIsolationNet WeightShipping WeightUnit SizeAir Output Temperature

PERFORMANCE DATA

TECHNICAL SPECIFICATIONSBC2002- Stainless steel (#304), Satin finished ( t:1.2 mm)BC2002W- Stainless steel (#304), White ( t:1.2 mm)

COVER TYPE/ COVER FINISH

248 mm9-49/64”220 mm8-21/32”145 mm5-45/64”55°C (131°F) – Ambient Temp. 25°C (77°F)101.7 m³/h, (59.8 CFM)11/16220-240 Vac, 50/60 Hz, 0.84-1.0 kWSteel ( t:1.2mm )90 m/s (201.3 mi/h)HP, 500W, 29000 R.P.M., Brush Type, Dual Ball BearingsAuto Resetting Thermostat turns unit off at 105°C [221°F]500WThermal cut-off at 139°C [282°F]Less than 15 secondsLess than 0.5W Infrared Automatic, self adjustingStandard 7" [170 mm±20 mm], Adjustable, The range is 100 ~ 230 mm60 seconds auto shut offIPX1CLASS 13.8 kg [8.4 lbs]4.2 kg [9.2 lbs]248 mm W x 220 mm H x 145 mm D[9-49/64" W x 8-21/32" H x 5-45/64" D]

BC 2002 User Manual www.dolphindispensers.co.uk

General safety information-- NOTE: Do not install dryer over washbasin -- Disconnect power at the service breaker before installing or servicing. NOT FOR HOUSEHOLD USE - MAY CAUSE BURNS. " IMPROPRE A L'USAGE DOMESTIQUE - PUET OCCASIONNER." This product is intended for installation by a qualified service person. Use1.2 mm² (220-240Vac), solid conductor for wiring.AWG NO. 12 (110-120Vac) All units must be supplied with a 3-wire service. The ground wire must be connected to the dryer's backplate. Failure to properly ground unit could result in severe electrical shock and/or death.【Type Y attachment】If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard. Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Circuit DiagramCircuit Board ModuleTransistor Power SwitchMO2HE2NMO1HE1LTransistor Power SwitchVRGNL

Thermostat

Red(110-120V)/Brown (208-240~277Vac)BlackBlackG/Y

BlueBrownMotor With Thermal Switch 2AHeater With Thermo-fuse

FOR SENSORSW.FOR HEATER White(110-120V)/Blue (208-240~277V)Sensor moduleON1VRFOR MOTORGG/YY2 Filter(ONLY 208~240V)

(ONLY 208~240V)

BC 2002 User Manual www.dolphindispensers.co.uk

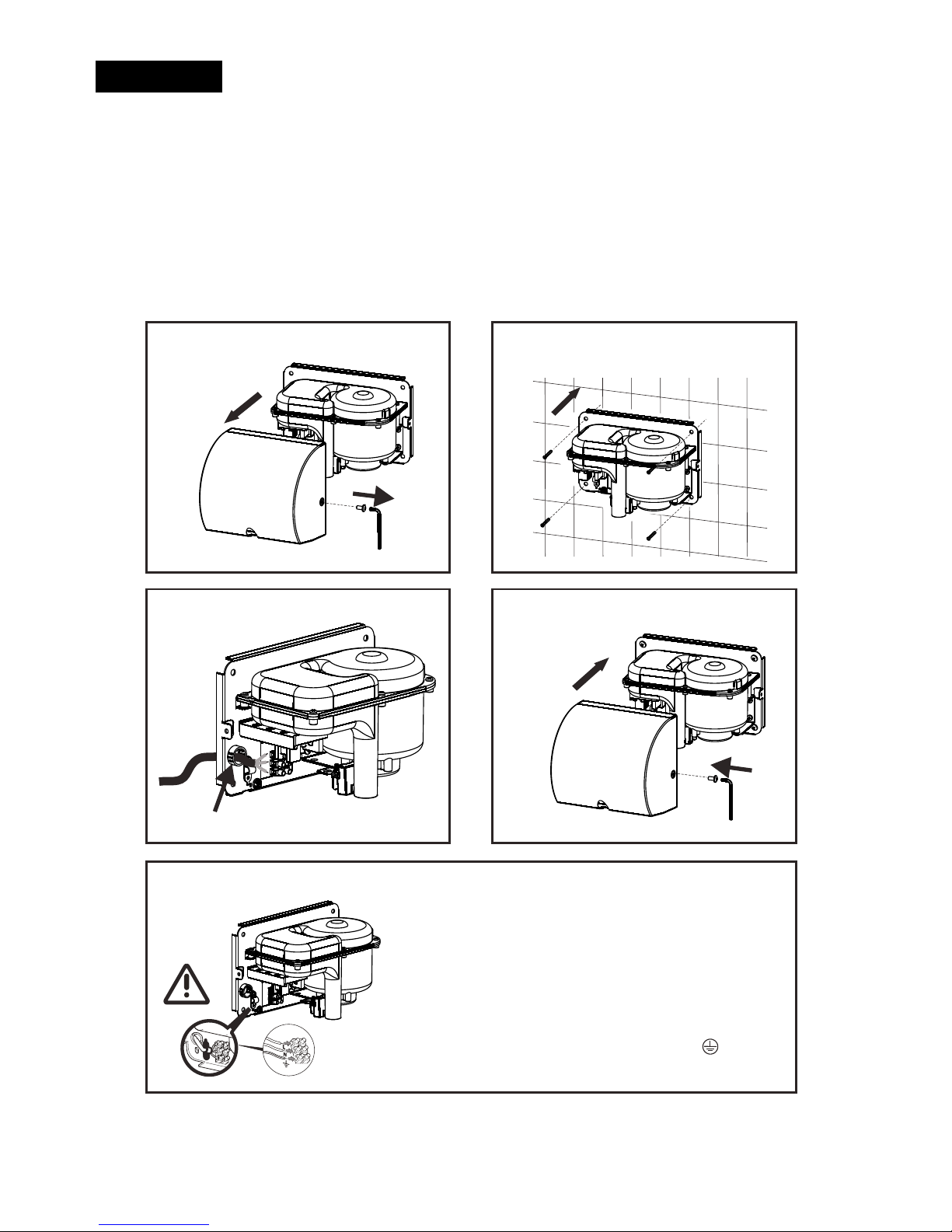

Installation1. Make sure power supply breaker is switched off. Installation must be carried out in accordance with the current edition of the local wiring regulations code having jurisdiction. Installation should be performed only by a qualified electrician.2. Place template against wall at desired height (see mounting height recommendations) and mark locations of 4 mounting holes and wire service entry at knockout (KO) location. Note: For two or more dryers, dryers should be no closer than 24 inches (610 mm) on center. 4. Fix the base plate to the wall with 4 screws of 1/4 x 1-3/4” dimension.1. Remove and retain 2 cover screws and cover.2. Insert the power cord into the bushing.3. Connect the wire into terminal as below:5. Put the front cover back and screw it with L key. Connections: A. Connect the live wire (colored red or brown) to the terminal block marked "L". B. Connect the neutral wire (colored black or blue) to the terminal block marked "N". C. Connect the ground wire (colored green and yellow) to the green screw marked " ". Bushing

BC 2002 User Manual www.dolphindispensers.co.uk

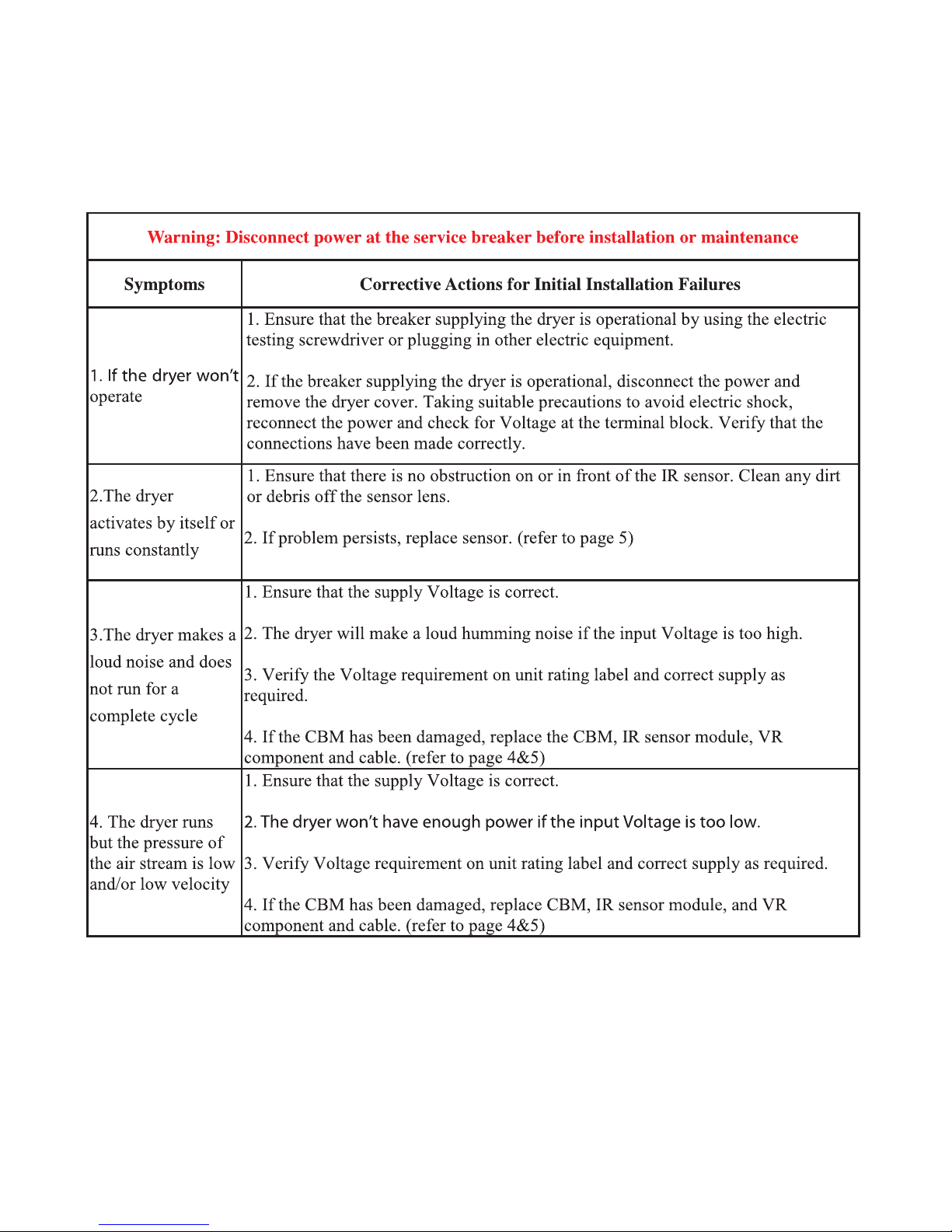

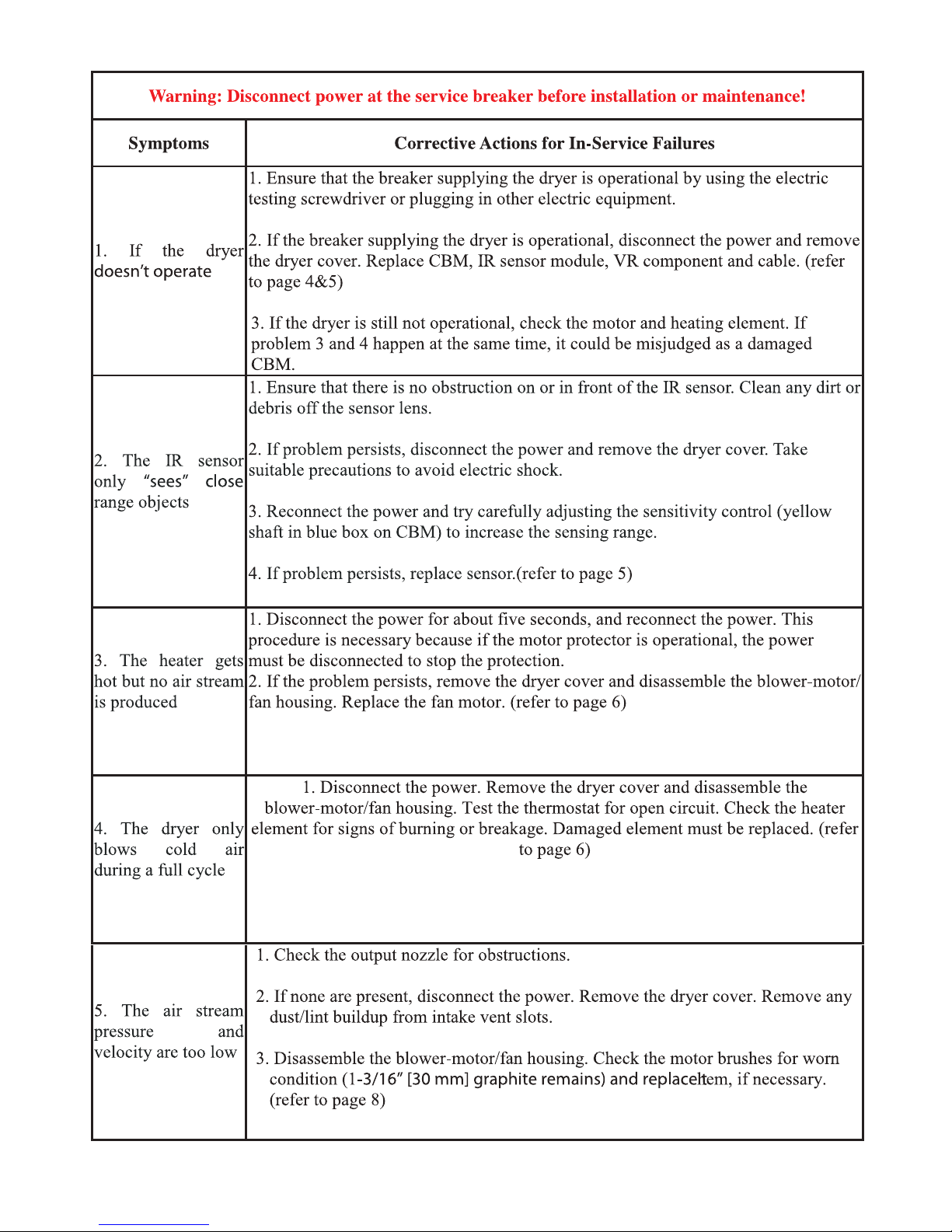

Diagnostics and RemediesIf the dryer will not runThe dryer cycles by itselfor runs constantlyThe dryer runs but airstream is low pressureand/or low velocityEnsure that there is no obstruction on or in front of the IR sensor. Cleanany dirt or debris off the sensor lens. If problem persists, replace sensor.First ensure that the breaker supplying the dryer is operational. If it is,disconnect the power and remove the dryer cover. Taking suitableprecautions to avoid shock hazard, reconnect the power and check forVoltage at the terminal block. Verify that connections are made correctly.Ensure that the supply Voltage is correct. Dryer will run weakly if theinput Voltage is too low. Verify Voltage requirement on unit rating labeland correct supply as required.The dryer makes a loudnoise and does not runfor a complete cycleEnsure that the supply Voltage is correct. Dryer will make a loud hummingnoise if the input Voltage is too high. Verify Voltage requirement on unitrating label and correct supply as required. If CBM has been damaged,replace CBM, IR sensor module and VR component and cable.Symptom Corrective Actions for Initial Installation FailuresSymptom Corrective Actions for In-Service FailuresIf the dryer will not runThe IR sensor only “sees”close range objectsThe dryer only blows coldair during a full cycleEnsure that there is no obstruction on or in front of the IR senor. Clean any dirt or debris off the sensor lens. If problem persists, replac sensor.First ensure that the breaker supplying the dryer is operational. If it is,disconnect the power and remove the dryer cover. Replace the CBMand IR sensor module. Taking suitable precautions to avoid shock hazard, reconnect the power and check for Voltage at the terminal block.Disconnect the power. Remove the dryer cover and disassemble the blower-motor/fan housing. Test the thermostat for open circuit. Check the heater element for signs of burning or breakage. Damaged element must be replaced.The heater gets hot butno air stream is producedDisconnect the power. Remove the dryer cover and disassemble the blower-motor/fan housing. Replace the fan motor.The air stream is lowpressure and velocityCheck the output nozzle for obstructions. If none are present, disconnectthe power. Remove the dryer cover. Remove any dust/lint buildup from intake vent slots. Disassemble the blower-motor/fan housing. Check the motor brushes for worn condition (≤ 1-3/16” [30 mm] graphite remains) and replace them, if necessary.LIMITED THREE-YEAR WARRANTYWarrantyPlease see our website by following this link: http://www.dolphindispensers.co.uk/

tttit01424202224fdtil

BC 2002 User Manual www.dolphindispensers.co.uk

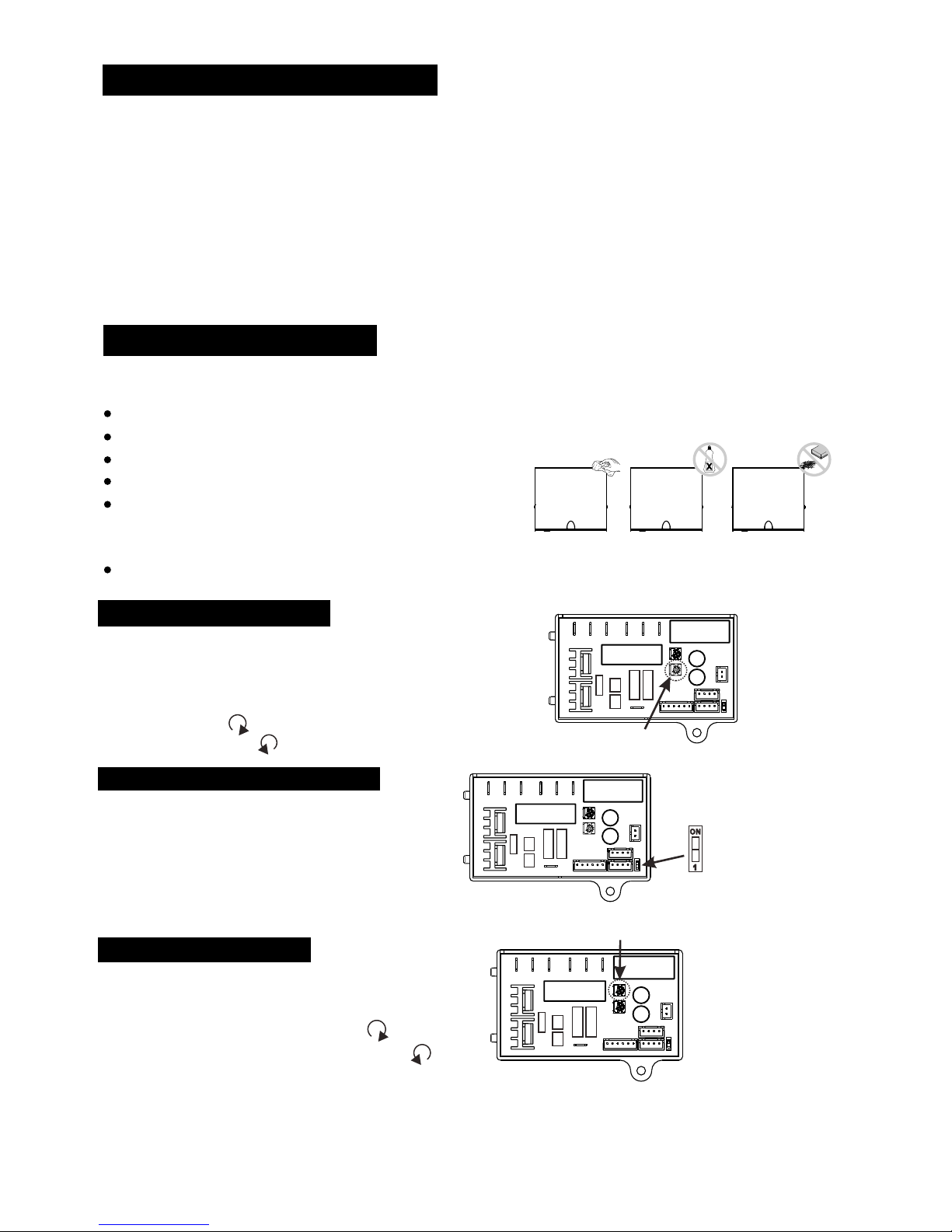

Periodic cleaning of the unit is recommended to ensure optimum performance.

Cleaning and Maintenance

Disconnect the electrical supply.Remove the two cover-mounting screws.Remove the cover.Clean all dust lint from the interior of the dryer.Replace the cover. Do not over tighten the screws.Wipe the cover with a damp cloth and mild cleaning solution. Do not Soak. Never use abrasives to clean the cover.

Recommended mounting heights

- from bottom edge of dryer above finished floor (AFF)MenWomenChildren 4-7 yearsChildren 8-10 yearsChildren 11-13 yearsChildren 14-16 yearsHandicaped(38") 960 mm(32") 812 mm(34") 860 mm(36") 910 mm(38") 960 mm(34") 860 mm(40") 1000 mm

‘Unit should be mounted to give no less than 300mm clearance from the bottom of the unit to the nearest surface below’Heater Element Switch ON/ OFF Warm aır speed adjustment

SW.FOR HEATERVR.FOR AIR SPEED

Sensor range adjustment

VR.FOR SENSOR

1.Switch off the power, loosen the cover screws and remove the cover.2.Use small Philips head screwdriver or plastic flat blade probe to turn VR shaft.Clock-wise [CW] to increase power to maximum (+) , turn tool gently [CCW] to reduce power as required(-) .

1.Switch off the power, loosen the cover screws and remove the cover.2.Adjust the heater switch on the PCB with a small plastic or wood flat blade probe.2-1. Slide the switch to "ON" :Enables heater on.2-2. Slide the switch to "1" :Disables heater.

2.Clockwise: Increases the sensing range(+)3.Counterclockwise: Decreases the sensing range(-)4.DO NOT OVERTURN!1. The range is 4" to 9” [100 mm to 230 mm], standard setting is 6" [170 mm ± 20 mm ]

BC 2002 User Manual www.dolphindispensers.co.uk

Turn off power to the dryer at electrical panel. Remove cover. Using the screwdriver to take off the the blower housing A .12Take off the the motor assembly from the blower housing B .blower housing A Disconnect wires from the brush.Using the screwdriver to take off the fixed screws from the brush motor for the two sides.Replace with new brush and fasten the fixed screw, then connect the wire on the motor.43blower housing BBrushes replacementOperationNo-touch operationShake excess water from hands.Place hands under the outlet to start operation.Rub hands lightly and rapidly.Stops automatically after hands are removed.

BC 2002 User Manual www.dolphindispensers.co.uk

Diagram12891011121314151617181934567Repair parts list01020304050607080910111213141516171819KeyEnclosure (Casing)Security hex screwBlower housing (Upper)Blower housing (Below)Motor, 240Vac@500WMotor rubber (Upper)Motor rubber (Below)Heater assembly, 240Vac@500WCircuit Board Module (CBM), 220-240VacBase plateNylon hole bushingInsulation MylarTerminal blockBlower mounting bracketSensor bracketSensor (Grouped into Circuit Module)Cable clampCable ProtectorGrounding ScrewDescription1211111111111111111Quantity

DOLPHIN

Bell-Chem Products Company

Southpoint, Compass Park, Bodiam, Robertsbridge TN32 5BS

Tel: 01424 202224

Fax: 01424 205200

www: dolphindispensers.co.uk

[email protected]

BC 2002 User Manual www.dolphindispensers.co.uk

Three Year Warranties

User Manual

Please read carefully before use

DOLPHIN

Dolphin Three Year Warranties www.dolphindispensers.co.uk

Dolphin Hand Dryer 3 Year Limited Warranty

• Year 1: full repair service (parts and labour)

• Years 2-3: parts only warranty (labour not included)

• Beyond year 3: replacement parts are available through our parts supply service.

1. Warranty Terms and Conditions

1.1 The Warranty becomes effective at the date of purchase (or the date of delivery if this is later).

1.2 In the event of a Warranty claim, you must provide the hand dryer serial number and proof of delivery

and/or purchase before any work is carried out. Without this proof, any work carried out will be

chargeable.

1.3 In the event of a Warranty claim, we must be given the opportunity to inspect the product, should we

request to do so. Additionally, we may request photographic evidence.

1.4 The repair or replacement of your product under warranty will not extend the period of Warranty.

1.5 The product must have been installed, used and cared for in accordance with our instructions for care

and maintenance.

1.6 Where our on-site investigation reveals that the reported fault is not due to a manufacturing or material

defect, a call out charge may be applied.

1.7 The Warranty provides benefits which are additional to, and do not affect your statutory rights as a

consumer.

2. What is covered by the Warranty?

2.1 In the first year, the repair or replacement of your Dolphin Hand Dryer, if it is found to be defective due to

faulty materials, workmanship or function within the Warranty period.

2.1.1 The decision to repair or replace your product is at the sole discretion of Bell-Chem Products

Ltd. If any part is no longer available or out of manufacture, Bell-Chem Products Ltd will replace

it with a functional replacement part.

2.1.2 In the event that repair or replacement is not feasible, the original purchase price will be

refunded.

2.2 In years 2-3, the replacement of failed parts1. Labour is not included. The most appropriate option of the

following will be undertaken, dependent upon the circumstances.

• provision of spare parts – cost free.

• on-site support/repair – labour chargeable.

• return to us for repair – labour chargeable.

• replacement with a reconditioned unit.

3. What is not covered by the Warranty?

3.1 Normal wear and tear.

Note: Motor brushes are subject to normal wear and tear through usage. These parts are covered under

the Warranty for 2 years from date of purchase (labour not included). Thereafter, replacement parts are

available through our parts supply service.

3.2 Faults caused by misuse, modification, misapplication, neglect or wilful or accidental damage.

3.3 Faults caused by incorrect installation.

3.4 Faults caused by incorrect voltages or installation in areas that require a higher IP rating than offered by

the dryer.

3.5 Repairs or alterations carried out by parties other than Bell-Chem Products Ltd or its authorised agents.

3.6 Damage or malfunction caused by inappropriate cleaning, or lack of necessary cleaning. (Please refer to

our instruction manual for guidance.)

3.7 Consequential damages of losses

1Exceptions apply – see clause 3.1

Dolphin Three Year Warranties www.dolphindispensers.co.uk

Diagram12891011121314151617181934567Repair parts list

BC 2002 Hand Dryer Range – parts diagram

Dolphin Three Year Warranties www.dolphindispensers.co.uk

DOLPHIN

Bell-Chem Products Company

Southpoint, Compass Park, Bodiam, Robertsbridge TN32 5BS

Tel: 01424 202224

Fax: 01424 205200

www: dolphindispensers.co.uk

[email protected]

151618Repair parts list01020304050607080910111213141516171819KeyEnclosure (Casing)Security hex screwBlower housing (Upper)Blower housing (Below)Motor, 240Vac@500WMotor rubber (Upper)Motor rubber (Below)Heater assembly, 240Vac@500WCircuit Board Module (CBM), 220-240VacBase plateNylon hole bushingInsulation MylarTerminal blockBlower mounting bracketSensor bracketSensor (Grouped into Circuit Module)Cable clampCable ProtectorGrounding ScrewDescription1211111111111111111Quantity

THIS UNIT MUST BE FITTED AND SERIVCED BY SUITABLY QUALIFIED PERSON NE LFIXING DETAIL (READ IN CONJUNCTION WITH LEAFLET ENCLOSED)1) PLACE TEMPLATE ON WALL AND DRILL 4 HOLES 8 (5/16”) DIAMETER 35 (1-3/8) DEEP.2) SECURE THE BASE PLATE ON THE WALL WITH THE 4 WALL PLUGS & SCREWS PROVIDED.3) CONNECTIONS: A. CONNECT THE LIVE WIRE RED (OR BROWN) TO THE TERMINAL BLOCK MARKED “L”. B. CONNECT THE NEUTRAL WIRE BLACK (OR BLUE) TO THE TERMINAL BLOCK MARKED “N”. C. CONNECT THE EARTH WIRE GREEN AND YELLOW (OR GREEN), NOTE BARE EARTH WIRES SHOULD BE SLEEVED WITH GREEN AND YELLOW OR GREEN SLEEVING TO THE EARTH WASHER MARKED WITH THE EARTH SYMBOL “ “.TAPE THIS SHEET TO WALL FOR HOLES LOCATION212(8-11/32") BACDØ22 Ø7/8”()ELEC. K.O130(5-1/8") SURFACE CONDUITENTRY LOCATION83(3-17/64") All Dim's)MM (INCHGeneral Purpose Suggested ()1270 50"1/4"(6) STRIP LENGTHDRILL 4 HOLES (A,B,C,D 8 (5/16”) DIAMETER 35 (1-3/8”) DEEP)Holes Location AFF for C-D Holes20120309改LOGO20120717更新LOGOOUTLINE OF COVER248(9-49/64”) 220(8-21/32”) BELL-CHEM PRODUCTS COMPANYCode BC2002248 mm9-49/64”220 mm8-21/32”145 mm5-45/64” 20120814更新logoImportant InformationThis Product falls within the scope of the Waste Electrical &Electronic Equipment Directive 2002/96 EC. (WEEE)NOTE:This Product should not be disposedof with household wastePlease recycle where facilities exist.Check with your local authority forrecycling advice. SOUTHPOINT, COMPASS PARK, BODIAM, ROBERTSBRIDGE, TN32 5BS, U.K. TEL: 01424 202224‘Unit should be mounted to give no less than 300mm clearance from the bottom of the unit to the nearest surface below’
