Dometic SPX1200T-T-RE User manual

4445104298/ 2023-12-12/ Page 1 of 6
Product Suitable For: SPX1200T-T-RE (SKU 9600026439)
RELATED DOCUMENTS
You find this service manual in more languages online at
qr.dometic.com/beaLE2.
EQUIPMENT INCLUDED

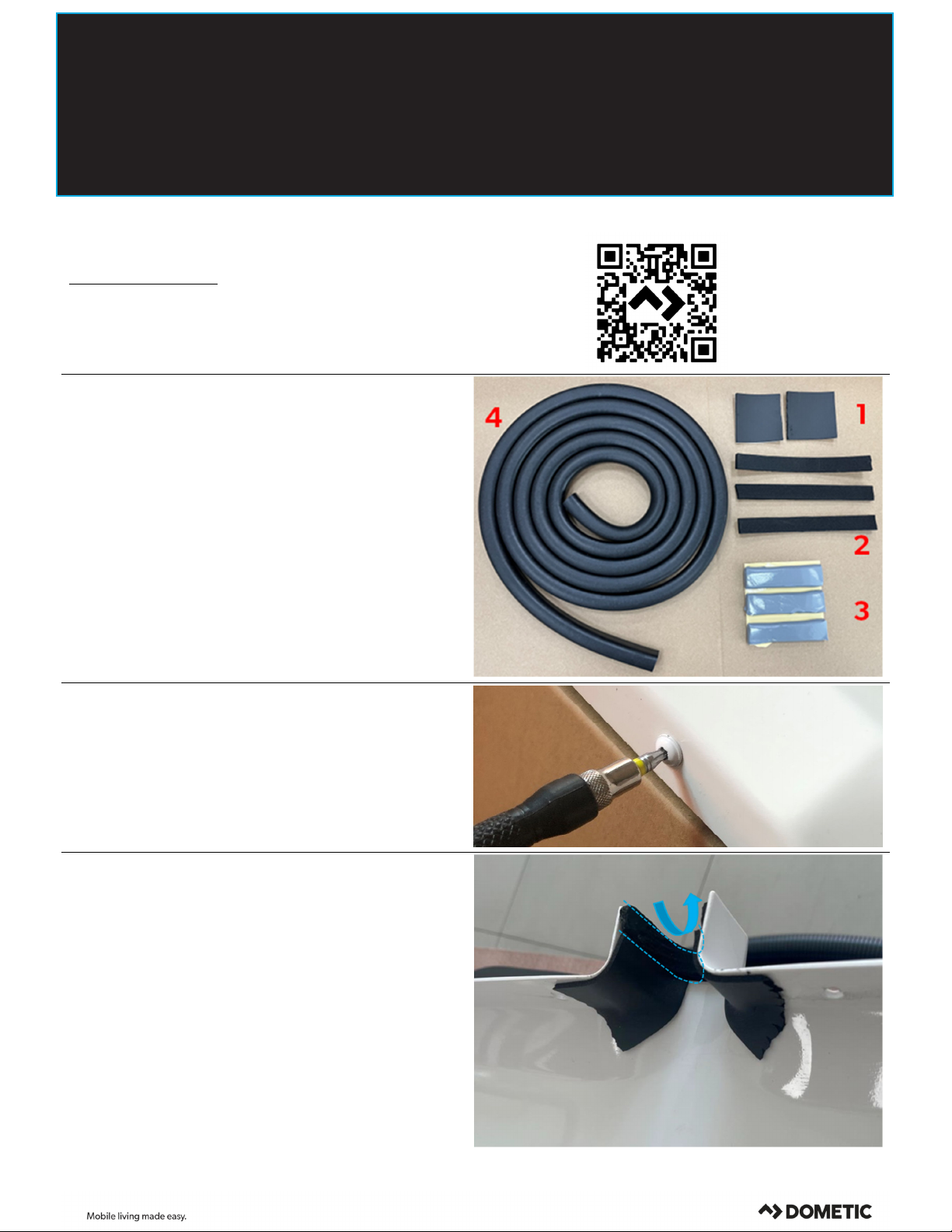

 2 pcs. Sealing tape (50*50*3mm) (1)
 3 pcs. Sealing tape (140*15*5mm) (2)
 3 pcs. Sealing compound (76*13*10mm) (3)
 1 pcs. Customized sealing strip (L= 2450mm) (4)
STEP 1: PREPARE THE UNIT FOR REWORK
Disassemble Outer housing
1. Release the ten fastening screws and disassemble the
top cover.
STEP 2: SEALING ON THE TOP COVER
Seal the connection pipe outlet on the top cover
1. Place the sealing tape (1) along the edge of corrugated
pipe outlet of top cover.
DOMETIC REWORK KIT SERVICE MANUAL
Equipment Included: Please check below Recommended Tools: Work gloves,
Screwdriver with bit attachment
Allen 3mm bit
Torx 25 Bit
Socket wrench 8mm
Side cutter
Soap water
Soft cloth
Time Required: 25 Min Recommended number of people: 1

4445104298/ 2023-12-12/ Page 2 of 6
2. Place the two sealing tapes (2) along the edge of top
cover.
STEP 3: SEALING ON THE BASE PAN
Seal the edge of the base pan
1. Unscrew the two screws of the clamp that fixes the
corrugated pipe.
2. Lift the clamp and the corrugated pipe and place the
customized sealing strip (4) along base pan edge and
under the corrugated pipe.
3. Cut excessive sealing strip (if needed) and connect the
sealing strip end-to-end.

4445104298/ 2023-12-12/ Page 3 of 6
STEP 4: SEALING ON THE CORRUGATED PIPE
1. Place 1pc of sealing tape (1) on the corrugated pipe.
2. Organize 1pc of sealing compound (3) to wrap the
corrugated pipe evenly from bottom to top.
3. Ensure both ends of sealing compound covers the
sealing tape (1).
STEP 4: SEALING ON THE CORRUGATED PIPE
1. Place 1pc of sealing tape (1) on corrugated pipe, along
the edge of the first foam tape.

4445104298/ 2023-12-12/ Page 4 of 6
2. Press the corrugated pipe and clamp to the metal base
pan and screw the two screws to fix the clamp.
3. Organize the sealing compound (3) marked in blue
triangle to ensure the area is fully covered by sealing
compound
STEP 4: SEAL OF WIRING AND CONDENSATE OPENING
Sealing of the wiring cut through
1. Organize 1pc of sealing compound (3) and seal the
wiring cut through in the EPP housing with it.

4445104298/ 2023-12-12/ Page 5 of 6
2. Organize 1pc of sealing compound (3) and seal the
passage of the condensate hose in the housing with.
STEP 5: ASSEMBLING OF TOP COVER
Preparing the customized sealing strip
1. For easier assembly dip soap water with soft cloth and
apply on the outer side and on the top of customized
sealing strip.

4445104298/ 2023-12-12/ Page 6 of 6
2. Put the plastic top cover on the unit.
3. Press the top cover at the outer edge of the sealing
strip, and ensure the sealing strip is under the plastic
top cover
Caution!
Press down the plastic top cover evenly at each corner
and ensure that when the top cover is in place, no
sealing strip is squeezed out.
4. Fix the top cover with the screws
NOTICE: When reassembling the unit make sure that no cables are pinched and all lose parts (sealing material residues, etc.) are removed from the
system.
