Dometic Oceanair Skysol Track Small Manual User manual

WINDOWS, DOORS & LIGHTS
SKYSOL
Dometic Oceanair Skysol Track Small Manual/Powered
Blind
Installation and Operating Manual . . . . . 3
Jalousie
Montage- und Bedienungsanleitung . . 22
Stores
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . 42
Persianas
Instrucciones de montaje y de uso . . . . 62
Estores
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . 82
Oscuranti
Istruzioni di montaggio e d’uso . . . . . . 102
Verduisteringsgordijnen
Montagehandleiding en
gebruiksaanwijzing. . . . . . . . . . . . . . . . .121
Gardiner
Monterings- og betjeningsvejledning. .141
Rullgardiner
Monterings- och bruksanvisning. . . . . . 160
Persienner
Monterings- og bruksanvisning . . . . . . 179
Verhot
Asennus- ja käyttöohje. . . . . . . . . . . . . . 197
Шторы
Инструкция по монтажу
и эксплуатации. . . . . . . . . . . . . . . . . . . . 215
Rolety
Instrukcja montażu i obsługi . . . . . . . . 234
Tienidlá
Návod na montáž a uvedenie
do prevádzky . . . . . . . . . . . . . . . . . . . . 253
Záclonky
Návod k montáži a obsluze . . . . . . . . . .272
Sötétítők
Szerelési és használati útmutató . . . . . . 291
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU

© 2022 Dometic Group. The visual appearance of the contents of this manual is protected by
copyright and design law. The underlying technical design and the products contained herein may
be protected by design, patent or be patent pending. The trademarks mentioned in this manual
belong to Dometic Sweden AB. All rights are reserved.

3
EN
Skysol Track Small Explanation of symbols
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use,
and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by
the terms and conditions as set forth herein. You agree to usethis product only for the intended purpose and application and in accordance with the instructions,
guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the
instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This
product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date prod-
uct information, please visit documents.dometic.com.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Scope of delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
8 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1 Explanation of symbols
!
!
A
I
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided, could
result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.

EN
Safety instructions Skysol Track Small
4
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death or seri-
ous injury.
Electrocution hazard (only for powered blinds)
• Do not operate the device if it is visibly damaged.
• If the power cable for this device is damaged, it must be replaced by the man-
ufacturer, customer service or a similarly qualified or competent person in
order to prevent safety hazards.
• Inadequate repairs may cause serious hazards.
• Disconnect the blind from the power supply before carrying out any mainte-
nance.
Health hazard
• This device can be used by children aged from 8 years and above and per-
sons with reduced physical, sensory or mental capabilities or lack of experi-
ence and knowledge if they have been given supervision or instruction
concerning use of the device in a safe way and understand the hazards
involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without super-
vision.
• Blinds should be stowed before maneuvering to ensure no restriction of the
driver vision.
•Only for powered blinds: Do not fit powered blinds to escape hatches.
Strangulation hazard
• Keep chains and cords out of the reach of children
• Cots and furniture should be placed away from controls
• Ensure the cords don't twist and form a loop.
Suffocation hazard
• This device contains small parts. Keep it away from children under 3 years
old.
• The packaging includes plastic bags. Keep them away from children under 3
years old.
!CAUTION! Failure to obey these cautions could result in minor or mod-
erate injury.
Risk of injury
• The device must only be installed, removed or repaired by qualified or com-
petent person using suitable fastening material.
• Take reasonable precaution when installing the blind and wear appropriate
personal protective equipment.

5
EN
Skysol Track Small Safety instructions
•Only for boats and yachts: If the blind is in front of an open window, then
the blind should be stowed when driving at more than 10 knots or in a sea
state of more than moderate, as this can cause damage to the blind. Parts that
come loose may injure persons in the vicinity.
ANOTICE!
Damage hazard
• Blinds should be stowed completely when boat or vehicle is under way.
• Use screws and plugs suitable for the wall construction to fix the blind.
• Ensure that you do not drill through the wall.
• Ensure that your hands are clean or wear suitable gloves to avoid marking the
fabric.
•Only for powered blinds:
– Check that the voltage specification on the cable label is the same as that
of the power supply.
– Only use cables with a suitable cross-section.

EN
Scope of delivery Skysol Track Small
6
3 Scope of delivery
• Blind
• Side tracks
• Fitting components
• Safety information
4 Accessories
Accessories are available using the separate order form. You can find your autho-
rized customer service center at dometic.com.
5 Intended use
The blind is suitable for:
• Installation in yachts and boats
• Installation in caravans and motor homes
• Installation in homes
The design and size of the blinds are custom-made. The fabric of the blinds is cut
to fit the customer‘s specifications.
The blinds are designed for interior use only and should not be installed in bath-
rooms, wet rooms or other locations with a high level of humidity.
This product is only suitable for the intended purpose and application in accor-
dance with these instructions.
1

7
EN
Skysol Track Small Technical description
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or main-
tenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
6 Technical description
The blind is available in two operating types:
• Manual
• Powered
I
7 Installation
!
The blind can be fitted in a recess or to the wall or ceiling.There are different head
rails for powered blinds and manual blinds.
Depending on the space in the installation location, the sequence of installing
the blind components may vary (e.g. to fit the head rail before the side tracks).
NOTE
After delivery, the blind type and the scope of delivery should be checked
according to the order confirmation. The number on the data plate indicating
the blind type is located on the back of the head rail.
WARNING!
Powered blinds: Disconnect the power supply before you begin and ensure
that it can not be reconnected until installation has been completed.

EN
Installation Skysol Track Small
8
7.1 Installing the side tracks
2. 2.
1. 1.
1.
18 mm
2.
3.
2.
3.
1.
41 mm
2

9
EN
Skysol Track Small Installation
7.2 Installing the head rail
1. 1.
3.
2. 2.
3.
4.
4.
1. 2.
1. 3.
2.
1. 2.
CLICK
CLICK
1.
3.
2.
3

EN
Installation Skysol Track Small
10

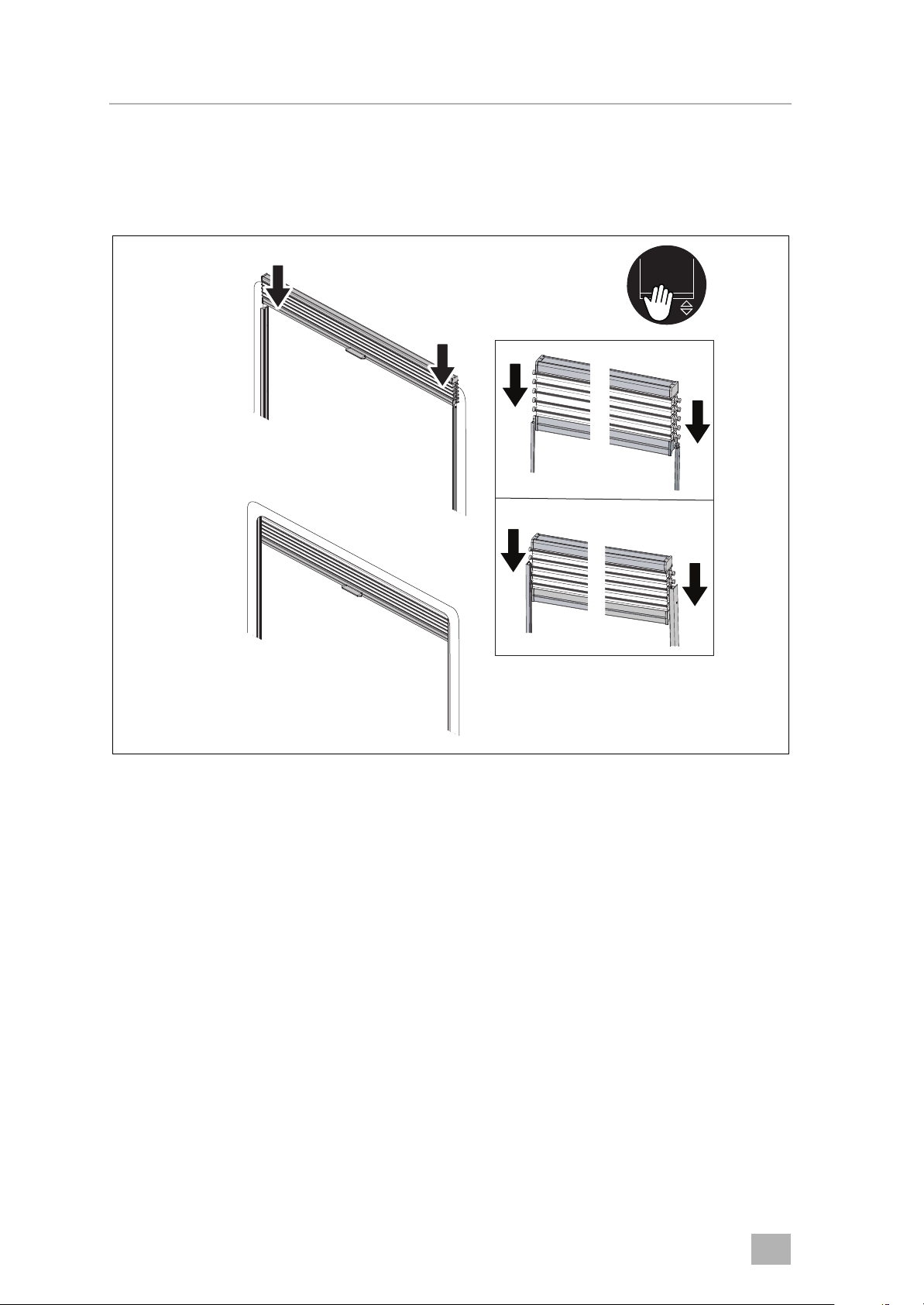

7.3 Installing the blind
7.3.1 Manual blind
4
1.
4.
2.
3.

11
EN
Skysol Track Small Installation
7.3.2 Powered blind
1.
1.
2. 3.
1.
2. 3.
2. 3.
5

EN
Installation Skysol Track Small
12

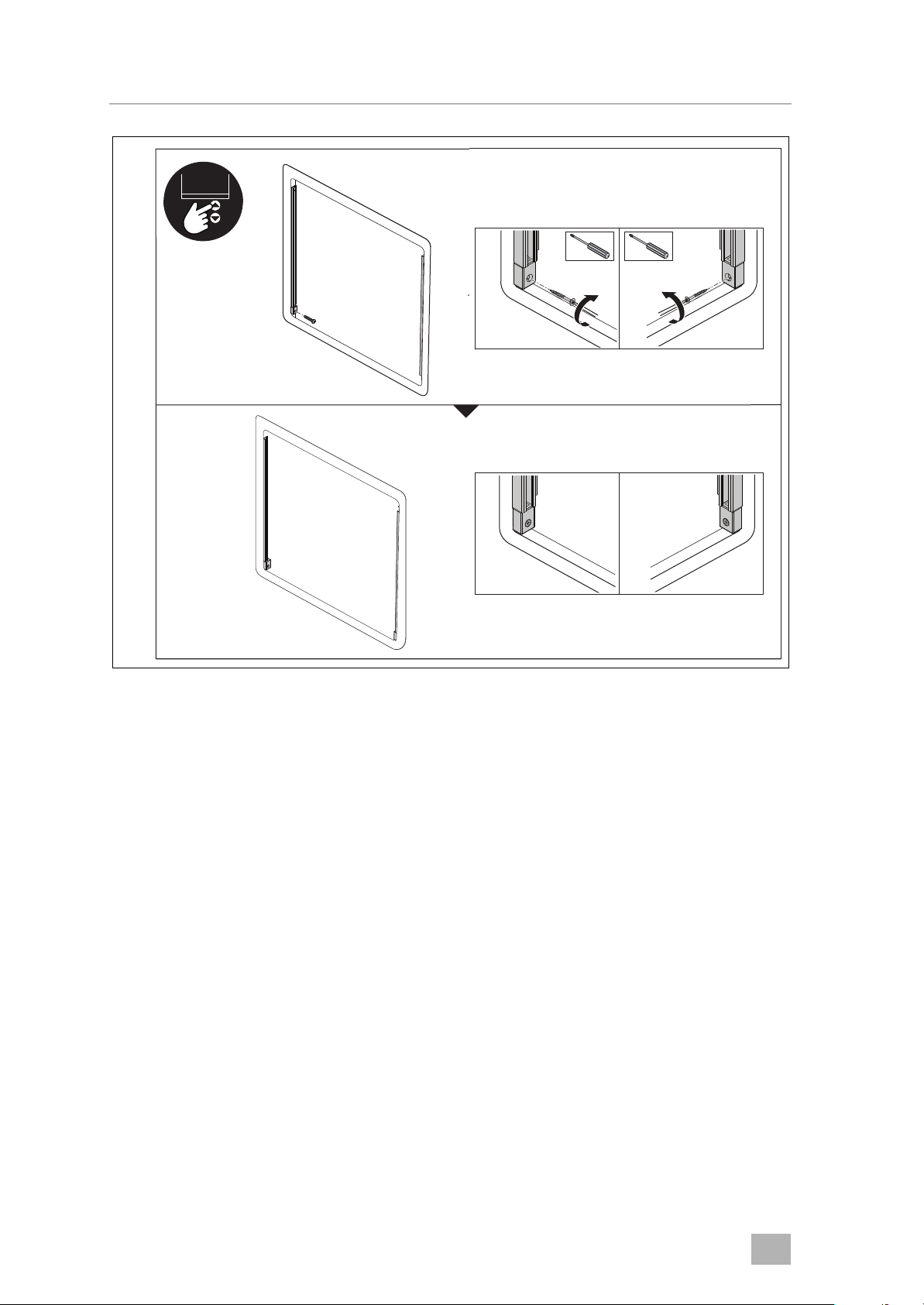

1.
2.
2.
1.
3.
3.
6

13
EN
Skysol Track Small Installation
1.
2.
3.
1.
2.
2.
3.
1.
7

EN
Installation Skysol Track Small
14

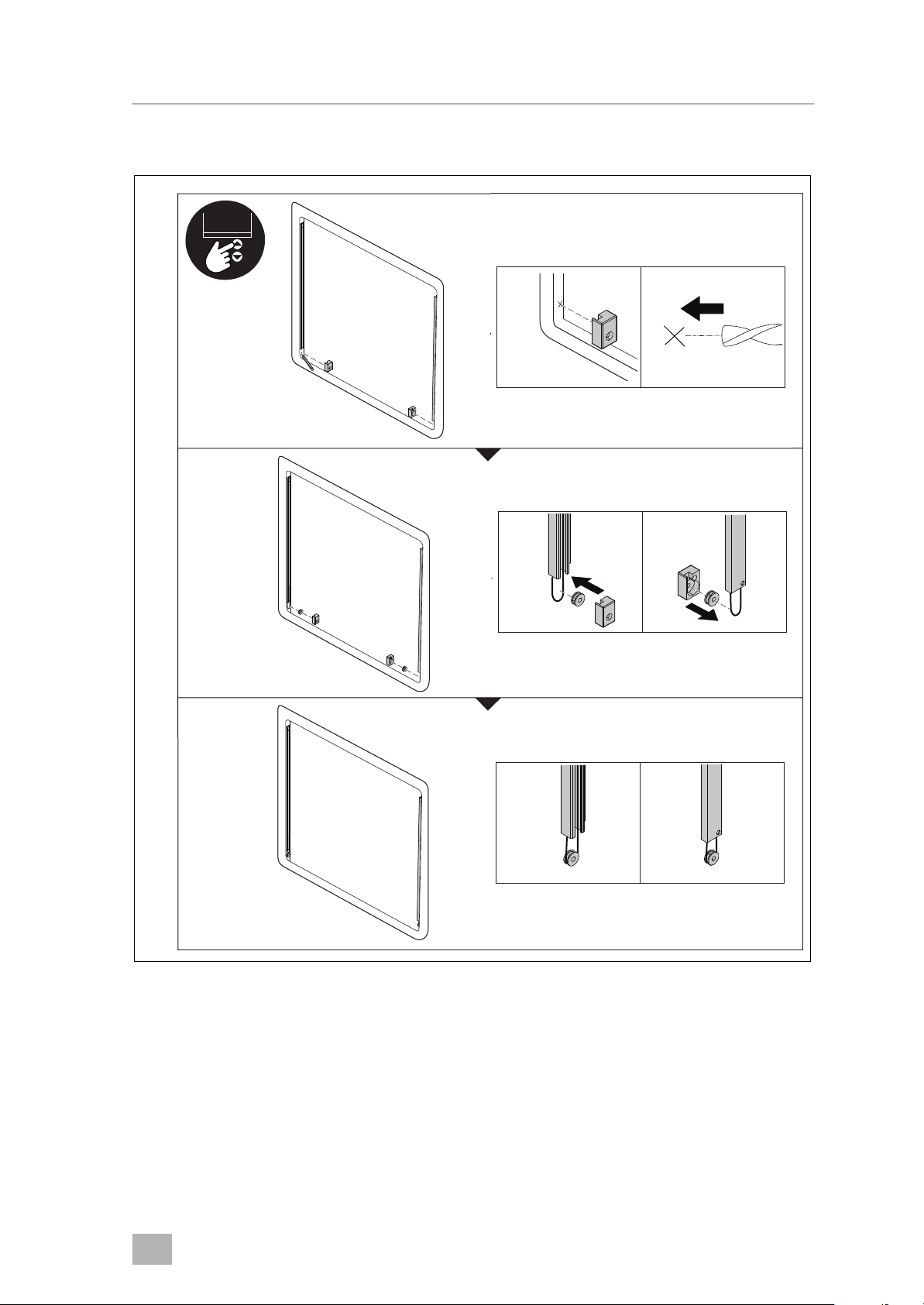

7.4 Installing the cord plugs (only for manual blinds)
➤Check the operation of the blind by moving fully to the top and to the bot-
tom.
If the blind is properly adjusted, it should hold in all positions in between and
operate with ease.
• If the blind falls down on its own, the cords need to be shortened. The easiest
way to do this is at the bottom end plugs by pulling out the plug and tying a
new double knot. Both cords need to be adjusted evenly. Shorten the excess
cord only after you have thoroughly tested the blind.
• Make sure the springs in the head rail is not pulled to one end of the head rail,
but is approximately in the middle. If it is not, the tensioning does not work
properly.
7.5 Connecting the blinds (only for powered blinds)
The powered blinds are available for a connection to a 12/24 Vg power supply.
The data plate on the head rail provides important information on the specifica-
tions of the motor.
The electrical power supply must be connected by a qualified electrician who
has demonstrated skill and knowledge related to the construction and opera-
tion of electrical equipment and installations and has received safety training to
identify and avoid the hazards involved.
8
2.
4.
1.
3.

15
EN
Skysol Track Small Installation
The following notes must be observed when connecting the blinds:
• Ensure cables are not damaged during installation. Routings of cables
through walls or bulkheads must be protected and insulated by appropriate
bushing, grommets or cable conduits.
• Ensure that a 12 V or 24 V stabilized power supply line is available for the
drive at the point of installation. The power supply line is suitably arranged
and protected.
• Secure all cables to prevent any contact with moving parts.
• Only use power supply units and control elements recommended by the
manufacturer to prevent damage or faults during operation caused by incom-
patible electrical components.
• Control devices (e.g. switches) must be installed in visible locations.
➤Connect the motor as shown in the wiring diagrams.
Dometic Radio Controlled Blind External Receiver
Dometic Radio Controlled Blind Internal Receiver
bk k
rd
MOTOR
Dometic Radio Receiver
Dometic 9 Chn, 433 MHz Transmitter
HEADRAIL
1
4
2
wh
bk/wh
12 V/24 V DC
12 V/24 V DC
Atlantic 24S - Double End
Atlantic 12S - Double End
24 V DC
HD TM24 24 V DC
12 V DC
3
Atlantic 24S - Double End
Atlantic 12S - Double End
24 V DC
HD TM24 24 V DC
12 V DC
bk/wh
wh
HEADRAIL
1
2
12 V/24 V DC
3
Dometic 9 Chn, 433 MHz Transmitter

EN
Installation Skysol Track Small
16
Manually switched blind
Somfy RTS Controlled Blind External Receiver
Somfy Radio Controlled Blind Internal Receiver
Atlantic 24S - Double End
Atlantic 12S - Double End
24 V DC
HD TM24 24 V DC
24 V DC
12 V DC
bk
rd
HEADRAIL
1
2
wh/gy
gy
5
12 V/24 V DC
Somfy LV25 - B64
24 V DC
Somfy LW25 - B63
3
bk
rd
MOTOR
Somfy DC RTS
Somfy Remote Control
HEADRAIL
1
4
2
wh
bk/wh
24 V DC
Somfy LW25-B83
HD TM24
24 V DC
Somfy LV25-B64 24 V DC
24 V DC
3
bk/wh
wh
HEADRAIL
1
2
24 V DC
Somfy LW25-B83
HD TM24
24 V DC
Somfy LV25-B64 24 V DC
24 V DC
3
Somfy Remote Control

17
EN
Skysol Track Small Installation
Key to wiring diagrams
I
Pos. Description
1Fused12Vg/24 Vgpower supply (fuse rating 2 A for 24 Vg, 1 A for
12 Vg)
2Headrail
3 Head rail motor options
4 External receiver
5 Customer supplied DPDTswitch (double pole, double throw), center off,
latching or momentary, 12 Vg/24 Vg, 3 A)
bk Black
rd Red
gy Gray
wh White
NOTE
• Accessories are available using the separate order form.
• Observe the applicable documents for the controls and the operating ele-
ments.

EN
Operation Skysol Track Small
18
8Operation
!
8.1 Operating manual blinds
The blind can be moved to any position by the handle.
➤Proceed as shown to operate the manual blind.

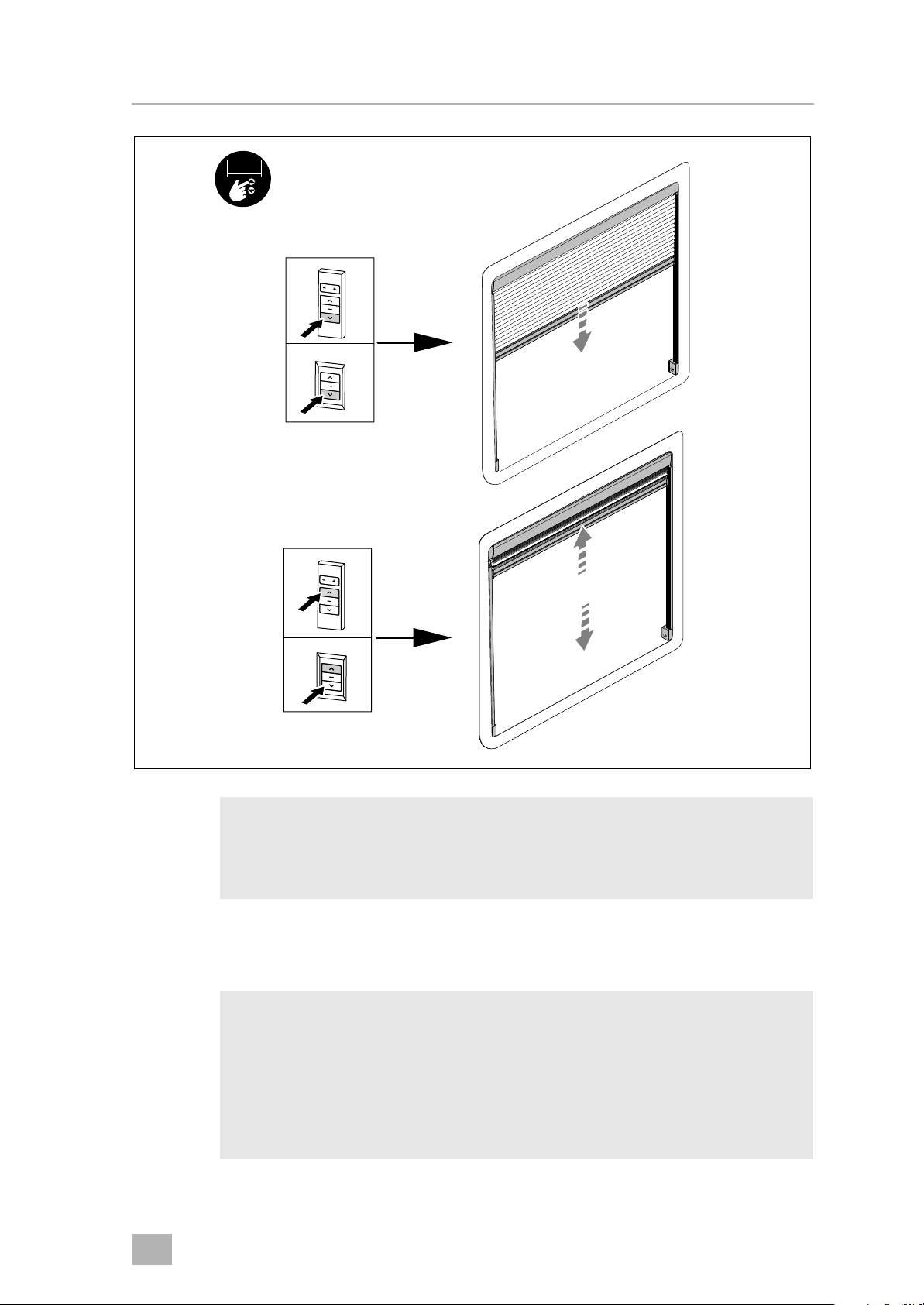

8.2 Operating powered blinds
Observe the following notes:
• Each blind can be stopped in any position.
• When operating the blind with an automation system, operation depends on
the programming of the controls.
➤Proceed as shown to operate the powered blind.
CAUTION! Risk of injury
Only for boats and yachts: If the blind is in front of an open window, then
the blind should be stowed when driving at more than 10 knots or in a sea state
of more than moderate, as this can cause damage to the blind. Parts that come
loose may injure persons in the vicinity.
9

19
EN
Skysol Track Small Cleaning and maintenance
I

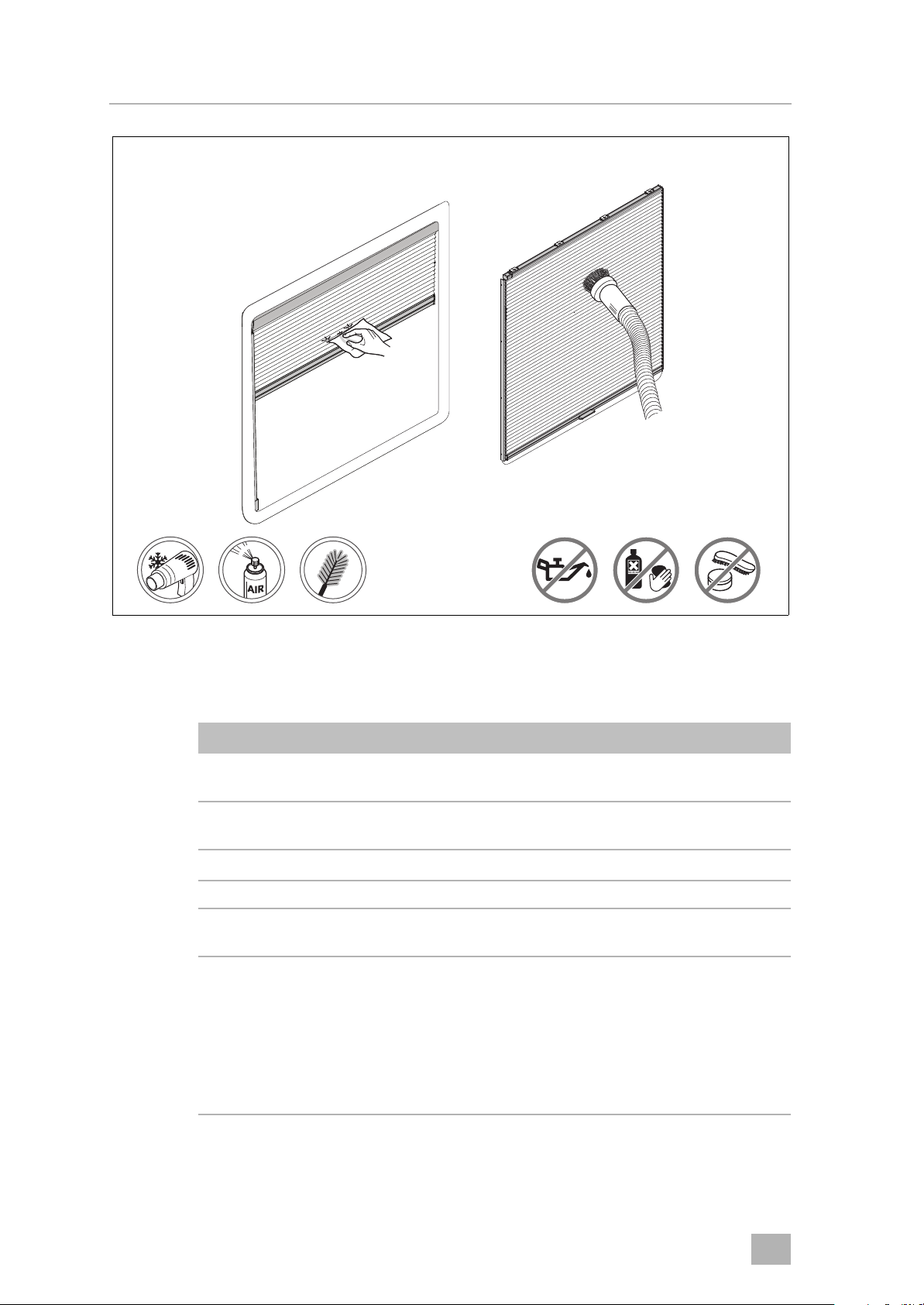

9 Cleaning and maintenance
A
➤Proceed as shown to clean the blind.
NOTE
The motors have a built-in, self resetting thermal cut-out for safety reasons. Pro-
longed use or over loading the blind could trigger the cut-out. If this happens
allow the motor to cool up to half an hour.
NOTICE! Damage hazard
• Do not grease, oil or lubricate the blind. Lubricants will damage the fabric.
• Rubbing can damage the fabrics.
• Spot-cleaning may result in cleaner areas than the surrounding.
• Do not soak the blinds.
• The manufacturer recommends testing any cleaning agents on a hidden
area of the blind first.
0

EN
Troubleshooting Skysol Track Small
20
10 Troubleshooting
Fault Solution
Tension too low ➤See chapter “Installing the cord plugs (only for
manual blinds)” on page 14 .
Tensioned blind not running
smoothly
➤Check restraint positions and recess dimensions.
Powered blinds:
Blind stops in wrong position ➤Refer to manual of your control device.
Different blinds running at dif-
ferent speeds
➤Refer to manual of your control device.
Powered blind does not work ➤Prolonged or repeated use can activate the built-in
thermal cut-out. Leave the motor to cool for 20 min
and try again.
➤Check the power supply to the blind.
➤Check if wiring for voltage to the motor is correct.
➤If power supply is checked and the motor is still
faulty, contact Dometic.
a
