Dometic Micro Heki User manual

1
A
C
B
12 mm
12 mm
Ø 24 mm
280 mm
280 mm
≤ 1,5 Nm
1 – 2 mm
1 – 2 mm
1.
2.
W
A
B≤ 1,5 Nm
23 mm ≤ W ≤42 mm
43 mm ≤ W ≤60 mm
8x
8x
1
2
9104118059
Micro Heki
1
2
4
5
6
3
7
8
Micro-Heki--IO-16s.book Seite 1 Dienstag, 13. Februar 2018 5:57 17

2
Dometic WAECO International GmbH
Hollefeldstrasse 63
D-48282 Emsdetten
dometic.com
III
I
II
1
4
2
3
a
b
0
9
4445102014 L 02/2018 MO1147
Micro-Heki--IO-16s.book Seite 2 Dienstag, 13. Februar 2018 5:57 17

Micro Heki
Roof light
Installation and Operating Manual. . . . . . . . 3
Dachfenster
Montage – und Bedienungsanleitung . . . . 12
Dôme de toit
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 21
Claraboya
Instrucciones de montaje y de uso . . . . . . .30
Clarabóia
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Oblò
Istruzioni di montaggio e d’uso . . . . . . . . .48
Dakraam
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .57
Tagvindue
Monterings – og betjeningsvejledning . . .66
Takfönster
Monterings – och bruksanvisning. . . . . . . .75
Takvindu
Monterings – og bruksanvisning . . . . . . . . 84
Kattoikkuna
Asennus – ja käyttöohje . . . . . . . . . . . . . . . 93
Окно для крыши
Инструкция по монтажу и эксплуатации 102
Okno dachowe
Instrukcja montażu i obsługi. . . . . . . . . . . 112
Strešné okno
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 121
Střešní okno
Návod k montáži a obsluze . . . . . . . . . . . 130
Tető a b lak
Szerelési és használati útmutató . . . . . . . 139
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
WINDOWS & DOORS
MICRO HEKI
Micro-Heki--IO-16s.book Seite 1 Dienstag, 13. Februar 2018 5:56 17

Micro-Heki--IO-16s.book Seite 2 Dienstag, 13. Februar 2018 5:56 17

EN
Micro Heki Explanation of symbols
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
6 Instructions before installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
7 Mounting the Micro Heki . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
8 Using the Micro Heki . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
10 Maintaining and cleaning the Micro Heki . . . . . . . . . . . . . . . . . . . . . . . . . . .10
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1 Explanation of symbols
!
A
I
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
Micro-Heki--IO-16s.book Seite 3 Dienstag, 13. Februar 2018 5:56 17

EN
Safety and installation instructions Micro Heki
4
2 Safety and installation instructions
Pleaseobserve the prescribedsafetyinstructionsand stipulations fromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
• Damage to the product resulting from mechanical influences
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
!
I
Please note the following:
• If faults or disturbances occur, consult a specialist workshop immediately.
• Risk of breakage! Do not tread on the glass dome.
• Before starting your journey, check that the roof window is locked properly.
• Before starting your journey, check the roof window for damage (such as tension
cracks in the acrylic glass).
•Donot open the roof window while driving.
•Donot open the window in strong wind or rain.
• Close the roof window if it rains or snows.
•Donot leave the vehicle with the roof window open.
• Keep the roof window free of snow and ice.
WARNING! Beware of injury
Do not exceed the maximum allowable driving speed of 160 km/h,
because this can damage the roof light. Parts that come loose may injure
people in the vicinity.
NOTE
If you do not have sufficient technical knowledge for installing the
components in vehicles, you should have a specialist install the roof
window in your vehicle.
Micro-Heki--IO-16s.book Seite 4 Dienstag, 13. Februar 2018 5:56 17

EN
Micro Heki Scope of delivery
5
3Scopeofdelivery
I
4Accessories
5 Intended use
The Micro Heki roof light is suitable for installation in motor homes or caravans:
The maximum travel speed permitted is 160 km/h, as noise or damage could occur
depending on the vehicle design or installation position. In case of excessive noise,
a spoiler (accessory) can be used.
No. in
fig. 1Quantity Label
1 1 Outer frame with glass dome
2 1 Inner frame
NOTE
For assembly please be aware that you will need an installation kit and
possibly an adapter frame (see chapter “Mounting the Micro Heki” on
page 7).
Label Ref. no.
Adapter frame for Fiat Ducato type 250/290 9104116108
Spoiler, 570 mm 9104100260
Micro-Heki--IO-16s.book Seite 5 Dienstag, 13. Februar 2018 5:56 17

EN
Instructions before installation Micro Heki
6
6 Instructions before installation
➤Before installation, check the roof thickness of your vehicle. Consult the vehicle
manufacturer if you have any questions.
➤When choosing the installation location, observe the following:
– Adjoining components (roof rack or attachment and reinforcing parts), cables
and cabinets in the vehicle interior must not get damaged when sawing the
hole.
– Sufficient space needs to be available for installing the inner and outer frames.
– Only fit the roof light on flat and parallel interior and exterior roof areas with a
maximum inclination of 15° to the horizontal.
– You may use an existing roof hole provided the roof light fits into it.
6.1 Pressing out the hole
See fig. 2
6.2 Using reinforcing rails
Supplementary to fig. 3
➤Before installation, check whether the roof hole needs reinforcing.
➤Remove the foam according to the width of your reinforcing rails (not in scope of
delivery) (A).
➤Fit the reinforcing rails (B).
Micro-Heki--IO-16s.book Seite 6 Dienstag, 13. Februar 2018 5:56 17

EN
Micro Heki Mounting the Micro Heki
7
7MountingtheMicroHeki
Supplementary to fig. 3
➤Measure your roof thickness W.
➤Use the appropriate installation kit.
See fig. 4
➤Check that the roof light has sufficient space around it (approx.1 to 2 mm) in the
wall section.
See fig. 5
➤Clean the roof opening in the mounting area.
See fig. 6
A
➤Seal the mounting frame with a flexible non-hardening sealing compound (e.g.
SikaLastomer-710).
W W
23 – 25 mm 9104118048 43 mm 9104118048 + 9104118059
26 – 27 mm 9104118049 44 – 45 mm 9104118049 + 9104118059
28 – 29 mm 9104118050 46 – 47 mm 9104118050 + 9104118059
30 – 31 mm 9104118051 48 – 49 mm 9104118051 + 9104118059
32 – 33 mm 9104118052 50 – 51 mm 9104118052 + 9104118059
34 – 35 mm 9104118053 52 – 53 mm 9104118053 + 9104118059
36 – 37 mm 9104118054 54 – 55 mm 9104118054 + 9104118059
38 – 39 mm 9104118055 56 – 57 mm 9104118055 + 9104118059
40 – 41 mm 9104118056 58 – 59 mm 9104118056 + 9104118059
42 mm 9104118057 60 mm 9104118057 + 9104118059
NOTICE!
Observe the sealant manufacturer's instructions.
Micro-Heki--IO-16s.book Seite 7 Dienstag, 13. Februar 2018 5:56 17

EN
Mounting the Micro Heki Micro Heki
8
See fig. 7
➤Check the direction of travel when installing.
➤Place the outer frame in the middle of the roof opening.
➤Press the outer frame in the roof slightly so that the packing compound spreads
out.
See fig. 8
➤Wall thickness 23 – 42 mm: Attach the outer frame with the appropriate instal-
lation kit.
➤Wall thickness 43 – 60 mm: Attach the outer frame with the adapter frame and
the appropriate installation kit. Use the screws included in the scope of delivery
of the adapter frame.
➤Tighten the screws 10 minutes after installation.

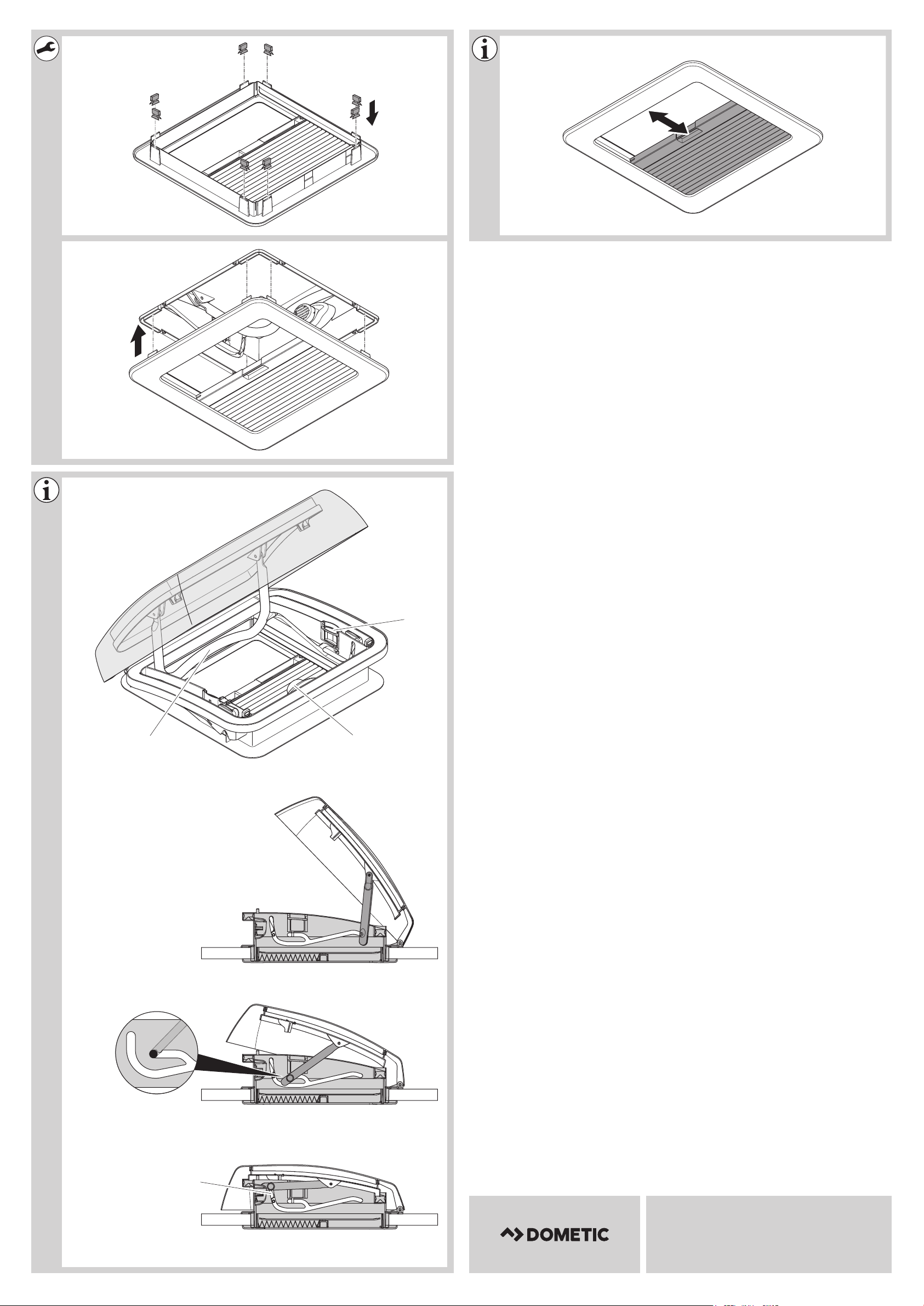

See fig. 9
➤Mount the fastening brackets on the internal frame.
See fig. 0
➤Push the inner frame onto the outer frame.
➤After installing, check the roof light works properly.
I
➤Remove the protective film from the acrylic glass.
➤If necessary, enter the new vehicle height and weight in the vehicle documents.
NOTE
If the protective film is exposed to sunlight for too long, it cannot be
taken off without leaving a residue.
