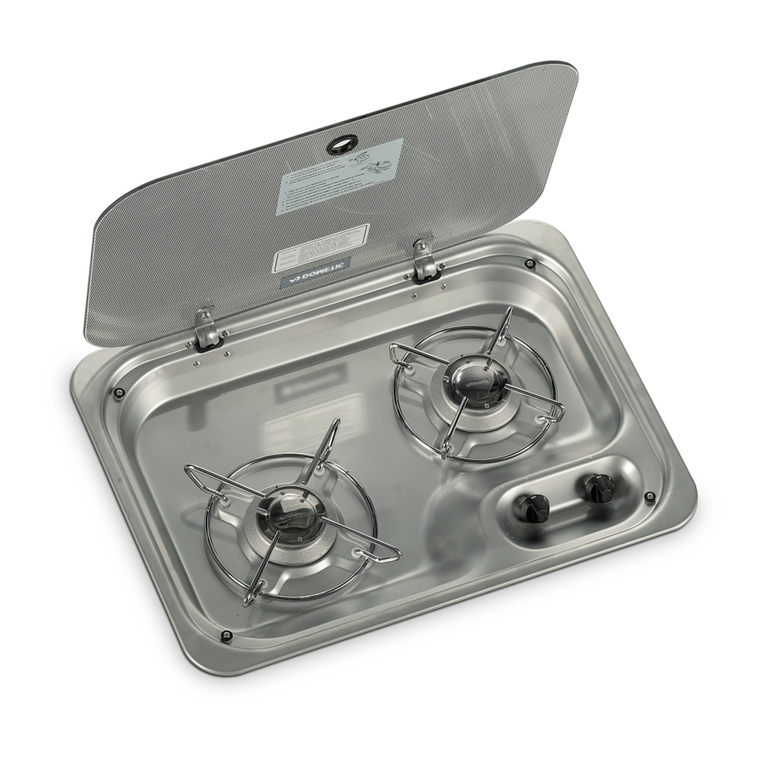

Dometic CE99-DF User manual

CE 99-DF (HBG 3445), CE 99-ZF (HBG 2335), PI 8022
Cooktops
Installation and Operating Manual. . . . . . . 12
Plaques de cuisson
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .27
EN
FR
WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury, or death.
– Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS
•Do not try to light any appliance.
•Do not touch any electrical switch.
•Do not use any phone in your recreational
vehicle.
•Clear the recreational vehicle of all
occupants.
•Turn off the gas supply tank valve(s) or main
gas supply.
•Immediately call your gas supplier for
instructions.
•If you cannot reach your gas supplier, call
the fire department.
– Have the gas system checked and leakage
source corrected by a qualified installer,
service agency, manufacturer or dealer, or
the gas supplier.
HOT AND COOKING
CE, PI

© 2022 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.

CE 99-DF, CE 99-ZF, PI 8022
