Dometic PI8022 User manual

PI8022, PI8023
Cooktops and combinations
Installation and Operating Manual
EN
HOT AND COOKING
HOBS AND COMBINATIONS
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 1 Mittwoch, 20. Januar 2021 10:10 22

© 2021 Dometic Group. The visual appearance of the contents of this manual is
protected by copyright and design law. The underlying technical design and the
products contained herein may be protected by design, patent or be patent
pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
All rights are reserved.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 2 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Description of symbols
3
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
dometic.com.
Contents
1 Description of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Installing the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
7 Using the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8 Cleaning the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
9 Maintaining the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1 Description of symbols
!
!
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 3 Mittwoch, 20. Januar 2021 10:10 22

EN
General safety instructions PI8022, PI8023
4
A
I
2 General safety instructions
The manufacturer accepts no liability for damage in the following cases:
• Faulty assembly or connection
• Damage to the product resulting from mechanical influences
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual
2.1 General safety
!WARNING!
• This device must only be repaired by qualified personnel. Improper
repairs can result in considerable danger or damage to the device.
• DO NOT MODIFY THIS DEVICE.
• Observe the gas category and the allowed gas given in chapter “Tech-
nical data” on page 23. Do not use any other fuels.
• Keep a suitable fire extinguisher in the immediate vicinity.
Ensure that the fire extinguisher is checked by a specialist in regular
intervals.
• DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS DEVICE WHILE
IT IS IN OPERATION.
• DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS
DEVICE.
• DO NOT USE AN UNLINED MASONRY CHIMNEY AS THE FLUE FOR
THIS DEVICE.
• Prior to installation, ensure that the local distribution conditions
(nature of the gas and gas pressure) and the adjustment of the device
are compatible.
• The adjustment conditions for this device are stated on the label.
• DO NOT PLACE ARTICLES ON OR AGAINST THIS DEVICE.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 4 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 General safety instructions
5
• This device is not connected to a combustion products evacuation
device. It shall be installed and connected in accordance with
AS/NZS 5601 and all other relevant national and local regulations.
Particular attention shall be given to the relevant requirements regard-
ing ventilation.
!CAUTION!
• In case of safety glass cover breakage:
– Shut off immediately all burners and any electrical heating element
and isolate the device from the power supply.
– Do not touch the device surface.
•Donotusethedevice.
2.2 Safety when operating with gas
!WARNING!
• Keep flammable substances away from heating and cooking devices,
and other light and heat sources.
•Suffocation hazard!
Before switching on the device, ensure that the area is sufficiently ven-
tilated. During operation, there must be air vents with a cross-section
of at least 150 cm2in the installation space. These vents can be closed,
but must be kept open when the device is operating (see sign located
above the device).
•Only operate the device at the pressure specified on the type plate.
Only use pressure regulators with a fixed setting that comply with the
national regulations.
• Compare the pressure information on the type plate with the pressure
information on the propane or butane gas cylinder.
• If you smell gas:
– Open all windows and leave the room.
– Do not operate any electrical devices or switches, and avoid using
open flames that can ignite the gas.
– Close the valve on the gas cylinder and keep it closed until the fault
has been rectified.
– Never attempt to find a gas leak with an open flame.
• For countries which are not mentioned in chapter “Technical data” on
page 23 (country symbol) refer to national regulations. If necessary the
device must be modified according to these national regulations.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 5 Mittwoch, 20. Januar 2021 10:10 22

EN
General safety instructions PI8022, PI8023
6
2.3 Operating the device safely
!WARNING!
• Use the integrated igniter (if available) or long matches or a suitable
lighter. The complete ignition process must be visible from above and
must not be hidden by pots placed on the stove.
Remove your hand quickly as soon as the burner ignites.
• Wear suitable clothing when operating the device.
Do not wear loose fitting clothing which might catch fire.
• Do not use the device to heat the room.
• Never operate the device
– at petrol stations
– on ferry boats
– while transporting the camper van, caravan or motor caravan with
a transport vehicle or tow truck
• Do not spray aerosols in the vicinity of this device while it is in opera-
tion.
!CAUTION!
• Let the device cool down to ambient temperature before you touch it
with bare hands.
• Keep the area surrounding the device free of grease, fat, alcoholic
substances, plastics and flammable cloths (for example, curtains, tow-
els, kitchen utensils).
• Only use pots and pans with an even base and a diameter no larger
than the grids on the device. The pots and pans must be large enough
to cover the flame. If the flames are not covered, items of clothing
could catch fire.

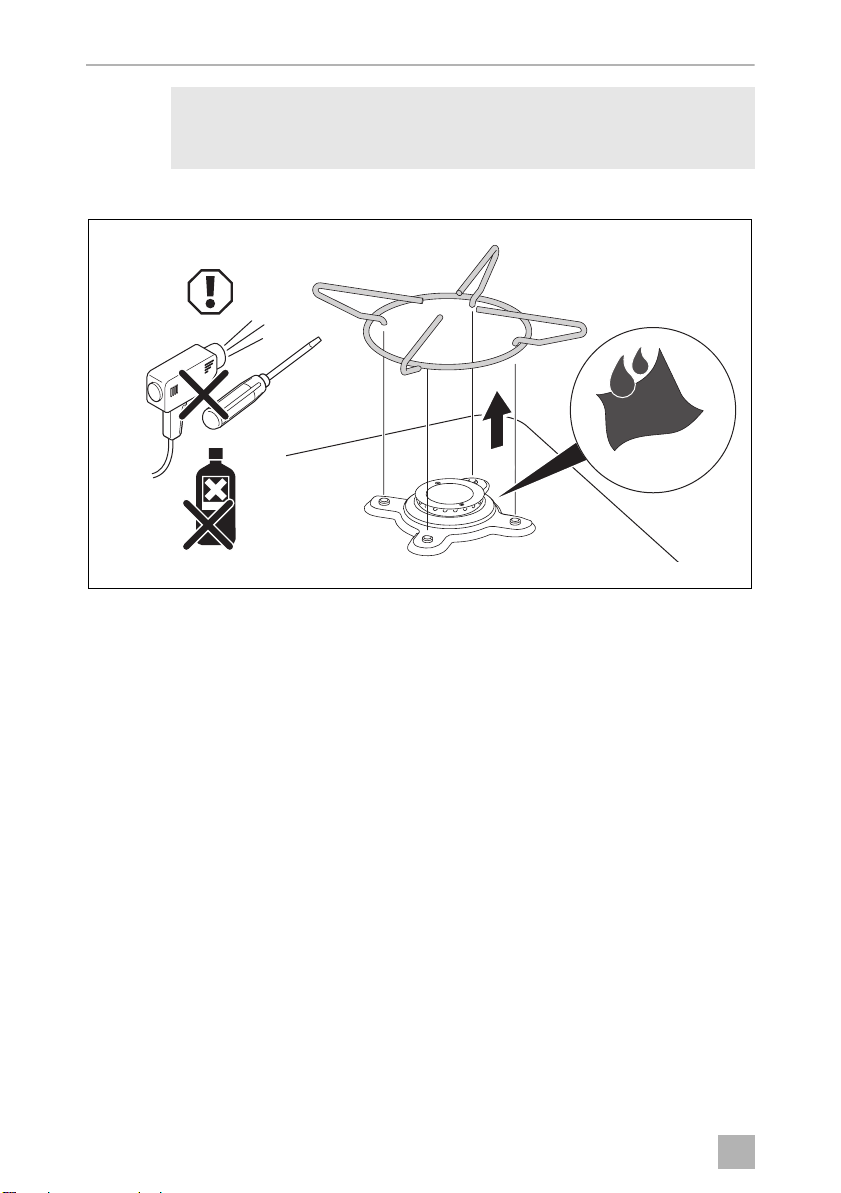

• When cooking, ensure that pans and pots are firmly set down.
1
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 6 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Scope of delivery
7
• Never allow pot handles to extend beyond the edge of the device.
Turn pot handles inward, but not extending over other burners. This
will minimize the risk of spillage, ignition of flammable materials
and/or serious burns.
• Be careful when heating grease or oil. Grease and oil catch fire when
exposed to intense heat.
• Use only dry pot holders to prevent the formation of steam. Do not use
towels or similar items instead of pot holders, as these can catch fire.
• Only operate the device when you or another person can attend to it.
Pots boiling over can cause smoke and fires.
• Turn off the device before removing the pot or pan.
•Risk of breakage!
If available close the glass cover before beginning a journey.Open the
glass cover before igniting the burner.
3Scopeofdelivery
• Cooktop PI8022, PI8023
• Fastening screws (depending on the model)
• Installation and operating manual
4 Intended use
The liquefied gas cooktops in the following model series are intended for installation
in a kitchen or worktop in caravans and motor caravans. They are not suitable for
boat or marine usage.
The model series covered by this manual are:
• PI8022
• PI8023
The devices must only be used for cooking food. The device must not be used as a
space heater.
This device shall be installed in accordance with the regulations in force and only
used in a well ventilated space. Read the instructions before installing or using this
device.
This product is only suitable for the intended purpose and application in accordance
with these instructions.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 7 Mittwoch, 20. Januar 2021 10:10 22

EN
Technical description PI8022, PI8023
8
This manual provides information that is necessary for proper installation and/or
operation of the product. Poor installation and/or improper operating or mainte-
nance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
5 Technical description
5.1 Function
The device is equipped with an automatic flame monitoring device which automati-
cally interrupts the gas supply after approx. 20 seconds if the flame goes out.
5.2 Specifications for the different models
The devices are available in different versions:
•PI8022: Cooktop with two to three burners and safety glass cover
•PI8023: Cooktop with three burners and safety glass cover
The safety glass cover can be used as a work surface when it is closed.
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 8 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Technical description
9
5.3 Control panel
Icon in fig. 2Explanation
Button for spark ignition
Push button for spark ignition
Low flame
High flame
2
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 9 Mittwoch, 20. Januar 2021 10:10 22

EN
Installing the device PI8022, PI8023
10
6 Installing the device
!
6.1 Selecting the installation location
When selecting the installation location, observe the following instructions:

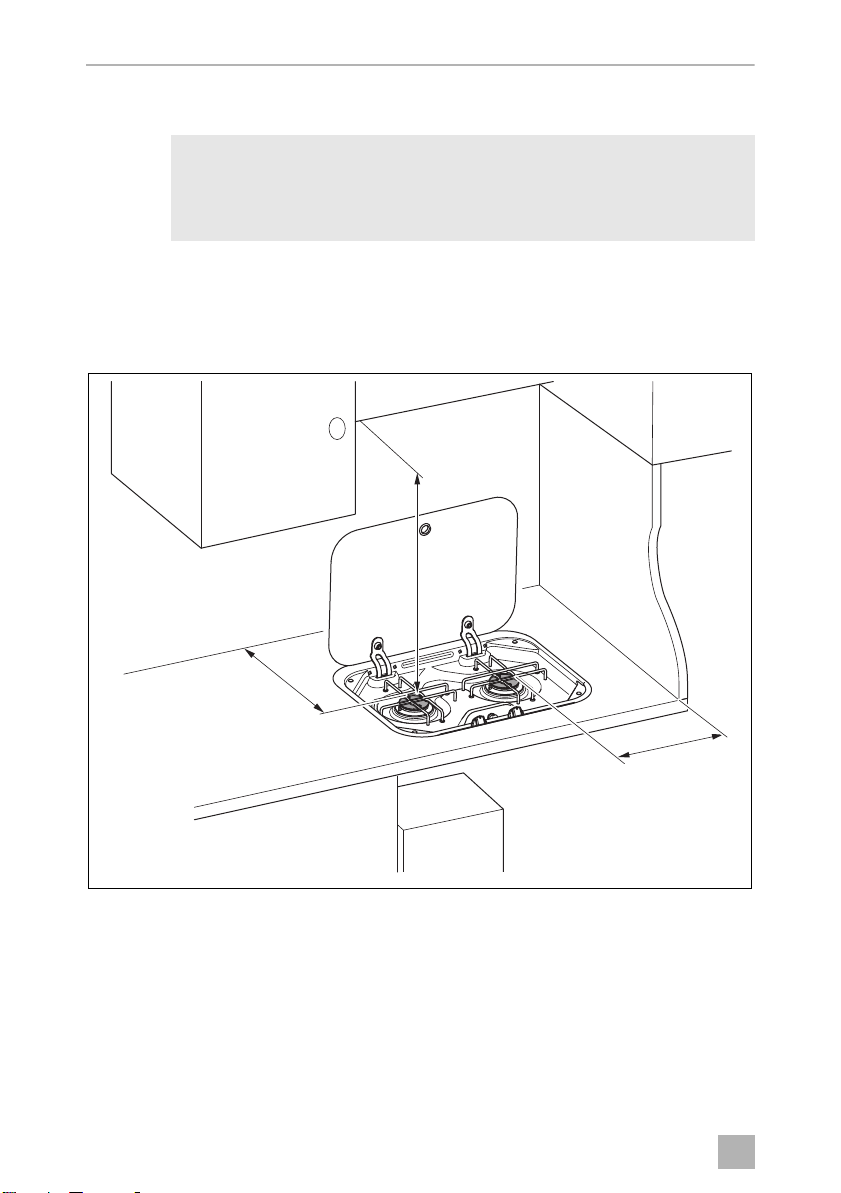

• Make sure that minimum distances (fig. 3) are observed.
• Ensure that there are no drafts at the installation location.
WARNING!
Assembly and installation of the device must only be carried out by
licensed gasfitters. Incorrect assembly and installation can result in
serious hazards due to the escape of gas.
200 mm
500 mm
200 mm
3
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 10 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Installing the device
11
6.2 Installing the device

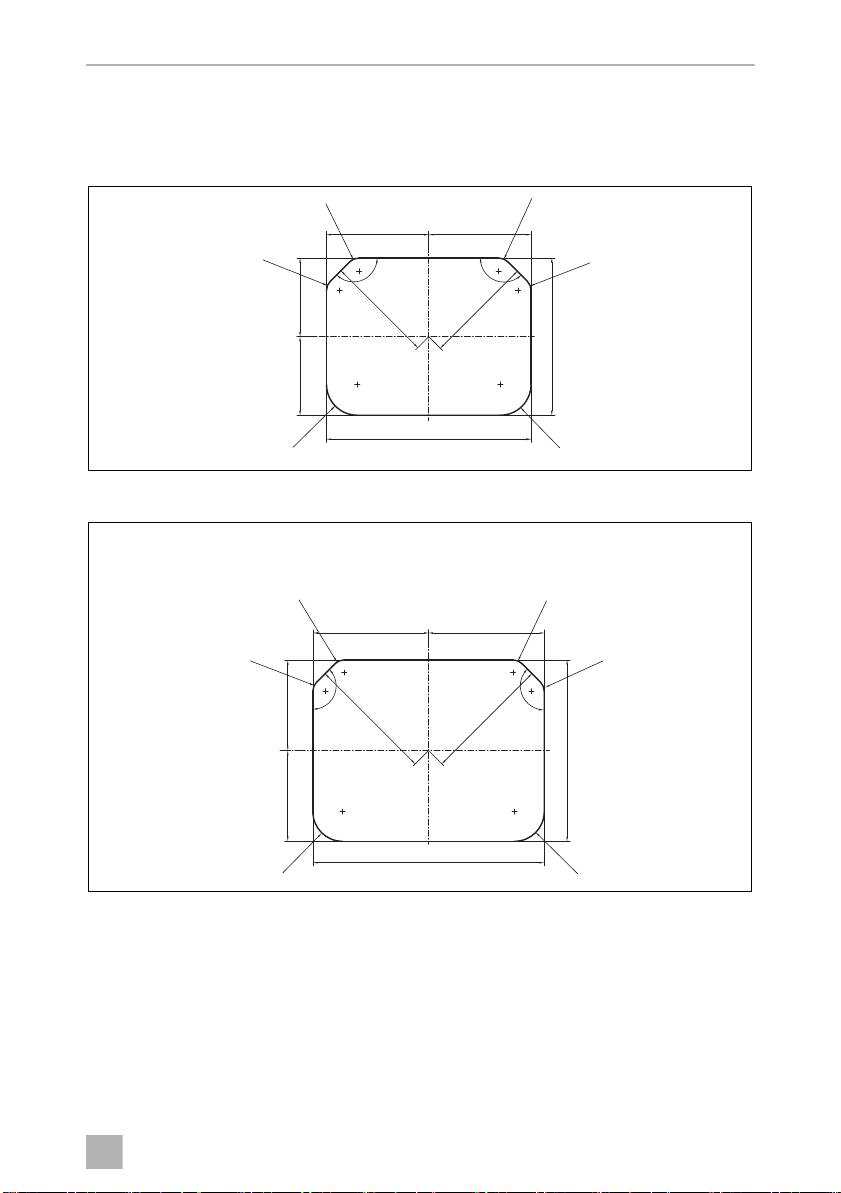

➤Create a cutout according to the installation drawing:
– PI8022: fig. 4
– PI8023: fig. 5
PI8022
248
248
233
179179
233
R70
R70
135°
135°
358
466
R30
R30
R30
R30
4
PI8023
301
301
273 273
R70
R70
135°
135°
214 214
428
546
R30
R30
R30
R30
5
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 11 Mittwoch, 20. Januar 2021 10:10 22

EN
Installing the device PI8022, PI8023
12

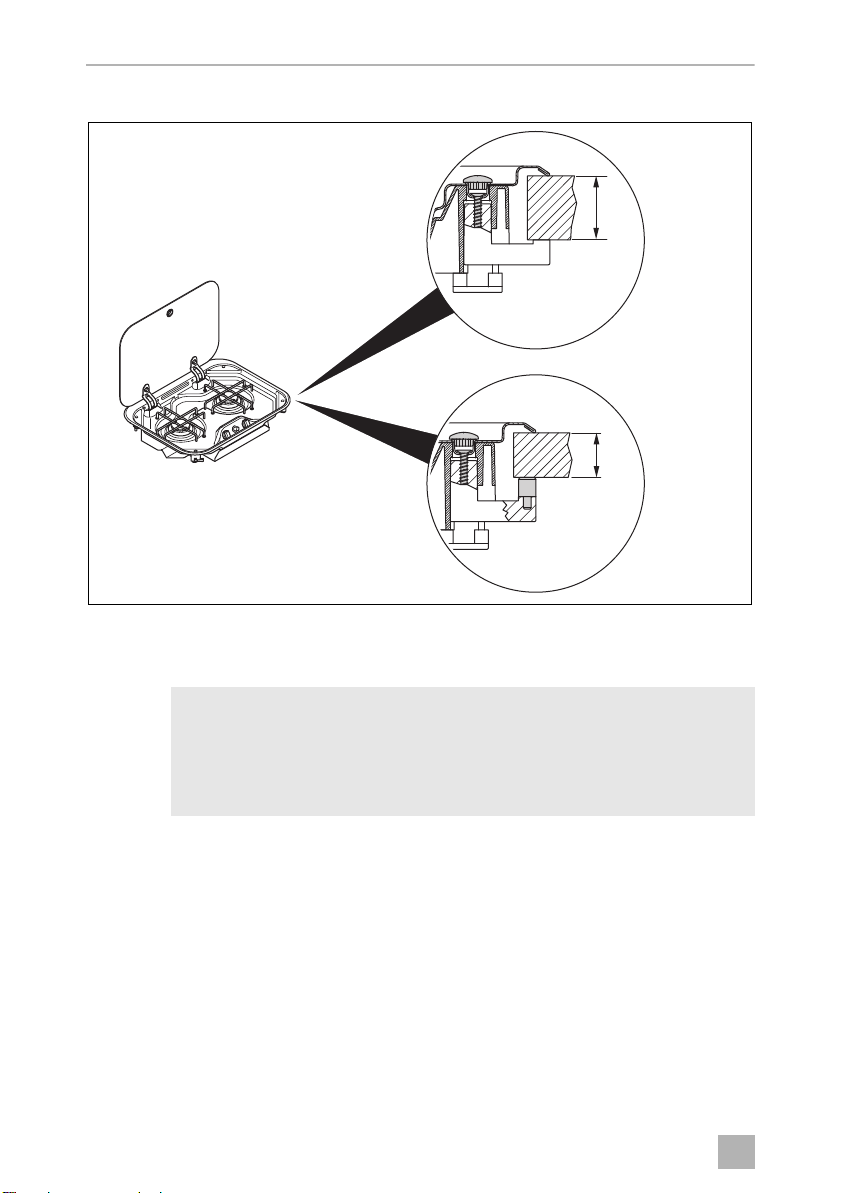

➤Affix the device to the worktop using the screws (fig. 6).
6.3 Connecting the device to the gas supply
!
You must use a rigid gas line for the connection.
Observe the following instructions for the connection:
• Observe the national requirements.
• Use only rigid metal pipe ∅8x1mm.
• Fasten the gas line to the side or rear wall of the surrounding furniture parts so that
no loads are placed on the actuators.
• The entire gas line must be free of stress.
WARNING! Beware of injury!
Only use propane or butane gas cylinders with a certified pressure
reduction valve and suitable head. Compare the pressure information
on the type plate with the pressure information on the propane or
butane gas cylinder.
A
B
h
h
4x
4x
PI8022
PI8023
h= t21 mm
d25 mm
h= t16 mm
d21 mm
6
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 12 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Installing the device
13

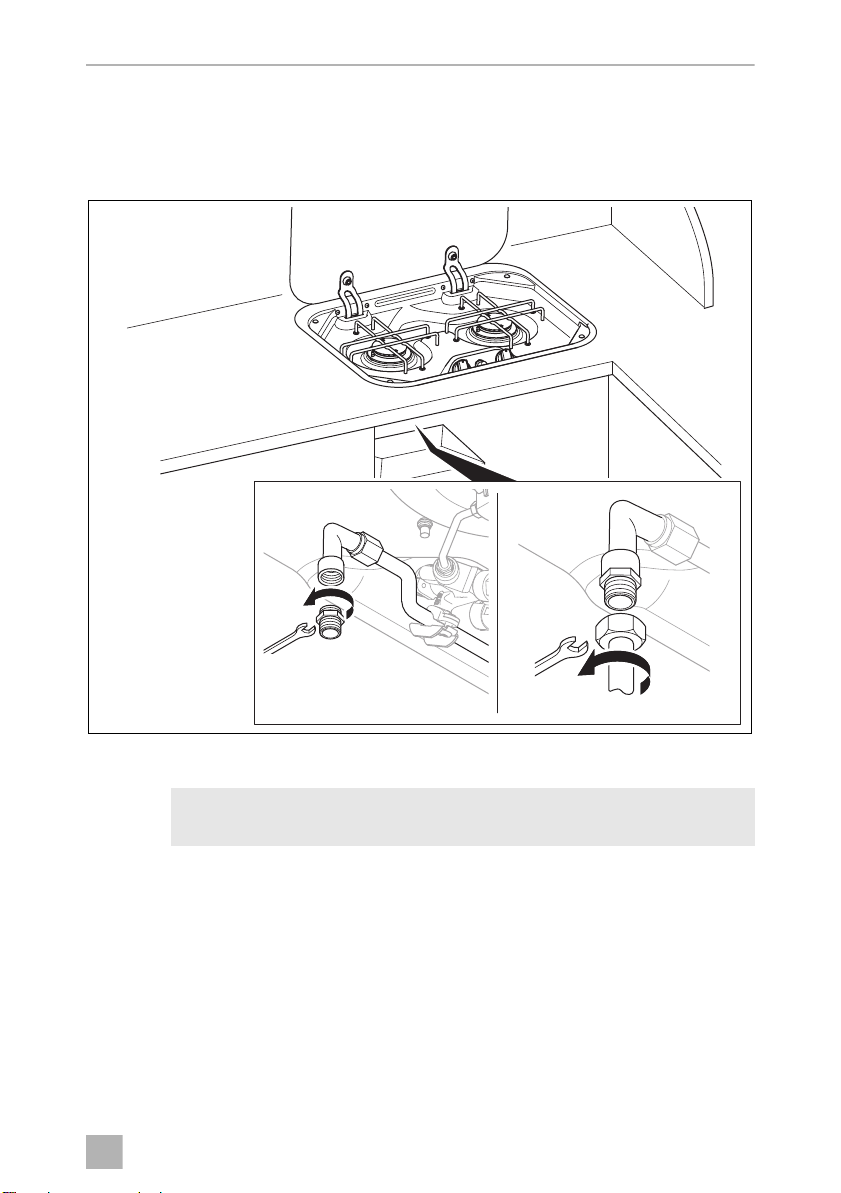

➤Connect the pipes as shown (fig. 7).
The connection of the gas pipe to the appliance (1/4 BSPT female) must be
made with a rigid metal pipe. The pipe work and fittings shall be free from
defects and of an approved type.
➤Open the gas supply.
!
➤Check all connections for leaks with leak spray or soapy water.
There are no leaks if no bubbles form.
WARNING! Beware of injury!
Never check for leaks with an open flame or near sources of ignition.
1.
2.
1.
2.
AB
7
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 13 Mittwoch, 20. Januar 2021 10:10 22

EN
Installing the device PI8022, PI8023
14

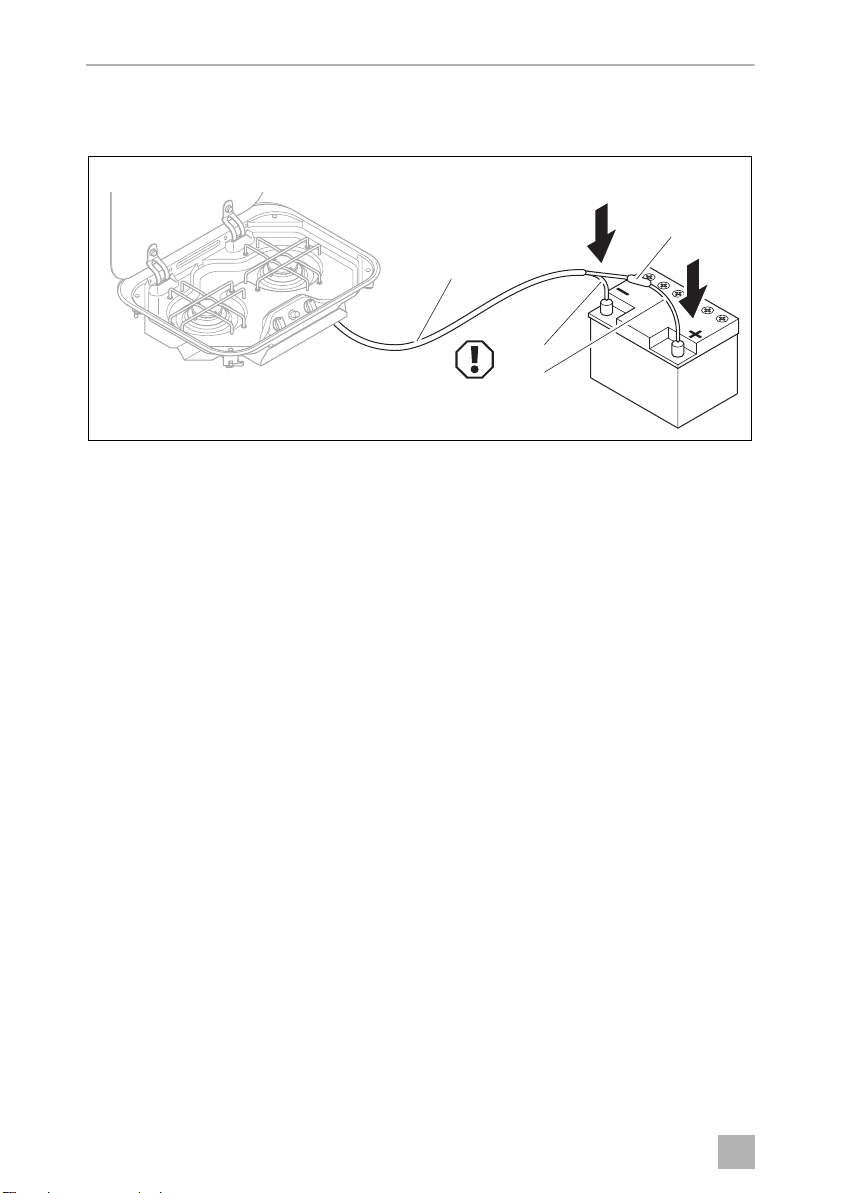

6.4 Connecting the device to the power supply (PI8023)
➤Connect the device as shown (fig. 8).
➤Add a 1 A fuse in the plus line near the battery.
6.5 Testing the device
➤Ignite all burners both individually and concurrently to ensure correct operation
of gas valves, burners and ignition.
➤Turn gas taps to low flame position and observe the stability of the flame for each
burner individually and concurrently.
✔Depending on the type of gas used, the appearance of the flame is as follows:
– Propane: Flame with blue centre and well-defined contour
– Butane: Flame with light yellow tips when igniting the burner, gradually
intensifying as the burner heats
➤Ensure correct operation of the flame failure protection.
12 V
1 A
2 x 0,5 mm2
red
black
d200 cm
8
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 14 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Using the device
15
7 Using the device
7.1 Igniting a burner
!
A
➤Choose a pot according to the following table:
WARNING! Beware of injury!
The complete ignition process must be visible from above and must not
be hidden by pots placed on the stove.
NOTICE!
The flame must not extend beyond the edge of the pot. Centre the pot
above the burner ensuring stability on the pot grid (see fig. 1, page 6).
Burner (fig. 9)Pot diameter
A 9 – 15 cm
B 10 – 18 cm
C 16 – 22 cm
PI8023
AB
CACCB
PI8022
AADDC
9
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 15 Mittwoch, 20. Januar 2021 10:10 22

EN
Using the device PI8022, PI8023
16
➤Ignite a burner as shown (fig. 0).
A
B
max. 10 s
1.
2. 3.
4.
5.
6.
6.
7.
8.
3 s
0
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 16 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Cleaning the device
17

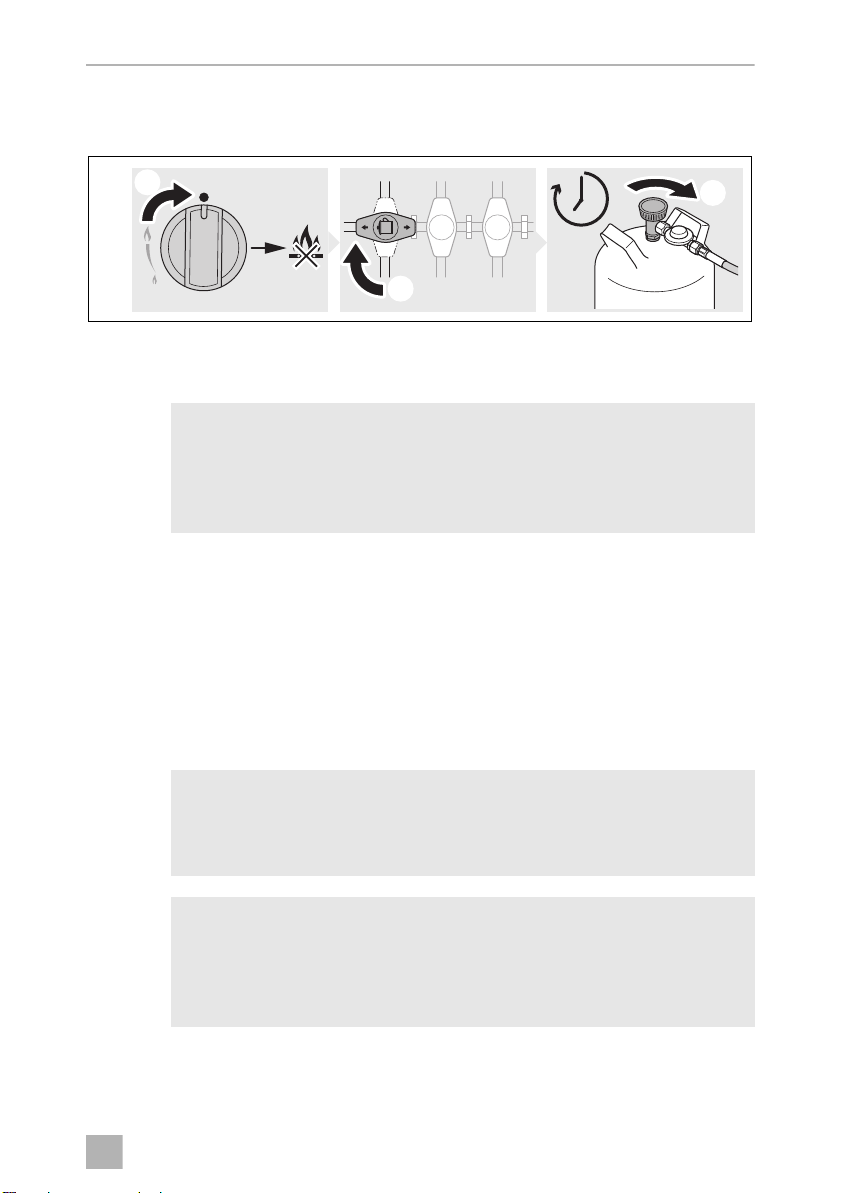

7.2 Switching off the device
➤Switch off the device as shown (fig. a).
7.3 Replacing the gas cylinder
!
➤Switch the device off by turning the knob to the zero setting.
➤Close the valve on the gas cylinder.
➤Replace the gas cylinder according to the instructions from the gas fitting
manufacturer.
8Cleaningthedevice
!
A
WARNING! Beware of injury!
Only replace the gas cylinder when there is good ventilation.
Make sure that there is no source of ignition nearby.
Only change the gas cylinder when the device is not in use and the gas
supply to the device is switched off.
CAUTION! Hot surface!
The surface may still be hot. Keep children away.
Let the device cool down to ambient temperature before you touch it
with bare hands.
NOTICE!
Do not use any sharp or hard objects for cleaning since they may
damage the device.
Only use standard commercial cleaning agents.
Do not use a steam cleaner to clean the device.
2.
3.
1.
a
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 17 Mittwoch, 20. Januar 2021 10:10 22

EN
Maintaining the device PI8022, PI8023
18
I
➤Clean the device as shown (fig. b).
9 Maintaining the device
9.1 Abnormal Operation
Gas valves, which are difficult to turn are considered to be abnormal operation and
may require servicing.
➤In case the device fails to operate correctly, contact the authorised service
provider in your area.
9.2 Annual safety check
➤For safety reasons, have the device checked by authorised personnel every year
for proper function. Any defects must be repaired.
NOTE
When cleaning pay special attention to the burner to ensure there are no
blockages.
1.
2.
b
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 18 Mittwoch, 20. Januar 2021 10:10 22

EN
PI8022, PI8023 Maintaining the device
19

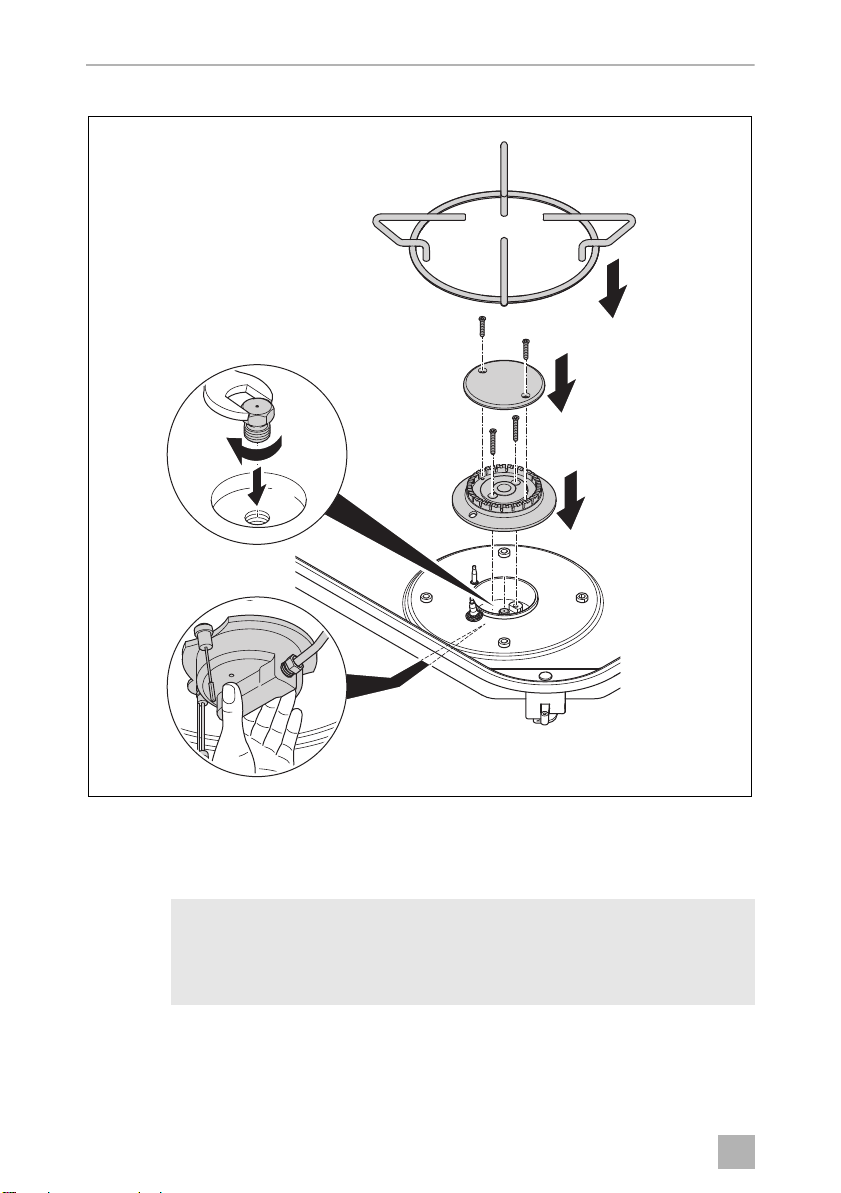

9.3 Replacing the nozzles
!
➤Replace the nozzles as shown:
– Disassembly: fig. c
WARNING! Beware of injury!
The nozzles must only be replaced by authorised personnel. Incorrect
assembly and installation can result in serious hazards due to the escape
of gas.
1.
2.
3.
5.
6.
4.
c
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 19 Mittwoch, 20. Januar 2021 10:10 22

EN
Troubleshooting PI8022, PI8023
20
– Assembly: fig. d
10 Troubleshooting
!WARNING! Beware of injury!
Servicing of the cooktop must only be done by an authorised personnel
and the cooktop must not be modified. Power must be disconnected
before any servicing or maintenance is concluded.
6.
5.
4.
2.
3.
1.
d
DometicPI8002-PI8022-PI8023_IOM_4445103105_APAC(en)_xxxx-xx-xx.book Seite 20 Mittwoch, 20. Januar 2021 10:10 22
