CFF20, CFF35, CFF45, CFF70DZ Explanation of symbols
11
Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure
that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.
By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and thatyou understand and
agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application
and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all appli-
cable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and
others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and
warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit
www.dometic.com.
Contents
1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
1 Explanation of symbols
D
!
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 11 Montag, 11. Januar 2021 5:05 17

EN
Safety instructions CFF20, CFF35, CFF45, CFF70DZ
12
A
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 12 Montag, 11. Januar 2021 5:05 17

EN
CFF20, CFF35, CFF45, CFF70DZ Safety instructions
13
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mould developing within the device.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the vehicle
– Or with the AC connection cable to an AC power supply
• Never pull the plug out of the socket by the cable.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device and other power consuming devices from the battery
before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 13 Montag, 11. Januar 2021 5:05 17

EN
Scope of delivery CFF20, CFF35, CFF45, CFF70DZ
14
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
• The device shall not to be exposed to rain.

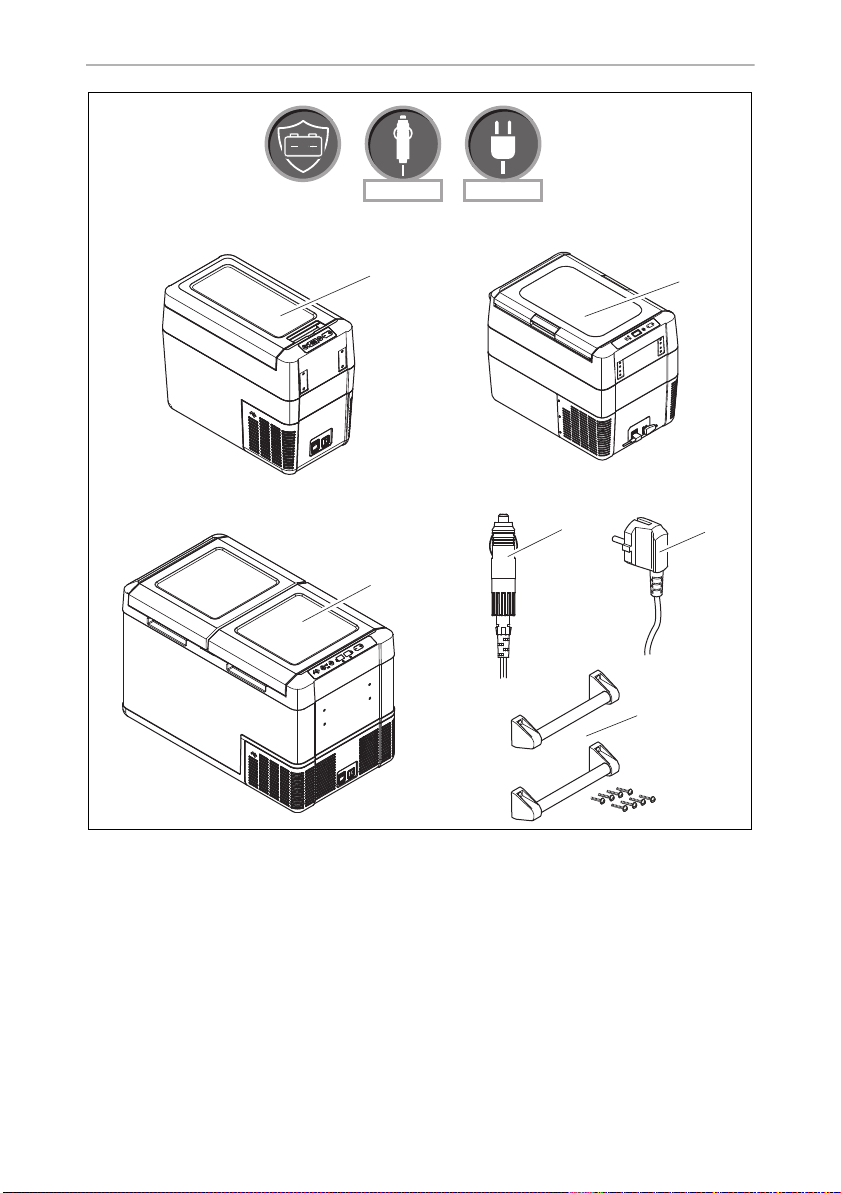

3Scopeofdelivery
Item
(fig. 1, page 3) Quantity Description
1 1 Cooler
2 1 Connection cable for DC connection
3 1 Connection cable for AC connection

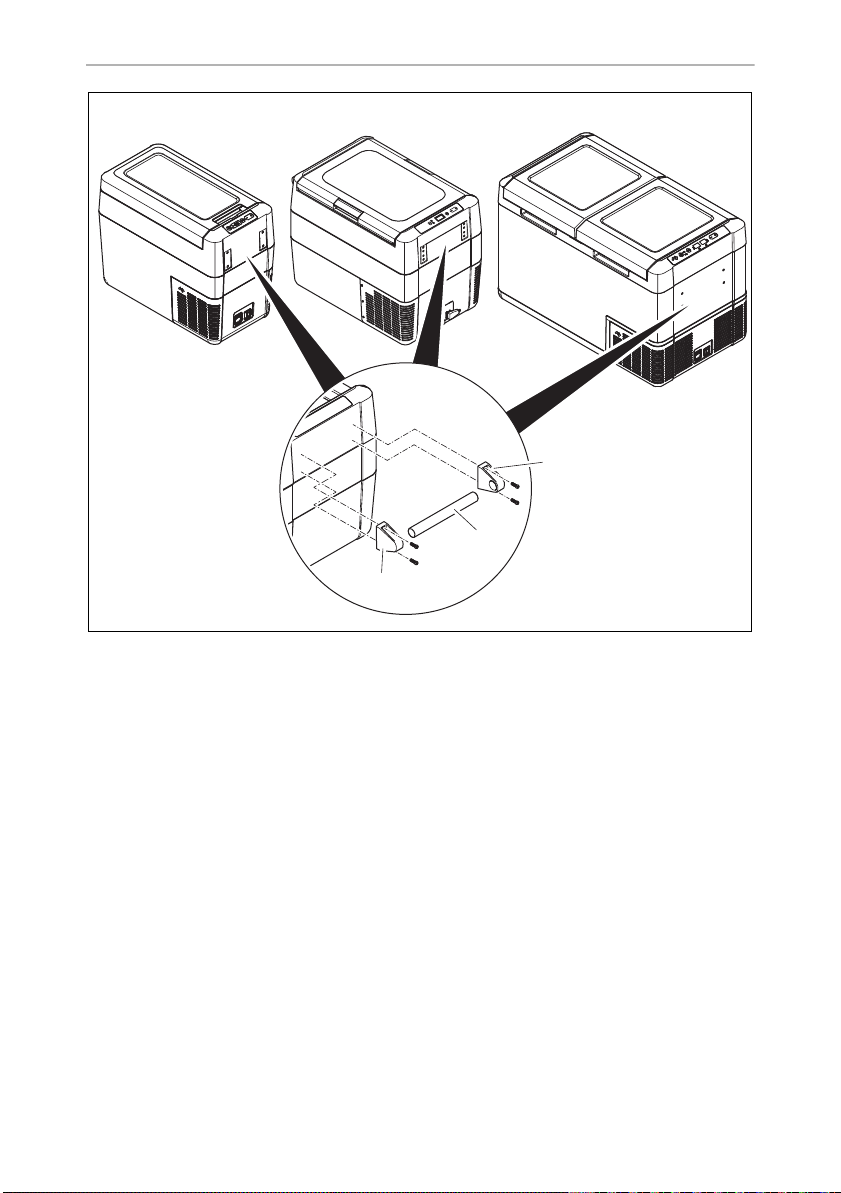

4 2 Carry handle, consisting of:
•2holders
•1handle
• 4 fastening screws
• 1 allen wrench
– 1 Operating manual
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 14 Montag, 11. Januar 2021 5:05 17

EN
CFF20, CFF35, CFF45, CFF70DZ Intended use
15
4 Intended use
The cooling box is suitable for cooling food. The cooling box is also suitable for use
on vehicles. The cooling box is designed to be operated from a DC power supply
socket of a vehicle or from an AC power supply.
The cooling box is suitable for camping use.
The cooling box is not suitable for:
• storage of corrosive, caustic or solvent-containing substances
• freezing of food
This cooling box is not intended to be used as a built-in appliance.
This cooling box is only suitable for the intended purpose and application in accor-
dance with these instructions.
This manual provides information that is necessary for proper installation and/or
operation of the cooling box. Poor installation and/or improper operating or
maintenance will result in unsatisfactory performance and a possible failure.
The manufacturer accepts no liability for any injury or damage to the product
resulting from:
• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts
provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual
Dometic reserves the right to change product appearance and product
specifications.
5 Function description
A low maintenance refrigerant circuit with compressor provides the cooling. The
generous insulation and powerful compressor ensure efficient and fast cooling.
The cooler is portable.
The cooler can withstand a short-term inclination of 30°, for example on boats.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 15 Montag, 11. Januar 2021 5:05 17

EN
Function description CFF20, CFF35, CFF45, CFF70DZ
16
5.1 Scope of functions
• Power supply with priority circuit for connecting to the AC mains
• Three-level battery monitor to protect the vehicle battery
switches off automatically at low battery voltage
• Display with temperature gauge in °C and °F
• Temperature setting: With two buttons in steps of 1 °C (2 °F)
• Display dimming function with 3 brightness levels
• Removable wire basket (CFF35, CFF45, CFF70DZ only)
• Removable carrying handles

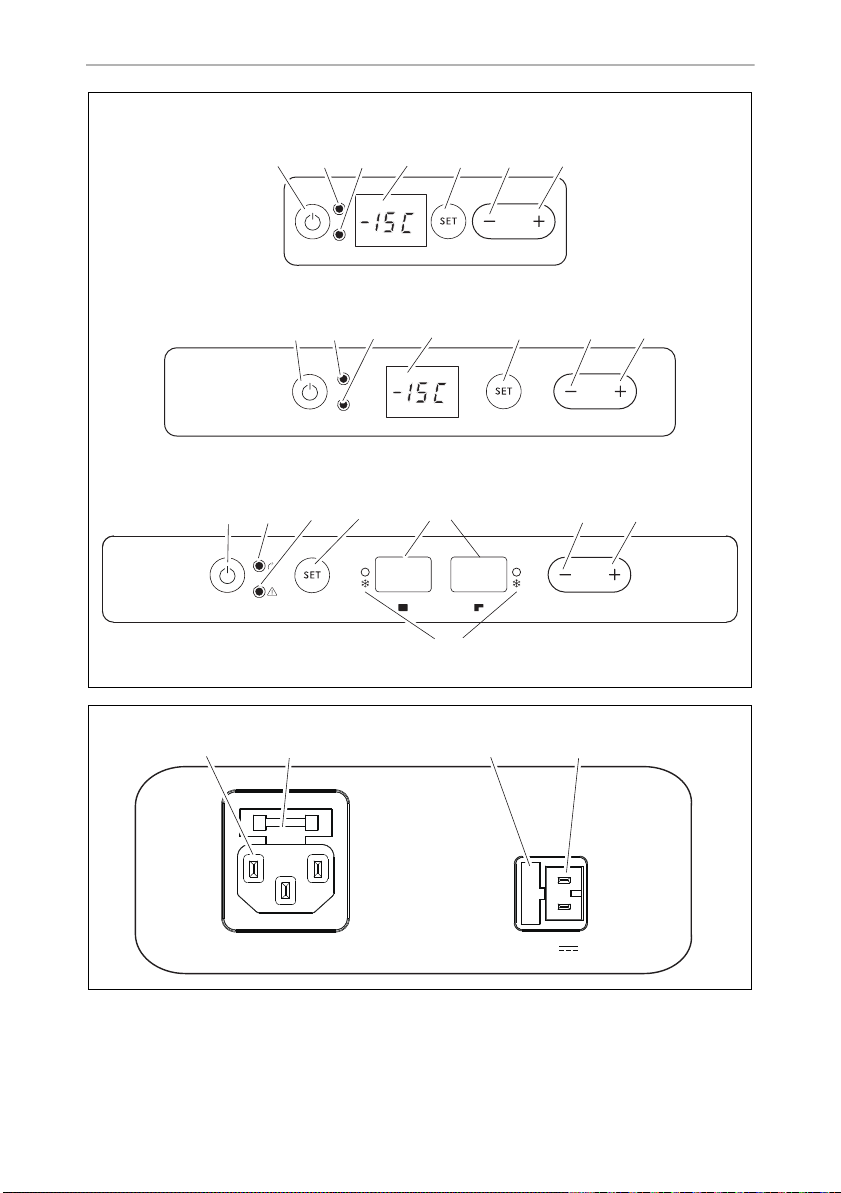

5.2 Operating and display elements
Lid latches (fig. 2, page 4)
Operating panel (fig. 3, page 5)
Item Description Explanation
1ON
OFF
Switches the cooler on or off when the button is pressed for
between one and two seconds
2POWER “P”Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off automatically due
to low battery voltage
3 ERROR LED flashes red: Device is switched on but not ready
for operation
4 – Display, shows the information
CFF70DZ only: There‘s one display per zone
5 SET Selects the input mode
– Temperature setting
– Celsius or Fahrenheit display
– Set battery monitor
– Set brightness of display
6 DOWN – Press once to decrease the value
7 UP + Press once to increase the value
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 16 Montag, 11. Januar 2021 5:05 17

EN
CFF20, CFF35, CFF45, CFF70DZ Operation
17
Connection sockets (fig. 4, page 5)
6Operation
To avoid food waste, note the following:
• Keep temperature fluctuation as low as possible. Only open the cooling box as
often and for as long as necessary. Store the foodstuff in such a way that the air
can still circulate well.
• Adjust the temperature to the quantity and type of the foodstuff.
• Foodstuff can easily absorb or release odor or taste. Always store foodstuff
covered or in closed containers/bottles.
6.1 Before initial use
I
Mounting the handles (fig. 5, page 6)
The handles are enclosed unassembled. If you wish to attach the handles, proceed
as follows:
➤Assemble a handle by putting two holders (1) and a handle (2) together.
➤Fasten the holders with the enclosed screws in the holes provided.
8CFF70DZ only: Status indication: LED lights up blue when the
compartment is cooling
Item Description
1 Connection socket AC voltage supply
2 AC fuse holder
3 DC fuse cover
4 Connection socket DC voltage supply
NOTE
Before starting your new cooler for the first time, you should clean it
inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 26).
Item Description Explanation
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 17 Montag, 11. Januar 2021 5:05 17

EN
Operation CFF20, CFF35, CFF45, CFF70DZ
18

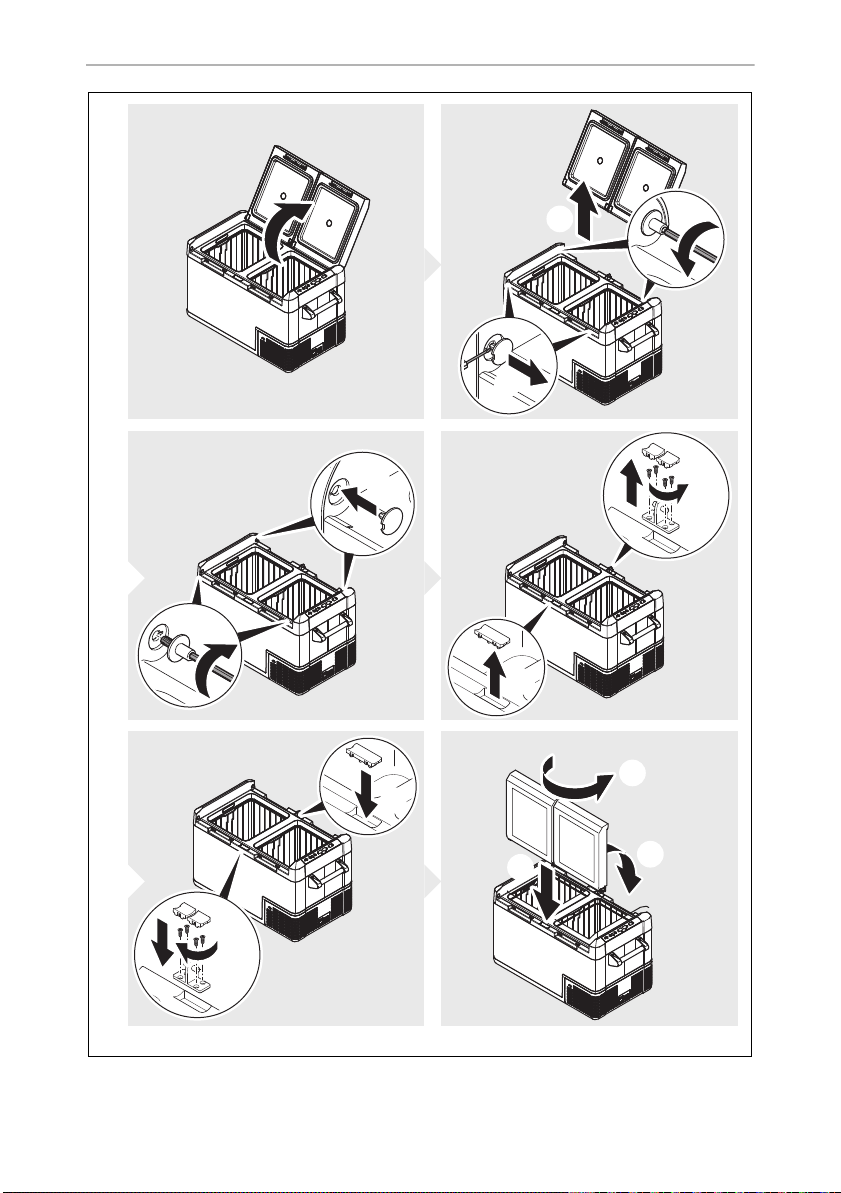

Reversing the lid opening
➤CFF70DZ: To reverse the lid opening, proceed as shown (fig. 6, page 7).
Opening or removing the lid (fig. 7, page 8)
➤To open the lid, unlatch (A).
CFF35, CFF45: The lid can be opened from either side.
➤CFF35, CFF45: To remove the lid, unlatch both sides at the same time (B).
CFF20, CFF70DZ: To remove the lid, push the lid beyond the lid stop
position (B).

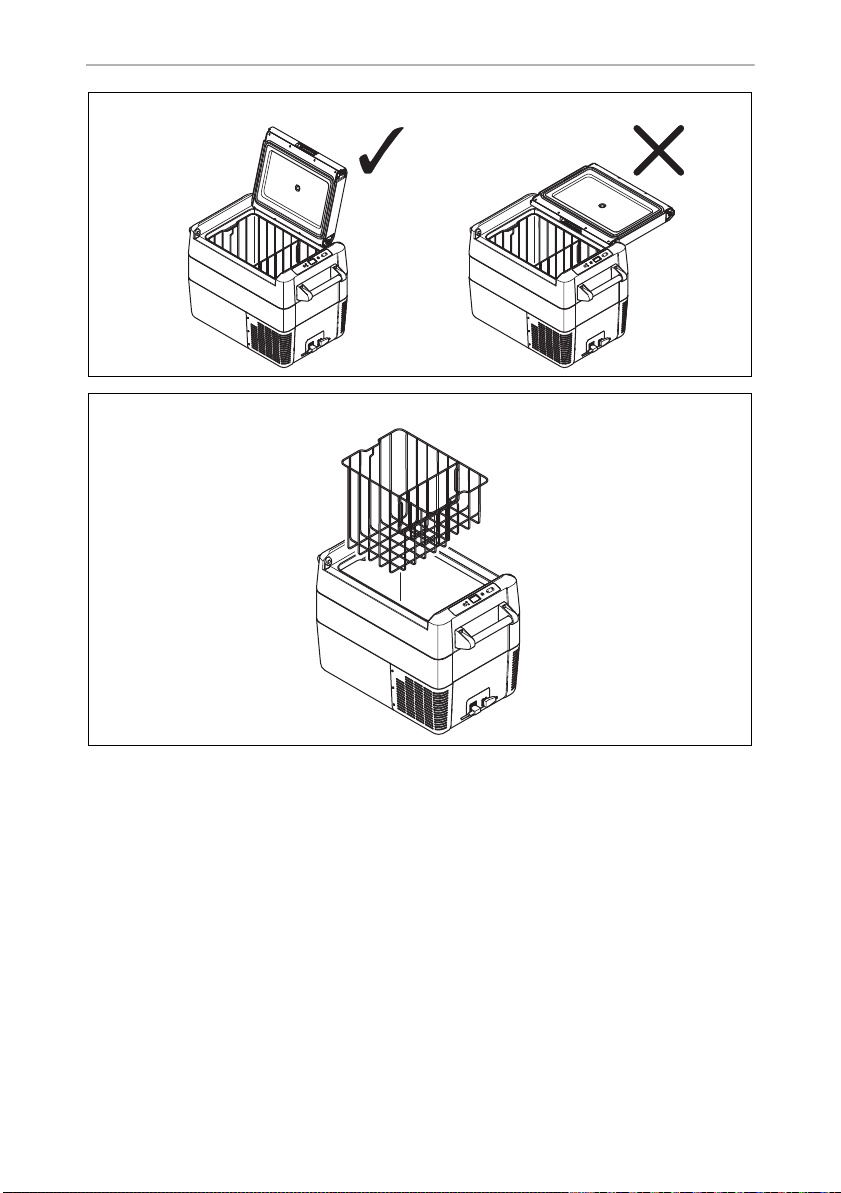

Lid stop position (fig. 8, page 9)
The lid has a built-in stop position (A). Do not force the lid past the built-in stop (B).
A
Removing the basket (fig. 9, page 9)
A
Selecting the temperature units
Temperature display units can be switched between Celsius and Fahrenheit as
follows:
➤Switch on the cooler.
➤CFF20, CFF35, CFF45: Press the “SET” button (fig. 35, page 5) twice.
CFF70DZ: Press the “SET” button (fig. 35, page 5) three times.
➤Use the “UP +” (fig. 37, page 5) or “DOWN –” (fig. 36, page 5) buttons to
select Celsius or Fahrenheit.
✔The selected temperature unit then appears in the display for a few seconds. The
display flashes several times before it returns to the current temperature.
NOTICE! DAMAGE HAZARD

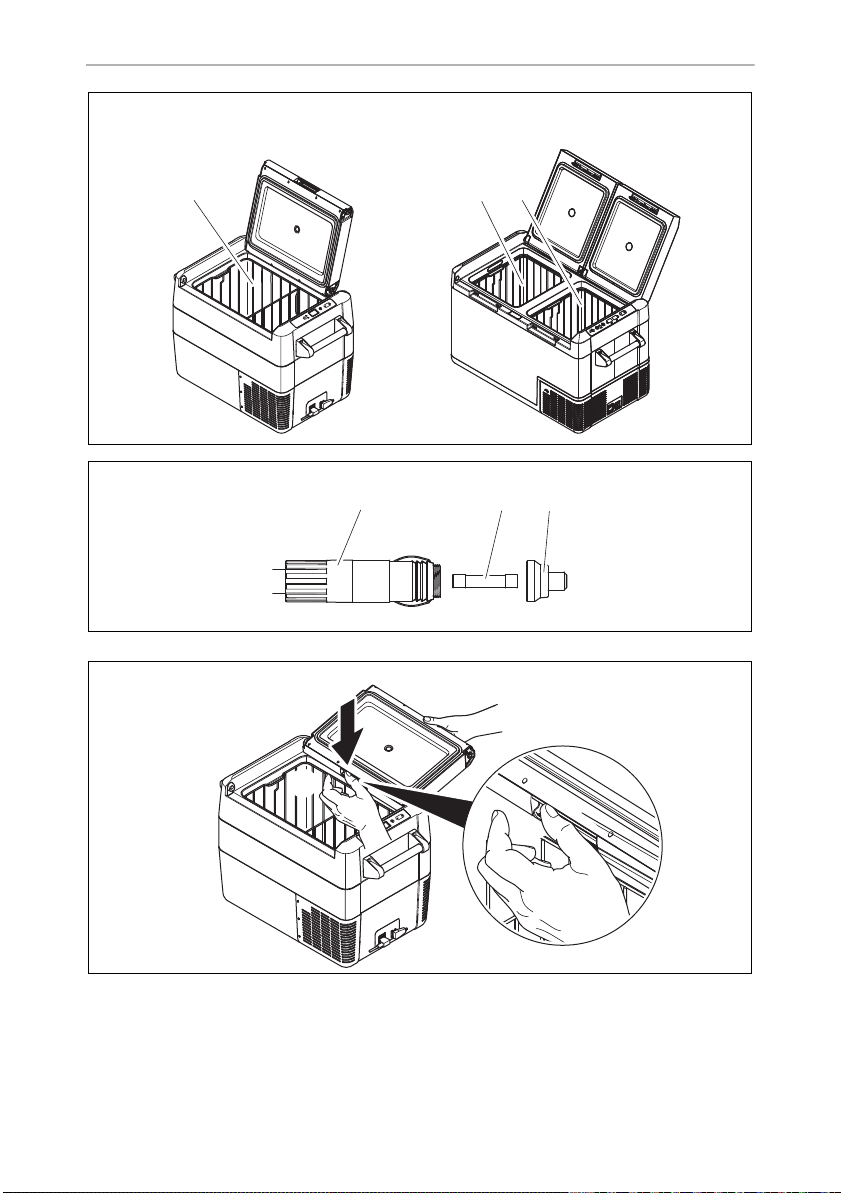

CFF35, CFF45: If the lid has been forced too far, follow the steps
described in the chapter “The lid has been forced past the built-in stop
(CFF35, CFF45 only)” on page 28.
NOTICE! DAMAGE HAZARD!
Removing the basket with the lid open may scratch the lid and deform
the basket. We recommend to remove the lid before removing the
basket.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 18 Montag, 11. Januar 2021 5:05 17

EN
CFF20, CFF35, CFF45, CFF70DZ Operation
19
6.2 Saving energy
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• If the cooler has a basket: For optimal energy consumption, position the basket
according to its position on delivery.
• On a regularly basis, make sure the lid seal still fits properly.
• Defrost the cooler once a layer of ice forms.
• Avoid unnecessarily low temperatures.
6.3 Connecting the cooler
Connecting to a battery (vehicle or boat)
The cooler can be operated with 12 V or 24 Vg.
A
For safety reasons the cooler is equipped with an electronic system to prevent
polarityreversal. This protectsthe cooler against short-circuiting when connecting to
a battery.
Using the fused DC plug
A
➤Plug the DC connection cable (fig. 12, page 3) into the DC voltage socket of
the cooler (fig. 44, page 5).
➤Connect the connection cable to a DC power outlet.
NOTICE! DAMAGE HAZARD
Disconnect the cooler and other consumer units from the battery before
you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
NOTICE! DAMAGE HAZARD
For protection of the device the DC cable supplied includes a fuse inside
the plug. Do not remove the fused DC plug.
Only use the DC cable supplied.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 19 Montag, 11. Januar 2021 5:05 17

EN
Operation CFF20, CFF35, CFF45, CFF70DZ
20
Connecting to an AC power supply
D
The coolers have an integrated multi-voltage power supply with priority circuit for
connecting to an AC voltage source. The priority circuit automatically switches the
cooler to AC operation if the device is connected toan AC power supply, even if the
DC connection cable is still attached.
When switching between the AC power supply and the battery supply, the red LED
may light up briefly.
➤Plug the AC connection cable (fig. 13, page 3) into the AC voltage socket of
the cooler (fig. 41,page 5).
➤Connect the connection cable to an AC power outlet.
6.4 Using the battery monitor
The device is equipped with a multi-level battery monitor that protects your vehicle
battery against excessive discharging when the device is connected to the on-board
DC supply.
If the cooler is operated when the vehicle ignition is switched off, the cooler switches
off automatically as soon as the supply voltage falls below a set level. The cooler will
switch back on once the battery has been recharged to the restart voltage level.
A
DANGER! ELECTROCUTION HAZARD
Failure to obey these warnings will result in death or serious injury.
• Never handle plugs and switches with wet hands or if you are stand-
ing on a wet surface.
• If you are operating your cooler on board a boat from a AC power
supply,you must install aresidual current circuit breaker between the
AC power supply and the cooler.
Seek advice from a trained technician.
NOTICE! DAMAGE HAZARD
When switched off by the battery monitor, the battery will no longer be
fully charged. Avoid starting repeatedly or operating current consumers
without longer charging phases. Ensure that the battery is recharged.
DometicCFF20-35-45-70DZ_OPM_4445103134_EMEA16_202x-xx-xx.book Seite 20 Montag, 11. Januar 2021 5:05 17
