Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is resold, this oper-
ating manual must be handed over to the purchaser along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
8 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
SC26-SCT26-SC30-SC38--O-16s.book Seite 6 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Explanation of symbols
7
1 Explanation of symbols
!
!
A
I
2 Safety instructions
2.1 General safety
!WARNING!
•Do not operate the device if it is visibly damaged.
•If this device's power cable is damaged, it must be replaced by the
manufacturer, customer service or a similarly qualified person in order
to prevent safety hazards.
•This device may only be repaired by qualified personnel. Improper
repairs can lead to considerable hazards.
•This device can be used by children aged 8 years or over, as well as by
persons with diminished physical, sensory or mental capacities or a
lack of experience and/or knowledge, providing they are supervised
or have been taught how to use the device safely and are aware of the
resulting risks.
•Cleaning and user maintenance must not be carried out by children
without supervision.
•Children must not play with the device.
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
SC26-SCT26-SC30-SC38--O-16s.book Seite 7 Montag, 28. November 2016 5:28 17

EN
Safety instructions CoolFun SC26, SCT26, SC30, SC38
8
•Children must be supervised to ensure that they do not play with the
device.
•Always keep and use the device out of the reach of children under the
age of 8 years.
•Do not store any explosive substances such as spray cans with a
flammable propellant in the device.
!CAUTION!
•Disconnect the device from the power supply
– before each cleaning and maintenance
– after every use
•Food may only be stored in its original packaging or in suitable
containers.
ANOTICE!
•Check that the voltage specification on the type plate corresponds to
that of the energy supply.
•Only connect the device as follows:
– With the DC cable to a DC plug socket in the vehicle (e. g.
cigarette lighter)
– Or with the 230 V connection cable to the 230 V AC mains supply
•Never pull the plug out of the socket by the cable.
•If the cooler is connected to the DC socket: Disconnect the cooler and
other power consuming devices from the battery before connecting
the quick charging device.
•If the cooler is connected to the DC socket: Disconnect the cooler or
switch it off when you turn off the engine. Otherwise you may dis-
charge the battery.
•The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
•The cooling device contains inflammable cyclopentane in the
insulation. The gases in the insulation material require special disposal
procedures. Deliver the device at the end of its life-cycle to an appro-
priate recycling.
SC26-SCT26-SC30-SC38--O-16s.book Seite 8 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Scope of delivery
9
2.2 Operating the device safely
!CAUTION!
•Before starting the device, ensure that the power supply line and the
plug are dry.
ANOTICE!
•Do not use electrical devices inside the cooler unless they are
recommended by the manufacturer for the purpose.
•Do not place the device near naked flames or other heat sources
(heaters, direct sunlight, gas ovens etc.).
•Danger of overheating!
Ensure at all timesthat there is sufficient ventilation so thatthe heat that
arises during operation does not build up. Make sure that the device
is sufficiently far away from walls and other objects so that the air can
circulate.
•Ensure that the ventilation openings are not covered.
•Do not fill the inner container with ice or fluid.
•Never immerse the device in water.
•Protect the device and the cable against heat and moisture.
3Scopeofdelivery
Quantity Description
1 Thermoelectric cooler
1 Instruction manual
SC26-SCT26-SC30-SC38--O-16s.book Seite 9 Montag, 28. November 2016 5:28 17

EN
Intended use CoolFun SC26, SCT26, SC30, SC38
10
4 Intended use
The cooling device can be used to cool (SC26, SCT26, SC30, SC38) and keep
foodstuffs warm (only SC30, SC38). It is possible to change between the heating
and cooling operation by means of a switch (only SC30, SC38).
The device can be connected as follows:
•SC26: to 12 Vg
•SCT26: to 12 Vg or to 24 Vg
•SC30, SC38: to 12 Vgor to 230 Vw
The cooling device is intended to be used in household and similar applications such
as
•staff kitchen areas in shops, offices and other working environments
•farm houses
•clients in hotels, motels and other residential type environments
•bed and breakfast type environments
•catering and similar non-retail applications
The appliance may also be used for camping use. The appliance shall not to be
exposed to rain.
!
5 Technical description
The cooler is suitable for mobile use. You can cool products to a maximum of 18 °C
under the ambient temperature (SC26, SCT26, SC30, SC38) or warm them to a
maximum of 65 °C (SC30, SC38).
Its cooling system is a non-wearing Peltier cooling, the heat is discharged by a fan.
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
SC26-SCT26-SC30-SC38--O-16s.book Seite 10 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Technical description
11
5.1 Control elements
Only SC30, SC38:
The desired mode is selected with the cold/hot switch (fig. 25, page 3).
When the cooler is connected to an AC mains supply, it can be used in two different
operating modes:
•ECO mode: the cooler consumes less energy
•MAX mode: the cooler reaches maximum cooling capacity
The desired cooling capacityis selected with the cooling capacitycontrol (fig. 26,
page 3):
➤To increase the cooling capacity, turn the cooling capacity control clockwise.
For the maximum cooling capacity turn the cooling capacity control clockwise
all the way to the stop (MAX position).
➤To decrease the cooling capacity, turn the cooling capacity control counter-
clockwise.
To turn off the cooler, turn the cooling capacity control counterclockwise all the way
to the stop (OFF position).
When the cooler is connected to the DC socket, the cooling capacity cannot be
adjusted.
No. in
fig. 2, page 3 Description
1 USB port for power supply
2 Connection cable for DC connection
3 Connection cable for AC connection
4 Ventilation slots
5Cold/hotswitch
6 Cooling capacity control
7 Handle
SC26-SCT26-SC30-SC38--O-16s.book Seite 11 Montag, 28. November 2016 5:28 17

EN
Operation CoolFun SC26, SCT26, SC30, SC38
12
6Operation
!
A
I
6.1 Energy saving tips
•Choose a well ventilated installation location which is protected against direct
sunlight.
•If you want to set an increased energy efficiency and a limited cooling capacity for
the cooler device, use the device’s ECO mode.
•Allow warm food to cool down first before placing it in the cooling device to
keep cool.
•Do not open the cooling device more often than necessary.
•Do not leave the cooling device open for longer than necessary.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTICE! Risk of damage
•Ensure that the objects placed in the cooler are suitable for cooling
to the selected temperature.
•Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
•Ensure that your cooler is well ventilated so that any heat created can
dissipate. Otherwise proper functioning cannot be ensured. It is
especially important not to cover the air vents.
NOTE
•Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 15).
•A few water drops may form inside the cooler if it has been cooling
for a lengthy period. This is normal because the moisture in the air
condenses to water when the temperature in the cooler falls. The
cooler is not defective. Wipe it out with a dry cloth if necessary.
•If the handle is folded back of if the cooler is being carried, the lid is
locked. You can only open the lid when the handle is folded
forwards.
SC26-SCT26-SC30-SC38--O-16s.book Seite 12 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Operation
13
6.2 Mounting the wheels (only SC38)

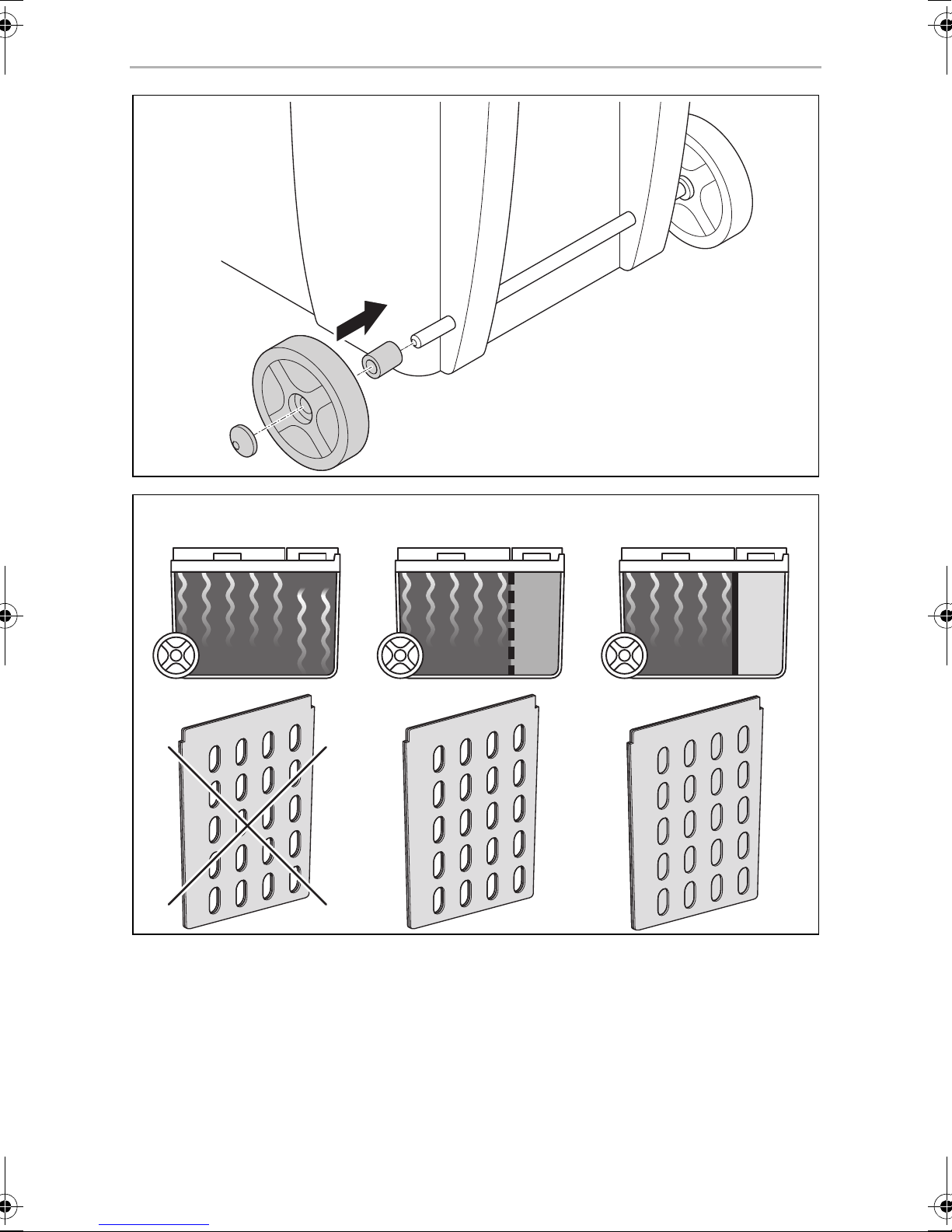

➤Mount the wheels as shown to the cooling device (fig. 3, page 4).
6.3 Using the cooler in DC mode
I
➤Place the device on a firm base.
➤Connect the DC connection cable to the cigarette lighter or the DC socket in the
vehicle.
✓The device starts cooling/heating the interior.
➤To switch off the cooling device, disconnect the DC connection cable.
6.4 Using the cooler in AC mode (only SC30, SC38)
➤Place the device on a firm base.
➤Connect the AC cable to the AC mains supply.
➤Turn the cooling capacity control (fig. 26, page 3) to the desired position.
➤Push the cold/hot switch (fig. 25, page 3) to the position “Cold” (cooling) or
“Hot” (heating) to switch the device on.
✓The device starts cooling/heating the interior.
NOTE
If you connect the cooler to the cigarette lighter of your vehicle,
remember that the ignition must be turned on to supply it with power.
SC26-SCT26-SC30-SC38--O-16s.book Seite 13 Montag, 28. November 2016 5:28 17

EN
Operation CoolFun SC26, SCT26, SC30, SC38
14
6.5 Devide the interior (only SC38)
You can devide the interior of the refrigerator as follows (fig. 4, page 4):
•No partition grille (A): Both coolers are actively cooled or heated.
•Open partition grille (B): The large cooling compartment is actively cooled or
heated. The small cooling compartment is less cooled or heated.
•Closed partition grille (C): The big cooling compartment is actively cooled or
heated. The small refrigerator compartment is passively cooled or heated.
I
➤Mount the partition grille as shown (fig. 5, page 5).
6.6 USB port for power supply
The USB port (fig. 21, page 3) allows you to charge small devices like mobile
phones and mp3-players.
Using the USB port does not affect the cooling performance.
A
Proceed as follows (fig. 2, page 3):
➤Connect the DC connection cable (2) or the AC connection cable (3) of the
cooling device with the power supply.
➤SC30, SC38: Turn the cooling capacity control (6) to the “MAX” position.
➤Connect your device to the USB port (1).
NOTE
Mount the bar, even if you operate the cooling device without partition
grille, so that the lids can close properly.
NOTICE!
Ensure that any device connected to the USB port is compatible with 5
V/500 mA operation.
SC26-SCT26-SC30-SC38--O-16s.book Seite 14 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Cleaning and maintenance
15
7 Cleaning and maintenance
!
A
➤Occasionally clean the device interior and exterior with a damp cloth.
➤Make sure that the air inlet and outlet vents on the device are free of any dust and
dirt, so that heat can be released and the device is not damaged.
8Guarantee
The statutory warranty period applies. If the product is defective, please contact the
manufacturer's branch in your country (see the back of the instruction manual for the
addresses) or your retailer.
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage
•Never clean the cooler under running water or in dish water.
•Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooler.
SC26-SCT26-SC30-SC38--O-16s.book Seite 15 Montag, 28. November 2016 5:28 17

EN
Troubleshooting CoolFun SC26, SCT26, SC30, SC38
16
9 Troubleshooting
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
Problem Possible cause Suggested remedy
Your device is not work-
ing (plug is inserted).
There is no voltage
flowing in the DC socket
in your vehicle.
The ignition must be switched on in
most vehicles to apply current to the
DC socket.
No voltage present in
the AC voltage socket.
Try using another plug socket.
The inner fan or the
cooling element is
defective.
This can only be repaired by an
authorised repair centre.
When operating from
the DC socket:
The ignition is on and the
cooler is not working.
The fuse of the DC plug
is dirty. This results in a
poor electrical contact.
If the plug of your cooler becomes
very warm in the DC socket fitting,
either the fitting must be cleaned or
the plug has not been assembled
correctly.
The fuse of the DC plug
has blown.
Replace the fuse (fig. 61, page 5)
of the DC plug with one of the same
rating.
The vehicle fuse has
blown.
Replace the vehicle's DC socket fuse
(usually 15 A). Please refer to the
operating manual of your vehicle.
SC26-SCT26-SC30-SC38--O-16s.book Seite 16 Montag, 28. November 2016 5:28 17

EN
CoolFun SC26, SCT26, SC30, SC38 Technical data
17
11 Technical data
CoolFun SC26 CoolFun SCT26
Ref. number: 9600000484 9600000485
Connection voltage: 12 Vg12/24 V
Power consumption: 47 W 47 W (12 Vg)
55 W (24 Vg)
Cooling capacity: max. 18 °C under ambient temperature
Gross capacity: 25 l 26 l
Usable capacity: 24 l 25 l
Climate class: N
Ambient temperature: +16 °C – +32 °C
Dimensions
(W x H x D) in mm:
396 x 296 x 395 396 x 296 x 395
Weight: ca. 3.7 kg ca. 4.0 kg
Testing/certification:
4
SC26-SCT26-SC30-SC38--O-16s.book Seite 17 Montag, 28. November 2016 5:28 17

EN
Technical data CoolFun SC26, SCT26, SC30, SC38
18
CoolFun SC30 CoolFun SC38
Ref. number: 9600000486 9600000487
Connection voltage: 12 Vg
220 – 240 Vw, 50/60 Hz
Power consumption
12 Vg, cold mode:
12 Vg, hot mode:
47 W
39 W
230 Vw, cold mode:
230 Vw, hot mode:
max. 55 W
39 W
230 Vw, ECO mode: 6.2 W 7.5 W
Cooling capacity: max. 18 °C under ambient temperature
Thermal energy: 65 °C
Category: Pantry
Energy efficiency class: A+++ A++
Energy consumption: 54 kWh/annum 66 kWh/annum
Gross capacity: 30 l 38 l
Usable capacity: 29 l 37 l
Climate class: ST
Ambient temperature: +16 °C – +38 °C
Noise emission: 39 dB
Dimensions
(W x H x D) in mm:
396 x 296 x 445 565 x 391 x 295
Weight: ca. 4.3 kg 5.4 kg
Testing/certification:
4
SC26-SCT26-SC30-SC38--O-16s.book Seite 18 Montag, 28. November 2016 5:28 17

DE
CoolFun SC26, SCT26, SC30, SC38
19
Bitte lesen Sie diese Anleitung vor der Inbetriebnahme sorgfältig durch
und bewahren Sie sie auf. Geben Sie sie im Falle einer Weitergabe des
Gerätes an den Nutzer weiter.
Der Hersteller haftet nicht für Schäden, die durch nicht bestimmungsgemäßen
Gebrauch oder falsche Bedienung verursacht werden.
Inhaltsverzeichnis
1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
2 Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Technische Beschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6 Bedienung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Reinigung und Pflege . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 Störungsbeseitigung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
10 Entsorgung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
11 Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SC26-SCT26-SC30-SC38--O-16s.book Seite 19 Montag, 28. November 2016 5:28 17

DE
Erklärung der Symbole CoolFun SC26, SCT26, SC30, SC38
20
1 Erklärung der Symbole
!
!
A
I
2 Sicherheitshinweise
2.1 Allgemeine Sicherheit
!WARNUNG!
•Wenn das Kühlgerät sichtbare Beschädigungen aufweist, dürfen Sie
es nicht in Betrieb nehmen.
•Wenn das Anschlusskabel dieses Kühlgerätes beschädigt wird, muss
es durch den Hersteller, seinen Kundendienst oder eine ähnlich
qualifizierte Person ersetzt werden, um Gefährdungen zu vermeiden.
•Reparaturen an diesem Kühlgerät dürfen nur von Fachkräften durch-
geführt werden. Durch unsachgemäße Reparaturen können erheb-
liche Gefahren entstehen.
•Dieses Kühlgerät kann von Kindern ab 8 Jahren und darüber sowie von
Personen mit verringerten physischen, sensorischen oder mentalen
Fähigkeiten oder Mangel an Erfahrung und Wissen benutzt werden,
wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs des
Kühlgerätes unterwiesen wurden und die daraus resultierenden
Gefahren verstehen.
•Reinigung und Benutzer-Wartung dürfen nicht von Kindern ohne
Beaufsichtigung durchgeführt werden.
WARNUNG!
Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer
Verletzung führen.
VORSICHT!
Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.
ACHTUNG!
Nichtbeachtung kann zu Materialschäden führen und die Funktion des
Produktes beeinträchtigen.
HINWEIS
Ergänzende Informationen zur Bedienung des Produktes.
SC26-SCT26-SC30-SC38--O-16s.book Seite 20 Montag, 28. November 2016 5:28 17
