SK4
1
2
4
5
6
3
7
SK4-IO-16s.book Seite 1 Donnerstag, 3. November 2016 5:22 17

2
Dometic WAECO International GmbH
Hollefeldstrasse 63
D-48282 Emsdetten
www.dometic.com
1.
2.
1.
1.
2.
=
=
10
2.
a
9
b
c
8
0
f
d
e
4445101875 L 10/2016 MO1145I01
SK4-IO-16s.book Seite 2 Donnerstag, 3. November 2016 5:22 17

SK4
Locker Door
Installation and Operating Manual. . . . . . . .3
Serviceklappe
Montage- und Bedienungsanleitung . . . . . . 9
Trappe de service
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tapa de servicio
Instrucciones de montaje y de uso . . . . . . . 21
Porta de alçapão
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Sportello di servizio
Istruzioni di montaggio e d’uso . . . . . . . . .33
Serviceklep
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .39
Serviceklappen
Monterings- og betjeningsvejledning . . . .45
Servicelucka
Monterings- och bruksanvisning . . . . . . . . 51
Serviceluke
Monterings- og bruksanvisning. . . . . . . . . 57
Huoltoluukku
Asennus- ja käyttöohje . . . . . . . . . . . . . . . . 63
Техническая дверца
Инструкция по монтажу и эксплуатации . 69
Klapa serwisowe
Instrukcja montażu i obsługi. . . . . . . . . . . . 75
Servisná klapka
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . . 81
Servisní klapka
Návod k montáži a obsluze . . . . . . . . . . . . 87
Szervizajtók
Szerelési és használati útmutató . . . . . . . . 93
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
WINDOWS & DOORS
DOORS
SK4-IO-16s.book Seite 1 Donnerstag, 3. November 2016 5:12 17

EN
SK4 Safety and installation instructions
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
5 Mounting the service door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6 Using the service door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
8 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
1 Safety and installation instructions
Pleaseobserve theprescribed safety instructionsandstipulations fromthe
vehicle manufacturer and service workshops.
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
I
Please note the following:
•During installation, do not damage any cables in the vehicle.
•Ensure that during installation, fastening and reinforcing parts are not impaired in
their function.
NOTE
If you do not have sufficient technical knowledge for installing compo-
nents in vehicles, you should have a specialist install the service door in
your vehicle.
SK4-IO-16s.book Seite 3 Donnerstag, 3. November 2016 5:12 17

EN
Variants SK4
4
2Variants
The service door is available in the following variants:
Dimensions (mm) and weight (kg) (fig. 1)
Symbol Dimensions Models Ref. no.
375 x 305 mm 1 lock, simple locking, clamping frame 9104100197
700 x 305 mm 1 lock, multipoint locking, clamping
frame
9104100198
700 x 405 mm 1 lock, multipoint locking, clamping
frame
9104100199
1000 x 305 mm 2 locks, multipoint locking, clamping
frame
9104100200
1000 x 405 mm 2 locks, multipoint locking, clamping
frame
9104100201
Symbol a b c d e f g Weight
375 305 305 235 45 96 – 0.99
700 305 630 235 45 96 – 1.45
700 405 630 335 45 96 – 1.85
1000 305 930 235 45 96 550 2.00
1000 405 930 335 45 96 550 2.50
SK4-IO-16s.book Seite 4 Donnerstag, 3. November 2016 5:12 17

EN
SK4 Scope of delivery
5
3Scopeofdelivery
4 Intended use
The Dometic service door SK4 , is suitable for wall thicknesses of 23 mm
to 32 mm.
The Dometic service door SK4 , , is suitable for wall
thicknesses of 23 mm to 42 mm.
The Dometic service door SK4 is suitable for installation on motorhomes or caravans.
No. in
fig. 2Quantity Description
1 1 set Lock with two keys
, , : 1 tabs
, : 2 tabs
2 1 Door
3 1 Clamping frame for door
4 1 Outer frame
5 1 Clamping frame for external frame
–1set
, , :
Linkage
SK4-IO-16s.book Seite 5 Donnerstag, 3. November 2016 5:12 17

EN
Mounting the service door SK4
6

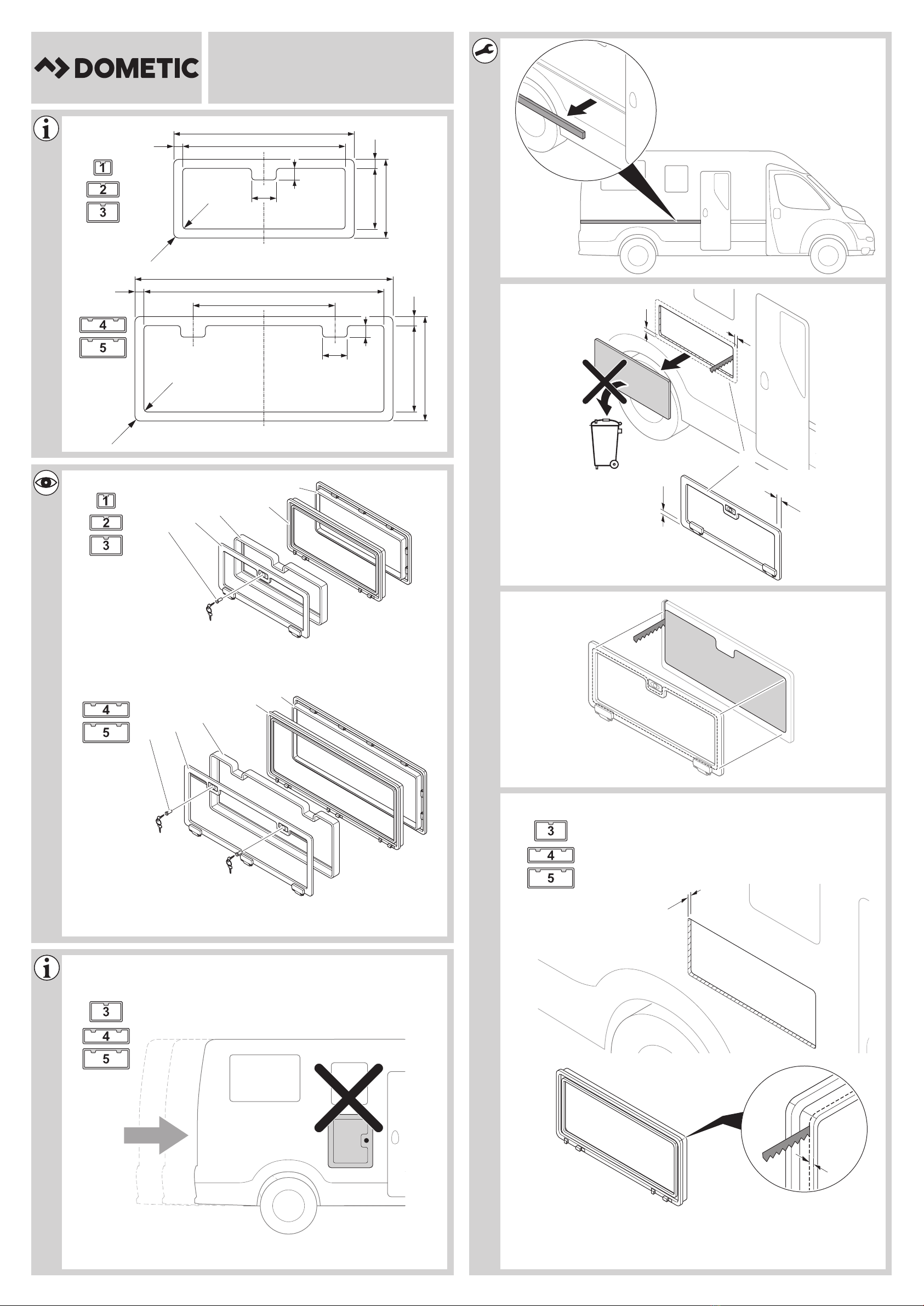

5 Mounting the service door
I
➤Mount the service door as shown in the figures: fig. 3to fig. f.
Supplementary to fig. 3
The service door can be installed horizontally and vertically. If mounted vertically, the
hinges must point in the driving direction.
Supplementary to fig. 4
➤Disassemble the trim and other attachments at the installation site of the service
door.
Supplementary to fig. 5
➤Prior to cutting the opening, the outer frame must extend about 20 mm beyond
the opening and the clamping frame about 15 mm.
The exact dimensions are shown in the “Dimensions” table on page 4 and
fig. 1.
I
Supplementary to fig. 6
➤When cutting the door filling, ensure that with any existing trim there is no offset
from the wall.
Supplementary to fig. 7
➤For wall thicknesses of less than 33 mm ( , , ):
Shorten the clamping frame circumferentially by 10 mm in each case.
NOTE
Observe the following supplements.
NOTE
You need the cut-out part of the wall as filling for the door.
SK4-IO-16s.book Seite 6 Donnerstag, 3. November 2016 5:12 17

EN
SK4 Mounting the service door
7

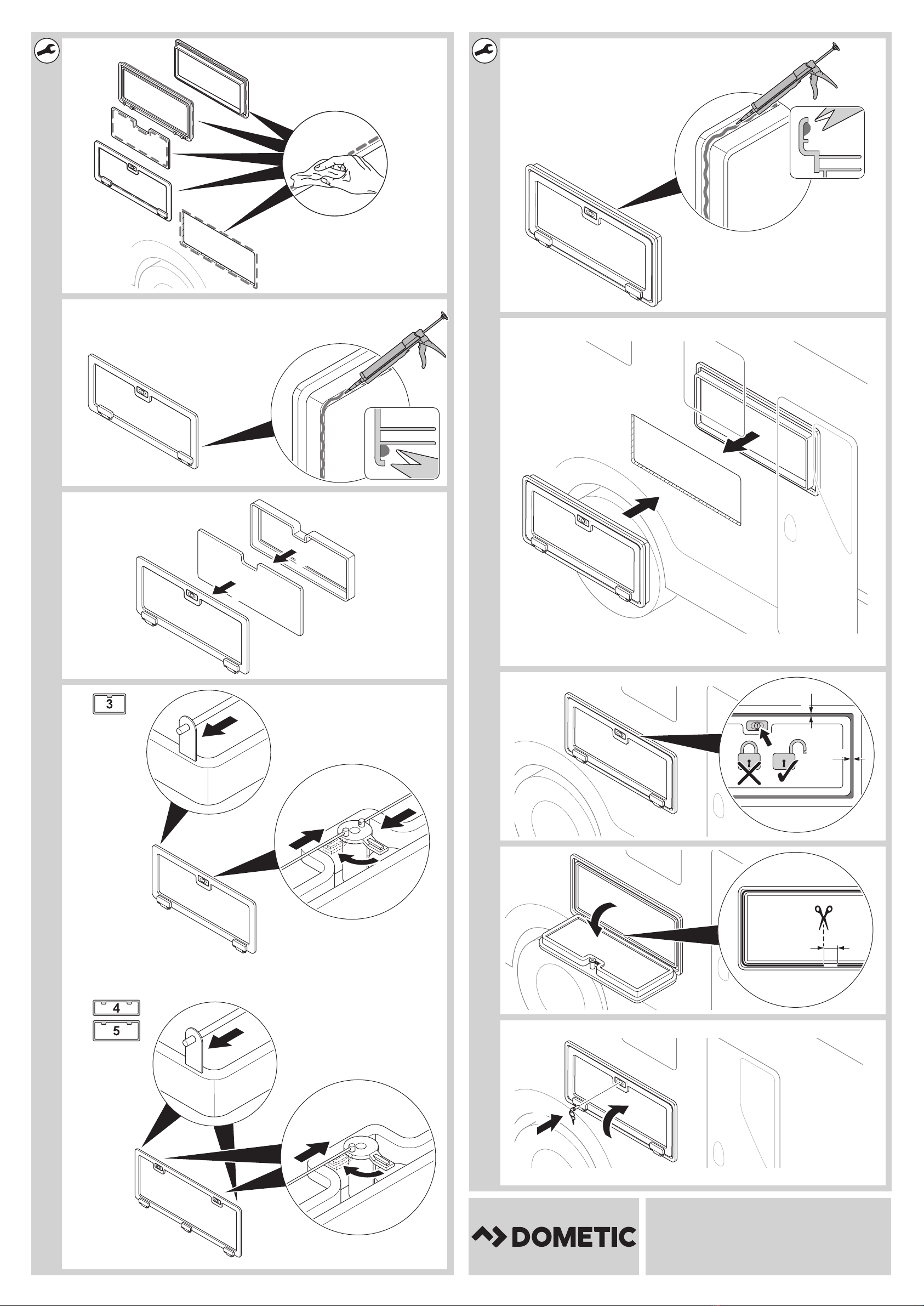

Supplementary to fig. 9and fig. b
A
Supplementary to fig. a
➤Insert the linkage through the outer guide tabs on the door frame.
➤Use the fastening clips to attach the linkage into the boreholes on the closing
bars.
Supplementary to fig. d
A
➤Close the door without locking it.
➤Check whether there is a uniform gap between the door and the outer frame.
If necessary, align the outer frame.
Supplementary to fig. e
➤Cut about 10 mm out of the bottom of the rubber seal.
This slot is used for air balancing in the seal.
NOTICE!
Use a permanently elastic adhesive.
Observe the adhesive manufacturer’s instructions.
If you are using Sikaflex 252 or Sikaflex 221, treat the bonding surfaces
of the service door with Sika activator 205 and Sika primer 215.
NOTICE!
Do not lock the mounted door until the adhesive is fully cured.
SK4-IO-16s.book Seite 7 Donnerstag, 3. November 2016 5:12 17

EN
Using the service door SK4
8
6 Using the service door
Closing the service door
➤Insert the key.
➤Turn the handle anti-clockwise as far as it will go.
➤Turn the key clockwise and push the handle in until it clicks into place.
Opening the service door
➤Insert the key.
➤Turn the key until the handle pops out.
➤Turn the handle clockwise and unlock the service door.
7 Cleaning and maintenance
A
➤Occasionally clean the product with a damp cloth.
➤Maintain the seal with commercially available care agents.
8Warranty
The statutory warranty period applies. If the product is defective, please contact your
retailer or the manufacturer's branch in your country (see the back of the instruction
manual for the addresses).
For repair and guarantee processing, please include the following documents when
you send in the device:
•A copy of the receipt with purchasing date
•A reason for the claim or description of the fault
NOTICE!
Do not use sharp or hard objects or cleaning agents for cleaning as these
may damage the product.
