Dometic 9500E User manual

USA
SERVICE OFFICE
Dometic, LLC
2320 Industrial Parkway
Elkhart, IN 46516
574-294-2511
CANADA
Dometic, LLC
46 Zatonski, Unit 3
Brantford, ON N3T 5L8
CANADA
519-720-9578
For Service Center
Assistance Call:
800-544-4881
REVISION
Form No. 3313867.032 04/11
(Replaces 3313867.024)
(French 3313868.014)
©2011 Dometic, LLC
LaGrange, IN 46761
INSTALLATION
INSTRUCTIONS
MODEL
202(XX)(XX).000(#)
This manual must be read and
understood before installation,
adjustment, service, or mainte-
nance is performed. This unit must
be installed by a qualied service
technician. Modification of this
product can be extremely hazard-
ous and could result in personal
injury or property damage.
Lire et comprendre ce manuel avant de
procéder à l’installation, à des réglages,
de l’entretien ou des réparations.
L’installation de ce produit doit être
effectuée par un réparateur qualié.
Toute modication de ce produit peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
AVERTISSEMENT
!
9500E
(120 VAC, 60 HZ)
ELECTRIC
CASSETTE AWNING
Important: These Instructions must
stay with unit. Owner read carefully.
RECORD THIS INFORMATION FOR FUTURE
REFERENCE:
Model Number
Serial Number
Date Purchased
Retailer / Qualied Installer
3313867.032

2
All eld wiring modications should be made in compliance
with the latest edition of ANSI/NFPA70 NEC and ANSI/
A119.2 for recreational vehicles.
Required hardware:
8' - 13' Models Only:
(3) Mounting Bracket
(12) M6 X 50 mm L Carriage Bolt
(12) M6 Split Lock Washer
(12) M6 Flat Washer
(12) M6 Locknut With Nylon Insert
(6) 8-18 X .38 Self Drilling Flat Head Screw
Additional hardware quantities:
15' - 16' Models only:
(1) Mounting Bracket
(4) M6 X 50 mm L Carriage Bolt
(4) M6 Split Lock Washer
(4) M6 Flat Washer
(4) M6 Locknut With Nylon Insert
(2) 8-18 X .38 Self Drilling Flat Head Screw
Required tools:
3 mm Hex Key
6 mm Hex Key
10 mm Socket (and wrench)
Torque Wrench (with 6 mm Hex Key Socket)
PH Phillips Head Screwdriver (or bit and drill)
Optional accessories:
3313888.000 Kit, Solar Sensor
3313943.000 Kit, Remote Wall Control
3313981.000 Kit, Remote (additional)
3313955.000 Kit, 120 VAC Inverter
A. Application
The cassette awning is ideal for use on RVs that cannot
accept a full sized awning. It is especially well suited for
RVs with an over cab extension where there is not sufcient
surface for a bottom mounting bracket.
Cassette awnings can be installed by one person with
brief help from additional personnel. Use the following
procedure to ensure a properly installed, and properly
functioning awning.
Dometic, LLC reserves the right to modify appearances
and specications without notice.
SAFETY INSTRUCTIONS
This manual has safety information and instruc-
tions to help users eliminate or reduce the risk
of accidents and injuries.
RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. It is used to alert
you to personal injury hazards. Obey all safety
messages that follow this symbol to avoid pos-
sible injury or death.
UNDERSTAND SIGNAL WORDS
A signal word, when used with the safety alert
symbol, will identify a safety hazard and its level
of risk for personal injury. A signal word, without
the safety alert symbol, will be used for property
damage messages only.
WARNING indicates a hazard-
ous situation which, if not avoided, could result
in death or serious injury.
CAUTION, used with the safe-
ty alert symbol, indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury.
NOTICE is used to address
practices not related to personal injury.
GENERAL INSTRUCTIONS
These instructions must be read and under-
stood before installation of this hardware.
This hardware must be installed by a Dometic,
LLC Service Center or a qualied service
technician. Modication of this product can
be extremely hazardous and could result in
personal injury or property damage.
Read and follow all safety information and
instructions to avoid possible injury or death.

3

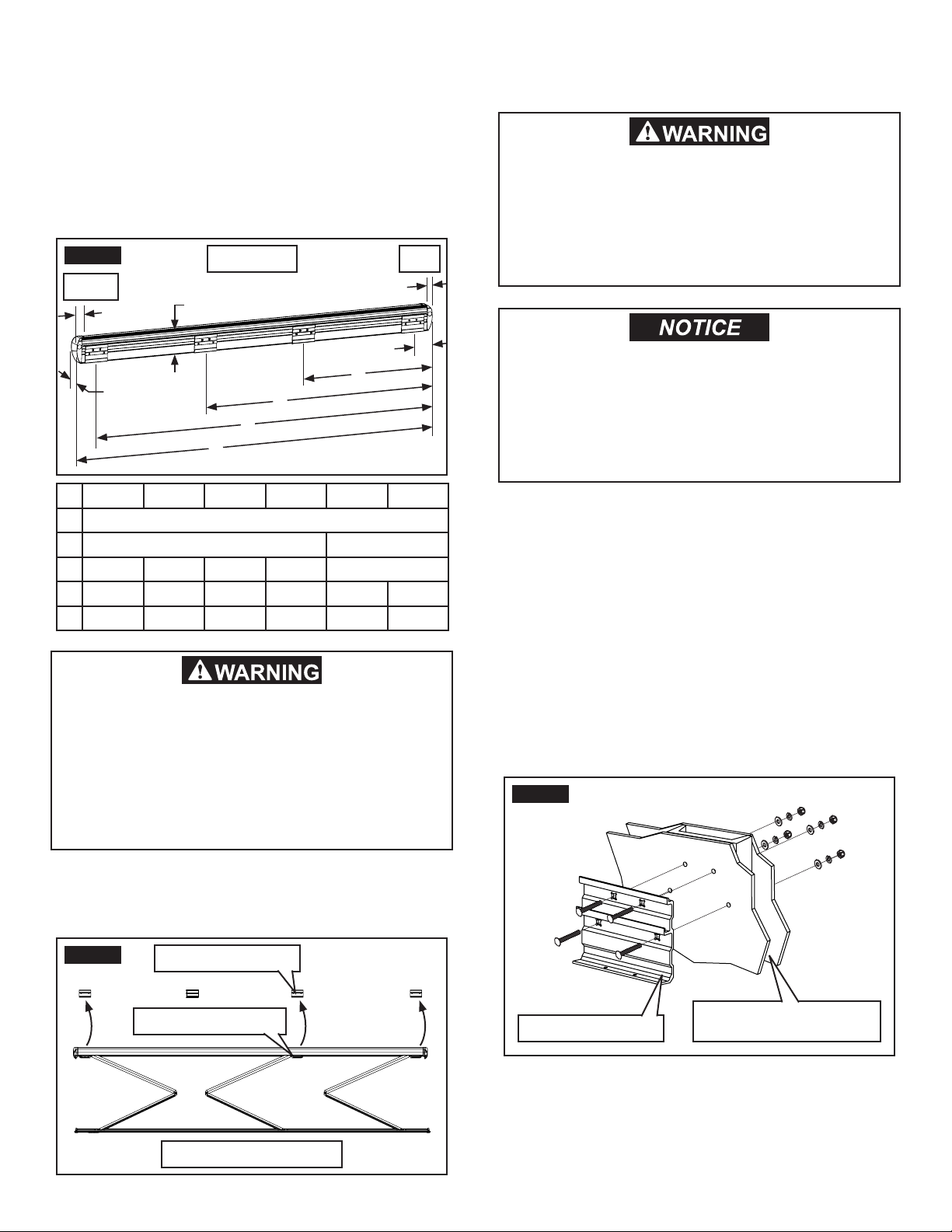

B. Specications
1. Power source must be capable of supplying at
least 2.2 Amps at the rated line voltage and fre-
quency to ensure reliable operation. The power
source may be utility power, or inverter of either
the modied sine wave or pure sine wave type.
2. Mounting bracket spacing. See FIG. 1.
a. 8' - 13' models require (3) brackets.
b. 15' - 16' models require (4) brackets.
3. The spacing shown in FIG. 1 must provide a
mounting bracket behind each shoulder assem-
bly (lateral arm attachment). See FIG. 2.
PROCEDURE
A. Install Cassette Awning
IMPACT OR CRUSH HAZARD. Make sure a
mounting bracket is located behind each
shoulder assembly (lateral arm attachment)
to provide proper support. Otherwise, the cas-
sette awning may become unstable and could
bend or collapse. Failure to obey this warning
could result in death or serious injury.
1. Determine location of awning.
a. Avoid location that interferes with entry door
swing when awning is completely extended.
Note: Awning is factory preset for a 10° fabric slope, but it
may be adjusted for a 20° slope. Allow for sufcient clear-
ance to accommodate awning pitch (slope).
For a 22" entry door, the approximate clearance should be
4 1/4" for 10° slope, and 7 7/8" for 20° slope.
b. Find a solid structure in RV wall for support of
mounting brackets (if possible). See FIG. 3.
Note: Solid structure must be as wide as mounting bracket,
and span from oor to roof of RV.
Make sure entry door will open when awning
is completely extended.
Make sure the mounting surface is at and
vertical. Any tilt in the mounting surface will
cause tilt in the lead rail. Failure to obey this
notice could result in property damage.
FIG. 2
15' - 16' Model Shown
Mounting Bracket
Shoulder Assembly
IMPACT OR CRUSH HAZARD. Make sure RV’s
structure will safely and securely support aw-
ning before installation. Otherwise, the cas-
sette awning may become unstable and could
bend or collapse. Failure to obey this warning
could result in death or serious injury.
FIG. 3
Mounting Bracket
RV Wall
(Solid Structure Shown)
8' 10' 12' 13' 15' 16'
A6 3/8"
BN/A 60 7/8"
C50 5/8" 60 7/8" 69 1/4" 79" 116 3/8"
D94 3/4" 115 1/4" 132" 151 5/8" 180 1/4" 191"
E101 1/8" 121 5/8" 138 3/8" 158" 186 5/8" 197 3/8"
FIG. 1
A
B
C
1 3/8"
1 3/8"
Back View
Right
Left
D
E
6 3/8"
4"

4
ELECTRICAL SHOCK HAZARD. Remove
power from RV before making wiring con-
nections. Wire to a 120 VAC, 60 Hz circuit
with correct polarity, and in compliance with
all applicable electrical codes. Do not allow
wiring to rub against sharp edges. Properly
seal all wiring against weather and moisture.
Failure to obey these warnings could result
in death, serious injury, or property damage.
5. With a mechanical lift, or the help of at least one
other person, lift the cassette awning up to the
mounting brackets.
IMPACT OR CRUSH HAZARD. Do not over-
tighten fasteners. This will cause them to
“strip out” and weaken their ability to hold
a load, which could cause the awning to
collapse. Failure to obey this warning could
result in death or serious injury.
Important: For installations without sufcient struc-
tural support, a backing plate and sleeves (available
from Dometic, LLC) will be needed inside RV wall. This
will help strengthen awning support. See FIG. 4.
Note: 0.405" O.D. sleeves and M6 carriage bolts will need
to be cut to appropriate length to t RV wall. Repair threads
(at cut) on carriage bolts. See FIG. 5.
4. Install mounting brackets with provided carriage
bolts, locknuts, and washers. Tighten to 35 ±5 in-
lb torque. See FIG. 3.
Note: If solid structure is not present, use backing plate
and sleeves. See FIG. 4.
Alternate fasteners may be used only if size and strength
requirements are met for the safe installation and opera-
tion of this awning. Bolt head must be no taller than 1/8".
LIFTING HAZARD. Use proper lifting tech-
nique and control when lifting awning. Failure
to obey this caution could result in muscle
strain, back injury, or property damage.
Before drilling, make sure there are no ob-
stacles inside RV wall (cables, wires, gas
pipes, etc.).
3. Pre-drill 1/2" clearance holes for sleeves, or 1/4"
clearance holes for M6 carriage bolts on the
marked locations. See FIG. 3.
2. Using a mounting bracket as a template, mark the
bracket’s position and hole locations. See FIG. 3.
6. Make wiring connections in compliance with all
applicable electrical codes. See FIG. 6.
Mounting brackets must be installed on a at
surface, be in-line with each other, and level
to ensure proper function and appearance.
To help prevent water leakage, always use
sealant where fasteners enter RV’s side wall
or roof.
FIG. 5 RV Wall
Thickness (-) 1/16"
(Cut Line)
(+) 9/16"
(Cut Line)
Carriage
Bolt
Sleeve
(Optional)
FIG. 4 RV Wall
(Structure Not Shown)
Sleeves (Optional
-Installer Cut To Length)
Mounting
Bracket
Backing Plate
(Optional)
Carriage Bolts (Provided
-Installer Cut To Length)

5
8. Ensure awning is securely hooked onto mounting
brackets, then carefully extend approximately 1'.
Verify awning’s back rail is fully contacting mount-
ing bracket’s vertical surface. See FIG. 8.
9. Place and tighten the self drilling screws through
mounting bracket and into cassette awning’s
back rail. See FIG. 9.
IMPACT OR CRUSH HAZARD. Make sure aw-
ning is securely mounted, and hooked onto
all mounting brackets. Failure to obey this
warning could cause awning to dislodge and
fall, and could result in death or serious injury.
FIG. 8
Back Rail Mounting
Bracket
No Gap
10. Locate a suitable location for remote holster that’s
protected from weather and other adverse condi-
tions, and install with two screws. See FIG. 10.
Do not expose remote and remote holster to
weather, extreme temperatures, or long hours
in direct sunlight. Failure to obey this notice
could result in property damage.
FIG. 7
Mounting Bracket
Sleeves (Optional
-Installer Cut To Length)
RV Wall
(Structure Not Shown)
Backing Plate
(Optional)
Cassette
Awning
FIG. 9
Self Drilling
Screw
Backing
Plate
(Optional)
Cassette
Awning
Mounting
Bracket
Back Rail
Sleeves
(Optional
-Installer Cut
To Length)
FIG. 6 RH End Cap
4 1/4"
Awning
Motor Wiring
5/8"
IMPACT OR CRUSH HAZARD. Do not operate
or leave awning unattended until it is securely
fastened to all mounting brackets. Failure to
obey this warning could cause the awning to
collapse, and could result in death or serious
injury.
FIG. 10
Remote
Holster
7. With the help of additional personnel, hook aw-
ning onto the mounting brackets. See FIG. 7.
