Dometic 4000 Series User manual

SANITATION
TOILETS
4500/4600/4700/4800
EN 4000 Series
Installation Manual .............. 1
FR Série 4000
Guide d’installation ............. 17

2
EN
Toilets
NORTH AMERICAN ADDRESS INFORMATION
U.S.A. & CANADA
Service Office
Dometic Corporation
13128 St. Rte. 226
Big Prairie, OH 44611
Service Center & Dealer
Locations
Refer to “8 Customer Service” on
page 16
Form No. 600347475 07/18 | ©2018 Dometic Corporation
Read these instructions carefully. These instructions MUST stay with this product.
CONTENTS
1 Explanation of symbols and safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 General information....................................................... 4
3 Intended use ............................................................ 5
4 Specifications............................................................ 5
5 Prepare for installation ..................................................... 8
6 Installation .............................................................. 9
7 Disposal ................................................................16
8 Customer Service.........................................................16

3EN
Toilets
1 EXPLANATION OF SYMBOLS AND SAFETY INSTRUCTIONS
This manual has safety information and instructions to help you eliminate or reduce the risk of
accidents and injuries.
1.1 Recognize safety information
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
1.2 Understand signal words
A signal word will identify safety messages and property damage messages, and will indicate the
degree or level of hazard seriousness.
indicates a hazardous situation that, if not avoided, could result in death or
serious injury.
indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.
is used to address practices not related to physical injury.
Iindicates additional information that is not related to physical injury.
1.3 Supplemental directives
Read and follow all safety information and instructions to avoid possible injury or death.
Read and understand these instructions before installation of this product.
Incorrect installation of this product can lead to serious injury.
The installation must comply with all applicable local or national codes, including the
latest edition of the following standards:
U.S.A.
• ANSI/NFPA70, National Electrical Code
(NEC)
• ANSI/NFPA 1192, Recreational Vehicles
Code
• ABYC guidelines for marine installations
Canada
• CSA C22.1, Parts l & ll, Canadian Electrical
Code
• CSA Z240 RV Series, Recreational
Vehicles
1.4 General safety messages
Failure to obey the following warnings could result in property damage, serious
injury, or death:
• This product must be installed and serviced by a qualified service technician.
• Do not modify this product in any way. Modification can be extremely hazardous.
• FLOOD HAZARD:
• Seacocks must be installed in all piping connected to through-the-hull fittings.
Seacocks must be easily accessible to all users of the toilet, or secondary valves
should be fitted in hose runs where they are easily accessible.
• If the toilet is connected to any through-the-hull fittings: always close seacocks
when toilet is not in use (even if the boat is unattended for a brief period).
• Valves must be full-bore valves of marine sanitation quality. Do not use screw-to-
close gate valves.
• Flexible hoses must be of marine sanitation quality and must be secured to any

4
EN
Toilets
fittings with two stainless steel, worm-drive, hose-band clamps at each connection.
Check connections frequently for integrity.
• Use properly positioned, ventilated loops when the potential exists for the toilet
rim to fall below the waterline during any heel, load, or trim condition, or when the
toilet is connected to any through-the hull fittings. The ventilated loops must be
installed in the intake (if connected to raw water) and/or the discharge piping.
• Ensure that all electrical power to the toilet is turned off and that seacocks are in the
closed or off position before installing the toilet or performing any maintenance.
• If the toilet uses fresh water for flushing and is connected directly or indirectly to a
shoreside municipal water system at any time, shoreside water connections must
be disconnected if the boat is unattended (even if boat is unattended for a brief
period).
• If the toilet is connected to any through-the-hull fittings, all flexible hoses must
be of marine sanitation quality and must be secured to any fittings (such as those
at seacock, vented loop or toilet) with two stainless steel, worm-drive hose band
clamps at each connection. Connections must be checked frequently for integrity.
• If the toilet uses raw water for flushing at any time, a raw-water pump controlled by
an automatically operating demand switch must not be installed. If the onboard
water valve or any plumbing connections were to leak, the automatically operated
pump would start and could flood the boat.
RISK OF PROPERTY DAMAGE. Failure to comply may cause damage to the toilet
or toilet system.
• Only flush water, bodily wastes, and rapid-dissolving toilet tissue.
• Do not overfill the holding tank, or serious damage can occur to the sanitation
system. Overfilling the holding tank can rupture the holding tank or release tank
contents into the bilge.
2 GENERAL INFORMATION
Included Parts
• Vacuum toilet • Floor-bracket hardware kit
• Discharge adapter fittings • Floor-mounting template
Optional Parts*
DTM01C tank monitor
DTM04 four-level tank monitor
*Available as accessory (not included)
IA flush switch and vacuum source (purchased separately) are required. A status panel is
required for flush-handle models.

5EN
Toilets
3 INTENDED USE
The 4000 Series toilets are designed and intended for use only inside a boat or recreational
vehicle (hereinafter referred to as “RV”) for which it is supplied. Use the instructions to ensure
correct installation of the toilet. Dometic Corporation accepts no liability for damage in the
following cases:
• Faulty assembly or connection.
• Damage to the product resulting from mechanical influences and excess voltage.
• Alterations to the product without expressed permission from Dometic Corporation.
• Use for purposes other than those described in the operating manual.
Dometic Corporation reserves the right to modify appearances and specifications without notice.
4 SPECIFICATIONS
4.1 Materials
Component 4500, 4600, 4700, 4800
Toilet vitreous ceramic
Discharge fitting polypropylene / PVC
4.2 Minimum system requirements
4600, 4800 4500, 4700
Electrical
Circuit breaker 2 amps/12VDC; 1 amp/24 VDC*
Wiring Marine: Refer to ABYC recommendations.
RV: Refer to ANSI/RVIA LV and NFPA 70/NEC Standards
for recommended wire gauge (USA). Refer to CEC I and II
Standards for recommended wire gauge (Canada).
Water Supply
Fitting 1/2" NPT
Flow rate 2.0 gpm/7.6 lpm minimum 2.5 gpm/9.5 lpm minimum
Discharge
Inside diameter 1.5" (38 mm) PVC pipe or sanitation hose
Horizontal run maximum 50' (15 m) from toilet to vacuum source
maximum 20' (6.1 m) from vacuum source to holding tank
Vertical run maximum 6' (1.8 m) from toilet to vacuum source
maximum 6' (1.8 m) from vacuum source to holding tank
* The circuit board contains a resettable fuse that can be reset by turning the electrical power to
the toilet OFF, then ON again.
IRefer to ANSI 1192 and Z240 RV Series standards, where applicable, for additional RV
toilet installation guidelines. Specifications are subject to change without notice.

6
EN
Toilets
4.3 Dimensions
1
A
G
E
C
B
D
2
F
3
A
GE
C
B
D
4
F
5
A
E
G
C
B
D
6
F
Low-profile dimensions
Reference 4600 Series (fig. 1 and 2) 4800 Series (fig. 1 and 2)
A15" 14.75"
B14.75" 14.75"
C19.75" 18.25"
D14" 13.625"
E15.375" 14.875"
F30.5" 30.25"
G10.375" 8.375"

7EN
Toilets
Standard height dimensions
Reference 4500 Series
(fig. 5 and 6)
4600 Series
(fig. 1 and 2)
4700 Series
(fig. 3 and 4)
4800 Series
(fig. 1 and 2)
A19" 18.125" 19" 18.125"
B14.75" 14.75" Touchpad
14"
14.75"
Flush handle
15.75"
C22" 19.75" 21.5" 18.625"
D17.5" 17" 17.5" 17"
E17.5" 16" 17" 15.75"
F37" 33.5" 33.5" 33.5"
G10.5" 10.5" 10" 8.625"
Panel and control module dimensions
7
A
B
OK TO
FLUSH
DO NOT
FLUSH
8
A
C
B
Reference Touch Panel (VFSHW)
(Figure 7)
Flush Switch (VFS)
(Figure 8)
A3" 3"
B3.4" 3.4"
C.4” .4"
C

8
EN
Toilets
5 PREPARE FOR INSTALLATION
Failure to obey the following warnings could result in property damage, serious
injury, or death:
• FLOOD HAZARD. For toilets that use raw-water systems: Do not install a raw-water pump
controlled by an automatic demand switch.
• SHOCK OR FIRE HAZARD. Use the recommended fuse, circuit breaker, and wire size. Failure
to comply could result in a fire.
5.1 Laying out the fresh-water system
9
Vacuum Toilet
Vacuum Generator
Waste Holding Tank
Flush Switch/
Status Panel
Discharge
Pump
Dockside
Discharge Holding Tank
Status Panel
Vent Filter
Seacock
Overboard
Discharge
Air Vent
IUse cold water only. Install a shut-off valve in the water line for maintenance purposes.
5.2 Wiring/electronic control module connections
IRead before proceeding:
• There must be a circuit breaker or fuse for every toilet.
• For marine applications, follow ABYC guidelines.
• For RV applications, refer to ANSI/RVIA LV and NFPA70/NEC standards (U.S.A.)
or CEC I and II standards (Canada) for the recommended wire gauge. Refer to ”1.3
Supplemental directives” on page 3.
• Use tinned, stranded copper wire.
• Use crimp-type wire connections. Do not use wire nuts, as wire nuts can corrode.
5.3 Planning the electrical connections
➤Plan all component locations so that the wires are installed in locations that will always
remain dry.
ISeveral flush-switch assembly options are available from Dometic. Follow the instructions
included with each flush switch assembly.

9EN
Toilets
6 INSTALLATION
6.1 Installing the toilet with through-the-floor connections
10

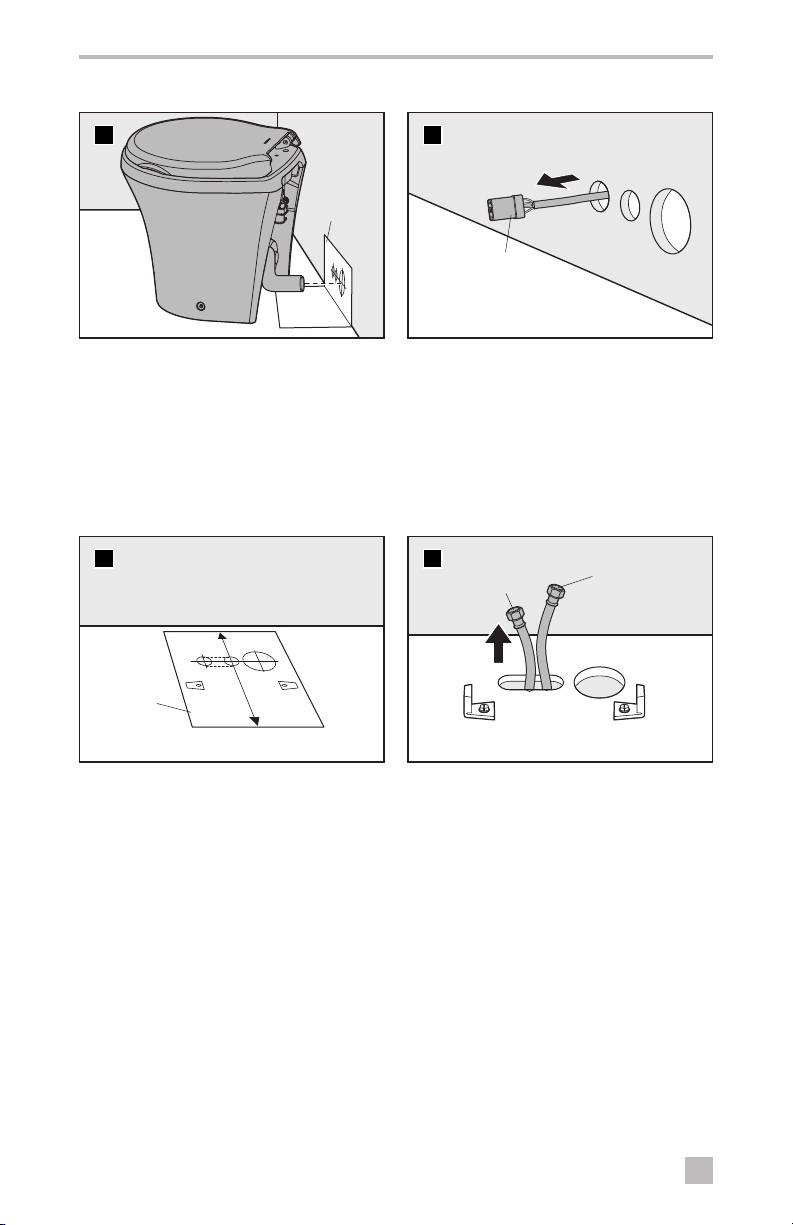

Mounting
Template
➤Place the floor-mounting template in
the desired location. Keep at least 11"
between the centerline of the template
and any walls or interior fixtures.
➤Punch through the center of the holes and
mounting-bracket corners in the template.
I4700 model toilets do not require
floor-mounting brackets.
ITemplates and hole configurations
vary by model.
11
➤Remove the template from the floor.
➤Drill all access and fastener holes as
indicated on the template, using the
center punches as guides.
I4500, 4600, 4800 models
only: Do not drill mounting-bracket
corners.
➤Repeat the steps under figure 12 and 13
using the wall switch template.
➤Drill a 1" diameter hole.
12
Hex-Head Screw
Floor Bracket

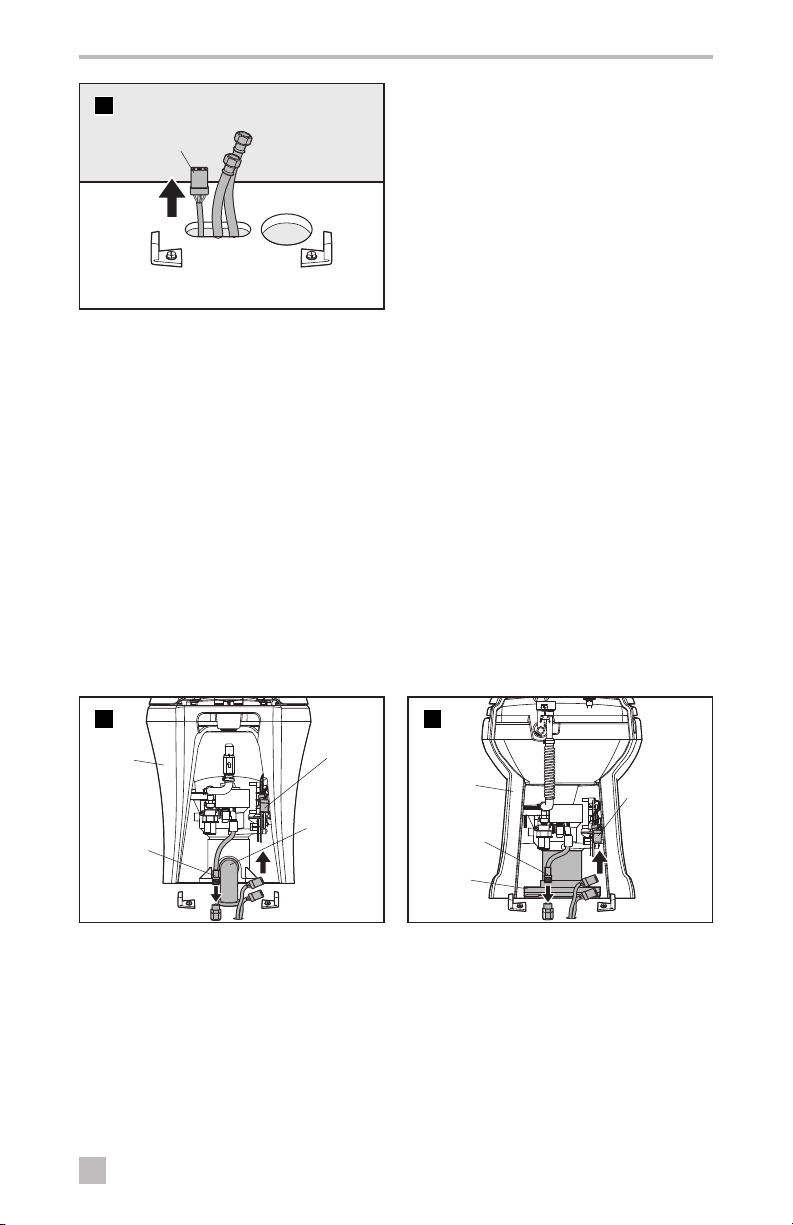

4500, 4600, 4800 models only
➤Secure the floor brackets to the floor using
the long hex-head screws from the toilet
floor-bracket kit.
➤Loosely tighten with a 3/8" socket
wrench, using the mounting bracket
corner marks as guides.
IDo not completely tighten the hex-
head screws to the floor. Brackets will
tighten when fastening the toilet to
the brackets.
13 Preferred Installation
Toilet
Base
Floor
Floor Flange
Sub-Floor
Elbow Fitting
Hose
Adapter
IThe space between the bottom of
the toilet base and the bottom of the
floor flange rim should be no greater
than 3/8”.

10
EN
Toilets
14
Sub-Floor Sub-Floor
Floor Floor
Toilet
Base Toilet Base
Floor Flange
Optional Below-Floor Installation Optional Above-Floor Installation
Floor Flange
Spacer
Elbow Fitting
Hose Adapter
➤Cut out the discharge hole. Refer to the following table for discharge hole diameters.
Model Discharge Hole Diameter
xx06 4-1/2" discharge flange hole
xx09 4-3/4" discharge flange hole
xx48 2-1/2" discharge pipe hole
➤Using a PVC primer and solvent cement, attach the desired discharge fittings.
➤Vertical discharge hose: Attach the hose adapter directly to the discharge flange
outlet.
➤Horizontal discharge hose: Attach the elbow fitting directly to the discharge flange
outlet. Attach the hose adapter to the elbow fitting.
➤Allow the cement to cure before handling the fitting.
➤Insert the discharge flange into the hole with the elbow fitting or hose adapter pointing in the
direction of the discharge plumbing.
Hose Adapter
Elbow Fitting

11 EN
Toilets
15 Floor Flange
Vacuum Hose
Models xx06 and xx09 floor flange only:
➤Mark the floor through the mounting
holes on the floor flange.
➤Remove the flange and drill the pilot holes
using an 11/64" drill bit.
➤Route the vacuum hose from the vacuum
generator or vacuum tank up through the
discharge flange hole.
➤Lubricate the inside of the hose with liquid
dish soap and install the hose onto the
adapter.
➤Secure the connection using two
stainless-steal hose clamps.
16
Discharge Adapter
Elbow Fitting
Model xx48 discharge adapter:
➤Mark the floor through the mounting
holes on the discharge adapter.
➤Remove the discharge adapter and drill
the pilot holes using an 11/64" drill bit.
➤Mount the discharge adapter to the floor
using the four #14x1"pan-head
phillips-head screws and washers
provided.
➤Connect the discharge plumbing to the
vacuum tank or vacuum generator. Use a
1-1/2" OdorSafe Plus flexible sanitation
hose or 1-1/2" PVC schedule 40 pipe.
➤If using a flexible hose, lubricate the inside
of the hose with liquid dish soap and
attach the hose to the adapter.
➤Secure the connection using two
stainless-steel hose clamps.

12
EN
Toilets
17
T-bolt
Flange
Gasket
Hex Nut
Washer
Floor Flange
Floor Flange
Adapter
#12x1-1/2"
Flat Head Screw
Models xx06 and xx09 floor flange:
➤Insert four T-bolts into the discharge
flange from the underside.
➤Insert the discharge flange and connected
hose or pipe into the discharge hole and
secure it to the floor using the eight #12x1-
1/2" flat-head screws provided.
➤Install the flange gasket over the T-bolts.
➤Install the floor flange adapter with the
words THIS SIDE UP facing up. Tighten
the adapter to the floor in a criss-cross
pattern, using four flat washers and hex
nuts.
18
Cables Water Line
➤Route the DC power wiring and 1/2"
diameter water line through the drilled
holes. A shut-off valve should be placed in
the water line to the toilet for maintenance
or repair.
IRefer to “5.2 Wiring/electronic
control module connections” on
page 8, and to the wiring
diagram provided with the toilet
model’s parts list. Connector
configuration varies by model.
➤Provide extra discharge hose length for
connection to the toilet. Refer to
“4.2 Minimum system requirements” on
page 5.
19
Flush-Switch
Panel
Ethernet
Cable
➤Route the flush-switch Ethernet cable
from the Ethernet connection on the toilet
control board through the access hole on
the wall.
➤Secure the Ethernet cable to the flush-
switch panel.
➤Snap the flush-switch panel cover onto the
panel bracket.
➤Proceed to “6.5 Finalizing the installation”
on page 14.

13 EN
Toilets
6.2 Installing the toilet with through-the-wall connections
20
Template
➤Use the floor template to locate the
vertical centerline of each hole.
➤Place the toilet in the desired position and
mark the horizontal centerlines.
➤Drill the hole sizes according to the template.
21
4-Wire Control
Module Cable
➤Route the wiring and plumbing through
the drilled holes.
IRefer to “5.2 Wiring/electronic
control module connections” on
page 8.
➤Proceed to “6.5 Finalizing the installation”
on page 14.
6.3 Installing a toilet and bidet combination
22
Mounting
Template
➤Place the floor-mounting template in
the desired location. Keep at least 11"
between the centerline of the template
and any walls or interior fixtures.
➤Punch through the center of the holes and
mounting bracket corners in the template.
➤Cut out the oblong access hole as marked
on the floor template.
23
Cold-Water Line
Hot-Water Line
➤Secure the floor brackets to the floor using
the long hex-head screws from the toilet
floor-bracket kit.
➤Tighten with a 3/8” socket wrench, using
the corner marks as guides.
IDo not completely tighten the hex-
head screws to the floor. Brackets will
tighten when fastening the toilet to
the brackets.
➤Route the cold-water supply line to the
toilet/bidet mixer-valve water line (blue
band).
➤Route the hot-water supply line to the
bidet faucet hot-water line (red band).

14
EN
Toilets
24
4-Wire Control
Module Cable
➤Route the wiring and discharge plumbing
through the holes.
➤Provide extra discharge hose length to
connect to the toilet. Refer to
“4.2 Minimum system requirements” on
page 5.
➤Proceed to “6.5 Finalizing the installation”
on page 14.
6.4 Toilet system with “full tank” shut-down relay and tank monitor system
IAll installations can be set up to include “full tank” shut-down relay and tank monitor
system options. Consult the wiring diagrams included with the product for further
details. Wiring associated with these options needs to be done prior to the next step.
➤Route the input power wires from the “full tank” shut-down relay to the flush-switch panel.
➤Proceed to “6.5 Finalizing the installation” on page 14.
6.5 Finalizing the installation
25
Discharge
Assembly
Toilet
Water Supply
Connection
4-Wire
Control
Module
Cable
4600, 4800
models
(Rear View)
26
4-Wire Control
Module Cable
4700 models
(Rear View)
Toilet
Water Supply
Connection
Discharge
Assembly
4500, 4600, 4700, and 4800 models
➤Set the toilet in front of the discharge adapter.
➤Connect the toilet water line to the water supply line.
➤Make the final wiring connection:
➤4500, 4600, and 4800 models: Connect the 4-pin connector to the control module
cable.
➤4700 models: Connect the 3-pin flush handle connector to the 3-pin wire from the
control module.

15 EN
Toilets
➤Lubricate the O-ring around the bottom of the toilet base using liquid dish-washing soap.
➤Pick up the toilet and insert the plastic base assembly into the discharge adapter. Make sure
the mounting brackets on the floor do not interfere with the bottom of the toilet.
➤Insert the two plastic flange bushings into the toilet mounting holes and secure the toilet to
the mounting brackets, using the two flat-head wood screws provided. Drive the fasteners
into the mounting brackets at a downward angle.
➤Press the decorative screw covers over the flange bushings.
27
Mounting Brackets
➤Position the toilet over the floor brackets
and tilt it up from the back.
➤Push the discharge-assembly fitting and
hose into the discharge-loop outlet.
➤Tighten the band clamp.
➤Lower the toilet back down to the floor.
➤Turn on the water supply and electrical
power to the toilet.
➤Check for leaks by pressing the flush
switch. If there is a leak, tighten the
connection.
28
Mounting
Bracket
Screw
Washer
Cover
(Rear View)
4500, 4600, 4800 models
➤Insert the plastic washers from the
floor-bracket kit into the fastener holes.
➤Fasten the toilet to the brackets using
the short screws included with the
floor-bracket kit.
➤Place the plastic covers over the
floor-bracket screws.
29
Washer
Screw Cover
4700 models only
➤Drill pilot holes at the floor-mounting
holes.
➤Install the screws and washers (provided)
using a 3/8" socket wrench.
➤Place the plastic covers over the screws.

16
EN
Toilets
7 DISPOSAL
MPlace the packaging material in the appropriate recycling waste bins, whenever possible.
Consult a local recycling center or specialize dealer for details about how to dispose of
the product in accordance with all applicable national and local regulations.
8 CUSTOMER SERVICE
For the Authorized Service Center near you, call between 8:00 a.m. and 5:00 p.m. (ET), Monday
through Friday, or contact the nearest Parts Distributor.
Telephone: [phone] U.S.A. and Canada
330-439-5550 International
Fax: [phone] U.S.A. and Canada
330-439-5567 International
Website: www.dometic.com

SANITAIRE
CUVETTES DE TOILETTE
4500/4600/4700/4800
FR Série 4000
Guide d’installation

18
FR
Cuvettes de toilette
ADRESSE – AMÉRIQUE DU NORD
ÉTATS-UNIS et CANADA
Bureau de service
Dometic Corporation
13128 St. Rte. 226
Big Prairie, OH 44611
Liste des centres de service
et des revendeurs
Voir “8 Service clientèle” à la
page 32
RÉVISION B | Document no600345371-05 05/18 | ©2018 Dometic Corporation
Lire attentivement ces instructions. Ces instructions DOIVENT rester
avecceproduit.
SOMMAIRE
1 Explication des symboles et consignes de sécurité.............................. 3
2 Informations générales .................................................... 4
3 Indication ............................................................... 5
4 Caractéristiques techniques ................................................ 5
5 Préparation à l’installation .................................................. 8
6 Installation .............................................................. 9
7 Élimination ..............................................................16
8 Service à la clientèle.......................................................16

19 FR
Cuvettes de toilette
1 EXPLICATION DES SYMBOLES ET CONSIGNES DE SÉCURITÉ
Ce manuel contient des consignes de sécurité et des instructions pour aider l’utilisateur à éliminer
ou réduire le risque d’accidents et de blessures.
1.1 Reconnaître les consignes de sécurité
C’est le symbole d’alerte à la sécurité. Il signale des risques de blessures physiques.
Obéir à tous les messages de sécurité qui suivent ce symbole pour éviter les risques
deblessures ou de mort.
1.2 Comprendre les mots-indicateurs
Un mot-indicateur identifie les messages de sécurité et les messages liés aux dégâts matériels,
etsignale le degré ou niveau de gravité du danger.
indique une situation dangereuse qui, si elle n’est pas évitée, peut
causer la mort ou des blessures graves.
indique une situation dangereuse qui, si elle n’est pas évitée, peut causer
des blessures mineures ou modérées.
 est utilisé pour signaler des pratiques non liées à une blessure physique.
Ifournit des renseignements additionnels sans rapport avec des blessures physiques.
1.3 Directives supplémentaires
Lire et respecter toutes les consignes de sécurité et les instructions pour éviter des
blessures, voire la mort.
Lire et comprendre ces instructions avant d’installer ce produit.
L’installation incorrecte de ce produit peut causer des blessures graves.
L’installation doit se conformer à tous les codes locaux ou nationaux applicables,
ycompris la toute dernière édition des normes suivantes:
États-Unis
• ANSI/NFPA70, Code national de
l’électricité (CNE)
• ANSI/NFPA 1192, Code des véhicules
récréatifs
• Directives ABYC pour les installations marines
Canada
• CSA C22.1, Parties l et ll, Code canadien
de l’électricité
• CSA Z240 RV Series, véhicules récréatifs
1.4 Messages de sécurité d’ordre général
Le non-respect des avertissements pourrait entraîner des dégâts
matériels, des blessures graves ou la mort:
• Ce produit doit être installé et entretenu par un agent technique qualifié.
• Ne pas modifier ce produit d’une quelconque manière. Une modification peut être
extrêmement dangereuse.
• RISQUE D’INONDATION:
• Des robinets doivent être installés dans toute la tuyauterie attachée aux raccords
traversant la coque. Les robinets doivent être facilement accessibles à tous les
utilisateurs de la cuvette de toilette ou des vannes secondaires doivent être montées
dans les sections de tuyau à un endroit facilement accessible.
• Si la cuvette de toilette est raccordée à tout raccord à travers la coque: toujours
fermer les robinets lorsque la cuvette de toilette n’est pas utilisée (même si
l’utilisateur laisse le bateau sans surveillance pendant une courte période).

20
FR
Cuvettes de toilette
• Les vannes doivent être des vannes de sûreté à passage intégral de qualité
«épuration marine». Ne pas utiliser de robinets-vannes à vis.
• Les tuyaux flexibles doivent être de qualité «épuration marine» et doivent être
fixés à tout raccord à l’aide de deux colliers de serrage par vis sans fin en acier
inoxydable. Vérifier régulièrement l’intégrité des raccords.
• Utiliser des boucles ventilées correctement positionnées s’il est possible que le
rebord de la cuvette se situe en dessous de la ligne de flottaison en cas de gîte,
charge ou balance, ou si la cuvette de toilette est fixée à tout raccord traversant la
coque. Les boucles ventilées doivent être installées dans la tuyauterie d’admission
(en cas de raccordement à de l’eau brute) et/ou de refoulement.
• S’assurer que l’alimentation électrique de la cuvette de toilette est entièrement
coupée et que les robinets sont fermés ou en position Arrêt avant d’installer la
cuvette de toilette ou d’effectuer tout entretien.
• Si la cuvette de toilette utilise de l’eau douce pour la chasse et est à tout moment
raccordée directement ou indirectement à un réseau d’eau municipale sur les côtes,
les raccordements à un réseau d’eau sur les côtes doivent être débranchés si le
bateau est laissé sans surveillance (même pendant une courte période).
• Si la cuvette de toilette est connectée à tout raccord à travers la coque, tous les
tuyaux flexibles doivent être de qualité «épuration marine» et doivent être fixés à
tout raccord (notamment au robinet, à la boucle ventilée ou à la cuvette de toilette)
à l’aide de deux colliers de serrage par vis sans fin inox. L’intégrité des raccords doit
régulièrement être vérifiée.
• Si la cuvette de toilette utilise de l’eau brute pour la chasse à tout moment, une pompe
à eau brute commandée par un commutateur de demande automatique ne doit pas
être installée. Si le robinet d’eau à bord ou tout raccord de plomberie venait à fuir,
lapompe à commande automatique démarrerait et risquerait d’inonder le bateau.
 RISQUE DE DÉGÂTS MATÉRIELS. Respecter ces consignes, sinon il y a risque
d’endommager la cuvette ou le système de toilette.
• Chasser seulement de l’eau, des déchets corporels et du papier hygiénique à
dissolution rapide.
• Ne pas trop remplir la cuve de rétention; cela pourrait causer des dommages
importants au système sanitaire. Le remplissage excessif de la cuve de rétention
risque de rompre la cuve de rétention ou de libérer son contenu dans la cale.
2 INFORMATIONS GÉNÉRALES
Pièces fournies
• Cuvette de toilette sous vide • Ensemble de quincaillerie de support de
fixation au plancher
• Raccords-adaptateurs de refoulement • Gabarit de fixation au plancher
Pièces facultatives*
Contrôleur de niveau de cuve DTM01C
Contrôleur de niveau de cuve à quatre niveaux DTM04
*Disponibles comme accessoires (non fournies)
IUn interrupteur de chasse et une source de vide (achetée séparément) sont requis.
Unpanneau d’état est requis pour les modèles à poignée de chasse.
