5000 Series VacuFlush® Toilets
Vacuum pedal-flush toilet
operation manual
EN
For VacuFlush toilet models
5006, 5009, 5047, 5048, 5049,
5146, 5147, 5148, 5149

2
VacuFlush Pedal-Flush Toilet
3
A
BC
D
E
F
1
1
5
4
8
9
2
6
3
10
4
1
2
5
6
7
8
9
10
4
3
7
A
C
D
E
B
2

3
VacuFlush Pedal-Flush Toilet Notes on using the manual
Table of contents
1 Notes on using the manual .................................................3
2 General safety instructions ..............................................3 - 4
3 Intended use ............................................................4
4 Components ............................................................5
5 Specications ........................................................5 - 6
6 Operation............................................................7 - 8
7 Maintenance/winterizing/service .........................................8 - 13
8 Warranty ..........................................................14 - 15
9 Customer service........................................................15
1 Notes on using the manual
Caution!
Safety Instruction: Failure to observe this instruction can cause material damage and impair
the function of the device.
Note
Supplementary information for operating the device.
g. 1A, page 2 : This refers to an element in an illustration. In this example, item A in
gure 1 on page 2.
2 General safety instructions
The manufacturer will not be held liable for claims for damage resulting from the following:
• Faulty installation or connection
• Damage to the unit from mechanical inuences, misuse or abuse
• Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in this manual
2.1 Warnings – marine applications
The following statements must be read and understood before installing, servicing and/or
operating this product on a boat. Modication of this product may result in property damage.
Dometic recommends that a qualied technician or electrician install or service this product.
Equipment damage, injury to personnel or death could result from improper installation. DOMETIC
ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR
DEATH TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR
OPERATION OF THIS PRODUCT.
Caution! Hazard of Flooding
If toilet is connected to ANY through-the-hull ttings, ALWAYS close seacocks when
toilet is not in use (even if boat is unattended for a brief period). All passengers must be
instructed on how to close valves when the toilet is not in use. Failure to do so can result
in ooding which can cause loss of property and life.
EN

4
VacuFlush Pedal-Flush ToiletGeneral safety instructions
Caution! Hazard of Flooding
If the toilet uses fresh water for ushing and is connected directly or indirectly to a shore-
side municipal water system at ANY time, shoreside water connections MUST be
disconnected if the boat is unattended (even if boat is unattended for a brief period).
Failure to do so can result in ooding which can cause loss of property and life.
Caution! Hazard of Flooding
Before beginning any work on this product, be sure that all electrical power to the toilet
system has been turned off and that seacocks are in the CLOSED or OFF position. Failure
to do so can result in ooding which can cause loss of property and life.
Caution!
Overlling the holding tank can create serious damage to the sanitation system, such as
rupturing the holding tank and releasing tank contents into the bilge. To prevent this
possibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s
electronic control module. The “full” signal from the holding tank can be generated by an
optional Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.
3 Intended use
The Dometic VacuFlush toilet vacuums waste from the bowl and pumps it to a holding tank or other
efuent storage/disposal system. Operated by a foot pedal, the toilet allows the user to add water to
the bowl (before using or ushing) by slightly raising the pedal, and to ush the toilet by pressing the
pedal down. An optional status panel activates lights to indicate when the toilet is activated, when
the toilet is ready to ush, and when the toilet is not ready to ush due to recharging vacuum.
3.1 Benefits
Convenient pedal-operated flush. Add water or ush with the foot pedal.
Home-like comfort in small space. Toilets feature a full-size wood seat with large opening and
deep bowl for premium comfort.
Water conservation. Water consumption per ush is determined by how long the pedal is pushed.
VacuFlush pedal-ush toilets typically use about 1 pint (0.5 l) per ush when the pedal is pressed
for 3 seconds.
Integrated check valve. VacuFlush 5000 series toilets use an in-line check valve to prevent back-
ow in event of negative pressure in the water supply line.
“OK to Flush” and “Do Not Flush” indicator lights (option). When equipped with an optional
VacuFlush status panel, a green light indicates when proper vacuum is achieved and toilet is ready
to ush. Red light indicates when vacuum level is too low for a ush to occur. Vacuum recharges
in about one minute after ushing.
Automatic “full tank” shut-down (option). When connected to an optional holding tank level
indication system and the holding tank reaches full level, the VacuFlush toilet’s vacuum generator
will shut its electrical power off. This safety feature prevents overlling the holding tank, which
may cause damage to the boat.

5
VacuFlush Pedal-Flush Toilet Components
4 Components
(g. 3, page 2) (g. 2, page 2)
4.1 VacuFlush toilet
(g. 3, page 2) (g. 2, page 2)
Ref. Description
1 Seat and lid assembly
2 Ceramic bowl
3 Water supply check valve
4 Water supply hose
5 Half clamp kit
6 Pedestal base
7 Flush pedal lever (cover not shown)
8 Water valve
9 Inlet screen
10 Pedestal cover
Refer to complete parts list (packed separately) for
additional information.
Ref. Description
A Vacuum status panel (DVS01 - option)
B VacuFlush status panel and power
switch (DVS02 - option)
C J series vacuum generator *
D S series vacuum pump *
E Vacuum tank *
* VacuFlush pedal-operated toilets use either a vacuum
generator or vacuum pump/vacuum tank combination.
Refer to vehicle manufacturer for your specic system
components.
4.1 Typical VacuFlush toilet system (marine)
(g. 4, page 2)
Ref. Description
1 VacuFlush toilet
2 VacuFlush status panel
3 Holding tank status panel
4 Vacuum generator
5 Holding tank (waste)
Ref. Description
6 Vent lter
7 Discharge pump
8 Overboard discharge tting
9 Air vent tting
10 Dockside discharge tting
Some VacuFlush toilet systems combine the vacuum generator (4) and holding tank (5) into one unit (VacuFlush holding tank system).
Contact boat or vehicle manufacturer for complete information on your toilet system.
5 Specifications
5.1 Materials
Toilet bowl: vitreous ceramic Pedestal base: polypropylene
Toilet seat: enameled wood

6
VacuFlush Pedal-Flush ToiletSpecifications
5.2 Toilet installation specifications
Electrical Vacuum pump* draw 6 amps at 12 V DC; 3 amps at 24 V DC
Circuit breaker/fuse 10 amps at 12 V DC; 5 amps at 24 V DC
Water
Supply
Fitting 0.5 in. NPT
Flow rate 2.0 gpm/7.6 lpm minimum required at toilet
Discharge
Size 1.5 in./38 mm ID PVC pipe or sanitation hose
Horizontal run** 50 ft./15 m maximum to vacuum source
Vertical run** 6 ft./1.8 m maximum to vacuum source
Required
component Vacuum source † VacuFlush vacuum generator, vacuum holding tank,
or holding tank system (purchased separately)
* Required for J and S series VacuFlush vacuum generators.
** Based on J and S series VacuFlush vacuum generator specications.
Where applicable, see VHT series vacuum holding tank manual for other installation specications.
† Purchased separately.
Specications subject to change without notice.
5.3 Dimensions (g. 1, page 2)
Ref. Dimension
A 17.375 in. / 441 mm
B 14.875 in. / 378 mm
C18.375 in. / 467 mm
D 16.5 in. / 419 mm - seat height
E 13.25 in. / 337 mm
F 32 in. / 813 mm - seat lid up
Ref. Dimension
A 15.75 in. / 400 mm
B 14.875 in. / 378 mm
C18.375 in. / 467 mm
D 15 in. / 381 mm - seat height
E 12.75 in. / 324 mm
F 29.875 in. / 759 mm - seat lid up
Models 5009, 5047, 5048, 5049 Models 5146, 5147, 5148, 5149
Ref. Dimension
A 13.25 in. / 337 mm
B 17.25 in. / 438 mm *
C 18.375 in. / 467 mm
D 12.375 in. / 314 mm - seat height
E 13.375 in. / 340 mm
F 27.75 in. / 705 mm - seat lid up
Model 5006 * overall width includes ush pedal
All dimensions may vary +/- 0.375 in. (10 mm)

7
VacuFlush Pedal-Flush Toilet Operation
6 Operation
6.1 Toilet system start-up
1. Fill freshwater tank.
2. Turn on electrical power and water supply to VacuFlush toilet system.
3. Flush water through entire toilet system by pressing ush pedal for about 15 seconds.
Release pedal, allowing pedal to snap back into original position. Vacuum pump will operate for
about one minute, then shut off.
6.2 Normal toilet operation

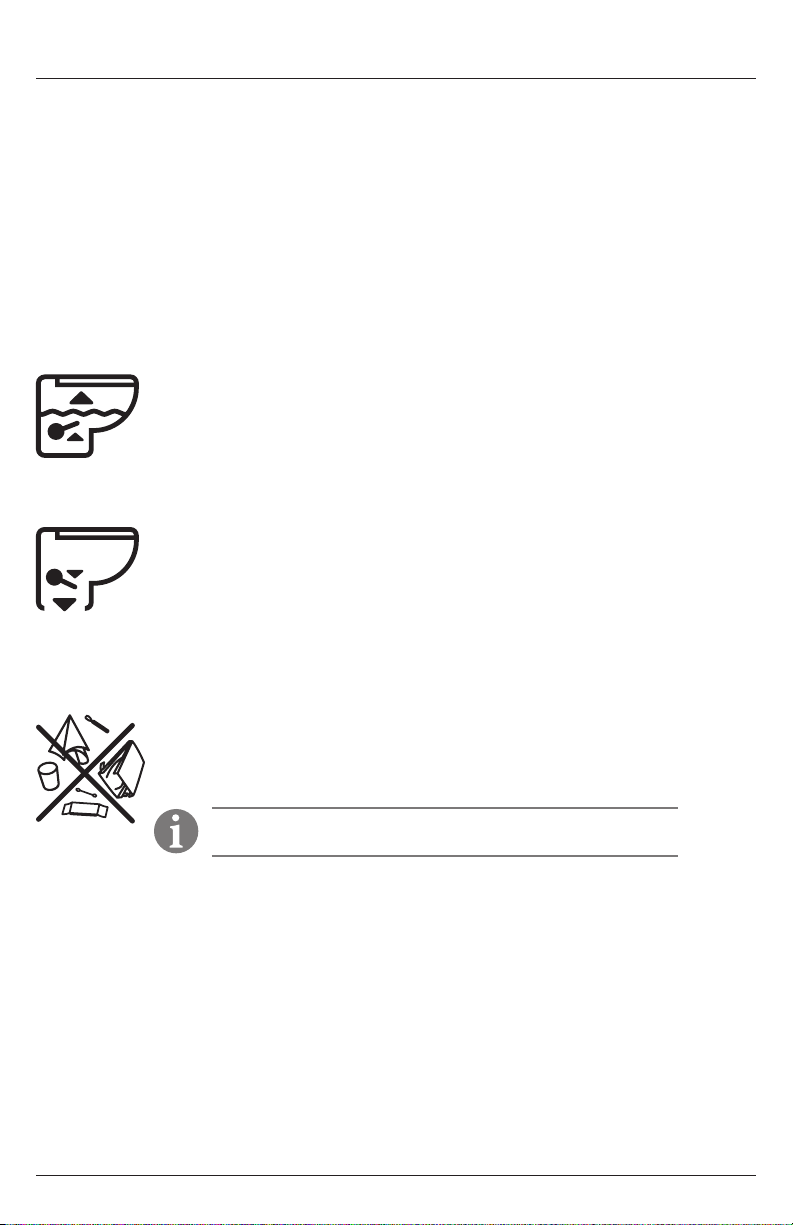

ADD WATER TO TOILET BOWL
Lift ush pedal until desired water level is achieved. More water is usually added
only when ushing solids. (If pedal is raised too long, toilet bowl can overow.)
FLUSH TOILET
Press ush pedal down for about 3 seconds, then release it. Allow pedal to snap
back into original position to assure vacuum seal. It takes about one minute for
vacuum to recharge for the next ush. A small amount of water remains in bowl after
every ush.
If ush pedal is accidentally released before efuent leaves bowl, do not ush again
until vacuum pump stops running.
DO NOT FLUSH FOREIGN OBJECTS
CAUTION! Flush only water, bodily wastes and rapid-dissolving tissue paper.
Do not ush wet wipes, sanitary napkins, condoms, diapers, razor blades, paper
cups, cotton swabs, food, hair or liquids such as oils or solvents. Clogging or dam-
age to the toilet system may occur.
Note
Make sure all guests understand toilet operation before use.
6.3 Indicator lights (requires optional VacuFlush status panel)
“OK TO FLUSH” INDICATOR
On a VacuFlush status panel, a steady green “OK to Flush” light indicates when the toilet is ready
to ush.
“DO NOT FLUSH” INDICATOR
VacuFlush status panels include a red “Do Not Flush” light to indicate two toilet system conditions:
1. vacuum level in toilet system is not sufcient for complete ush.
2. holding tank is full and should be pumped out (only when connected to an optional holding
tank level indication system). When the red light is on, electrical power to the toilet automatically
shuts off to prevent possible overlling of the holding tank.
(continued on next page)

8
VacuFlush Pedal-Flush ToiletOperation

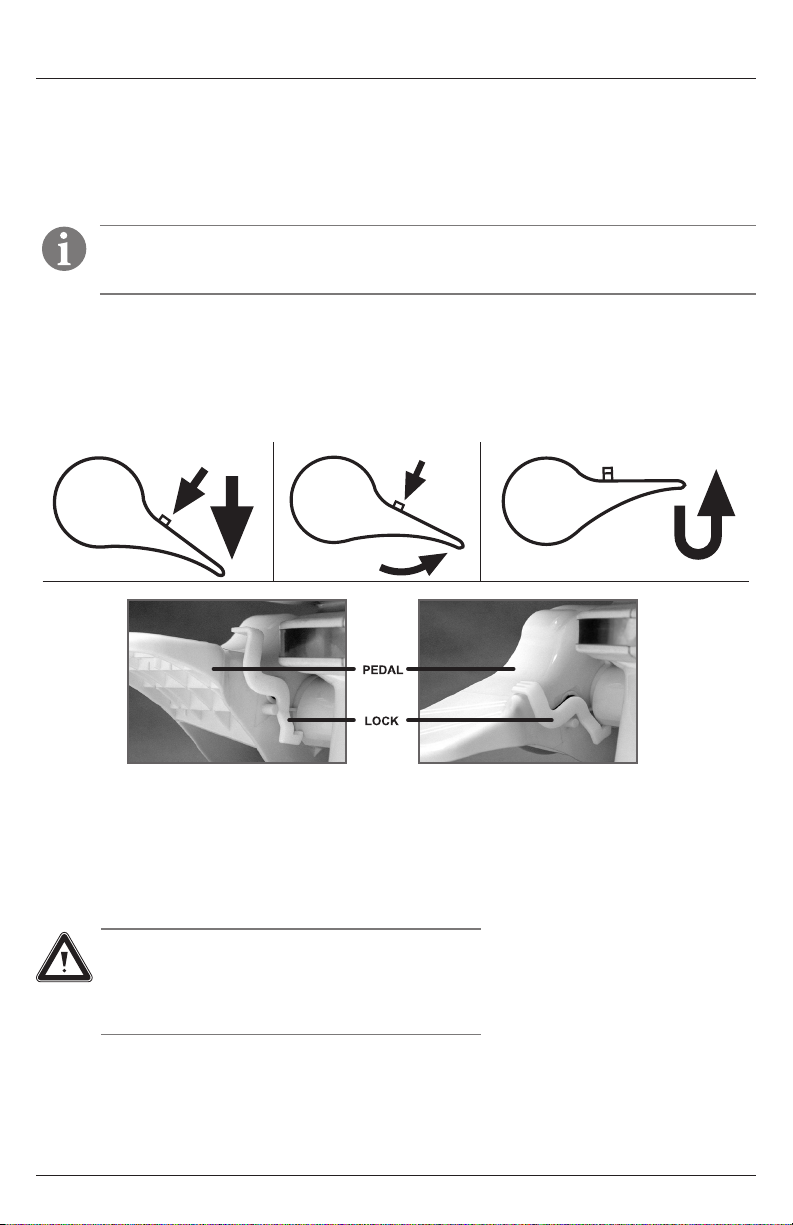

6.4 Locking foot-pedal open for pump-out (models 5146, 5147, 5149, 5149)
VacuFlush®5140 series vacuum toilets include a hold-open pedal lock. When installed in a toilet
system with a VHT12/24, VHT4500 or VHT5200 vacuum holding tank, the pedal lock holds the ush
ball open to allow positive air pressure into the vacuum holding tank during pump-out. This helps
assure thorough discharge of the vacuum holding tank.
Note
Before pumping out holding tank, turn off water supply to toilet and electrical power to
vacuum pump. Follow steps below to assure thorough tank discharge.
1. a. Press down fully on Pedal, then b. press Lock.
2. Slowly bring Pedal up while holding Lock down against Pedal until Pedal stops. The Lock
prevents the ush ball inside the toilet bowl from closing completely.
3. Pump out holding tank.
4. After pump-out is complete, press down on Pedal fully, then release to close ush ball.
1b. 2. 4. 1a.
7 Maintenance / Winterizing / Service
7.1 Cleaning the toilet
To maintain the toilet’s original, lustrous appearance, use Dometic®Toilet Bowl Cleaner or other non-
abrasive bathroom and toilet bowl cleaners. Please follow label directions.
Caution
To avoid damaging the toilet system’s seals and
valves, do not clean toilet with abrasive cleaners,
caustic chemicals, or lubricants and cleaners that
contain alcohols or petroleum distillates.
7.2 VacuFlush system maintenance
Maintenance procedures vary widely and depend on factors such as frequency of use, quality of
ushing water, etc. The following chart provides a general guideline for keeping your toilet system
ready for use at any time.

9
VacuFlush Pedal-Flush Toilet Maintenance/Winterizing/Service
Maintenance procedure Service interval Notes
ROUTINE
Check all clamped hose joints
below water line for leaks.
Monthly —
Check lter screen in water valve. After rst year of service, then as
needed if water ow is noticeably
slower.
Screen is located inside water
valve inlet.
Replace vent lter (if installed in
holding tank vent line).
Annually —
MAJOR SYSTEM MAINTENANCE
Replace duckbill valves in vacuum
generator or vacuum pump.
Every three years See vacuum generator or
vacuum pump parts list for
replacement kit part number.
Replace ush ball seal and ush
ball (if required).
Every three years See toilet parts list for replace-
ment kit part number.
7.3 Recommended spare parts
When operating boat or other vehicle in remote areas, keep the following spare parts on hand to
assure continuous toilet system operation.
Description Where used
Flush ball seal VacuFlush toilet. See parts list.
Flush ball VacuFlush toilet. See parts list.
Water valve (in foot pedal) VacuFlush toilet. See parts list.
Vacuum switch kit Vacuum tank or vacuum generator. See parts list.
Duckbill valves Vacuum tank or vacuum generator. See parts list.
To order spare parts, refer to Customer Service section.
7.4 During extended periods of non-use
Sanitation hoses should be cleared if toilet will not be needed for an extended period of time (more
than two weeks).
1. Fill toilet bowl with water and add 4 oz. (120 ml) of liquid biodegradable laundry detergent
(should NOT contain bleach).
2. Flush toilet, holding pedal down for about two minutes. Close ush ball.
3. Turn off water supply to toilet.
4. Flush the toilet without water, allowing the vacuum pump to shut off after the ush. Repeat three
times. (This procedure will minimize any remaining water in the sanitation hoses.)
5. Turn off power to the vacuum pump.
6. Completely pump out holding tank.
If system will be subjected to freezing temperatures, please follow above procedure, then winterize
system as described in this manual.
TURN OFF ELECTRICITY AND WATER TO TOILET SYSTEM IF IDLE FOR LONG TIME
If people will not be using the boat for a long time (vacation, maintenance, off-season, etc.), or in the
event of a long electrical power interruption, electrical power and water supply to the toilet system
should be shut off.

10
VacuFlush Pedal-Flush ToiletMaintenance/Winterizing/Service
7.5 Clearing blockage in toilet base
1. Turn off water to the toilet.
2. Open the ush ball.
3. Pull the foreign material from the 1-inch diameter orice at the bottom of the base or, using a
small diameter blunt rod, attempt to push the blockage through the orice.
7.6 Winterizing
At the end of each season, the VacuFlush toilet system should be winterized for storage. The
following procedure should be used:
5000 SERIES
BASE ASSEMBLY
ADJUSTING NUT
FLUSH BALL
SPRING
CARTRIDGE
WATER VALVE ASSEMBLY
TOP VALVE CAP
FILTER SCREEN
WATER
VALVE
SCREWS
VALVE BODY
SHAFT
FLUSH PEDAL
BAND
CLAMP
BALL SEAL BOWL
SEAL
5000 SERIES BOWL, REAR VIEW
HOSE
CONNECTION
CHECK VALVE/
BOWL CONNECTION
1. Pump out holding tank.
2. Thoroughly ush system with fresh water.
3. Drain freshwater tank.
4. Add freshwater antifreeze to freshwater
tank.
5. Flush freshwater water antifreeze and water
mixture through toilet and into the waste
holding tank. Each installation is different,
so amounts may vary. User discretion is
required to assure adequate protection.
6. Empty holding tank.
Note
Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle
owner’s manual.)
Caution
Never use automotive-type antifreeze in freshwater systems.
7.7 Troubleshooting guide

11
VacuFlush Pedal-Flush Toilet Maintenance/Winterizing/Service
Problem Possible Cause Service Instruction
1. Water will not stay in bowl. a. Loose clamp ring.
b. Improper seal around ush ball
due to dirt or debris on ush ball
or under ush ball seal.
c. Worn or damaged seal.
d. Worn or damaged ush ball.
a. Tighten clamp ring adjusting nut.
b. Inspect ush ball for foreign
debris. Clean ush ball and
underside of seal if needed.
c. Replace seal.
d. Replace ush ball.
2. Plastic ush ball will not close
completely.
a. Too much friction between ush
ball and ball seal.
b. Water valve screws are too tight.
c. Defective spring cartridge.
a. Lubricate between ush ball and
ball seal with furniture polish or
cooking spray.
b. Loosen screws slightly.
c. Check spring tension by pushing
ush lever down, then release
it suddenly. If lever does not
snap back into position, replace
spring cartridge.
3. Flush ball will not open. a. Broken shaft.
b. Shaft not fully engaged in the
spring cartridge.
a. Replace shaft.
b. Put pressure on shaft from under
the ush ball (pushing into spring
cartridge) until it engages. You
may have to rotate ush ball
until shaft lines up with square in
spring cartridge.
4. Water does not shut off in toilet
(toilet overows).
a. Not enough clearance between
pedal and top of water valve
cap.
b. Dirt lodged in water valve seal.
a. Replace foot pedal (most
models) or adjust cam strap
so clearance is .06 in. (1.5 mm)
max (model 5006 only).
b. Disassemble, clean water valve.
5. Water does not enter toilet bowl
properly.
a. Insufcient water ow rate at
toilet.
b. Water valve clogged.
c. Plugged rim wash holes in toilet.
a. Check water ow rate at toilet.
Rate should be 2 gpm (7.6 lpm).
b. Remove and clean screen
located at inlet of water valve.
c. Clean holes. If still a problem,
replace the toilet bowl.
REMOVING PEDAL COVER
1. To gain access to water valve,
press tab on back of pedal to
release pedal cover.
2. Pull cover away from pedal. Cover
snaps back into place.
For short-base model 5006, remove
two screws holding pedal cover in
place (not shown).
REMOVING PEDESTAL COVER
3. For tall models, remove screw
located under ush pedal.
4. Unsnap bottom and pull cover
away from pedestal. Model and
serial number label is located on
base.
1
34
2

12
VacuFlush Pedal-Flush ToiletMaintenance/Winterizing/Service
Problem Possible Cause Service Instruction
6. Lifting foot pedal does not add
water to the bowl.
a. Too much clearance between
pedal and top of water valve
cap.
a. Replace foot pedal (most
models) or adjust cam strap
so clearance is .06 in. (1.5 mm)
max (model 5006 only).
7. Water leaking from water valve. a. Water valve body cracked due to
freeze damage.
b. Water line connection is loose or
not seated properly.
c. Defective water valve.
d. Stripped threads.
a. Replace water valve.
b. Insure that threads are not
cross-threaded and tighten.
c. Replace water valve.
d. Replace water valve.
8. Water leaking from rear of
toilet bowl.
a. Loose check valve or hose
clamps.
b. Cracked or defective toilet bowl.
a. Secure check valve
connections.
b. Replace toilet bowl.
9. Water is leaking from the base/
toilet connection.
a. Clamp ring may be loose.
b. Ball seals may be worn or
defective.
a. Remove pedestal cover (on
applicable models) and tighten
the clamp ring.
b. Replace ball seals.
10. Vacuum pump running too
often between ushes.
a. Water leaks out of bowl
between ush ball and ball seal.
b. Vacuum line leak.
a. Leave small amount of water
in bowl. If water is sucked from
bowl, see problems 1 and 2.
b. Tighten all connections at toilet,
vacuum generator or vacuum
holding tank (including hose
clamps and threaded spin nuts).
If leak persists, contact
Customer Service.
11. Vacuum pump will not
shut off.
a. A vacuum leak exists.
b. Insufcient vacuum (pump
creates less than 10 inches Hg).
c. Faulty vacuum switch (pump
creates more than 10 in. Hg).
d. Improper vacuum generator
wiring.
e. Bellows not pumping.
a. See problem 9b.
b. Isolate pump and use vacuum
gauge to check vacuum levels.
Could be a plugged discharge
line or worn duckbill valves.
c. Replace vacuum switch.
d. Refer to wiring diagram to check
for proper wiring.
e. Tighten set screw in eccentric to
motor shaft if needed. Check for
damage to bellows and motor
shaft. Replace if necessary.
12. Vacuum pump will not run. a. No electrical power.
b. Loose or broken electrical
wiring.
c. Improper electrical connections.
d. Faulty vacuum switch.
e. Faulty motor.
f. Shut-down relay prevents
pumping.
a. Check input power, circuit
breaker and fuse.
b. Tighten or reconnect wires at
vacuum pump and tank, vacuum
generator, or vacuum holding
tank.
c. Make certain wires at vacuum
switch are connected to the “B”
terminals.
d. To check vacuum switch, short
across “B” terminals with jumper
wire.
e. Replace motor.
f. Empty the holding tank.
PUMP SERVICE WARNINGS
WARNING –
ELECTRICAL SYSTEM
Turn off power before
servicing when power
isn’t required for test.
WARNING –
MOTOR STARTS
AUTOMATICALLY
Turn off power before
servicing.

13
VacuFlush Pedal-Flush Toilet Maintenance/Winterizing/Service
Problem Possible Cause Service Instruction
13. Vacuum pump is running too
slow, overheating, blowing fuses
or circuit breaker.
a. Gear motor is worn, defective.
b. Plugged vent line or vent lter.
c. Blockage in discharge line.
d. Improper wire size.
e. Improper voltage.
f. Vacuum pump bellows clogged
with tissue.
a. Check motor; replace if needed.
b. Disassemble and clean out vent
line. Replace vent lter if
necessary.
c. Disassemble and clean
discharge line. Be certain that in-
line valves (duckbill valves) and
seacock are in proper position.
d. Wire size too small. Check
electrical diagram for proper wire
size for voltage of pump.
e. Check input power for low
voltage.
f. Remove and clean bellows
assembly. (When ushing toilet,
using more water may alleviate
this problem.)
14. Toilet will not ush.
(No vacuum.)
See problem 15
if necessary.
a. Blockage exists in system.
b. Pump will not run.
c. Duckbill valves in vacuum pump
are inverted due to blocked
discharge line or an attempt
to pump out against closed
seacock.
a. Open ush ball, check 1-inch
(25 mm) orice at bottom of
base for blockage and dislodge
it. If blockage is not in base, it
may be found in:
• outlet of vacuum tank
• inlet of vacuum generator
• diptube of vacuum generator
• inlet of vacuum pump
b. See problem 12.
c. Replace duckbill valves, making
sure they point in the correct
direction.
15. Blockage between toilet and
vacuum generator.
a. Collapsed vacuum line.
b. Sharp bends or kinks in vacuum
hose.
c. Improper operation of toilet.
d. Foreign objects were ushed
down toilet.
a. Inspect vacuum line for
collapsed condition. Replace if
needed.
b. Inspect vacuum hose for kinks
or bends. If less than 8.5 inches
(216 mm) radius on any bend,
reposition hose to achieve mini-
mum 8.5-inch bend radius.
c. Make sure each person using
toilet knows correct procedure.
d. DO NOT ush non-dissolving
items (i.e. sanitary napkins,
facial tissue, wet strength tissue,
paper towels, etc.) or excessive
toilet tissue down toilet. Dometic
brand toilet tissue is best.
16. Pump emits odor. a. Loose or defective hose
connection on pump.
b. Loose intake or discharge
ttings on pump.
c. Worn, torn or punctured pump
bellows (vacuum generator) or
diaphragm (vacuum holding
tank).
a. Tighten connections or
replace hose and make new
connections.
b. Tighten intake or discharge
ttings on pump. Replace
nipples or adapters if necessary.
c. Replace pump bellows or
diaphragm.

14
VacuFlush Pedal-Flush ToiletWarranty
8 Warranty and product liability
North America and Rest of the World:
Manufacturer’s One-Year Limited Warranty
Dometic Corporation, Sanitation Division warrants to the original purchaser only that this product, if
used for personal, family or household purposes, is free from defects in material and workmanship
for a period of one year from the date of purchase.
If this Dometic product is placed in commercial or business use, it will be warranted to the original
purchaser only to be free of defects in material and workmanship for a period of ninety (90) days
from the date of purchase.
Dometic reserves the right to replace or repair any part of this product that proves, upon inspection
by Dometic, to be defective in material or workmanship. All labor and transportation costs or
charges incidental to warranty service are to be borne by the purchaser-user.
EXCLUSIONS
IN NO EVENT SHALL DOMETIC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES,
FOR DAMAGES RESULTING FROM IMPROPER INSTALLATION, OR FOR DAMAGES CAUSED BY
NEGLECT, ABUSE, ALTERATION OR USE OF UNAUTHORIZED COMPONENTS. ALL IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
ANY PARTICULAR PURPOSE, ARE LIMITED TO A PERIOD OF ONE YEAR FROM DATE OF
PURCHASE.
IMPLIED WARRANTIES
No person is authorized to change, add to, or create any warranty or obligation other than that
set forth herein. Implied warranties, including those of merchantability and tness for a particular
purpose, are limited to one (1) year from the date of purchase for products used for personal, family
or household purposes, and ninety (90) days from the date of purchase for products placed in
commercial or business use.
OTHER RIGHTS
Some states do not allow limitations on the duration of an implied warranty and some states do not
allow exclusions or limitations regarding incidental or consequential damages; so, the above limita-
tions may not apply to you. This warranty gives you specic legal rights, and you may have other
rights which vary from state to state.
To obtain warranty service, rst contact your local dealer from whom you purchased this product or
go to http://www.dometic.com for a dealer near you.

15
VacuFlush Pedal-Flush Toilet Warranty/Customer Service
Europe:
Warranty and Customer Service
Warranty arrangements are in accordance with EC Directive 44/1999/CE and the normal conditions
applicable for the country concerned. For warranty or other service, please contact our Dometic
Customer Service department. Any damage due to improper use is not covered by the warranty.
The warranty does not cover any modications to the product or the use of non-original Dometic
parts; the warranty does not apply if the installation and operating instructions are not adhered to
and no liability shall be entertained.
Product Liability
Product liability of Dometic Group and its subsidiary companies does not include damages which
may arise from: faulty operation; improper alterations or intervention in the equipment; adverse
effects from the environment which may impact the equipment itself or the direct vicinity of the
equipment or persons in the area.
To obtain warranty service, rst contact your local dealer from whom you purchased this product or
go to http://www.dometic.com for a dealer near you.
9 Customer service
There is a strong, worldwide network to assist in servicing and maintaining your toilet system.
For the Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET)
Monday through Friday.
You may also contact or have your local dealer contact the Parts Distributor nearest you for
quick response to your replacement parts needs. They carry a complete inventory for the Dometic
product line.
Telephone: [phone] U.S.A. and Canada
330-439-5550 International
Fax: [phone] U.S.A. and Canada
330-439-5567 International
Web sites: http://www.Dometic.com
http://www.DometicSanitation.com
Toilet model identification
The toilet model identication label is located on the toilet base and will show the model number and
serial number. For models 5006, 5009, 5047, 5048 and 5049, remove pedestal cover to locate
identication label (see page 11).

16
VacuFlush Pedal-Flush Toilet
REVISION A
Form No. 600345075 7/17
©2017 Dometic Corporation
Dometic Corporation, Sanitation Division
13128 State Rt. 226, P.O. Box 38
Big Prairie, OH 44611 USA
1-800-321-9886 • Fax: [phone]
www.Dometic.com
