Overview of your extraction system (front)
Overview of your extraction system (back)
Overview of the control panel
1
01
Unpacking and unit placement
3
01
Connecting to power supply
4
01
Turning extractor On / Adjusting Airflow
5
01
02
Important safety notice
Safety labels
2
01
02
Important safety notice
Safety labels
6
01
3D PrintPRO 4 Specifications
8
01
Consumables spares & Filter Disposal
7

Overview
1
01
1

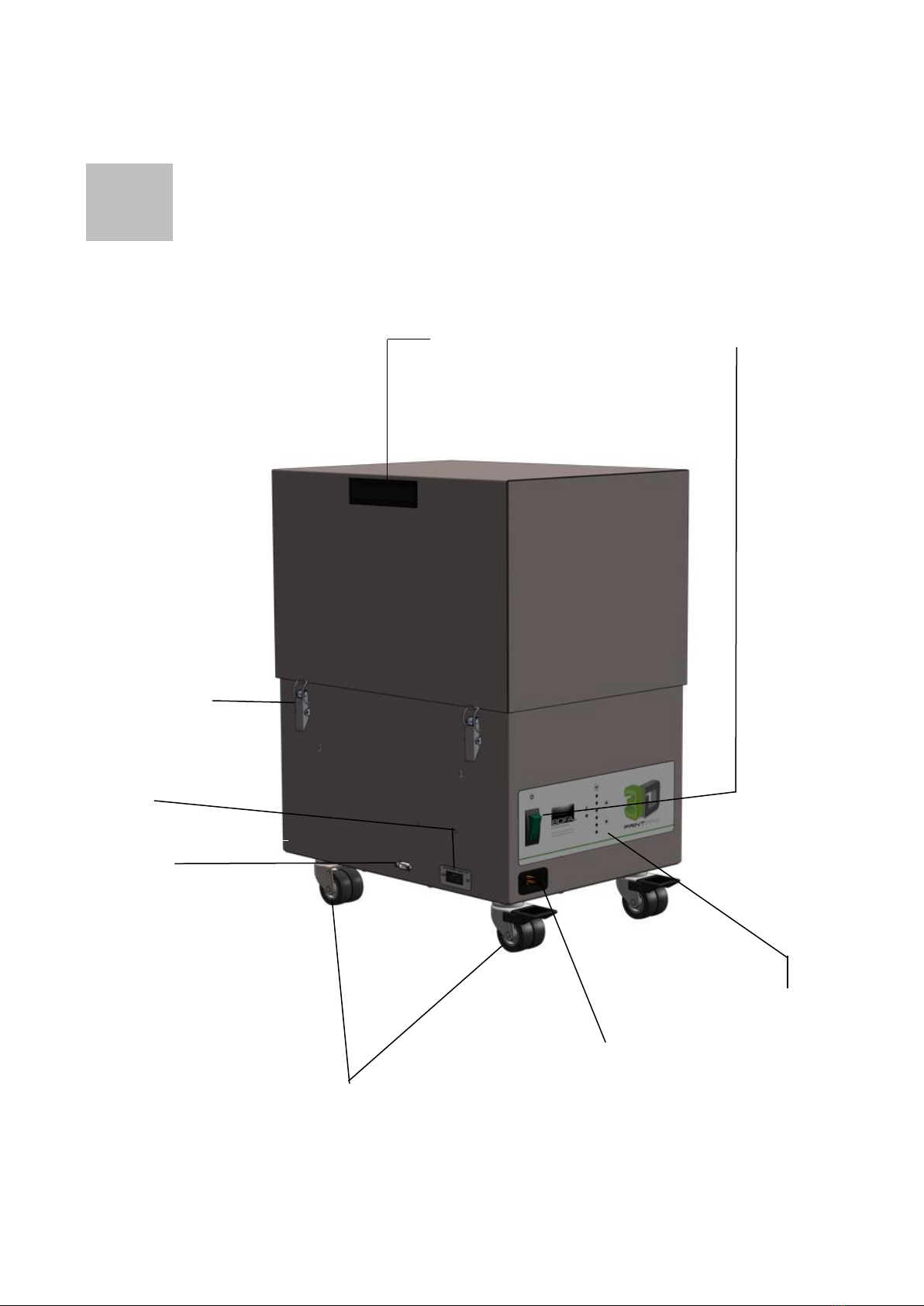

Mains Inlet
Lid Carry Handles
Lockable Castors
Mains Isolation
Switch
Control Panel
Clips
Signal override
switch
Signal cable
port

Overview
02
1
Air Inlet 75mm Port
Air Outlet

Overview
Flow
Adjustment
VOC Alarm
03
1
Main Isolation Switch

Safety Instructions
Important safety notes
Concerning symbols used on the extraction unit and referred
to within this manual.
Danger
Refers to an immediately impending danger. If the danger is
not avoided, it could result in death or severe (crippling)
injury. Please consult the manual when this symbol is
displayed.
Warning
Refers to a possibly dangerous situation. If not avoided it
could result in death or severe injury. Please consult the
manual when this symbol is displayed.
Caution
Refers to a possibly harmful situation. If not avoided,
damage could be caused to the product or something in its
environment.
Important (Refer to manual)
Refers to handling tip and other particularly useful
information. This does not signify a dangerous or harmful
situation. Refer to manual when this symbol is displayed.
Electrical Safety
The unit has been designed to meet the Essential Health
and Safety Requirements of the Machinery Directive
2006/42/EC.
Warning
When working with the pump/motor housing open, Live
230/115 volt mains components are accessible. Ensure that
the rules and regulations for work on live components are
always observed.
Important
To reduce the risk of fire, electric shock or injury:
1. Always isolate the system from the mains power
supply before removing the pump/motor access
panel.
2. Use only as described in this manual.
3. Connect the system to a properly grounded outlet.
Dangers to eyes, breathing and skin
Once used, the filters within the 3D PrintPro 4 system may
contain a mixture of particulates, some of which may be
sub-micron size. When the used filters are moved it may
agitate some of this particulate, which could get into the
breathing zone and eyes of the operative. Additionally,
depending on the materials being used, the particulate may
be an irritant to the skin.
This unit should not be used on processes with sparks of
flammable materials or with explosive dusts and gases,
without implementation of additional precautions.
Caution: When changing used filters always wear a mask,
safety shoes, goggles and gloves.
Carbon selection
Please note that the media within the filter fitted in the unit
is capable of adsorbing a wide range of organic compounds.
However, it is the responsibility of the user to ensure it is
suitable for the particular application it is being used on.
Intended use
This equipment has been designed to extract and filter fume
from a variety of applications. However it is the users
responsibility to ensure the equipment is installed correctly
and is suitable for the application.
This machine must not be used on wet applications or acidic
fumes.
BOFA Technical Service
If problems arises with your 3D PrintPro4 unit or if it displays
a fault code, please contact us:
•Visit our website at www.bofainternational.com for
on-line help.
•Or contact the helpline on [phone],
Mon-Fri, 9am-5pm.
Email: [email protected].uk
01
2

Safety Instructions
Warning and Information labels
The following listing details labels used on your unit.
Goggles, Gloves & Mask Label
Location: Front face of filter.
Meaning: Goggles, Gloves and Masks should be worn while
handling used filters.
Do Not Cover Label
Location: Bottom Panel
Meaning: Do not cover any louvers or holes adjacent to the
label.
Electrical Danger
Location: Back of unit close to the top and central.
Meaning: Removal of panels with this label attached will
allow access to potentially live components.
Warning Label
Location: Next to release clips.
Meaning: Power should be isolated before the panel with
this label attached is opened/ removed.
Serial Number
For future reference, fill in your system details in the space
provided. The serial number is on the rating label located on
the side/rear of the unit.
Serial Number:
Serial Number Label
Location: Side of Unit
Meaning: This label contains a variety of information about
the extraction unit, including.
•Company name, Address & Contact number
•Extractor model
•Unit serial number
•Operating voltage range
•Maximum current load
•Operating frequency
•Year of Manufacture
•Relevant approval markings/ logos
PLEASE NOTE: If the equipment is used in a manner not
specified by the manufacturer, the protection provided by
the equipment maybe compromised.
02
2

Before installation
Packaging Removal & Unit Placement
Before installation, check the extraction unit for damage.
All packaging must be removed before the unit is connected
to the power supply.
Please read all instructions in this manual before using
this extractor.
1. Move the unit to the location where it is going to be
installed and remove the outer packaging. This unit should
be installed in a well-ventilated area.
Ensure that 500 mm space is available around any vented
panels on the extractor to ensure adequate airflow.
Note: Do not use the two handles on the top of the lid to
carry the complete unit. These handles are intended for
lifting and transporting the unit lid only.
2. With the unit in position lock the 2 front castors.
3. Check the filter is located in its correct position before
replacing the lid and securing the clips
Caution
Due to the weight of the extractor suitable lifting equipment
should be used and with regard to appropriate safety
precautions. (See Appendix for product weight details)
Caution
Do not block or cover the cooling vents on the unit, as this
severely restricts airflow and may cause damage to the unit.
Caution
Under no circumstances should the exhaust outlet/s be
covered as this will restrict the airflow and cause
overheating.
3
01

Installation
Specification
Refer to section 08 01.
Connection to Power Supply
Please follow the above specification when selecting the
power supply outlet for the 3D PrintPro 4 system, ensure
the power supply is suitable before connecting the 3D
PrintPro 4 system.
Check the Integrity of the electrical power cable, if the
supply cord is damaged the extraction unit should not be
connected to the mains. The supply cord should only be
replaced by a BOFA engineer as an electrical safety test may
be required after replacement.
The system MUST be connected to a properly earthed
outlet.
If your 3D PrintPro 4 system was ordered with any
optional extras please read section 4.03 before the power
connection is made as additional connections
may be required before power is connected to
the extractor.
Connect the power cable to an isolated electrical
supply.
The mains socket should be installed near the extractor it
should be easily accessible and able to be switched On/ Off.
The cable run should be arranged so as not to create a trip
hazard.
01
4

Operation
Turning extraction unit On
Press the main isolation switch to the “On” position (Refer
to section 1 for switch location) by depressing the ‘I’ side of
the switch.
Setting the desired airflow
The extraction unit features manual flow control. This
enables the user to set the required airflow rate. Over time
as the filters begin to block the user should manually
increase the motor speed to ensure the correct flow is
maintained to compensate for any loss in performance
caused by the added restriction of the partially blocked
filters.
The extractor and all pipe work must be fully
installed and connected before the airflow is set.
To set the airflow
Press the Up arrow button to increase airflow and press the
down arrow button to decrease airflow. The level of airflow
is indicated by the vertical row of six blue LEDs to the right
of the mains isolation switch. As the airflow increases, more
blue LEDs light up and the opposite for decreasing the
airflow.
Increase Airflow
Decrease Airflow
01
5

Maintenance
Maintenance UK
It is a legal requirement, under regulation 9 of the COSHH
regulations that all local exhaust ventilation systems are
thoroughly examined and tested at least once every 14
months (typically carried out annually). The approved code
of practice recommends that a visual check should be
carried out at least once a week.
COSHH requires the annual inspection and testing to be
carried out by a competent person and specifies that
documentation results are recorded in a log.
Contact the seller for more information about inspection
and certification.
Maintenance General
User maintenance is limited to cleaning the unit and filter
replacement, only the manufacturers trained maintenance
technicians are authorised to carry out component testing
and replacement. Unauthorised work or the use of
unauthorised replacement filters may result in a potentially
dangerous situation and/or damage to the extractor unit
and will invalidate the manufacturer’s warranty.
Cleaning the unit
The powder coat finish can be cleaned with a damp cloth
and non-aggressive detergent, do not use an abrasive
cleaning product as this will damage the finish.
The cooling inlets and outlets should be cleaned once a year
to prevent build-up of dust and overheating of the unit.
Filter Information
A log of filter changes should be maintained by the user.
The filters require attention when the display shows the
configuration shown on the next page or when the extractor
no longer removes fume efficiently.
It is recommended that a spare set of filters are kept on site
to avoid prolonged unit unavailability. Part numbers for
replacement filters can be found on the filters fitted in your
system.
To prevent overheating, units should not be run with a
blocked filter condition, or with dust obstruction of Inlets /
Outlets.
01
6

Maintenance
Filter Replacement
Refer to section 2 02 for PPE requirements.

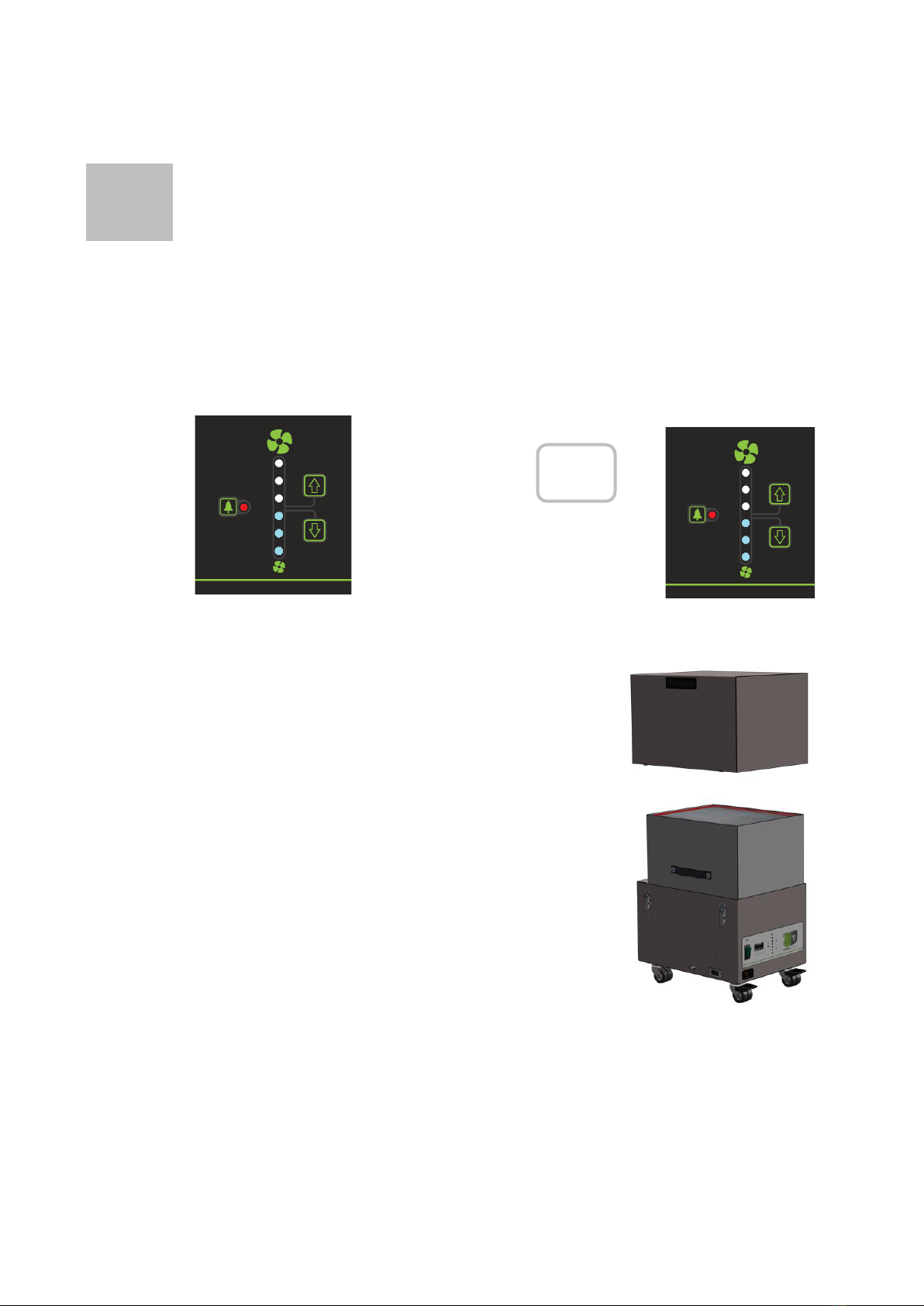

During use, the system will alert the user when its filter
needs replacing. When the filter needs to be changed, the
LED to the right of the bell symbol will flash red.
To remove and replace the filter follow the procedure
detailed below.
1. Isolate the electrical supply to the extractor
2. Undo the four clips on the sides of the unit and
remove the lid using the two handles on the top of
the lid.
3. Using the two strap handles on the sides of the
filter, lift the filter out of the unit. Once removed it is
recommend that the used filters are bagged and
sealed.
4. Lower the new filter into position.
Replace the lid, and fasten the four clips.
VOC option
The unit also has an option for a VOC (Volatile Organic
Compound) alarm option installed, the extractor will
monitor and detect the level of VOC particles in the air. If
the VOC level rises above a pre-set level then the LED to the
right of the bell symbol will flash red. This requires the
replacement of the filter.
Note: The filter MUST be fitted when the extractor is in
use.
VOC
Alarm
02
6

Remote Stop/Start feature
Enables the extraction unit to be remotely turned On / Off
via an external signal.
Note: Care must be taken to ensure that the system is
correctly wired in order for the extraction unit to function
correctly.
DC Voltage input
This configuration requires the Black & Red cores of the
signal cable (Refer to section 1for location) to be connected
to a known and tested DC power supply, in order to start the
extractor. The signal needs to be connected to a double
insulated DC power supply.
The operating voltage for this signal is 24VDC. Only this
voltage should be connected. Voltages connected outside of
this range may cause irreversible damage to the relay.
Red cable = V+
Black cable = V-
When the extractor is provided with the correct DC voltage
the motor will start and maintain the set flow rate (Refer to
section 5for how to set the flow) when the DC voltage is
removed the motor will slow down and come to a stop.
The extractor will need to be turned on (See section 5for
turning the extractor on) in order for this feature to operate.
Override
Enables the extractor to operate fully with or without either
DC voltage input or the Volt free input.
The override feature can be toggled On / Off by a switch
mounted on the internal motor access panel (see below for
switch location)
Switch in “On” position
In this position the extractor will require a start signal (either
Voltage input or Volt free, depending on the requested
specification) to enable the motor within the extraction unit.
Switch in “Off” position
In this position the extractor motor will run without the
requirement for an external start signal.
Filter Blocked / System Fail Signal
With this option the extraction system will output a signal to
alert the user when the extractor has failed or when the
filters are blocked.
This feature will not directly stop the extractor from running
correctly, but if fitted this feature should be terminated
correctly before power is applied to the extraction system.
Connection specification
This signal is available via the Green and White cores of the
signal cable. The system will provide a volt free Open /
Closed signal that can be connected to an external interface,
beacon or warning device following the specification below.
The signal needs to be connected to a double insulated DC
power supply.
•Maximum input voltage: 24V AC
•Maximum current load: 3A @ AC
OR
•Maximum input voltage: 24V DC
•Maximum input load: 3A @ DC
Filter Signal
When the filters become blocked or the system develops a
fault the connection between the Green & White cables will
become “Open”
When the extraction system is running normally the
connection between the Green & White cables will become
“Closed”

Replacement Parts
Consumable Spares
The extraction system contains a combined filter. These
should be replaced when instructed to do so by the 3D
PrintPro4 system (see section 6for replacing the filters)
To maintain performance it is important that the filters are
replaced with identical BOFA filters. To re-order please refer
to the Filter number printed on the filter installed in your
extraction unit.
Maintenance Protocol
Users can record changes in filter change intervals on the
table below.
Unit Serial Number:
Universal Combined Filter
Date
Engineer
Filter disposal
The Universal Combined filter is manufactured from non-
toxic materials. Filters are not re-usable, cleaning used
filters is not recommended. The method of disposal of the
used filters depends on the material deposited on them.
For your guidance
Deposit
EWC
Listing*
Comment
Non
Hazardous
15 02 03
Can be disposed of as non-
hazardous waste.
Hazardous
15 02 02M
The type of hazard needs to
be identified and the
associated risks defined.
The thresholds for these
risks can then be compared
with the amount of material
in the filters to see if they
fall into the hazardous
category, if so, the filters
will need to be disposed of
in line with the
local/national regulations.
*European Waste Catalogue
7
01

System Specifications
Unit: 3D PrintPro4
Capacity: 300m3/h
Weight: 51Kg (112.4lbs)
Motor: Centrifugal Fan
Output: 1100w
Electrical supply: 115-230V
Hertz: 50/60Hz
Full Load Current: 12.5A
No of phases: 1
Noise Level: Below 68dB (A)
(at typical operating speed)
Size:
Metric
(mm)
Imperial
(inches)
Height
625
24.6
Depth
475
18.7
Width
350
13.7
Filters:
Filter
Type
Surface area
Efficiency
Combined
Filter
0.13m2
99.997@
0.3micron
Environmental operating range:
Temperature: +5oC to + 40oC
Humidity: Max 80% RH up to 31oC
Max 50% RH at 40oC
Wiring schematic available upon request
Spares parts list available upon request
8
01

Contact Information
BOFA Headquarters
19-20 Balena Close
Creekmoor industrial Estate
Poole
Dorset
BH17 7DU
UK
Tel. [phone]
Email. [email protected]
German Office
Sudring 62
D-21465
Wentorf bei Hamburg
Germany
Tel. [phone]
Email. [email protected]
BOFA Americas, Inc
303 S.Madison Street
Staunton
Illnois
62088
USA
Tel. [phone]
Email. [email protected]

Local Exhaust Ventilation System - Inspection Record
Health & Safety at Work Act 1974 - Control of Substances Hazardous to Health - Regulation 9 (2002)
Thorough Examination and Testing of Local Exhaust Ventilation Systems
Company:
System Designation:
System
Installation Date:
Designated Person:
Inspection and Maintenance Schedules
1. Daily checks
2. Weekly inspection of process enclosure, extract offtake, hose/ducting
and extract/filtration unit.
3. Monthly inspection of process enclosure, extract offtake, hose/ducting
and extract/filtration unit.
4. Yearly inspection / testing
- 1 -

Process enclosure, extract offtake(s), hose/ducting and extract/filtration unit.
Inspection and Maintenance Record
1. Daily inspection
Inspection of the process to ensure extract devices/nozzles/enclosures/hoses are in place and correctly
positioned. Examination of the extractor to ensure it is running. This to be carried out by the operator. Daily
inspection not recorded.
2. Weekly Inspection
Weekly inspection by supervisor of physical condition of extract devices/nozzles/enclosures/hoses and
extraction unit for damage, change (parts added or removed) and correct operation etc. Check also that daily
inspections have been completed. Tick boxes to confirm system ok / change. Add details of any changes.
Report changes to Engineering Manager. Record any remedial actions taken.
Week
number
Date
System
ok
System
Change
Details of change / repairs etc
Initial
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

- 2 -
Process enclosure, extract offtake, hose/ducting and extract/filtration unit.
Inspection and Maintenance Record
2. Weekly Inspection . . . . Continued
Weekly inspection by supervisor of physical condition of extract devices/nozzles/enclosures/hoses and
extraction unit for damage, change (parts added or removed) and correct operation etc. Check also that daily
inspections have been completed. Tick boxes to confirm system ok / change. Add details of any changes.
Report changes to Engineering Manager. Record any remedial actions taken.
Week
number
Date
System
ok
System
Change
Details of change / repairs etc
Initial
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
- 3 -

Process enclosure, extract offtake, hose/ducting and extract/filtration unit.
Inspection and Maintenance Record
3. Monthly Inspection
In addition to weekly checks. Disconnect hoses and check for blockage and smooth operation of fan, signs
of dust or vapour / gas / odour carry over. Tick boxes to confirm system ok / change. Add details of any
changes. Report changes to Engineering Manager. Record any remedial actions taken.
Month
number
Date
System
ok
System
Change
Details of change / repairs etc
Initial
1
2
3
4
5
6
7
8
9
10
11
12
4. Yearly Inspection
Annual service
To include all regular checks together with inspection
of filter condition and replacement where necessary,
motor and electrical checks,
Comments
Signature of Supervisor:
Date:
Annual Thorough Inspection and Testing of LEV
System in accordance with C.O.S.H.H. Regulation 9
(max interval 14 months) including reporting.
Comments
Signature of Supervisor:
Date:
