Donaldson Bofa V 1000 iQ User manual

VER 3.0 –01/2020
V 1000 iQ
USER MANUAL

Contents
01
02
03
Overview of your iQ extraction system (front)
Overview of your iQ extraction system (back)
Overview of LCD display
1
01
Unpacking and unit placement
3
01
02
Fume capture methods
Connecting to power supply
03
04
Optional added features
Optional added features (cont’d)
05
Optional added features (cont’d)
4
01
02
Turning extractor on / changing display units
Setting the airflow
03
Airflow auto adjust (first installation only)
5
01
02
Important safety notes
Safety labels
2
01
02
Cleaning the unit / Pre filter replacement
Combined filter replacement
6
01
iQ display features / visual alarms
Visual alarms (cont’d)
7
02
01
Fault indication / error codes
8
01
Consumables spares / filter disposal
9
01
V1000 iQ specifications
10
03
USB connectivity / USB upload
04
USB download
05
Information collected by USB

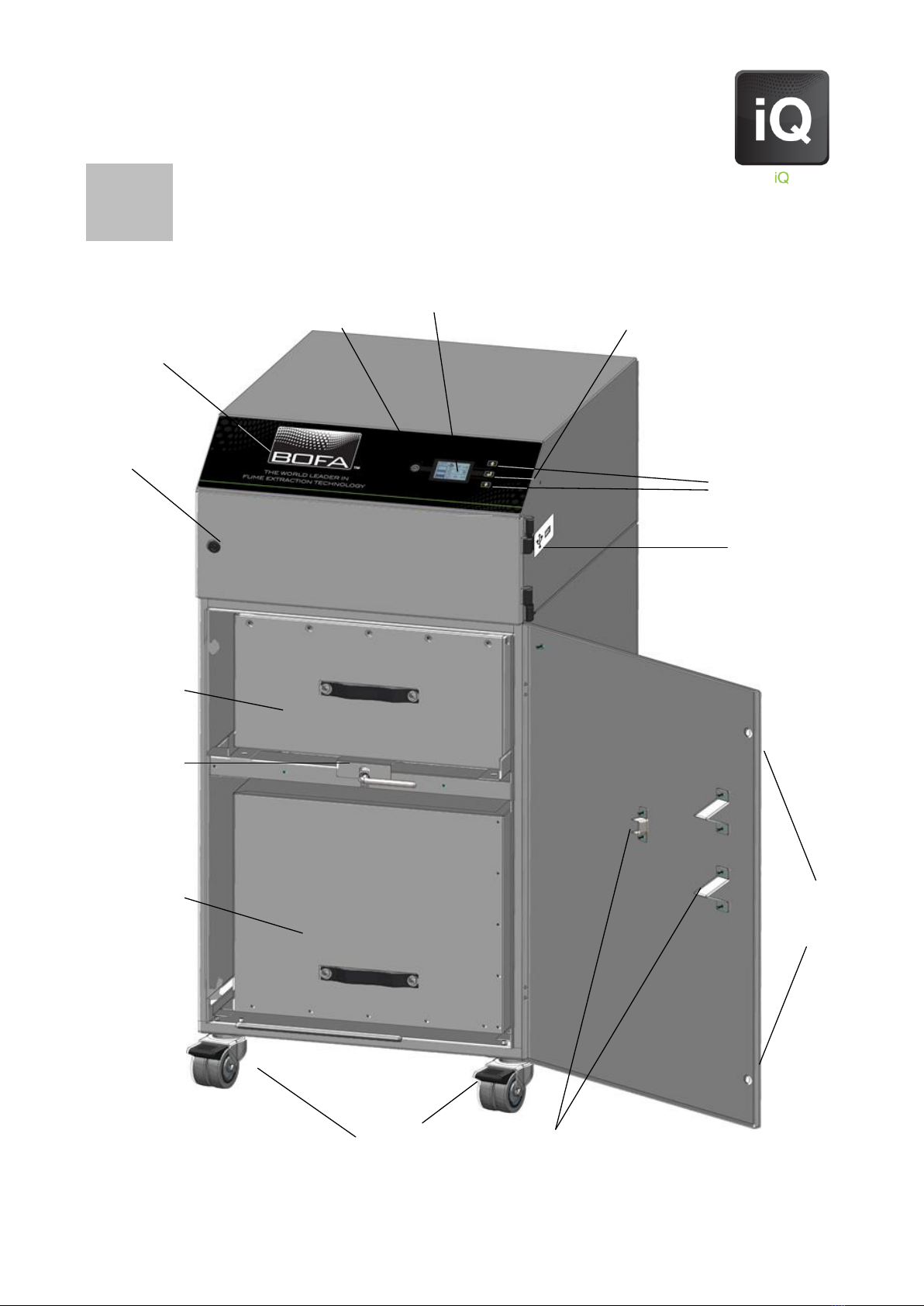

Overview
Company Branding
Standby Button LCD Display Return “enter”
Button
Up / Down
Buttons
Door Latches
Lever/ Filter Location
Brackets
Lockable Castors
Pre Filter
Combined Filter
Lever
Combined Filter
USB Port
Locking Latch
01
1

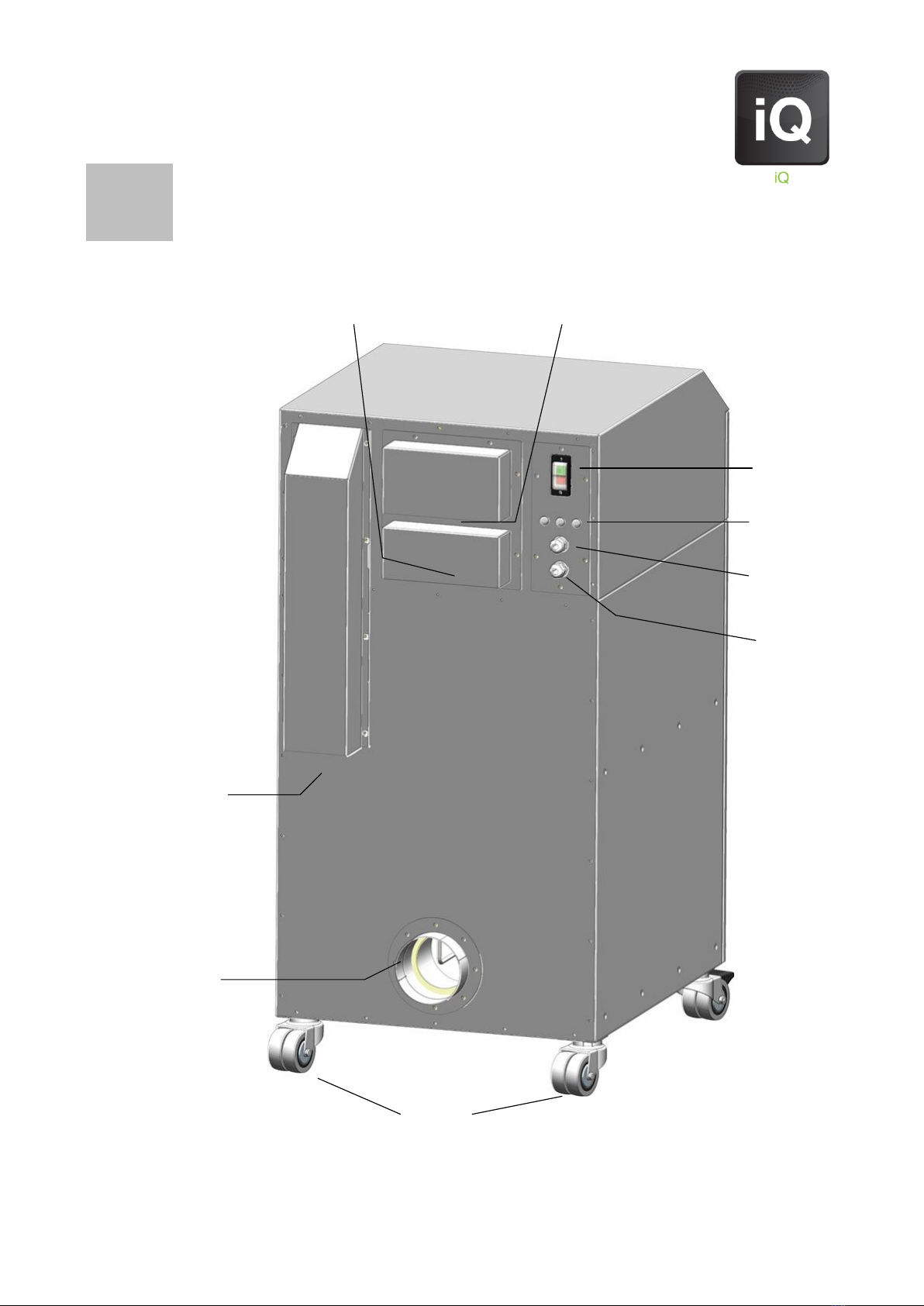

Overview
Exhaust outlet
Mains Inlet
Signal Cable
(optional)
Mains On/Off
Switch
Motor Cooling Inlet
Motor Cooling
Outlet
Unit Inlet
Castors
Motor Cut
Out Trips
02
1

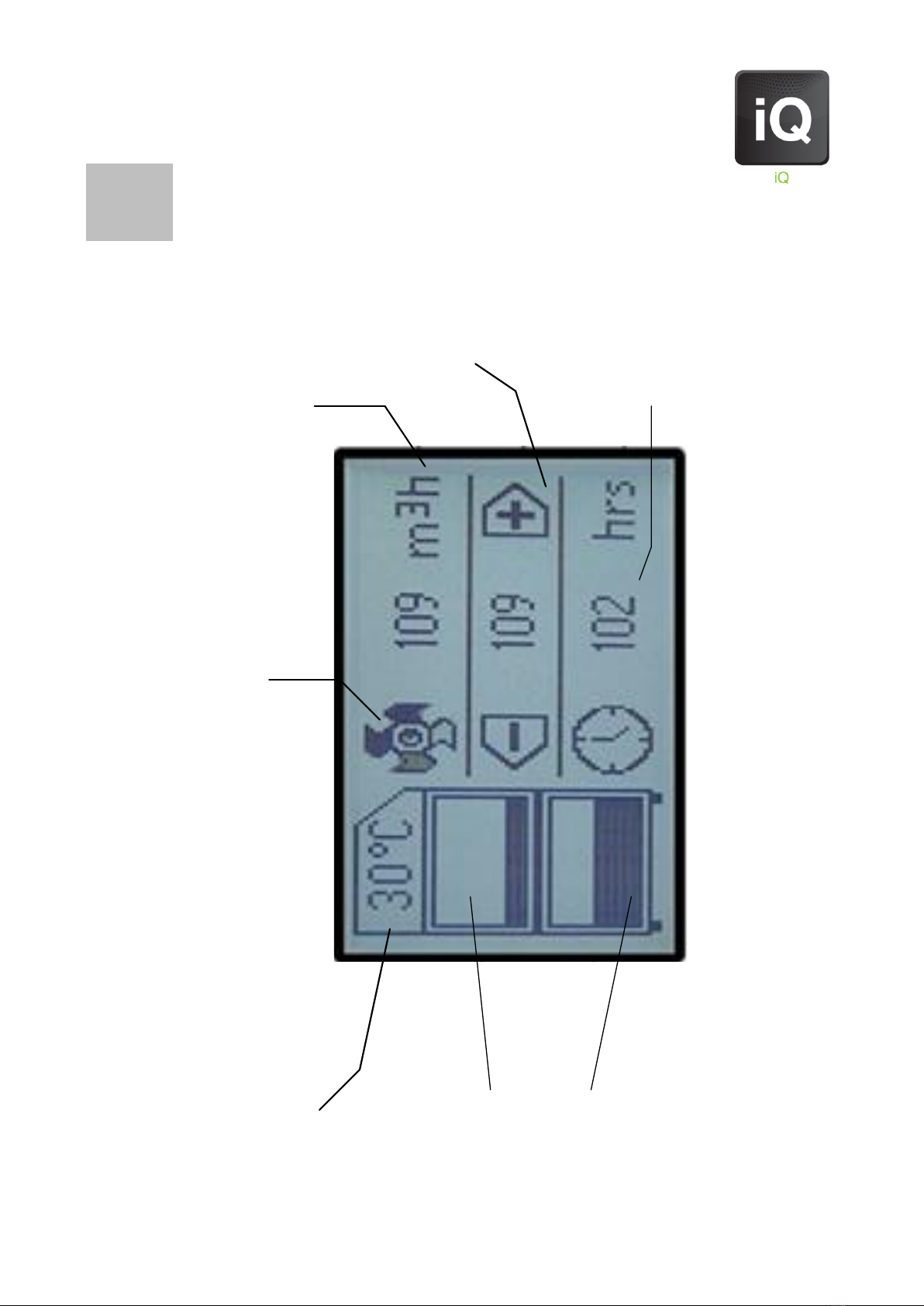

Real time pre filter
condition
Real time Combined filter
condition
Internal unit temperature 0C / 0F
Motor run hours/
Alarm window
Motor Set Point
Actual airflow in
CFM or m3/h
Motor status icon
Overview
03
1

Safety Instructions
Important safety notes
Concerning symbols used on the extraction unit and referred
to within this manual.
Danger
Refers to an immediately impending danger. If the danger is
not avoided, it could result in death or severe (crippling)
injury. Please consult the manual when this symbol is
displayed.
Warning
Refers to a possibly dangerous situation. If not avoided it
could result in death or severe injury. Please consult the
manual when this symbol is displayed.
Caution
Refers to a possibly harmful situation. If not avoided,
damage could be caused to the product or something in its
environment.
Important (Refer to manual)
Refers to handling tip and other particularly useful
information. This does not signify a dangerous or harmful
situation. Refer to manual when this symbol is displayed.
Electrical Safety
The unit has been designed to meet the Essential Health
and Safety Requirements of the Machinery Directive
2006/42/EC.
Warning
When working with the pump/motor housing open, Live
230/115 volt mains components are accessible. Ensure that
the rules and regulations for work on live components are
always observed.
Important
To reduce the risk of fire, electric shock or injury:
1. Always isolate the system from the mains power
supply before removing the pump/motor access
panel.
2. Use only as described in this manual.
3. Connect the system to a properly grounded outlet.
Dangers to eyes, breathing and skin
Once used, the filters within the iQ extraction system may
contain a mixture of particulates, some of which may be
sub-micron size. When the used filters are moved it may
agitate some of this particulate, which could get into the
breathing zone and eyes of the operative. Additionally,
depending on the materials being processed, the particulate
may be an irritant to the skin.
This unit should not be used on processes with sparks of
flammable materials or with explosive dusts and gases,
without implementation of additional precautions.
Caution: When changing used filters always wear a mask,
safety shoes, goggles and gloves.
Carbon selection
Please note that the media within the gas filter fitted in the
extractor is capable of adsorbing a wide range of organic
compounds. However, it is the responsibility of the user to
ensure it is suitable for the particular application it is being
used on.
Intended use
This equipment has been designed to extract and filter fume
from a variety of applications. However it is the users
responsibility to ensure the equipment is installed correctly
and is suitable for the application.
This machine must not be used on wet applications or acidic
fumes.
BOFA Technical Service
If a problem arises with your iQ extraction system, or if it
displays a fault code, please refer to the troubleshooting
guide section 8of this manual. If the problem is still not
resolved, please:
•Visit our website at
www.bofainternational.com for on-line help.
•Or contact the helpline on [phone]
444, Mon-Fri, 9am-5pm.
Email: [email protected].uk
01
2

Warning and Information labels
The following listing details labels used on your iQ
extraction unit.
Goggles, Gloves & Mask Label
Location: Front face of both filters
Meaning: Goggles, Gloves and Masks should be worn while
handling used filters.
Do Not Cover Label
Location: Rear lower access panel and Right side of unit
below sensor port.
Meaning: Do not cover any louvers or holes adjacent to the
label.
Electrical Danger
Location: Rear upper & lower access Panels and top door/
motor access panel.
Meaning: Removal of panels with this label attached will
allow access to potentially live components.
Warning Label
Location: Top left front door panel.
Meaning: Power should be isolated before the panel with
this label attached is opened/ removed.
Serial Number
For future reference, fill in your iQ system details in the
space provided. The serial number is on the rating label
located on the side/rear of the unit.
Serial Number:
Serial Number Label
Location: Rear of unit, next to mains cable.
Meaning: This label contains a variety of information about
the extraction unit, including.
•Company name, Address & Contact number
•Extractor model
•Unit serial number
•Operating voltage range
•Maximum current load
•Operating frequency
•Year of Manufacture
•Relevant approval markings/ logos
PLEASE NOTE: If the equipment is used in a manner not
specified by the manufacturer, the protection provided by
the equipment maybe compromised.
Fire Risk Warning
In the very rare event that a burning ember or spark is drawn into
the fume extraction unit, it may be possible that the filters will
ignite.
Whilst any resultant fire would typically be retained within the
fume extraction unit, the damage to the extractor could be
significant.
It is therefore essential to minimise the possibility of this occurring
by undertaking an appropriate Risk assessment to determine:-
a). Whether additional fire protection equipment should be
installed.
b). Appropriate maintenance procedures to prevent the risk of
build-up of debris which could potentially combust.
02
2

This unit should not be used on processes where sparks could
occur, with explosive dusts and gases, or with particulates which
can be pyrophoric (can spontaneously ignite), without
implementation of additional precautions
It is essential that nozzles or other extraction/ fume capture
devices and hoses/pipework are cleaned regularly to prevent the
build-up of potentially ignitable debris

Before Installation
Inner transit packaging removal & unit placement
Before installation, check the extraction unit for damage.
All packaging must be removed before the unit is connected
to the power supply.
Please read all instructions in this manual before using
this extractor.
1. Move the unit to the location where it is going to be
installed and remove the outer packaging. This unit
should be installed in a well-ventilated area.
2. Open the front door and remove the transit foam
from the centre of the unit.
Caution
Due to the weight of the extractor suitable lifting equipment
should be used and with regard to appropriate safety
precautions. (See Appendix for product weight details)
Ensure that 500 mm space is available around any vented
panels on the extractor to ensure adequate airflow.
3. With the unit in position lock the 2 front castors.
Caution
Do not block or cover the cooling vents on the unit,
as this severely restricts airflow and may cause
damage to the unit.
Caution
Under no circumstances should the exhaust
outlet/s be covered as this will restrict the airflow
and cause overheating.
4. Check the filters are located in their correct position
before closing the door and securing the door latches.
Note: The door will not close fully if the Combined filter
has not been secured in place using the internal lever. (As
detailed below)
Unlocked Position
Locked Position
01
3

Installation
The iQ extraction unit has been designed to remove and
filter fume containing potentially hazardous particulate and
gases generated during manufacturing processes. Such
hazardous substances are captured within a multistage
filtration system after which the cleaned air is returned to
the workplace.

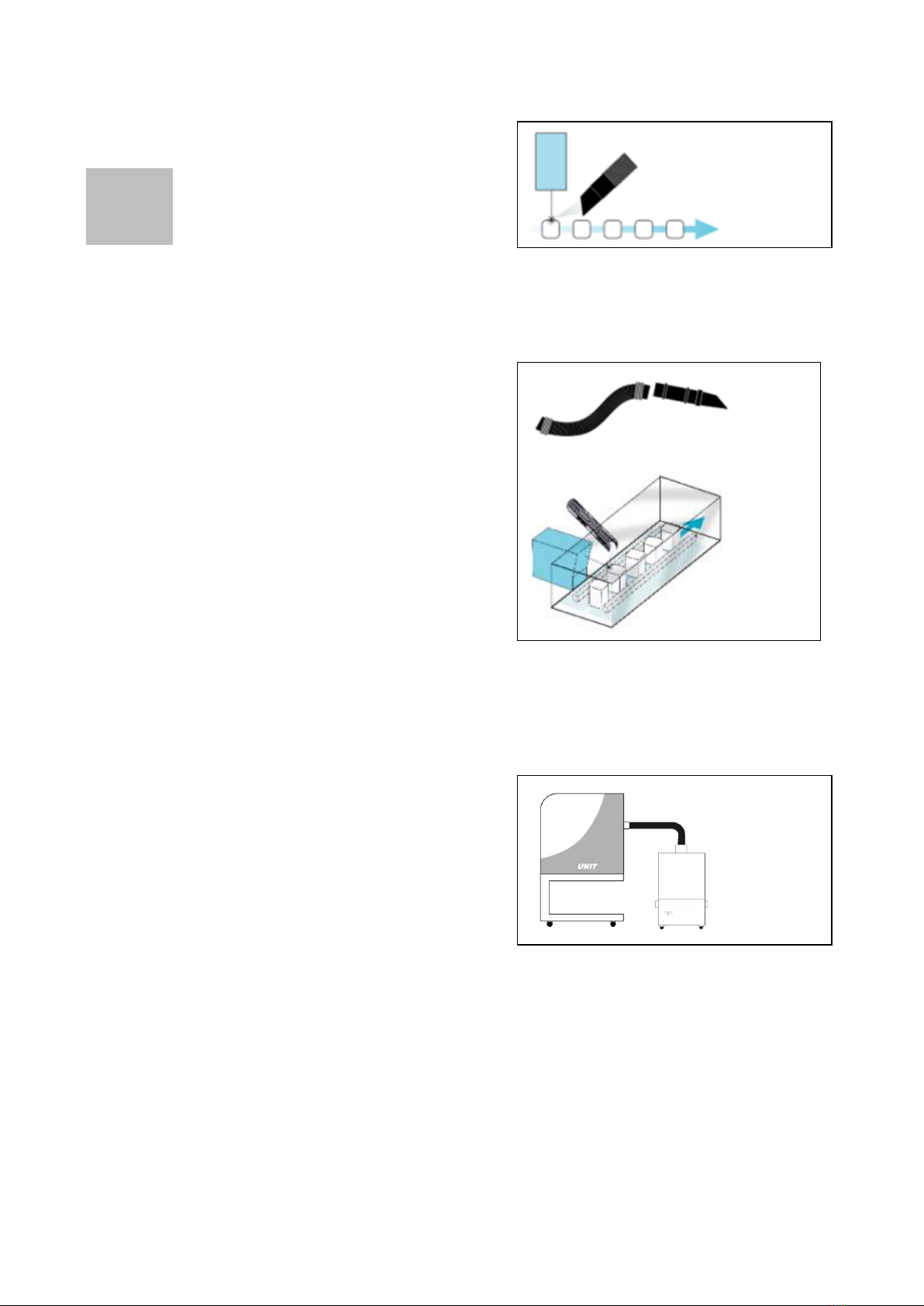

Fume Capture Methods
The fume is normally captured by 1 of 3 methods.
•Flexible arm/ Nozzle
•Enclosures
•Cabinets
General Guidelines for a successful installation
•Keep duct run length to a minimum
•Avoid sharp bends / turns in the ductwork
•Avoid multiple bends / turns in the ductwork
•Use a larger diameter duct where able
•Position the capture device as close as possible to
the marking point. (if used on high speed lines,
position the capture device slightly downstream)
Flexible Arm & Nozzle Extraction
The stay put arm should be mounted as close as possible to
the marking point using the horseshoe clips. Unscrew the
push fit connector from the other side of the flexible hose.
Cut the flexible hose to suit the distance back to the
extractor connection and push onto the extractor inlet.
Purge air should be kept to a minimum, where possible, to
prevent the fume being blown away from the nozzle.
High speed bottling lines may need bigger scoops or nozzles
both sides of the bottles because of the turbulence caused
by the speed of the bottles.
Moving products
For applications where the product to be marked is moving
past the stationary Process the capture nozzle should be
positioned as close as possible to the working area on the
side the product is moving towards.
Enclosures
The extraction hose and nozzle can be attached to the
enclosure surrounding the marking zone provided that the
extraction point is within 50-75mm of the marking point.
Cabinets
Cabinets normally have a 75mm 0r 100mm spigot for fume
extraction. For best performance use the same diameter
hose as the spigot and reduce at the extractor end if
necessary. Keep the hose run as short as possible.
Connection to extraction unit
All ductwork should be installed and connected to the
extraction unit before the iQ system is turned on.
Exhausting filtered air outside
If requested your iQ extraction unit will have been fitted
with an exhaust outlet spigot. This provides a connection
point for exhaust pipework to be fitted. It is important to
keep any ducting to a minimum, in order to reduce back
pressure within the system.
01
4

Installation
#
Specification
Refer to section 10 01.
Connection to Power Supply
Please follow the above specification when selecting the
power supply outlet for the iQ system, ensure the power
supply is suitable before connecting the iQ system.
Check the Integrity of the electrical power cable, if the
supply cord is damaged the extraction unit should not be
connected to the mains. The supply cord should only be
replaced by a BOFA engineer as an electrical safety test may
be required after replacement.
The iQ system MUST be connected to a properly
earthed outlet.
If your iQ system was ordered with any optional
extras please read section 4.03 before the power
connection is made as additional connections may be
required before power is connected to the extractor.
Connect the power cable to an isolated electrical supply.
The mains socket should be installed near the extractor it
should be easily accessible and able to be switched On/ Off.
The cable run should be arranged so as not to create a trip
hazard.
This equipment shall be mounted in accordance with local
regulation.
Please note –this instruction is for 115V only.
Connecting to supply
Please use table below to connect to mains supply
Cable identifier
Function/ connection to
1
Live
2
Neutral
Green/Yellow
Earth
BOFA recommend that the extraction unit is connected to a
breaker suitable for a 19.5A device. It is also recommended
that the isolation device is located next to the extractor. The
protective conductor shall be mounted close to the mains
supply terminals.
Disconnecting device
This equipment must be connected to a circuit breaker, the
circuit breaker must be easily reached and must be marked
as the disconnecting device for the extractor.
02
4

Installation
#
Optional added features
The extractor can be configured to suit customer
specification. These optional extras would be discussed,
arranged and installed prior to delivery.
(If unsure what features your iQ system is equipped with
please contact the seller with the unit serial number,
(Refer to section 2for location) who will be able to advise
what specification has been supplied.
Remote Stop/Start feature
Enables the extraction unit to be remotely turned On / Off
via an external signal.
This feature can be configured in 3 ways
•DC Voltage input –Range 12-24VDC
•Volt free input –Open / Closed contacts
•Override –Stop / Start feature switched off
Note: Care must be taken to ensure that the system is
correctly wired in order for the extraction unit to function
correctly.
DC Voltage input
This configuration requires the Black & Red cores of the
signal cable (Refer to section 1 for location) to be connected
to a known and tested DC power supply, in order to start the
extractor.
The operating voltage for this signal is between 12 &
24VDC. Only voltages within this range should be
connected. Voltages connected outside of this range may
cause irreversible damage to the internal control PCB.
Red cable = V+
Black cable = V-
When the extractor is provided with the correct DC voltage
the motor will start and maintain the set flow rate (Refer to
section 5for how to set the flow) when the DC voltage is
removed the motor will slow down and come to a stop.
The extractor will need to be turned on and be out of
standby mode (See section 5 for turning the extractor on) in
order for this feature to operate.
Volt free input
This configuration requires the Black & Red cores of the
signal cable (see section 1 for location) to be connected
together, in order to start the extractor. The cables should
be connected to a clean switching device.
When the 2 cables are connected together the motor will
start and maintain the set flow rate (see section 5for how to
set the flow)
when the 2 cables are disconnected the motor will slow
down and come to a stop.
The extractor will need to be turned on and be out of
standby mode (See section 5 for turning the extractor on) in
order for this feature to operate.
Override
Enables the extractor to operate fully with or without either
DC voltage input or the Volt free input.
The override feature can be toggled On / Off by a switch
mounted on the internal motor access panel (see below for
switch location)
Switch in “On” position
In this position the extractor will require a start signal (either
Voltage input or Volt free, depending on the requested
specification) to enable the motor within the extraction unit.
Switch in “Off” position
In this position the extractor motor will run without the
requirement for an external start signal. This feature is
useful for engineers carrying out works/ tests on the
extractor without the need for the laser / auxiliary signal
being present.
The power supply unit which is used to provide the 12-
24VDC start stop voltage signal must be protected by
double insulation from mains voltage.
ON OFF
24V Stop Start Function
03
4

Installation
#
Filter Blocked / System Fail Signal
With this option the iQ system will output a signal to alert
the user when the extractor has failed or when the filters are
blocked.
This feature will not directly stop the extractor from running
correctly, but if fitted this feature should be terminated
correctly before power is applied to the iQ system.
Connection specification
This signal is available via the Green and White cores of the
signal cable. The iQ system will provide a volt free Open /
Closed signal that can be connected to an external interface,
beacon or warning device following the specification below.
•Maximum input voltage: 24V AC
•Maximum current load: 3A @ AC
OR
•Maximum input voltage: 24V DC
•Maximum input load: 3A @ DC
Filter Signal Configurations
There are 3 ways this signal can be configured, as detailed
below.
•Combined signal (standard specification)
•Separated signal
•Reversed separated signal
Combined signal
With this configuration the Filter blocked & System fail
signals will be linked together to give a combined single
output.
When the filters become blocked or the iQ system develops
a fault (Refer to section 8 for Troubleshooting & Error
codes) the connection between the Green & White cables
will become “Open”
When the extraction system is running normally the
connection between the Green & White cables will become
“Closed”
Separated Signal
With this configuration the Filter blocked & System fail
signals will be separated to give 2 individual signals.
When the filters become blocked the connection between
the Green & White cables will become “Open”
If the iQ system develops a fault (Refer to section 8 for
Troubleshooting & Error codes) the connection between the
Blue & Yellow cables will become “Open”
When the extraction system is running normally the
connection between the (Green / White) & (Blue / Yellow)
cables will become “Closed”
Reversed Separated Signal
With this configuration the cable function will remain the
same as the Separated signal option, but the signal given
will be reversed.
For blocked filters the connection between the cable cores
will be “Closed”
For iQ system faults the connection between the cable cores
will be “Closed”
For system OK the connection between the cable cores will
be “Open”
Combined Signal
Separated Signal
EXTRACTOR
UNIT
Open/Closed circuit
given on condition of
filters/Unit
EXTRACTOR
UNIT
Open/Closed circuit given
on condition of filters
Open/Closed circuit given
on condition of Unit
04
4

Operation
#
Turning extraction unit On
There are 2 stages to powering up your iQ extraction unit.
Firstly the main isolation switch must be switched to the
“On” position (Refer to section 1 for switch location) by
depressing the Green side / (I) of the switch.
This will place the extraction unit in Standby mode,
indicated by the front panel power button glowing Red.
If the extractor has a powder coated finish then the top side
of the switch should be depressed to power the unit.
To start the extraction unit press the front panel power
button (refer to section 1 for switch location) the button will
change from Red to Green indicating the extraction unit is
now fully On.
It is recommended that the rear isolation switch is left in the
On position and the front standby switch is used to toggle
the extractor On / Off.
Changing the display units
The Airflow and temperature readings can be displayed in 2
ways.
1. Temperature displayed as oC
Airflow displayed as m3/h
OR
2. Temperature displayed as oF
Airflow displayed as CFM
The display value can be changed by pressing the “Enter”
button once.
1)
2)
Powder Coated
Stainless Steel
Standby
On
01
5

Operation
#
Setting the desired Motor Speed
The iQ system features automatic flow control. This enables
the user to set the required airflow rate, then over time as
the filters begin to block the motor will automatically begin
to increase in speed to compensate for any loss in
performance caused by the added restriction of the partially
blocked filters.
The extractor and all pipe work must be fully
installed and connected before the airflow is set.

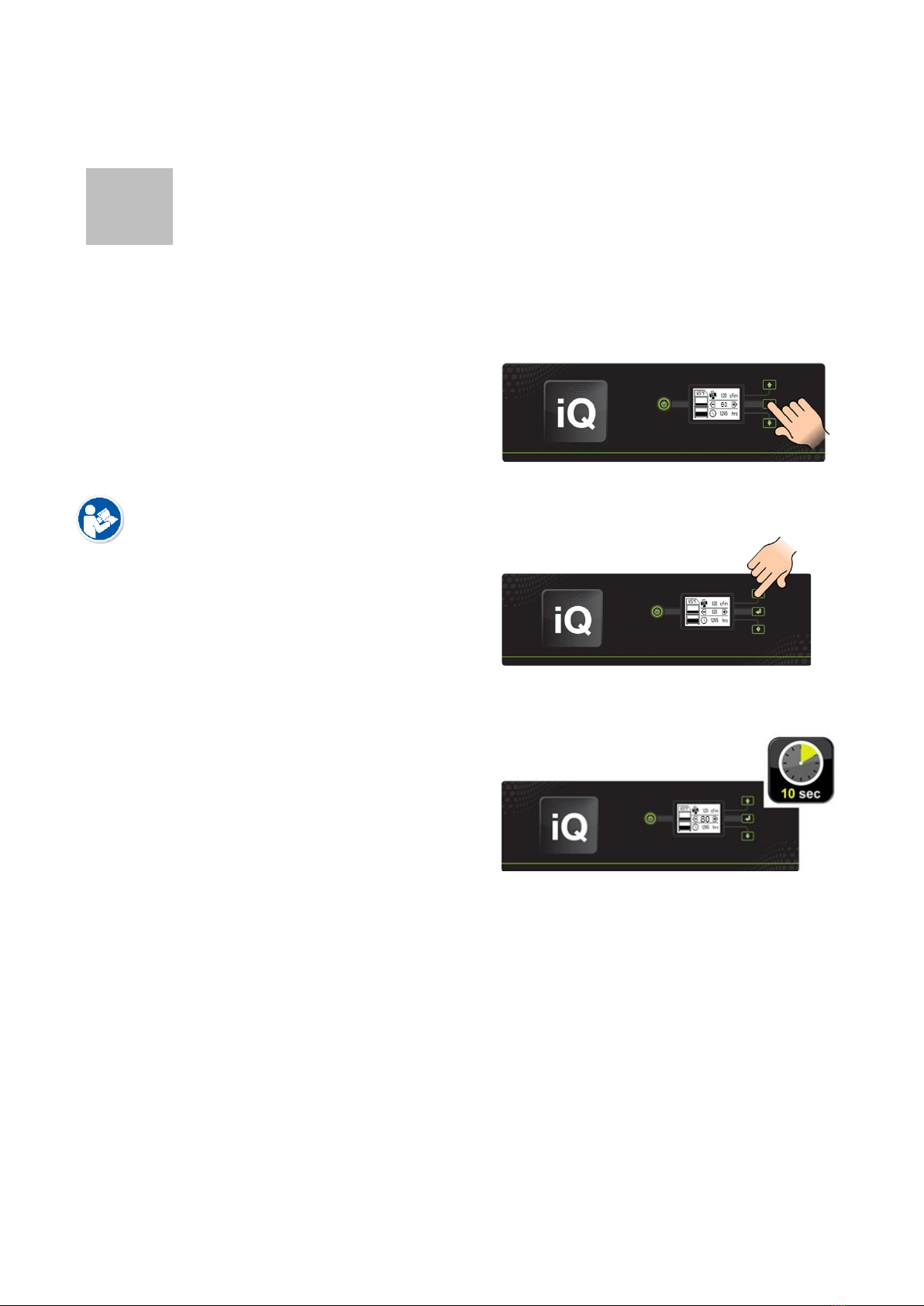

To set the airflow
(The motor speed can be set between 1-100%)
1. Press and hold the “Enter” (middle) button (Refer
to section 1 for button location) for 3 seconds, or
until all 3 button lights flash green.
2. Release the Enter button, the iQ system is now in
set mode. Press either the Up or Down button to
adjust the airflow accordingly.
Real time airflow is displayed on the LCD screen,
Refer to section 1 for Display information)
3. Once you have your desired airflow, leave the
controls, after around 10seconds the flashing
buttons will illuminate constantly to confirm the
airflow is stored.
The set airflow will now be maintained throughout the life
of the filters. When the extraction unit can no longer
maintain the set airflow an alarm will be given and the
display will indicate which filter should be changed.
For multi-arm systems, the iQ unit will automatically
increase/decrease the motor speed as extraction points are
installed or removed to maintain the same flow through
each extraction point.
1)
2)
3)
02
5

Maintenance
#
Maintenance UK
It is a legal requirement, under regulation 9 of the COSHH
regulations that all local exhaust ventilation systems are
thoroughly examined and tested at least once every 14
months (typically carried out annually). The approved code
of practice recommends that a visual check should be
carried out at least once a week.
COSHH requires the annual inspection and testing to be
carried out by a competent person and specifies that
documentation results are recorded in a log.
Contact the seller for more information about inspection
and certification.
Maintenance General
User maintenance is limited to cleaning the unit and filter
replacement, only the manufacturers trained maintenance
technicians are authorised to carry out component testing
and replacement. Unauthorised work or the use of
unauthorised replacement filters may result in a potentially
dangerous situation and/or damage to the extractor unit
and will invalidate the manufacturer’s warranty.
Cleaning the unit
The stainless steel units should be cleaned with a
proprietary stainless steel cleaner, in accordance with the
manufacturer’s user instructions
The powder coat finished units can be cleaned with a damp
cloth and non-aggressive detergent, do not use an abrasive
cleaning product as this will damage the finish.
The cooling inlets and outlets should be cleaned once a year
to prevent build-up of dust and overheating of the unit.
Replacing Filters
The iQ system constantly monitors the condition of the
individual filters. As the filters block the LCD display will
show the relevant filter symbol filling up. (see section 1 for
LCD details) Each filter symbol fills up in 5% increments,
when the filter icon is filled that particular filter will need
replacing.
Pre Filter blocking Combined Filter Blocking
A log of the changes should be maintained by the user.
The filters require attention when the display shows the
filter blocked icon/ filter output signal (if fitted) or when the
extractor no longer removes fume efficiently.
It is recommended that a spare set of filters are kept on site
to avoid prolonged unit unavailability. Part numbers for
replacement filters can be found on the filters fitted in your
system.
To prevent overheating, units should not be run with a
blocked filter condition, or with dust obstruction of Inlets /
Outlets.
75% filter blocked indication
When the filters become 75% blocked the buttons on the
front of the extraction unit will turn from Green to Amber
and if fitted the iQ system will output a signal to indicate
this. At this time it is recommended spare filters are
available as a change may be needed shortly.
TIME
01
6

Maintenance
#
Pre Filter Replacement
Refer to section 2 02 for PPE requirements.
The Pre filter needs replacing when the display flashes
between the 2 images shown below, at this point the
buttons will glow Red and if fitted the filter blocked signal
will be given.
To remove and replace the Pre filter follow the procedure
detailed below.
1. Isolate the electrical supply to the extractor
2. Undo the catches on the front of the unit and open
the door.
3. The Pre filter is the lower of the 2 filters (refer to
section 1 for filter location) using the handle on the
front of the filter, pull it out of the unit.
4. Once removed it is recommend that the used filters
are bagged and sealed.
5. Slide the new filter into position making sure it is
pushed all the way in and is located correctly on the
spigot in the back of the unit.
6. Close the door and fasten the 2 latches.
Combined Filter Replacement
The Combined filter needs replacing when the display
flashes between the 2 images shown below, at this point the
buttons will glow Red and if fitted the filter blocked signal
will be given.
To remove and replace the Combined filter follow the
procedure detailed below.
Warning
The combined filter is very heavy (Over 40Kgs) therefore
the procedure below must be carried out by 2 people lifting
together.
1. Isolate the electrical supply to the extractor
2. Undo the catches on the front of the unit and open
the door.
3. The Combined filter is the higher of the 2 filters
(refer to section 1 for filter location) rotate the lever
below the filter through 180oto lower the
combined filter.
4. Using the handle on the front of the filter, pull it out
of the unit being careful to support it as it comes
free as it is heavy.
5. Once removed it is recommend that the used filters
are bagged and sealed.
6. Slide the new filter into position making sure it is
pushed in all the way.
7. Rotate the lever back through 1800to raise the
filter into position.
8. Close the door and fasten the 2 latches
9. Reconnect the power supply
Both filters MUST be fitted when the extractor is in use, if
the combined filter is not installed correctly the iQ
system will not allow the motor to start.
02
6

iQ Display System
#
iQ Display Features

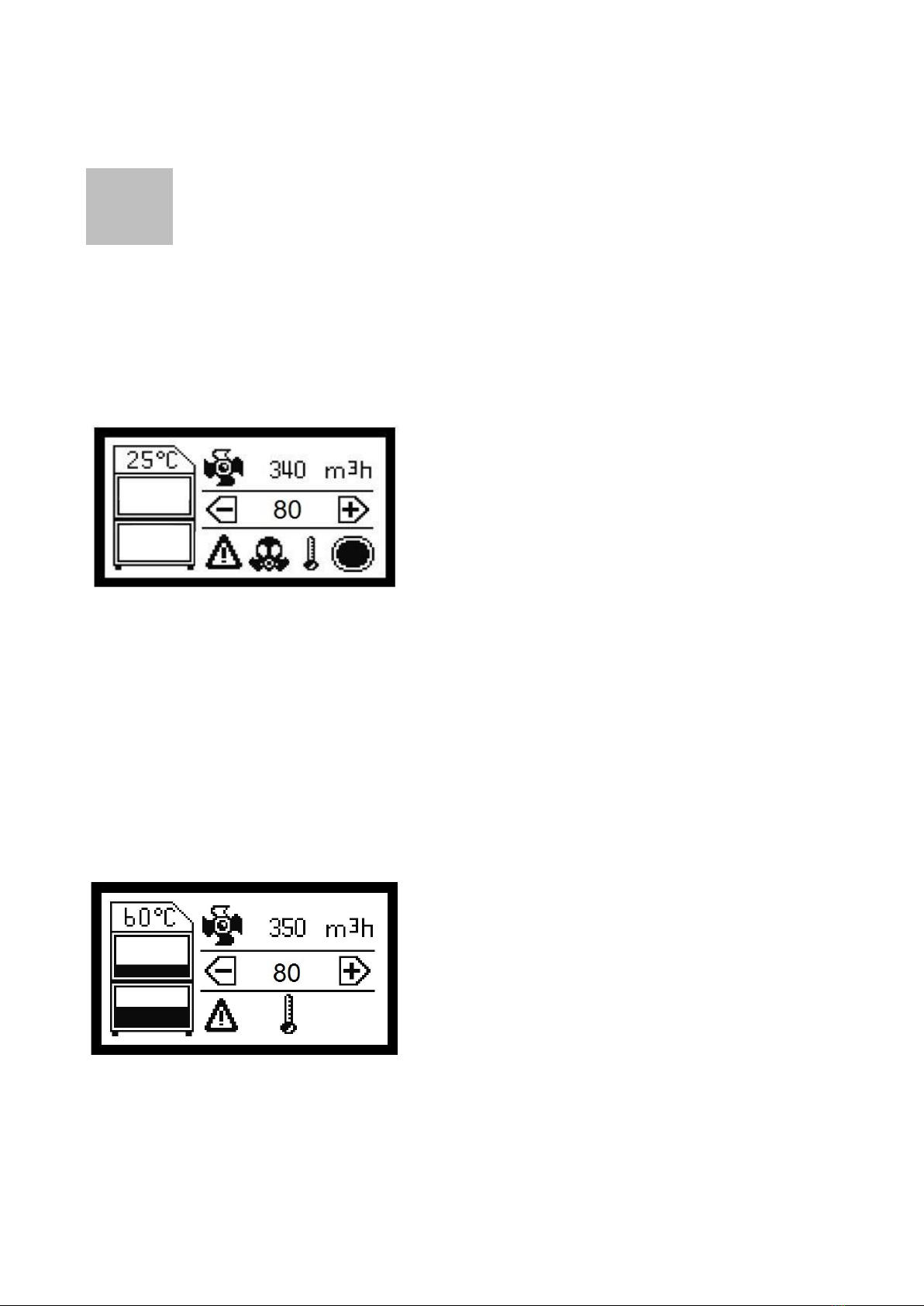

The iQ display has the ability to display all the faults
associated with your extraction unit. The image below
shows an example of some of the fault icons that may
appear in the alarm window of the LCD display.
Visual Alarms on the iQ system
The iQ system can visually display a wide range of alarms on
its LCD panel. The visual displays, meanings and solutions
are detailed below. All alarms will trigger the system alarm
interface output signal and the inbuilt audible buzzer, if
fitted/ activated.
Over Temperature Alarm
If the iQ system detects an internal temperature greater
than 60oC then it will automatically shut down the extractor
to prevent damage to components within the extractor.
Once the internal temperature has dropped by 50C the
extraction unit will be able to restart.
To restart the extractor after an over temperature alarm the
unit needs to be placed in Standby mode then powered on
again.
01
7

iQ Display System
#
Heat Detection Shut off
The iQ system has an internally mounted thermal trip. That
detects the temperature in the filter compartment. If the
temperature rises above 55oC then the extraction unit will
automatically shut down the motor and display the symbol
below.
If this symbol is displayed the unit should be totally isolated
from the mains supply and the unit should be fully inspected
for evidence of the temperature rise. (Including inside the
Pre filter)
Once the unit is safe to turn back on and the internal
temperature has dropped below 50oC the thermal trip can
be reset. To do this follow the procedure below.
1. Isolate the supply from the extractor
2. Open the front door & remove the Combined Filter
3. Locate the circular cut out in the shelf, at the front
of the unit.
4. Inside the cut out there is a small red button that
can now be pressed back in.
5. Re-fit the Combined Filter, close the front door and
re connect the mains supply.
Gas Filter monitoring (VOC Sensing)
If the VOC (Volatile Organic Compound) sensing option has
been fitted to your iQ system then this will be constantly
monitoring the exhaust gas of the extraction unit.
If the VOC level in the exhaust exceeds the PPM (Parts per
million) level pre-set at BOFA then the Gas alarm will be
triggered and display the Gas icon as shown below.
Removing the Gas alarm warning
The VOC option is a perfect way to monitor how the carbon
section of the combined filter is performing. Once the
carbon within the filter is saturated the VOC sensor will
alarm. At this point the extractor should be isolated from
the mains and a new combined filter fitted. Once a new
filter is installed the alarm will clear.
Door Open Alarm (Special Request)
If a door open alarm was requested at the ordering stage the
extractor will have been fitted with a micro switch to detect
if the front door has been closed correctly. If the door has
not been closed correctly the ‘door open’ symbol will be
displayed.
Run Safe Feature
To ensure personnel protection and avoid damage to the
unit the iQ system will automatically shut down 5 seconds
after no combined filter is detected. If no combined filter is
fitted the motor will stop and the display will appear as
below.
To resolve this, isolate the extractor, fit the combined filter
(see section 6.02) and turn the extractor on.
02
7

iQ Display System
#
USB Connectivity
The iQ system is equipped with a USB drive, that operates
as a 2 way device, as detailed below.
•Duplicating iQ settings
•Download iQ Data
Duplicating iQ settings (USB Upload)
This USB upload feature has been designed for customers
that have multiple extractors and specific set of parameters
that they wish to duplicate across their iQ extraction units.
The Procedure for duplicating extractor settings is detailed
below.
1. Obtain the memory stick file from the seller (if
specification has been pre-arranged with the seller)
Or download original settings from your master iQ
unit) (Max capacity USB Stick 8GB)
2. Download this file to a blank memory stick
3. Place the iQ system in standby mode (Front power
button glowing Red)
4. Open the front door and insert the memory stick
into the USB slot
5. The LCD display will show “upload” press the
button corresponding to this
6. The display will show a progress complete bar and
when finished a completion “Tick”
7. The USB stick can now be removed from the unit,
the door closed, and the extractor turned back On
If the USB upload procedure fails, the screen will display
the symbol shown adjacent.
03
7
