DoorKing 6004 User manual

April 2015 Vehicular Gate Operators
Section A1
Vehicular Gate Operators - Reference Guide
For current pricing, please use our Dealer Portal. http://doorking.com/dealer-distributor
Date
Page
Comment
4-1-15
All
April, 2015 reference guide update.
Specifications subject to change without notice. Section A1, Page 1

Vehicular Gate Operators April, 2015
Solar Tax Credit
Homeowners who purchase a solar powered gate operator manufactured by DoorKing, Inc. after December 31, 2008,
may qualify for a 30% Federal Tax Credit off the installed cost of the system. This tax credit is available for the installed
cost of the solar powered gate operator on the homeowner’s Federal tax return.
The solar powered Gate Operator is considered a "Qualified Solar Electric Property" authorized by the Internal Revenue
Code Section 25D under the definition provided in paragraph d.2 and as such qualifies for the Residential Energy Efficient
Tax Credit. You will need to complete Federal Form 5695 and attach it to your personal tax return in order to claim this
credit. If you have any questions regarding this Federal Tax Credit, Form 5695 or its instructions, please consult your tax
adviser. You should also check with your state tax agency to see if your state offers any additional solar energy tax
incentives.
What is Covered:
The solar system tax credit applies to the total installed cost of the solar gate operator system. This includes the related
solar panel, gate operator, solar control box, access control device, remote controls, obstruction detection device(s), etc.
DoorKing Model 6002 Swing Gate Actuator (P/N 6002-080)*
DoorKing Model 6003 Swing Gate Actuator (P/N 6003-080)*
DoorKing Model 6004 Swing Gate Operator (P/N 6004-080)*
DoorKing Model 6400 Swing Gate Operator (P/N 6400-080)*
* To qualify, must be installed with 4302‐113, 4302‐114 or 4302‐115 Solar Control Box
DoorKing Basic Solar Control Box (P/N 4302-113)
DoorKing Single Gate Solar Control Box (P/N 4302-114)
DoorKing Dual Gate Solar Control Box (P/N 4302-115)
DoorKing Solar Panel (P/N 2000-076 or 2600-077)
Batteries; two (2) 18 Amp Hour (P/N 1801-004) or two (2) 35 Amp Hour (P/N 1801-005)
What is Not Covered:
The cost of the gate itself, or work required to place the physical gate into proper working order (leveling, replacing hinges,
etc.).
Qualifications:
•The installation of a DoorKing Solar Powered Gate System
•Effective for tax years beginning after December 31, 2008
•Homeowners will need to use The Federal Tax Credit form 5695, Residential Energy Efficient Property Credit
•Homeowners will need to provide a copy of the "Manufacturer's Certification for Credit"
•The dwelling must be located in the United States and used as a residence by the taxpayer
•This offer is only available in the United States
Section A1, Page 2 Specifications subject to change without notice.

April 2015 Vehicular Gate Operators
Table of Contents
Swing Gate Operators
Model 6002 / 6003 .................................................................................................................................................4
Model 6004 / 6400 .................................................................................................................................................5
Model 6050 / 6100 .................................................................................................................................................6
Model 6300 ............................................................................................................................................................7
Model 6500 ............................................................................................................................................................8
Model 6524 ............................................................................................................................................................9
Model 6550 ..........................................................................................................................................................10
Swing Gate Accessories ........................................................................................................................................11
Swing Gate Operator Parts & Accessories............................................................................................................12
Slide Gate Operators
Model 9050 / 9100 ...............................................................................................................................................14
Model 9150 ..........................................................................................................................................................15
Model 9000 ..........................................................................................................................................................16
Model 9024 ..........................................................................................................................................................17
Slide Gate V-Wheels .............................................................................................................................................18
Slide Gate Guide Rollers & Accessories ................................................................................................................19
Slide Gate Operator Parts & Accessories..............................................................................................................20
Entrapment & Vehicular Reversing Devices
Entrapment Protection Devices Type B1 and B2..................................................................................................22
Loop Detectors and Loops....................................................................................................................................23
Gate Operator Accessories
Gate Operator Control Stations............................................................................................................................24
Postal and Fire Department Lock Boxes...............................................................................................................25
Time Clocks, Surge Suppressers, Traffic Signal.....................................................................................................26
Accessory Transformers .......................................................................................................................................27
Back-up Power Inverters
Model 1000 ..........................................................................................................................................................28
Page Rev 4/1/15
Specifications subject to change without notice. Section A1, Page 3

Vehicular Gate Operators April, 2015
Models 6002 / 6003
24 Volt DC Swing Gate Actuators
Swing gate actuators are designed to operate vehicular swing gates in residential applications where side room is minimal.
These actuators install directly on the swing gate and operate on 24 Volt DC power. Control boxes are designed for both
single and dual (bi-parting) gate operation and are powered by 120 VAC or 24 VDC with Solar power input.
Step 1: Choose an Actuator
6002-080 (24 VDC)
6003-080 (24 VDC)
Step 2: Choose a Control Box
4302-111 Standard Control Box (120 VAC)
4302-112 Deluxe Control Box (120 VAC)
•120 VAC control boxes include two (2) 3.5 Ah batteries
•Deluxe control box includes three 120 VAC
convenience outlets
4302-113 Solar Control Box (No Batteries)
4302-114 Solar Control Box (w/two 18 Ah batteries)
4302-115 Solar Control Box (w/two 35 Ah batteries)
2000-077 24 Volt, 10 Watt Solar Panel
•Use with 18 Ah batteries
2000-076 24 Volt, 20 Watt Solar Panel
•Use with 35 Ah batteries
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors ...............................................Pg 21
8040-080 Ultra Low Power RF Receiver
2000-110 Solar Panel Mount Bracket
2600-755 30-ft. Bi-parting gate connection cable
2600-756 40-ft. Bi-parting gate connection cable
2600-757 50-ft. Bi-parting gate connection cable
Swing gate accessories ..............................................Pg 10-11
Gate operator accessories .........................................Pg 22-24
Page Rev 4/1/15
Model Max Gate
Weight (lbs.)
Max Gate
Width (ft.)
Max Cycles
(day)
Maximum Cycles on Backup Power**
3.5 Ah
18 Ah
35 Ah
6002
500
14
100
100
600
1200
6003
300
10
100
100
600
1200
** Cycles shown are for single operators when solar panel(s) are not providing a charge to the batteries. Actual number of cycles will vary
depending on usage, accessories connected, gate weight, operating condition of gate, temperature, location, weather (cloud coverage)
and charge state of the batteries.
Section A1, Page 4 Specifications subject to change without notice.

April 2015 Vehicular Gate Operators

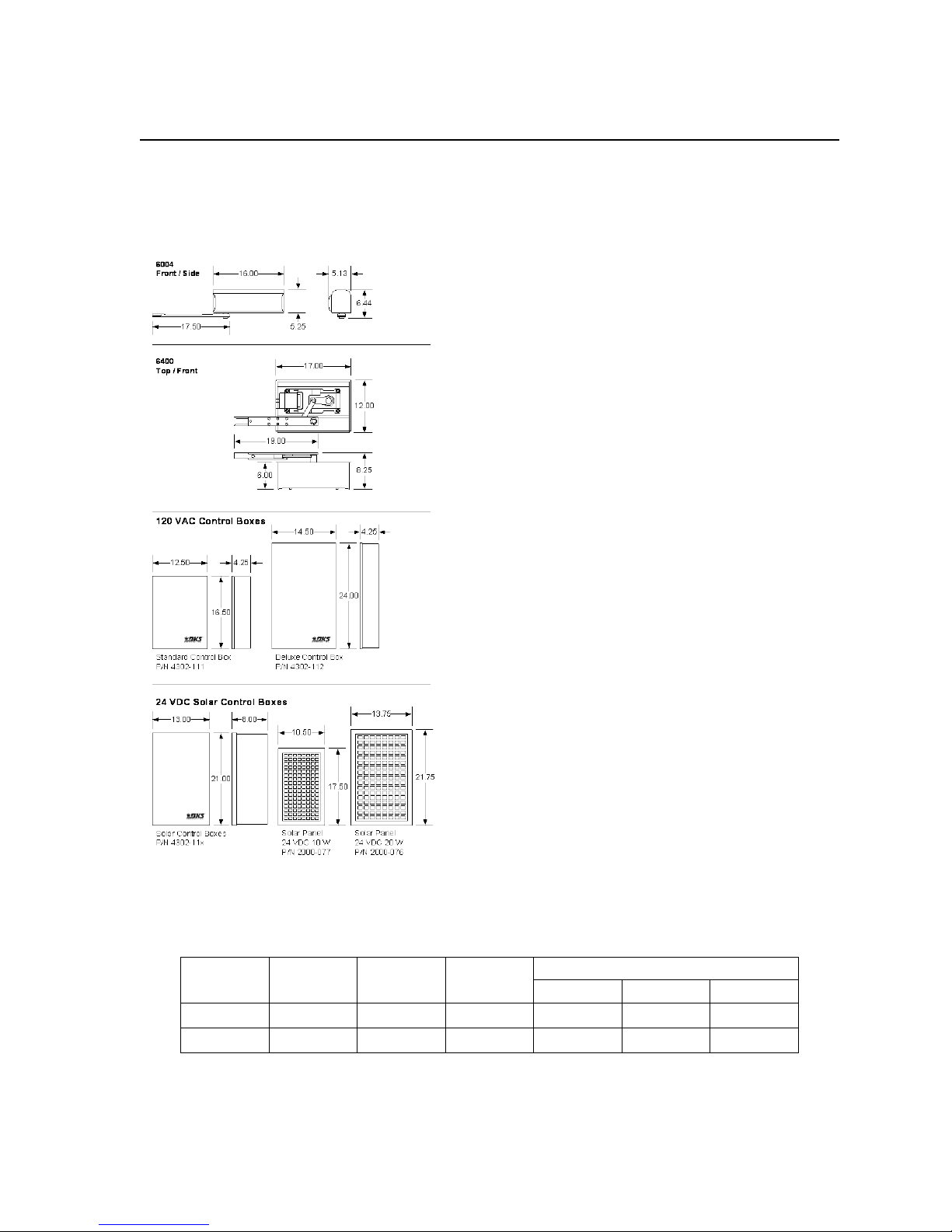

Models 6004 / 6400
24 Volt DC Swing Gate Operators
The DKS Model 6004 mounts directly on the gate column while the DKS 6400 installs in-ground making it virtually invisible.
These units operate on 24 Volt DC power. Control boxes are designed for both single and dual (bi-parting) gate operation
and are powered by 120 VAC or 24 VDC with Solar power input.
Step 1: Choose an Operator
6004-080 (24 VDC)
6400-080 (24 VDC)
Step 2: Choose a Control Box
4302-111 Standard Control Box (120 VAC)
4302-112 Deluxe Control Box (120 VAC)
•120 VAC control boxes include two (2) 3.5 Ah batteries
•Deluxe control box includes three 120 VAC
convenience outlets
4302-113 Solar Control Box (No batteries)
4302-114 Solar Control Box (w/two 18 Ah batteries)
4302-115 Solar Control Box (w/two 35 Ah batteries)
2000-077 24 Volt, 10 Watt Solar Panel
•Use with 18 Ah batteries
2000-076 24 Volt, 20 Watt Solar Panel
•Use with 35 Ah batteries
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors................................................Pg 21
8040-080 Ultra Low Power RF Receiver
2000-110 Solar Panel Mount Bracket
2600-755 30-ft. Bi-parting gate connection cable
2600-756 40-ft. Bi-parting gate connection cable
2600-757 50-ft. Bi-parting gate connection cable
Swing gate accessories.............................................. Pg 10-11
Gate operator accessories ........................................ Pg 22-24
Page Rev 4/1/15
Model Max Gate
Weight (lbs.)
Max Gate
Width (ft.)
Max Cycles
(day)
Maximum Cycles on Backup Power**
3.5 Ah
18 Ah
35 Ah
6004
500
8
100
100
600
1200
6400
300
8
100
100
600
1200
** Cycles shown are for single operators when solar panel(s) are not providing a charge to the batteries. Actual number of cycles will vary
depending on usage, accessories connected, gate weight, operating condition of gate, temperature, location, weather (cloud coverage)
and charge state of the batteries.
Specifications subject to change without notice. Section A1, Page 5

Vehicular Gate Operators April, 2015

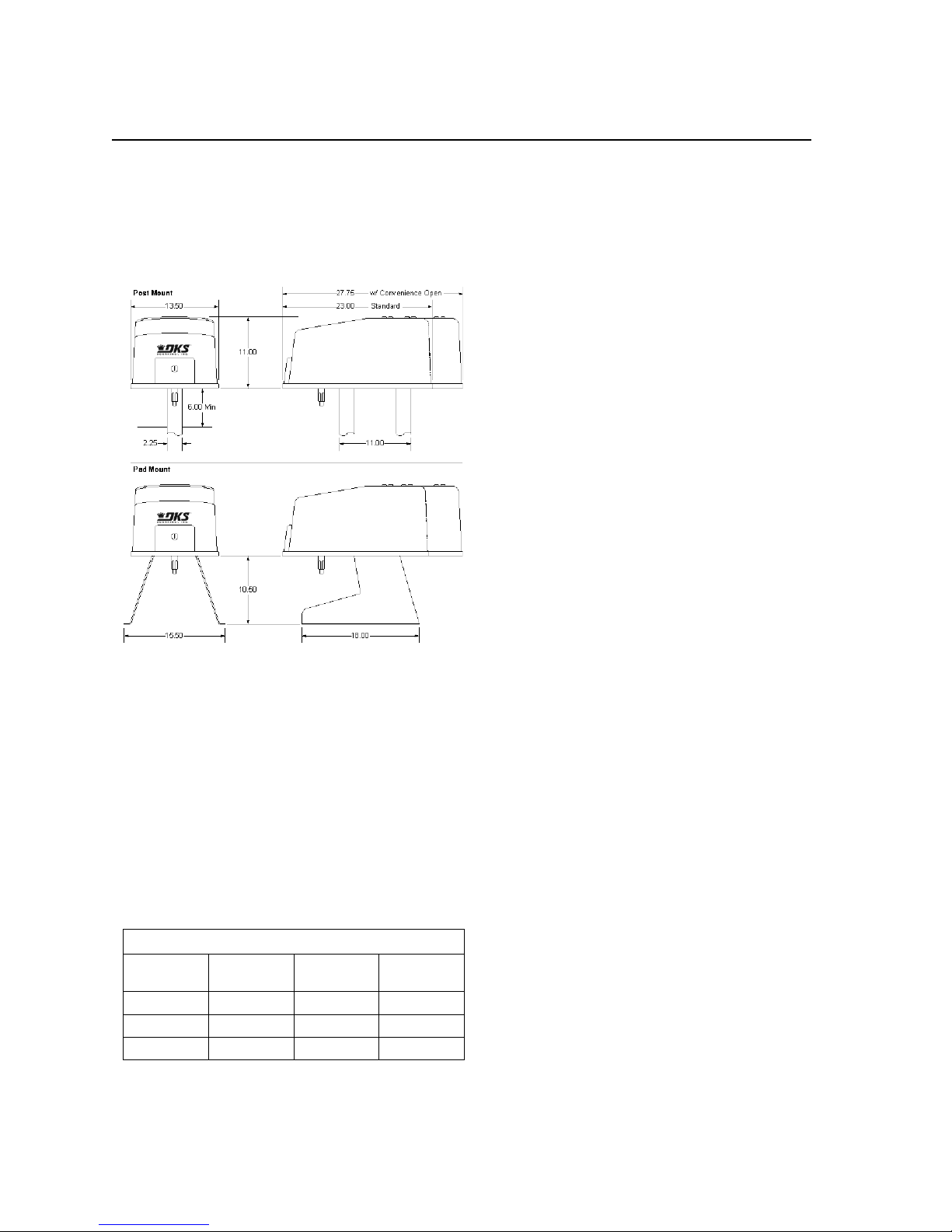

Models 6050 / 6100
Automatic Limit Swing Gate Operators
These operators can be installed on mounting posts or directly onto a concrete mounting-pad. When ordering, choose
both an operator AND an operator mounting kit. Secondary operators are used in bi-parting (dual) gate applications and
are commanded from and powered from the primary operator. Secondary operators cannot be used as a stand-alone
device.
Step 1: Choose an Operator or Operator Set
6050-080 1/2 HP, 115V (4.3A) Primary
6050-081 1/2 HP, 115V (4.3A) Secondary
•Secondary includes 30-ft interconnection cable
6100-080 1/2 HP, 115V (5.4A) Primary
6100-081 1/2 HP, 115V (5.4A) Secondary
6100-082 1/2 HP, 115V (5.4A) Primary w/C.O.
6100-083 1/2 HP, 115V (5.4A) Secondary w/C.O.
•Secondary includes 40-ft interconnection cable
•C.O. = Convenience Open (gate opens upon AC power
loss)
Step 2: Choose an Arm / Mounting Kit(s)
2600-671 Pad Mount, Arms and Hardware Kit
2600-674 Post Mount, Arms and Hardware Kit
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors ...............................................Pg 21
Backup power inverters..................................................Pg 26
1601-154 Heater Kit
•Use if temperature routinely falls below 10°F (-12°C)
6500-490 Uphill Arm Pivot Assembly
•Use with 1203-084 Torsion Rod Assembly (Pg 10)
Swing gate accessories ..............................................Pg 10-11
Gate operator accessories .........................................Pg 22-24
Model 6050 / 6100 Maximum Capacities
Model
Max Gate
Weight (Lbs)
Max Gate
Width (Ft)
Max Cycles
(Per Day)
6050
400
10
100
6100
500
14
Cont
6100 w/C.O.
400
14
Cont
Page Rev 4/1/15
Section A1, Page 6 Specifications subject to change without notice.

April 2015 Vehicular Gate Operators
Model 6300
Automatic Limit Swing Gate Operators
Designed to operate large vehicular swing gates in residential, commercial and industrial applications. These operators
can be installed on mounting posts or directly onto a concrete mounting-pad – select mounting kit when ordering.
Secondary operators are used in bi-parting (dual) gate applications and cannot be used as a stand-alone device.
Step 1: Choose an Operator or Operator Set
6300-080 1/2 HP, 115V (5.4A) Primary
6300-081 1/2 HP, Secondary
6300-082 1/2 HP, 115V (5.4A) Primary w/C.O.
6300-083 1/2 HP, Secondary w/C.O.
•Secondary includes 50-ft interconnection cable
•C.O. = Convenience Open (gate opens upon AC power
loss)
6300-084 1 HP, 115V (9.7A) Primary
6300-085 1 HP, Secondary
6300-086 1 HP, 115V (9.7A) Primary w/C.O
6300-087 1 HP, Secondary w/C.O.
•Secondary includes 50-ft interconnection cable
•C.O. = Convenience Open (gate opens upon AC power
loss)
Step 2: Choose a Mounting Kit(s)
2600-264 Pad Mount, Arms and Hardware Kit
2600-263 Post Mount, Arms and Hardware Kit
High Voltage Kit
2600-266 High Voltage Kit
•Allows the operator to be powered from 208, 230, 460
or 575 source voltage. In dual gate applications, only
one (1) kit is required (secondary operator DOES NOT
require a high voltage kit).
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors................................................Pg 21
Backup power inverters ..................................................Pg 26
1601-154 Heater Kit 115 VAC
1601-197 Heater Kit 208/230 VAC
1601-198 Heater Kit 460 VAC
6500-490 Uphill Arm Pivot Assembly
•Use with 1203-084 Torsion Rod Assembly (Pg 10)
Swing gate accessories.............................................. Pg 10-11
Gate operator accessories ........................................ Pg 22-24

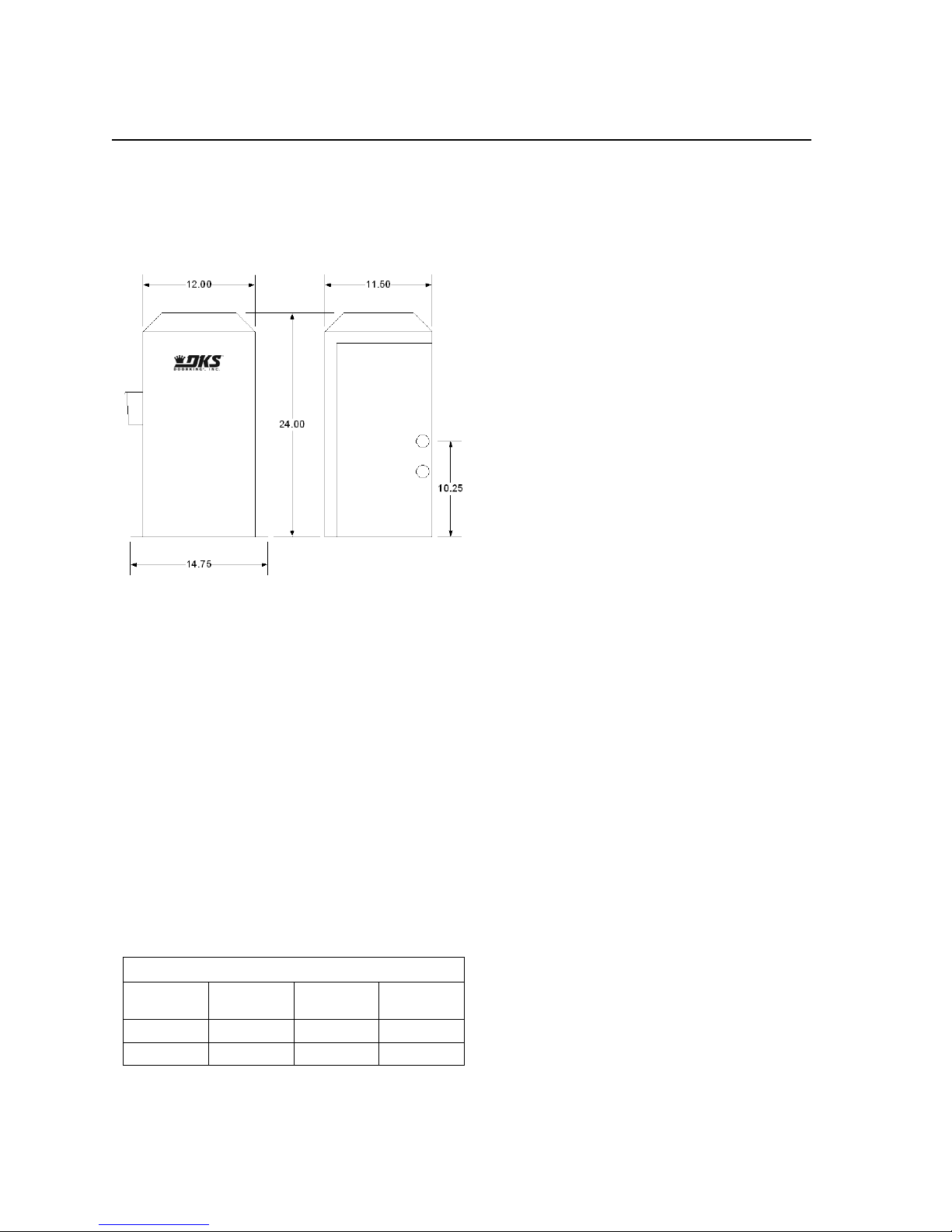

Model 6300 Maximum Capacities
Model
Max Gate
Weight (Lbs)
Max Gate
Width (Ft)
Max Cycles
(Per Day)
1/2 HP
700
18
Cont
1/2 HP w/C.O.
600
18
Cont
1 HP
800
22
Cont
1 HP w/C.O.
700
22
Cont
Page Rev 4/1/15
Specifications subject to change without notice. Section A1, Page 7

Vehicular Gate Operators April, 2015
Model 6500
Adjustable Limit Swing Gate Operators
Designed to operate large vehicular swing gates in residential, commercial and industrial applications. Secondary
operators are used in bi-parting (dual) gate applications cannot be used as a stand-alone device.
Operators
6500-080 1/2 HP, 115V (5.4A) Primary
6500-081 1/2 HP, Secondary
6500-082 1/2 HP, 115V (5.4A) Primary w/C.O.
6500-083 1/2 HP, Secondary w/C.O.
•Secondary includes 50-ft interconnection cable
•C.O. = Convenience Open (gate opens upon AC power
loss)
6500-084 1 HP, 115V (9.7A) Primary
6500-085 1 HP, Secondary
6500-086 1 HP, 115V (9.7A) Primary w/C.O
6500-087 1 HP, Secondary w/C.O.
•Secondary includes 50-ft interconnection cable
•C.O. = Convenience Open (gate opens upon AC power
loss)
High Voltage Kit
2600-266 High Voltage Kit
•Allows the operator to be powered from 208, 230, 460
or 575 source voltage. In dual gate applications, only
one (1) kit is required (secondary operator DOES NOT
require a high voltage kit).
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors ...............................................Pg 21
Backup power inverters..................................................Pg 26
6500-480 Heater Kit 115 VAC
1601-197 Heater Kit 208/230 VAC
1601-198 Heater Kit 460 VAC
6500-490 Uphill Arm Pivot Assembly
•Use with 1203-084 Torsion Rod Assembly (Pg 10)
Swing gate accessories ..............................................Pg 10-11
Gate operator accessories .........................................Pg 22-24
Model 6500 Maximum Capacities
Model
Max Gate
Weight (Lbs)
Max Gate
Width (Ft)
Max Cycles
(Per Day)
1/2 HP
700
18
Cont
1/2 HP w/C.O.
600
18
Cont
1 HP
800
22
Cont
1 HP w/C.O.
700
22
Cont
Page Rev 4/1/15
Section A1, Page 8 Specifications subject to change without notice.

April 2015 Vehicular Gate Operators

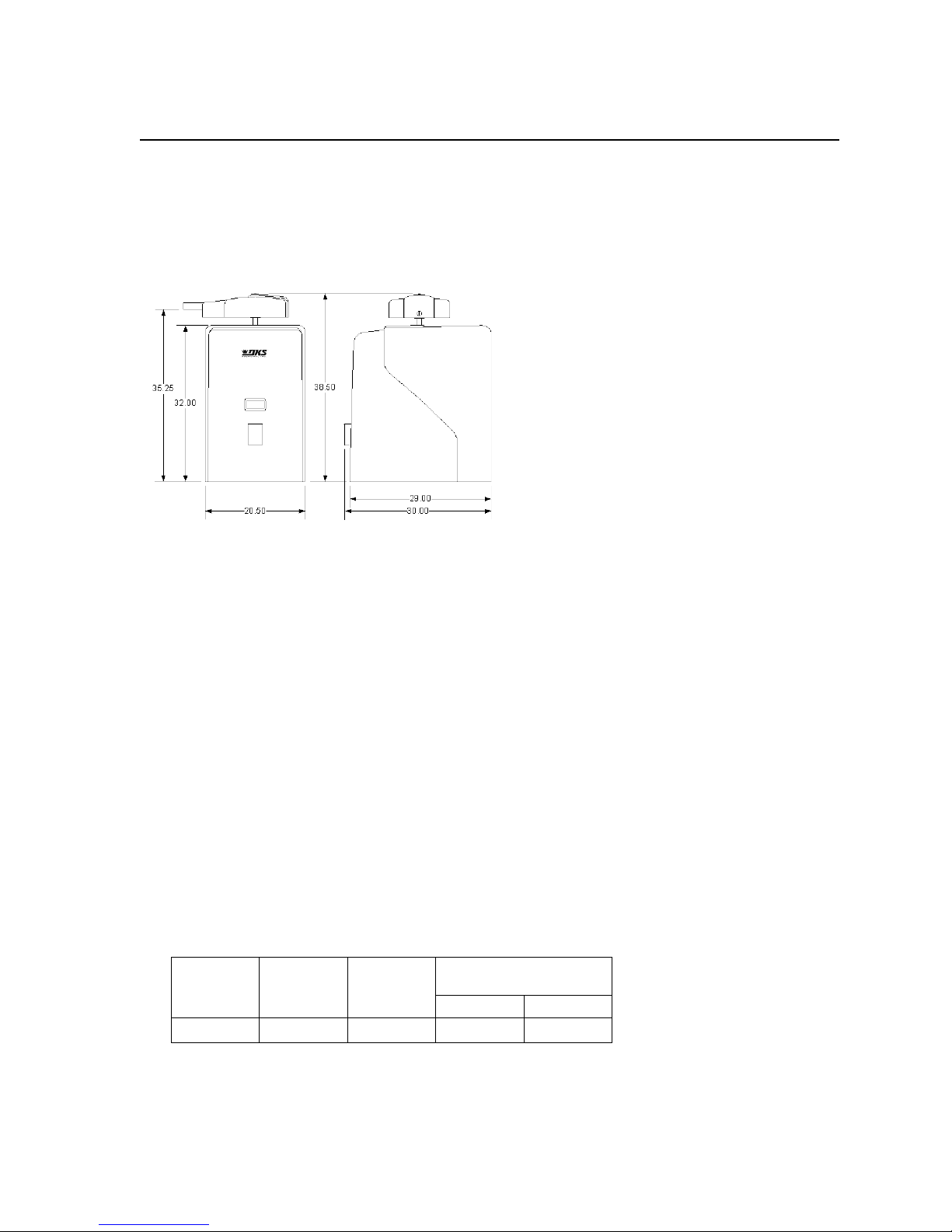

Model 6524
Adjustable Limit DC Swing Gate Operator
The model 6024’s main power source is 115 or 230 Volt (switch selectable) single-phase AC power. The operational
voltage of the operator is 24 Volt DC and includes built-in battery backup (7.5 AH battery x 2) that provides continued gate
operation if the main source power is lost. This operator is designed to operate vehicular swing gates in residential and
light commercial applications.
Operator
6524-080 1/2 HP, 24V DC (1.8A / 0.9A)
•115 or 230 VAC Input power
6524-081 1/2 HP, 24V DC (8.5A)
•24 VDC Solar Input power only (supply your own
batteries and solar system or use DKS solar kit)
Options
1801-004 12-Volt, 18 Amp Hour Battery
•Two (2) required.
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors................................................Pg 21
Backup power inverters ..................................................Pg 26
6550-480 Heater Kit 115 VAC
1601-197 Heater Kit 208/230 VAC
•Heaters are active only when AC source power is
present
6500-490 Uphill Arm Pivot Assembly
•Use with 1203-084 Torsion Rod Assembly (Pg 10)
Swing gate accessories.............................................. Pg 10-11
Gate operator accessories ........................................ Pg 22-24
Page Rev 4/1/15
Max Gate
Weight (lbs.)
Max Gate
Width (ft.)
Max Cycles
AC Power
Maximum Cycles on Backup
Power**
7.5 Ah
18 Ah
800
16
Continuous
40
150
** Actual number of cycles will vary depending on usage, accessories connected, gate weight,
operating condition of gate, temperature and charge state of the batteries.
Specifications subject to change without notice. Section A1, Page 9

Vehicular Gate Operators April, 2015

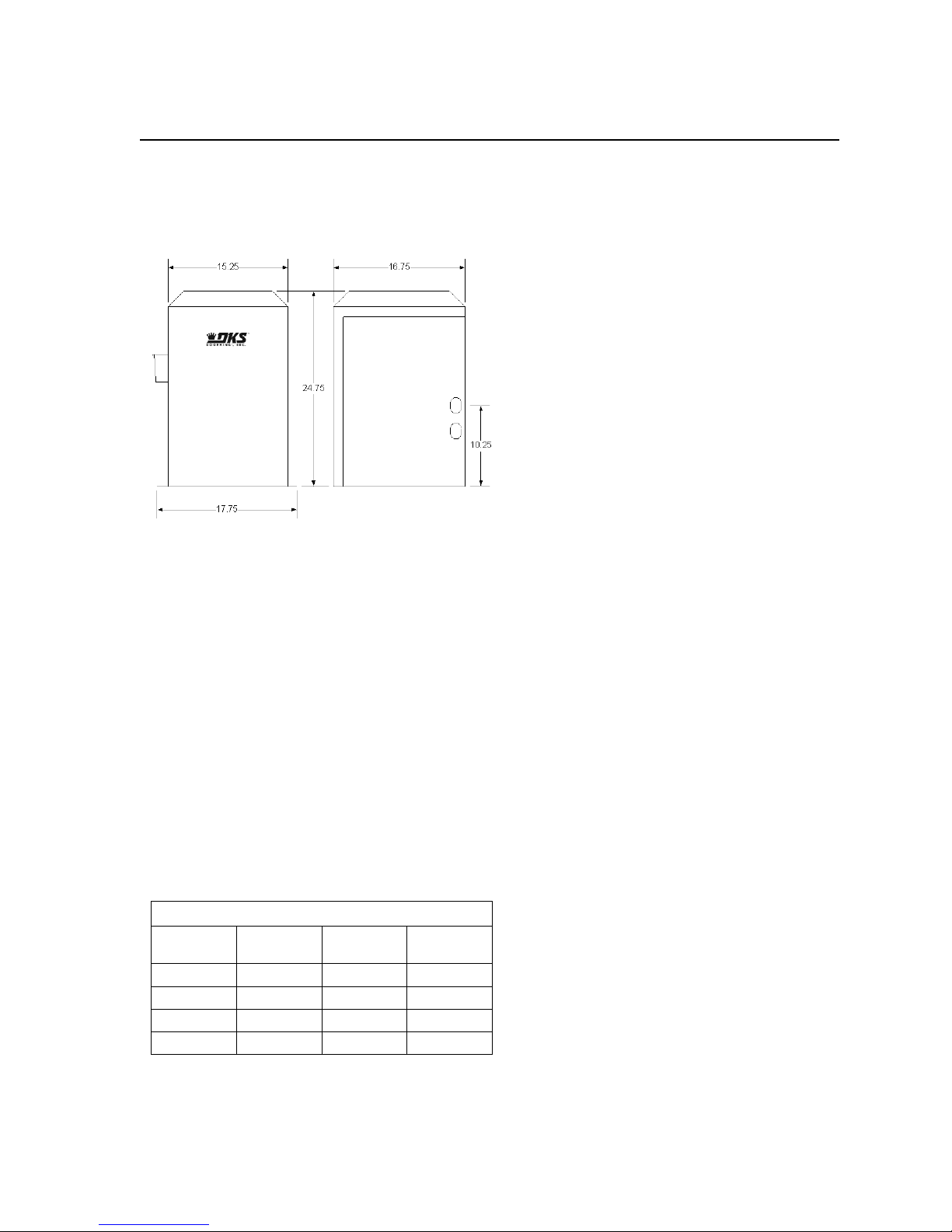

Model 6550
Adjustable Limit Swing Gate Operators
Designed to operate very large vehicular swing gates in commercial and industrial applications. Secondary operators are
used in bi-parting (dual) gate applications cannot be used as a stand-alone device.
Operators
6550-080 1 HP, 115V (9.7A) Primary
6550-084 1 HP, Secondary
•Secondary includes 50-ft interconnection cable
High Voltage Kit
2600-266 High Voltage Kit
•Allows the operator to be powered from 208, 230, 460
or 575 source voltage. In dual gate applications, only
one (1) kit is required (secondary operator DOES NOT
require a high voltage kit).
Accessories
Entrapment prevention devices (required).....................Pg 20
Loops and loop detectors ...............................................Pg 21
Backup power inverters..................................................Pg 26
6550-480 Heater Kit 115 VAC
1601-197 Heater Kit 208/230 VAC
1601-198 Heater Kit 460 VAC
6500-490 Uphill Arm Pivot Assembly
•Use with 1203-084 Torsion Rod Assembly (Pg 10)
Swing gate accessories ..............................................Pg 10-11
Gate operator accessories .........................................Pg 22-24
Model 6550 Maximum Capacities
Model
Max Gate
Weight (Lbs)
Max Gate
Width (Ft)
Max Cycles
(Per Day)
1 HP
2000
25
Cont
Page Rev 4/1/15
Section A1, Page 10 Specifications subject to change without notice.
