Dorel Home Products Twin XL User manual

4566059(Black Frame/ White Mattress)
Folding Guest Bed With Memory Foam
Thank you for purchasing from DHP!
L.J . - 2020.09.06
1
© 2014 Dorel Home Products All Rights Reserved
B34456605900-25010-H
Weight Limit: 300Lb/136kg
DO NOT RETURN TO THE STORE !
I f parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts
or call Toll-Free 1-800-267-1739
You can also chat with us at www.dhpfurniture.com
Date of PurchaseLot Number (TAKEN FROM CARTON)
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

2
●Work in a spacious area and near where the unit will be used, preferably on a
carpet, or use a piece of the cardboard packaging to protect your floor and product.
●Make sure all parts are included. Most parts are labeled or stamped on the raw
edge.
●Read each step carefully. It is very important that each step of the instructions is
performed in the correct order. If these steps are not followed in sequence,
assembly difficulties will occur.
●This product may contain small components. Please ensure that they are kept
away from small children.
●This product is designed for home use and is not intended for commercial use.
Limited 1 year Warranty
DHP warrants this product to be free from defects in material and workmanship
and agrees to remedy any such defect. This warranty covers one year from the
date of original purchase from authorized retailers. This is solely limited to the
repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly
assembled, subjected to misuse or abuse or which has been altered or repaired in
any way.The warranty does not cover wearing, tearing, fading or splitting of the
fabric (where applicable). Liability for consequential damages is excluded to the
extent exclusion is permitted by law. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state or province to
province.
To obtain warranty service, purchaser must present original bill of sale.
Components repaired or replaced are warranted through the remainder of the
original warranty period only. The defective components will be repaired or
replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and
Canada.
Read Before Beginning Assembly
DO NOT use
powertools
30 mins
This product is shipped in
1 carton
For help with assembly, identifying parts, product information or to order parts,
please contact us:
Contact Us!
DHP Consumer Services
12345 Albert Hudon, Suite 100,
Montreal, Quebec H1G 3L1
[e-mail]
1-800-267-1739
Monday to Friday
Saturday
Sunday
9am to 9pm (Eastern Time)
10 am to 6:30 pm (Eastern Time)
11 am to 7 pm (Eastern Time)
Chat
with us! www.dhpfurniture.com

3
B
A
Do not sit on the
mattress base
when it is raised.
Do not jump on
the bed.
To avoid falling,
do not sit at the
edge of the bed
Do not stand on
the bed.
Avoid getting your
hand pinched
between elements.
Use the bed on
a flat surface.
WARNING

Head side
PARTS
4
A
B
B

PARTS LIST
5
BED
1 PC
ARMREST
2 PCS
PART
LABELS
PARTS
LIST
A
4566059
(Black/White Mattress)
B
Each part has a unique part number.Please
reference
the appropriate part number when contacting
customer service for replacement parts.
Before throwing any
packaging, please verify all contents and make
sure you have received all the parts
listed above!
/
T993790

BOLT
M8x60
X 4 PCS
1 2 3 4
5
1 2
WASHER PLASTIC SUPPORT
X 4 PCS
Please do not completely tighten all the hardware,
until the entire assembly is complete, unless
otherwise indicated in the step-by-step
instructions.
The screw(s), bolt(s) to be used at each step are
shown in actual size in the lower right corner of the
page.
X 4 PCS
Hardware Pack #: T4566059-00
ALLEN KEY 5mm
X 1 PC
X 4 PCS
SPRING WASHER
6

1 First pull out the pin
Unfold the bed as shown.
7
3 Insert the pin
Head side
2 Unfold
Step 1
Carefully lift the bed frame out of the box.

Attach Bx2 to both sides of A
as shown with , , ,
Please follow same step for both sides
of bed.
8
A
A
B
12
123
x 4
x 4
x 4
x 4
1
1
2
2
3
1
1
2
2
3
Head side
B
Step 2
1
2
1
23

9
1
2
3
456
75
Head side
2. The hinge can be reset to flat level after pulling
futher than the maximum angle (90°).
For a better visualisation, please refer to the
illustration on the left.
The hinge can be reset to flat level after pulling
futher than the maximum angle (90°).
1.There are 6 position, at every 15 degrees.
Adjust manually.
Angle adjustment:
Step 3

This unit is intended for use only with the products and/or maximum
weights indicated. Use with other products and/or products heavier than the
maximum weights indicated may result in instability or cause possible injury.
●

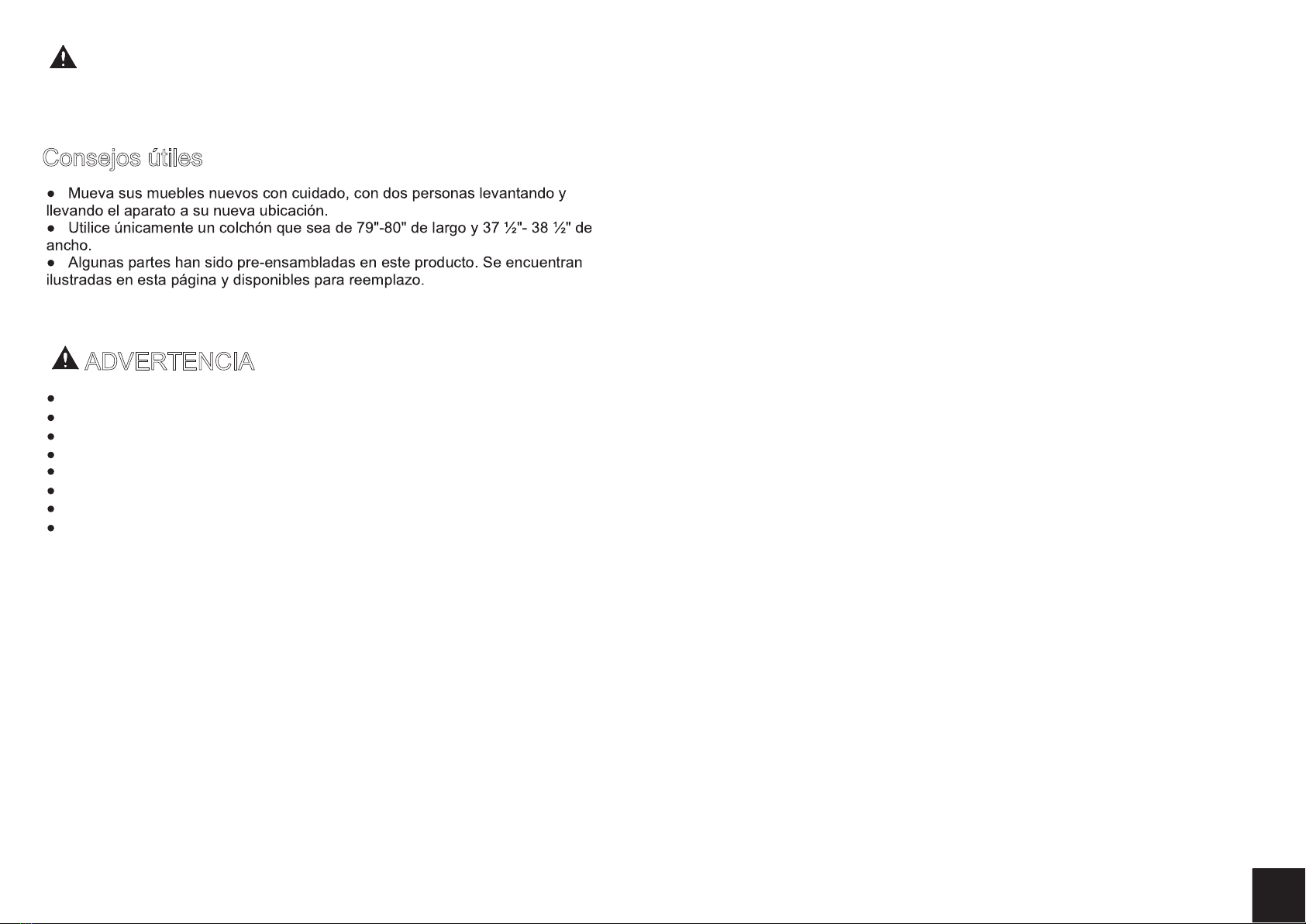

Move your new furniture carefully, with two
people lifting and carrying the unit to its new
location.
Your furniture can be disassembled and
reassembled to move.
Clean the product with a soft damp cloth. DO
NOT use harsh chemicals or abrasive cleaners.
Weight Limit:
300 Lb / 136 kg

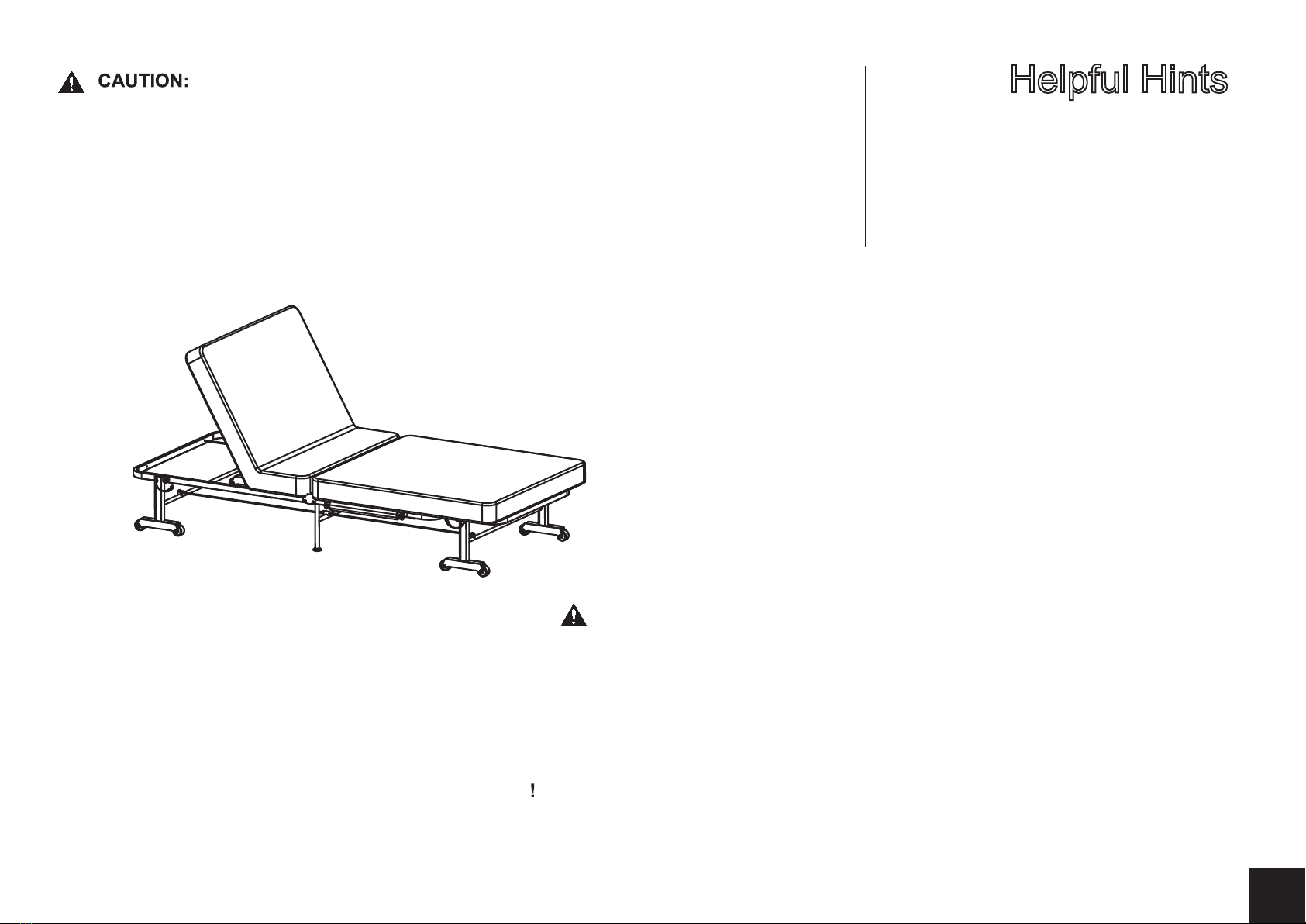

That's it ! You've finished assemblin g your Folding Bed
●
●
10
Helpful Hints
