Setup and Operation
Service Manual
Revision GP-1.01-12.15-1

Table of Contents
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 2
Safety ............................................................................................................................................................ 3
Product Specifications................................................................................................................................... 5
Setup ............................................................................................................................................................. 6
MotoGP®Setup Wizard .............................................................................................................................. 11
Game Networking .......................................................................................................................................13
Online Features...........................................................................................................................................15
Maintenance ...............................................................................................................................................16
Diagnostic Menu System.............................................................................................................................17
CoinUp®.......................................................................................................................................................35
Troubleshooting.......................................................................................................................................... 38
Parts ............................................................................................................................................................ 41
Electrical Wiring ..........................................................................................................................................50
Contact Information.................................................................................................................................... 53

Page 3 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
OPERATION
Before operating game, read this manual. Failure to properly install and operate this game could result in
malfunction or accident. Operate the game in accordance with the manual.
TRANSPORTING
Cabinet is very heavy and contains fragile components. Use appropriate care when moving or transporting cabinet.
Avoid rough handling.
HANDLING COMPONENTS
Many components are extremely sensitive to handling, environmental and Electrostatic Discharge (ESD) events—
especially the computer. Do not handle it roughly. Before servicing, call your distributor and inquire about the PC
warranty. Use proper ESD procedures when servicing. Protect components from harmful environmental
conditions, such as extreme temperatures, excessive moisture or other damaging effects.
DISCONNECT POWER
Always turn off power and unplug the unit before servicing or making adjustments, unless otherwise instructed.
Installing or repairing components while power is on can damage the components and void the warranty.
GROUNDING
Avoid electrical shock. Do not plug in AC power until you have inspected and properly grounded the unit. Only plug
into a grounded, three-wire outlet. Do not use a “cheater” plug or cut off the ground pin on the line cord.
ELECTRICAL SHOCKS
There is no isolation transformer in the cabinet. Disconnect AC power before servicing. However, be aware that
lethal voltages can remain in the electronic components even when AC power is disconnected. Use extreme
caution when servicing. Verify that there is a working ground connection. If the unit sustains water damage, cease
using it immediately and unplug AC power.
MONITOR
Extremely high voltages exist in the monitor at all times. These high voltages exist even when the monitor is off
and the AC line cord is disconnected. These voltages are extremely lethal and will cause death. The monitor
contains no user serviceable parts. Do not attempt to service the monitor.
POWER SELECTOR
Before installing game, ensure the voltage on the PC is set properly. There is a 115/230 VAC selector switch that
must be set for the correct voltage for your site. Verify the fluorescent lamp rating. The rating must match the line
voltage at the installation site.
CONNECTORS
Ensure all connectors mate properly. If connectors do not slip in easily, do not force them. Connectors are often
keyed and only connect one way. Check for correct orientation.

Safety
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 4
COMPUTER
The computer contains sensitive components, including a hard drive. Do not handle it roughly. Call your distributor
before servicing its internal components. Ask about warranty information as it relates to the PC.
Do not turn the PC power switch on or off. It should remain permanently in the ON position.
Cycle AC power on or off with the cabinet power switch.
A dongle has been inserted into one of the USB ports. This is required for game play.
Do not remove the dongle except for troubleshooting purposes.
POWER CORD
If the power cord is damaged or lost, replace it with an identical cord as supplied by the manufacturer or an
authorized service agent.
WATER JETS
Do not install or operate game within operating perimeter of a water jet. Do not clean equipment using water jet.
HAZARD TO EPILEPTICS
A small portion of the population has an epileptic condition that may cause seizures. Affected persons experience
seizure while watching some television pictures or playing certain video games. People who have not had seizures
may still have an undetected epileptic condition. If anyone in your family has experienced epilepsy symptoms
(seizures or loss of awareness), consult your physical before using video games. While children play video games, a
parent should observe. Be alert to the following symptoms: dizziness, altered vision, eye or muscle twitching,
involuntary movements, loss of awareness, disorientation or convulsions. If you or your child experiences these
symptoms, discontinue use immediately and consult your physician.
MANUAL
Keep this manual available and ready for use. If the game fails to function properly, turn off the machine and
unplug the AC line cord. Contact your local distributor. Your warrantee, when applicable, lasts 60 days from your
purchase date. You may not reproduce this document or any of its contents without written authorization from
Raw Thrills™, Inc. or PlayMechanix™ Inc.
SPECIFICATIONS
For reasons such as performance, this product’s specifications may change without notice. Federal patent,
copyright and other intellectual property laws protect the content, devices and design of the game and its
equipment.

Page 5 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
Electrical Power
Domestic 120 VAC @ 60 Hz, 5 amps
International 240 VAC @ 50 Hz, 2.5 amps
Japan 100 VAC @ 50 Hz, 5 amps
DC Power Fuse Guide
+5 VDC - 2 amp Slow Blow +12 VDC - 7 amp Slow Blow
Temperature
32° to 100° Fahrenheit (0° to 38° Celsius)
Humidity
Must not exceed 95% relative humidity
Assembled Cabinet Dimensions
Weight Assembled: ~700 lbs
Height - 83”(211cm)
Width –43” (109cm)
Depth –83” (211cm)
Motorcycle Base Dimensions
Height –40.3” (102cm)
Width –35.4” (90cm)
Depth –68.3” (173.5cm)
Main Cabinet Dimensions
Height –72.5” (185cm)
Width –43” (109cm)
Depth –30” (75.6cm)

Setup
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 6
Unpack Carton
1. Place the shipping crate on a flat stable surface.
2. Cut the banding straps and remove the cardboard lid.
3. Lift off the large cardboard container surrounding the cabinet and any shipping cleats.
4. With at least two people and a dolly, remove the cabinet from the shipping pallet.
5. Remove the coin door key from the coin return chute.
6. Open the top coin door.
7. Locate the key for the bottom access panel and the cash box.
Setup Main Cabinet
1. Using a wheeled cart and at least one assistant, transport the cabinet to a suitable playing area.
2. Ensure the main cabinet is level and stable. With at least one assistant, adjust the leg levelers.
3. Check the AC line cord for visible signs of damage.
Pay particular attention to the plug and line cord insulation.
4. Check for shipping damage to the following:
Cabinet Marquee, Cabinet back door, Cabinet coin door, Cabinet decals, Monitor
Install Lower Dash Components
1. Locate dashboard left, right, and center vacform components.
2. Secure vacforms to the center of the dashboard using eight #10-32 x 1-1/4 inch torx screws,
eight #10 lock washers, and eight #10 flat washers.
3. Secure left and right vacforms to the bottom of the dashboard using four #10-32 torx screws,
four #10 lock washers, and four #10 flat washers.

Page 7 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
Install Upper Dash Components
1. Locate marquee left, right, and center vacform components.
2. Connect the leader light cable from the main cabinet to the center vacform.
3. Secure the center vacform using two #10-32 torx screws, two #10 lock washers, and two #10 flat
washers, going through the vacform into the central mounting bracket. Do not tighten fully.
Be careful not to pinch the cable between the vacform and the cabinet.
4. Using two #10-32 torx screws, two #10 lock washers, and two #10 flat washers, secure the
bottom of the center vacform to the marquee grill.
5. Secure the left vacform to the mounting point on the top of the marquee, using two #10-32 torx
screws, two #10 lock washers, and two #10 flat washers. Do not tighten fully.
6. Secure the left vacform to the marquee grill, using three #10-32 torx screws, three #10 lock
washers, and three #10 flat washers.
7. Repeat steps 4 & 5 for the right vacform.
8. Tighten all screws fully.

Setup
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 8
Install Marquee Topper
1. Locate topper carton and upack.
2. In the carton with marquee topper, find the three ¼-20 x 1.25 torx mounting bolts, three flat
washers, and three lock washers.
3. With an assistant, position the topper on top of the cabinet.
4. Connect and route the power cable from the main cabinet to the topper.
Be careful not to pinch the cable between the topper and cabinet.
5. Secure the topper to the cabinet using three ¼-20 x 1.25” tamper resistant torx screws, three
flat washers, and three lock washers.

Page 9 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.

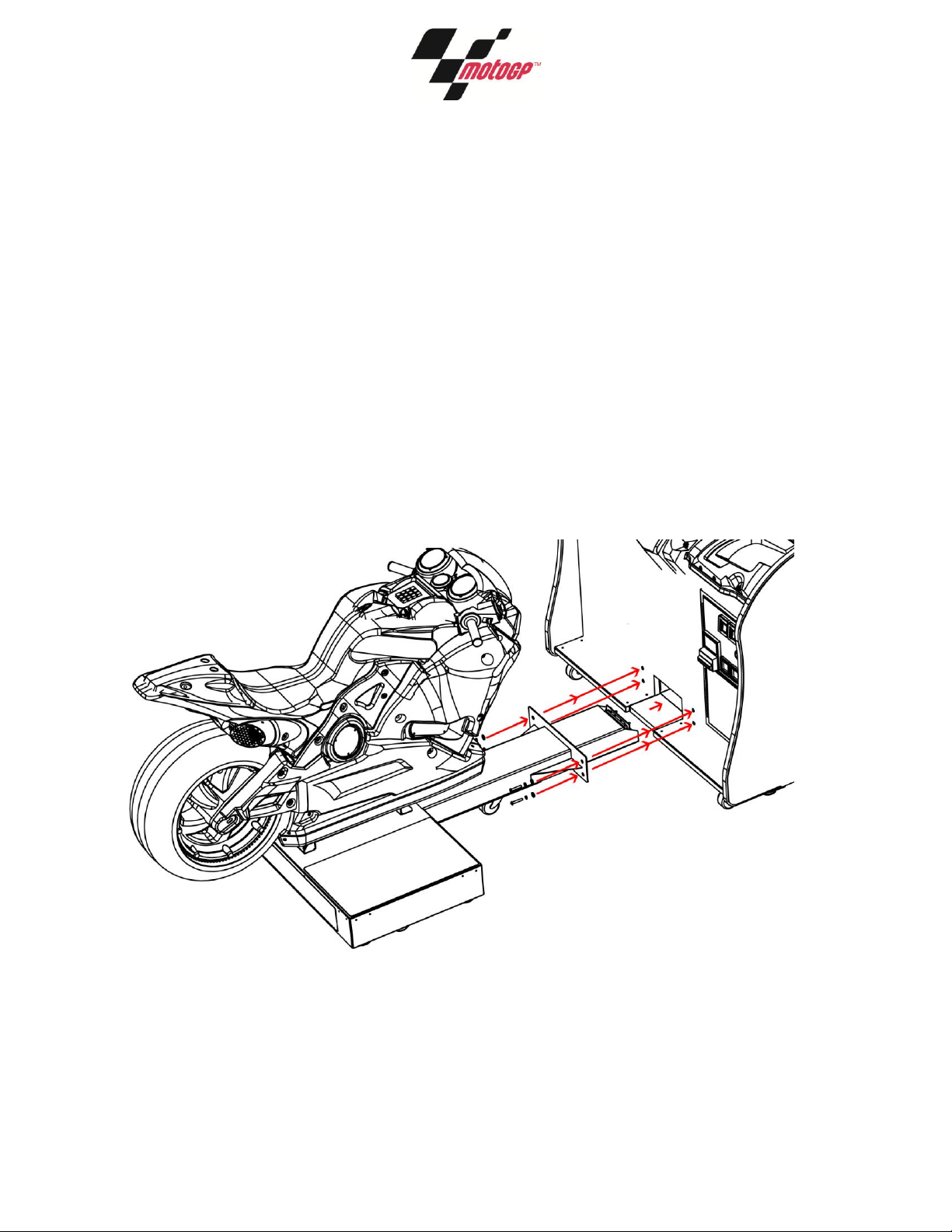

Setup Motorcycle Base
1. Check for shipping damage to the following:
Motorcycle decals
Seat assembly
Handlebars
Buttons
Brake lever
2. Position motorcycle base in front of main cabinet
3. Slide motorcycle base blind-mate connector into main cabinet
4. Secure motorcycle base to main cabinet using four ¼-20x2” screws, four flat washers, and four
lock washers.
5. Ensure the motorcycle base is level, stable, and flush with main cabinet.
With at least one assistant, adjust the leg levelers.
6. Tighten the 4 screws firmly.
7. Remove the two 3/8-16 x 2” shipping bolts from the bike frame base. There is a bolt on either
side of the bike frame base. These prevent the bike seat from moving during shipment. For
proper setup and game play, these must be removed in order to allow the bike seat to lean left
and right.

Setup
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 10
Verify Cabinet Functionality
1. Verify the voltage in the nearest AC outlet.
2. Verify the AC outlet ground connection is present and working.
3. Open the back door of the cabinet.
4. Near the AC power transformer, verify the voltage selector switch is set for the correct AC
voltage.
5. Plug the line cord into the AC outlet.
6. Replace the back door.
7. Turn the power switch to ON.
8. Verify that the cooling fans on the cabinet are working.
If not, turn off AC power and disconnect line cord. Contact Betson service
9. Check that no component is excessively hot or emitting foul odors.
If so, turn off AC power and disconnect line cord. Contact Betson service.
10. Once software loads, you will be asked to setup the cabinet software.

Page 11 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
®
The Setup Wizard provides a step-by-step setup procedure.
Bike Calibration
Follow the onscreen prompts to calibration the bike, throttle, and brake.
Cabinet Number
Each cabinet at your location must be set with a unique cabinet number, in order to link together. The
unit set as #1 will become the primary. Other local cabinets will periodically synchronize various settings
to the primary unit. The attract mode of local units will also try to synchronize to the primary unit.
Connectivity Wizard
Configure your game for either online or local connectivity.
Operator Registration
1. If connecting online, login to an existing operator account or create a new account.
2. To register as a new operator, follow the onscreen prompts.
Cabinet Registration
If connecting online, select or setup a location for the cabinet. This will provide tracking/management
functionality through coinup.com. It will also allow players to locate the game through bigbuckhd.com.

MotoGP® Setup Wizard
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 12
Verify Input and Output Functionality
1. Enter the INPUT TESTS menu and verify all switches and inputs function.
2. Enter the VIDEO TESTS menu and verify that video is acceptable.
3. Enter the WEBCAM TEST menu and verify/configure the webcam functionality.
4. Enter the COIN METER TEST and verify the operation of the coin meter.
5. Enter the LAMP TESTS menu and verify that the lamps of the buttons work correctly.
6. Enter the BLOWER TEST menu and verify the blower is functioning.
7. Enter the SOUND TEST menu and verify the audio works and is not distorted.
8. Enter the WATCHDOG TEST menu, which re-boots the game.
9. Upon a successful re-boot, you are ready to make adjustments to pricing, volume and other
functions found in the Diagnostic Section.
Verify Cabinet Connectivity
1. If connecting online, enter the ONLINE menu.
2. Select CONNECTION DETAILS AND TEST and run a test connection.
3. If any of the tests result in FAILURE, consult troubleshooting section or your network admin.
4. Select MATCHMAKER CONNECTION TEST and run a test connection
5. If any of these tests result in FAILURE, you may not be able to host or join online matches.
Consult your network admin to make needed changes to the location’s network architecture.

Page 13 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
Networking Considerations
Each MotoGP game ships with a cross over cable for linking 2 games. Optionally, a hub and network
cables can be installed to link more games together.
Take care to protect exposed game wiring from general foot traffic around the game. Use a conduit or
wire way to protect cables, if needed. Network cables are not marked or coded. Mark the linking cables
for your games, if other such cables in the area could cause confusion. Avoid routing cables near
sources of heat, moisture, or electrical energy such as neon lights, compressor motors, etc.
Local Network Setup –2 games
1. Turn off both game cabinets.
2. Remove the cross over network cable from the parts bag inside the cash box.
3. Connect each end of the cable to the Ethernet port of each game’s PC.
4. Route the cable through the notch on the back of each cabinet.
5. Turn on both game cabinets
6. Enter Diagnostic Mode for each game
7. Select Adjustments
8. Select Game Options
9. Adjust Cabinet Link Number to give each game a unique number
10. In the Online menu, select Connection Wizard
11. When prompted, select Local and wait for the process to complete.
Local Network Setup –3 to 8 games
1. Acquire a network hub with enough ports and the correct number of cables to support the
desired number of games. Cables and hub are not supplied with the games.
2. Turn off all game cabinets
3. Connect an Ethernet cable to the Ethernet port on each game’s PC
4. Connect each game’s Ethernet cable to the network hub.
Consult network hub manual for any additional considerations specific to the hub.
5. Turn on all game cabinets
6. Enter Diagnostic Mode for each game
7. Select Adjustments
8. Select Game Options
9. Adjust Cabinet Link Number to give each game a unique number
10. In the Online menu, select Connection Wizard
11. When prompted, select Local and wait for the process to finish.

Game Networking
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 14
Online Network Setup
1. Set up DSL or cable modem service through an ISP for the location.
2. If connecting multiple games for online play, acquire a network hub with enough ports and the
correct number of Ethernet cables to support the desired number of games. Cables and hub are
not supplied with the games.
3. Turn off all game cabinets
4. Connect an Ethernet cable to the Ethernet port on each game’s PC
5. Connect each game’s Ethernet cable to the network hub.
Consult network hub manual for any additional considerations specific to the hub.
6. Connect the network hub to an external internet source.
7. Turn on all game cabinets
8. Enter Diagnostic Mode for each game
9. Select Adjustments
10. Select Game Options
11. Adjust Cabinet Link Number to give each game a unique number
12. In the Online menu, select Connection Wizard
13. When prompted, select Online.
14. Select either a dynamic or static IP.
15. Wait for configuration process to finish.

Page 15 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
Software Patches
Having your game connected to CoinUp® allows easy access to software patches. New game patches
will automatically be downloaded and installed to registered units.
Online Player Experience
Online Matchmaking
Having your game connected to CoinUp® allows players to compete with other players online. Up to 8
players can be matched together by a peer-to-peer connection. Online matchmaking requires a peer-to-
peer connection of 100ms or better.
National and Operator Leaderboards
Online games contribute player track times to national leaderboards, allowing players to compete on a
wider scale. Online games can also generate leaderboards exclusively from all your registered games.
Online Player Accounts
Online games allow players to create an account to maintain their stats, such as best race times, across
all online locations, encouraging repeat play and personal improvement.
Online Game Management
Easy Website Interface
Online game management is as simple as browsing a website. Coinup® provides basic tools for
operators to monitor and modify their games remotely.
Earnings Reports
Monitor you game earnings remotely using Coinup®.
Collection Reports
Have a historic record of every collection taken at the game using Coinup®.
Player Loyalty Reports
Track earnings gained from online players at your locations.
Game Adjustments
Online games can have their adjustments modified remotely. Even better, MotoGP games will sync to
the adjustments of the primary cabinet at the location.
Location Registration
Registering your game units to a location helps boost traffic, by allowing players to find them online,
using the Coinup® location finder. Location registration can also be remotely updated using Coinup®.

Maintenance
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 16
Hard Drive Recovery
Symptoms requiring hard drive recovery include:
File Test reports bad or missing files
Game fails to finish loading during startup
After resetting the AC power, an error is reported
You are prompted to insert a boot DVD
Erratic Game or Attract Mode
A screen indicating Data Files Corrupted
COMPUTER
The computer contains sensitive components, including a hard drive. Do not handle roughly. Call your distributor
before servicing its internal components. Ask about warranty information as it relates to the PC.
Do not use the PC on/off switch. Turn AC power on or off with the cabinet power switch.
DVD Restore
1. With game and PC on, insert recovery DVD, marked as Disc 1, into DVD-ROM drive tray.
2. Close tray and Turn cabinet AC power switch to OFF.
3. Wait 30 seconds, then turn AC power switch to ON. Recovery begins automatically.
If recovery fails to begin, check that disc is seated properly in DVD-ROM drive tray.
4. Initial software loading may take several minutes. Check progress periodically.
Do not interrupt power or reset the game during recovery.
5. At some point, the game will eject Disc 1 and prompt you to insert Disc 2.
6. Swap discs and close the tray. Do not interrupt power or reset the game.
7. When software has finished loading, a message indicates that restore is complete.
8. Remove DVD restore disc and turn cabinet power switch to OFF.
9. After 30 seconds, turn cabinet power switch to ON.
10. After game restarts, the game will proceed through the Setup Wizard with factory defaults.
Flash Drive Restore
1. Turn AC power switch to OFF.
2. Connect USB flash drive to an open USB port on the PC.
3. Turn AC power switch to ON.
4. Initial software loading may take several minutes. Check progress periodically.
Do not interrupt power or reset the game during recovery.
5. When software has finished loading, a message indicates that restore is complete.
6. Turn cabinet power switch to OFF and disconnect USB flash drive.
7. After 30 seconds, turn cabinet power switch ON.
8. After game restarts, the game will proceed through the Setup wizard with factory defaults.

Page 17 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.

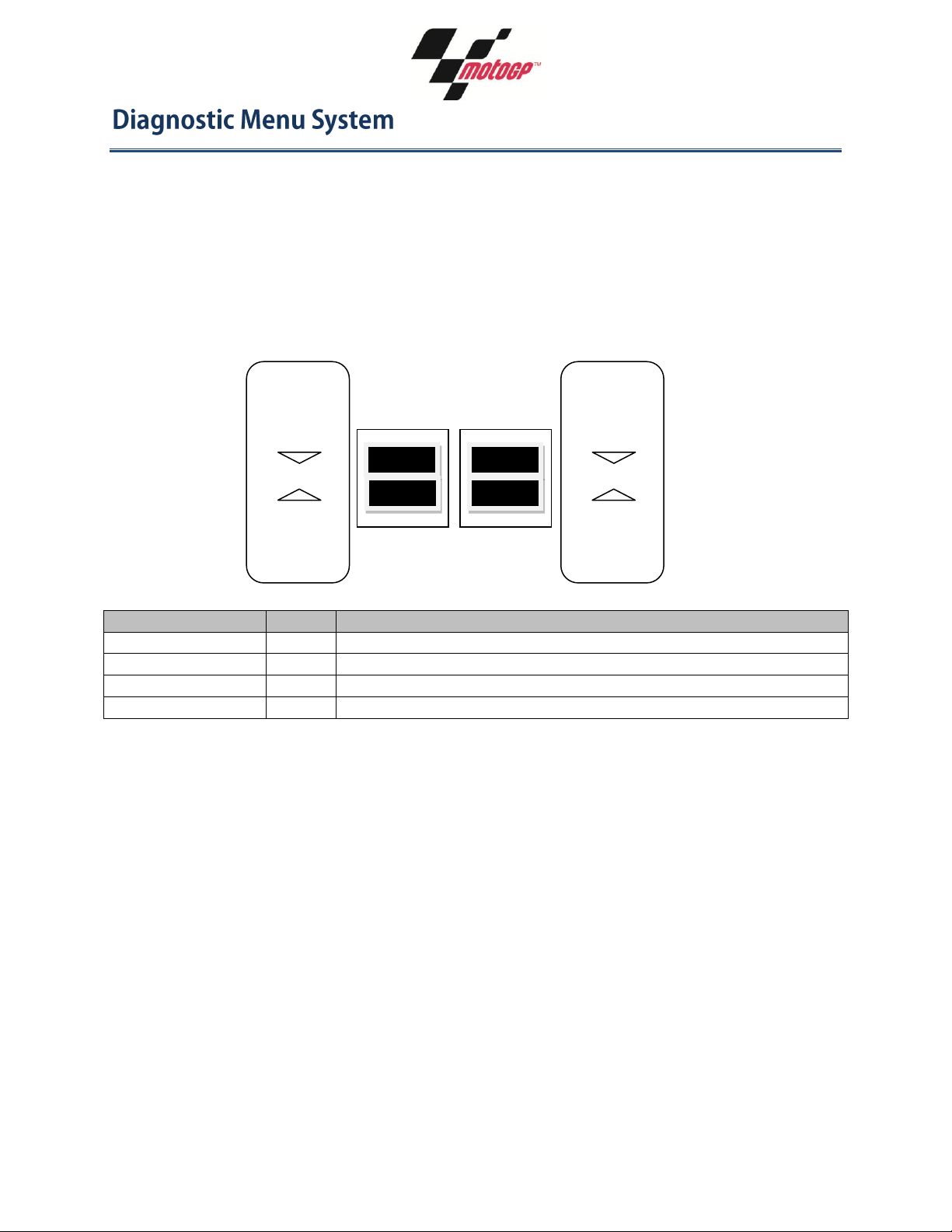

Diagnostic Menu Interface
The Service Panel should have four buttons. Pressing the TEST button at any point while the game is
running will enter the diagnostic menu. This menu can be navigated with the service panel or keypad.
An on-screen message acknowledges changes or when you exit a selection without making a change.
At the bottom of each screen, there is a brief description of the highlighted menu option.
Navigating Diagnostic Menus
Service Panel Switch
Keypad
Effect
Test
#
enters diagnostic system or select highlighted menu option
Service
*
exit current menu or cancel
Volume Up
8
moves up through menu or setting choices
Volume Down
0
moves down through menu or setting choices
TEST
SERVICE
Volume
UP
Volume
DOWN

Diagnostic Menu System
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 18
Menu Screens and Descriptions
Main Menu
MAIN MENU
Setup Wizard
Adjustments
Audits
Online
Resets
System Information
Tests
Utilities
Setup Wizard pg 11 - will only appear if setup wizard has not been completed
Adjustments pg 18 - modify various game settings
Audits pg 23 - view various tracking statistics
Online pg 24 - setup and manage online functionality
Resets pg 27 - used to restore game to factory defaults
Information pg 27 - view various hardware and software information
Tests pg 29 - execute various diagnostic and maintenance tests
Utilities pg 32 - contains tools for managing game performance
Main Menu
Adjustments
ADJUSTMENTS
Game Options
Online System Adjustments
Player Cost Adjustments
Sound Adjustments
Alternative Payment Adjustments
Hardware Adjustments
Coin Adjustments
You can improve earnings by customizing performance with game adjustments. Each variable on an
adjustment menu changes an aspect of game play or appearance. Optimizing these settings can
maintain or increase player interest. Monitor the effects of adjustments by comparing audit
information and earnings before and after changes.

Page 19 MotoGP™Game Software copyright 2015 PlayMechanix™ Inc. All rights reserved.
Main Menu
Adjustments
Game Options
GAME OPTIONS
Cabinet Link Number 1
Track Difficulty Standard
Track List Cycle
Race Length 2+ min
Hide Girls Off
Announcer On
Local Leaderboards On
National Leaderboards On
Operator Leaderboards Off
Setting
Description
Default
Choices
Cabinet Link
Number
ID number used to distinguish a unique game within
a linked group
1
1 to 8
Track
Difficulty
Standard uses a spread of various difficult levels
amongst available track selection. A locked difficulty
of easy, medium, hard will make all tracks more
uniformly difficult.
Standard
Standard, Easy,
Medium, Hard
Track List
Adjusts the list of tracks available to the player. By
default, the available tracks will change each day.
Cycle
Cycle, Lists 1 to 5
Race Length
Adjust the average duration for races
2+ min
2+ min or 3+min
Hide Girls
Adjust the display of models
Off
On/Off
Announcer
Adjust the use of an announcer during races
On
On/Off
Local
Leaderboards
Toggle the display of local network leaderboards
On
On/Off
National
Leaderboards
Toggle the display of online national leaderboards.
National leaderboards include all online units
On
On/Off
Operator
Leaderboards
Toggle the display of online operator leaderboards.
Operator leaderboards include all your online units.
Off
On/Off

Diagnostic Menu System
Copyright © 2015 Play Mechanix™ Inc. All rights reserved. Page 20
Main Menu
Adjustments
Online System Adjustments
ONLINE SYSTEM ADJUSTMENTS
Online Maintenance Hour 4:00 am-5:00 am
Use Slow Network Wait Times Off
DB Server Port Automatic
File Server Port Automatic
Setting
Description
Default
Choices
Online
Maintenance
Hour
The 60-minute period during which online-enabled
games contact the server to check for software
updates and synchronize with the game database.
4:00 am
-
5:00 am
24 hours in one
hour increments
Use Slow
Network
Wait Times
Adjusts query timeout duration to accommodate
slow network traffic
Off
On/Off
DB Server
Port
Adjusts the ports used to connect to the DB server.
Automatic
Automatic, 21, 80,
443, 7686
File Serve
Port
Adjusts the ports used to connect to the File server.
Automatic
Automatic, 21, 80,
443, 8080, 8686
Main Menu
Adjustments
Player Cost Adjustments
PLAYER COST ADJUSTMENTS
Freeplay OFF
Game Cost $1.00
Continue Cost $1.00
Setting
Description
Default
Choices
Freeplay
Allows play without money
OFF
OFF / ON
Game Cost
Cost to start a race
$1.00
$0.00 - $63.75 incrementing by
coin base unit setting
Continue Cost
Cost to continue and play another race
$1.00
$0.00 - $63.75 incrementing by
coin base unit setting
