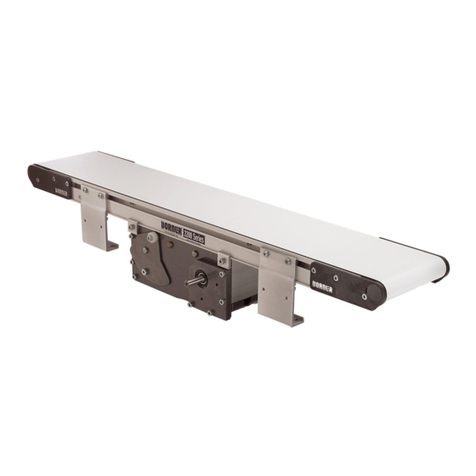

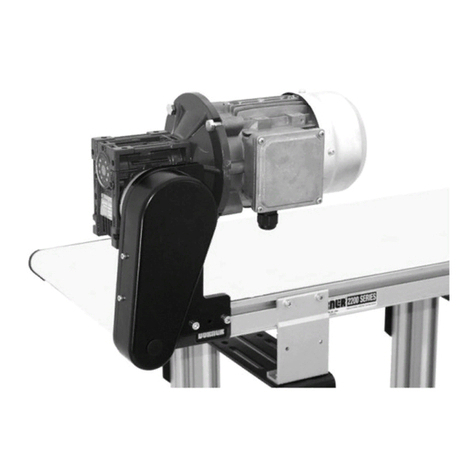

Dorner 2200 series User manual

For other service manuals visit our website at:
www.dorner.com/service_manuals.asp
DORNER MFG. CORP. INSIDE THE USA OUTSIDE THE USA
P.O. Box 20 • 975 Cottonwood Ave. TEL: [phone] TEL: [phone]
Hartland, WI 53029-0020 USA FAX: [phone] FAX: [phone]
851-452 Rev. L
2200 Series End Drive
Conveyors
Installation, Maintenance & Parts Manual

Dorner Mfg. Corp. 2 851-452 Rev. L
2200 Series End Drive Conveyors
Table of Contents
Introduction ......................................................................... 3
Warnings −General Safety ................................................. 4
Product Description ............................................................. 5
Specifications ...................................................................... 5
Models: ............................................................................ 5
Flat Belt 2200 Series Conveyor ................................... 5
Cleated Belt 2200 Series Conveyor ............................. 5
Conveyor Supports: ......................................................... 5
Maximum Distances:.................................................... 5
Specifications: .............................................................. 6
Installation ........................................................................... 7
Required Tools................................................................. 7
Recommended Installation Sequence .............................. 7
Conveyors Up to 12ft (3658mm)..................................... 7
Conveyors Longer Than 12ft
(3658mm)......................................................................... 7
Mounting Brackets........................................................... 8
Return Rollers .................................................................. 9
Cleated Belt and 2–6¨ (51–152 mm)
Wide Flat Belt Conveyors ............................................ 9
8–24¨ (203–610 mm) Wide Flat Belt Conveyors......... 9
Preventive Maintenance and Adjustment.......................... 10
Required Tools............................................................... 10
Standard Tools............................................................ 10
Special Tools .............................................................. 10
Checklist ........................................................................ 10
Lubrication..................................................................... 10
Maintaining Conveyor Belt ........................................... 10
Troubleshooting ......................................................... 10
Cleaning ..................................................................... 10
Conveyor Belt Replacement .......................................... 10
Conveyor Belt Replacement Sequence ...................... 10
Belt Removal for Conveyor Without Stands or
Gearmotor Mounting Package ................................... 10
Belt Removal for Conveyor
With Stands and Gearmotor Mounting Package ........ 11
Belt Installation for Conveyor without Stands or
Gearmotor Mounting Package ................................... 12
Belt Installation for Conveyor with Stands and
Gearmotor Mounting Package ................................... 12
Conveyor Belt Tensioning ............................................. 13
Conveyors with 1.25¨ (32 mm) Diameter Pulleys...... 13
Conveyors with Nose Bar Idlers ................................ 13
Conveyor Belt Tracking................................................. 14
V-Guided Belts........................................................... 14
Non V-Guided Belts................................................... 14
Pulley Removal.............................................................. 15
A −Idler Pulley Removal........................................... 15
B −Drive Pulley Removal ......................................... 16
Bearing Removal & Replacement ................................. 16
Removal ..................................................................... 16
Replacement ............................................................... 17
Drive Pulley and Idler Pulley Installation ...................... 17
Drive Pulley Installation ............................................. 17
Idler Pulley Installation............................................... 17
Nose Bar Bearing Replacement ..................................... 18
Notes .................................................................................. 19
Service Parts....................................................................... 20
2” (51 mm) Wide Conveyor........................................... 20
3” (76 mm) to 6” (152 mm) Wide Conveyor ................. 22
8” (203 mm) to 12” (305 mm) Wide Conveyor ............. 24
18” (457 mm) to 24” (610 mm) Wide Conveyor ........... 26
Nosebar End Assembly .................................................. 28
−04 3” (76 mm) Aluminum Side.................................... 29
−05 1.5” (38mm) Aluminum Side.................................. 30
−07 Low to Side Wiper .................................................. 31
−09 Low to High Side .................................................... 32
−10.5” (13mm) Extruded Plastic.................................... 33
−13 Adjustable Guiding ................................................. 34
−14 Tool-Less Adjustable Guiding ................................ 35
0.5” (13mm) Cleated Belt Guiding ................................ 36
1” (25mm) Cleated Belt Guiding ................................... 37
2” (51mm) Cleated Belt Guiding ................................... 38
Flared Side Guiding........................................................ 39
Flat Belt Stand Mount Assembly ................................... 40
Cleated Belt Stand Mount Assembly ............................. 40
Flat Belt Stand Mount Assembly
for 2’ (610mm) Conveyors............................................ 41
Cleated Belt Stand Mount Assembly
for 2’ (610mm) Conveyors............................................ 41
Connecting Assembly without Stand Mount ................. 42
Flat Belt Connecting Assembly with Stand Mount) ...... 42
Cleated Belt Connecting Assembly with Stand Mount.. 43
2” (51mm) to 6” (152mm) Flat Belt Return Roller........ 43
8” (203mm) to 24” (610mm) Flat Belt Return Roller.... 44
Cleated Belt Return Roller ............................................. 44
Conveyor Belt Part Number Configuration.................... 45
Return Policy...................................................................... 46

851-452 Rev. L 3 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Introduction
Upon receipt of shipment:
• Compare shipment with packing slip. Contact factory
regarding discrepancies.
• Inspect packages for shipping damage. Contact carrier
regarding damage.
• Accessories may be shipped loose. See accessory instruc-
tions for installation.
Dorner’s Limited Warranty applies.
Dorner has convenient, pre−configured kits of Key Service
Parts for all conveyor products. These time saving kits are
easy to order, designed for fast installation, and guarantee
you will have what you need when you need it. Key Parts
and Kits are marked in the Service Parts section of this
manual with the Performance Parts Kits logo .
Dorner 2200 series conveyors are covered by Patent
Numbers 5,174,435, 6,298,981, 6,422,382 and
corresponding patents and patent applications in other
countries.
Dorner reserves the right to make changes at any time
without notice or obligation.
IMPORTANT
Some illustrations may show guards
removed. DO NOT operate equipment
without guards.

Dorner Mfg. Corp. 4 851-452 Rev. L
2200 Series End Drive Conveyors
Warnings −General Safety
A
WARNING
The safety alert symbol, black triangle with
white exclamation, is used to alert you to
potential personal injury hazards.
A
DANGER
Climbing, sitting, walking or riding on
conveyor will cause severe injury. KEEP OFF
CONVEYORS.
A
DANGER
DO NOT OPERATE CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT.
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
A
WARNING
Gearmotors may be HOT.
DO NOT TOUCH Gearmotors.
A
WARNING
Dorner cannot control the physical
installation and application of conveyors.
Taking protective measures is the
responsibility of the user.
When conveyors are used in conjunction
with other equipment or as part of a multiple
conveyor system, CHECK FOR POTENTIAL
PINCH POINTS and other mechanical
hazards before system start-up.
A
WARNING
Loosening stand height or angle adjustment
screws may cause conveyor sections to drop
down, causing severe injury.
SUPPORT CONVEYOR SECTIONS PRIOR TO
LOOSENING STAND HEIGHT OR ANGLE
ADJUSTMENT SCREWS.

851-452 Rev. L 5 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Product Description
Refer to Figure 1 for typical components. Figure 1
Figure 1
Specifications
Models:
Flat Belt 2200 Series Conveyor
Cleated Belt 2200 Series Conveyor
Conveyor Supports:
Maximum Distances:
1 = 18¨ (457 mm)**
2 = 6 ft (1829 mm)***
3 = 18¨ (457 mm)
** For Heavy Load Bottom Mount Package, mount support
under gear head.
*** For conveyors longer than 12 ft (3658 mm), install
support at joint.
Figure 2
Figure 2
1Conveyor
2 Gearmotor Mounting Package
3 Gearmotor
4 Guiding & Accessories
5 Mounting Brackets
6 Return Rollers
7 Support Stand
8 Variable Speed Controller
9DriveEnd
10 Idler/Tension End
234
5
8
7
9
5
16
10
202 M BB
PA
DLLLLWW PD
D
I
G
Idler Tail Type
Belt Type
Profile (D side)
Document Language
Motor Shaft Position
Flat Belt 2200 Series Conveyor
Profile (A side)
Drive Tail Type
Tracking / Mounting Brackets
Conveyor Length
Conveyor Width
2C2 M PP LLLLWW
G
Idler Tail Type
SSSS
Cleat Spacing
C
Cleat Type
Document Language
Motor Shaft Position
Cleated Belt 2200 Series Conveyor
Profiles
Drive Tail Type
Tracking / Mounting Brackets
Conveyor Length
Conveyor Width
BB
Belt Material
DID
1 2 3

Dorner Mfg. Corp. 6 851-452 Rev. L
2200 Series End Drive Conveyors
Specifications
Specifications:
* See Ordering and Specifications Catalog for details.
** Lengths available only in 6¨ (152 mm) & wider
conveyors.
Conveyor Width
Reference (WW) 02 03 04 05 06 08 10 12 18 21 24
Conveyor Belt Width 1.75¨
(44mm) 2.75¨ (70mm) 3.75¨ (95mm) 5¨ (127mm) 6¨ (152mm) 8¨ (203mm) 10¨ (254mm) 12¨ (305mm) 18¨ (457mm) 21¨ (533mm) 24¨ (609mm)
Maximum Conveyor
Load*
(See NOTE Below)
30 lb
(14kg) 35 lb (16kg) 42 lb (19kg) 50 lb (23kg) 60 lb (27kg) 70 lb (32kg) 80 lb (36kg) 80 lb (36kg) 80 lb (36kg) 80 lb (36kg) 80 lb (36kg)
Conveyor Startup
Torque* 2 in-lb (0.5Nm) 3 in-lb (0.6Nm) 4 in-lb (0.7Nm) 6 in-lb (0.8Nm) 8 in-lb (0.9Nm) 10 in-lb (1.1Nm) 12 in-lb (1.4Nm) 14 in-lb (1.5Nm) 15 in-lb (1.7Nm) 18 in-lb (2.0Nm) 20 in-lb (2.3Nm)
Belt Travel 4.0¨ (88 mm) per revolution of pulley
Maximum Belt Speed* 264 ft/minute (80.5 m/minute)
Belt Takeup 0.38¨ (10 mm) of stroke = 0.75¨ (19 mm) of belt take-up
Conveyor Length
Reference (LL) 02 03 04 05 06 07 08 09 10 11 12 13** 14** 15** 16** 17** 18**
Conveyor Length
Up to 18 ft in any length
to nearest 0.12” (3 mm)
2-ft (610 mm) 3-ft (914 mm)
4-ft (1219 mm) 5-ft (1524 mm) 6-ft (1829 mm) 7-ft (2134 mm) 8-ft (2438 mm) 9-ft (2743 mm)
10-ft (3048 mm) 11-ft (3353 mm) 12-ft (3658 mm)
13-ft (3962 mm)** 14-ft (4267 mm)** 15-ft (4572 mm)** 16-ft (4877 mm)** 17-ft (5182 mm)** 18-ft (5486 mm)**
NOTE
Maximum conveyor loads based on:
• Non-accumulating product
• Product moving towards gearmotor
• Conveyor being mounted horizontal

851-452 Rev. L 7 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Installation
Figure 3
Figure 3
Installation Component List
Required Tools
• Hex-key wrenches:
4 mm, 5 mm
• Level
• Torque wrench
Recommended Installation
Sequence
• Install support stands (see accessory instructions)
• Assemble conveyor (if required)
• Attach mounting brackets to conveyor
• Attach conveyor to stands
• Install return rollers on conveyor (optional)
• Mount gearmotor mounting package (see accessory
instructions)
• Attach guides/accessories (see page 20 through page 44 of
“Service Parts” section for details)
Conveyors Up to 12ft (3658mm)
No assembly is required. Install mounting brackets and
return rollers. Refer to “Mounting Brackets” on page 8 and
“Return Rollers” on page 9.
Conveyors Longer Than 12ft
(3658mm)
1. Locate and arrange conveyor sections by section labels
(Figure 4, item 1).
Figure 4
Figure 4
2. On tension end of the conveyor, identified with
a label (Figure 5, item 1), push in head plate
assembly (Figure 5, item 2): On both sides of conveyor,
loosen and move cam tracking assemblies (Figure
5, item 3) (if equipped) away from head plates, then
loosen fastening screws (Figure 5, item 4) and push
head plate assembly inward.
Figure 5
Figure 5
3. Roll out conveyor belt and place conveyor frame
sections (Figure 6, item 1) into belt loop.
Figure 6
Figure 6
NOTE
Conveyor MUST be mounted straight, flat and
level within confines of conveyor. Use a level
(Figure 3, item 1) for setup.
Conveyor frame (two sections if longer than 12ft)
Conveyor brackets (4x)
Return rollers (for longer conveyors)
1
11
4
2
3
1
11

Dorner Mfg. Corp. 8 851-452 Rev. L
2200 Series End Drive Conveyors
Installation
4. Join conveyor sections and install frame connector
plates (Figure 7, item 1) or connector/mount brackets
(Figure 7, item 2) and screws (Figure 7, item 3) on
both sides as indicated. Tighten screws to 60 in-lb (7
Nm).
Figure 7
Figure 7
5. With a 5 mm hex-key wrench, rotate pinion gear
(Figure 8, item 1) to tension the conveyor belt. Tighten
fastening screws (Figure 8, item 2) on both sides of
conveyor to 80 in-lb (9 Nm). For proper tensioning,
refer to “Conveyor Belt Tensioning” on page 13”.
Figure 8
Figure 8
6. Install mounting brackets and return rollers. Refer to
“Mounting Brackets” on page 8 and “Return Rollers” on
page 9.
7. If equipped with cam tracking assemblies (Figure
5, item 3), reposition and adjust belt tracking. Refer to
“Conveyor Belt Tracking” on page 14.
8. If drive tail is equipped with tracking cam assemblies
(Figure 9, item 1), remove 3rd head plate screw
(Figure 9, item 2), from head plate with the output
shaft.
Figure 9
Figure 9
Mounting Brackets
1. Locate brackets. Exploded views shown in Figure 10 &
Figure 11.
Figure 10
Figure 10
Figure 11
Figure 11
2. Remove screws (Figure 10, item 1 & 2) & (Figure
11, item 1 & 2), washers (Figure 10, item 3), nuts
(Figure 10, item 4) and T-bars (Figure 10, item 5) from
brackets.
3. Insert T-bars (Figure 10, item 5) & (Figure 11, item 5)
into conveyor side slots (Figure 12, item 1). Fasten
brackets (Figure 12, item 2) to conveyor with mounting
screws (Figure 12, item 3).
1
3
2
2
1
2
1
1
5
4
3
2
5
1
4
3
2

851-452 Rev. L 9 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Installation
Figure 12
Figure 12
4. Fasten brackets to support stand with mounting screws
(Figure 12, item 4), washers (Figure 12, item 5) and
nuts (Figure 12, item 6).
5. Tighten screws (Figure 12, item 3 & 4) to 60 in-lb (7
Nm).
Return Rollers
Cleated Belt and 2–6¨ (51–152 mm) Wide
Flat Belt Conveyors
1. Locate return rollers. Exploded views shown in Figure
13 & Figure 14.
Figure 13
Figure 13
Figure 14
Figure 14
2. Remove screws (Figure 13, item 1) & (Figure
13, item 1) and clips (Figure 13, item 2) from roller
assembly.
3. Install roller assemblies (Figure 15, item 1) as shown.
Tighten screws (Figure 15, item 2) to 60 in-lb (7 Nm).
Figure 15
Figure 15
8–24¨ (203–610 mm) Wide Flat Belt
Conveyors
1. Locate return rollers. Exploded view shown in Figure
16.
Figure 16
Figure 16
2. Remove screws (Figure 16, item 1) and clips (Figure
16, item 2) from roller assembly.
3. Install roller assembly as shown (Figure 17, item 1).
Tighten screws (Figure 17, item 2) to 60 in-lb (7 Nm).
Figure 17
Figure 17
NOTE
Mounting brackets for flat belt conveyors
shown.
13
2
6
45
12
21
1
2
2
1
2
1
1
12
21
1
2

Dorner Mfg. Corp. 10 851-452 Rev. L
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Required Tools
Standard Tools
• Hex-key wrenches:
2.5 mm, 4 mm, 5 mm
• Arbor press
Special Tools
• 807−1716 Bearing Puller Tool (or equivalent)
• 450293 Bearing Installation Tool (Bearing Pusher)
• 456063 Bearing Removal Tool
Checklist
• Keep service parts on hand (see “Service Parts” section for
recommendations)
• Keep supply of belt cleaner
• Clean entire conveyor and knurled pulley while disassem-
bled
• Replace worn or damaged parts
Lubrication
No lubrication is required. Replace bearings if worn.
Maintaining Conveyor Belt
Troubleshooting
Inspect conveyor belt for:
• Surface cuts or wear
• Stalling or slipping
• Damage to V-guide
Surface cuts and wear indicate:
• Sharp or heavy parts impacting belt
• Jammed parts
• Improperly installed bottom wipers (if installed)
• Accumulated dirt in wipers (if installed)
• Foreign material inside the conveyor
• Improperly positioned accessories
• Bolt-on guiding is pinching belt
Stalling or slipping indicates:
• Excessive load on belt
• Conveyor belt or drive timing belt are not properly ten-
sioned
• Worn knurl or impacted dirt on drive pulley
• Intermittent jamming or drive train problems
Damage to V-guide indicates:
• Twisted or damaged conveyor frame
• Dirt impacted on pulleys
• Excessive or improper side loading
Cleaning
Use Dorner Belt Cleaner. Mild soap and water may also be
used. Do not soak the belt.
For /05 woven polyester and /06 black anti-static belts, use a
bristled brush to improve cleaning.
Conveyor Belt Replacement
Conveyor Belt Replacement Sequence
Remove old conveyor belt:
- Conveyor without Stands or Gearmotor Mounting
Package
- Conveyor with Stands and Gearmotor Mounting
Package
• Install new conveyor belt
• Tension conveyor belt
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.

851-452 Rev. L 11 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Belt Removal for Conveyor Without Stands
or Gearmotor Mounting Package
1. If equipped, remove bottom wipers (Figure 18, item 1):
Remove fastening screws (Figure 18, item 2) then
remove wiper.
Figure 18
Figure 18
2. If equipped, remove return rollers and guiding and
accessories from one side of conveyor.
3. On tension end of the conveyor, identified with a
label (Figure 19, item 1), push in head plate
assembly (Figure 19, item 2): On both sides of
conveyor, loosen and move cam tracking assemblies
(Figure 19, item 3) (if equipped) away from head
plates, then loosen fastening screws (Figure 19, item 4)
and push head plate assembly inward.
Figure 19
Figure 19
4. Remove conveyor belt.
Belt Removal for Conveyor With Stands
and Gearmotor Mounting Package
1. Place temporary support stands (Figure 20, item 1) at
both ends of the conveyor. Place an additional support
stand under the drive motor (Figure 20, item 2), if
equipped. See WARNING.
Figure 20
Figure 20
2. Remove mounting brackets (Figure 20, item 3) from
one side of conveyor. (Reverse steps 3 & 4 of
“Mounting Brackets” section beginning on page 8.) If
equipped with heavy load drive package, remove
brackets from side opposite drive cover (Figure
21, item 1).
3. If equipped, remove bottom wipers (Figure 18, item 1):
Remove fastening screws (Figure 18, item 2 then
remove wiper (Figure 18, item 1).
4. If equipped, remove return rollers, guiding and
accessories from side opposite drive cover (Figure
21, item 1).
Figure 21
Figure 21
5. If equipped with heavy load drive package, remove
drive support bracket (Figure 21, item 2): Remove
bracket screws (Figure 21, item 3) then remove bracket
(Figure 21, item 2).
A
WARNING
Removing mounting brackets without
support under gearmotor will cause
conveyor to tip, causing severe injury.
PROVIDE SUPPORT UNDERNEATH THE
GEARMOTOR WHEN CHANGING THE BELT
22
1
43
21
11
2
3
3
3
1
2
3

Dorner Mfg. Corp. 12 851-452 Rev. L
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
6. On tension end of the conveyor, identified with
a label (Figure 22, item 1), push in head plate
assembly (Figure 22, item 2): On both sides of
conveyor, loosen and move cam tracking assemblies
(Figure 22, item 3) (if equipped) away from head
plates, then loosen fastening screws (Figure 22, item 4)
and push head plate assembly inward.
Figure 22
Figure 22
7. Remove belt (Figure 23, item 1) from conveyor.
Figure 23
Figure 23
Belt Installation for Conveyor without
Stands or Gearmotor Mounting Package
1. Orient belt so splice leading fingers (Figure 24, item 1)
point in the direction of belt travel as identified by the
conveyor directional label (Figure 24, item 2).
Figure 24
Figure 24
2. Slide belt onto the conveyor frame assembly.
3. Tension belt. Refer to “Conveyor Belt Tensioning” on
page 13.
4. If equipped, install wipers, return rollers and guiding.
Belt Installation for Conveyor with Stands
and Gearmotor Mounting Package
1. Ensure temporary support stands (Figure 20, item 1)
are placed at both ends of the conveyor. Place an
additional support stand under the drive motor (Figure
20, item 2), if equipped. See WARNING.
2. Orient belt so splice leading fingers (Figure 24, item 1)
point in the direction of belt travel as identified by the
conveyor directional label (Figure 24, item 2).
3. Install belt (Figure 25, item 1) on conveyor. Lift
conveyor slightly to avoid pinching belt on temporary
support stands.
Figure 25
Figure 25
4. Re-install conveyor mounting brackets. Refer
“Mounting Brackets” beginning on page 8, steps 3
through 5.
5. If equipped with a heavy load drive package, re-install
drive support bracket (Figure 21, item 2).
6. Tension belt. Refer to “Conveyor Belt Tensioning” on
page 13
7. If equipped, re-install wipers, return rollers and guiding.
2
43
1
1
1
1
2
A
WARNING
Removing mounting brackets without
support under gearmotor will cause
conveyor to tip, causing severe injury.
PROVIDE SUPPORT UNDERNEATH THE
GEARMOTOR WHEN CHANGING THE BELT
11

851-452 Rev. L 13 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Conveyor Belt Tensioning
Conveyors with 1.25¨ (32 mm) Diameter
Pulleys
1. On tension end of the conveyor, identified with a
label (Figure 26, item 1), adjust head plate
assembly (Figure 26, item 2): On both sides of
conveyor, loosen fastening screws (Figure 26, item 3)
and rotate pinion gear (Figure 26, item 4) to adjust head
plate assembly.
Figure 26
Figure 26
2. Adjust head plate assembly so end of conveyor frame
aligns with or between the head plate tensioning marks
(Figure 27, item 1 & 2). Replace belt if proper
tensioning can not be obtained while aligning the end of
the conveyor frame with or between the tensioning
marks. See NOTE.
Figure 27
Figure 27
3. After adjusting proper tensioning, tighten fastening
screws (Figure 26, item 3) on both sides of conveyor to
60 in-lb (7 Nm).
4. If equipped with cam tracking assemblies (Figure
26, item 5), position against head plates and adjust belt
tracking. Refer to “Conveyor Belt Tracking” on
page 14.
Conveyors with Nose Bar Idlers
1. On tension end of the conveyor, identified with a
label (Figure 28, item 1), adjust head plate
assembly (Figure 28, item 2): On both sides of
conveyor, loosen fastening screws (Figure 28, item 3)
and rotate pinion gear (Figure 28, item 4) to adjust head
plate assembly.
Figure 28
Figure 28
2. Adjust head plate assembly so the edge of the axle
support plate (Figure 29, item 1) is separated from the
end of the conveyor (Figure 29, item 2) by 1.125¨ (29
mm). Replace belt if proper tensioning can not be
obtained within a distance of 1.50¨ (38 mm). See NOTE.
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
35
214
12
NOTE
On pinion gear, do not exceed a torque of 25
in-lb (2.8 Nm) for 2 – 12¨ (44 – 305 mm) wide
conveyors and 50 in-lb (4.5 Nm) for an 18 –
24¨ (457 – 610 mm) wide conveyor. Over
tensioning the conveyor belt could cause
excessive pulley bearing load and early
failure.
35
214

Dorner Mfg. Corp. 14 851-452 Rev. L
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Figure 29
Figure 29
3. After adjusting proper tensioning, tighten fastening
screws (Figure 28, item 3) on both sides of conveyor to
60 in-lb (7 Nm).
4. If equipped with cam tracking assemblies (Figure
28, item 5) position against head plates and adjust belt
tracking. Refer to “Conveyor Belt Tracking”, next
section.
Conveyor Belt Tracking
V-Guided Belts
V-guided belts do not require tracking adjustment.
Non V-Guided Belts
Non V-guided belt conveyors are equipped with belt tracking
cam assemblies (Figure 30, item 1) for belt tracking
adjustment.
Figure 30
Figure 30
When adjusting belt tracking, always adjust the discharge
end of the conveyor first. To adjust belt tracking:
5. Ensure head plate fastening screws (Figure 30, item 2)
on both sides of conveyor are tightened.
6. On both sides of conveyor, loosen two (2) cam fastening
screws (Figure 30, item 3). Adjust cams (Figure
30, item 4) until indicator slots (Figure 30, item 5) are
horizontal and facing end of conveyor. Then slide cam
assemblies against head plates (Figure 30, item 6) and
re-tighten cam fastening screws (Figure 30, item 3) to
60 in-lb (7 Nm).
7. On the side toward which the belt is tracking, loosen
head plate fastening screws (Figure 30, item 2).
8. With the conveyor running, use a 5 mm hex-key wrench
to rotate the tracking cam (Figure 30, item 4) in small
increments until the belt tracks in the center of the
conveyor. Then while holding the cam in position, re-
tighten the head plate fastening screws (Figure
30, item 2) with a 4 mm hex-key wrench to 60 in-lb (7
Nm).
NOTE
On pinion gear, do not exceed a torque of 25
in-lb (2.8 Nm) for 2 – 12¨ (44 – 305 mm) wide
conveyors or 50 in-lb (4.5 Nm) for an 18 – 24¨
(457 – 610 mm) wide conveyor. Over
tensioning the conveyor belt could cause
excessive pulley bearing load and early
failure.
12
1.125” (29 mm)
1
2
3
6
4
5
BELT TRAVEL

851-452 Rev. L 15 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Pulley Removal
Leaving the conveyor belt in place, remove the desired
pulley following the corresponding instructions below:
•A−Idler Pulley Removal
•B−Drive Pulley Removal
A −Idler Pulley Removal
1. On one side of the conveyor, loosen two (2) head plate
fastening screws (Figure 31, item 1) and remove them.
Figure 31
Figure 31
2. Remove the head plate (Figure 32, item 1) from the
conveyor frame.
Figure 32
Figure 32
3. Pulley will slide out of opposite head plate and drop into
slack of belt (Figure 33).
Figure 33
Figure 33
4. Slide spindle out of the belt loop.
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
NOTE
To prevent damage to the head plates and
pulley, be sure to remove them slowly
because they are not attached to pulley.
1
1

Dorner Mfg. Corp. 16 851-452 Rev. L
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
B −Drive Pulley Removal
1. On one side of the conveyor, loosen two (2) head plate
fastening screws (Figure 34, item 1) and remove.
Figure 34
Figure 34
2. Remove the head plate (Figure 35, item 1) from the
conveyor frame.
Figure 35
Figure 35
3. Drive pulley will slide out of opposite head and drop
into slack of belt.
4. Slide the drive pulley out of the belt loop.
Bearing Removal & Replacement
Removal
1. Place bearing removal tool part #456063 (Figure
36, item 1) below bearing (Figure 36, item 2) with lip
(Figure 36, item 3) located in gap (Figure 36, item 4)
between bearing and spindle hub (Figure 36, item 5) as
shown.
Figure 36
Figure 36
2. Using a puller part #807-1716 (Figure 37, item 1),
remove and discard bearing.
Figure 37
Figure 37
A
WARNING
Drive shaft keyway may be sharp. HANDLE
WITH CARE.
NOTE
To prevent damage to the head plates, be
sure to remove them slowly because they are
not attached to pulley.
1
1
IMPORTANT
Do not use any removed bearings. Replace
them.
21
54
3
1

851-452 Rev. L 17 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Replacement
1. Inspect the head plates bearing seating surface (Figure
38, item 1). If they are worn or damaged, replace. See
“Service Parts” on page 20.
Figure 38
Figure 38
2. Inspect spindle (Figure 39, item 1). Replace if worn.
3. Slide bearing (Figure 39, item 2) onto spindle.
Figure 39
Figure 39
4. Using an arbor press or similar device, press bearing
onto pulley shaft (Figure 40).
Figure 40
Figure 40
5. Repeat steps 1 through 4 for each bearing.
Drive Pulley and Idler Pulley
Installation
Drive Pulley Installation
1. With opposite head plate installed, position the drive
pulley through the loop of the belt, into the opposite
head plate.
2. Place the head plate (Figure 41, item 1) and attach the
head plate to the conveyor frame with the two (2)
screws removed. Tighten screws 60 in-lb (7 Nm).
Figure 41
Figure 41
Idler Pulley Installation
1. With opposite head plate installed, position the idler
pulley through the loop of the belt, into the opposite
head plate.
2. Place the head plate (Figure 42, item 1) and attach the
head plate to the conveyor frame with the two (2)
screws removed and hand tighten.
Figure 42
Figure 42
1
2
1
1
1

Dorner Mfg. Corp. 18 851-452 Rev. L
2200 Series End Drive Conveyors
Preventive Maintenance and Adjustment
Nose Bar Bearing Replacement
1. On both sides of conveyor, use a 4 mm hex-key wrench
to loosen cam fastening screws (Figure 43, item 1) and
slide cam assemblies toward the center of the conveyor.
Figure 43
Figure 43
2. On both sides of conveyor, use a 4 mm hex-key wrench
to loosen head plate fastening screws (Figure
43, item 2) to remove belt tension. Then remove belt
from end of conveyor.
3. On one side of conveyor, use a 3 mm and 4 mm hex-key
wrench to remove head plate fastening screws (Figure
43, item 3) & (Figure 43, item 2) and remove head
plate (Figure 43, item 4).
4. Slide bearing rods (Figure 44, item 1) out side of
conveyor and replace bearings (Figure 44, item 2) as
necessary.
Figure 44
Figure 44
5. After replacing bearings, re-install head plate (Figure
43, item 4). Use a 3 mm hex-key wrench to tighten one
(1) fastening screw (Figure 43, item 3) to 30 in-lb (3.4
Nm). Leave two (2) fastening screws (Figure
43, item 2) loose for belt tensioning.
6. Re-install belt on end of conveyor, then tension the belt.
See “Conveyor Belt Tensioning” on page 13.
7. Re-position the cam assemblies against the head plates
and adjust belt tracking. See “Conveyor Belt Tracking”
on page 14.
2
1
4
3
1
2

851-452 Rev. L 19 Dorner Mfg. Corp.
2200 Series End Drive Conveyors
Notes

Dorner Mfg. Corp. 20 851-452 Rev. L
2200 Series End Drive Conveyors
Service Parts
2” (51 mm) Wide Conveyor
NOTE
For replacement parts other than those shown in this section, contact an authorized Dorner Service Center
or the factory. Key Service Parts and Kits are identified by the Performance Parts Kits logo . Dorner
recommends keeping these parts on hand.
19 Drive Spindle Kit 21 Idler Spindle Kit
20 Nosebar Drive
Spindle Kit
17
C & D Position
A & B Position
9
15
16 3
OR
14 13
12
11 10
9
78
6
5
2
2
4
1
18
1
