851-817 Rev. A
2200 Series Version 2
Precision Move Conveyors
Installation, Maintenance & Parts Manual

Dorner Mfg. Corp. 2 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Table of Contents
Introduction ......................................................................... 3
Warnings −General Safety ................................................. 4
Product Description ............................................................. 5
Specifications ...................................................................... 6
Models: ............................................................................ 6
Flat Belt End Drive Conveyor...................................... 6
Cleated Belt End Drive Conveyor................................ 6
Flat Belt Mid Drive Conveyor ..................................... 6
Conveyor Supports: ......................................................... 6
Maximum Distances:.................................................... 6
Conveyor Specifications: ............................................. 7
Installation ........................................................................... 8
Required Tools................................................................. 8
Recommended Installation Sequence .............................. 8
Conveyors Up to 12 ft (3658 mm)................................... 8
Conveyors Longer Than 12 ft (3658 mm) ....................... 8
2200 Series Mounting Brackets ....................................... 9
Return Rollers ................................................................ 10
Cleated Belt and 2–6" (51–152 mm) Wide Flat Belt
Conveyors................................................................... 10
8–24" (203–610 mm) Wide Flat Belt Conveyors ...... 10
Slave Drive Installation ................................................. 11
Common Drive Installation ........................................... 12
Guide Clips .................................................................... 14
Adjustable Guides.......................................................... 15
Preventive Maintenance and Adjustment.......................... 17
Required Tools............................................................... 17
Standard Tools............................................................ 17
Special Tools .............................................................. 17
Checklist ........................................................................ 17
Lubrication..................................................................... 17
Maintaining Conveyor Belt ........................................... 17
Troubleshooting ......................................................... 17
Cleaning ..................................................................... 17
Conveyor Belt Replacement .......................................... 17
Conveyor Belt Replacement Sequence ...................... 17
Belt Removal for Conveyor Without Stands or
Gearmotor Mounting Package ................................... 18
Belt Removal for Conveyor With Stands and
Gearmotor Mounting Package ................................... 18
Belt Removal for 1" Tip Up ....................................... 19
Belt Installation for Conveyor Without Stands or
Gearmotor Mounting Package ................................... 19
Belt Installation for Conveyor With Stands and
Gearmotor Mounting Package ................................... 19
Mid Drive Belt Replacement ......................................... 20
Conveyor Belt Tensioning ............................................. 20
Pulley Removal.............................................................. 21
A −Idler Pulley Removal........................................... 21
B −1" Wide Idler Pulley Removal............................. 22
C −Drive Pulley Removal ......................................... 22
D −1" Wide Drive Pulley Removal........................... 23
Bearing Removal & Replacement ................................. 24
Removal ..................................................................... 24
Replacement ............................................................... 24
Drive Pulley and Idler Pulley Installation...................... 25
Drive Pulley Installation ............................................. 25
Idler Pulley Installation............................................... 25
Upper Wear Strip Replacement...................................... 25
Slave Drive Belt Replacement ....................................... 26
Mid Drive Spindle Replacement .................................... 28
Tail Plate Shaft Knockout Removal............................... 30
Pinion Replacement........................................................ 31
Notes .................................................................................. 34
Service Parts....................................................................... 35
Drive Tail for 1" (25 mm) wide Conveyor..................... 35
Drive Tail for 1.75" (44 mm) wide or wider Conveyor . 36
Idler Tail for 1" (25 mm) wide Conveyor ...................... 37
Idler Tail for 1.75" (44 mm) wide or wider Conveyor... 38
Mid Drive Module.......................................................... 39
Frame.............................................................................. 40
Slave Drive ..................................................................... 42
Slave Drive Belt and Pulley Chart.............................. 42
Common Drive ............................................................... 43
#04 Profile - 3.00" (76 mm) Aluminum Side................. 44
#05 Profile - 1.50" (38 mm) Aluminum Side................. 45
#09 Profile - Low to High Side ...................................... 46
#13, 33 & 43 Profile - Adjustable Guiding .................... 47
#14, 34 & 44 Profile - Tool-Less Adjustable Guiding ... 48
#16, 36 & 46 Profile - Outboard Adjustable Guiding .... 49
#19, 39 & 49 Profile - Horizontal Adjustable Guiding .. 50
#20, 40 & 50 Profile - Tool-Less Horizontal Adjustable
Guiding........................................................................... 51
#2 Cleated Profile - 1.00" (25 mm) High Side ............... 52
#3 Cleated Profile - 2.00" (51 mm) High Side ............... 54
Flat Belt Mounting Brackets .......................................... 56
Cleated Belt Mounting Brackets .................................... 56
Flat Belt Mounting Brackets for Short Conveyors......... 57
Cleated Belt Mounting Brackets for Short Conveyors... 57
Flat Belt Mounting Brackets Assembled to the Tail ...... 58
Connecting Assembly without Stand Mount.................. 58
Flat Belt Connecting Assembly with Stand Mount........ 59
Cleated Belt Connecting Assembly with Stand Mount.. 59
1" (25 mm) to 6" (152 mm) Flat Belt Return Roller ...... 60
8" (203 mm) to 24" (610 mm) Flat Belt Return Roller .. 60
Cleated Belt Return Roller ............................................. 61
Conveyor Belt Part Number Configuration.................... 61
Return Policy...................................................................... 62

851-817 Rev. A 3 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Introduction
Upon receipt of shipment:
• Compare shipment with packing slip. Contact factory
regarding discrepancies.
• Inspect packages for shipping damage. Contact carrier
regarding damage.
• Accessories may be shipped loose. See accessory instruc-
tions for installation.
Dorner’s Limited Warranty applies.
Dorner has convenient, pre−configured kits of Key Service
Parts for all conveyor products. These time saving kits are
easy to order, designed for fast installation, and guarantee
you will have what you need when you need it. Key Parts
and Kits are marked in the Service Parts section of this
manual with the Performance Parts Kits logo .
Dorner 2200 series conveyors are covered by Patent
Numbers 5,174,435, 6,422,382 and corresponding patents
and patent applications in other countries.
Dorner reserves the right to make changes at any time
without notice or obligation.
IMPORTANT
Some illustrations may show guards
removed. DO NOT operate equipment
without guards.

Dorner Mfg. Corp. 4 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Warnings −General Safety
A
WARNING
The safety alert symbol, black triangle with
white exclamation, is used to alert you to
potential personal injury hazards.
A
DANGER
Climbing, sitting, walking or riding on
conveyor will cause severe injury. KEEP OFF
CONVEYORS.
A
DANGER
DO NOT OPERATE CONVEYORS IN AN
EXPLOSIVE ENVIRONMENT.
A
WARNING
Gearmotors may be HOT.
DO NOT TOUCH Gearmotors.
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
A
WARNING
Conveyors are not reversible. Reversing
creates pinch points which can cause severe
injury.
DO NOT REVERSE CONVEYORS.
A
WARNING
Top and Bottom Mount Gearmotors must be
mounted as shown below.
Failure to do so creates pinch points which
can cause severe injury.
A
WARNING
Dorner cannot control the physical
installation and application of conveyors.
Taking protective measures is the
responsibility of the user.
When conveyors are used in conjunction
with other equipment or as part of a multiple
conveyor system, CHECK FOR POTENTIAL
PINCH POINTS and other mechanical
hazards before system start-up.
A
WARNING
Loosening stand height or angle adjustment
screws may cause conveyor sections to drop
down, causing severe injury.
SUPPORT CONVEYOR SECTIONS PRIOR TO
LOOSENING STAND HEIGHT OR ANGLE
ADJUSTMENT SCREWS.
Bottom Mount
Top Mount

851-817 Rev. A 5 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Product Description
Refer to Figure 1 for typical conveyor components. Figure 1
End Drive Conveyor
Figure 1
Figure 2

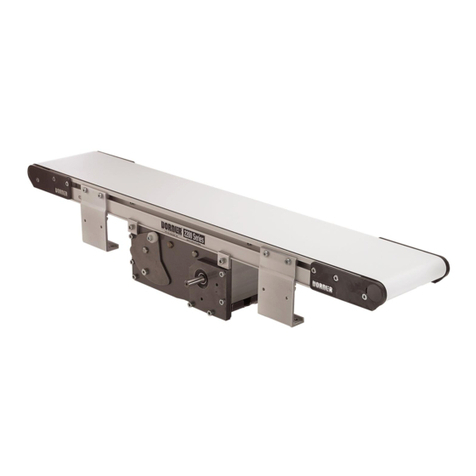

Center Drive Conveyor
Figure 2
1Conveyor
2 Guiding & Accessories
3 Mounting Brackets
4 Support Stand
5DriveEnd
6 Idler/Tension End
7 Gearmotor Mounting Package
8 Gearmotor
9 Center Drive Box (Center Drive Units) 3
1
6
2
5
8
47
4
3
15
6
2
3
78
9

Dorner Mfg. Corp. 6 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Specifications
Models:
Flat Belt End Drive Conveyor
Cleated Belt End Drive Conveyor
Flat Belt Mid Drive Conveyor
Conveyor Supports:
Maximum Distances:
1 = 24"(607 mm)**
2 = 96"(2438 mm)***
3 = 18"(457 mm)
** For Heavy Load Bottom Mount Package, mount support
under gear head.
*** For conveyors longer than 12 ft (3658 mm), install
support at joint.
Figure 3
Figure 3
Conveyor Length
Return Roller / Mounting Brackets
Shaft Position
ConveyorWidth
22PM M WW LLLL 1 PA BB
Document Language
Profile (A side)
PD -
D
Profile (D side)
BeltType
-X1234Tail 4 Auxiliary
Tail 3 Auxiliary
Shaft Option
Tail 2 Auxiliary
Shaft Option
Tail 1 Auxiliary
Shaft Option
Auxiliary Shaft Exists
Shaft Option
Conveyor Length
Return Roller / Mounting Brackets
Shaft Position
CleatType
ConveyorWidth
22PM M WW LLLL 1 B
Document Language
Profiles
SSSS-
DC
Cleat Spacing
BeltType
-X1234Tail 4 Auxiliary
Shaft Option
Tail 3 Auxiliary
Shaft Option
Tail 2 Auxiliary
Shaft Option
Tail 1 Auxiliary
Shaft Option
Auxiliary Shaft Exists
PP
Conveyor Length
Return Roller / Mounting Brackets
Shaft Position
ConveyorWidth
22PD M WW LLLL 1 PA BB
Document Language
Profile (A side)
PD -
D
Profile (D side)
BeltType
-X1234Tail 4 Auxiliary
Tail 3 Auxiliary
Shaft Option
Tail 2 Auxiliary
Shaft Option
Tail 1 Auxiliary
Shaft Option
Auxiliary Shaft Exists
Shaft Option
321

851-817 Rev. A 7 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Specifications
Conveyor Specifications:
* See Ordering and Specifications Catalog for details.
LLLL:
• Minimum = 0150 = 1.5 feet (18")
• Maximum = 3000 = 30 feet (360")
Conveyor Width Reference (WW) 01 02 03 04 06 08 12 18 24
Conveyor Belt Width 1"
(25 mm) 1.75" (44 mm) 2.75" (70 mm) 3.75" (95 mm) 6" (152 mm) 8" (203 mm) 12" (305 mm) 18" (457 mm) 24" (609 mm)
Maximum Conveyor Load*
(See NOTE Below) 25 lb (11 kg) 25 lb (11 kg) 40 lb (18 kg) 55 lb (25 kg) 90 lb (41 kg) 120 lb (54 kg) 180 lb (82 kg) 200 lb (90 kg) 200 lb (90 kg)
Conveyor Startup Torque* 2 in-lb
(0.5 Nm) 2 in-lb (0.5 Nm) 3 in-lb (0.6 Nm) 4 in-lb (0.7 Nm) 8 in-lb (0.9 Nm) 10 in-lb (1.1 Nm) 14 in-lb (1.5 Nm) 15 in-lb (1.7 Nm) 20 in-lb (2.3 Nm)
Belt Travel 4.724" (120 mm) per revolution of pulley
Maximum Belt Speed* 264 ft/minute (80.5 m/minute)
Belt Takeup 0.38" (10 mm) of stroke = 0.75" (19 mm) of belt take-up
NOTE
Maximum conveyor loads based on:
• Non-accumulating product
• Conveyor being mounted horizontal
• Not exceeding 15 lb / linear ft.
• Steel cord belt maximum load = 200 lb all
widths

Dorner Mfg. Corp. 8 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Installation
Figure 4
Figure 4
Installation Component List
Required Tools
• Hex-key wrenches:
4 mm, 5 mm, 6 mm
• Level
• Torque wrench
Recommended Installation
Sequence
• Install support stands (see accessory instructions)
• Assemble conveyor (if required)
• Attach mounting brackets to conveyor
• Attach conveyor to stands
• Install return rollers on conveyor (optional)
• Mount gearmotor mounting package (see accessory
instructions)
• Attach guides/accessories (see page 44 through page 61 of
“Service Parts” section for details)
Conveyors Up to 12 ft (3658 mm)
No assembly is required. Install mounting brackets and
return rollers. Refer to “2200 Series Mounting Brackets” on
page 9 and “Return Rollers” on page 10.
Conveyors Longer Than 12 ft
(3658 mm)
1. Locate and arrange conveyor sections by section labels
(Figure 5, item 1).
Figure 5
Figure 5
2. On tension end of the conveyor, identified with
a label (Figure 6, item 1), push in head plate
assembly (Figure 6, item 2): On both sides of conveyor,
loosen fastening screws (Figure 6, item 3) and push
head plate assembly inward.
Figure 6
Figure 6
3. Roll out conveyor belt and place conveyor frame
sections (Figure 7, item 1) into belt loop.
Figure 7
Figure 7
NOTE
Conveyor MUST be mounted straight and
level within confines of conveyor. Use a level
(Figure 4, item 1) for setup.
Conveyor frame (two sections if longer than 12 ft)
Conveyor brackets (4x)
Return rollers (for longer conveyors)
1
11
12
3
11

851-817 Rev. A 9 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Installation
4. Join conveyor sections and install frame connector
plates (Figure 8, item 1) or connector/mount brackets
(Figure 8, item 2) and screws (Figure 8, item 3) on
both sides as indicated. Tighten screws to 60 in-lb (7
Nm).
Figure 8
Figure 8
5. With a 5 mm hex-key wrench, rotate pinion gear
(Figure 9, item 1) to tension the conveyor belt. Tighten
fastening screws (Figure 9, item 2) on both sides of
conveyor to 80 in-lb (9 Nm). For proper tensioning,
refer to “Conveyor Belt Tensioning” on page 20”.
Figure 9
Figure 9
6. Install mounting brackets and return rollers. Refer to
“2200 Series Mounting Brackets” on page 9 and
“Return Rollers” on page 10.
2200 Series Mounting Brackets
1. Locate brackets. Exploded view shown in Figure 10.
Figure 10
Figure 10
2. Remove screws (Figure 10, item 1 & 2), washers
(Figure 10, item 3), nuts (Figure 10, item 4) and T-bars
(Figure 10, item 5) from brackets.
3. Insert T-bars (Figure 10, item 5) into conveyor side
slots (Figure 11, item 1). Fasten brackets (Figure
11, item 2) to conveyor with mounting screws (Figure
11, item 3).
Figure 11
Figure 11
A
WARNING
SUPPORT CONVEYOR SECTIONS PRIOR TO
CONNECTING FRAME SECTIONS.
1
3
2
2
1
1
5
4
3
2
3
4
6
1
3
2
45

Dorner Mfg. Corp. 10 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Installation
4. Fasten brackets to support stand with mounting screws
(Figure 11, item 4), washers (Figure 11, item 5) and
nuts (Figure 11, item 6).
5. Tighten screws (Figure 11, item 3 & 4) to 60 in-lb (7
Nm).
Return Rollers
Cleated Belt and 2–6" (51–152 mm) Wide
Flat Belt Conveyors
1. Locate return rollers. Exploded views shown in Figure
12 & Figure 13.
Figure 12
Figure 12
Figure 13
Figure 13
2. Remove screws (Figure 12, item 1) & (Figure
13, item 1) and clips (Figure 12, item 2) and (Figure
13, item 2) from roller assembly.
3. Install roller assemblies (Figure 14, item 1) as shown.
Tighten screws (Figure 14, item 2) to 60 in-lb (7 Nm).
Figure 14
Figure 14
8–24" (203–610 mm) Wide Flat Belt
Conveyors
1. Locate return rollers. Exploded view shown in Figure
15.
Figure 15
Figure 15
2. Remove screws (Figure 15, item 1) and clips (Figure
15, item 2) from roller assembly.
3. Install roller assembly as shown (Figure 16, item 1).
Tighten screws (Figure 16, item 2) to 60 in-lb (7 Nm).
Figure 16
Figure 16
A
WARNING
Moving parts can cut or crush. Keep hands
clear when raising conveyor frame onto
stands.
1
2
2
1
12
21
2
1
1
1
22
1
1
2

851-817 Rev. A 11 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Installation
Slave Drive Installation
1. Install slave drive plate (Figure 17, item 1) onto drive
end of driven conveyor.
Figure 17
Figure 17
2. Install washer and screw (Figure 17, item 2). Do not
tighten.
3. Install washer and screw (Figure 17, item 3). Do not
tighten.
4. Install cam knob (Figure 17, item 4) with screw
(Figure 17, item 5). Do not tighten.
5. Install drive conveyor tension end (Figure 18, item 1)
onto slave drive plate (Figure 18, item 2).
Figure 18
Figure 18
6. Install slave drive plate on opposite side, and install
screws and washers from steps 2 and 3.
7. Install screw (Figure 19, item 1). Adjust conveyor
angle and tighten. Repeat on opposite side.
Figure 19
Figure 19
8. Install washer and screw (Figure 19, item 2) from slave
drive plate (Figure 19, item 3). Repeat on opposite side.
9. Install two keys (Figure 20, item 1).
Figure 20
Figure 20
10. Install belt (Figure 20, item 2) and both pulleys (Figure
20, item 3).
11. Be certain both pulleys are flush with shaft and tighten
set screws (Figure 21, item 1) onto pulleys.
Figure 21
Figure 21
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
4
32
5
1
2
1
3
12
2
3
1
1

Dorner Mfg. Corp. 12 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Installation
12. Rotate cam knob (Figure 22, item 1) to obtain 1/8 - 1/4"
belt deflection at center of belt (Figure 22, item 2) with
approximately 3-5 in-lb of pressure.
Figure 22
Figure 22
13. Tighten screw (Figure 23, item 1) in cam to lock belt
tension.
Figure 23
Figure 23
14. Tighten screw (Figure 23, item 2) to 60 in-lb (7 Nm) to
secure position.
15. Tighten remaining hardware to 60 in-lb (7 Nm).
16. Install cover (Figure 24, item 1) and two screws
(Figure 24, item 2). Tighten screws enough to secure
cover.
Figure 24
Figure 24
17. Install conveyor belt. See “Conveyor Belt Replacement”
section on page 17.
Common Drive Installation
1. Install tie tube (Figure 25, item 1) between conveyor
belts (Figure 25, item 2).
Figure 25
Figure 25
1
2
2
1
2
2
1
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
NOTE
Ensure driven conveyor is not rigidly mounted
to allow tie tube to align conveyors.
1
2

851-817 Rev. A 13 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Installation
2. Install screw (Figure 26, item 1) onto spindle plate
(Figure 26, item 2).
Figure 26
Figure 26
3. Install screw (Figure 26, item 3) to secure front side of
plate. Repeat on opposite side.
4. Tighten screws to 60 in-lb (7 Nm).
5. Separate and install outer portion of 3-jaw coupling
(Figure 27, item 1) onto shaft portion of each end of
conveyor.
Figure 27
Figure 27
6. Tighten clamp screws (Figure 27, item 3) to 17 in-lb (2
Nm) to secure outer portion position of 3-jaw coupler.
7. Install 3-jaw spider (Figure 27, item 4) into each end of
outer portion of 3-jaw coupling.
8. Install inner portion of 3-jaw coupling (Figure
28, item 1) onto center shaft (Figure 28, item 2).
Figure 28
Figure 28
9. Install center shaft assembly into end of each 3-jaw
spider (Figure 28, item 3).
10. Slide both ends of inner portion of 3-jaw coupling
(Figure 29, item 1) onto mating surface of outer 3-jaw
coupling (Figure 29, item 2) and secure with clamp
screws (Figure 29, item 3). Tighten screws to 17 in-lb
(2 Nm).
Figure 29
Figure 29
NOTE
When securing inner portion of 3-jaw coupling
(Figure 27, item 1) Maintain 0.30 - 0.60 in.
clearance from headplates (Figure
27, item 2).
3
1
2
1
1
4
2
2
3
3
1
2
3
3
3
1
2
2

Dorner Mfg. Corp. 14 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Installation
11. Install guard plate (Figure 30, item 1) pin into hole
(Figure 30, item 2) on each side of tie tube (Figure
30, item 3).
Figure 30
Figure 30
12. Install top guard and bottom guard (Figure 31, item 1)
over shaft and 3-jaw couplers.
Figure 31
Figure 31
13. Secure top and bottom guards with weld nut (Figure
32, item 1) and screw (Figure 32, item 2) on each side
of assembly. Repeat on bottom side.
Figure 32
Figure 32
14. Tighten screws (Figure 32, item 2).
15. Secure remaining stand mounts on conveyor ensuring
alignment is not disturbed.
Guide Clips
1. Install guide clip assembly (Figure 33, item 1) into
conveyor t-slot (Figure 33, item 2) as shown.
Figure 33
Figure 33
2. Tighten screw (Figure 34, item 1) making sure t-bar
(Figure 34, item 2) rotates and engages inside of t-slot.
Figure 34
Figure 34
IMPORTANT
Install guard plate (Figure 30, item 1) with
offset angle (Figure 30, item 4) facing tie
tube (Figure 30, item 3).
2
4
1
3
1
1
1
2
1
2
1
2

851-817 Rev. A 15 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Installation
Adjustable Guides
1. Install guide bracket assembly (Figure 35, item 1) into
the conveyor t-slot (Figure 35, item 2).
Figure 35
Figure 35
2. Tighten screws (Figure 36, item 1) making sure t-nut
(Figure 36, item 2) rotates and engages inside of the t-
slot.
Figure 36
Figure 36
3. Loosen screw (Figure 37, item 1) on end of shaft
(Figure 37, item 2) to remove clip (Figure 38, item 1).
Figure 37
Figure 37
Figure 38
Figure 38
4. Snap clip (Figure 39, item 1) onto guide rail (Figure
39, item 2).
Figure 39
Figure 39
1
2
1
2
1
2
1
1
2

Dorner Mfg. Corp. 16 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Installation
5. Reassemble clip (Figure 40, item 1) and attach to shaft
(Figure 40, item 2). Tighten screw (Figure 37, item 1)
on end of shaft.
Figure 40
Figure 40
6. Adjust rail width with top screw (Figure 41, item 1).
Figure 41
Figure 41
7. Adjust rail height with lower screw (Figure 42, item 1).
Figure 42
Figure 42
1
2
1
1

851-817 Rev. A 17 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Preventive Maintenance and Adjustment
Required Tools
Standard Tools
• Hex-key wrenches:
2.5 mm, 4 mm, 5 mm, 6 mm
• Arbor press
Special Tools
• 807−1716 Bearing Puller Tool (or equivalent)
• 450293 Bearing Installation Tool (Bearing Pusher)
• 456063 Bearing Removal Tool
Checklist
• Keep service parts on hand (see “Service Parts” section for
recommendations)
• Keep supply of belt cleaner
• Clean entire conveyor while disassembled
• Replace worn or damaged parts
Lubrication
No lubrication is required. Replace bearings if worn.
Maintaining Conveyor Belt
Troubleshooting
Inspect conveyor belt for:
• Surface cuts or wear
• Stalling or slipping
Surface cuts and wear indicate:
• Sharp or heavy parts impacting belt
• Jammed parts
• Foreign material inside the conveyor
• Improperly positioned accessories
• Bolt-on guiding is pinching belt
Stalling or slipping indicates:
• Excessive load on belt
• Conveyor belt or drive timing belt are not properly ten-
sioned
• Impacted dirt on drive pulley
• Intermittent jamming or drive train problems
Cleaning
Use Dorner Belt Cleaner. Mild soap and water may also be
used. Do not soak the belt.
Conveyor Belt Replacement
Conveyor Belt Replacement Sequence
Remove old conveyor belt:
- Conveyor without Stands or Gearmotor Mounting Pack-
age
- Conveyor with Stands and Gearmotor Mounting Pack-
age
• Install new conveyor belt
• Tension conveyor belt
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.

Dorner Mfg. Corp. 18 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Preventive Maintenance and Adjustment
Belt Removal for Conveyor Without Stands
or Gearmotor Mounting Package
1. If equipped, remove return rollers and guiding and
accessories from one side of conveyor.
2. On tension end of the conveyor, identified with a
label (Figure 43, item 1), push in head plate
assembly (Figure 43, item 2): On both sides of
conveyor, loosen fastening screws (Figure 43, item 3)
and push head plate assembly inward.
Figure 43
Figure 43
3. Remove conveyor belt.
Belt Removal for Conveyor With Stands
and Gearmotor Mounting Package
1. Place temporary support stands (Figure 44, item 1) at
both ends of the conveyor. Place an additional support
stand under the drive motor (Figure 44, item 2), if
equipped. See WARNING.
Figure 44
Figure 44
2. Remove mounting brackets (Figure 44, item 3) from
one side of conveyor. (Reverse steps 3 & 4 of “2200
Series Mounting Brackets” section beginning on
page 9.) If equipped with heavy load drive package,
remove brackets from side opposite drive cover (Figure
45, item 1).
3. If equipped, remove return rollers, guiding and
accessories from side opposite drive cover (Figure
45, item 1).
Figure 45
Figure 45
4. If equipped with heavy load drive package, remove
drive support bracket (Figure 45, item 2): Remove
bracket screws (Figure 45, item 3) then remove bracket
(Figure 45, item 2).
5. On tension end of the conveyor, identified with
a label (Figure 46, item 1), push in head plate
assembly (Figure 46, item 2): On both sides of
conveyor, loosen fastening screws (Figure 46, item 3)
and push head plate assembly inward.
Figure 46
Figure 46
A
WARNING
Removing mounting brackets without
support under gearmotor will cause
conveyor to tip, causing severe injury.
PROVIDE SUPPORT UNDERNEATH THE
GEARMOTOR WHEN CHANGING THE BELT
3
2
1
11
2
3
3
3
1
2
3
2
3
1

851-817 Rev. A 19 Dorner Mfg. Corp.
2200 Series Version 2 Precision Move Conveyors
Preventive Maintenance and Adjustment
6. Remove belt (Figure 47, item 1) from conveyor.
Figure 47
Figure 47
Belt Removal for 1" Tip Up
1. Remove screw (Figure 48, item 1) on both sides of the
conveyor.
Figure 48
Figure 48
2. Tip head plate assembly (Figure 49, item 1) up and
remove belt (Figure 49, item 2).
Figure 49
Figure 49
Belt Installation for Conveyor Without
Stands or Gearmotor Mounting Package
1. Orient belt so splice leading fingers (Figure 50, item 1)
point in the direction of belt travel as identified by the
conveyor directional label (Figure 50, item 2).
Figure 50
Figure 50
2. Slide belt onto the conveyor frame assembly.
3. Tension belt. Refer to “Conveyor Belt Tensioning” on
page 20.
4. If equipped, install return rollers and guiding.
Belt Installation for Conveyor With Stands
and Gearmotor Mounting Package
1. Ensure temporary support stands (Figure 44, item 1)
are placed at both ends of the conveyor. Place an
additional support stand under the drive motor (Figure
44, item 2), if equipped. See WARNING.
2. Orient belt so splice leading fingers (Figure 50, item 1)
point in the direction of belt travel as identified by the
conveyor directional label (Figure 50, item 2).
1
1
1
1
2
A
WARNING
Removing mounting brackets without
support under gearmotor will cause
conveyor to tip, causing severe injury.
PROVIDE SUPPORT UNDERNEATH THE
GEARMOTOR WHEN CHANGING THE BELT
1
2

Dorner Mfg. Corp. 20 851-817 Rev. A
2200 Series Version 2 Precision Move Conveyors
Preventive Maintenance and Adjustment
3. Install belt (Figure 51, item 1) on conveyor. Lift
conveyor slightly to avoid pinching belt on temporary
support stands.
Figure 51
Figure 51
4. Re-install conveyor mounting brackets. Refer “2200
Series Mounting Brackets” beginning on page 9, steps 3
through 5.
5. If equipped with a heavy load drive package, re-install
drive support bracket (Figure 45, item 2).
6. Tension belt. Refer to “Conveyor Belt Tensioning” on
page 20
7. If equipped, re-install return rollers and guiding.
Mid Drive Belt Replacement
1. Remove belt tension. See "Conveyor Belt Tensioning"
steps 1 & 2 section on page 20.
2. Remove screw (Figure 52, item 1) from each side of
mid drive assembly (Figure 52, item 2).
Figure 52
Figure 52
3. Lower and remove mid drive assembly (Figure
53, item 1) from belt (Figure 53, item 2).
Figure 53
Figure 53
4. Remove belt.
Conveyor Belt Tensioning
1. On tension end of the conveyor, identified with a
label (Figure 54, item 1), adjust head plate
assembly (Figure 54, item 2): On both sides of
conveyor, loosen fastening screws (Figure 54, item 3)
and rotate pinion gear (Figure 54, item 4) to adjust head
plate assembly.
Figure 54
Figure 54
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
11
2
1
A
WARNING
Exposed moving parts can cause severe
injury. LOCK OUT POWER before removing
guards or performing maintenance.
2
1
3
2
14
