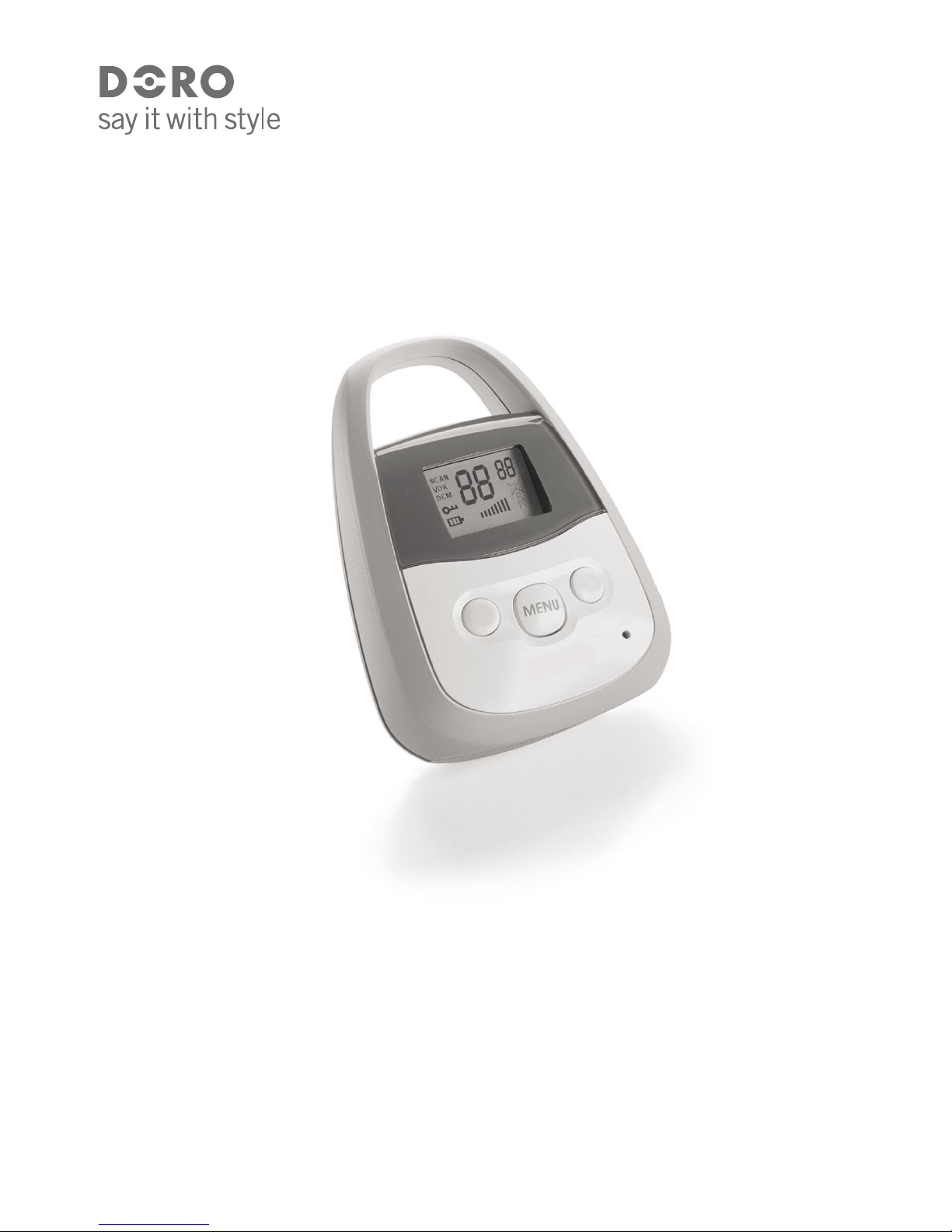

Doro BM35 User manual
doro bm35
babymonitor
Manual
www.doro.com 3
1 Scroll UP Button
2 Menu Button
3 Microphone
4 External microphone socket
(optional)
5 On/Off switch
6 Microphone sensitivity (rear)
7 Scroll DOWN Button
English
1
2
4
6
3
5
7
Important!
Although the baby monitor offers a practical solution in looking after a
child it cannot replace a parent or guardian.
Make sure the equipment is always out of reach, never place the unit in
the child’s bed or playpen.
To avoid acoustic feedback by not placing the handset and baby monitor
close to one another.
Radio signals can be blocked if the equipment is used in areas with high
sources of interference from other electronic equipment.
www.doro.com 3
English
Turning on/off
Use the switch 0/1 on the side of the monitor to turn the unit on or off.
Connection/Monitoring
1. Connect the mains adapter to an electrical wall socket.
2. Make sure that the monitor and handset are set to the same channel and transfer
code. See below.
3. Position the monitor close to the baby (but out of reach).
4. Adjust the microphone sensitivity using the VOX control on the rear of the monitor
(A=least sensitive....H=most sensitive). Please refer to page 4.
5. When the sound level in the room exceeds the selected VOX setting, the handset
will be triggered allowing you to monitor the room.
6. Try the installation before every use by talking quite low into the unit that is placed
close to the baby, at the same time as someone is listening to the other unit.
Please note!
If the monitor and handset/s are unable to communicate it may be because you are using different
channels or transfer codes, the battery is running low or the units are too far apart.
There is NO loudspeaker in the monitor, this ensures your child will not be disturbed by ‘radio chatter’
that is often heard on the handset/s.
Important!
Please note when programming all references to press = to press and then immediately release the button.
Channel selection
All UHF/CB radio equipment share the available designated channels. If the chosen
channel is in use select an alternate channel, the selected channel number will be
displayed in standby mode. Please refer to the frequency/channel allocation table on
page 6.
1. Press MENU. CH will be displayed.
2. Scroll to the desired channel using v/V
.
3. Within a few seconds the display will return to standby mode.
Transfer code selection
There are 38 transfer codes available which can be used to lter out unwanted signals.
To enable monitoring, the same transfer code must be used on the monitor and all
handsets. However, the communication between monitor and handset/s may still be
overheard irrespective of which code is used.
1. Press MENU repeatedly until Ct is displayed.
2. Scroll to the desired transfer code using v/V
.
3. Within a few seconds the display will return to standby mode.
4 www.doro.com
www.doro.com 5
English
Safety signal
The monitor can transmit a tone every 30 seconds to conrm that the right channel/
transfer code has been set and that the operating range has not been exceeded.
Beep will be displayed while this function is active.
1. Press MENU repeatedly until Beep is displayed.
2. Scroll to the required setting using v/V (OF =off, On=on).
3. Within a few seconds the display will return to standby mode.
Automatic monitoring
This automatically switches the monitor function on for ve seconds every ve minutes.
Auto Mon will be displayed while this function is active.
1. Press MENU repeatedly until Auto Mon is displayed.
2. Scroll to the required setting using v/V (OF =off, On=on).
3. Within a few seconds the display will return to standby mode.
Alert signal
You can activate a tone that is heard when the monitor transmits.
will be displayed while this function is active.
1. Press MENU repeatedly until CA and is displayed.
2. Scroll to the required setting using v/V (OF =off, On=on).
3. Within a few seconds the display will return to standby mode.
Voice control (VOX)
By selecting the right level, the monitor can automatically determine whether or not the
sound level in the room is normal (=quiet).
Test different settings until the sensitivity selected is acceptable (A=least
sensitive....H=most sensitive). Please note that however accurate your setting there
is always a small risk that increased noise from the surroundings may activate the
transmitter.
Range
The monitor is intended for both indoor and outdoor use, it is NOT resistant to rain,
water, rough or other careless treatment.
In ideal conditions ie: line of sight with no obstructions between monitor and handset/s,
the range can be up to 3 km.
4 www.doro.com
www.doro.com 5
English
UK
If you cannot resolve the fault using the faultnder section, technical support is available
on the Premium Rate Number: 0906 302 0114.
Calls cost 50 pence per minute (prices correct at the time of going to press), and is
operational between 9AM - 5PM Monday-Friday excluding Bank Holidays. Alternatively,
E-mail on: tech@doro-uk.com
You can contact us in writing: Consumer Support Group, Doro UK Ltd., 22 Walkers
Road, North Moons Moat, Redditch, Worcestershire, B98 9HE, (regarding any Spares or
Technical query), or
Telephoning (Spares only): 01527 584377
Web site: www.doro-uk.com
Guarantee
This product is guaranteed for a period of 12 months from the date of purchase. Proof
of purchase is required for any service or support required during the guarantee period.
This guarantee shall not apply to a fault caused by an accident or a similar incident or
damage, liquid ingress, negligence, abnormal usage, not reasonably maintained or any
other circumstances on the purchaser’s part. Furthermore, this guarantee shall not apply
to a fault caused by a thunderstorm or any other voltage uctuations.
This guarantee does not in any way affect your statutory rights. (As a matter of
precaution, we recommend disconnecting the telephone during a thunderstorm.)
Australia and New Zeeland
AUSTRALIA NEW ZEALAND
DORO Australia Pty Ltd Atlas Gentech (NZ) Limited
PO Box 6760 Private Bag 14927
Baulkham Hills BC NSW 2153 Panmure
Australia Auckland
New Zealand
Consumer Support Consumer Support
Ph: Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call)
Fax: (02) 8853-8489 Fax: (09) 574-2722
Web site: www.doro.com.au
The product complies with AS/NZS 4365. N13 Z109
* These channels are the repeater access channels ( mode).
** Designated emergency channels.
! Speech telephony is not permitted on these channels.
6 www.doro.com
English
Australia and New Zeeland
AUSTRALIA NEW ZEALAND
DORO Australia Pty Ltd Atlas Gentech (NZ) Limited
PO Box 6760 Private Bag 14927
Baulkham Hills BC NSW 2153 Panmure
Australia Auckland
New Zealand
Consumer Support Consumer Support
Ph: Ph: 1300 885 023 Ph: 0900-500-25 (Toll Call)
Fax: (02) 8853-8489 Fax: (09) 574-2722
Web site: www.doro.com.au
The product complies with AS/NZS 4365. N13 Z109
* These channels are the repeater access channels ( mode).
** Designated emergency channels.
! Speech telephony is not permitted on these channels.
6 www.doro.com
English
Version 1.0
