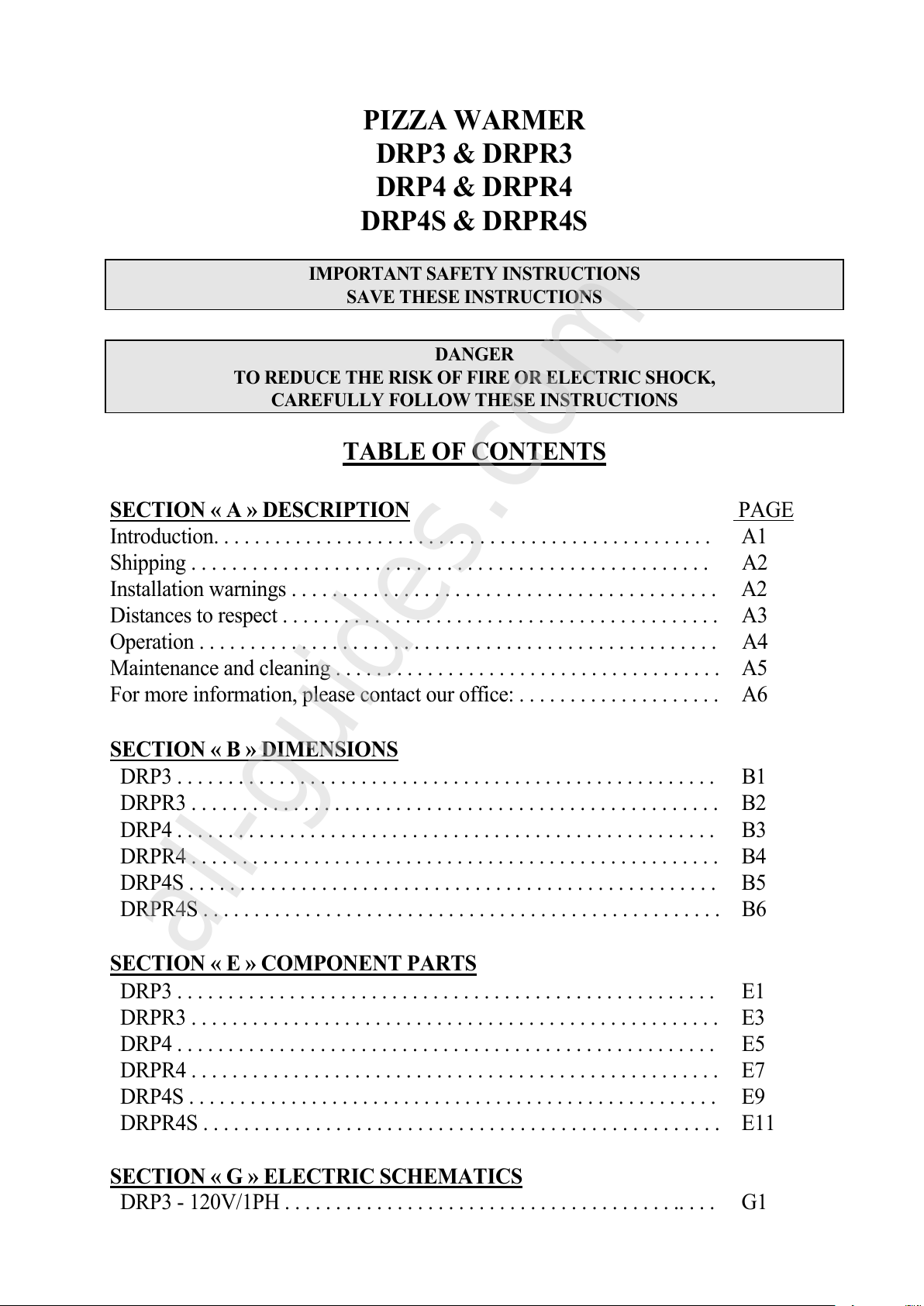

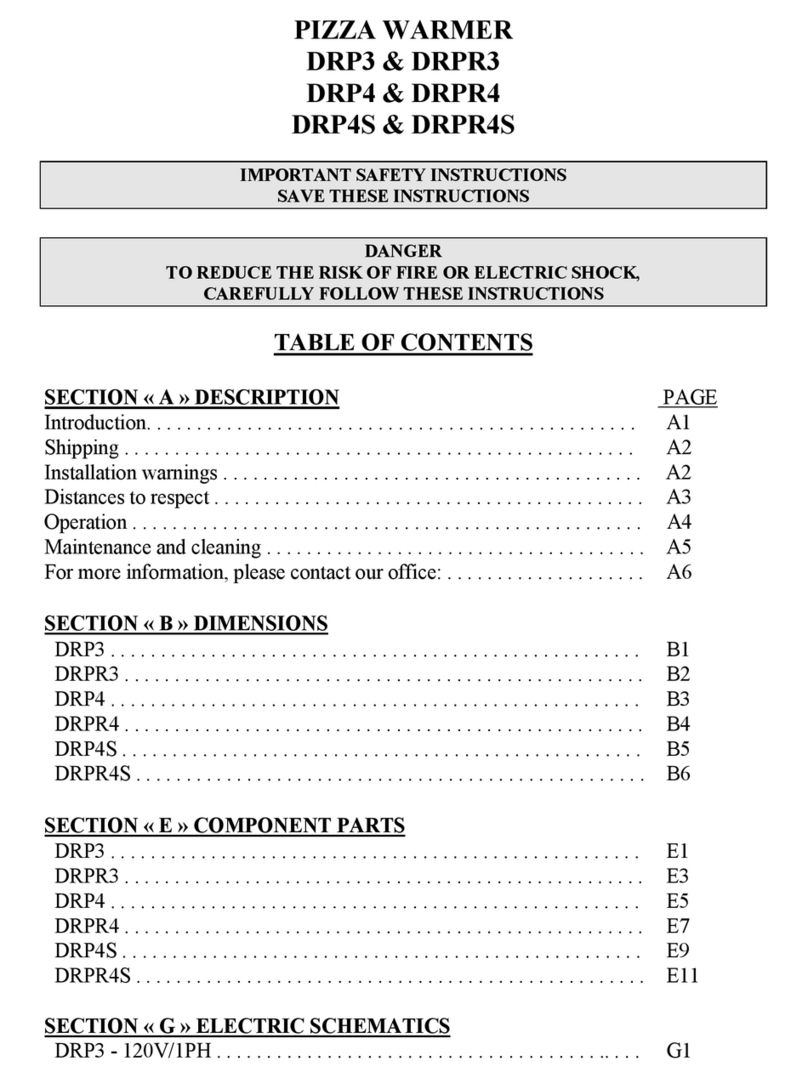

Doyon DRP3 User manual

PIZZA WARMER
DRP3 & DRPR3
DRP4 & DRPR4
DRP4S & DRPR4S
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DANGER
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
TABLE OF CONTENTS
SECTION « A » DESCRIPTION PAGE
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Shipping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Installation warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A2
Distances to respect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A4
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A5
For more information, please contact our office: . . . . . . . . . . . . . . . . . . . . A6
SECTION « B » DIMENSIONS
DRP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B1
DRPR3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B2
DRP4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B3
DRPR4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B4
DRP4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B5
DRPR4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B6
SECTION « E » COMPONENT PARTS
DRP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E1
DRPR3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E3
DRP4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5
DRPR4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E7
DRP4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E9
DRPR4S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E11
SECTION « G » ELECTRIC SCHEMATICS
DRP3 - 120V/1PH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . G1
All manuals and user guides at all-guides.com
all-guides.com

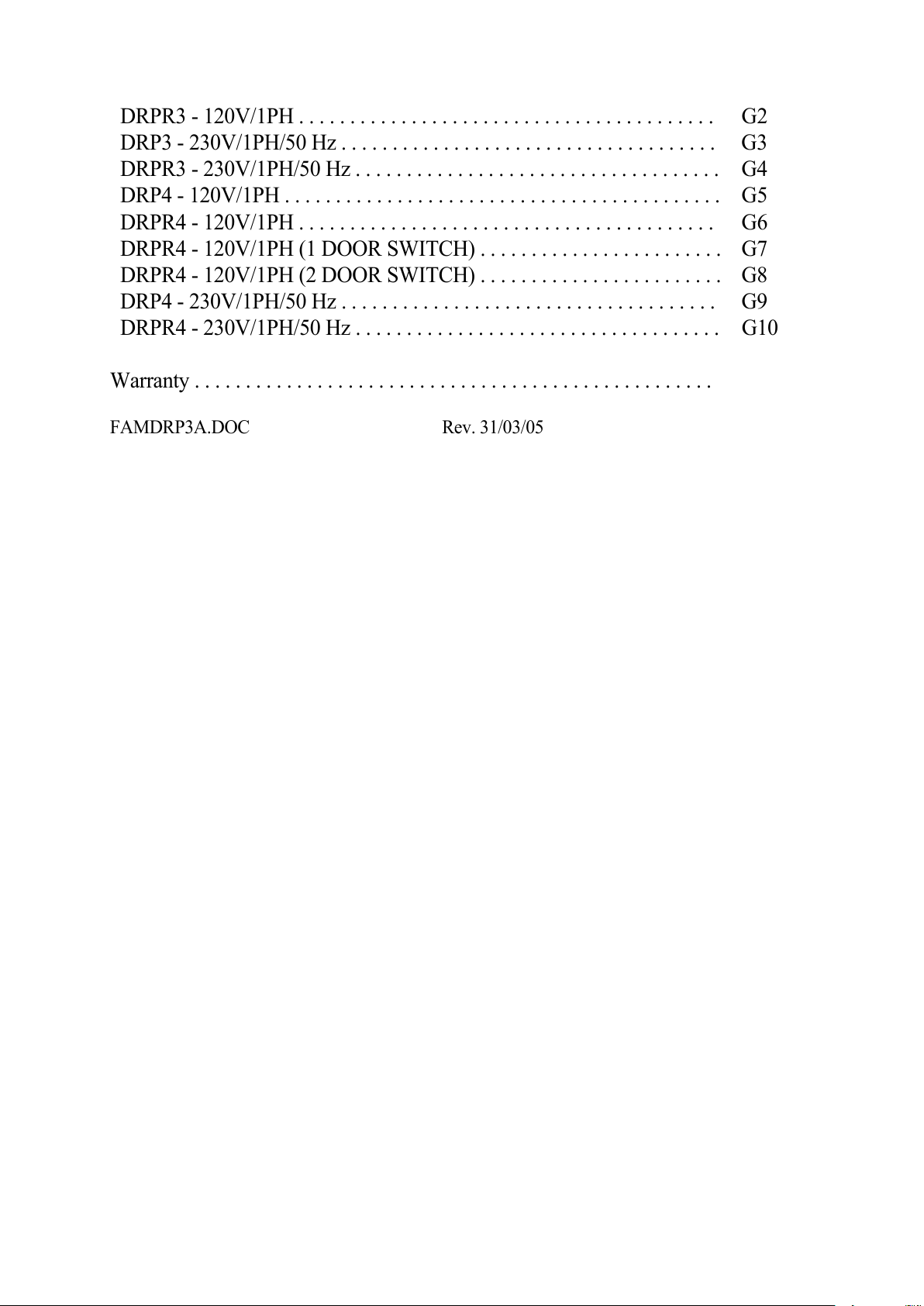

DRPR3 - 120V/1PH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G2
DRP3 - 230V/1PH/50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G3
DRPR3 - 230V/1PH/50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G4
DRP4 - 120V/1PH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G5
DRPR4 - 120V/1PH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G6
DRPR4 - 120V/1PH (1 DOOR SWITCH) . . . . . . . . . . . . . . . . . . . . . . . . G7
DRPR4 - 120V/1PH (2 DOOR SWITCH) . . . . . . . . . . . . . . . . . . . . . . . . G8
DRP4 - 230V/1PH/50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G9
DRPR4 - 230V/1PH/50 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . G10
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FAMDRP3A.DOC Rev. 31/03/05
All manuals and user guides at all-guides.com

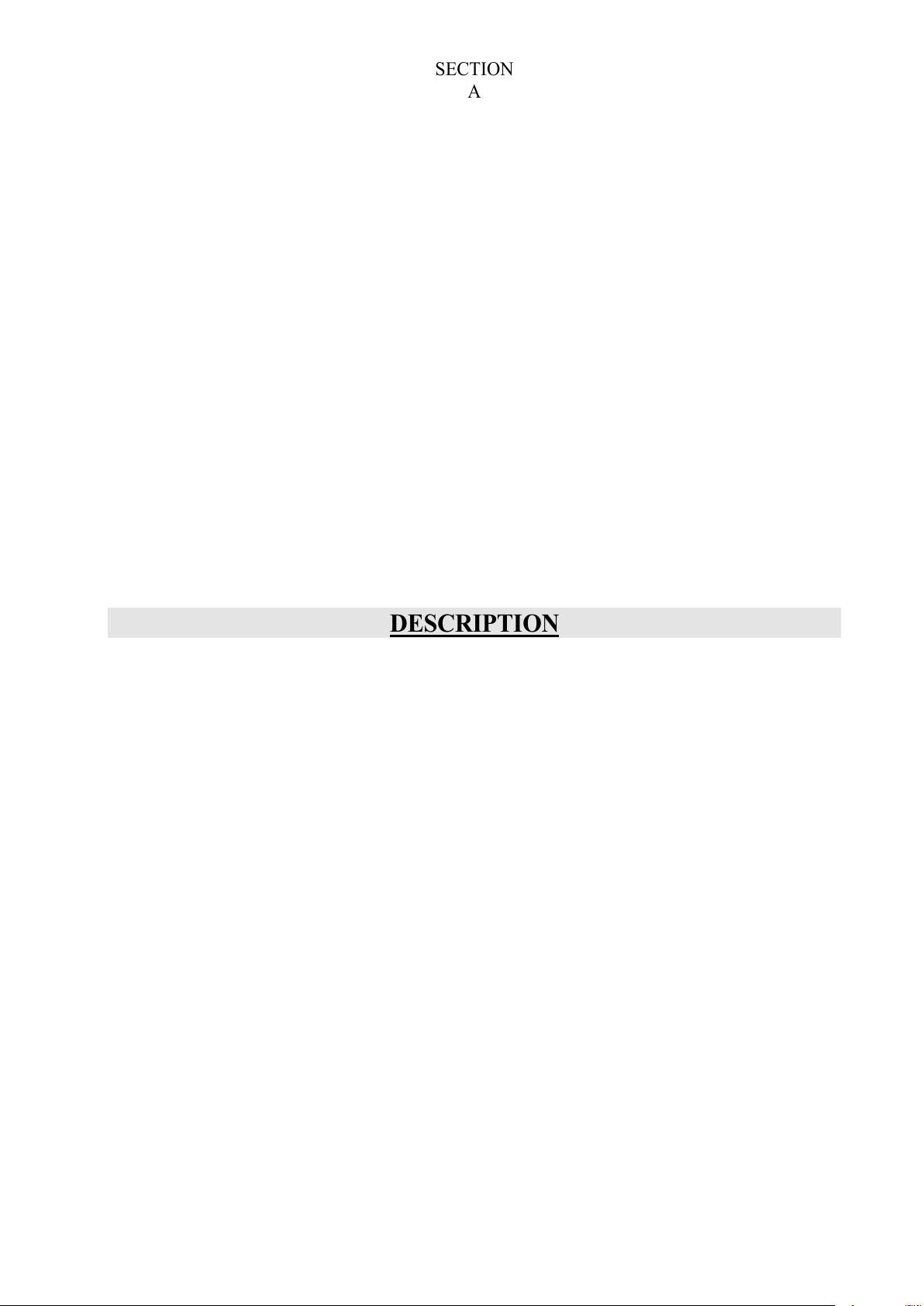

SECTION
A
DESCRIPTION
All manuals and user guides at all-guides.com

A 1

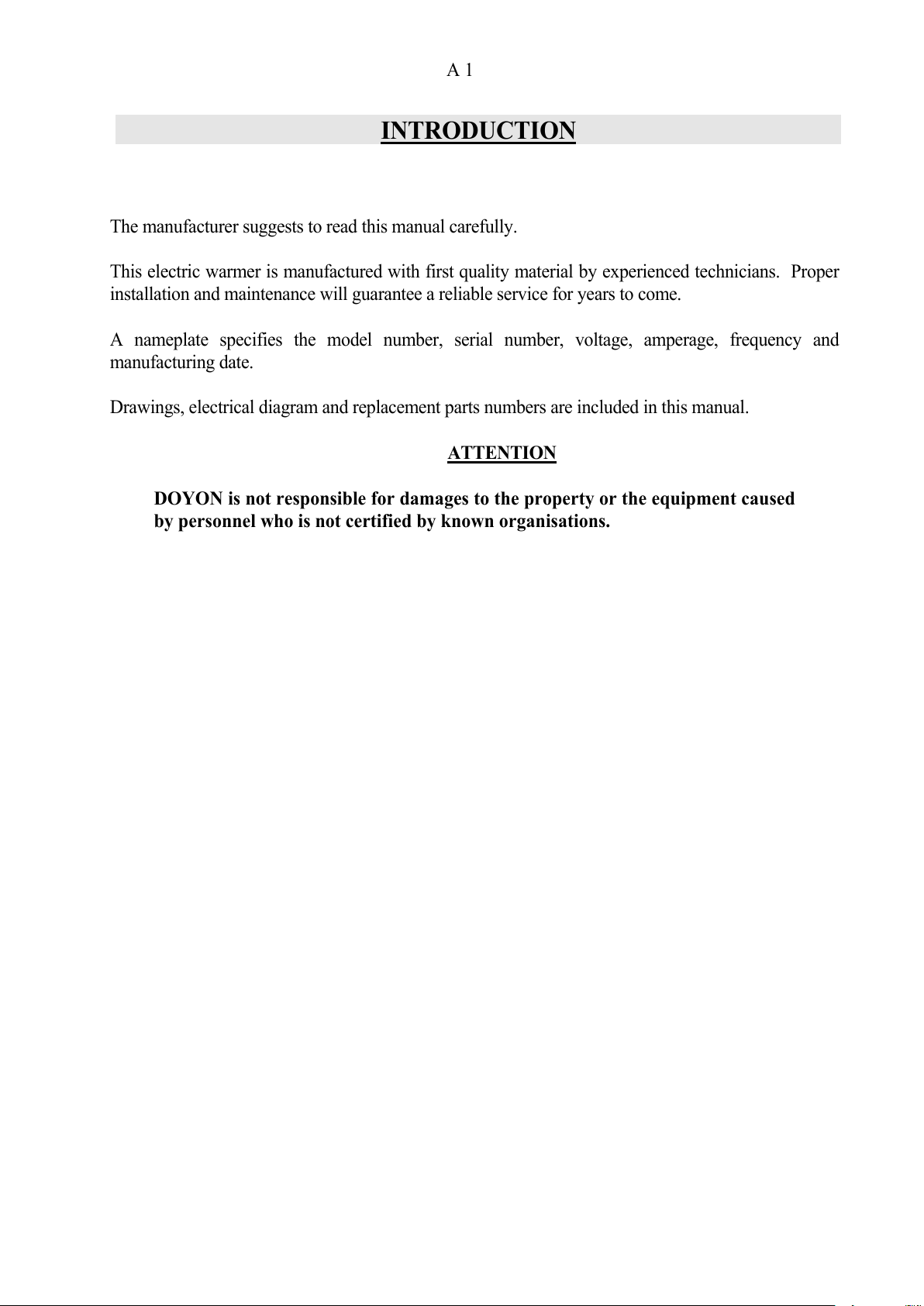

INTRODUCTION
The manufacturer suggests to read this manual carefully.
This electric warmer is manufactured with first quality material by experienced technicians. Proper
installation and maintenance will guarantee a reliable service for years to come.
A nameplate specifies the model number, serial number, voltage, amperage, frequency and
manufacturing date.
Drawings, electrical diagram and replacement parts numbers are included in this manual.
ATTENTION
DOYON is not responsible for damages to the property or the equipment caused
by personnel who is not certified by known organisations.
All manuals and user guides at all-guides.com

A 2
SHIPPING
For your safety, this equipment has been verified by qualified technicians and carefully crated before
shipment. The freight company assumes full responsibility concerning the delivery in good condition
of the equipment in accepting to transport it.
IMPORTANT
RECEPTION OF THE MERCHANDISE
Take care to verify that the received equipment is not damaged before signing the delivery receipt. If
a damage or a lost part is noticed, write it clearly on the receipt. If it is noticed after the carrier has
left, contact immediately the freight company in order that they do their inspection.
We do not assume the responsibility for damages or losses that may occur during transportation.
INSTALLATION WARNINGS
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF THIS OR ANY APPLIANCE
INSTALLATION AND SERVICE
The warmer must be connected to the utility and electrically grounded in conformity to the effective
local regulations. If these are not established, the warmer must be connected according to the
National Electrical Code (NFPA 70-XX). This equipement has a male plug that meets those
requirements.
All manuals and user guides at all-guides.com

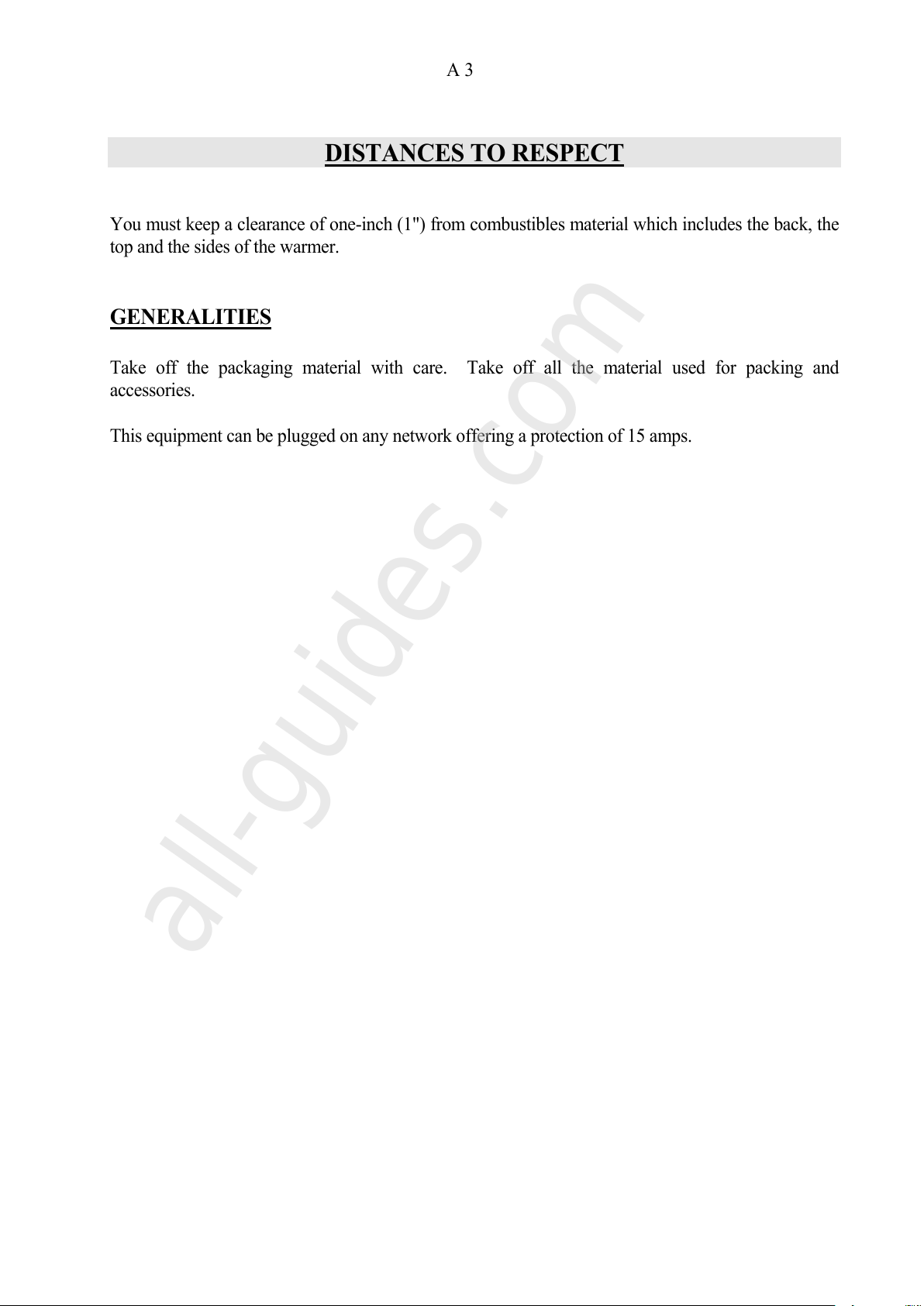

A 3
DISTANCES TO RESPECT
You must keep a clearance of one-inch (1") from combustibles material which includes the back, the
top and the sides of the warmer.
GENERALITIES
Take off the packaging material with care. Take off all the material used for packing and
accessories.
This equipment can be plugged on any network offering a protection of 15 amps.
All manuals and user guides at all-guides.com
all-guides.com

A 4
OPERATION
DRP3 & DRP4
1. Fill the pan with water.
2. Turn the switch "on".
3. Adjust the thermostat at 175° F.
DRP3R & DRPR4
1. Fill the pan with water.
2. Turn the two switches "on".
3. Adjust the thermostat at 175° F.
* To stop the rotation of the rack only, turns the right switch "off".
All manuals and user guides at all-guides.com

A 5
OVEN MAINTENANCE AND CLEANING
Step by step Recommendations
Clean the inside of the warmer with water
and soap
Take out the grills (the grills of the oven
could be cleaned with "Easy-Off")
We recommend and sell:
Durt Buster III : Action foam cleaner.
CHEMCO
Part number : NEB201
After cleaning the inside of the warmer,
apply a silicone base oven protector. It
avoids food from sticking to the metal.
We recommend and sell:
316 Silicone base protector and lubricant for
oven
Dow Corning
Part number : EXS400
Clean the warmer windows with products
like Brasso or equivalents. They are copper
cleaners but good for this use.
We recommend and sell:
Wright's: Cream copper cleaner
J.A. Wright & Co.
Part number : EXC300
Clean the warmer exterior with a stainless
steel cleaner.
We recommend and sell:
Stainless steel cleaner.
SANY or CURTIS (comestible)
Part number : NES201
All manuals and user guides at all-guides.com

A 6

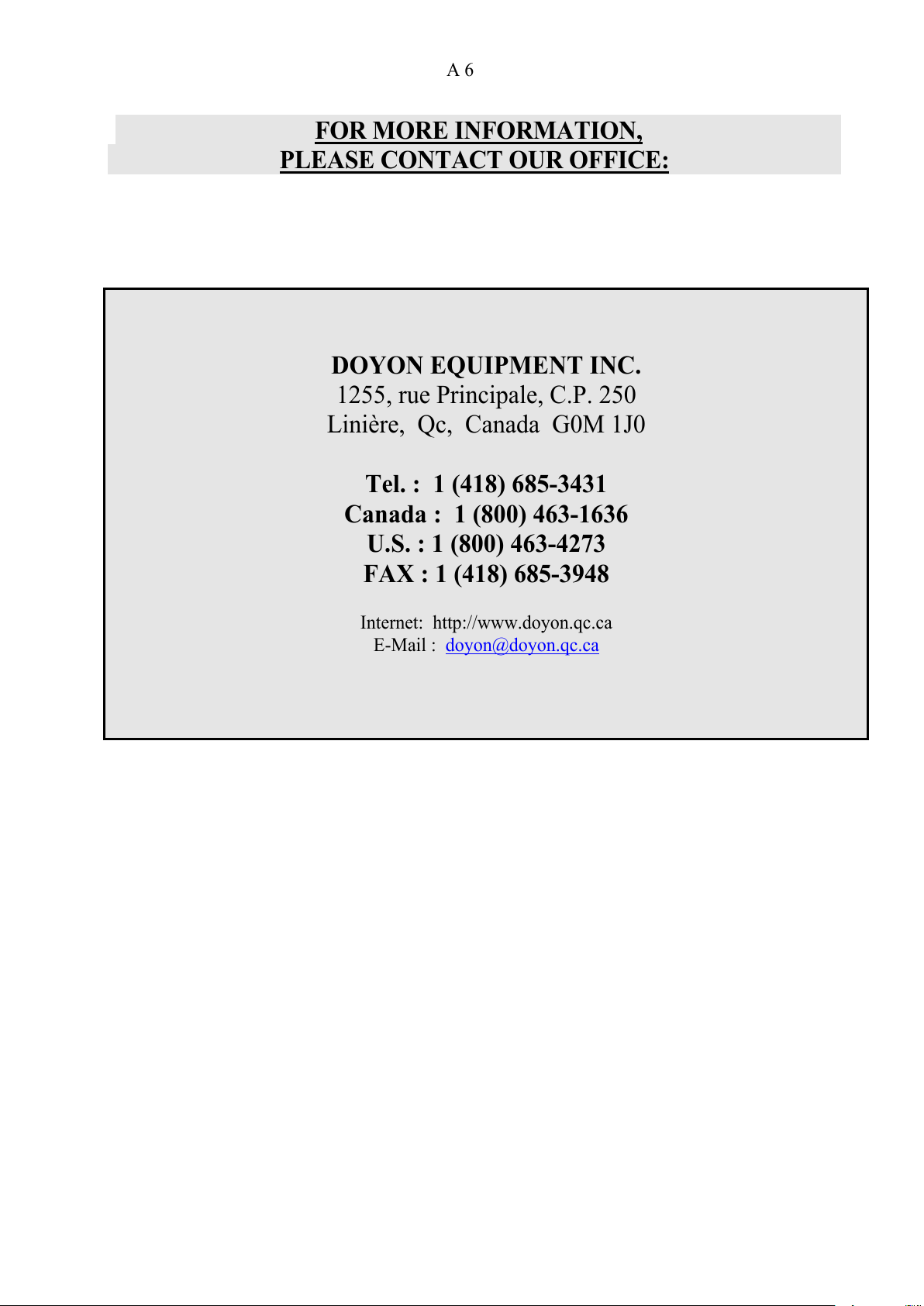

FOR MORE INFORMATION,
PLEASE CONTACT OUR OFFICE:
DOYON EQUIPMENT INC.
1255, rue Principale, C.P. 250
Linière, Qc, Canada G0M 1J0
Tel. : [phone]
Canada : 1 [phone]
U.S. : 1 [phone]
FAX : [phone]
Internet: http://www.doyon.qc.ca
E-Mail : [email protected]
All manuals and user guides at all-guides.com

SECTION
B
DIMENSIONS
All manuals and user guides at all-guides.com

B-1
21 3/8
21 3/4
20 1/2
OFF
60
100
150
200
250
POWER ROTATING
40
60
80
100
120
140
150 160 170 180 190
200
210
220
230
240
Cooper
DRP3
DRP3
All manuals and user guides at all-guides.com
all-guides.com

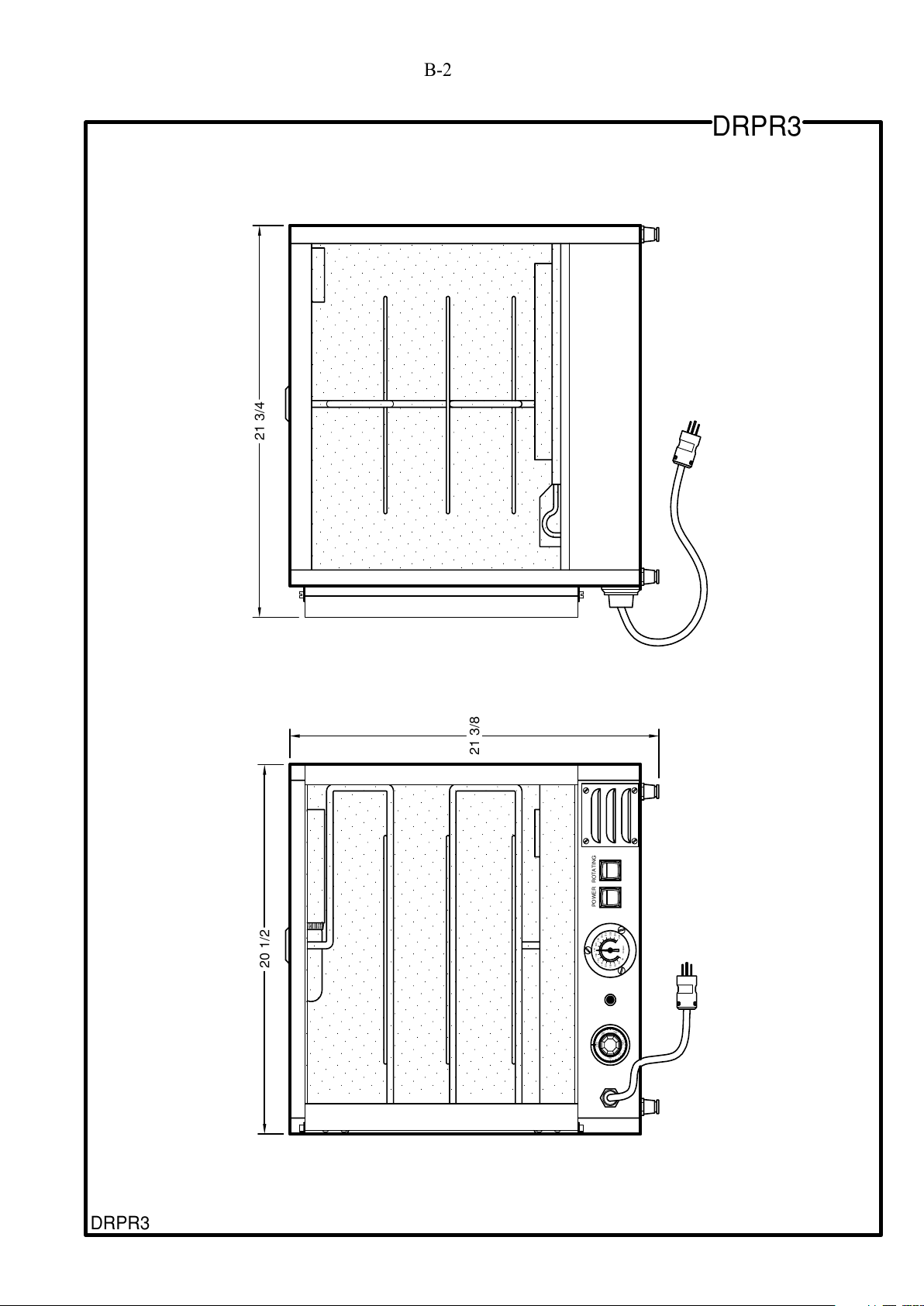

B-2
Cooper
240
230
220
210
200
190
180
170
160
150
140
120
100
80
60
40
ROTATINGPOWER
250
200
150
100
60
OFF
20 1/2 21 3/4
21 3/8
DRPR3
DRPR3
All manuals and user guides at all-guides.com

B-3
25 3/4
23 7/8
22 1/2
OFF
60
100
150
200
250
POWER
40
60
80
100
120
140
150
160 170 180
190
200
210
220
230
240
Cooper
DRP4
DRP4
All manuals and user guides at all-guides.com

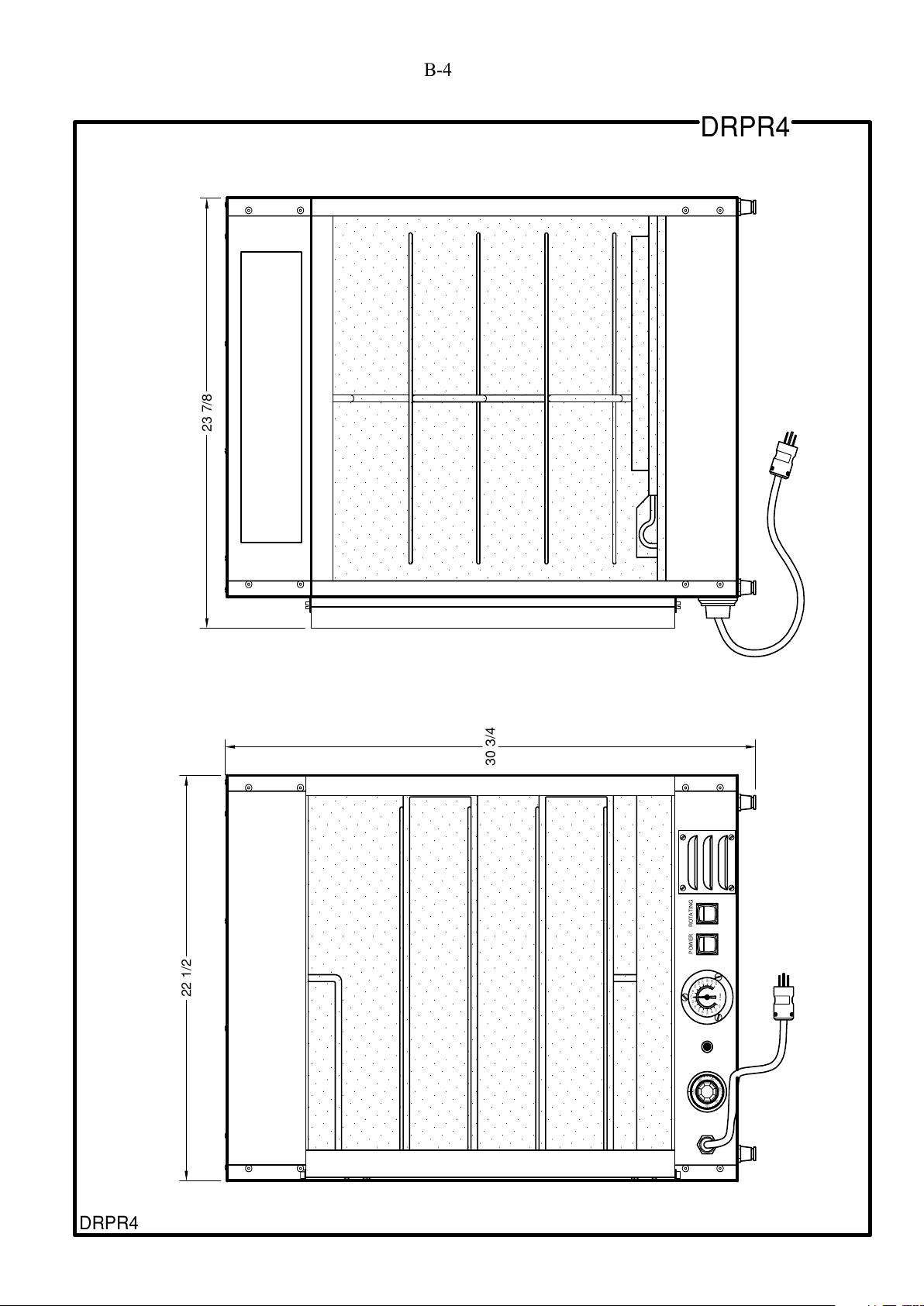

B-4
30 3/4
23 7/8
22 1/2
OFF
60
100
150
200
250
POWER
40
60
80
100
120
140
150
160 170 180
190
200
210
220
230
240
Cooper
ROTATING
DRPR4
DRPR4
All manuals and user guides at all-guides.com

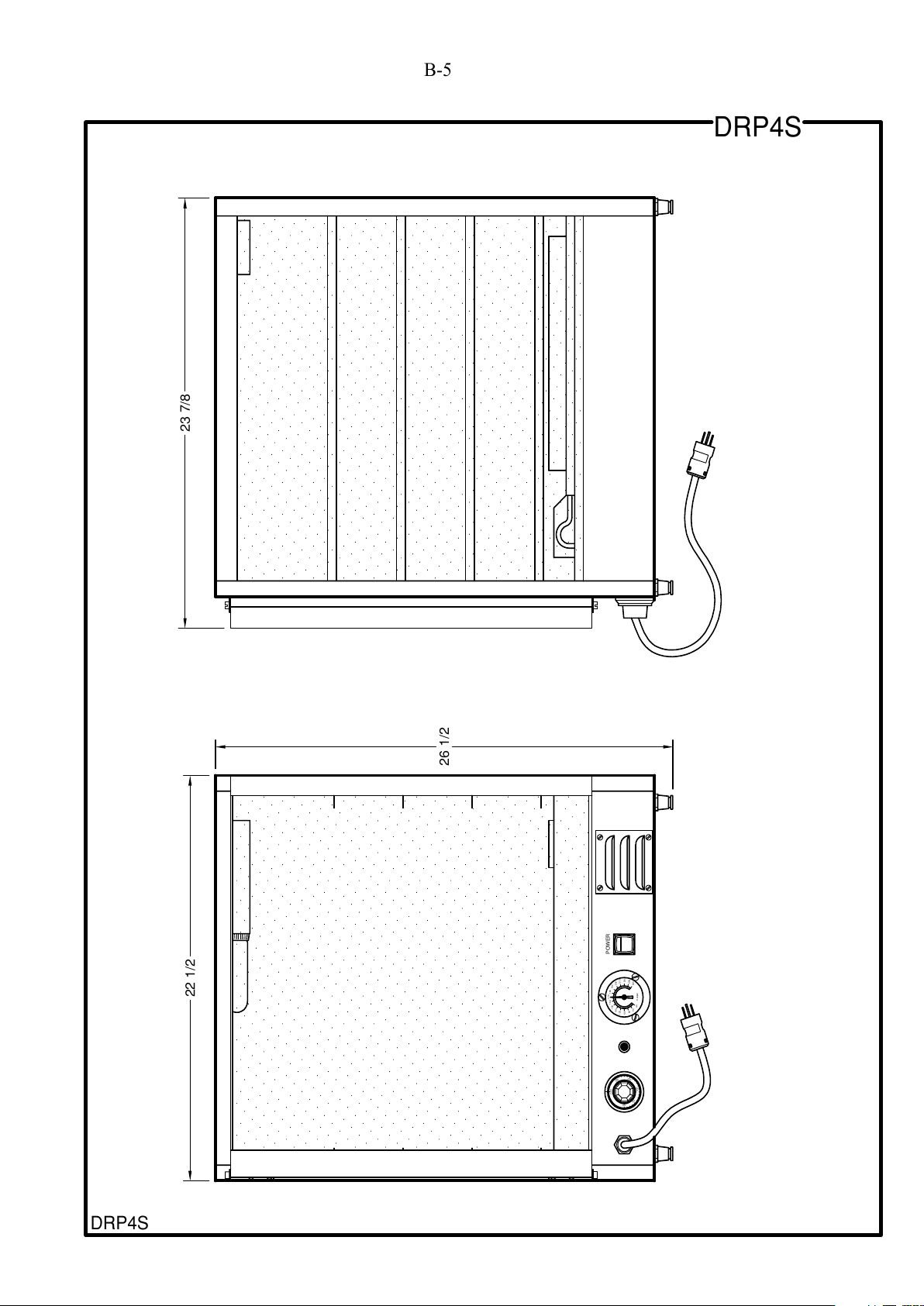

B-5
26 1/2
23 7/8
22 1/2
OFF
60
100
150
200
250
POWER
40
60
80
100
120
140
150 160 170 180 190
200
210
220
230
240
Cooper
DRP4S
DRP4S
All manuals and user guides at all-guides.com

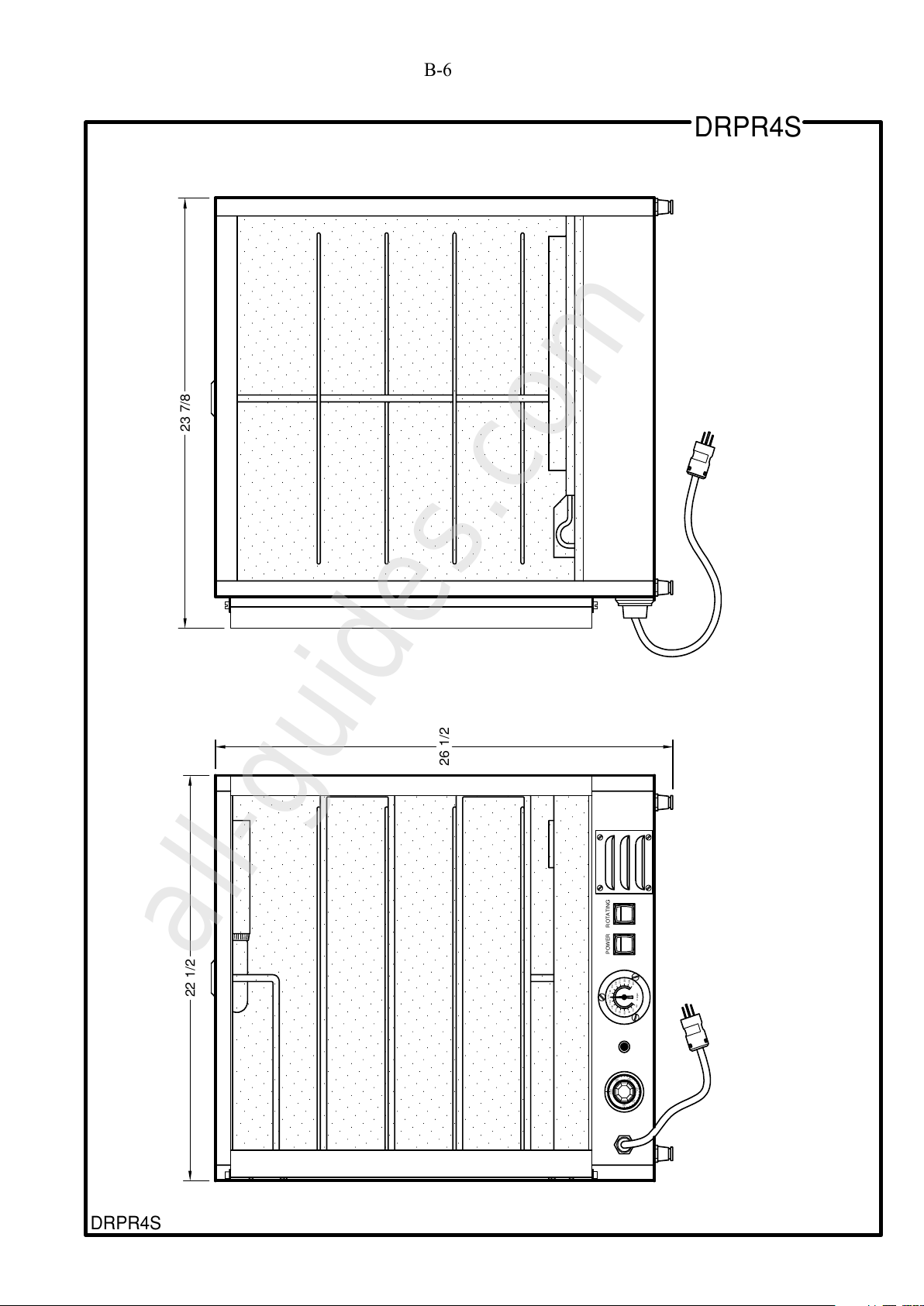

B-6
26 1/2
23 7/8
22 1/2
OFF
60
100
150
200
250
POWER
40
60
80
100
120
140
150 160 170 180 190
200
210
220
230
240
Cooper
ROTATING
DRPR4S
DRPR4S
All manuals and user guides at all-guides.com
all-guides.com

SECTION
E
COMPONENT PARTS
All manuals and user guides at all-guides.com

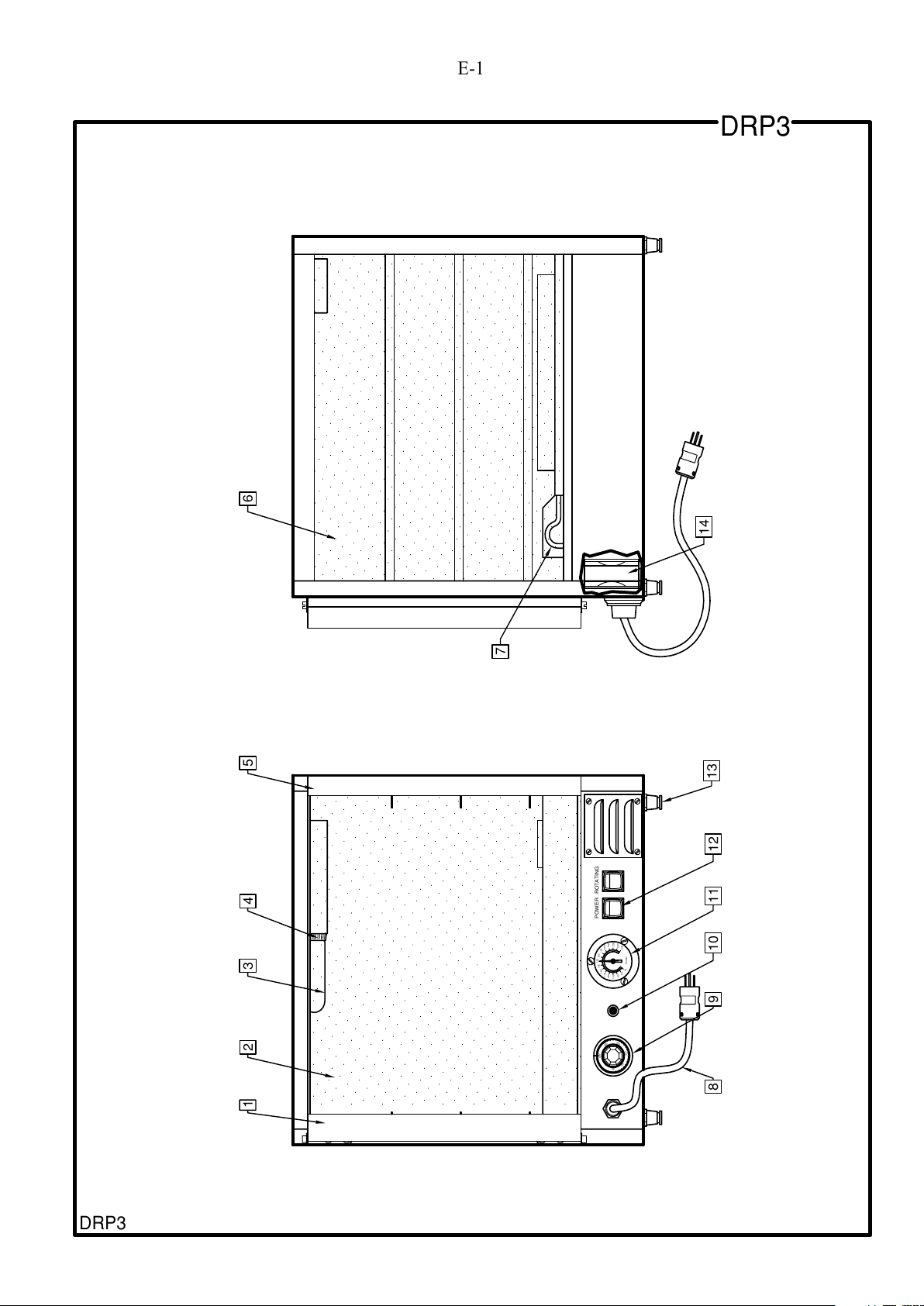

E-1
13 14
7
6
1211
1098
5
4
3
2
1
OFF
60
100
150
200
250
POWER ROTATING
40
60
80
100
120
140
150 160 170 180 190
200
210
220
230
240
Cooper
DRP3
DRP3
All manuals and user guides at all-guides.com

E-2
Item Part Number Description Quantity
1 50010823 DRP-3 & DRPR3 HINGE 1
2 VT1916 TEMPERED GLASS 5 MM 1
3 ELA325 BULB 40W 120V 1
4 ELD050 INCANDESCENT LIGHT SOCKET 1
5 50010824 DRP-3 & DRPR3 HANDLE 1
6 VT1815 TEMPERED GLASS 5 MM 3
7 ELE125 STRAIGHT ELEMENT 120V 1000W 1
OR ELE124 STRAIGHT ELEMENT 240V 1500W FOR MODEL 220V 50HZ 1
8 ELF015 120V MALE PLUG & CORD 1
9 ELT610 THERMOSTAT 250F 1
& ELT622 THERMOSTAT BEZEL 1
& ELT615 THERMOSTAT KNOB 250F 1
10 ELL650 RED PILOT LIGHT 1
11 RFTH06 THERMOMETER 40-240°F 1
12 ELI635 SWITCH 20A/130V - 15A/240 V P. LIGHT 1
13 PAP700 ADJUSTABLE CHROMED LEG 4
14 ELM759 COOLING FAN 1
Model : DRP3 View : BACK
All manuals and user guides at all-guides.com

E-3
Cooper
240
230
220
210
200
190
180
170
160
150
140
120
100
80
60
40
ROTATINGPOWER
250
200
150
100
60
OFF
12345
8 9 10 11 12
6
7
14 16
15
13
DRPR3
DRPR3
