DPA 4004 User manual

High SPL
Omnidirectional
Microphones
Type 4004
Type 4007
User’s Manual

High SPL Omnidirectional Microphones
Type 4004, Type 4007
Technical Description . . . . . . . . . . . . . . . . . . . . . . . Page 2
Full Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Care of Microphones . . . . . . . . . . . . . . . . . . . . . . . Page 10
Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
CE Standard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
Contents
User’s Manual

The cartridge
Types 4004 and 4007 are omnidirectional (pressure) microphones which
use a 12mm diameter prepolarized condenser cartridge. The diaphragm is a
nickel foil which has been coated with an ultra-thin polymer layer for
optimum corrosion resistance. The microphone housing is of German silver,
an alloy with a high content of nickel to match the stable thermal qualities
of the diaphragm. The self noise of the cartridge is typical 24dB(A) re. 20µPa
and the nominal sensitivity of the Types 4004 and 4007 are 10mV/Pa and
2.5mV/Pa respectively. Due to the size of the cartridge it can handle
extremely high SPLs, has an extended linear frequency response up to
40kHz and a high degree of omnidirectionality, even for higher frequencies.
For optimum stability the microphone cartridges have undergone a special
pre-aging process which releases all tensions in the materials and stabilizes
the polarization voltage.
The preamplifier
Types 4004 and 4007 are acoustically identical, but differ in their
preamplifier powering system. The 4004 is powered with 130V via the
HMA4000 Two-Channel High-Voltage Microphone Amplifier and has a
modified 3-pin XLR-connector (see Fig. 1 for pin designation). This special
powering system enables the microphone preamplifier to handle
approximately 10dB higher SPL than similar microphone types powered
through conventional P48 systems (4004: 168dB SPL peak and 4007: 155dB
SPL peak). Furthermore, the 4004 together with the HMA4000 is a totally
tranformerless system and therefore has an extended low-frequency
handling capability (10Hz to 40kHz ± 2dB). The 4007 is powered via a
standard P48 system and is equipped with a high quality audio transformer
and a standard 3-pin XLR-connector (see Fig. 2 for pin designation). Types
4004 and 4007 use state of the art low-noise preamplifier technology and
are driven with unity gain.
2
Technical Description
User’s Manual

3
Technical Description
User’s Manual
All microphones come with an individual calibration chart with the
specifications of self noise, sensitivity and the frequency response.
Important: The microphones will only live up to their specifications if
powered correctly.
The Passive Connection Converter
The PCC4000 Passive Connection Converter is an optional accessory that
makes it possible to run High-Voltage Microphones on standard 48V
phantom power with reduced microphone specifications. The maximum
reduction of the microphone SPL handling capability will be 13dB and it is
possible to drive up to 100m of cable with the PCC4000 with the same
specifications. Like the High-Voltage Microphones the PCC4000 is
transformerless. The input connector is a modified 4-pin female XLR for
connection directly to the microphone. The output is a standard 3-pin male
XLR-connector for connection to standard cables.
Fig. 1.
External view of the output
socket of the Type 4004.
Fig. 2.
External view of the output
socket of the Type 4007.

Cartridge type: Pre-polarized condenser B&K Type MM0043
Principle of operation: Pressure
Power Supply: 4004:HMA4000 Two-channel High-Voltage Microphone
Amplifier - 130V or PCC4000 Passive Connection
Converter for P48
4007:Phantom P48
Frequency range: 4004: On-axis: 10Hz - 40kHz ±2dB up to 152dB SPL peak
4007: On-axis: 20Hz - 40kHz ±2dB up to 135dB SPL peak
Phase response: Phase matching between any two microphones: ±5°
(50 Hz to 20kHz)
Directional characteristics: Omnidirectional
Sensitivity: 4004: Nominally 10mV/Pa; -40dB re. 1V/Pa unloaded (at 250Hz)
4007: Nominally 2.5mV/Pa; -52dB re. 1V/Pa unloaded (at 250Hz)
Equivalent noise level A-weighted: Typ. 24dB(A) re. 20µPa (max. 26dB(A))
Equivalent noise level CCIR 468-1: Typ. 36dB (max. 38dB)
Max SPL: 4004: 168dB SPL peak (f< 4kHz)
4004: 165dB SPL peak (f< 15kHz) with PCC4000: 155dB SPL Peak
4007: 155dB SPL peak (f > 200Hz)
Total Harmonic Distortion: 142 dB SPL peak (<0.5% THD),
148 dB SPL peak (<1% THD)
Preamplifier:
Frequency range: 4004: 20Hz to 50kHz ±0,2dB, 5Hz to 150kHz -3dB
4007: 20Hz to 40kHz ±1dB
Output impedance: <75 Ohm
Cable drive capability: 4004: With HMA4000: Up to 300m
4004: With PCC4000: <100m
4007: Up to 300m
Polarity: 4004: Positively increasing sound pressure produces positive-going
voltage at pin 4. Pin 1: Ground, Pin 2: Not used, Pin 3: 130 V DC
preamplifier supply, Pin 4: Signal. See Fig. 1.
4007: Positively increasing sound pressure produces positive-going
voltage at pin 2. Pin 1: Ground, Pin 2: Signal +, Pin 3: Signal return.
See Fig. 2
4
Full Specifications
User’s Manual

Difference frequency distortion: (DF2, DF3, Df = 80Hz) <1% at 153dB SPL peak
Temperature coefficient: -0,025dB/°C at 25°C, 1013 hPa, 250Hz
Static pressure coefficient: -0,002dB/hPa at 25°C, 1013 hPa, 250Hz
Influence of vibration: 69dB equivalent SPL for 1m/s2 in direction of
greatest sensitivity
Influence of magnetic field: 45dB equivalent SPL for 80A/m, 50Hz in direction
of greatest sensitivity
Operating temperature range: -10 to +70°C (+14 to 158°F)
Dimensions:
Microphone length:
165mm
Microphone diameter: 19mm
Capsule diameter: 12mm
Weight: 150g
For use with Microphone Amplifier:
HMA4000 Hi-Voltage Microphone Amplifier, 2 ch.
Accessories Included
Microphone Holders & Suspension Mounts
UA0639 Microphone Clip
Windscreens
UA0658 Windscreen for Ø12mm Microphone
Accessories Available
Shock Mounts
RSM4000Shock Mount for Windjammer
UA0897 Shock Mount
Shock Mount Rubbers
DDS0731Rubber Mount 19mm, Medium Soft
Microphone Holders & Suspension Mounts
UA0961 Microphone Holder
5
Full Specifications
User’s Manual

Stereo Accessories
UA0836 Stereo Boom with Holders
UA0837 Stereo Boom excluding Holders
Floor & Table Stands
MB4000 Magnet Base
TB4000 Table Base
Connection Adapters
HTP4000 Converter: 130V to P48
PCC4000 Passive Connection Converter: P48 to 130V
Cables
AO0182 P48 Microphone Cable, 5m
AO0261 130V Microphone Cable, 5m (Type 2812)
DAO0130130V Microphone Cable, 5m (Type HMA4000)
6
Full Specifications
User’s Manual
Fig. 3. On-axis and diffuse-field responses of Types 4004 and 4007.

7
Full Specifications
User’s Manual

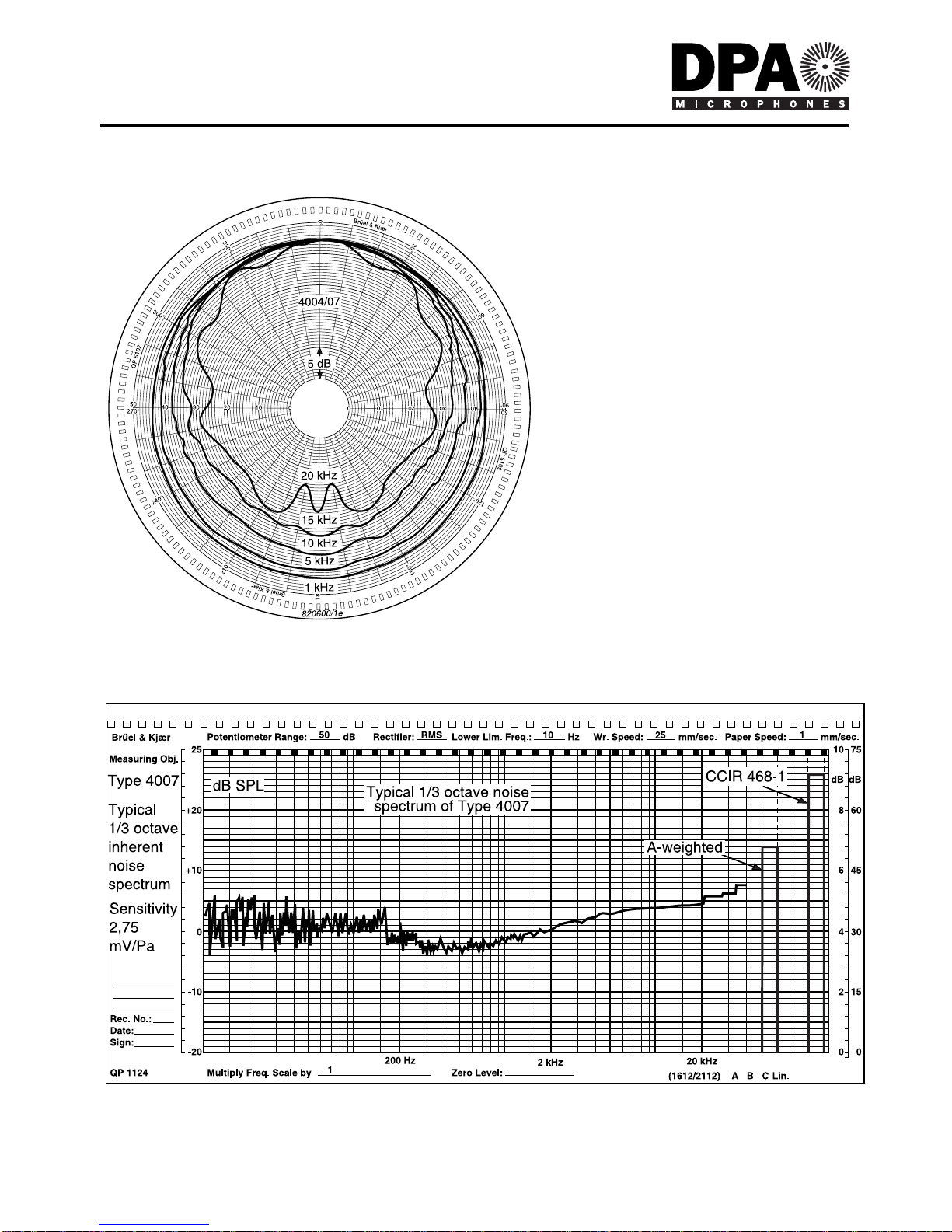

Fig. 5. Typical third-octave inherent-noise spectrum of Type 4007.
Fig. 4.
Directional characteristics
of Types 4004 and 4007.

8
Technical Description
User’s Manual
Fig. 6. On-axis amplitude and phase response of Types 4004 and 4007 plotted using a lin-
ear frequency axis for evaluation of the phase response.

9
Technical Description
User’s Manual

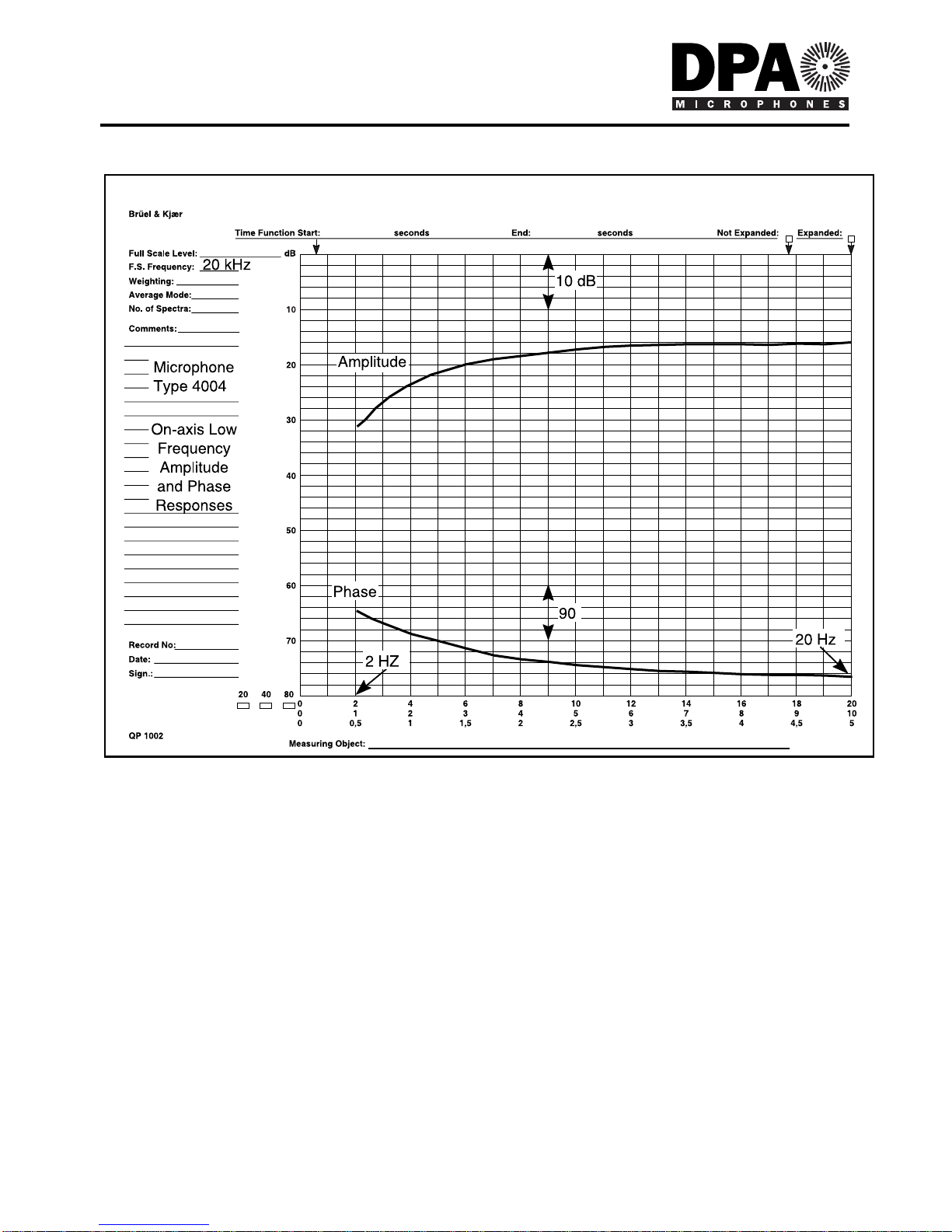

Fig. 7. On-axis low-frequency amplitude and phase and responses of Types 4004 and 4007.

10
It is important to bear in mind the following points with regards to
mounting, microphone care and the use of accessories:
•The microphone cartridge is tightly secured to the main body housing,
and no attempt should be made to remove it. If a replacement cartridge
is required, contact your local DPA Microphones representative.
•Use of windscreen is recommended when microphones are used in dirty
or dusty environments.
•When not in use, the microphone should be disconnected and kept in
the case supplied.
Care Of Microphones
User’s Manual

11
User’s Manual
Service & Repair
Products from DPA Microphones are extremely stable and there should
not be any significant change in the specifications with time and use.
If, however, you are not totally satisfied with the characteristics exhibited by
these products, then contact your nearest DPA Microphones representative
for further details of service and the repair facilities that are available.
DPA Microphones has a maximum seven working days in-house service
policy, guaranteeing that no more than seven working days will elapse from
the day we receive the item for service to the day we are ready to return it
to you. Your satisfaction is our satisfaction.
Please contact DPA Microphones for your nearest representative on
tel. [phone] or fax [phone].
Warranty
All products from DPA Microphones are covered by a limited warranty on
both their mechanical functionality and their documented specifications.
We are so confident of the quality of these products, that this warranty is
valid for one year from the date of purchase, as long as the items are not
directly mistreated or abused. In case of a warranty claim, your invoice is
your warranty registration.
CE Standard
The CE-mark guarantees all products conform with relevant standards
approved by the European Community. The products described in this User’s
Manual comply with current relevant standards when used with cables from
DPA Microphones.
EMC Directive: 89/336/EEC, amended by 92/31/EEC and 93/68/EEC
Low Voltage Directive: 73/23/EEC, amended by 93/68/EEC
Service & Repair

User’s Manual

Gydevang 44 • Dk-3450 Allerød • Denmark
tel: [phone] Fax: [phone]
http://www.dpamicrophones.com
email: [e-mail]
