DPA 4004 User manual

1
CONTENTS
Technical Description 2
Full Specifications 7
Care of Microphone 10
Service and Repair 11
Warranty 11
CE Marking 11
USER’S MANUAL
Reference Microphones
Type 4004
Type 4007
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 1

2 3
TECHNICAL DESCRIPTION
The cartridge
Omnidirectional (pressure) microphones DPA 4004 and 4007 use a
12 mm (0.47 in) diameter prepolarised condenser cartridge. The
diaphragm is a nickel foil which has been coated with an ultra-thin
polymer layer for optimum corrosion resistance. The microphone
housing is of German silver, an alloy with a high content of nickel to
match the stable thermal qualities of the diaphragm. The self noise
of the cartridge is typical 24 dB(A) re 20 μPa and the nominal sensi-
tivity of 4004 and 4007 are 10 mV/Pa and 2.5 mV/Pa respectively.
Due to the size of the cartridge it can handle extremely high SPLs,
has an extended linear frequency response up to 40 kHz and a high
degree of omnidirectionality, even for higher frequencies. For opti-
mum stability the microphone cartridge has undergone a special
pre-aging process which releases all tensions in the materials and
stabilizes the polarisation voltage.
The preamplifiers
Types 4004 and 4007 are acoustically identical, but differ in their
preamplifier powering system. The 4004 is powered with 130 V via
the HMA5000 High-Voltage Microphone Amplifier and has a modi-
fied 4-pin XLR-connector (see Fig. 1 for pin designation). This special
powering system enables the microphone preamplifier to handle
approximately 10 dB higher SPL than similar microphone types po-
wered through conventional P48 systems (4004: 168 dB SPL peak
and 4007: 155 dB SPL peak).
Furthermore, the 4004 together with the HMA5000 is a totally
tranformerless system and therefore has an extended low-frequen-
cy handling capability (10 Hz to 40 kHz ± 2 dB). The 4007 is po-
wered via a standard P48 system and is equipped with a high quali-
ty audio transformer and a standard 3-pin XLR-connector (see Fig.
2 for pin designation). Types 4004 and 4007 use state of the art
low-noise preamplifier technology and are driven with unity gain.
All microphones come with an individual calibration chart with the
specifications of self noise, sensitivity and the frequency response.

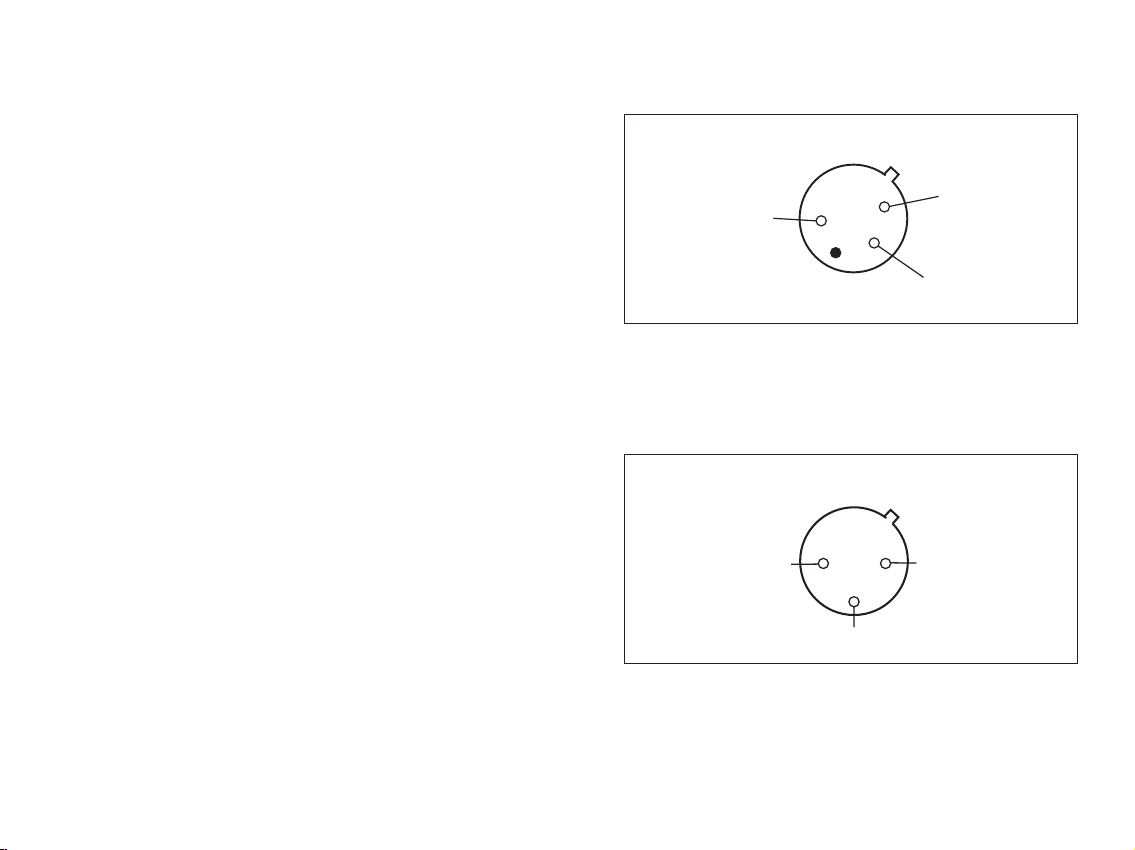

Fig. 1. External view of the output connector of the DPA 4004.
Fig. 2. External view of the output connector of the DPA 4007.
Important:
The microphone will only operate within it's specifications if
powered correctly.
Ground
Signal
4
3
2
1
130 V DC
Preamplifier Supply
Ground Signal +
Signal -
3
21
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 2

4 5
The Passive Connection Converter
The PCC4000 Passive Connection Converter is an optional accesso-
ry that makes it possible to run High-Voltage Microphones on stan-
dard 48 V phantom power with reduced microphone specifications.
The maximum reduction of the microphone SPL handling capability
will be 13 dB and it is possible to drive up to 100 m (328.1 ft) of
cable with the PCC4000 with the same specifications. Like the High-
Voltage Microphones the PCC4000 is transformerless. The input
connector is a modified 4-pin female XLR for connection directly to
the microphone. The output is a standard 3-pin male XLR-connector
for connection to standard cables.
5 dB
20 kHz
15 kHz
10 kHz
5 kHz
1 kHz
0° dB
10 20 Hz 50 100 200 Hz 500 1 kHz 2 5 10 20 40
5 dB
On-axis
Diffuse
10
dB
5
0
-5
-10
-15
40
30
20
200 Hz 2 kHz 20 kHz
10
0
-10
dB
A-weighted
ITU-R BS.468-4
Fig. 3. On-axis and diffuse-field responses of DPA 4004 and 4007. Fig. 5. Typical third-octave inherent-noise spectrum of DPA 4004
and 4007.
Fig. 4. Directional characteristics of DPA 4004 and 4007 (normalised)
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 4

6 7
FULL SPECIFICATIONS:
Cartridge type:
12 mm (0.47 in) pre-polarised condenser
Principle of operation:
Pressure
Power supply:
4004: HMA5000 for 130 V or PCC4000 for P48
4007: 48 V Phantom power
Frequency range, ±2 dB:
4004: On-axis: 10 Hz - 40 kHz
4007: On-axis: 20 Hz - 40 kHz
Phase compatibility:
Max deviation between any two microphones: ±5° (50 Hz to 20 kHz)
Directional characteristics:
Omnidirectional
Sensitivity nominal, ±2 dB:
4004:10 mV/Pa; -40 dB re 1V/Pa
4007: 2.5 mV/Pa; -52 dB re 1V/Pa
Equivalent noise level A-weighted:
Typ. 24 dB(A) re 20 μPa (max. 26 dB(A))
Equivalent noise level ITU-R BS. 468-4
Typ. 36 dB (max. 38 dB)
S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL)
70 dB
Max SPL, peak before clipping:
4004: 168 dB
4007: 155 dB
Total Harmonic Distortion:
<0.5% THD up to142 dB SPL peak, <1% THD up to148 dB SPL
peak
Dynamic Range:
Typ. 124 dB
PREAMPLIFIER:
Frequency range:
4004: 20 Hz to 50 kHz ±0.2 dB 5 Hz to 150 kHz -3 dB
4007: 20 Hz to 40 kHz ±1 dB
Output impedance:
<75 Ohm
90º
0º
-90º
Phase
90º
10 kHZ
100 kHz
0 102030405060708090100
Phase

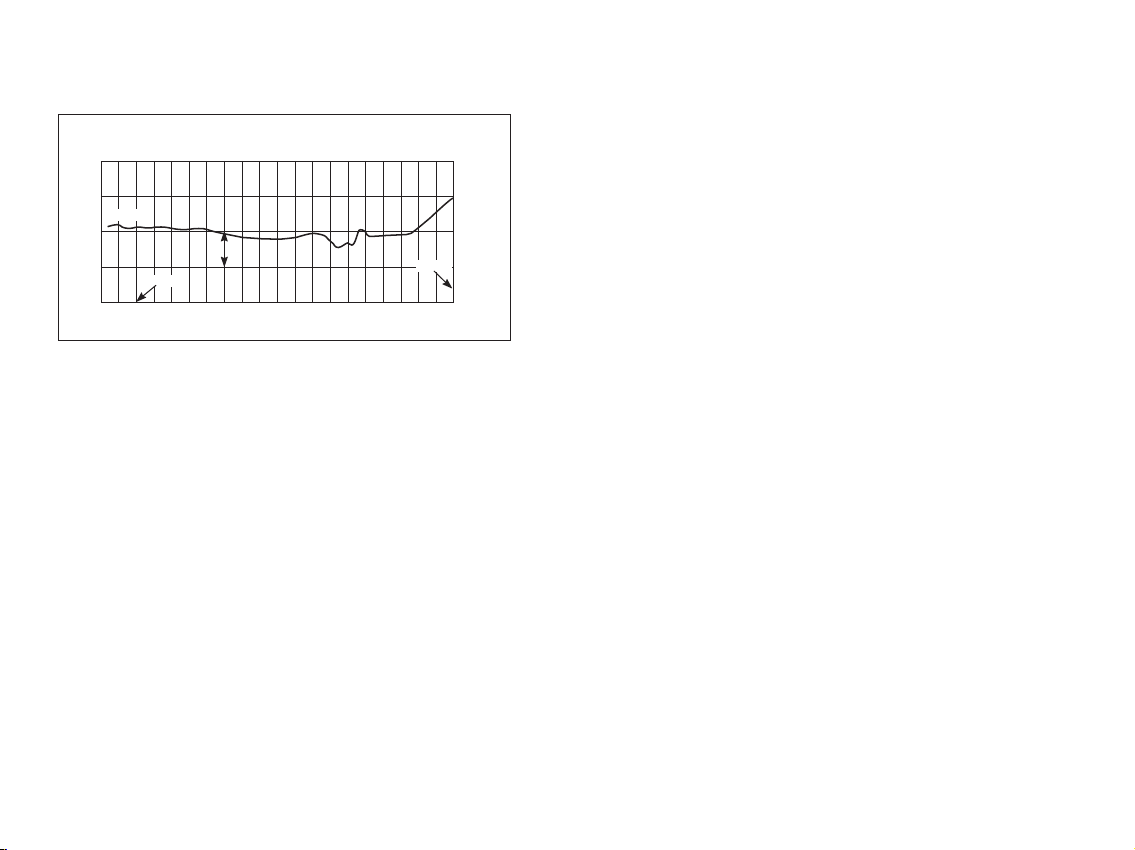

Fig. 6. On-axis phase response of DPA 4004 and
4007 plotted using a linear frequency axis for evaluation of the
phase response.
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 6

FOR USE WITH MICROPHONE AMPLIFIER
HMA5000 High Voltage Microphone Amplifier, 2 ch.
ACCESSORIES INCLUDED
Microphone Holders & Suspension Mounts
UA0639 Microphone Clip
Windscreens
UA0658 Windscreen for 4004/07
ACCESSORIES AVAILABLE
Shock Mounts
WSM4000 Shock Mount WINDPAC
UA0897 Shock Mount
Shock Mount Rubbers
DDS0731 Rubber Mount 19 mm (0.75 in), Medium Soft
Microphone Holders & Suspension Mounts
UA0961 Microphone Holder
Stereo Accessories
UA0836 Stereo Boom with Holders
UA0837 Stereo Boom excluding Holders
Floor & Table Stands
MB4000 Magnet Base
TB4000 Table Base
Connection Adapters
HTP4000 Converter: 130 V to P48
PCC4000 Passive Connection Converter: P48 to 130 V
Cables
DAO0130 Microphone Cable for 4003/04/12/16, 5 m (16.4 ft)
DAO0131 30 V Microphone Cable 4003/04/12/16, 10 m (32.81 ft)
Windscreens
DUA0090 Pop-filter
WINDPAC-M Microphone Windshield System, Medium
8 9
Cable drive capability:
4004: HMA 5000: Up to 300 m (984.3 ft)
4004: With PCC4000: Up to 100 m (328.1 ft)
4007: Up to 300 m (984.3 ft)
Polarity:
4004: Positive going sound pressure produces positive going
voltage at pin 4.
Pin 1: Ground, Pin 2: Not used, Pin 3: 130 V DC preamplifier supply,
Pin 4: Signal. (See Fig. 1).
4007: Positive going sound pressure produces positive
going voltage at pin 2.
Pin 1: Ground, Pin 2: Signal +, Pin 3: Signal return. (See Fig. 2)
Difference frequency distortion:
(DF2, DF3, Df = 80 Hz) <1% at 153 dB SPL peak
Temperature coefficient:
-0.025 dB/° C at 25° C, 1013 hPa, 250 Hz
Static pressure coefficient:
-0.002 dB/hPa at 25° C, 1013 hPa, 250 Hz
Influence of vibration:
69 dB equivalent SPL for 1 m/s2in direction of greatest
sensitivity
Influence of magnetic field:
45 dB equivalent SPL for 80 A/m, 50 Hz in direction of greatest
sensitivity
Operating temperature range:
-10 to +70° C (+14 to 158° F)
Connector:
4004: 4-pin modified XLR-M (High Voltage)
4007: 3-pin XLR-M (Standard P48)
DIMENSIONS:
Microphone length: 165 mm (6.5 in)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 12 mm (0.47 in)
Weight: 150 g (5.29 oz)
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 8

1110
CARE OF MICROPHONE
It is important to bear in mind the following points with regard to
mounting, microphone care and the use of accessories:
The microphone cartridge is tightly secured to the main body hou-
sing, and no attempt should be made to remove it. If a replacement
cartridge is required, contact your local DPA Microphones represen-
tative.
Use of windscreen is recommended when microphones are used in
dirty or dusty environments.
When not in use, the microphone should be disconnected and kept
in the case supplied.
SERVICE & REPAIR
Products from DPA Microphones are extremely stable and there
should not be any significant change in the specifications with time
and use. If, however, you are not totally satisfied with the charac-
teristics exhibited by these products, contact your nearest
DPA Microphones representative for further details of service and
the repair facilities that are available. DPA Microphones has a maxi-
mum seven working days in-house service policy, usually ensuring
that no more than seven working days will elapse from the day we
receive the item for service to the day we are ready to return it to you.
Please contact DPA Microphones for your nearest representative on
TEL: + 45 48 14 28 28
FAX: + 45 48 14 27 00
You can also get in touch with DPA Microphones at:
[email protected]
or visit our website at:
www.dpamicrophones.com
© 2005, DPA Microphones A/S - Product features and specifica-
tions are subject to change without notice.
ENVIRONMENTAL POLICY
This product is comprised by the Waste (WEEE) directive and
should not be thrown in the garbage bin when obsolete. Instead,
return it to your local DPA representative (or DPA Microphones A/S
directly) who will dispose of the product in accordance with the cur-
rent environmental standards.
WARRANTY
All products from DPA Microphones are covered by a two-year limited
warranty on both mechanical functionality and documented specifi-
cations as long as the items are not mistreated, abused or modi-
fied in any way. In case of a warranty claim, your invoice is your war-
ranty registration.
CE-MARKING
The CE-mark guarantees that the product conforms with relevant
Directives approved by the European Commission.
EMC Directive: 89/336/EC, amended by 92/31/EC and 93/68/EC
Low voltage Directive: 73/23/EC, amended by 93/68/EC
MANUAL 4004-4.qxp 06-09-2005 11:51 Side 10
