DPS-Promatic SPEED TEST User manual

SPEED TEST
Instructions manual v 1.0

page intentionally left blank
Speed Test English instructions v 1.0
2

Table of Contents
Table of Contents
IMPORTANT NOTES: READ CAREFULLY...................................................... 4
Safety Warning!..............................................................................................4
1.0.Unpacking....................................................................................................5
1.1.Installing the back panel..............................................................................5
1.2.Installing the cash box.................................................................................6
1.3.Connecting and switching-on.......................................................................7
1.3.1 Coin acceptor........................................................................................8
1.3.2 Using the machine................................................................................ 9
1.3.3 Hi-Score............................................................................................... 9
1.4 Accounting................................................................................................. 10
1.5 Maintenance...............................................................................................11
Specifications...................................................................................................12
Declaration of conformity..........................................................................13
Speed Test English instructions v 1.0
3

IMPORTANT NOTES: READ CAREFULLY
Safety Warning!
This machine is powered by 230V (or 115V) and has, inside, voltages that
could be lethal to operators and public.
To prevent fire or shock Hazard, do not expose the unit to rain or
moisture.
It is NECESSARY to connect this machine securely to a properly
grounded outlet.
Failure to do so will result in potential life hazard to people and will zero all
measures we have taken to make the machine as safe as possible.
TRAINING: This machine is produced to be operated by skilled personal that
has been trained in Electrics and Electronis and mechanics related to coin
operated machines. The purpose of this manual is to provide a guide to this
operator and by no means to provide instructions to someone who does not
have the required knowledge.
KEYS: all our machines have the same lock and can be opened by the same
key. Consider to change it in case you feel this doesn’t comply with your
policy.
WASTE: This machine is an electronic device and should not be thrown in
the regular waste and should be treated separately. Consult your local utility
for more details.
Speed Test English instructions v 1.0 4

1.0.Unpa king
•Take gently the machine out of the package taking care of cleaning any
piece of packing material.
•Find and identify the keys and the back panel.
•Read this manual completely before attempting any operation.

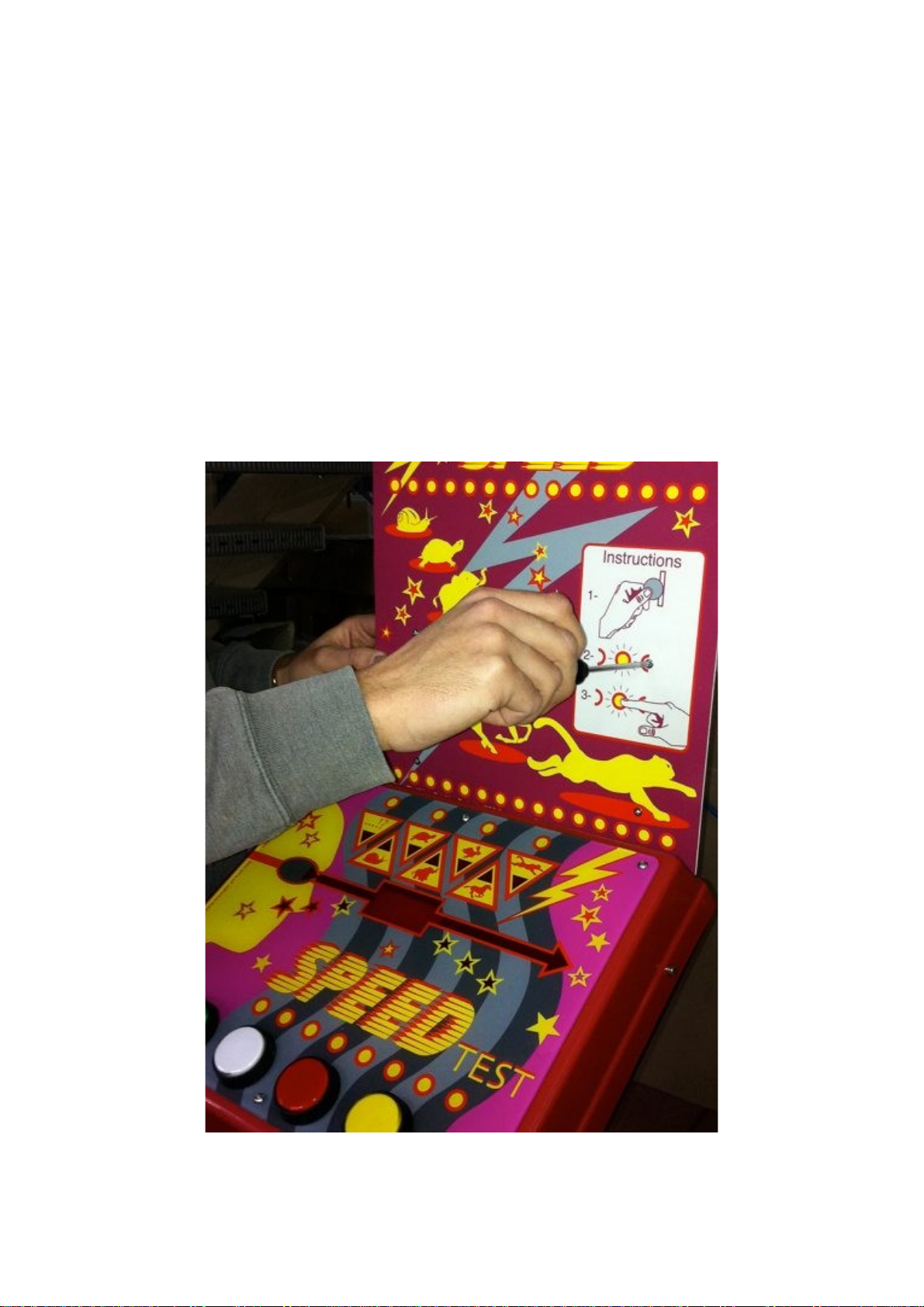

1.1.Installing the ba k panel
Toinstall the unit you need to fix the back panel with the screws provided.
Speed Test English instructions v 1.0 5

1.2.Installing the ash box
Before operating the machine you need to unpack the cash box, as shown
below.
Speed Test English instructions v 1.0 6

1.3.Conne ting and swit hing-on
The machine must be connected to a properly grounded AC socket that
erogates the power voltage required by the machine, as shown in the
machine label, near the power switch.
The power switch must be put in the ON position (1) to switch-on the
machine. In the unlikely event of a blown fuse, always switch off the machine
and disconnect the plug before changing it.
Speed Test English instructions v 1.0 7

1.3.1 Coin acceptor
Some versions of the Tester have a mechanical coin acceptor that is set to
operate with a fix coin. Some other versions have a Coin Comparator
acceptor, that can be programmed to accept different coins (one at a time).
If your machine has a comparator acceptor you must insert a sample of the
coin that should be accepted.
For example if you want the tester to work with 1 Euro, you should insert 1
Euro inside the acceptor, for comparison.
See picture below.
If you have a machine with a
comparator acceptor, you will
need to install a coin to be
able to use.
This coin (1) wil be used as a
comparation by the machine
acceptor.
Todo so, lift up the guide 1
and insert the coin.
In case the coin has a big
diameter, you may need to
adjust the entrance fence with
screw 2.
Speed Test English instructions v 1.0 8

1.3.2 sing the machine
After you have switched-on the machine, if you insert the coin the buttons will
lite up, one after the other. Press them in the same order. When you fail, the
game is over
1.3.3 Hi-Score
The current version of the speed test records the DAILY HI-SCORE (that is
reset when the machine switches off) and the MACHINE HI-SCORE (that is
stored in non-volatile memory).
When the machine is in attract mode, it will show, one after the other, the last
score, the daily hi-score and the machine hi-score.
When it displays the MACHINE HI-SCORE it will also flash the text "HI" on the
right side of the display.
To RESET the MACHINE HI-SCORE you need to do the following:
1- switch-on the machine.
2- When it displays the software version (i.e. 1.5 etc) press the leftmost
button. The display will flash 3 zeroes.
You can increment the digit number pressing the first number.
You can pass to the next digit pressing the second button.
Acting on those 2 buttons enter 009.
After having entered this code, press the second button and the Hi-Score will
be erased and the machine will reset.
Speed Test English instructions v 1.0 9

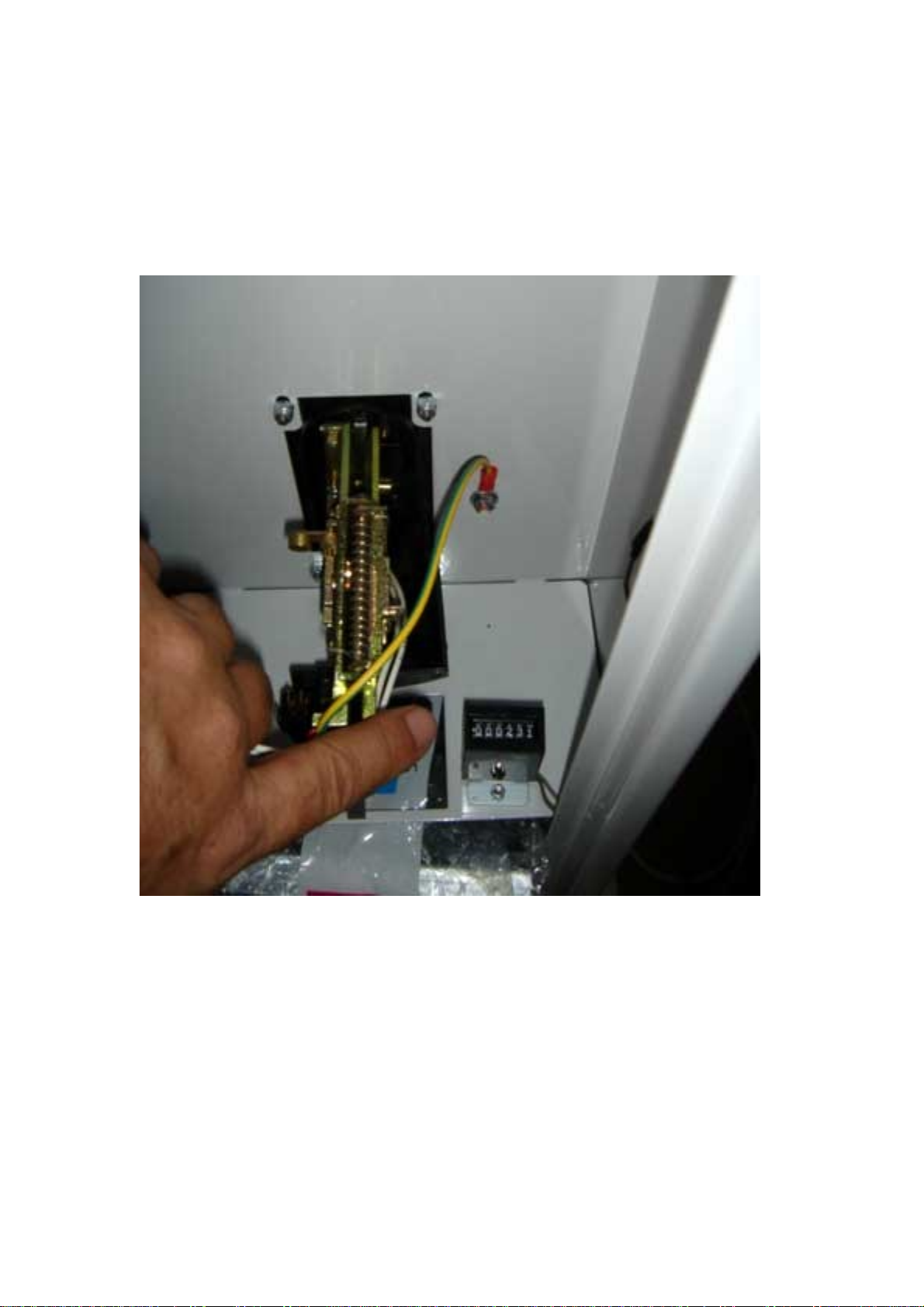

1.4 A ounting
The machine has a counter that counts plays.
It is visible from the back, near the coin acceptor.
Speed Test English instructions v 1.0 10

1.5 Maintenan e
COINS: Make sure you remove regularly the coins from the cash box to
avoid them to overflow and cause short circuits
COIN ACCEPTOR: the coin acceptor could be jammed by a piece of
paper or by dirty coin. It can be easily cleared accessing it from the back door.
F SE: It is extremely difficult that the fuse blows. It may happen because of
lightning or because the machine is connected or disconnected without
switching it off, using the power switch.
If you need to change it, ALWAYS switch off the power and unplug the
machine before accessing the fuse.
CLEANING: Customer put their hands on the front panel so it is important
to keep it clean to avoid any disease transmission
Speed Test English instructions v 1.0 11

Spe ifi ations
Power Voltage: 115-230V (factory set to either) (+/- 10%) 50/60Hz
Power consumption: 20VA max
Fuses: 1 x 1A , accessible from outside
Speed Test English instructions v 1.0 12

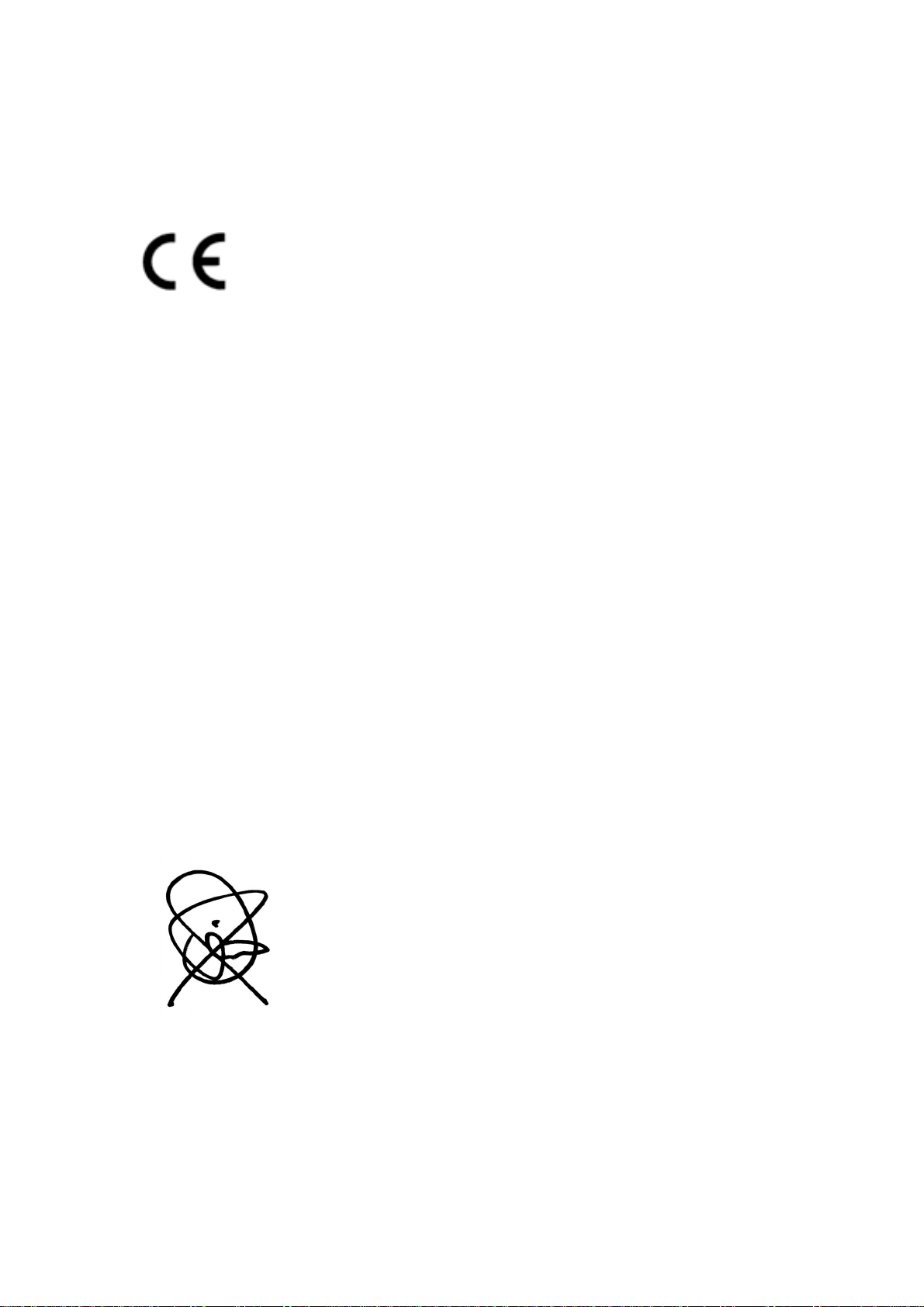

Declaration of conformity
The manufacturer: DPS-Promatic srl
via Edison 21
47122 Forlì Italy
declares that the following product
Product: VLT – Speed Test
Conforms to the following directives
EMC: Directive 89/336/EEC
Electrical safety: Directive 73/23
This product must be connected to a properly grounded AC socket
This product is not suitable for a wet or extremely humid environment
Forlì 15-9-2010
DPS-Promatic srl
Massimo Portolani
Managing Director
Speed Test English instructions v 1.0 13

Edited on 25-9-2010
by the manufacturer:
DPS-Promatic srl
via Edison 21
47122 Forlì Italy
E-mail [email protected]
This is revision 1.0
of
SPEED TEST user manual
Tokeep amending our product and documentation
this manual will be updated
from time to time.
Please check latest versions on http://www.dps-promatic.com
