4Dräger X-am 2500
For your safety
1 For your safety
1.1 General safety statements
Before using this product, carefully read the associated
Instructions for Use. This document does not replace the
Instructions for Use.
1.2 Definitions of alert icons
The following alert icons are used in this document to provide
and highlight areas of the associated text that require a greater
awareness by the user. A definition of the meaning of each
icon is as follows:
WARNING
Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, could result in physical injury, or damage to
the product or environment. It may also be used to
alert against unsafe practices.
NOTICE
Indicates additional information on how to use
the product.
!
!
i
i

Description
Dräger X-am 2500 5
2 Description
2.1 Product overview
2.1.1 Front
2.1.2 Rear side
2.1.3 Display
Display for 4 measuring channels:
otherwise:
The following only shows the instrument version with
4 measuring channels.
2.1.4 Special symbols
1Gas entry
2Alarm LED
3Horn
4key
5key
6Display
7Tool for changing sensor
1IR interface
2Fastening clip
3Nameplate
4Charging contacts
5Power pack
6Serial no.
00133366.eps
0
1
2
6
54
3
2
X-am 2500
7
OK
00233366.eps
2
1
4
6
3
5
1Measured gas display
2Measuring value display with unit
3Special symbols
4Measured gas display
5Measured value display with unit
6Special symbols
Fault message, see section 4.1 on page 16
Warning message, see section 4.1 on page 16
Display of peak values for all measured gases,
see section 4.1 on page 16
The exposure evaluation display (TWA) for measured
gases, e.g. H2S and CO, see section 4.1 on page 16
The exposure evaluation display (STEL) for measured
gases, e.g. H2S und CO, see section 4.1 on page 16
The instrument is set to the bump test function,
see section 3.4 on page 12
The instrument is set to the fresh air calibration function,
see section 5.2 on page 18
The instrument is set to the 1-button calibration/
adjustment function, see section 5.4 on page 19
The instrument is set to the single gas calibration
function, see section 5.4.1 on page 20
Function for password input is active, see section 4.4
on page 17
Battery / rechargeable battery 100 % full
Battery / rechargeable battery 2/3 full
Battery / rechargeable battery 1/3 full
Battery / rechargeable battery empty
00333366_en.eps
456
ch4
O 2
CO
123
ch4%LEL
0.0
O2Vol%
20.9
CO ppm
0.0
H2S ppm
0.0
%LEL
0.0
Vol%
20.9
ppm
0.0

6Dräger X-am 2500
Description
2.2 Intended use
Portable gas detection instrument for the continuous
monitoring of the concentration of several gases in the ambient
air within the working area and in explosion-hazard areas.
Independent measurement of up to 4 gases, in accordance
with the installed Dräger sensors.
Areas subject to explosion hazards, classified by zones
The instrument is intended for the use in explosion-hazard
areas of Zone 0, Zone 1 or Zone 2 or in mines at risk due to fire
damp. It is intended for use within a temperature range of -
20 °C to +50 °C, and for areas in which gases of explosion
groups IIA, IIB or IIC and temperature class T3 or T4
(depending on the batteries and rechargeable battery) may be
present. If used in mines, the instrument is only to be used in
areas known to have a low risk of mechanical impact.
Areas subject to explosion hazards, classified by divi-
sions.
The instrument is intended for use in explosion-hazard areas
according to Class I&II, Div. 1 or Div. 2 within a temperature
range of -20 °C to +50 °C, and for areas where gases or dusts
of groups A, B, C, D, E, F, G and temperature class T3 or T4
may be present (depending on the rechargeable battery and
batteries).
2.3 Approvals
Copies of the name plate and the declaration of conformity are
provided in the enclosed supplementary documentation (order
no. 90 33 890).
Do not stick anything on the name plate on the gas detector.
The technical approvals are valid for the X-am 2500 gas
detection instrument and the calibration cradle. The explosion-
protection approvals are only valid for the X-am 2500 gas
detection instrument; the calibration cradle must not be used in
the Ex zone.
The BVS 10 ATEX E 080 X technical suitability test is based on
the calibration with the target gas.
2.3.1 Safety Instructions
Note the following for CSA (Canadian Standards Association)
applications:
For the CSA approval only the functions of the device
component that is used to measure flammable gases are
tested. The device is not approved by CSA for use in mining.
WARNING
CSA requirement: Measured values over the full scale
value may indicate an explosive atmosphere.
Only applicable to Class II certification. CSA Std.
C22.2 No 152 does not have any requirement for
Class II hazardous locations and therefore this device
has not been performance tested by CSA for Class II.
The sensor may become clogged and not detect gas
properly or warn the user of its inability to detect gas.
WARNING
CSA requirement: The sensitivity must be tested on a
daily basis before first use with a known concentration
of the gas to be measured in accordance with 25 to 50
% of the concentration limit value. The accuracy must
be 0 to +20 % of the actual value. The accuracy can be
corrected via calibration.
NOTICE
CSA requirement: Only the combustible gas detection
portion of this instrument has been assessed for per-
formance.
The instrument has not been classified by the CSA for
use in mines.
!
!
i
i
WARNING
Do not replace or charge batteries in potentially
explosive areas. Explosion hazard!
Charge the NiMH power pack T4 (type HBT 0000) or
T4 HC (type HBT 0100) with the associated Dräger
charger. Charge NiMH single cells for ABT 0100
battery holder in accordance with the manufacturer's
specifications. Ambient temperature during the
charging process: 0 to +40 °C.
To reduce the danger of explosion, do not mix new
batteries with old batteries and do not mix batteries
made by different manufacturers.
Always disconnect the instrument from the power pack
before carrying out any maintenance operations.
Substitution of components may impair intrinsic safety.
Only use power packs ABT 0100 (order no. 83 22 237),
HBT 0000 (order no. 83 18 704) or HBT 0100 (order no.
83 22 244). See marking on power pack for approved
batteries and related temperature classes.
Not tested in an oxygen-enriched atmosphere
(>21 % O2).
High off-scale readings may indicate an explosive
concentration.
WARNING
Before daily use, test the sensitivity with a known
concentration of the applicable gas corresponding to
25 to 50% of the maximum concentration. The
accuracy must be within a range of 0 to +20% of the
actual value. Perform a calibration to correct the
accuracy if necessary.
!
!

Operation
Dräger X-am 2500 7
3 Operation
3.1 Preparations for operation
Before using the instrument for the first time, insert a
charged NiMH T4 power pack or batteries approved by
Dräger see section 3.1.2 on page 8.
The instrument is now ready for operation.
3.1.1 Charging the batteries
To maintain the lifetime of the batteries, charging is
temperature controlled and only performed in a temperature
range of 5 to 35 °C. When outside this temperature range,
the charging automatically interrupted and automatically
recommenced after the temperature range has been
reached again.
The charging time is typically 4 hours.
A new NiMH power pack reaches its full capacity after three
complete charging/discharging cycles.
Never store the instrument for extended periods without
being connected to a power source (maximum of
2 months) because the internal buffer battery will drain.
Charging with the multiple charging station
A maximum of 20 instruments can be charged at the same
time on the power pack (order no. 83 18 805) of the
multiple charging station.
When attaching the charging modules, disconnect the
power pack from the mains supply!
Position the instrument on an even and level surface.
1. Turn the slots of the interlock into a horizontal position by
using a screwdriver or coin.
2. Insert the fastening lug (2) of the charger module
(simultaneous power feed) until it engages.
3. Close the lock (1) with a quarter turn (slot is positioned
vertically).
4. Attach additional charging modules in the same way.
5. Connect the power pack to the mains.
The green "Mains" LED (1) is on.
6. Insert the switched off instrument into the charger module.
Display LED (5) on the charging cradle:
If a fault occurs:
Remove the instrument from the charging module and
insert it again.
If the fault still occurs, have the charging module repaired.
It takes approx. 4 hours to fully charge an empty
rechargeable battery.
WARNING
To reduce the risk of ignition of a flammable or explo-
sive atmosphere, strictly adhere to the following warn-
ing statements: Only use power pack types ABT 01xx,
HBT 00xx or HBT 01xx. See the marking on the re-
chargeable battery for permitted rechargeable batter-
ies and the corresponding temperature class.
Substitution of components may impair intrinsic safety.
WARNING
Explosion hazard! To reduce the risk of flammable or
explosive atmospheres igniting, it is essential that the
warning notices below are observed:
Do not charge underground or in explosion hazard areas!
The chargers are not designed in accordance with the
regulations for fire damp and explosion protection.
Charge the NiMH power pack T4 (type HBT 0000) or
T4 HC (type HBT 0100) with the associated Dräger
charger. Charge NiMH single cells for ABT 0100
battery holder in accordance with the manufacturer's
specifications. Ambient temperature during the
charging process: 0 to +40 °C.
NOTICE
Even if the instrument is not used, Dräger
recommends storing the instrument in the charging
cradle (chargingmodule X-am 1/2/5000, order no.
83 18 639).
!
!
i
i
CAUTION
Always connect or disconnect the charging modules
individually and not in groups in order to prevent the
charging station from becoming damaged. During
transportation, the power pack and the charging
modules should also always be handled individually
and without inserted instruments.
Charging
Fault
Full
CAUTION
A short circuit of the charging contacts in the charging
modules, e. g., by metallic objects that have fallen in,
does not result in damage to the charging station.
It should, however, be avoided due to possible heating
hazards and incorrect displays on the charger module.
!
02733366.eps
0
21
0
21
0
21
1
Ex
%UEG
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
Ex
%UEG
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
Ex
%UEG
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
X-am 2500 X-am 2500 X-am 2500
!

8Dräger X-am 2500
Operation
In the event of a short circuit or if the power pack is
overloaded:
The red "Overload" LED (3) is on, and an audible
alarm sounds.
After the fault has been corrected, the alarm is switched
off automatically and the charging process is restarted.
In the event of a power failure, the instruments already
charged will be protected from discharging.
Charge using charger module and plug-in power pack or
vehicle charging adapter
When using the power pack (order no. 83 16 994), up to
5 instruments can be charged at the same time, with power
pack (order no. 83 15 635) up to 2 instruments.
The power pack contained in the rechargeable battery and
charging set (order no. 83 18 785) is suitable for charging
one instrument.
When using the vehicle charging adapter (order no.
45 30 057) it is recommended that you supply every
charging module separately.
The charging process is carried out analogous to charging
with the multiple charging station.

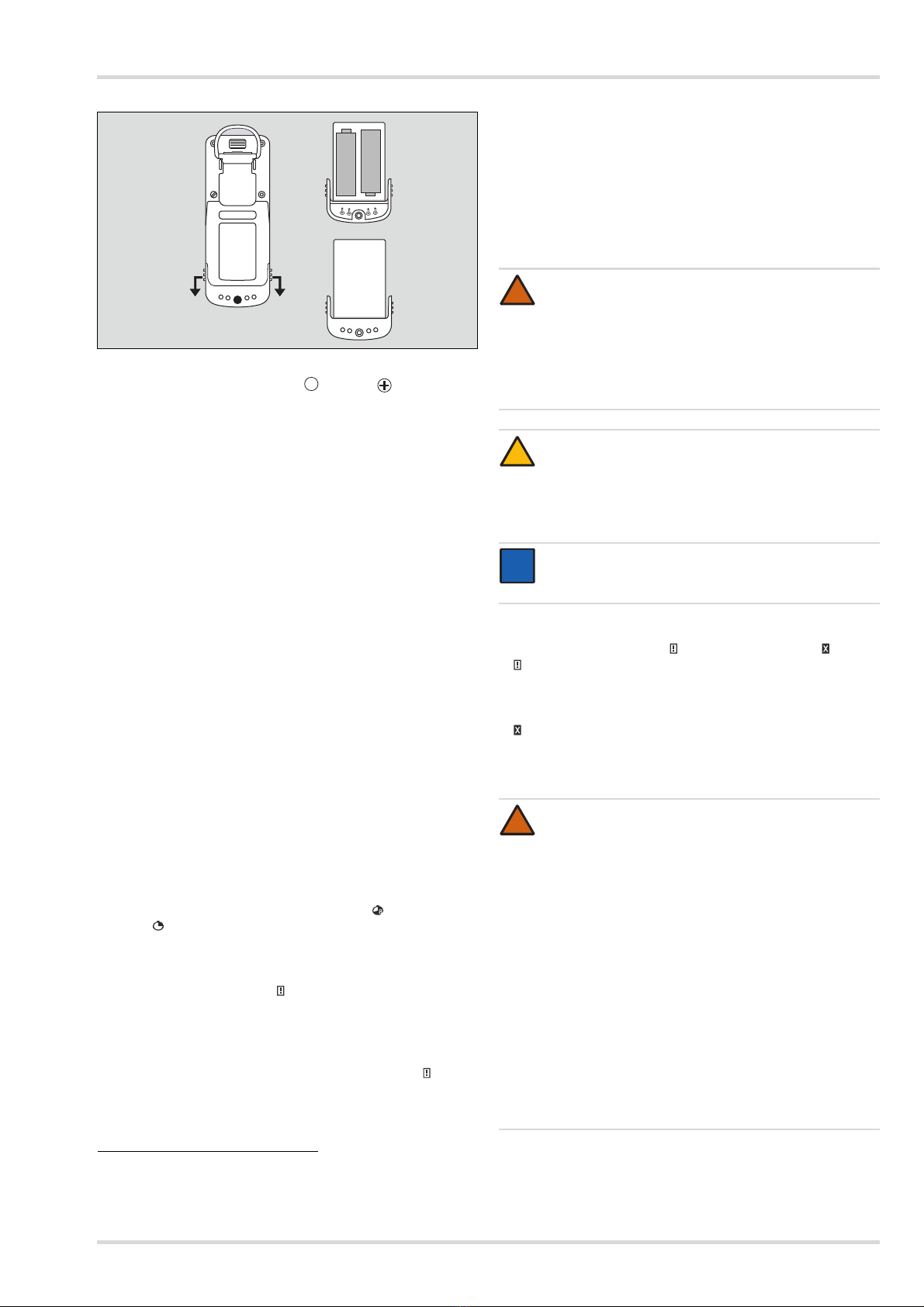

3.1.2 Replacing the batteries / rechargeable batteries
02833366.eps
83 16 994 (100 ... 240 V)
83 15 635 (100 ... 240 V)
45 30 057
0
Ex
%UEG
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
X-am 2500
WARNING
Explosion hazard! To reduce the risk of flammable or
explosive atmospheres igniting, it is essential that the
warning notices below are observed:
Do not throw used batteries into fire or try to open them
by force.
Do not replace or charge batteries in areas at risk of an
explosion hazard.
Do not mix new batteries with used batteries, and do
not mix batteries from different manufacturers or of
different types.
Remove batteries before maintenance work.
Batteries / rechargeable batteries are part of the
Ex approval.
Only the following types may be used:
Alkaline batteries – T3 – (non rechargeable!)
Panasonic LR6 Powerline
Varta Type 4106 1) (power one) or
Varta Type 4006 1(industrial)
Alkaline batteries – T4 – (non rechargeable!)
Duracell Procell MN15001), Duracell Plus Power
MN15001)
NiMHy rechargeable batteries – T3 – (rechargeable)
GP 180AAHC 1 (1800 mAh) max. 40 °C ambient
temperature.
Charge the NiMH power pack T4 (type HBT 0000) or
T4 HC (type HBT 0100) with the associated Dräger
charger. Charge NiMH rechargeable batteries for
battery holder ABT 0100 in accordance with the
manufacturer's specifications. Ambient temperature
during the charging process: 0 to +40 °C.
1) Not part of the measurement performance tests BVS10 ATEX E 080X
and PFG 10 G 001X.
!

Operation
Dräger X-am 2500 9
1. Switching off the instrument: key and key are held
down simultaneously.
2. Loosen the screw (2.0 mm hexagon socket) on the power
pack and remove the power pack.
With battery holder (order no. 83 22 237): Replace alkaline
batteries or NiMHy rechargeable batteries. Ensure correct
polarity.
With the T4 NiMH power pack (type HBT 0000) / T4 HC
(type HBT 0100): Completely replace the power pack.
3. Insert the power pack into the instrument and tighten
the screw, the instrument switches on automatically.
After replacing the T4 NiMH power pack (type HBT 0000)/
T4 HC (type HBT 0100), a full charge is recommended.
After the batteries have been replaced:
The settings and data are stored when the battery is replaced.
The sensors warm up again.
3.1.3 Switching on the instrument
1. Hold down the [OK] button for approx. 3 seconds until the
»3.2.1«countdown shown on the display has elapsed.
All the display segments, including the visual, audible
and vibration alarms, are activated for a short time.
The software version is displayed.
The instrument performs a self-test.
The sensor that is up next for calibration/adjustment is
displayed with the remaining days until the next
calibration/adjustment e. g. »Ex%LEL CAL20«.
The time until the bump test interval elapses is
displayed in days, e.g. »bt123«.
All A1 and A2 alarm thresholds and »«(TWA)1) and
»«(STEL)1for all toxic gases (e. g. H2S or CO) are
displayed consecutively.
During the sensor warm-up phase:
The display for the measured value flashes
The special symbol » « is displayed.
No alarms are issued during the warm-up phase.
The red LEDs flash.
The gas detector is ready to measure when the
measured values no longer flash and the red LEDs are
no longer illuminated. The special symbol » « may
continue to be displayed if corresponding warnings
(e.g. not yet ready for calibration) are active.
2. Press the [OK] key to cancel the display of the activation
sequence.
3.1.4 Switching off the instrument
Press and hold the [OK] key and [+]key simultaneously
until the countdown »3.2.1«shown on the display has
elapsed.
Before the instrument is switched off, the visual,
audible and vibration alarms are activated for a short time.
3.2 Before entering the workplace
1. Switch on the instrument. The current measured values are
shown in the display.
2. Observe any warning »«or fault messages »«.
3. Check that the gas inlet opening on the instrument is
not covered.
1) Only when activated in the instrument configuration. Delivery
condition: not activated.
02633366.eps
1
2
3
–
+
–
+
OK
WARNING
Before any measurements relevant to safety are
made, check the adjustment with a bump test, adjust if
necessary and check all alarm elements. If national
regulations apply, a bump test must be performed
according to the national regulations. Faulty
adjustment may result in incorrect measuring results,
with possible serious consequences.
CAUTION
The CatEx sensor is intended for measurements of
flammable gases and vapours mixed with air (i.e. O2
content ≈21 vol.%). Incorrect measured values may
be displayed in the case of oxygen deficient or oxygen
enriched environments.
NOTICE
If the gas detector is used for offshore applications, a
distance of 5 m to a compass must be complied with.
The instrument can be operated normally. If the warning
message does not disappear automatically during
operation, the instrument must be serviced after the end
of use.
The instrument is not ready to measure and requires
maintenance.
WARNING
Explosion hazard! To reduce the risk of flammable or
explosive atmospheres igniting, it is essential that the
warning notices below are observed:
Fractions of catalytic poisons in the measuring gas
(e.g. volatile silicone, sulphur, heavy metal
compounds or halogenated hydrocarbon) can
damage the CatEx sensor. If the CatEx sensor can
no longer be calibrated to the target concentration,
the sensor must be replaced.
In case of measurements in an oxygen-deficient
atmosphere (<12 Vol.-% O2) the CatEx sensor
may show incorrect displays; in this case, a reliable
measurement with a CatEx sensor is not possible.
In an oxygen enriched atmosphere (>21 vol. %
O2), the explosion protection cannot be
guaranteed; remove instrument from the Ex area.
High values outside the display area indicate an
explosive concentration where applicable.
!
!
i
i
!

10 Dräger X-am 2500
Operation
3.3 Configuration
3.3.1 Standard gas configuration
DrägerSensor Measuring range 1) Alarm A1 1) Alarm A2 1)
threshold can be acknowledged self-latching threshold can be acknowledged self-latching
CatEx 125 PR [%LEL] 0 to 100 20 yes no 40 no yes
CatEx 125 PR Gas [%LEL] 0 to 100 20 yes no 40 no yes
XXS O2[Vol.-%] 0 to 25 19 2) no yes 23 no yes
XXS CO [ppm] 0 to 2000 30 yes no 60 no yes
XXS H2S LC [ppm] 0 to 100 5yes no 10 no yes
XXS NO2[ppm] 0 to 50 5yes no 10 no yes
XXS SO2[ppm] 0 to 100 0.5 yes no 1no yes
1) Different settings can be selected to meet customer requirements on delivery. The current setting can be checked and changed with
the Dräger CC Vision software.
A version of the CC-Vision software that can be used for Dräger X-am 2500 is available for download from the product page for the X-am 2500
at the following web address: www.draeger.com
2) With O2, A1 is the lower alarm threshold: an alarm is triggered if the value is too low.

Operation
Dräger X-am 2500 11
3.3.2 Standard instrument configuration
Changing the configuration: see “Replacing the sensors” on
page 22.
Selecting or disabling the capture ranges (only applies for
the measuring mode):
The capture range is selected in the measuring mode (factory
setting) and permanently disabled in calibration mode.
The CC-Vision PC software can be used to select or disable
the capture ranges for the measuring mode.
3.3.3 Configuring the device
To individually configure a instrument with standard configura-
tion, the instrument must be connected with a PC. The in-
stalled PC software Dräger CC Vision is used for configuration.
The PC software Dräger CC Vision can be downloaded from
the following web address free of charge: www.draeger.com/
software.
Observe the documentation and online help for the
software.
Device settings
The following changes can be made to the device parameters
for a device:
NOTICE
Only trained persons are permitted to carry out
modifications to the instrument configuration.
Dräger X-am®25001)
1) X-am®is a registered trademark of Dräger.
Bump test mode 2)
2) Different settings can be selected to meet customer requirements
on delivery. The current setting can be checked and changed with
the Dräger CC Vision software.
Extended bump test
Fresh air calibration2) ON
Operating signal 2) 3)
3) A periodic short flashing indicates the operating capacity of the
instrument. If there is no operating signal, correct operation cannot
be guaranteed.
ON
Capture range ON
Switch off 2) allowed
LEL factor 2)
(ch4)
4.4 (vol. %)
(4.4 vol. % corresponds to
100 %LEL)
STEL 2) 4) 5)
(short-term average)
4) STEL: average value of an exposure over a short period, generally
15 minutes.
5) Interpretation only if the sensor is designed for this.
STEL function - disabled
Average value duration = 15
minutes
TWA 2) 5) 6)
(shift average)
6) TWA: shift averages are workplace limit values for generally eight
hours per day of exposure for five days a week during a working
life.
TWA function - disabled
Average value duration = 8 hours
Alarm A1 7)
7) Latching and acknowledgement of alarms A1 and A2 can be
configured with the Dräger CC Vision PC software.
can be acknowledged, non-latching,
pre-alarm,
rising flank
Alarm A1 at O2sensor cannot be acknowledged, latching,
like main alarm, falling flank
Alarm A2 7) cannot be acknowledged, latching,
main alarm,
rising flank
WARNING
After a basic initialization has been carried out with the
PC software Dräger CC Vision, individual alarm
settings may have been changed.
i
i
!
Designation Field
Password Numeric field (3-figure)
Operating signal LED 1) Yes/No
Operating signal horn1) Yes/No
Switch-off mode “Switch off permitted” or
“Switch off prohibited” or
“Switch off prohibited at A2”
Shift length (TWA) 2) (in
minutes)
60 - 14400
(setting for exposure alarm)
Short-term exposure limit
(STEL) 3) 4) (in minutes)
0 - 15
(setting for exposure alarm)
User ID(12 characters) Alphanumeric field
Switch database on or off On/Off
Overwrite database Yes/No
Database mode Peak/Average
Database interval 1 s / 10 s / 30 s / 1 min / 2 min
/ 5 min / 10 min / 30 min
Date (date on the PC)
Time (time on the PC)
Warning after expiry of
calibration interval
Yes/No
Error after expiry of calibration
interval
Yes/No
IR
Calibration cradle (order no. 83 18 752)
with inserted
USB DIRA with USB cable (order no. 83 17 409)
USB DIRA with USB cable
(order no. 83 17 409)
E-Cal module Dräger X-am 125
(order no. 83 18 754)
USB 2.0
USB 2.0
USB 2.0 / COM
0
0
0
X-am 2500

12 Dräger X-am 2500
Operation
Sensor settings
The following changes can be made to the sensor parameters
for the sensors:
Testing the parameters
In order to ensure that the values have been correctly
transferred to the gas measuring device:
1. Press the touch button Data from X-am 1/2/5x00
2. Check parameters.
3.3.4 Export data memory and display graphically
To read the database of the instrument and display it
graphically, the instrument must be connected with a PC.
The installed Dräger GasVision PC software is used for
exporting and displaying the database.
Observe the documentation and online help of the software.
3.4 Running the bump test
3.4.1 Manual implementation without documentation of
the results in the instrument memory
1. Prepare a test gas cylinder,
the volume flow must be
0.5 l/min and the gas
concentration must be
higher than the alarm
threshold concentration
that is to be tested.
Example test gas cylinder
68 11 130 = mixed gas with
50 ppm CO, 15 ppm H2S,
2.5 vol. % CH4, 18 vol. % O2
2. Connect the test gas
cylinder with the calibration
cradle (order no. 83 18 752).
3. Vent the test gas into
a fume cupboard or into the
open air (with a hose connected to the second connector of
the calibration cradle).
4. Switch on the instrument and insert it into the calibration
cradle – press downwards until it engages.
Designation Field
Delay until error after expiry of
calibration interval (days)
0 - 10
Automatic detection of Bump
Test Station
Yes/No
Activate sensitivity calibration
following negative bump test
Yes/No (relates only to a
device connected to the
Dräger Bump Test Station)
Bump test mode “extended bump test” or
“quick bump test” or “bump
test deactivated”
Warning after expiry of bump
test interval
Yes/No
Error after expiry of bump test
interval (if warning activated)
Yes/No
Capture range Yes / No
Remote configuration Yes / No
Bump test interval (days) 1 - 732
Delay until error after expiry of
cal. interval (days)
0-10
Activate user service life Yes/No
User service life (days)
(if activated)
0 - 999
Running in Yes/No
LEL category “---” or “PTB” or “IEC” or
“NIOSH” (if this is changed,
the LEL factor will be altered
to match)
1) At least one of the two operating signals must be switched on.
2) Corresponds to the averaging time and is used to calculate the
exposure value TWA.
3) Only evaluated if the sensor is provided for the purpose.
4) Corresponds to the averaging time and is used to calculate the
exposure value STEL.
Designation Field
Alarm threshold A1
(in measurement unit)
0 - A2
Alarm threshold A2
(in measurement unit)
A1 – Measuring range limit
value
Type of evaluation1)
1) Only evaluated if the sensor is provided for the purpose.
Inactive, TWA, STEL,
TWA+STEL
Alarm threshold STEL
(in measurement unit)1)
0 – Measuring range limit
value
Alarm threshold TWA
(in measurement unit)1)
0 – Measuring range limit
value
Calibration interval (days) 0 - 180 (sensor-dependent)
Unit (sensor-dependent) Vol%, %UEG, %LEL, %LIE,
ppm, mbar, ppb, mg/m3
Gas name: “Ex”
(CatEx sensor only)
Yes/No
Automatic fresh air calibration
in the charging cradle
(CatEx sensor only)
Yes/No
WARNING
CSA requirement: carry out a bump test before use. It
should be carried out in the measuring range 25-50 %
of the full scale value, whereby the displayed meas-
ured value may deviate from the actual measured val-
ue by 0-20 %. Accuracy may be corrected via
calibration.
CAUTION
Never inhale the test gas. Health hazard! Observe the
hazard warnings of the relevant Safety Data Sheets.
00833366.eps
0,5 L/min
0
!
!

Operation
Dräger X-am 2500 13
5. Open the test gas cylinder valve to let test gas flow over
the sensors.
Recommendation: Wait until the instrument displays the
test gas concentration with sufficient tolerance –
Ex: ±20 % of the test gas concentration1)
O2: ±0.6 vol. %1
TOX: ±20 % of the test gas concentration 1
Wait until at least alarm threshold A1 or A2 has been
exceeded, however.
If the alarm thresholds are exceeded, the instrument
displays the gas concentration in alternation with »A1«or
»A2«depending on the test gas concentration.
6. Close the test gas cylinder valve and remove the
instrument from the calibration cradle.
If the concentration has now fallen under the A1 alarm threshold:
Acknowledge the alarm.
If the displays are outside of the above-mentioned ranges:
Calibrating/adjusting the instrument, see section 5 on
page 18.
3.4.2 Menu implementation with the documentation of
results in the instrument memory
The setting to "Quick bump test" or "Extended bump test" is
made using the PC software Dräger CC Vision.
In the "Quick bump test" a check is carried out as to whether
or not the gas concentration has exceeded alarm threshold 1
(with oxygen, the test checks that alarm threshold 1 has not
been reached).
In the case of the “Extended bump test”, a check is made as to
whether the gas concentration has reached the set bump test
concentration within a tolerance window.
Setting on delivery: Extended bump test.
1. Prepare a test gas cylinder, the volume flow must be 0.5 l/min
and the gas concentration must be higher than the alarm
threshold concentration that is to be tested.
Example test gas cylinder 68 11 130 = mixed gas with
50 ppm CO, 15 ppm H2S, 2.5 vol. % CH4, 18 vol. % O2
2. Connect the test gas cylinder
with the calibration cradle
(order no. 83 18 752)).
3. Vent the test gas into a fume
cupboard or into the open
air (with a hose connected
to the second connector of
the calibration cradle).
4. Switch on the instrument and insert it into the calibration
cradle – press downwards until it engages.
5. Open the Quick menu and
select the bump test,
page 17.
The current gas
concentration values and
the special symbol » «
(for bump test) flash.
6. Press the key to start
the bump test.
7. Open the test gas cylinder
valve to let test gas flow
over the sensor.
If gas concentration exceeds
the alarm thresholds A 1 or
A 2 the corresponding alarm
will occur.
Ending the bump test:
After the set bump test
concentration has been
reached or a gas alarm has
been triggered (with "Quick
bump test"):
The display containing the
current gas concentration
changes with the display
»OK«.
The bump test that was
carried out is documented
with the result and date in
the instrument memory.
8. Close the test gas cylinder
valve and remove the
instrument from the calibration cradle.
If the concentration values have now fallen under the A1
alarm thresholds, the instrument returns to the measuring
mode.
If the set bump test concentration is not reached within the
set time, an error is issued.
1) Upon application of the Dräger mixed gas (order no. 68 11 130) the displays
should be within this range.
NOTICE
To check the measured value response times, apply
t90 test gas to the X-am via the calibration cradle.
Check the results in accordance with the information in
the table in the enclosed supplementary
documentation (order no. 90 33 890) until 90 % of the
end display is reached.
NOTICE
After the bump test (menu), the display shows a printer
icon even if there is no printer connected to the bump
test station.
i
i
i
i
CAUTION
Never inhale the test gas. Health hazard! Observe the
hazard warnings of the relevant Safety Data Sheets.
00833366.eps
0,5 L/min
0
!
00933366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm
OK
01033366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm

14 Dräger X-am 2500
Operation
The fault message
» « appears and
» « is displayed
instead of the measured
value on the faulty
measuring channel.
In this case, repeat the
bump test or calibrate
the instrument, page 22.
The bump test can also be run automatically. The "Bump Test
Station" is required for this function, see section 3.4.3 on
page 14.
3.4.3 Automatic implementation with the Bump
Test Station
Prerequisite:
The instrument first needs to be configured for the automatic
bump test using the Dräger CC-Vision PC sofware.
Activating the instrument for the automatic bump test.
Adjust the test gas concentration (mixed gas) with the
Dräger CC-Vision PC software if it deviates from the
following default values – standard on delivery: 50 ppm
CO, 15 ppm H2S, 2.5 vol. % CH4, 18 vol. % O2
Define which measuring channels should participate in the
automatic bump test. All measuring channels participate in
the bump test by default.
1. Prepare the Bump Test Station according to the instructions.
2. Switch on the instrument
and insert it into the
receptacle of the Bump Test
Station until it engages.
The bump test will be
started automatically.
The special symbol » «
(for bump test) flashes.
If a gas alarm (quick bump test) is initiated and the set
bump test concentration (Accelerated bump test) is
reached within the set time, the current gas concentration
will be displayed alternately with »OK«.
3. Remove the instrument from the Bump Test Station.
If the concentration values have now fallen under the A1
alarm thresholds, the instrument returns to the measuring
mode.
If there is no alarm during the bump test and the current
measurements do not reach the set target concentration
("Accelerated bump test" only), an error is issued.
The fault message
» « appears and
»«isdisplayed
instead of the measured
value on the faulty
measuring channel.
In this case, repeat the
bump test or calibrate
the instrument, page 22.
The bump test can also be run manually, see section 3.4.1 on
page 12.
The Dräger CC Vision PC software can be used to enable the
"Automatic calibration after incorrect bump test" option.
01133366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm
01333366.eps
0
Ex
%UEG
O2
Vol%
CO
ppm
H2S
ppm
NOTICE
After the bump test, the display shows a printer icon
even if there is no printer connected to the bump gas
station.
01133366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm
01133366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm
i
i

Operation
Dräger X-am 2500 15
3.5 During operation
During operation, the measured values for every measured
gas are displayed.
In the event of an alarm, the corresponding displays,
including the visual, audible and vibration alarms, are
activated see section 6 on page 21.
If a measuring range is exceeded or not reached,
the following displays are shown instead of the measured
value display:
In the event of an alarm, the corresponding displays,
including the visual, audible and vibration alarms,
are activated, see section 6 on page 21.
If an O2sensor is fitted and this sensor measures an O2
concentration of below 12 vol. %, an error is indicated with
» « on the ex-channel instead of a measured value if
the measured value is below the pre-alarm threshold.
After the measuring range of the TOX measuring channels
has been exceeded temporarily (up to one hour), checking
the measuring channels is not necessary.
If the measuring range is exceeded significantly at the CatEx
channel (very high concentration of flammable materials),
a blocking alarm is triggered. This CatEx blocking alarm can
be acknowledged manually by switching the instrument off and
back on again in fresh air.
3.6 Identifying alarms
An alarm is displayed visually, audibly and through vibration in
a specific pattern.
3.6.1 Concentration pre-alarm A1
The pre-alarm A1 is not latching and stops when the
concentration has dropped below the alarm threshold A1.
In case of A1, a single tone is audible and the alarm
LED flashes.
Acknowledging the pre-alarm:
Press the key. Only the audible alarm and the vibration
alarm are switched off.
3.6.2 Concentration main alarm A2
In case of A2, a double tone is audible and the alarm
LED flashes twice.
After leaving the area, when the concentration has dropped
below the alarm threshold:
Press the key. The alarm messages are switched off.
If the measuring range is exceeded significantly on the CatEx
channel (very high concentration of flammable materials), a
blocking alarm is triggered. This CatEx blocking alarm can be
acknowledged manually by switching the instrument off and
back on again in fresh air.
»«
(measuring range exceeded) or
»«
(measuring range not reached) or
»
«(blocking alarm).
NOTICE
Special states in which there is no measuring
operation (quick menu, calibration menu, warm-up of
sensors, password input) are indicated by a visual
signal (slow flashing of the alarm LED
).
WARNING
If the DrägerSensor CatEx 125 PR is used in the gas
detector, a zero point and sensitivity calibration must
be carried out after experiencing an impact load that
results in a non-zero display when exposed to fresh air.
This warning does not apply if the DrägerSensor
CatEx 125 PR Gas is used.
i
i
!
NOTICE
At low temperatures the legibility of the display can be
improved by switching on the backlight.
Intermittent alarm:
Display »A1«and measured value alternating:
WARNING
Risk of fatal injury! Leave the area immediately. A main
alarm is self-latching and cannot be acknowledged or
cancelled.
Intermittent alarm:
Display » A2 and measured value alternating:
i
i
OK
!
OK

16 Dräger X-am 2500
Menu functions
3.6.3 STEL/TWA exposure alarm
The STEL and TWA alarm cannot be acknowledged
or cancelled.
Switch off the instrument. The values for the exposure
evaluation are deleted after the instrument is switched
on again.
3.6.4 Battery pre-alarm
Acknowledging the pre-alarm:
Press the key. Only the audible alarm and the vibration
alarm are switched off.
The battery still lasts min. 20 minutes after the first battery
pre-alarm.
3.6.5 Battery main alarm
The battery main alarm cannot be acknowledged or cancelled:
The device automatically switches off after 10 seconds.
Before the instrument is switched off, the visual, audible
and vibration alarms are activated for a short time.
3.6.6 Instrument alarm
The instrument is not ready for operation.
For corrective measures, see“Replacing the sensors” on
page 22 to page 25.
Contact maintenance or Draeger Service to rectify
the problem.
4 Menu functions
4.1 Activating the Info mode
In measuring mode, press the key for approx. 3 seconds.
If any warning or fault messages exist, the corresponding
information or error codes will be displayed (see section 8
on page 23).
Press the key successively for the next display.
The peak values and the exposition values TWA1) and
STEL1) are displayed.
If no key is pressed for 10 seconds, the instrument returns
automatically to measuring mode.
4.2 Opening Info-Off Mode
When the instrument is in a deactivated state, press the
key.
The name of the gas, measuring unit, and measuring range
limit value are displayed for all channels.
Pressing the key again exits the Info Off mode
(or via timeout).
CAUTION
Health hazard! Leave the area immediately. After this
alarm, the deployment of personnel is subject to the
relevant national regulations.
NOTICE
The STEL alarm can be triggered with a maximum de-
lay of one minute.
Intermittent alarm:
Display »A2«and »«(STEL) or »«(TWA) and
measured value alternating:
Intermittent alarm:
Flashing special symbol »«on the right
side of the display:
Intermittent alarm:
Flashing special symbol »«on the right side
of the display:
Intermittent alarm:
Special symbol »«displayed on the right
side of the display:
!
i
i
OK
1) Only when activated in the instrument configuration. Delivery status:
not activated.
Warning messages are displayed. Numerical codes
of warning messages: see section 8.1 on page 23.
key
Fault messages are displayed. Numerical codes of
fault messages: see section 8.2 on page 25.
key
The peak values = the maximum measured values in
the case of, e.g., CO, H2S, ... or the minimum
measured values in the case of O2within the storage
interval are displayed
key
The average values of the exposures based on a shift
of, e.g., 8 hours (TWA) of all the active sensors for the
exposure evaluation are displayed
key
The short-term values (STEL) = average values of
the concentrations over the average value duration
of all the active sensors for the exposure evaluation
are displayed
key
The instrument is in measuring mode again
OK
OK
OK
OK
OK
OK
OK
OK

Menu functions
Dräger X-am 2500 17
4.3 Quick Menu
4.3.1 Quick menu functions
4.3.2 Opening the Quick Menu
On delivery, only the fresh air calibration is activated in the
Quick Menu. The PC software Dräger CC Vision can be used
to activate the bump test for the quick menu and/or the function
for displaying and deleting peak values.
1. In measuring mode, press the key three times.
If no functions have been activated in the quick menu,
the instrument remains in measuring mode.
2. You can select the activated functions of the quick menu by
pressing the key.
Press the key to call the selected function.
Press the key to cancel the active function and to
switch to measuring mode.
If no key is pressed for 60 seconds, the instrument
returns automatically to measuring mode.
4.3.3 Quick menu "Delete peak values"
After the function has been
selected, the current peak
values are displayed; the peak
values special symbol appears
in the display at the same time.
1. The peak values can be
deleted by pressing the
key for 5 sec. and the
adjacent display appears,
for example.
2. Press the key to end
the function.
4.4 Calibration Menu
4.4.1 Calibration menu functions
4.4.2 Open the Calibration Menu
The calibration menu can only be accessed by entering
a password.
Password on delivery: »001«
The default password on delivery can be changed using
the PC software Dräger CCVision.
1. In measuring mode, press the key for at least 4 seconds.
The function for entering the password is selected.
The special symbol » « (for the "enter password" function)
is displayed.
The display shows »000«,
with the first digit flashing.
2. Use the key to set the
flashing digit.
3. Press the key, the
second digit starts flashing.
4. Use the key to set the
flashing digit.
5. Press the key, the third
digit starts flashing.
6. Use the key to set the
flashing digit.
7. Press the key to confirm
the password once it has
been set completely.
8. The calibration menu functions can now be selected by
pressing the key.
Press the key to call the selected function.
Press the key to cancel the active function.
If no key is pressed for 10 minutes, the instrument
automatically returns to measuring mode.
Bump test see section 3.4 on page 12
Fresh air calibration, see section 5.2 on page 18
Delete peak values, see section 4.3.3 on page 17
Display pump information, see page 21
Activate or deactivate pump, see page 21
OK
00433366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm
00533366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm
OK
OK
Fresh air calibration, see section 5.2 on page 18
1-button calibration, see section 5.4 on page 19
Single gas calibration, see section 5.4.1 on page 20
00633366.eps
OK
OK
OK
OK

18 Dräger X-am 2500
Calibrate instrument
5 Calibrate instrument
Adjustment may not be possible due to instrument and
channel errors.
Allow the sensors to warm up before the calibration!
Warming-up time: see instructions for use / data sheets for
the Dräger sensors installed (product page for X-am 2500
at www.draeger.com).
5.1 Adjustment interval:
Observe the relevant specifications in the Instructions for
Use/data sheets of the Dräger Sensors installed.
For critical applications, observe the recommendations in
EN 60079-29-21) or EN 45544-42) and national regulations.
We recommend that you adjust all the channels after
6months.
Improving the zero point accuracy – perform fresh air
calibration, page 18.
Set the sensitivity of all sensors to the value of the
test gas – carry out the 1-button calibration, page 19.
Set the sensitivity of a sensor to the value of the test gas –
span calibration/adjustment, page 20.
5.2 Run fresh air calibration
To improve the zero-point accuracy, a fresh air calibration can
be carried out.
Calibrate the instrument to fresh air, free of measured
gases or other interfering gases.
Sensors which have not warmed up or which are faulty
prevent a calibration.
In the case of sensors which are in the warm-up phase,
the message » 159 « is displayed with the special
symbol » « (for warning message).
In the case of a sensor or instrument error,
the message » 109 « is displayed with the special
symbol » « (for a fault message).
The message is cleared after 5 seconds and the
function is available again in the menu.
During the fresh air calibration the zero point of all sensors
(with the exception of the DrägerSensor XXS O2) are set
to 0.
In the case of the DrägerSensor XXS O2, the display is set
to 20.9 vol. %.
1. Switch on instrument.
2. Depending on instrument configuration:
Open the Quick menu and select the fresh air
calibration function, page 17.
or
Open the Calibration menu and select the fresh air
calibration function, page 17.
The current gas concentra-
tion values flash.
When the measured values
have stabilized:
3. Press the key to carry
out the fresh air calibration.
The display containing the
current gas concentration
changes with the display
»OK«.
4. Press the key to confirm
the calibration or wait for
approx. 5 seconds.
If a fault has occurred during the fresh air calibration:
The fault message » «
appears and » « is
displayed for the respective
sensor instead of the
measured value.
In this case, repeat the
fresh air calibration.
Replace the sensor if
necessary, page 22.
WARNING
Always calibrate the zero-point before span.
Otherwise, the calibration will contain errors!
NOTICE
Dräger recommends using the extended bump test for
cross calibrations.
1) EN60079-29-2 – Guidelines for selection, installation, use and
maintenance of instruments for the detection and measurement of
flammable gases and oxygen.
2) EN 45544-4 – Electrical instruments for the direct detection and
direct concentration measurement of toxic gases and vapours –
Part 4: Guide for selection, installation, use and maintenance.
CAUTION
Never inhale the test gas. Health hazard! Observe the
hazard warnings of the relevant Safety Data Sheets.
!
i
i
!
01333366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm
OK
01433366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm
OK
01533366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm

Calibrate instrument
Dräger X-am 2500 19
5.3 Automatic fresh air calibration of the
CatEx sensor in the charging cradle
This feature is used to perform an automatic fresh air
calibration of the CatEx sensor after placing it in the charging
cradle. The feature can be adjusted using the Dräger CC-
Vision PC software.
5.4 1-button calibration
All sensors approved by the Dräger CC-Vision PC software
take part in the 1-button adjustment.
In the case of the 1-button calibration, the sensitivity of all
sensors is set to the value of the test gas.
When using test gas cylinder 68 11 130 = mixed gas with
50 ppm CO, 15 ppm H2S, 2.5 vol. % CH4, 18 vol. % O2.
If a mixed gas with another
composition is used,
the specified concentration
values in the instrument
must be changed to the
target values of the mixed
gas used using the PC
software Dräger CC-
Vision.
1. Connect the test gas
cylinder with the calibration
cradle.
2. Vent the test gas into a fume
cupboard or into the open
air (with a hose connected
to the second connector of the calibration cradle).
3. Switch on the instrument
and insert it into the
calibration cradle until it
engages.
4. Call the calibration menu,
enter the password and se-
lect the 1-button calibration
function, page 17.
5. Press the key to start
the 1-button calibration.
6. Open the test gas cylinder
valve to let test gas flow
over the sensor.
The currently displayed
measured values start
to flash.
The flashing stops after a static measured value has
been reached.
The calibration is now carried out automatically.
The displayed measured values change to the values
according to the gas supplied.
7. The automatic stability monitoring can be overridden by
pressing the key. A calibration is carried out immediately.
If it is detected that no test gas has been supplied,
the 1-button calibration is cancelled. The channels then
display »n/a«. If only one sensor is included in the 1-button
calibration, an adjustment is carried out in any case when
the key is pressed.
When the calibration is completed and the displayed
measured values have stabilised:
The display containing the
current gas concentration
changes with the display
»OK«.
8. Press the key or wait
for 5 seconds to quit the
calibration.
The instrument changes to
the measuring mode
9. Close the test gas cylinder
valve and remove the
instrument from the
calibration cradle.
If a fault occurs during the 1-button calibration:
The fault message » «
appears and » « is
displayed for the respective
sensor instead of the
measured value.
In this case, repeat
the 1-button calibration or
carry out a single gas
calibration, see section
5.4.1 on page 20.
Replace the sensor if
necessary, page 22.
NOTICE
Automatic surrogate calibration
If the corresponding gas combination and the sensor
are approved to do so, an automatic surrogate calibra-
tion and tests can be performed using the PC software
Dräger CC-Vision1).
A gas for the bump test, for the adjustment and the
measured gas can be set in the gas change wizard in
Dräger CC-Vision.
Conversions are performed automatically and no
longer need to be made manually.
The settings are also used by the Dräger X-dock.
1) The free of charge PC software Dräger CC-Vision can be down-
loaded from the following web address:
www.draeger.com/software
NOTICE
If the automatic fresh air calibration feature of the
CatEx sensor is activated, the user must ensure that
the charging cradle remains in normal atmosphere
(21 vol.% O2) free of contaminants for the entire
duration of the process.
NOTICE
If no sensors are approved for the 1-button adjustment
via the PC software Dräger CC-Vision, the 1-button ad-
justment menu function will not be available.
i
i
i
i
i
i
00833366.eps
0,5 L/min
0
CAUTION
Never inhale the test gas. Health hazard! Observe the
hazard warnings of the relevant Safety Data Sheets.
!
01633366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm
OK
OK
OK
01733366_en.eps
CH 4
%LEL
O
2
Vol%
CO
ppm
H
2 S
ppm
OK
01833366_en.eps
CH4
%LEL
O2
Vol%
CO
ppm
H2S
ppm

20 Dräger X-am 2500
Calibrate instrument
5.4.1 Calibrating the sensitivity for an individual
measuring channel
The span calibration can be carried out specifically for
individual sensors.
In the case of the span calibration, the sensitivity of the
selected sensor is set to the value of the test gas used.
Use a standard test gas.
Allowed test gas concen-
tration:
1. Connect the test gas
cylinder with the calibration
cradle.
2. Vent the test gas into a fume cupboard or into the open air
(with a hose connected to the second connector of the
calibration cradle).
3. Switch on the instrument and insert it into the calibration
cradle.
4. Press the [+]key and keep it pressed for 5 seconds to
open the calibration menu, enter the password and select
the single gas calibration function, page 17.
5. Press the key to start the channel selection.
The display flashes the gas
of the first measuring
channel, e.g. » Ex %LEL «.
6. Press the key to start
the calibration function of
this measuring channel,
or use the key to
select another measuring
channel (O2- vol. %, H2S -
ppm or CO - ppm).
5.4.2 Sensitivity calibration for CatEx
Display on channel selection:
1. Press the key to start
the calibration for the heat
tinting or press the -key
to select the next sensor.
If the displayed measurement
value is stable:
2. Press the key to
perform the calibration.
The display containing the
current gas concentration
changes with the display
»OK«.
3. Press the key or wait for
approx. 5 seconds to end
the calibration of this
measuring channel.
The next measuring
channel is offered for
calibration.
After the calibration of the
last measuring channel,
the device changes to
measuring mode.
4. Close the test gas cylinder valve and remove the device
from the calibration cradle.
If a fault occurred during the span calibration.
The fault message » «
appears and » « is
displayed for the sensor
instead of the measured
value.
In this case, repeat the
calibration.
If necessary, replace the
sensor, page 22.
5. Press the key to confirm the calibration gas concentration
or use the [+] key to change the calibration gas
concentration and complete the process by pressing the
key.
The measurement value flashes.
6. Open the test gas cylinder valve to let test gas flow over
the sensor.
The displayed, flashing measurement value changes to the
value according to the supplied test gas.
7. Press the -key to select the next sensor.
Ex: 40 to 100 %LEL
O210 to 25 vol. %
CO: 20 to 999 ppm
H2S: 5 to 99 ppm
Test gas concentration of
other gases: see Instructions
for Use for the respective
DrägerSensors.
CAUTION
Never inhale the test gas. Health hazard! Observe the
hazard warnings of the relevant Safety Data Sheets.
00833366.eps
0,5 L/min
0
!
OK
01933366_en.eps
CH4
%LEL
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
NH3
ppm
OK
02033366.eps
ch 4
%LEL
CO
2
ppm
O
2
Vol%
CO
ppm
H
2 S
ppm
NH
3
ppm
OK
OK
02433366_en.eps
CH 4
%LEL
OK
02533366_en.eps
CH4
%LEL
CO2
ppm
O2
Vol%
CO
ppm
H2S
ppm
NH3
ppm
OK
OK
