Dr. pen M8S User manual

Please read the manual before use
User Manual M8S

Table of contents 1
Product description
Parts name
How to charge the battery
How to apply the needle cartridge
Adjustment of needle length
Needle cartridge introduction
Reference chart
Specification
Precaution
Warranty
2
3
4
4
5
6
7
8
8
9
10
Speed display and adjustment 6
Introduction for wireless mode

Product description 2
The device consists of an electric microneedling pen and
disposable needle cartridges. This manual will explain how to
use each component in detail.
The device is used to improve the appearance of the skin and
reduce signs of aging. It is intended to stimulate the skin with
micro-needles for collagen and elastin production. The
microchannels created in the superficial skin by the device
also help with the absorption of skin serums.
There are 7 different types of needle cartridges designed for
the device. These cartridges can be used for micro-needling
treatment and nano-needling treatment.

Parts name
Speed Display Screen
Power/Speed Button
Scale Adjustment Ring
Needle Cartridge
Power Interface
3
Scale Point

Charging Status
The pen show spinning “ ”
while charging .
Introduction for wireless mode
The pen show “ ”
when charging is completed.
How to charge the battery
4
Connect the device to the adapter with the power cable,
and plug the adapter into a live AC outlet to charge the
device. Charging will be completed within 2 hours.
Please charge the battery
when the pen show “ ”
This device is powered by a built-in battery. It can work
wirelessly. The power cable and the adapter are used to
charge the device when it is out of battery.
The number of speed flashes slowly when the battery
capacity 10% left .
The pen turn off automatically after 1 minute while
the number of speed flashes quickly .

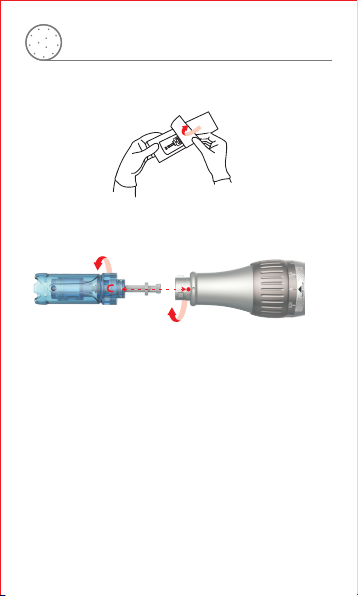

1. Take out needle cartridge from the sterilized packaging.
Preparation
How to apply the needle cartridge 5
Before assembling or disassembling the needle cartridge,
make sure the U-shaped point of the needle cartridge is
aligned with the point of the handpiece.
Place the used needle cartridges in a trash container. If the
needle cartridge is inadertently contaminated during installation
( i.e. Dropped on the floor, package opened/damaged. The needle
cartridge may be contaminated. ) ,Please discard it and get a new
needle cartridge.
The needle cartridge is designed for single use.
〔 Fig2 〕
〔 Fig1 〕
〔 Fig1 〕
2.
with the dot on the bottom of the device, and slightly push the
cartridge into the device. 〔 Fig2 〕
Find the “U” shape notch on the cartridge, align the notch
3. Lock the needle cartridge to the device by turning it clockwise.
4. Turn the needle cartridge counterclockwise and pull it out
when you would like to remove the cartridge.
5. Start the device only when the needle cartridge is assembled
correctly. Press and hold the power button for 3 seconds
to turn on/off the device.

Speed Display
6 Speed Adjustment
Press and hold the power button for 3 seconds to start or shut
down the device. After starting the device, the speed changes
once every time the power button is pressed.
Adjustment of needle length
CounterclockwiseClockwise
Adjust the depth of the needle by turning the scale adjustment
ring. The depth of the needle should be adjusted after starting the
pen. The scale number aligning with the scale point shows the
current needle depth.
Use suitable needle size according to different treatment
areas and skin problems
6
Speed display and adjustment
〔 Fig3 〕
The depth will be longer.
The depth will be shorter.

42 Needles
36 Needles
R NANO
Needles
12 Needles
18 Needles
7
Needle cartridge introduction
Available needle cartridges
The needle cartridge is designed for only.
The needle cartridge is disposable.
Please sterilize the needle cartridge with 75% alcohol
for a few minutes before use.
Please dispose the used needle cartridge to the trash
container.
Dr.pen M8S
Attention
24 Needles
S NANO
Needles

2.5
REGION
Forehead
Between the Eyebrows
Nose
Around the orbital rim
Cheek and Chin
Surgical and
Scar Maximum
NEEDLE DEPTH ( MM )
0.25 - 0.5
0.25 - 0.5
0.25
0.25
0.5 - 1.0
Reference chart 8
Product name:
Auto-stamp Motorized Meso Machine
Model name: Dr.pen M8S
Adapter
Input: 100-240V 50-60HZ
Output: 5V 1A
Package Weight: 400 g
Package Size: 169*123*56 mm
Packing List
Specification
Item Quantity
Needle Cartridge
Manual
Adapter
Hand Piece
Power Cable
1 pc
2 pcs
1 pc
1 pc
1 pc

Precaution
Attention, consult accompanying documents
Date of manufacture
Direct current
Alternating current Serial No
CE mark
Manufacturer
Consult instruction for use
9
Do not apply it to the person as following:

Warranty
General maintenance
The warranty period of the device is 12 months. We
offer repair service from the purchase date. If any of
our products has damages or natural trouble, we
provide replacements or repair service. The use of
third-party cartridges can cause damage to the device.
This could invalidate the warranty.
10
Make sure to inspect the device and adapter before use.
Ensure the device is turned off when not in use. Wipe its
surface with a disinfecting wipe.
Pay attention to clean areas such as crevices, seams,
and areas around where the needle cartridge attaches
to the device.
Keep it away from direct sunlight or high temperature or
humidity.
Do not leave the measurement, repair or alter of the device
to non-professional staffs.
When you use the device which has not been used for a
long time, make sure to check if it works properly with safety.

USER MANUAL
M8S
