Draco K5 User manual

Max Draenert Apparatebau GmbH & Co. KG
Gutenbergstrasse 15-17
D-73779 Deizisau
:[phone]
:www.dracotools.com
@: [e-mail]
6. Additional tools

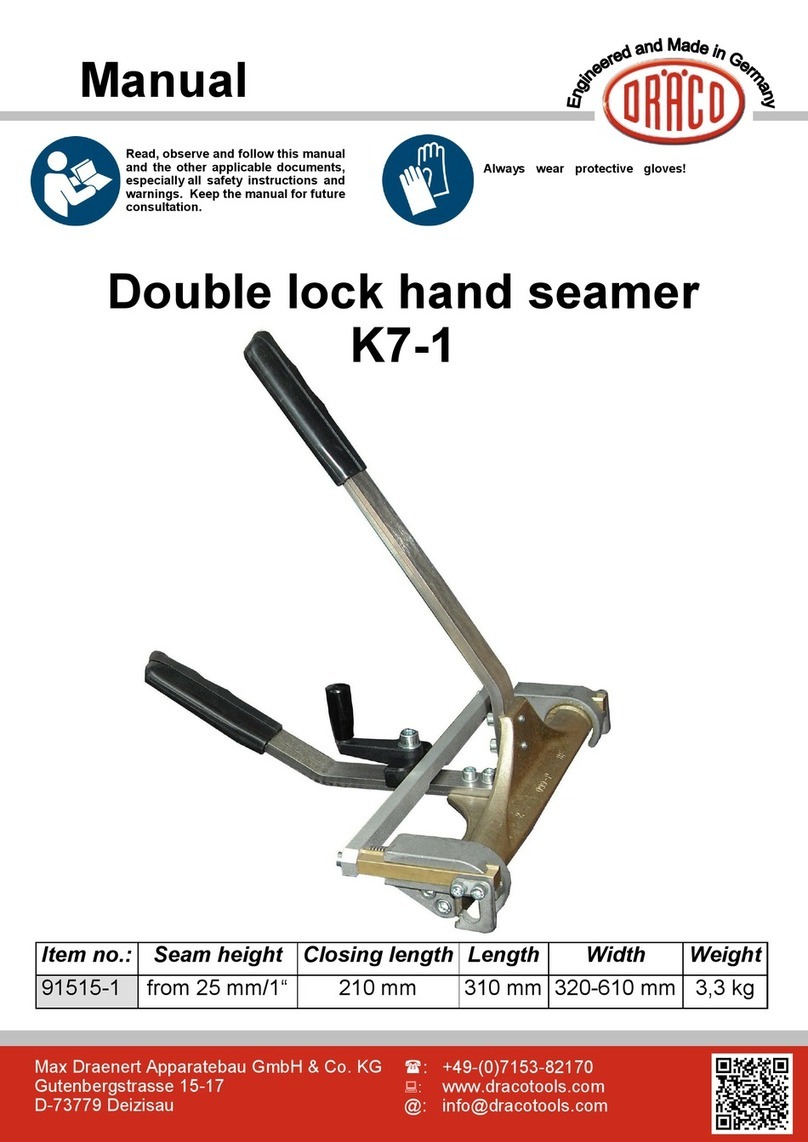

To close the double lock seam you need the double
lock hand seamer K7-1. The K7-1 closes the
pre-closed standing seam into a double lock seam
in one operation, item no.: 91515-1.
K8NL
Manual
Max Draenert Apparatebau GmbH & Co. KG
Gutenbergstrasse 15-17
D-73779 Deizisau
:[phone]
:www.dracotools.com
@: [e-mail]
Item no. Closing length Length WeightWidthType
91505 70 mm 120 mm 1,0 kg260-430 mmK5
91530 200 mm 250 mm 260-430 mm 2,1 kgK8N
91535 350 mm 400 mm 310-530 mm 3,1 kgK8NL
Standing seam closers
K5, K8N, K8NL
Special lengths available on request.
Fig. K5 Fig. K8N/ K8NL
Always wear
protective gloves!
Read, observe and follow this manual
and the other applicable documents,
especially all safety instructions and
warnings.

1. Intended use
The standing seam closers can only be used to manually close pre-
profiled panels in the material thicknesses mentioned under point 2.
2. Max. thickness of materials
Copper / Zinc / Aluminum until 0,80 mm
Steel until 0,80 mm
Stainless steel until 0,50 mm
3. Operation method
The hand seamer closes pre-profiled panels in one
operation to a standing seam and a tight joint.
1) Open hand seamer.
2) Now place seamer in open position
on the seam with the fixed pivot
close against the U-Panel (over cloak).
3) Press the closing handle down
completely. The seam is now closed.
4) Open up seamer by moving closing handle
back to open position, slightly lift and move
the tool by approx. ¾ of the tool width and
repeat the locking process.
4. Maintenance
All parts of the hand seamers are standardized, exchangeable,
made of rustproof materials and thus largely maintenance-free.
Nevertheless, it is recommended to clean the seamer from time to
time. Disassemble tool, clean the hinged parts and reassemble.
This extends the life of the seamer and only takes a few minutes.
Fig. open position
Fig. Closing handle down
Manual
5. Tool elements
Fig. Closing handle down
K5
K8N
