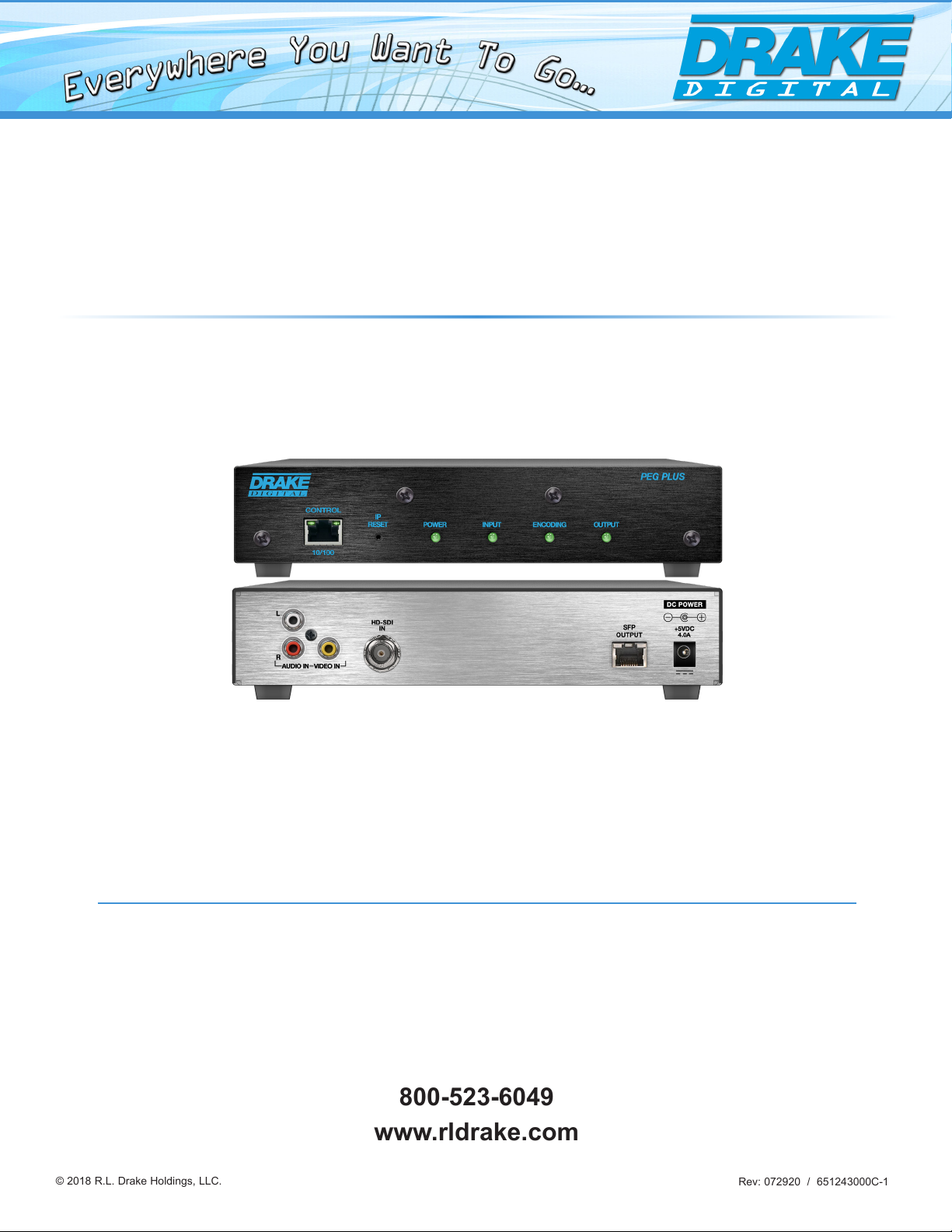

DRAKE 1002613B User manual

Rev: 072920 / 651243000C-1
© 2018 R.L. Drake Holdings, LLC.
800-523-6049
www.rldrake.com
PEG PLUS Model
Public Educational & Governmental Access Encoder
INSTRUCTION MANUAL
Model Item # Description
PEG PLUS 1002613B HD PEG Channel Encoder with HD-SDI Input or Composite
Video with Left + Right Audio and IP Output

2
800-523-6049 | www.rldrake.com
We recommend that you write the following information in the spaces provided below.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property
rights. Reverse engineering or disassembly is prohibited.
Manual Revision
Issue 2: User Manual updated for use with rmware v1.5.9 - v1.5.24 (current as of 06/07/18).
Issue 1: User Manual created 01/31/17. Firmware release v1.5.9.
Product Documentation:
Download the latest User Manual (PDF) by visiting our website. Navigate to the product page by entering the
full Model Name or Stock Number in the search field. Upon reaching the product page, the "User Manual" and
other downloads are made available beneath the product image.
Cross-Reference & Hyperlinking Usage:
This guide makes use of hyperlinks for the Table of Contents, some cross-reference linking between sections,
and external hyperlinking to web addresses. This has been done to assist the reader in finding the information
they are seeking in a much quicker way. In addition to hyperlinking, the Table of Contents also makes use of
the bookmarking feature present in the Adobe Reader application.
Firmware Updates:
For more information regarding the latest product firmware releases, please visit our website at www.rldrake.
com. The Firmware Updates page is available under the "Support" menu option within the main navigation.
General instructions for the FTP site, as well as updating your firmware, are provided on this page. For further
assistance, you may also contact Technical Assistance at 937-746-6990 or by email: servicehelp@rldrake.
com
Purchase Location Name:
Purchase Location Telephone Number:
PEG PLUS Serial Number

3
800-523-6049 | www.rldrake.com
Table of Contents
GENERAL & SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS................................................................................................................................ 4
SPECIFICATIONS................................................................................................................................................................... 6
GENERAL DESCRIPTION & FEATURES ............................................................................................................................. 7
FRONT AND REAR PANEL OPERATION............................................................................................................................. 8
INSTALLATION & SETUP
INSTALLATION & POWER-UP.............................................................................................................................................. 9
LOGIN SCREEN .................................................................................................................................................................... 10
UNIT CONFIGURATION
STATUS TAB...........................................................................................................................................................................11
STATUS TAB WITH ZIXI ....................................................................................................................................................... 12
ENCODER TAB ..................................................................................................................................................................... 12
AV INPUT ............................................................................................................................................................................................. 12
ENCODING........................................................................................................................................................................................... 13
ENCODING (ZIXI) ................................................................................................................................................................................ 19
COMPOSITING .................................................................................................................................................................................... 21
SYSTEM TAB......................................................................................................................................................................... 22
NETWORKING..................................................................................................................................................................................... 22
REMOTE MANAGEMENT ................................................................................................................................................................... 24
SAVE/RESTORE .................................................................................................................................................................................. 24
SET SYSTEM TIME ............................................................................................................................................................................. 25
LOG TAB................................................................................................................................................................................ 26
ADMINISTRATION PANEL
ADMIN PANEL....................................................................................................................................................................... 26
FIRMWARE UPDATES
FIRMWARE UPDATE TAB .................................................................................................................................................... 28
SERVICE & WARRANTY
SERVICE ................................................................................................................................................................................ 30
LIMITED WARRANTY ........................................................................................................................................................... 31

4
800-523-6049 | www.rldrake.com
Important Safety Instructions
1. Read Instrucons—All the safety and operang instrucons should be read before the
product is operated.
2. Retain Instrucons—The safety and operang instrucons should be retained for future
reference.
3. Heed Warnings—All warnings on the product and in the operang instrucons should be
adhered to.
4. Follow Instrucons—All operang and use instrucons should be followed.
5. Cleaning—Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleansers. Use a damp cloth for cleaning.
6. Aachments—Do not use aachments that are not recommended by the product manu-
facturer as they may cause hazards.
7. Water and Moisture—Do not use this product near water—for example, near a bathtub,
wash bowl, kitchen sink or laundry tub; in a wet basement; or near a swimming pool; and
the like.
8. Accessories—Do not place this product on an unstable cart, stand, tripod, bracket, or
table. The product may fall, causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounng of the product should follow the
manufacturer’s instrucons, and should use a mounng accessory recommended by the
manufacturer.
9. A product and cart combinaon should be moved with care. Quick stops, excessive force,
and uneven surfaces may cause the product and cart combinaon to overturn.
10. Venlaon—Slots and openings in the cabinet are provided for venlaon and to ensure
reliable operaon of the product and to protect it from overheang, and these openings
must not be blocked or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or similar surface. This product should not be placed in a built-in
installaon such as bookcase or rack unless proper venlaon is provided or the manufac-
turer’s instrucons have been adhered to.
11. Power Sources—This product should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power supplied to your
home, consult your product dealer or local power company. For products intended to oper-
ate from baery power, or other sources, refer to the operang instrucons.
12. Grounding or Polarizaon—This product may be equipped with a polarized alternat-
ingcurrent line plug (a plug having one blade wider than the other). This plug will t into
the power outlet only one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should sll fail to t, contact your
electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized
plug. Alternate Warnings—If this product is equipped with a three-wire grounding-type
plug, a plug having a third (grounding) pin, the plug will only t into a grounding-type power
outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
13. Power-Cord Protecon—Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying parcular
aenon to cords at plugs, convenience receptacles, and the point where they exit from the
product.
14. Outdoor Antenna Grounding—If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so as to provide some protecon
against voltage surges and built-up stac charges. Arcle 810 of the Naonal Electrical Code,
ANSI/NFPA 70, provides informaon with regard to proper grounding of the mast and sup-
porng structure, grounding of the lead-in wire to an antenna discharge unit, size of ground-
ing conductors, locaon of antenna-discharge unit, connecon to grounding electrodes, and
requirements for the grounding electrode. See Figure A.
15. Lightning—For added protecon for this product during a lightning storm, or when it
is le unaended and unused for long periods of me, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent damage to the product due to
lightning and power-line surges.
16. Power Lines—An outside antenna system should not be located in the vicinity of over-
head power lines, other electric light or power circuits, where it can fall into such power lines
or circuits.
17. Overloading—Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of re or electric shock.
18. Object and Liquid Entry—Never push objects of any kind into this product through open-
ings as they may touch dangerous voltage points or short-out parts that could result in a re
or electric shock. Never spill liquid of any kind on the product.
19. Servicing—Do not aempt to service this product yourself as opening or removing cov-
ers may expose you to dangerous voltage or other hazards. Refer all servicing to qualied
service personnel.
20. Damage Requiring Service—Unplug this product from the wall outlet and refer servicing
to qualied service personnel under the following condions:
a. When the power-supply cord or plug is damaged,
b. If liquid has been spilled, or objects have fallen into the product,
c. If the product has been exposed to rain or water,
d. If the product does not operate normally by following the operang instrucons. Adjust
only those controls that are covered by the operang instrucons as an improper adjust-
ment of other controls may result in damage and will oen require extensive work by a
qualied technician to restore the product to its normal operaon,
e. If the product has been dropped or damaged in any way, and
f. When the product exhibits a disnct change in performance—this indicates a need for
service.
21. Replacement Parts—When replacement parts are required, be sure the service techni-
cian has used replacement parts specied by the manufacturer or have the same characteris-
cs as the original part. Unauthorized substutes may result in re, electric shock or other
hazards.
22. Safety Check—Upon compleon of any service or repairs to this product, ask the service
technician to perform safety checks to determine that the product is in proper operang
condion.
23. Wall or Ceiling Mounng—The product should be mounted to a wall or ceiling only as
recommended by the manufacturer.
24. Heat—The product should be situated away from heat sources such as radiators, heat
registers, stoves, or other products (including ampliers) that produce heat.
NOTE TO CATV SYSTEM INSTALLERS:
THIS REMINDER IS PROVIDED TO CALL THE CATV
SYSTEM INSTALLER’S ATTENTION TO ARTICLE 820 - 40
OF THE NEC WHICH PROVIDES GUIDELINES FOR PROPER
GROUNDING AND, IN PARTICULAR, SPECIFIES THAT
THE CABLE GROUND SHALL BE CONNECTED TO THE
GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO
THE POINT OF CABLE ENTRY AS PRACTICAL.
FIGURE A
Example of antenna grounding as per Naonal Electrical Code, ANSI/NFPA 70
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
POWER SERVICE GROUNDING ELECTRODE
SYSTEM (NEC ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
GROUND CLAMPS
GROUND CLAMP
NEC - NATIONAL ELECTRIC CODE
WARNING: TO PREVENT FIRE OR
ELECTRICAL SHOCK DO NOT
EXPOSE TO RAIN OR MOISTURE
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE POWER SUPPLY COVERS
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
! CAUTION !
CAUTION STATEMENT
An appliance and cart combinaon should be moved with care. Quick stops, excessive
force and uneven surfaces may cause the appliance and cart combinaon to overturn.
The exclamaon point within an equilateral triangle is intended to alert the user to
the presence of important operang and maintenance (servicing) instrucons in the
literature accompanying the appliance.
The lightning ash with arrow head symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constute a risk of electric shock to
persons.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE. DO NOT OPEN THE CABINET, REFER
SERVICING TO QUALIFIED PERSONNEL ONLY.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS (POLARIZED) PLUG WITH AN
EXTENSION CORD RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
General & Safety Instructions

5
800-523-6049 | www.rldrake.com
Importantes De Sécurité
1. Lire les direcves—Toutes les direcves de sécurité et d’ulisaon devraient être lues
avant de mere l’appareil en opéraon.
2. Conserver les direcves—Les direcves de sécurité et d’ulisaon devraient être con-
servées pour consultaon future.
3. Tenir compte des averssements—Tous les averssements apparaissant sur l’appareil et
dans les consignes d’ulisaon devraient être respectés.
4. Suivre les direcves—Toutes les direcves d’opéraon et d’ulisaon devraient être
suivies.
5. Neoyage—Débrancher l’appareil de la prise électrique murale avant le neoyage. Ne pas
uliser de neoyants liquides ou aérosols. Employer un linge humide pour le neoyage.
6. Fixaon—Ne pas uliser d’autres xaons que celles recommandées par le manufacturier;
elles pourraient être source de dangers.
7. Eau et humidité—Ne pas uliser cet appareil près de l’eau. Par exemple, près d’une
baignoire, d’un bac de lavage, d’un évier de cuisine ou d’une cuvee de lessivage; dans un
sous-sol humide; ou à proximité d’une piscine; et autres environnements similaires.
8. Accessoires—Ne pas installer cet appareil sur un chariot, un socle, un trépied, un support
ou une table instables. L’appareil pourrait tomber, entraînant des blessures graves à un
enfant ou à un adulte, et des dommages importants à l’appareil. Employer seulement avec
un chariot, un socle, un trépied, un support, ou une table recommandés par le fabricant ou
vendu avec l’appareil. Toute installaon de l’appareil devrait être conforme aux direcves du
manufacturier et devrait uliser des accessoires d’installaon recommandés par celui-ci.
9. Un chariot supportant l’appareil devrait être déplacé avec précauon. Les arrêts brusques,
la force excessive et les surfaces inégales peuvent renverser le chariot.
10. Venlaon—Des fentes et ouvertures dans le châssis sont prévues pour la venlaon
de l’appareil, pour en assurer la abilité d’opéraon et le protéger contre la surchaue.
Ces ouvertures ne doivent pas être bloquées ou recouvertes. Ces ouvertures ne devraient
jamais être bloquées en plaçant l’appareil sur un lit, un sofa, une couverture, ou une surface
semblable. Cet appareil ne devrait pas être installé dans un meuble encastré comme une bib-
liothèque ou une étagère à moins de lui fournir une venlaon adéquate ou que l’installaon
soit conforme aux direcves du manufacturier.
11. Sources d’alimentaon électrique—Cet appareil devrait être ulisé seulement avec
le type d’alimentaon électrique inscrite sur l’équee. Si vous n’êtes pas certain du type
d’alimentaon électrique fourni à votre maison, consultez le vendeur de l’appareil ou
l’entreprises d’énergie locale. Pour des appareils alimentés par une baerie ou d’autres
sources, se référer aux consignes d’ulisaon.
12. Mise à la terre ou Polarisaon—Cet appareil est équipé avec un cordon d’alimentaon
à trois ls. Il est a brancher sur une prise ayant un connecteur a la terre. Assurez-vous que la
connecon a la terre ne manque pas.
13. Protecon du cordon d’alimentaon—Les cordons d’alimentaon devraient être dispo-
sés de façon à ce qu’on ne puisse marcher dessus ou qu’ils soient suscepbles d’être coincés
par des arcles placés sur ou contre eux. Une aenon parculière doit être portée aux
ches, prises de courant, et aux points où ils sortent de l’appareil.
14. Mise à la terre de l’antenne extérieure—Si un système extérieur d’antenne ou de câble
est relié à l’appareil, s’assurer que le système d’antenne ou de câble est muni d’une mise à la
terre an de fournir une certaine protecon contre les surtensions et les charges d’électricité
staque. L’arcle 810 du code électrique naonal, ANSI/NFPA 70, fournit l’informaon néces-
saire en ce qui concerne la mise à la terre appropriée du mât et de la structure porteuse,
la mise à la terre du câble de connexion à une unité de décharge d’antenne, le calibre des
conducteurs de mise à la terre, la locaon de l’unité de décharge d’antenne, le raccordement
aux électrodes de mise à la terre et les spécicaons pour les électrodes de mise à la terre.
Voir la gure A.
15. Foudre—Pour une protecon supplémentaire de cet appareil pendant un orage élec-
trique, ou quand il est laissé sans surveillance et inulisé pendant de longues périodes, le
débrancher de la prise électrique murale et déconnecter le système d’antenne ou de câble.
Ceci préviendra les dommages à l’appareil dus à la foudre et aux surtensions.
16. Lignes électriques—Un système d’antenne extérieur ne devrait pas être situé à proximité
de lignes électriques aériennes ou de tout autre circuit électrique, où il pourrait tomber sur
de tels circuits ou lignes électriques. Lors de l’installaon d’un système d’antenne extérieur,
d’extrêmes précauons devraient être prises an de prévenir tout contact avec des lignes ou
circuits électriques. Entrer en contact avec de tels circuits ou lignes électriques pourrait être
fatal.
17. Surcharge—Ne pas surcharger les prises de courant murales, les rallonges électriques ou
les prises de courant intégrées. Un risque d’incendie ou de choc électrique pourrait résulter
d’une telle surcharge.
18. Inseron d’objet ou de liquide—Ne jamais insérer d’objet par les ouvertures de cet
appareil. Il pourrait toucher des points de voltage dangereux ou court-circuiter des pièces,
ce qui pourrait résulter en incendie ou en choc électrique. Ne jamais verser de liquide sur
l’appareil.
19. Entreen—Ne pas essayer de faire soi-même l’entreen de cet appareil. En ouvrir ou en
rerer les couvercles pourrait vous exposer à des voltages dangereux ou à d’autres dangers.
Coner tout entreen à un personnel de service qualié.
20. Dommage exigeant un entreen—Débrancher cet appareil de la prise de courant élec-
trique et coner l’entreen au personnel de service qualié dans les éventualités suivantes:
a. Quand le cordon d’alimentaon ou sa che sont endommagés,
b. Si des objets sont tombés dans l’appareil, ou si du liquide y a été renversé,
c. Si l’appareil a été exposé à la pluie ou à l’eau,
d. Si l’appareil ne fonconne pas normalement en suivant les consignes d’ulisaon.
Ajuster seulement les commandes qui sont menonnées dans le guide d’opéraon. Un
mauvais ajustement des autres commandes pourrait causer des dommages à l’appareil et
souvent exiger un travail supplémentaire de la part d’un technicien qualié pour remere
l’appareil en état normal d’opéraon.
e. Si l’appareil a été échappé ou endommagé de n’importe quelle façon, et
f. Quand l’appareil montre un changement notable de performance – ceci indique qu’un
entreen est nécessaire.
21. Pièces de rechange—Si des pièces de rechange sont nécessaires, s’assurer que le tech-
nicien de service a employé des pièces de rechange spéciques du manufacturier ou ayant
les mêmes caractérisques que les pièces originales. L’ulisaon de pièces de rechange non
autorisées pourrait résulter en incendie, choc électrique ou autres dangers.
22. Véricaon de sécurité—À la suite de toute réparaon ou entreen de cet appareil,
demander au technicien de service d’exécuter des véricaons de sécurité an de s’assurer
que l’appareil est en condion normale de fonconnement.
23. Montage au mur ou au plafond—L’appareil ne devrait être monté au mur ou au plafond
qu’uniquement de la façon recommandée par le manufacturier.
24. Chaleur—L’appareil devrait être situé loin de sources de chaleur telles que des radia-
teurs, des registres de chaleur, des fourneaux, ou d’autres appareils (y compris amplica-
teurs) produisant de la chaleur.
NOTE AUX INSTALLATEURS DE SYSTÈME DE CATV:
CE RAPPEL EST FOURNI POUR PORTER À L’ATTENTION DES
INSTALLATEURS DE SYSTÈME DE CATV, L’ARTICLE 820 - 40 DU
NEC QUI DONNE DES DIRECTIVES POUR UNE MISE À LA TERRE
APPROPRIÉE ET, EN PARTICULIER, SPÉCIFIE QUE LE CÂBLE DE
MISE À LA TERRE DEVRAIT ÊTRE RACCORDÉ AU SYSTÈME DE
MISE À LA TERRE DU BÂTIMENT LE PLUS PRÈS POSSIBLE DE
L’ENTRÉE DU CÂBLE.
FIGURE A
Exemple de mise à la terre d’antenne selon le Code Électrique Naonal, ANSI/NFPA 70
ANTENNA
LEAD IN
WIRE
UNITÉ DE DÉCHARCHE D’ANTENNE
(NEC SECTION 810-20)
CONDUCTEURS DE MISE À LA TERRE
(NEC SECTION 810-21)
SYSTÈME DE MISE À LA TERRE DU BÂTIMENT
(NEC ART 250, PART H)
APPAREILS
ÉLECTRIQUES
DE SERVICE
ATTACHES DE
MISE À LA TERRE
ATTACHES DE
MISE À LA TERRE
NEC - CODE ÉLECTRIQUE NATIONAL
AVERTISSEMENT: AFIN D’ÉVITER TOUT RISQUE D’INCENDIE
OU D’ÉLECTROCUTION, NE PAS EXPOSER CET APPAREIL À LA
PLUIE OU À L’HUMIDITÉ.
RISQUE DE CHOC ELECTRIQUE -
NE PAS OUVRIR
ATTENTION: POUR RÉDUIRE LE RISQUE D’ÉLECTROCUTION, NE PAS
ENLEVER LE DOS DE L’APPAREIL NI OUVRIR LE BOÎTIER. AUCUNE PIÈCE N’EST
RÉPARABLE PAR L’UTILISATEUR À L’INTÉRIEUR. SE RÉFÉRER UNIQUEMENT À
DES TECHNICIENS QUALIFIÉS POUR L’ENTRETIEN.
! AVERTISSEMENT !
Une combinaison de l’appareil et chariot doit être déplacé avec précauon. Des arrêts
brusques, une force excessive et des surfaces inégales peuvent causer la combinaison
de l’appareil et le chariot.
Le point d’exclamaon à l’intérieur d’un triangle équilatéral est desné à alerter
l’ulisateur sur la présence d’opéraons d’entreen importantes au sujet desquelles des
renseignements se trouvent dans le manuel d’instrucons.
Le symbole de l’éclair à l’intérieur d’un triangle équilatéral est desné à alerter
l’ulisateur sur la présence d’une “tension dangereuse” non isolée dans le boîer du
produit. cee tension est susante pour provoquer l’électrocuon de personnes.
ATTENTION DÉCLARATION
AVERTISSEMENT: AFIN D’ÉVITER TOUT RISQUE D’INCENDIE OU D’ÉLECTROCUTION, NE PAS
EXPOSER CET APPAREIL À LA PLUIE OU À L’HUMIDITÉ. NE PAS OUVRIR LE
BOÎTIER, CONFIER TOUS TRAVAUX À DU PERSONNEL TECHNIQUE QUALIFIÉ.
CAUTION: POUR PREVENIR LES CHOCS ELECTRIQUES, NE PAS UTILISER CETTE FICHE
POLARISEE AVEC UN PROLONGATEUR, UNE PRISE DE COURANT OU UNE
AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A
FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

6
800-523-6049 | www.rldrake.com
Specifications
INTERFACE AUDIO OPTIONS
VIDEO INPUTS: SD/HD-SDI BNC Type Input Connecon
Composite Video RCA Input Connector
Closed Capon Support (embedded only)
AUDIO INPUTS: SD/HD-SDI Embedded PCM Audio
Analog Audio (L, R) 2xRCA Input Connectors
Supports Audio Gain Adjustment
ENCODER FORMAT: Dolby® Digital, AAC, or MPEG1-Layer 2
OUTPUT BIT RATE: 128, 192, 224, or 384 Kbps
Manufactured under license from Dolby Laboratories
VIDEO OPTIONS OUTPUT
INPUT VIDEO MODES: 480i (640x480/720x480 @ 30 FPS)
720p (1280x720 @ 60 FPS)
1080i (1920x1080 @ 30, 59.94 & 60 FPS)
AUTO-SCAN for Input Resoluon
VIDEO FORMAT: MPEG-2 OR H.264
VIDEO ADJUSTMENTS: BRIGHTNESS
CONTRAST
HUE
SATURATION
H.264 PROFILE SUPPORT: BASELINE
MAIN
HIGH
VIDEO OUTPUT: SFP Port IP SPTS (SFP sold separately)
PACKET FORMAT: UDP SPTS (two HD or SD streams)
ZIXI: UDP Transport Stream Protocol
PHYSICAL SPECIFICATIONS
TEMPERATURE RATING: 0 - 50° C Ambient
FORM FACTOR: Desktop Modulator
DIMENSIONS: Approximately 7.6” D X 2.0” H X 8.7” W
WEIGHT: 1.5 lbs
POWER REQUIREMENTS: 100-120 VAC/60 Hz
Available SFPs (sold separately)
Item # Model Description
1002620 SFP-C-10/100/1000 Transceiver 10/100/1000BASE-T SFP, RJ-45, 100M, COPPER
1002621 SFP-MM-850-550M 1000BASE-SX SFP, 850NM, 550M, MMF, DDM
1002622 SFP-SMF-1310-10KM 1000BASE-LX SFP, 1310NM, 10KM, SMF, DDM
1002670 SFP-SMF-1310-40KM 1000BASE-LX SFP, 1310NM, 40KM, SMF, DDM
1002623 SFP-SMF-1550-80KM 1000BASE-ZX SFP, 1550NM, 80KM, SMF, DDM
1002624 SFP-SMF-CWDM-1470nm-80KM 1.25GBASE-CWDM-SFP, 1470NM, 80KM, SMF, DDM
1002625 SFP-SMF-CWDM-1490nm 80KM 1.25GBASE-CWDM-SFP, 1490NM, 80KM, SMF, DDM
1002626 SFP-SMF-CWDM-1510nm-80KM 1.25GBASE-CWDM-SFP, 1510NM, 80KM, SMF, DDM
1002627 SFP-SMF-CWDM-1530nm-80KM 1.25GBASE-CWDM-SFP, 1530NM, 80KM, SMF, DDM
1002628 SFP-SMF-CWDM-1550nm-80KM 1.25GBASE-CWDM-SFP, 1550NM, 80KM, SMF, DDM
1002629 SFP-SMF-CWDM-1570nm-80KM 1.25GBASE-CWDM-SFP, 1570NM, 80KM, SMF, DDM
1002630 SFP-SMF-CWDM-1590nm-80KM 1.25GBASE-CWDM-SFP, 1590NM, 80KM, SMF, DDM
1002631 SFP-SMF-CWDM-1610nm-80KM 1.25GBASE-CWDM-SFP, 1610NM, 80KM, SMF, DDM
1002632-XX SFP-SMF-DWDM-CHXX-40KM 1.25GBASE-DWDM-SFP, CH. 20-59 ,40KM, SMF, DDM
1002633-XX SFP-SMF-DWDM-CHXX-80KM 1.25GBASE-DWDM-SFP, CH. 20-59, 80KM, SMF, DDM
Last 2 numbers indicate channel number (20-59).
PEG PLUS • Item # 1002613B
MPEG-2 or H.264 Digital Video PEG Encoder with HD-SDI or Composite Input and IP Output
Specicaons are subject to change without noce or obligaon.
Dolby is a registered trademark of Dolby Laboratories.

7
800-523-6049 | www.rldrake.com
INTRODUCTION
The PEG PLUS is a stand-alone MPEG-2 or H.264 digital video PEG channel encoder with a single SD/HD-SDI, or composite
video input, and an IP-encapsulation output via a single SFP Ethernet port. A separate RJ45 10/100 Ethernet port is provided
for control and monitoring capability.
The PEG PLUS features selectable SDI PCM-embedded audio, or analog left and right audio. Audio compression can be
either Dolby® Digital, MPEG1-Layer 2 stereo, or AAC stereo.
An optional Zixi output protocol is also available to provide the ability to stream content in H.264 format over an unmanaged
network, including the public internet. The Zixi UDP-based video optimized protocol provides professional broadcasters,
sports networks, and service providers a mechanism to adapt to the public internet using standard IP networks as a way to
ingest and transport broadcast quality video.
An optional rack mount panel is available for up to (2) PEG PLUS encoders.
General Description & Features
Model Item # Description
PEG PLUS
PEG-RP-2
1002613B
1002613B Z
1002644B
MPEG-2 or H.264 HD PEG Encoder with HD-SDI or Composite Input
and IP Output
MPEG-2 or H.264 HD PEG Encoder with Zixi Option
Rack Mount Panel for (2) PEG PLUS units
PEG-RP-2 with (2) PEG PLUS units
FEATURES
•MPEG-2 or H.264 video encoding
•Selectable SD/HD-SDI or Composite video input
•Encodes two HD or SD streams of the same content in either MPEG-
2 or MPEG-4/H.264 formats
•Supports video resolutions of 480i, 720p, or 1080i
•Selectable SDI PCM-embedded audio or analog L+R audio
•Dolby® Digital, AAC, or MPEG1-Layer 2 stereo audio encoding from
PCM-embedded audio source
•IP output via SFP port (SFP sold separately)
•Unicast and multicast capable
•Separate Management port and streaming port
•Built-in watchdog timer with system reboot capability
•Field-upgradable rmware
•Conguration and shutdown control via HTTP server UI and
programmable API
•Supports VLAN & QoS for streaming or trac mgmt.
•SNMP V2
•User-dened PID conguration
•Supports ATSC PSIP tables
•DVB Service information table generation (NIT+SDT)
•Insert custom screen message upon loss of video
•Compositing support to add program PNG logo le

8
800-523-6049 | www.rldrake.com
REAR PANEL
NTSC Composite Video/Audio In: Analog video with Left and Right Audio.
HD-SDI In: Digital video HD/SD SDI input.
SFP Ethernet Output: Optical or Copper SFP IP video and audio output. (SFP sold separately)
5VDC Power Port: Accepts 5 volt (VDC) power to the unit.
FRONT PANEL
Ethernet Control: 10/100 Ethernet wired connection for local and remote management
IP Reset Button: When pressed for >2 seconds, the IP address of the control port will enable to the default factory IP
address (172.16.70.1, Subnet Mask 255.255.255.0) The login credentials will also be enabled to the default username
“admin” and password “pass”.
NOTE: The old IP address, login, and password will still be present in the encoder settings.
Status LEDs provide a status of tasks performed by the PEG PLUS encoder in real-time:
Power: LED is illuminated when the power is ON.
Input: LED is illuminated when input video is being received from the HD/SD SDI or Composite input.
Encoding: LED is illuminated when the internal encoder is operational.
Output: LED is illuminated when the copper or optical SFP is connected to a network.
Front and Rear Panel Operation
1
2
3
4
7
5
8
6
9
10
7
3
142 5 6
8 9
10

9
800-523-6049 | www.rldrake.com
Installation & Power-Up
Unpacking
You will nd the following items in the box:
•PEG PLUS Encoder Unit (QTY = 1)
•Power Adapter (QTY = 1)
Power-Up
Plug the Power Adapter into a power plug (120 VAC, 60Hz). Plug the power pin into the back of the PEG unit at the input
marked “DC Power”.
Installation & Setup
For safe and reliable operation, only use the power adapter supplied with the PEG PLUS Encoder.
For safe and reliable operation, do not place objects within 1 inch of the unit that blocks the airflow.
A 1RU (1.75”) open space must be provided above the PEG PLUS encoders when mounted in a 19 inch rack or cabinet
to allow air ow for encoder heat dissipation. Drake’s PEG-RP-2 accessories or a standard 19” rack shelf can be used for
mounting 2 PEG PLUS encoder modules in 1RU.
Installation
The PEG PLUS Encoder is designed to be mounted on a desktop in close proximity to a 120 VAC, 60Hz power outlet.

10
800-523-6049 | www.rldrake.com
Login Screen
First, connect the appropriate input and output video cables and plug in the PEG PLUS power cable.
ETHERNET ACCESS:
Local or remote communication with the unit is only possible through a GUI-based menu via any standard web browser
Chrome or Firefox is recommended. Before you can communicate with the unit you must congure your computers Local
Area Network connection to conrm with the PEG PLUS default IP of 172.16.70.1. To do so, follow these steps:
Connect an Ethernet cable from your computer to the Control 10/100 port of the PEG PLUS.
1. The following steps explain how to do this for a PC with Windows XP operating software:
a) On your computer, open the "Control Panel"
b) Double-click on "Network Connections"
c) Right-click on the "Local Area Connection", and then click on the "properties".
d) A dialog box entitled "Local Area Connection Properties" will appear. In this box, double-click on the "Internet Protocol
(TCP/IP)".
e) A dialog box entitled "Internet Protocol (TCP/IP) Properties" will appear. Select the "Use the following IP address"
option and enter the following addresses:
IP address: 172.16.70.2
Subnet mask: 255.255.255.0
Default Gateway: No need to enter a value for local access.
Click OK to close dialog box. Your computer is now ready to communicate with the unit.
- OR -
2. The following steps explain how to do this for a PC with Windows 7, Windows 8.x or Windows 10 operating software:
a) On your computer, navigate to the "Network and Sharing Center". (Note: This can be found using the search box in
the Start Menu or for Windows 8.x, the Start Screen)
b) Once open, click on “Change Adapter Settings” on left hand side of the window.
c) Right-click on the "Local Area Connection", and then click on the "Properties".
d) A dialog box entitled "Local Area Connection Properties" will appear. In this box, double-click on the
"Internet Protocol Version 4 (TCP/IPv4)".
e) A dialog box entitled "Internet Protocol Version 4 (TCP/IPv4) Properties" will appear. Select the
"Use the following IP address" option and enter the following addresses:
IP address: 172.16.70.2
Subnet mask: 255.255.255.0
Default Gateway: No need to enter a value for local access.
Click OK to close dialog box. Your computer is now ready to communicate with the unit.
Figure 1 - "Login" Screen
Open a Chrome or Firefox web browser on your computer and enter the following
URL address (http://172.16.70.1). Once the PEG PLUS web server has been
loaded from your browser, you should see the login dialog.
Enter the username and password and click LOG IN. The default username is
"admin" (in lower case letters) and the default password is "pass" (in lower case
letters).
NOTE: If you have any issues connecting to the PEG PLUS encoder, we
recommend clearing the cache in the browser’s settings.
IMPORTANT: The front-panel Control Port (Management Port) and the rear-
panel SFP Port MUST be on different subnets. See "Networking Section"

11
800-523-6049 | www.rldrake.com
Status Tab
System Information
CPU Usage: Indicates the total usage of CPU resources and the encoder CPU usage.
Serial Number: Indicates serial number of PEG PLUS encoder
Hardware Version: Indicates the hardware version of the PEG PLUS encoder
Software Version: Indicates the software version of the unit
Unit Name and Location: Indicates user-dened unit constants set under the "System Tab: Networking" section.
Up-Time: Indicates the uptime of the unit expressed in days, hours, minutes, and seconds.
System Time (UTC): The system time can be synced up with the browser time by using the controls under the System
menu and will be displayed in UTC time format.
1
2
5
6
3
7
4
Figure 2a - "Status" Tab (Read-Only)
2
1
3
4
6
7
8
9
11
12
13
5
10
Input Status Box
Status: Indicates the status of the input.
Firmware Version: Indicates the current rmware version.
SDI Input and Format: Input indicates if the video is present and locked.
Format indicates resolution (see Figure 2b).
Composite Input and Format: Input indicates if the video is present and locked. Format indicates resolution (see
Figure 2b).
Active Video Source: Indicates the current active video source(s) and resolution (see Figure 2b).
Active Audio Source: Indicates if there is embedded audio on the stream(s).
8
11
12
9
13
10
PEG PLUS supports resolutions of:
480i (640x480/720x480 @ 30 FPS)
720p (1280x720 @ 60 FPS)
1080i (1920x1080 @ 30, 59.94, & 60 FPS)
Figure 2b
Unit Configuration

12
800-523-6049 | www.rldrake.com
A/V Source Selection
Source: Video input selection of SDI or Composite
Audio Adjustments
Audio Sync Adjustment: Audio/video lip-sync adjustment used to adjust the audio to video synchronization. For
example, you may need to delay or lag the audio if the video input is SDI and the audio source is analog. Range is +/-
500ms.
Encoder Tab AV Input:
Status Tab with Zixi
AV Input - Source Settings
1
2
Figure 3 - "Encoder" Tab - AV Input
2
1
3
5
4
6
ZIXI Stream Status Box
Status: Indicates the status of the input.
Host IP: User dened IP address or host name. The
public IP address of the device (Decoder or Broadcaster)
you are streaming to.
Conn. Up Time: Indicates the uptime of connection.
Reconnects: Indicates the number of reconnections.
Bitrate: Indicates the transport stream bitrate of the
encoder.
Tx Bytes: Indicates the transmit bytes being sent.
14
17
15
18
16
19
14
15
16
17
18
19
Figure 2c

13
800-523-6049 | www.rldrake.com
Composite Video Adjustments
Brightness: Range is +/- 30 (increments of 1)
Contrast: Range is 0.3 to 2.0 (increments of 0.1)
Saturation: Range is 0 to 2.0 (increments of 0.1)
Hue Shift (degrees): Range is -89.6 to +85.4 (increments of 0.3)
Encoder Tab: AV Input
Audio Codec: Options are: MP2 for MPEG-1 Audio Layer 2, AC-3 for Dolby Digital (AC-3), or AAC (Advanced Audio
Coding)
Audio Bitrate: Options are: 128, 192, 224, or 384 Kbps.
Audio DialNorm: behaves as an audio Automatic Gain Control (AGC) or Dynamic Range Control (DRC). It has the
ability to take different incoming audio levels and normalize them. The ability of the Dialog Normalization depends on
the conguration of the Dynamic Range Control. The encoder allows you to adjust the normalization from -1 to -31 dB.
The typical value is -27 dB. This is based on the standard lm audio formats which normally are between -25 and -31 dB.
5
6
3
4
Figure 4a - "Encoder" Tab - Encoding - Audio Encoder Settings
1
3
2
1
2
3
Audio Encoder Settings (Figure 4a)
AV Input - Source Settings (continued, see Figure 3)
Stream 1: MPEG-4/AVC HD (See Figure 4b, next page)
Video Encode
Video Bitrate, HD Input: Range is 3.5 to 13 (incremented by 0.1)
NOTE: Once an input is applied, only the detected resolution (SD or HD) will be displayed. Both SD & HD video bitrates are
displayed only when no input is detected.
Video Bitrate, SD Input: Range is 1 to 4 (incremented by 0.1)
P-Frames per GOP: Species total number of P frames in a Group-of-Pictures (GOP). Options are 0, 1, 2, 3, 4, 5, 9,
14, and 29.
B-Frames per I/P-Frame: Species number of B frames between each I or P frame in a GOP. Range is 1.3 to 4.
NOTE: When streaming H.264 HD stream the default P-Frame per GOP is 14 and the default B-Frame between I/IP is 3, which
gives you a default Total GOP Length of 60.
7
4
5
6
Encoder Tab Encoding:

14
800-523-6049 | www.rldrake.com
Transport Stream
Transport Bitrate, HD Input: Range is 4.125 to 25 (incremented by 0.125)
Transport Bitrate, SD Input: Range is 0.625 to 25 (incremented by 0.125)
NOTE: TS Bitrate must be greater than 0.400 Mbps + audio bitrate + video bitrate.
Transport Stream ID: Congures the transport stream ID number used Program Specic Information (PSI) tables in
the stream. Range is 1 - 65,535.
Program Number: Congures the MPEG Program used in all PSI tables for this stream. Range is 1 - 65,535.
PMT PID: Congures the Packet Identier (PID) used to transmit all Program Map Tables in the stream.
Video PID: Congures the PID used to transmit Video and associated data.
Audio PID: Congures the PID used to transmit audio and associated data.
NOTE: All PIDs are displayed in Hex format. If you type a decimal format into the eld, the GUI will automatically convert your
decimal format to a Hex value. PIDs are expressed in both decimal & hex formats to the right of the entry eld.
Service Info Type: Default value is "None"
If set to "DVB/SI", the following elds are enabled:
DVB Network Name - user-specied eld for the "Network Name" in the DVB NIT table.
DVB Service Name and DVB Provider Name - user-specied eld for these elds in the DVB SDT table.
If set to "ATSC/PSIP", the following elds are enabled:
VCT Short Name: 7-letter name for the channel.
Major Channel Number - Species the Major Channel Number in the VCT. Range is 1 - 999.
Minor Channel Number - Species the Minor channel number in the VCT. Range is 1 - 999.
Stream 1: MPEG-4/AVC HD (continued, see Figure 4b)
Encoder Tab: Encoding
12
13
14
15
11
8
9
10
Figure 4b - "Encoder" Tab - Encoding - Stream 1: MPEG-4/AVC HD
4
8
12
6
10
14
5
9
13
7
11
15

15
800-523-6049 | www.rldrake.com
Encoder Tab: Encoding
Video Encode
Video Bitrate: Range is 1 to 4 (incremented by 0.1)
P-Frames per GOP: Species total number of P frames in a Group-of-Pictures (GOP). Options are 0, 1, 2, 3, 4, 5, 9,
14, and 29.
B-Frames per I/P-Frame: Species number of B frames between each I or P frame in a GOP. Range is 1.3 to 4.
NOTE: When streaming MPEG-SD stream the default P-Frame per GOP is 4 and the default B-Frame between I/IP is 2, which
gives you a default Total GOP Length of 15.
Transport Stream
Transport Bitrate, SD Input: Range is 0.625 to 25 (incremented by 0.125)
NOTE: TS Bitrate must be greater than 0.400 Mbps + audio bitrate + video bitrate.
Transport Stream ID: Congures the transport stream ID number used Program Specic Information (PSI) tables in
the stream. Range is 1 - 65,535.
Program Number: Congures the MPEG Program used in all PSI tables for this stream. Range is 1 - 65,535.
PMT PID: Congures the Packet Identier (PID) used to transmit all Program Map Tables in the stream.
Video PID: Congures the PID used to transmit Video and associated data.
Audio PID: Congures the PID used to transmit audio and associated data.
NOTE: All PIDs are displayed in Hex format. If you type a decimal format into the eld, the GUI will automatically convert your
decimal format to a Hex value. PIDs are expressed in both decimal & hex formats to the right of the entry eld.
Service Info Type: Default value is "None"
If set to "DVB/SI", the following elds are enabled:
DVB Network Name - user-specied eld for the "Network Name" in the DVB NIT table.
DVB Service Name and DVB Provider Name - user-specied eld for these elds in the DVB SDT table.
If set to "ATSC/PSIP", the following elds are enabled:
VCT Short Name: 7-letter name for the channel.
Major Channel Number - Species the Major Channel Number in the VCT. Range is 1 - 999.
Minor Channel Number - Species the Minor channel number in the VCT. Range is 1 - 999.
Stream 2: MPEG-4/AVC SD (Figure 4c)
23
24
25
16
17
18
19
20
21
22
Figure 4c - "Encoder" Tab - Encoding - Stream 2: MPEG-4/AVC SD
16
19
23
18
21
25
17
20
24
22

16
800-523-6049 | www.rldrake.com
Video Encode
Video Bitrate, HD Input: Range is 3.5 to 13 (incremented by 0.1)
NOTE: Once an input is applied, only the detected resolution (SD or HD) will be displayed. Both SD & HD video bitrates are
displayed only when no input is detected.
Video Bitrate, SD Input: Range is 1 to 4 (incremented by 0.1)
GOP Length: Group-of-Pictures (GOP) length. Range is 1 to 127 (incremented by 1). Default value is 15
Transport Stream
Transport Bitrate, HD Input: Range is 4.125 to 25 (incremented by 0.125)
Transport Bitrate, SD Input: Range is 0.625 to 25 (incremented by 0.125)
NOTE: TS Bitrate must be greater than 0.400 Mbps + audio bitrate + video bitrate.
Transport Stream ID: Congures the transport stream ID number used Program Specic Information (PSI) tables in
the stream. Range is 1 - 65,535.
Program Number: Congures the MPEG Program used in all PSI tables for this stream. Range is 1 - 65,535.
PMT PID: Congures the Packet Identier (PID) used to transmit all Program Map Tables in the stream.
Video PID: Congures the PID used to transmit Video and associated data.
Audio PID: Congures the PID used to transmit audio and associated data.
NOTE: All PIDs are displayed in Hex format. If you type a decimal format into the eld, the GUI will automatically convert your
decimal format to a Hex value. PIDs are expressed in both decimal & hex formats to the right of the entry eld.
Service Info Type: Default value is "None"
If set to "DVB/SI", the following elds are enabled:
DVB Network Name - user-specied eld for the "Network Name" in the DVB NIT table.
DVB Service Name and DVB Provider Name - user-specied eld for these elds in the DVB SDT table.
If set to "ATSC/PSIP", the following elds are enabled:
VCT Short Name: 7-letter name for the channel.
Major Channel Number - Species the Major Channel Number in the VCT. Range is 1 - 999.
Minor Channel Number - Species the Minor channel number in the VCT. Range is 1 - 999.
Encoder Tab: Encoding
31
32
33
34
35
36
29
30
26
27
28
Figure 4d - "Encoder" Tab - Encoding - Stream 3: MPEG-2 HD
26
29
33
28
31
35
27
30
34
36
32
Stream 3: MPEG-2 HD (Figure 4d)

17
800-523-6049 | www.rldrake.com
Encoder Tab: Encoding
Video Encode
Video Bitrate: Range is 1 to 4 (incremented by 0.1)
GOP Length: Group-of-Pictures (GOP) length. Range is 1 to 127 (incremented by 1). Default value is 15
Transport Stream
Transport Bitrate, SD Input: Range is 0.625 to 25 (incremented by 0.125)
NOTE: TS Bitrate must be greater than 0.400 Mbps + audio bitrate + video bitrate.
Transport Stream ID: Congures the transport stream ID number used Program Specic Information (PSI) tables in
the stream. Range is 1 - 65,535.
Program Number: Congures the MPEG Program used in all PSI tables for this stream. Range is 1 - 65,535.
PMT PID: Congures the Packet Identier (PID) used to transmit all Program Map Tables in the stream.
Video PID: Congures the PID used to transmit Video and associated data.
Audio PID: Congures the PID used to transmit audio and associated data.
NOTE: All PIDs are displayed in Hex format. If you type a decimal format into the eld, the GUI will automatically convert your
decimal format to a Hex value. PIDs are expressed in both decimal & hex formats to the right of the entry eld.
Service Info Type: Default value is "None"
If set to "DVB/SI", the following elds are enabled:
DVB Network Name - user-specied eld for the "Network Name" in the DVB NIT table.
DVB Service Name and DVB Provider Name - user-specied eld for these elds in the DVB SDT table.
If set to "ATSC/PSIP", the following elds are enabled:
VCT Short Name: 7-letter name for the channel.
Major Channel Number - Species the Major Channel Number in the VCT. Range is 1 - 999.
Minor Channel Number - Species the Minor channel number in the VCT. Range is 1 - 999.
Stream 4: MPEG-2 SD (Figure 4e)
Figure 4e - "Encoder" Tab - Encoding - Stream 4: MPEG-2 SD
37
39
43
41
45
38
40
44
42
42
37
43
38
44
39
45
40
41
IP Output - 1 (Figure 4f)
Enable Output: Options are: Enable or Disable
Source Stream: Each IP Output can be set to one of the following: Stream 1, Stream 2, Stream 3 or Steam 4.
46
47

18
800-523-6049 | www.rldrake.com
Encoder Tab: Encoding
Figure 4g - "Encoder" Tab - Encoding - IP Output
52
54
56
53
55
57
Enable Output: Options are: Enable or Disable
Source Stream: Each IP Output can be set to one of the following: Stream 1, Stream 2, Stream 3 or Steam 4.
Destination IP / Hostname: Destination unicast or multicast IP address or Hostname determined by the downstream
network device.
Destination Port: Destination port assigned to the IP or Hostname of the IP Output
TTL (Time to Live): See "#50, IP Output - 1" for description on this setting. The range is 1 to 255 and is incremented
by 1. (Factory Default: "128").
DiffServ / DSCP: See "#51, IP Output - 1" for description on this setting. Congures the value of the differentiated
services code point (DSCP) eld in the IPv4 header for the video output stream. (See Figure 4f for options)
Press the "Apply" button to apply the settings.
52
53
54
55
56
57
Destination IP / Hostname: Destination unicast or multicast IP address or Hostname
determined by the downstream network device.
Destination Port: Destination port assigned to the IP or Hostname of the IP Output
TTL (Time to Live): TTL is an upper bound on the time that an IP packet can exist in an
IP network. The value is set by the sender of the packet, and reduced by every host on
the route to packet’s nal destination. If the Time to Live reaches zero before the packet
arrives at its nal destination, then the packet is discarded. The purpose of this eld is to avoid an undeliverable packet
from circulating on an IP network perpetually. The range is 1 to 255 and is incremented by 1. (Factory Default: "128").
DiffServ / DSCP: Congures the value of the differentiated services code point (DSCP) eld in the IPv4 header for the
video output stream. The format of this eld is specied by IETF RFC2474, but actual values are specied by several
related RFCs. The encoder does not support explicit congestion notication (ECN) which makes use of the lower 2 bits
of this header eld. (See Figure 4f for available options)
48
49
50
51
Figure 4f - "Encoder" Tab - Encoding - IP Output
46
48
50
47
49
51
IP Output - 1 (continued, see Figure 4f)
IP Output - 2 (Figure 4g)

19
800-523-6049 | www.rldrake.com
Zixi Output Settings
When setting up the Zixi option version of the encoder, the user will rst need to insert the License Key within the Admin
Panel (see page 27). Once this is done, the Zixi Output sections for Stream 1 and 2 will show up as follows in the Encoder
Tab: Encoding Screen, under the IP Output sections (See Figure 4h):
To begin setting up the Zixi Outputs:
Click on the plus (+) sign next to each Output section title (See Figure 4h) in order to expand the section.
All settings may now be seen (See Figure 4i). To close the section again, simply click the minus (-) sign in the title.
The following options can now be set for Zixi Output Stream 1 and Stream 2:
Zixi Output (Stream 1) (See Figure 4j, next page)
Enable Output:Options are Enable or Disable.
Channel: Uniquely identies a given stream on the port. Several streams can be “multiplexed” on the same UDP port.
Password:Used to prevent unauthorized connections but does not encrypt the stream. The encoder's password MUST
match the decoder's password. Note: An empty eld is equivalent to no password.
Max Latency:Used to set maximum allowed latency of the stream over the Zixi protocol. Units are in milliseconds and
are numeric values ranging from 100 to 5000 in increments of 100. Default option is “Auto”.
a) Setting Max Latency to a low value means more forward error correction (FEC) is needed to guarantee stream
delivery.
b) Setting Max Latency to a higher value allows the Zixi layer to use re-transmission instead of / in addition to FEC.
NOTE: In general, higher latency yields lower CPU load on the encoder and less overhead on the data rate.
Hostname/IP Address: User-dened IP address or host name.
Port:The UDP port used for communicating from the encoder-to-broadcaster. Default port used by Zixi broadcasters
is "2088".
58
59
Figure 4h - "Encoder" Tab - Encoding
Zixi Output: Stream 1 & 2 (Closed)
58
60
61
62
63
64
65
Figure 4i - "Encoder" Tab - Encoding
Zixi Output: Stream 1 & 2 (Open)
59
Encoder Tab Encoding (Zixi):

20
800-523-6049 | www.rldrake.com
Zixi Output (Stream 2) (Figure 4k)
Enable Output:Options are Enable or Disable.
Channel: Uniquely identies a given stream on the port. Several streams can be "multiplexed" on the same UDP port.
Password:Used to prevent unauthorized connections but does not encrypt the stream. The encoder's password MUST
match the decoder's password. Note: An empty eld is equivalent to no password.
Max Latency:Used to set maximum allowed latency of the stream over the Zixi protocol. Units are in milliseconds and
are numeric values ranging from 100 to 5000 in increments of 100. Default option is "Auto".
a) Setting Max Latency to a low value means more forward error correction (FEC) is needed to guarantee
stream delivery.
b) Setting Max Latency to a higher value allows the Zixi layer to use re-transmission instead of / in addition
to FEC.
NOTE: In general, higher latency yields lower CPU load on the encoder and less overhead on the data rate.
Hostname/IP Address: User-dened IP address or host name.
Port:The UDP port used for communicating from the encoder-to-broadcaster. Default port used by Zixi broadcasters
is "2088".
Press the "Apply" button to apply the settings.
Zixi Output (Stream 1) (continued, see Figure 4j)
Encoder Tab: Encoding (Zixi)
Figure 4k - "Encoder" Tab - Encoding - Zixi Output: Stream 2 (example)
66
68
70
67
69
71
66
67
68
69
70
71
Figure 4j - "Encoder" Tab - Encoding - Zixi Output: Stream 1 (example)
60
62
64
61
63
65
