I. INTRODUCTION
We are giving you the iScan ultrasound scanner, which is designed for field veterinarians
and specialists dealing with reproduction of large animals.
iScan provides an excellent and clear image, which makes the diagnosis much easier. Durable
and robust housing makes it possible for the iScan to be used in the harshest conditions. The
ultrasound scanner is very light and handy, which makes working with it very easy and
convenient.
iScan functions together with an electronic linear probe for rectal examination, fixed permanently
to the device. It is designed mainly for diagnostics in the reproduction of mares and cows.
Moreover, it can be used to examine horses’ tendons and eyeballs and in case of every
examination, where the electronic linear probe can be used.
Read this instruction manual carefully before starting the ultrasound scanner. It will guarantee
safe usage and long, reliable functioning of the device.
Placing the mark informs that the iScan ultrasound scanner fulfils the general requirements
concerning basic safety for electric equipment and basic requirements of the EU directives:
- Electromagnetic compatibility directive (89/336/EEC directive)
- Low voltage directive (2006/95/EC directive).
On the basis of successfully conducted research, it can be stated that the device does not emit
radiation which can have a negative influence on the operator, even in case of implanted active
or inactive medical device.
Declaration of the device’s conformity is available in the Dramiński company’s seat at Owocowa
17, 10-840 Olsztyn.

4

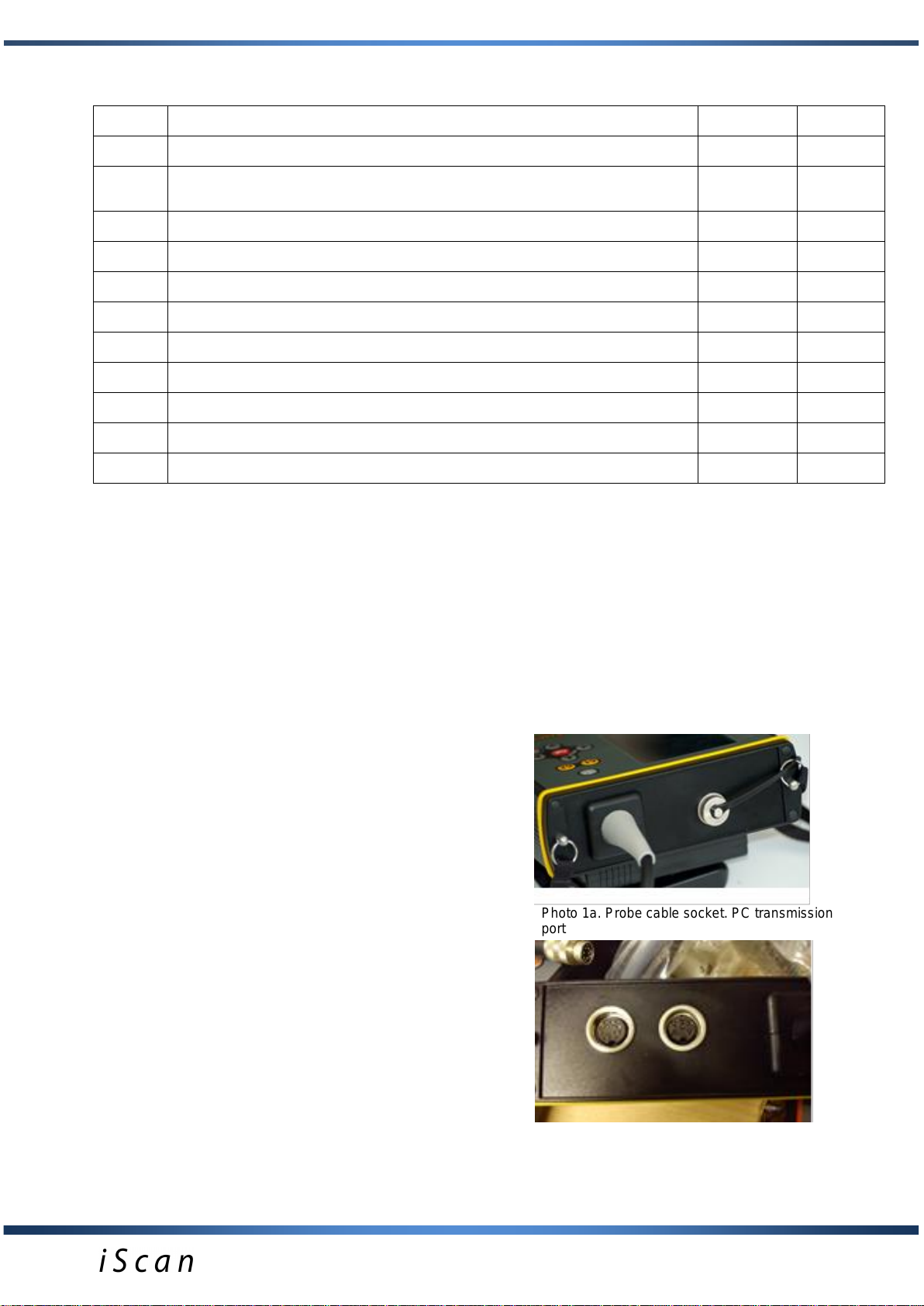

Photo 1a. Probe cable socket. PC transmission
port
II. EQUIPMENT
Item
Name and description
Standard
Prestige
1
Housing with the LCD and LED screens and membrane keyboard
1
1
2
Electronic linear probe, rectal, fixed permanently
1
1
3
Carrying belt
2
2
4
External Li-ion power package 14,1V / 3,1Ah
1
2
5
Special charger for the battery pack with cables
1
1
6
USB cable for image transmission
1
1
7
Software for image and cine loops saving on the PC
1
1
8
Transport case with foam insulation
1
1
9
Sun protector for screen
-
1
10
Gel distance cap (stand off) for probe
optional
optional
11
Goggles
optional
optional
III. CONSTRUCTION
The device comprises of three main elements:
1. Housing with membrane keyboard, 5” screen with LED illumination and port for
communication with a PC.
2. Ultrasound probe.
3. External package of rechargeable batteries.
Housing is made of high-quality aluminium, has an
increased level of protection –IP65. On the upper side
of the housing there is a port (closed with a cap) for
image transmission through the USB port to a PC and
permanently fixed socket of the probe cable (Photo 1a).
The version with goggles (Photo 1b) has two
sockets on the upper side (both closed with caps):
5–pin socket for pictures and cine-loops
transfer to an external device, e.g. PC, Mac,
12–pin socket for plugging in the goggles.
Photo 1b. Version with goggles. 5-pin socket
for data transfer to a PC and 12-pin socket
for goggles

5
Housing is equipped with 4 –point system of straps to mount the carrying belt
(to hang the device on the user’s neck).
Front panel –in addition to monitor screen LCD LED type –is equipped with membrane
keyboard with buttons to adjust parametres and settings.
Batteries of Li-ion type –specially configured, make
an enclosed package with its own thermal fuse,
protecting from overheating during charging.
In the package’s housing there is a charging socket
and special openings with the ultrasound scanner.
During operation the package is mounted with a
special strap at the bottom of the device. (Photo. 3).
Battery life cycle is estimated at 500 charging cycles.
Thanks to the use of advanced high-capacity batteries
it is possible to achieve the working time of even up to
5 hours. The charger (Photo 4) is used to charge
batteries. (use only original charger)
with terminals for electric connection
Photo 2. Battery
Photo 3. Strap and terminals for battery
Photo 4. Charger
Probe (head) is designed mainly for rectal
examinations of cows and mares, tendon and
ophthalmological examinations.
iScan cooperates with a broadband probe (4-9
MHz) with main frequency of 7.5 MHz and with
working width of 60mm.
Photo 5. Electronic linear probe 7,5 MHz

6
Goggles additional accessory (optional)
Professional goggles are on optional solution used while working in full sun or bright places.
1. Construction
Pic. 1.
The goggles are powered from DVI socket which is located on the side of the scanner.
Pic. 2.
2. Preparation for work
Before turning iScan on, unscrew the cap from top B socket (see pic. 2.). Next connect the
goggle cable and screw the connector. Note you may turn the scanner on.
To turn on the goggles press OK button for 3 seconds. „GOGGLE VGA ON!!!” message will
appear. Next the main display of the scanner will automatically turn off to save the battery.
Remember that you do not have to switch the display between goggles and the saner
every time when you turn on scanner. It remembers last setting all the time.
To switch back to the main display press and hold OK button for 4 seconds. Then you can
disconnect goggles from the scanner.
3. Wearing the goggles
For your comfort and safety fit the goggles on your head before you start to work.
If goggles do not fit right, tighten or loosen a head strap. Check your adjustments every time you
wear your goggles.
4. Angle adjustment
Double hinge between display unit and top bar allows you to adjust angle and distance between
viewfinders and your eyes.
Caution! Be careful when using your goggles! They may obstruct your view!
4. Maintenance
Remember to clean your goggles using cleaning wipes every time after work.
Caution! For cleaning the viewfinders use soft cloth only!
Front double hinge for
angle regulation
Head strap
Cable
Display unit
B
A
A –12 pin socket
B –5 pin socket

7

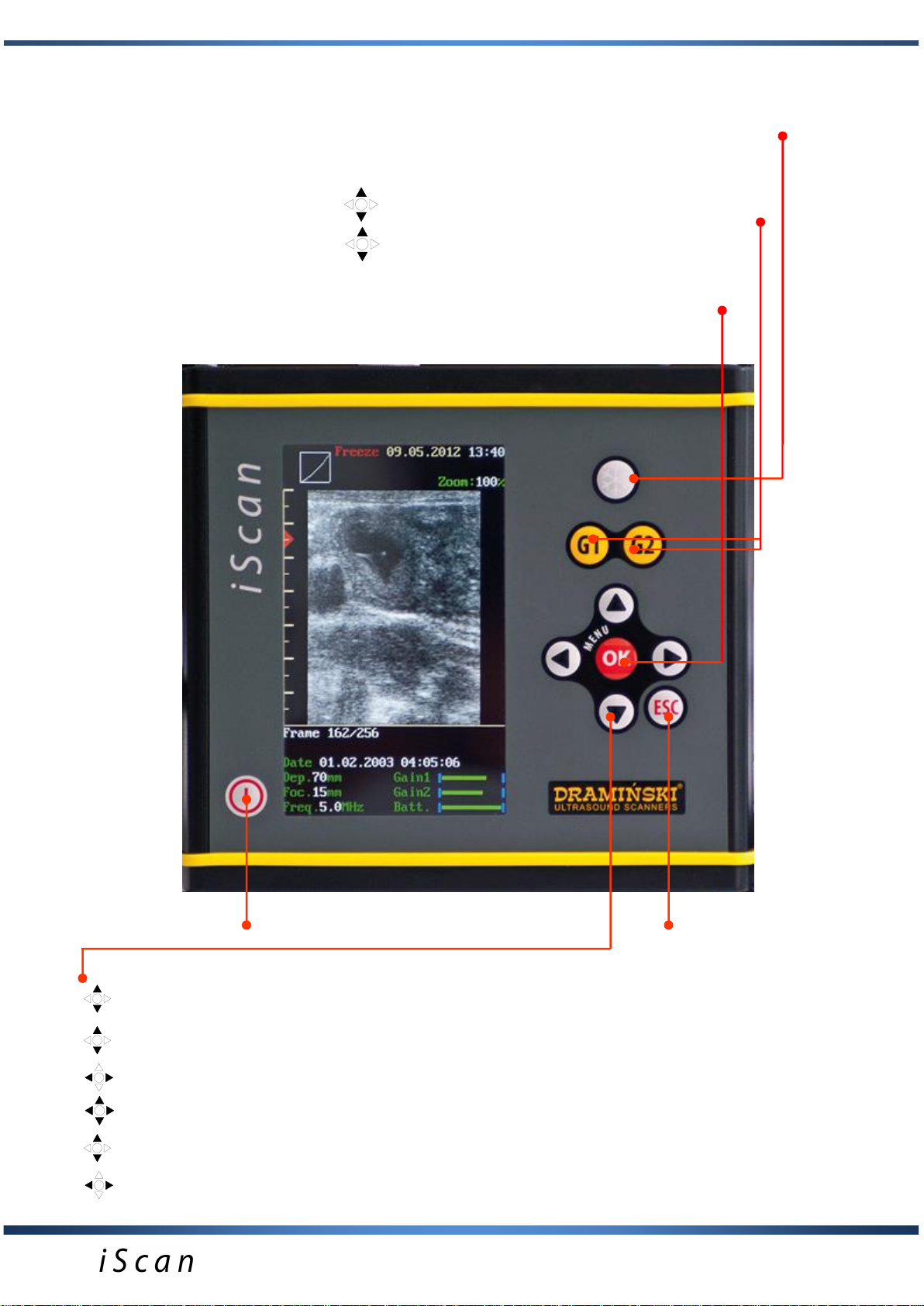

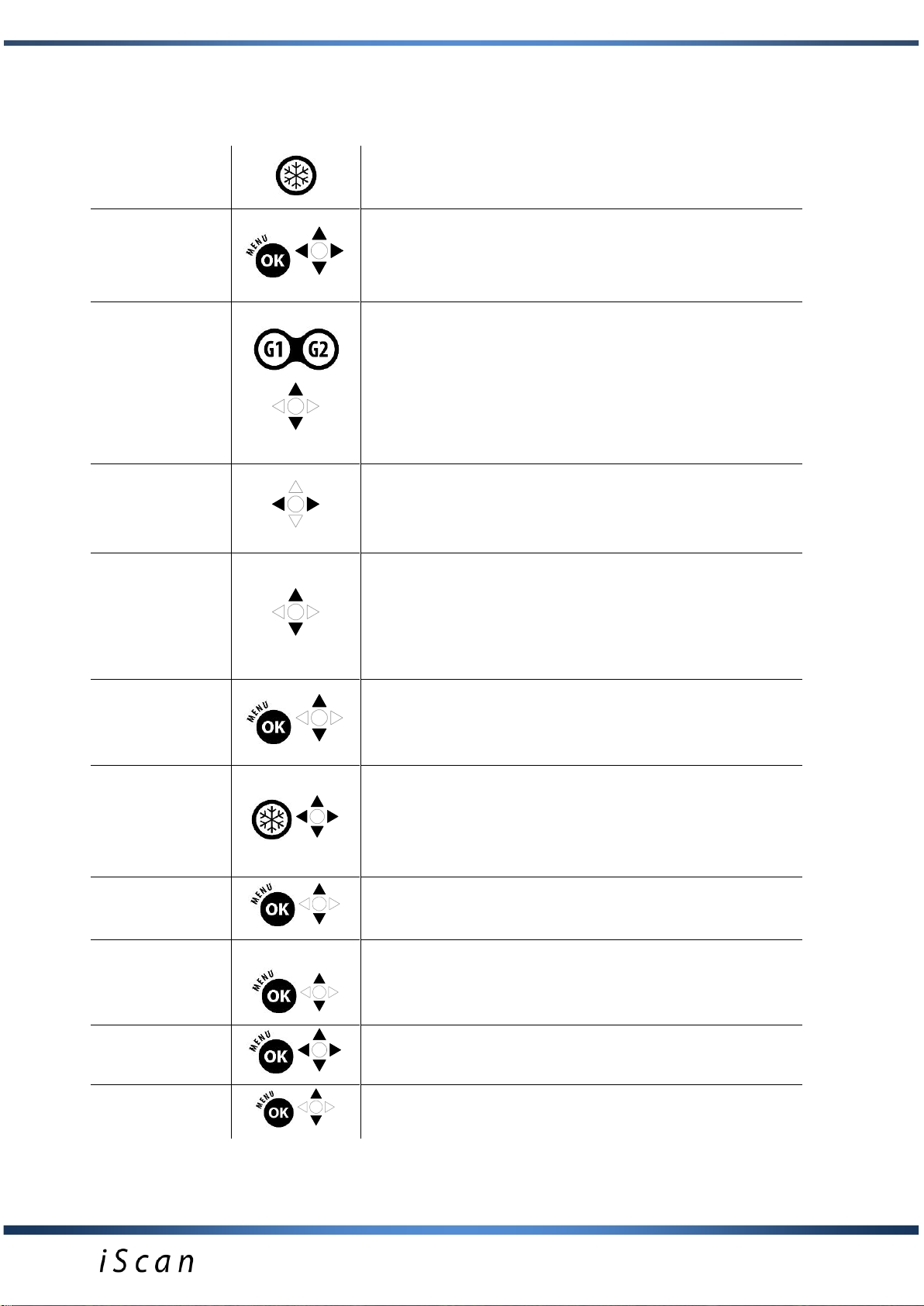

IV. FUNCTION KEYS DESCRIPTION (Right hand keyboard)
1. Image freeze
2. Rescan
3. Turning the device off (after pressing and holding the button)
G1 + = signal amplification adjustment in the closer field
G2 + = signal amplification adjustment in the further field
1. Opening of menu and accepting chosen option, confirming settings
2. Confirming marker position when measuring
On/off switch
Exit menu
Navigation keys:
= scrolling through menu and set of parameter values
= „Cineloop” function automatic rewind/fast-forward of image. After image freezing.
= „Cineloop” function manual advance frame by frame. After image freezing.
= setting markers when measuring, enter name and number of the animal during saving the images and Cine
= setting focus marker at the optimal depth
= setting scanning range (from 33 mm to 120 mm)

8
V. FUNCTION KEYS DESCRIPTION (Left hand keyboard)
1. Image freeze
2. Rescan
3. Turning the device off (after pressing and holding the button)
G1 + = signal amplification adjustment in the closer field
G2 + = signal amplification adjustment in the further field
1. Opening of menu and accepting chosen option, confirming settings
2. Confirming marker position when measuring
On/off switch
Exit menu
Navigation keys:
= scrolling through menu and set of parameter values
= „Cineloop” function automatic rewind/fast-forward of image. After image freezing.
= „Cineloop” function manual advance frame by frame. After image freezing.
= setting markers when measuring, enter name and number of the animal during saving the images and Cine
= setting focus marker at the optimal depth
= setting scanning range (from 33 mm to 120 mm)

9
SCREEN APPEARANCE
Messages and information

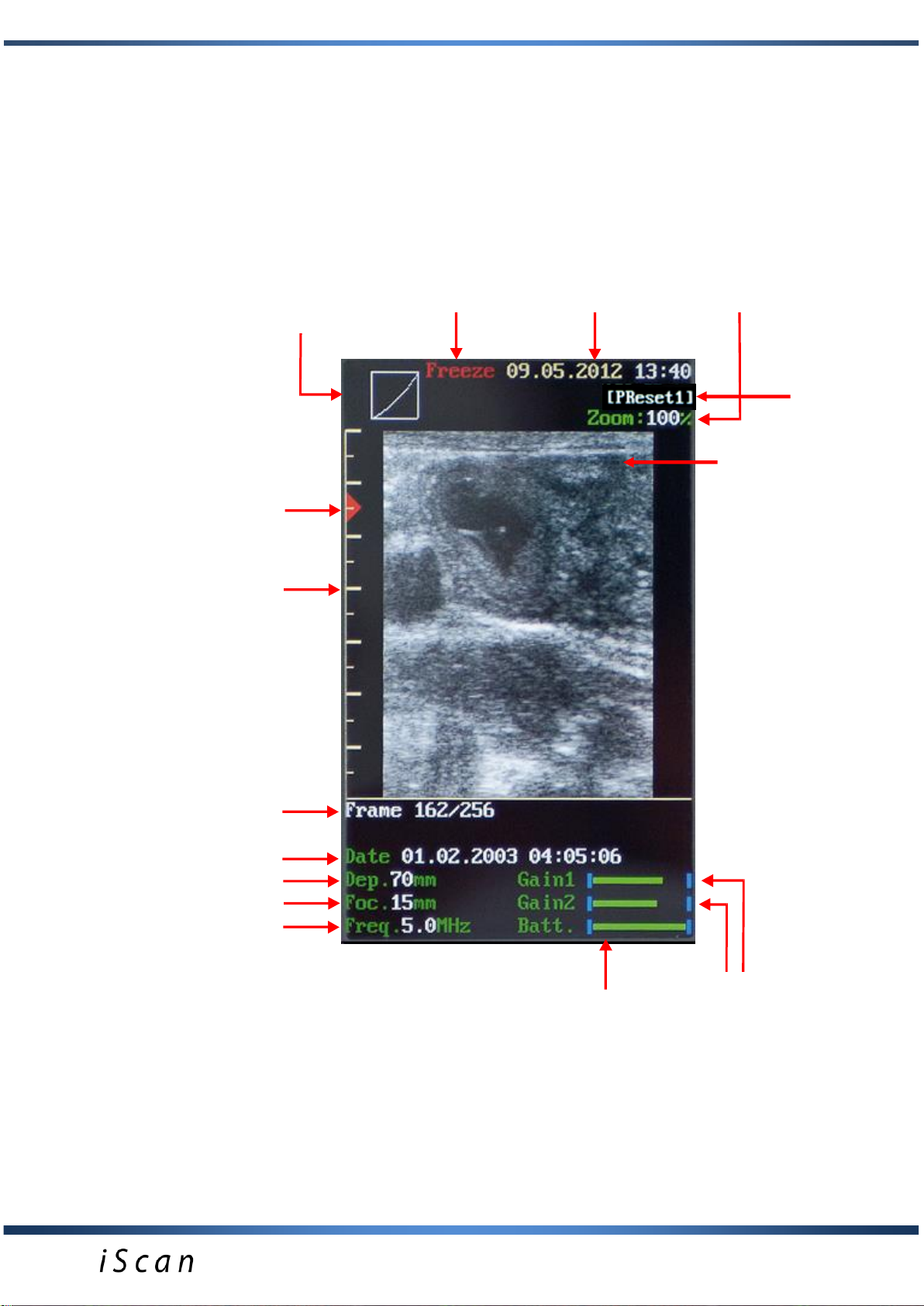

Exemplary screenshot from the iScan with loaded cine with messages and displayed pieces of
information:
wskaźnik focus
wskaźnik poziomu
gamma
nr klatki cine
wskaźniki
poziomu wzmocnień
wskaźnik stanu baterii
poziom zoom
stan pracy aktualna data
głebokość skanowania
data zapisu cine
poziom focus
częstotliwość głowicy
linijka
*
direction set for
displayed image
R/L
Gamma level
indicator
Work status
Date
Zoom level
Focus indicator
Ruler
Cine frame No.
Cine save date
Scanning depth
Focus level
Probe frequency
Battery state indicator
Gain level indicators
preset

10
VI. MENU STRUCTURE
Easy to use and clear menu allows the user to use the following options:
Rules of scrolling through the Menu
The iScan menu has 2 levels:
level I –main menu options
level II –submenu options (presentation shown on diagrams in chapter VI)
In order to go from option to option in menu you can use navigation buttons ; chosen
option will be marked with a green background.
To confirm chosen menu option use the „OK”button
To exit chosen menu option use the „ESC”button
In some options in the upper or the lower part of the screen there will be displayed red
hints, as to which buttons should be used to set or change the chosen parameter.
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Presets

11
MENU STRUCTURE
Menu options:
Image. Option to save images to memory, to show them
on screen - load.
1. Save. Option to save images.
After freezing the image you can save it in the device’s
memory under consecutive index number from 1 to 200. Under
the saved image a message with suggested index number
appears. It is possible to add description under the image
(please check the menu: Settings - Saving option). Saving will
take place after confirmation of the index number with the OK
button. Suggested index number is always the consecutive
one. Time of saving one image equals ca. 1 second.
2. Load.Option of opening saved images.
After choosing this menu option with the OK button, there
always appears the last saved image. In the lower part of the
screen the index of image loaded from memory is visible.
Using keys you can change image number which results in
an automatic load of consecutive images.
3.Search. An option of searching saved image by its name.
After choosing this menu option you have a possibility for fast
finding an image by its name.
Press "Search" button, use arrowsto put the name of the
image you are looking for, moving between fields can be done
by pressing buttons. Press OK and the image will appear
on the display.
Cine. Option of saving video sequences to memory, to
show them on screen - load.
1. Save Cine. Option of saving Cine loop.
After freezing the image you can save to memory the
sequence of 256 frames (ca. 20 seconds of cine loop) under
consecutive index number from 1 to 50. Under saved image
sequence a message with suggested index number appears.
It is possible to add description under the CineLoop (please
check the menu: Settings - Saving option). Saving will take
place after confirmation of the index number with the OK
button. Suggested index number is always the consecutive
one. Time of saving one image equals ca. 1 second .
2. Load Cine. Option of opening saved image sequence.
After choosing this menu option with the OK button, there
always appears the last saved Cine sequence. In the lower
part of the screen there is an index visible. Using keys you
can change image number which enables the view of the first
frame of saved sequence. Pressing OK results in loading of
chosen Cine loop. Loading time equals ca. 10 seconds. After
loading the frame sequence you can rewind/fast-forward them
and stop on any frame by using  (frame by frame) and 
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Presets
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Presets
Save
Load
Search
Cine
Save
Load
Search

12
keys (play video).
3.Search. An option of searching saved cine loop by its
name.
Measurements. Option of measuring objects on frozen
image.
After choosing this menu option a white marker appears on the
image, which can be moved with navigation buttons: and
. Marker placement is confirmed with the OK button. After
confirming the position, it changes its colour to green and a
second marker appears, so you can measure distance
between them. After pressing the OK button a new cursor
appears and you can measure distance between another set
of cursors.
The user can make 4 measures on one image. Each
measurement is marked with a different colour. In the lower
part of image there are shown values in mm for each distance
measurement.
In addition, when pressing G1 button you can save measured
image to memory. By pressing G2 open the menu with
advanced measurements and age tables included. The
message about G1 and G2 key functions is displayed at the
bottom of the screen.
Advanced measurements. –an option to take precise
measurements of the test object and to determine the age of
the fetus.
After entering the Measurements option and pressing G2
button, an advanced measurement menu is displayed. Select
options with arrow buttons. The selected mode is marked
with an asterisk.
Area –measuring the surface area of an object requires taking
two measurements (length and width). At the bottom of the
image a message is displayed with the measurement result
expressed in mm2. The surface area is always calculated
based on the last two measurements.
Volume –measuring the volume of the object requires taking
3 measurements (height, width and depth of the object). At the
bottom of the image a message is displayed with the
measurement result expressed in mm3. The volume of corpus
luteum is calculated based on 3 measurements and translated
into the actual result with the use of a special rate.
In the Advanced Measurements option it is possible to
determine the age of fetus based on precise measurements.
The age of the fetus is displayed at the bottom of the image
and expressed in days.
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Presets
Measure
*Lenght
Area
Volume
COW_LCC
COW _DBP
HORSE_DSG
HORSE _DC
HORSE _DO
SHEEP_LCC
LAMA_DBP
SOWS_LCC

13
Grid. Option of approximate dimensioning with help of line
placed on the image grid.
After choosing this menu option it is possible to turn the grid or
viewfinder on and turn off this option with navigation buttons:
. Grid is scaled automatically along with the scanning depth
change. The grid has resolution of 0.5 cm for 33 mm and 40
mm depth, in other cases resolution equals 1 cm. Viewfinder.
Option of approximate dimensioning with help placed on the
image scale with the resolution of 1mm
Mode. Option of showing image in the live mode.
1. B Mode (Single) Shows single image in full screen.
2. B+B Mode (Double) Shows simultaneously two images on
the screen. One is frozen, second one is active. It enables
juxtaposition of two examined objects, image by image, for
comparison. After pressing the Freeze button in this option, an
active image stops and by using ESC button it can be moved to
the left side of the screen. Pressing the Freeze button again will
activate the image on the right hand side of the screen.
3. B+M Mode Two images are displayed simultaneously on the
screen. One of the images is a B Mode presentation, and the
other shows changes of the B Mode image as a function of
time.
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Info
Presets
Mode
B Mode
B+B Mode
B+M Mode
Species
Method
abbr.
Measured dimension
Fetus age range
cow
LCC
Skull-tail length
From 30 to 80 days
DBP
Ear-to-ear head diameter
From 65 to 200 days
sheep
LCC
Skull-tail length
From 30 to 70 days
horse
DSG
Fetus bag size
From 9 to 45 days
DC
Head diameter
From 90 to 200 days
DO
Eye diameter
From 90 to 330 days
llama
DBP
Ear-to-ear head diameter
From 75 to 240 days
sow
LCC
Skull-tail length
From 20 to 50 days
The table shows a programme for obstetric calculation available in the device

14
Frequency. Option of changing signal frequency from
head in order to optimise the image.
Option enables filtering of frequency generated from a
broadband head, in range from 4MHz to 9MHz. Frequency
value is shown under the image in the lower part of the screen.
The higher the frequency, the shorter the wave, so scanning is
shallower.
Gamma. Option of image change in scope of greyscale in
order to optimise the image on 8 levels (0-7).
This option enables a change of image properties in scope of
contrast and brightness –gamma correction. In the upper part
of the screen there is a graphic form of a gamma curve.
Gamma level can be changed with buttons.
Zoom. Option of enlarging image.
With this option you can enlarge the shown image from 100%
to 120%, 140%, 160%. To adjust zoom you can use buttons
and confirm with the OK button. This option works both with
image freeze and in real time.
Settings. Options for changes of system settings and
memory clearing.
Switch L-R. Option of reversing image from head to the
left or the right side.
After choosing this option the user can change the shown
image to side reflecting the anatomical structure of the animal.
It is important in the case of rectal examination by left-handed
or right-handed users.
Marking *on the screen shows the actual image setting and
indicates the end of the probe.
Brightness. Option of adjusting brightness level of the
LCD monitor.
After choosing this option you can change brightness of the
monitor in range value of 1 to 15.
Date, Time. Option of setting date and clock.
In the lower part of the screen a message with proper fields to
set Year / Month, day and Hour / Minute appears. Settings are
done with buttons, whereas moving between fields can be
done by pressing buttons. Correctly set date and time are
confirmed with the OK button.
Language.Option of setting language version of the
system.
After choosing this option a window with a language table to
choose from appears (on the Polish market the only available
version is Polish).
After choosing the language and pressing the OK button the
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Info
Uwaga! Przy wybieraniu opcji z menu zawsze wyświetlane są informacje
Settings
Switch L-R
Brightness LCD
Date, Time
Language
Erase memory
Factory Settings
Auto shutdown
Sound
Save option

15
system automatically changes into the chosen language
version.
Erase memory.Option of erasing saved images from
memory.
After choosing this option the system shows a message with
question „erase memory”3 times. This activity erases the
device’s memory completely and causes a loss of saved
images.
Factory settings.Option of restoring factory settings.
After confirming this option system shows a message: „To
restore Factory settings, Press OK”. After pressing OK the
system will turn off and after rebooting switches to factory
settings. This option should be used only in the case of device
working in an improper way.
Auto shutdown. Option of setting for automatic shut off
the device.
You can choose the time after which the device is shut down
since you last pressed the keyboard, e.g. 2, 5, 10, 20, 30
minutes or - - - - the device does not turn off automatically.
This option helps to save battery.
Sound. This option enables to turn ON or OFF the sound
of the buttons.
Save option. This option enables to turn ON or OFF the
image description (name and number of the animal) while
saving the image to the memory.
After choosing this option a message " Enable desc." will
appear. The user can choose YES or NO using navigation
buttons. If the user change this setting to YES, then describing
of the image will be possible (during saving them to the
memory) with digits and letters using navigation buttons
.
Changing the description. The user can change or add the
description under image/CineLoop, which was saved to the
memory and then load. After loading the image/CineLoop
please press G1 or G2 button to activate description field. To
finish editing please press OK. button.
Information. Option presenting factory data of the system-
data for service purposes only.
Cine
Measure
Grid
Mode
Frequency
Gamma
Zoom
Settings
Info
Presets
Preset1
Preset2
Preset3
Preset4
Save Preset
Presets. An option which allows the user to save the
optimum device settings.
The user can save the most appropriate settings in the device's
memory. To do this, select the Presets option from the menu,
then Save Preset and confirm with OK button and with the use
of arrows, then  name the setting and confirm with OK
button. The name of the currently used preset will appear at the
top of the screen.
After turning the ultrasound scanner off and then restarting it,
the selected preset does not change. Every modification of
parameter results in exiting the preset and the preset name will
not be displayed.
Presets
Preset1

16
VII. MOST COMMONLY USED FUNCTIONS during an examination
Image freezing
After pressing this button the image is frozen and in the upper
part of the screen appears the message “Frozen”. After
longer hold the device turns off.
Measuring
MENU / MEASURE. After freezing the image can be
measured by using cursors (markers). You confirm the
marker position with the OK button.
Amplification
adjustment
Signal amplification adjustment.
Gain 1 button = amplification in the closer field. After pressing
G1 the level is adjusted with navigational buttons which
are active for 2 seconds.
Gain 2 button = amplification in the further field. After
pressing G2 the level is adjusted with navigational buttons 
which are active for 2 seconds
Change of
penetration depth
Penetration range is adjusted with navigational buttons 
These parameters are adjusted in order to gain optimal image
quality, depending on examination type and examination
conditions.
Focus
Settings of manual focus are adjusted with navigational
buttons. On the left side of screen near the ruler icon there is
a red triangle, which can be moved with navigational buttons
at the image height, which we want to sharpen. This
function is designed to sharpen the image of the examined
object as best as possible. Information about set focus value
is shown at the bottom of the screen.
Filtering signal
from converters
MENU / FREQUENCY
Possibility of probe signal filtering with navigational buttons
. Adjustment in the range of between 4MHz to 9 MHz
Cineloop
Function allowing to replay maximum of 256 last frames since
the moment of image freezing. Using navigational buttons
 you can manually move consecutive sequences of the
conducted examination frame by frame or by using buttons
you can automatically replay cine loop forwards/backwards
Zoom
MENU / ZOOM. Function of percentage increase of image
from 100% to 120%, 140%, 160%.
B+B Mode
MENU / MODE. Division of the screen into two sections (dual
display mode) enabling viewing or comparing the frozen
image with the one being actually scanned.
Saving images
and Cine
MENU / IMAGE or CINE. Function enables quick saving of
image or cine loop 256 frames to memory.
GAMMA
MENU / GAMMA. Function enables adjustment of brightness
and contrast levels in order to optimise image during
examination.

17
MEASURING WITH CURSORS
Distance, depth
1. After freezing the image you should press
“OK” to open a dialogue window of the main menu.
2. Out of the shown options you have to confirm
the “Measurements” position with the “OK” button.
3. A marker (cursor) appears in the middle of
the screen. Simultaneously, below the image actual
state of the measured parameter are shown e.g.:
depth D0=22 mm, which means a distance of
cursor from the probe’s front of 22 mm.
4. Using navigational buttons  you should
set a marker in the chosen position on the screen
and confirm its position by pressing OK –a new
green marker appears and simultaneously under
the image there will be a message about
measuring state, distance between cursors, e.g.
L0=12mm. This result will be saved after confirming
with the OK button.
5. Using navigational buttons again you should
set another marker in the chosen position on the
screen and confirm with OK. Simultaneously in the
measuring message there will be the actual
distance between positions of consecutive couple
of markers e.g.: L1=11 mm shown.
6. Measuring operation can be conducted for 4
pairs of cursors, by conducting in sequence the
above described activities. Further measuring
results are presented below the image and they are
colour-coded for better identification.

18
VIII. PREPARATION TO WORK
In order to prepare the iScan ultrasound scanner to work you should conduct some basic
activities:
1. Take the ultrasound scanner with mounted battery pack out of the case
2. Put around your neck and adjust length of the carrying belt
3. Turn on the power and check battery state on the graphic indicator
4. Unscrew slighty about 0,5 to 1 turn the connector cap
5. Ultrasound scanner is ready to work
IX. EXAMINATION OF ANIMALS
Before starting the work you should prepare the device and accessories.
1. Turn on the power and check the charge level of batteries.
2. Sometimes to conduct an examination you will need a special gel (we recommend using gels
designed especially for ultrasound examination, the best are the ones with special certificates
allowing them to be used).
Images acquired during examination are influenced by a series of factors, among other things,
such as the place of applying the head, penetration plane (namely means of putting the head)
and examiner’s experience.
3. During the examination the keyboard is used to set the best working parametres in given
conditions. The device “remembers” last used settings. To achieve the optimal image of the
examined object you should use possibilities of amplification adjustment, gamma level,
scanning depth, focus adjustment, head frequency adjustment.
4. Take special care during examination of animals.
X. CHARGING BATTERIES
Li-ion battery is a multiple-charging pack. Life span of the battery depends on the ways of
its usage. It is for the best if it works in full cycles i.e. full charge –complete discharge.
Dramiński iScan has a graphic indicator of battery condition in the lower part of the screen.
Shortening and change of colour of battery condition indicator, from green to yellow, informs
about battery discharge in ca. 1 hour 45 minutes. If the scanner is left turned on, then a deep
discharge of pack will take place and device will eventually turn off.
To charge the battery pack you should conduct a series of activities according to the following
sequence:
a) turn the ultrasound scanner’s power off (ON/OFF),
b) connect charger’s cable to the socket in the pack,
c) connect charger to the wall plug 230 V / 50 Hz,

19
d) watch the diode in charger –change in colour from red to green means proper and full
charge.
Charging a completely discharged battery takes ca. 2 hours 30 minutes. After fully charging the
battery the charger automatically stops charging.
Warning
It is forbidden to conduct repair of the charger by the user and device disassembly by
unauthorized personnel.
The battery for the device should be charged only with a charger designed for it.
Do not use the charger in damp or wet places. It may result in damage of the device.
Before using the charger always make sure that its main elements are not damaged.
In case of finding any damages, immediately disconnect the device from power source and
replace the faulty element with a new one.
Precautions when using Li-Ion battery pack
Do not disassemble battery packs that make an integrated whole.
Do not throw battery packs into fire and heat them.
Do not exert physical force on packs or throw them.
In situation when an electrolyte discharge from pack can be observed, you should immediately
cease using it.
Do not allow to let the liquid enter the pack’s inside, which may result in sudden temperature
rise of battery and danger of electric shock.
Do not leave the battery pack in high ambient temperature e.g. inside the car directly in the
sunlight, near heat sources. Not observing these rules may result in an electrolyte leakage
from the battery and its damage or shortening its life span.
The battery should be charged in an ambient temperature between 0 °C and 40 °C. Charging
battery in the ambient temperature different than set range may result in danger and
permanent damage to the pack.
In the case of problems with charging after long time of usage (ca. 500 cycles) you should
replace the battery pack with a new one.
Used battery packs should be subject to recycling according to relevant regulations.

20
XI. DEVICE AND PROBE MAINTENANCE
Device is especially designed to work in harsh conditions, where during usage it can get
significantly dirty. The iScan ultrasound scanner should be cleaned with a wet cloth soaked with
a delicate detergent solution directly after use. Before wet cleaning the battery pack should be
disconnected from the device, because of its not waterproof housing. While cleaning, the USB
socket should be closed with the cap attached to the housing.
Caution!
There is a special micro-valve implemented inside the USB connector for pressure
compensation. The connector cap shall be slightly loosen while transport or during normal
operation (unscrewed about 0.5 to 1 turn). This way the pressure will automatically compensate
inside the scanner. The cap shall be tightened while washing the scanner or while the device
may be at risk of the direct contact with water.
After wet cleaning the scanner should be wiped dry and packed into the transport case. The USB
port cap shall be loosen prior to placing the scanner inside the case.
Probe can be cleaned with running (not hot) water or immersed in water
with an addition of detergent or properly dissolved disinfectant.
Do not use highly concentrated agents and scrubbing agents. During cleaning, always
protect contacts and sockets from moisture.
Protect the probe head against mechanical damage.
It is necessary to protect the head of the probe and the cable against physical
damage.
Remember:
- To put the cable properly. Improper placement and twisting of the cable leads to its
damage.
- To put the probe and the cable properly in the case. Avoid squeezing of the cable by
the case’s cover. It may cut the wire.
- To keep the probe in a proper and safe place.
XII. OPERATION NOTES
Signs of unusual behaviour of
device
Checking actions
Lack of power –the device does
not turn on
Check if the pack is properly connected or the
cleanliness of contacts. You can also check proper
operation with a different pack or check the battery level
with the charger.
Image too bright or too dark
Check amplification and GAMMA level adjustments
Lack of charging indicator in
charger
Check cable connections
Check power network
Short work time on battery
1. Battery not charged
2. Low ambient temperature
3. Battery is exhausted (normal sign, resulting from the
battery’s construction)
