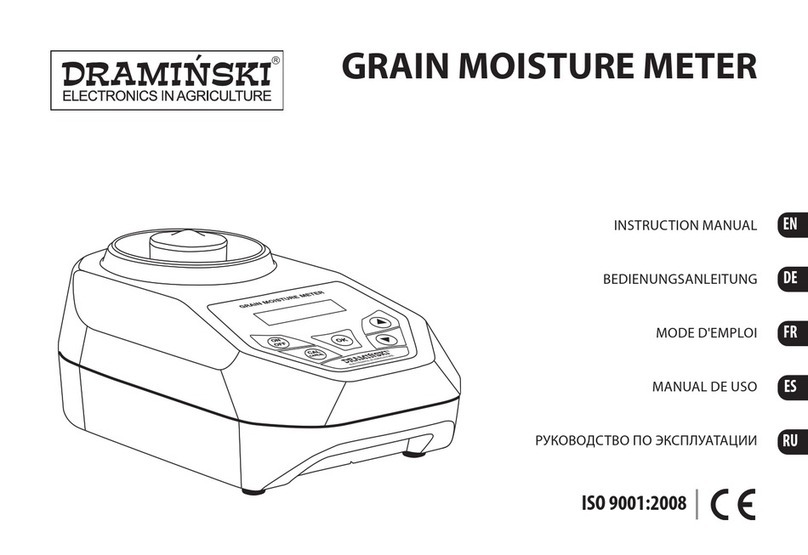

Draminski GMM mini User manual

USER MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
MANUAL DE USO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
www.draminski.com
ISO 9001
RU
ES
FR
DE
EN
DRAMINSKI GMM mini
Grain Moisture Meter

1
EN
CONTENTS
INTRODUCTION....................................................................................... 3
COMPONENTS ......................................................................................... 5
PRODUCT DESCRIPTION...................................................................... 7
KEYBOARD FUNCTIONS .....................................................................11
DEVICE OPERATION .............................................................................13
INSTRUCTIONS FOR MEASUREMENTS..........................................17
MEASUREMENTS...................................................................................21
LIST OF AVAILABLE SPECIES
AND ADDING NEW TYPES OF GRAIN.............................................27
UPDATING VIA USB ..............................................................................29
MODIFICATION OF MOISTURE INDICATIONS .............................31
MAIN MENU............................................................................................35
BATTERY REPLACEMENT....................................................................43
FINAL NOTES..........................................................................................45
TECHNICAL DATA..................................................................................47
SECTION 1 |
SECTION 2 |
SECTION 3 |
SECTION 4 |
SECTION 5 |
SECTION 6 |
SECTION 7 |
SECTION 8 |
SECTION 9 |
SECTION 10 |
SECTION 11 |
SECTION 12 |
SECTION 13 |

2

3
EN
INTRODUCTION

4
Thank you for choosing the new Draminski GMM mini
grain moisture meter. This excellent device will be very
useful in your activity. It is small and light, easy to take to
the eld, and gives quick and precise measurements, al-
lowing to determine the exact grain moisture.
Innovative solutions, state-of-the-art technology and
great versatility due to the possibility of updating through
the USB port, make it a good long-term investment.
Increase your crops and enjoy your work with the Dramin-
ski GMM mini grain moisture meter.
The manufacturer – DRAMIŃSKI S.A. oers its users great
knowledge and reserves the right to introduce hardware
and rmware modications. DRAMIŃSKI S.A. reserves the
right to amend the contents of this instruction manual.
Read this instruction manual thoroughly before putting
this device into operation. It will guarantee the safety
of operation as well as long and reliable functioning of
the tool.
Declaration of conformity is available for review at the
seat of DRAMIŃSKI S.A. at 17 Owocowa st., 10-860 Olsztyn,
Poland.
For more information and data, visit our website
www.draminski.com
Please note that electronic equipment
and batteries must not be disposed of
in household waste containers. Used
equipment and appliances should
be delivered to special disposal facili-
ties, according to the valid regulations.
Proper waste disposal helps to save the
natural environment.
INTRODUCTION

5
EN
COMPONENTS
SECTION
1

6 SECTION 1 | COMPONENTS
COMPONENTS:
1. Draminski GMM mini grain moisture meter
2. Mini-USB port rubber cap
3. 2 AA type batteries, 1.5 V (LR6)
4. Reusable transport packaging (made of plastic)
5. Special dosage tube with slider
6. Instruction manual
7. USB cable for computer connection
1
2
3
4
6
5
7

7
EN
PRODUCT DESCRIPTION
SECTION 2

8 SECTION 2 | PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
1. Heavy duty ABS plastic casing
2. Measuring chamber with digital temperature sensor
3. Graphic LCD display with LED backlight
4. Membrane keyboard
5. Battery compartment for 2 AA type batteries, 1.5V (LR6)
6. Mini-USB port with rubber dust cap
7. Dispenser
8. Dispenser damper
1
2
4
5
3
7
8
6

9
EN
APPROXIMATE DIMENSIONS
12,5 cm
19,0 cm
SECTION 2 | PRODUCT DESCRIPTION
8,0 cm
11,0 cm
8,0 cm
15,0 cm

10 SECTION 2 | PRODUCT DESCRIPTION

11
EN
KEYBOARD FUNCTIONS
SECTION 3

12
– Device on/o,
– Hold for 5 seconds to switch o the device
(NOTE: the GMM mini can be switched o
also by using the menu option “Turn o!”.
If the device is not in use for a long time, it
will switch o automatically to save the
batteries),
– Hold for 2 seconds to switch on the main
menu,
– Program function cancel.
– Program function enter,
– Measuring program start.
– Menu scrolling,
– Setting values of menu options,
– Grain selection from the list.
– Delete average result in given sample
moisture measurement.
SECTION 3 | KEYBOARD FUNCTIONS

13
EN
DEVICE OPERATION
SECTION 4

14
The GMM mini is ready for use when batteries are
properly installed in their compartment (check po-
larity).
Switch on the device using .
a) Welcome message will be displayed, showing the
device name, software version, calibration version
and serial number:
www.draminski.com
Grain Moisture Meter mini
Firmware v: 1.42 K:1.10
SN: GM010007
b) Next, a list of available species will be displayed
and device model and current battery status will
appear in the upper part of the screen (recently
tested species will be backlit):
GMM mini
Choose species
Rye
Canola
Spring barley
Oat
CAUTION! If batteries are too weak to continue
work, the device will display the following
message:
GMM mini
Change batteries
Which indicates that batteries must be replaced.
c) In order to save batteries, when no key is pressed
for a certain time, the device will go to a standby
mode and the backlight will turn o (that time can
be changed through the proper menu option –
see MAIN MENU section). Press any button to re-
turn to the operation mode.
SECTION 4 | DEVICE OPERATION

15
EN
d) If the GMM mini remains in the standby mode for
several minutes, it will shut o automatically (time
setting possible in menu). Countdown from 10 to
0 will display on the screen – press any button to
stop, or the device will shut o automatically to
save power:
GMM mini
Power o in 5 s
GMM mini
Power o in 1 s
e) For manual switch o, hold button for 5
seconds, or select“Turn o!” in the main menu.
SECTION 4 | DEVICE OPERATION

16 SECTION 4 | DEVICE OPERATION

17
EN
INSTRUCTIONS
FOR MEASUREMENTS
SECTION 5

18
Following the manual as well as experience gained
in time will largely facilitate reaching the expected
accuracy and repetition of sample moisture meas-
urements.
– Size of grains and purity of test sample
determine obtaining a correct result. Cha,
screenings and dirt content within the sample
should be as low as possible,
– Water remaining on top of the sample (e. g. dew)
can aect measurement result. Samples should be
aired before measurement to avoid it,
– The dispenser included in the set must be used
to dose a proper amount of grain because the
waythemeasuring chamberislledisimportant
and determines measurement accuracy. Fill the
dispenser with small surplus and remove the
damper always the same way,
– While measuring, when „Is chamber empty?”
message displays, check whether the chamber
is empty, clean and dry and then press
button to conrm, because the device reads
the parameters of the chamber before it is lled
with grain,
– The nal result of measuring should be the average
value of e.g. 3 recent tests of a given sample, which
is calculated automatically and displayed in the
bottom right corner of the screen (number of
measurements used for calculation of the average
value can be changed in the menu),
– Make sure that the measuring chamber
temperature is the same as the sample temperature
(do not pour cool grain into hot device (e.g. after
being exposed to sunlight) and vice-versa). The
temperature sensor may react with a certain delay,
since the measurement chamber walls have brass
lining,
SECTION 5 | INSTRUCTIONS FOR MEASUREMENTS

19
EN
– Each species has a dierent range of measured
moisture. Results beyond the set range are marked
with a proper sign:
„<8.5%” (below the range), when moisture of tested
sample is lower than 8.5%,
„>35.0%” (above the range), when moisture of
tested sample is higher than 35%.
– If signicant departures are found in the result for
a given species, either too high or too low by a
similar value within the entire measurement range
in comparison with the drying-and-weighing test
method, indications must be modied (see: MODI-
FICATION OF MOISTURE INDICATIONS ).
SECTION 5 | INSTRUCTIONS FOR MEASUREMENTS
