Table of Contents
Indoor Athletic Equipment
Wall-Mounted Backstops .......................... 3
Basketball Backboards .............................. 4
Basketball Goals ....................................... 5
Portable Basketball Systems ...................... 5
Backboard Height Adjusters...................... 6
Accessories & Controls.............................. 7
Wall Pads .................................................. 8
Graphic Wall Pads, Patriot Flag ................ 9
Power Volleyball System.......................... 10
Competition Volleyball System ............... 11
Draper, Inc.
specializes in the design and manufacture of top quality
educational equipment. Since 1902, we’ve been a recognized
worldwide leader in our industry.
We are proud to offer you an extensive line of gymnasium
equipment that carries with it our reputation for quality
materials and superior engineering and craftsmanship.
Choose Draper as your full-line gymnasium equipment
supplier—our quality is unequaled.
Draper also manufactures projection screens, lifts and
mounts for projectors, plasma displays and flat panel dis-
plays and FlexShade window coverings. Please call for
catalogs of any of these product lines, or visit our web site at
www.draperinc.com.
Draper has a tradition of product innovation. Watch for
the logos below to discover new products and features.
Volleyball Accessories......................... 12-13
Physical Education Equipment............14-15
Floor Hockey Goal.................................. 15
Outdoor Athletic Equipment
Basketball Backstop Systems.................... 16-18
Football Goalposts ........................................ 19
Soccer Goals .................................................20
Football & Soccer Accessories....................... 21
Lacrosse & Field Hockey Goals..................... 21
Tennis, Volleyball & Tetherball Systems.......22
Park & Player Benches..................................23
Bike Racks, Tip & Roll Bleachers .................24
2
/
Show Your Colors—We Powder Coat
Powder coating is the advanced method we use
to apply a scratch-resistant color finish to our steel
mechanical tubing on all EZ Fold Basketball
Backstops. Black and white are standard, and other
colors are available at a minimal additional charge.
With nearly unlimited colors to choose from, you
can specify your school colors, or the color of your
choice to have the backstop match the gym decor.
Powder coating creates a smooth, durable, protective
finish. Minimizes touch-ups following product
installation. Considered the most attractive and
durable finish on the market today.

Indoor Equipment
3
765-987-7999 • www.draperinc.com
Wall-Mounted Backstops
Centennial Middle School,
South Lyon, MI. Architect:
Integrated Design Solutions,
LLC. Photography: Wayne
Williams, Indianapolis, IN.
Sulphur (LA) High School, 9th grade
campus. Randall D. Broussard, Architect
LLC. Photography: Barry Champagne,
Houston, TX.
DUW Up-Folding
• Folds upward to nearly
flat against the wall.
• Steel tubing framing
system.
• Two ¼˝ welded-link
chains support unit in
play position.
• Manual or electric
winch operated.
DGW Side-Folding
• Folds to either
side against wall.
• Steel tubing
framing system.
• Telescopic diago-
nal brace provides
locking device
in the play or
stored positions.
• Spring-loaded pin
releases diagonal
locking brace.
SWD Stationary
• Stationary wall mount.
• Direct-mount goal brace.
EZ Fold DUW in folded position.
(Left) DGW Side-Folding backstop at Centennial
Middle School, South Lyon, MI.
Architect: Integrated Design Solutions, LLC.
Photography: Wayne Williams, Indianapolis, IN.
For complete submittals, instructions
or specifications, visit Draper’s
web site at www.draperinc.com.
2
/
SW Stationary
• Steel tubing framing system.
• For units over 3´ from
the wall or with a height
adjuster, a pair of ¼˝ chain sup-
ports are added (shown at right).

Indoor Equipment
765-987-7999 • www.draperinc.com
4

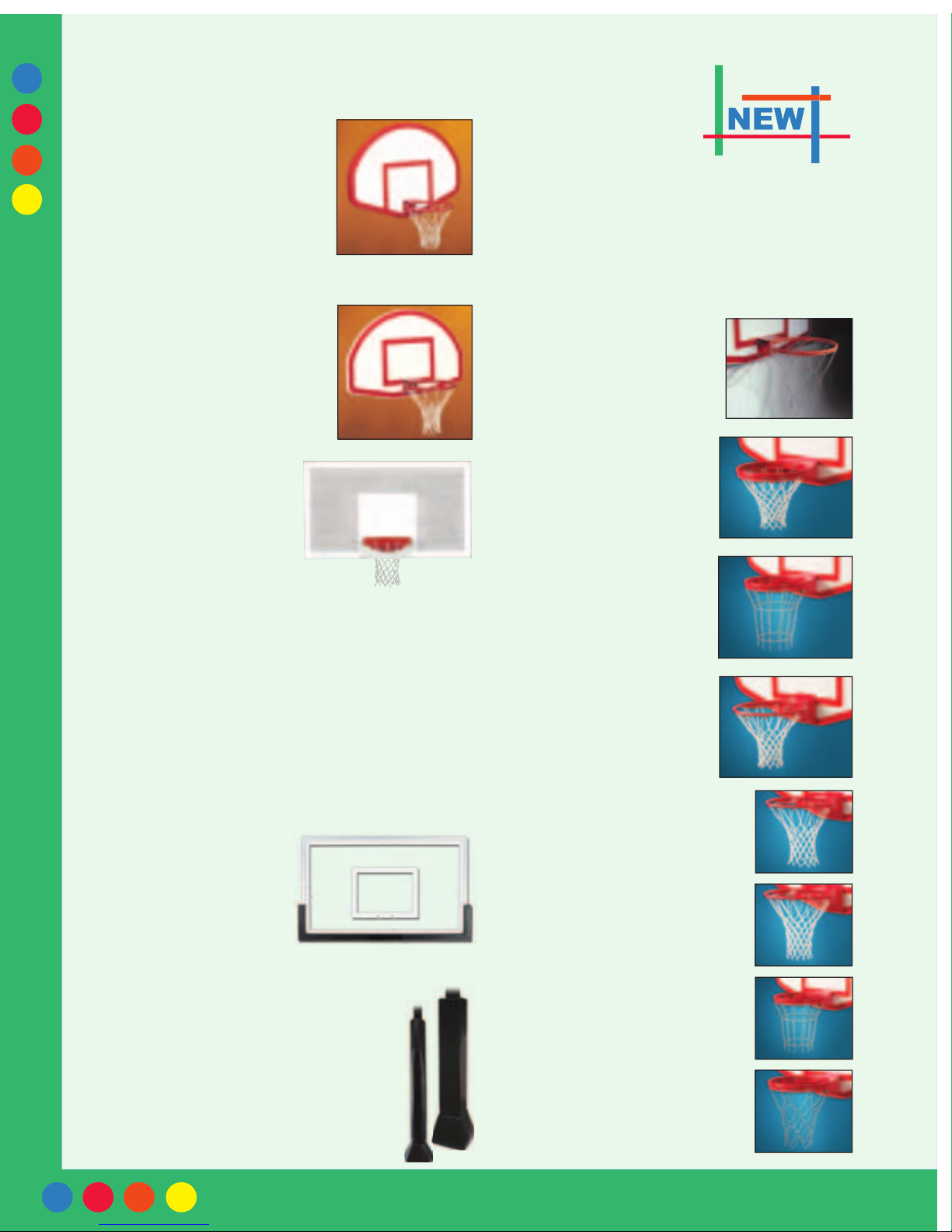

Basketball Backboards
Grey Royal Blue Scarlet Columbia Blue
Navy Kelly Green Gold Forest
Green
Orange Purple Black Maroon
Optional Edge Padding for rectangular backboards
Draper recommends all rectangular backboards be fitted
with edge padding. Three
styles to choose from:
Safe-edge Padding
Grey, open cell foam mate-
rial applied easily with high
strength adhesive.
A0264 1½˝ Wide Padding
A0253 2˝ Wide Padding
A0142 Bolt-on Padding
Available in the 12 colors
below. Pictured above is Royal Blue A0142. This edge pad-
ding is bolted onto the lower edges of the backboard. It has
a molded-in steel track and a five-year warranty on indoor
installations.
A0136 Rectangular Glass
72˝ x 42˝
A0022 Rectangular Glass
72˝ x 48˝
A0137 Downsize Rectangular
Glass 54˝ x 40˝
Fully tempered ½˝ glass with
official white target and bor-
der permanently fired into glass.
Frame constructed of extruded
brushed aluminum. Used only for backstop structures with Goal
Brace direct goal attachments.
A0127 EZ Strut Bank™
72˝ x 42˝
A0126 EZ Strut Bank™
72˝ x 48˝
Same features as A0136 and
A0022 with additional verti-
cal strut to relieve stress on
glass during slam dunks. Goal
is bolted to a plate welded to
bottom of strut for maximum
strength. Used only for backstop structures with four-corner
backboard mounting.
A0132 Rectangular Glass
Conversion 72˝ x 42˝
Designed to replace fan shaped
backboards. Same features as
A0136 with all required con-
version framework attached to
backboard. Incorporates a hori-
zontal member which bolts to
goal for maximum strength.
A0134 Rectangular Fiberglass 72˝ x 42˝
A0023 Rectangular Fiberglass 72˝ x 48˝
White backboard is fabricated
with double ³⁄₁₆˝ shell over resin-
treated honeycomb core. Orange
border and target are applied with
a high gloss gel-coat. Steel attach-
ment T-nuts and goal attachment
holes are through solid plastic
blocks encased between the shells.
Both backboards are designed for
indoor or outdoor use.
A0140 Rectangular Wood 72˝ x 42˝
A0021 Rectangular Wood 72˝ x 48˝
Finest wood backboard available. 55 pcf density solid lami-
nated wood core with eggshell white polyurethane face to resist
abrasion. Inner panels are thermally fused. Border and target
markings are part of laminate to prevent wear.
Limited Lifetime Warranty on all backboards
incorporating EZ Fold Goal Brace.
A0018 Fan Fiberglass (shown) 54˝ x 39˝
Constructed of high quality resins
and fiberglass for years of main-
tenance-free service. Target and
borders are screened on for lasting
durability.
A0020 Fan Glass 54˝ x 39˝
Constructed of high strength alumi-
num frame and ½˝ fully tempered glass. Official white
target and border are permanently fired into glass.
A0133 Fan Aluminum Backboard
White finish with orange border
and target. Lifetime Warranty.
A0267 Rectangular Steel 72˝ x 42˝
A0024 Rectangular Steel 72˝ x 48˝
Constructed of one-piece 12 ga. steel reinforced with
formed steel channel sections at goal and mounting points.
Finished with primer and two coats of outdoor white enam-
el. Fan mounting center.
A0133
A0136
A0127
A0132
A0134
A0018
A0127 backboard
with A0142 padding

Indoor Equipment
5
765-987-7999 • www.draperinc.com
Basketball Goals
A0576 Breakaway Goal with hardware and net: fits both 48˝and 42˝bank.
Official breakaway goal withstands shock loads due to a player slam dunking and/or hanging
on the rim. The rim deflects down when a load of 230 lbs. is applied and returns to the play-
ing position once the load is removed. Shock absorbing, release/return mechanism is concealed
within a fully protective cover. Rim is ⅝˝ diameter steel with 12 “no tie” net attachment clips
welded to the rim. Complete with mounting hardware and nylon anti-whip net.
A0581 Tube Tie Breakaway with hardware and net: fits 48˝and 42˝bank.
Adjustable tension breakaway goal with tube-tie net attachment system—virtually fail safe.
Improves player safety. The rim deflects down when a load is applied and returns to the play-
ing position once the load is removed. Adjustable shock absorbing, release/return mechanism is
concealed within a fully protective cover. Rim is ⅝˝ diameter steel. Complete with mounting
hardware and nylon anti-whip net.
A0570 Stationary Goal with hardware and net: fits both 48˝and 42˝bank.
Official competition goal fits most front mount backboards made of glass, fiberglass and wood.
Rim is ⅝˝ diameter steel with 12 “no tie” net attachment clips welded to the rim. Rim is support-
ed underneath by ⁷⁄₁₆˝ diameter steel rod welded to the rim and mounting plate. Complete with
mounting hardware and heavy-duty net. (For ⅝˝ diameter support brace to withstand up to 800
lbs., specify A0572 Heavy-Duty Stationary Goal—fits both 48˝ and 42˝ bank).
Portable Basketball Systems
Portable Basketball Systems: Padding Choices
In Stock: Special Order—Allow Four Weeks
Maroon Black Forest
Green
Yellow Orange
PurpleMarine
Grey Navy
Kelly
Green
RedDark Blue
Competition styling, an official-sized glass backboard and
breakaway goal make Draper Portable Backstops an af-
fordable choice for facilities looking for premium competition
court and side court systems. Low-maintenance extension
spring technology design makes one-person setup and height
adjustment easy and fast. Model 503018 (at right) has 66˝ of
safe play area, and model 503019 has 96˝. Each has a full size
42˝ x 72˝, ½˝ tempered glass backboard and breakaway goal.
Model 503019 also features a rear anchor kit and added struc-
tural members, ballast and horizontal beam padding to allow
high school or college competition play.
Warranties
Portable Structures...............Ten-Year Limited Warranty
72˝ x 42˝ Glass Backboard ...Lifetime Limited Warranty
Bolt-on Edge Padding .........Five-Year Limited Warranty
Breakaway Goal ..................One-Year Limited Warranty
Tube-Tie Breakaway Goal ...Four-Year Limited Warranty
503040 180° Breakaway Goal with hardware and net: fits both 48˝and 42˝bank.
This goal provides consistent breakaway pressure even during the most aggressive slam dunk action.
The ring assembly floats on chromium ball bearings for smooth any-direction
flexibility. Tube-tie net attachment system allows dependable, easy net instal-
lation without steel wires or ties cords. Constructed of high tensile steel and
with all moving parts hardened for maximum life. Pressure release mecha-
nism is field adjustable. Includes anti-whip net and mounting hardware.
Backboard has a lifetime lim-
ited warranty. Goal height is
adjustable from 5´ to 10´ in 6˝
increments for players of all
ages. Base and front are fully
padded on all sides with 2˝
thick padding. Rolls easily on 8˝
diameter, 2˝ wide running gear.
Ballast is hidden from sight.
Front stabilizers lock in place
for maximum play stability.
Molded bolt-on edge padding
color matches base. Front floor
positioning pins included.
All goals below meet all NCAA
and NFSHSA specifications.
Replacement Nets
503046 Heavy-Duty
Nylon Net
Braided nylon. Bright white.
503045 Heavy-Duty Anti-
Whip Nylon Net
Braided nylon with stiffened
upper loops to reduce net
whip. Bright white.
503040
A0576
A0581
A0570
503018

Indoor Equipment
765-987-7999 • www.draperinc.com
6
Direct Mount 8´–10´Height Adjusters
For Backboards
For rectangular or fan-shaped backboards and goals, our height
adjuster features a direct goal attachment and is designed to
mount to virtually any style of backstop. All Draper back-
boards have a limited lifetime warranty when used with our
height adjuster. Height adjuster includes a self-adhesive height
scale that is graduated in 1˝ increments and labeled at 6˝ inter-
vals. Height adjuster frame assembly is jig welded and factory
assembled to ensure precise alignment and smooth operation.
Motorized Height Adjuster: The electric linear actua-
tor provides smooth reversible motion for loads up to 600 lbs.
Linear actuator includes cam style limit switches that will al-
low 24˝ of travel. The Motorized Height Adjuster’s linear
actuator assembly is bolted in place and easily removed for con-
version to manual operation.
503093 Motorized, for rectangular bank. Operated with Key
Switch or Smart Gym Touch Pad.
503097 Motorized, for fan bank. Operated with Key Switch or
Smart Gym Touch Pad.
503095 Motorized, for rectangular bank with wireless remote
control.
503098 Motorized, for fan bank with wireless remote control.
503096 Motorized, for rectangular bank with EZ Stick Power
Wand.
503099 Motorized, for fan bank with EZ Stick Power Wand.
Direct goal attach-
ment is designed to
mount to virtually
any style of backstop.
Height Adjusters
Electric height adjuster can be raised and lowered to allow 24˝of travel.
503003 Portable Height
Adjuster Operator: A compact,
cordless, reversible electric operator
for use with the Manual Height
Adjuster. Makes the operation of
manual height adjustment an easy task.
Manual Height Adjuster: Is operated with a remov-
able awning-style crank handle and actuated via a ¾˝–6 Acme
threaded rod. Its actuator rod assembly is bolted in place and
easily removed for conversion to electric operation.
503092 Manual, for rectangular backboards.
503094 Manual, for fan backboards.
Manual Height Adjuster at Mt. Pleas-
ant Christian Church, Greenwood,
IN. Includes self-adhesive height scale
(right). Photography by Wayne Wil-
liams, Indianapolis, IN.
Note: Height adjusters may not be compatible with some
support structures and backboards. Detailed dimensional in-
formation may be required to determine compatibility and to
insure correct hardware is provided.

Indoor Equipment
7
765-987-7999 • www.draperinc.com
Accessories and Controls
503023 Wireless
Remote Control
Removable hand crank
for manual winch
503086 Manual Winch.
(Left) top view, (below)
back view of winch.
503029 Posilok™Safety Belt
Safety belts are recommended on all backstops, especially those
suspended over bleachers or playing areas. The Posilok Safety
Belt is self-checking, automatically resets and is virtually fail-safe.
The maximum weight of a suspended load is 1000 lbs. The Posi-
lok Safety Belt checks the speed of the rotating reel six times
per revolution and will instantly lock if the speed exceeds the trip
point of 1½´ per second. Belt includes a maximum extension indi-
cator and breakaway loop to indicate if the Posilok Safety Belt
has been tripped. The Posilok Safety Belt has been cycle tested
to 30 years of typical gymnasium usage with no significant wear
or deterioration of the unit.
Posilok Safety Belt
automatically resets
and is self-checking.
503085 Electric Winch
and Key Switch
503085 Motorized Winch
A one-horsepower motorized winch operates our EZ Fold
basketball backstops. Our winch delivers 1000 lbs. of vertical
lifting and 1500 lbs. of horizontal line pull. Designed to hold the
backstop at any position when raising or lowering the backstop
with the turn of a key. The cable drum is helically grooved for
¼˝, 7 x 19 aircraft cable. The grooves provide proper spooling
of the cable and ensure excellent repeatability of stop positions.
The drum is equipped with a pressure roller with torsion spring
tensioning. It ensures that the cable tracks in the grooves even
under slack cable conditions. The winch has a direct drive, double
worm reduction system. No oil lubrication is required. Automatic
limit switches control the distance of travel in either direction.
Entire winch assembly is UL listed. A 3-position momentary key
switch and cover plate is supplied with each motorized winch.
Five-year warranty.
503023 EZ Power—
Optional Wireless Remote Control
Eliminate complicated, expensive wiring, wall boxes and indi-
vidual key switches with a radio control system. The EZ Power
portable hand held transmitter is capable of operating up to 27 in-
dividual one horsepower electric motor winches. Power supply for
the hand held transmitter is a standard 9-volt battery.
Operating range is at least 125´. Requires item 503020, a 9-station
transmitter, or 503021, a 27-station transmitter.
503086 Manual Winch
For ceiling height under 26´, the EZ Fold
backstop may be operated by a manual
winch with a removable handle. The winch
features double worm-gear reduction with a
36:1 ratio and composite gears to make the
unit virtually maintenance free. The cable drum is helical grooved
for ¼˝, 7x 19 aircraft cable to provide proper spooling. Drum is
equipped with a pressure roller with torsion spring tensioning to
insure cable tracks in grooves even under slack conditions. Gears
and cable drum are enclosed by integral cover. Operated with stan-
dard removable handle or optional A0490 Portable Operator.
A0490 Portable Operator
A compact, heavy-duty, reversible electric operator for use with
manual winch 503086. Complete with an 18˝extension adap-
tor. Makes the operation of manual winch backstops a quick,
easy task. Optionally available with 503048 50´ Power Cord and
503047 Portable Storage Case.
A0490 electric operator
for Manual Winch and
optional 50´ power cord

Indoor Equipment
765-987-7999 • www.draperinc.com
8
Wall Pads
01 White 02 Marine Blue 03 Brown 04 Red
06 Orange 07 Yellow 08 Grey 09 Maroon 10 Dark Blue 11 Black 12 Purple 13 Forest Green 14 Kelly Green 15 Navy
Draper manufactures high qual-
ity gym wall padding to provide
heavy-duty protection for indoor
impact areas. Draper’s Wall Pads
are ideal for basketball courts,
gymnastics areas, wrestling rooms,
rehabilitation centers—any surface
area where padding is needed
Draper standard pad construc-
tion: a 2˝ thick, 3.5 lb. density,
polyurethane foam bonded to a
⁷⁄₁₆˝ thick waferboard which is then
fully wrapped in a vinyl-coated
polyester covering, enhanced by a
leather-like emboss pattern. Cov-
erings come in a variety of colors.
(See color choices and physical
description below.) Optional ma-
terials: a 2˝ thick pad with a 6 lb.
density; a 1½˝ thick polyurethane
pad with a 3.5 lb. or 6 lb. density; a
1½˝ thick polyethylene foam pad;
a ½˝ fire-rated plywood backer;
Vonar®interlining, a flame retar-
dant material. Vonar®is a registered
trademark of DuPont.
Draper will custom make pads any shape or size, including
those for columns, beams, doors and stage fronts. All pads are
manufactured in one-piece construction. Laced, round post
pads without a waferboard backing are available.
All standard Wa ll Pads include a 1˝ lip on the top and bottom
for easy installation over finished or unfinished walls. Or speci-
fy one of the following:
Mounting options available—
• “Z”–Clips at the top and bottom for
wall mounting pads. Edges of the pad
are flush with the wood backer. Elimi-
nates 1˝ lip.
• “Z”–Clip at top and 1˝ nailing strip at
the bottom.
• Channel System: channel attaches to wall clips; trims out top
and bottom lip; remove single pads as needed for repair.
Wall Padding Vinyl Selections
General: Solid vinyl-coated polyester fabric with an em-
bossed pattern.
Weight: Average 14 oz. per square yard.
Strength: 350 lbs. per sq. inch break strength and 65 lbs. tear
resistance.
Resistance to Rot and Mildew: Excellent.
Ultraviolet Resistance: Excellent.
Flammability: Rated as self extinguishing in
accordance with California State Fire Code (f–230).
Printed color may vary from actual vinyl. Color samples available
upon request.
Class A Flame Retardant Wall Pads
Draper’s flame retardant wall pads have been independent-
ly tested as a singular unit and have been found to meet the
requirements of 2003 IBC Section 803.2.1, when tested in
accordance with NFPA 286, and given a “Class A” rating
in accordance with ASTM-E84 and NFPA 255 test pro-
cedures. Test Results: Flame Spread Index = 20; Smoke
Developed Index = 350. Draper uses state of the art flame
resistant polychloroprene latex, open cell foam cushioning
material, rigid OSB backing and vinyl-coated polyester cov-
ering enhanced by a leather-like emboss pattern. Coverings
come in a full range of colors.
(Above) Sulphur (LA) High School, 9th grade campus. Randall D. Broussard, Architect LLC.
Photography: Barry Champagne, Houston, TX.
05 Beige
Draper Wall Pads meet the requirements of ASTM F 2440-04,
“Standard specification for indoor wall padding.”

Indoor Equipment
9
765-987-7999 • www.draperinc.com
Patriot Motorized Flag
Print your mascot, full-color photo, sponsor’s advertising, or any
art you choose on your wall of pads.
• Large format digital image reproduction.
• Printed in 3-color process.
• Images are not silk-screened or made with vinyl tape.
• Art is sharp and clear from any distance.
• Any size is possible.
Images are printed on 18 oz. coated vinyl and laminated for
durability. Over 1000 images to choose from or submit your own
ideas. All designs are sent to the client for final approval prior to
printing. Contact Draper for details.
Large Scale
Graphics
Draper’s newest gym equipment product makes a dramatic presentation of
the United States flag in any gymnasium. “Old Glory” appears at the touch
of a switch or wireless transmitter. Standard product includes a sewn, nylon
flag. Options include state flags or school banners, provided by customer.
The Patr iot can display a flag either vertically or
horizontally. Flag measures 12´ x 18´ with both mount-
ings. The vertical or banner flag is housed in a 12´
case, and the horizontal flag is housed in a 20´ case.
Patriot Motorized Flag at Knightstown (IN) High
School. Architect: R.W. Clinton & Associates, Inc.
Photography: Wayne Williams, Indianapolis, IN.
Wall
Pads
Sulphur (LA) High School, 9th grade campus. Randall D.
Broussard, Architect LLC. Photography: Barry Champagne,
Houston, TX.
Harris Elementary School, Greenfield, IN. Photography: Wayne Wil-
liams, Indianapolis, IN.
Milroy Elementary School, Milroy, IN. Photography: Wayne Williams,
Indianapolis, IN.
(Above) Close-up of flag mounting and
case (right).

Indoor Equipment
765-987-7999 • www.draperinc.com
Power Volleyball System
Every Draper PVS is equipped with a power-tensioning
winch on one upright. The handle folds for player safety.
10
PVS-01 Power Volleyball System is a one-time invest-
ment that nets you all the top quality demanded by today’s
top level volleyball programs. The all-aluminum PVS-01
floor-sleeve type system is a breakthrough in volleyball
technology and engineered for a lifetime of hard use. It will
provide years of trouble-free safe service.
Each post is manufactured with high-strength 3½˝O.D.
aluminum. Height adjustment from 6´1˝ to 8´4˝ in one inch
increments, uses precise mechanical pin adjustment. Each
upright is equipped with an adjustable protective rubber
bumper for fine adjustments. Power winch has a folding
handle to insure player safety.
Consider these PVS-01 features:
• Meets all NFHS, USVBA, NCAA and FIVB require-
ment for competition equipment.
• Adjusts to all competition heights.
• Clear anodized finish for professional looking appearance.
• High maneuverability—lightweight and easy to handle.
• Easy setup–requires only one person just a few minutes.
• Secure cast-in-place 3½˝ I.D. floor sleeves with choice of
flush cover plates provide rigid support—for the life of
the installation.
• Tensioning winch is a heavy-duty, self-locking worm gear
mechanism. A heavy 2˝ wide, high-tensile strength, nylon
strap with heavy-duty snap guarantees safe connection to
the net top cable.
• Easy storage—can be hung on wall hooks, secured with
vertical storage brackets, stored on transporter/storage
cart or tucked away in a closet.
• Heavy-duty construction—built for years of trouble-free
service and rough use.
500001 Single Court System includes:
(See page 13 for additional descriptions)
Telescoping Alu minum St a nda rds—One pair of 3½˝
O.D. aluminum uprights. A power winch is located on the
outside of one post. The second upright is equipped with
an adjustable cable anchor collar.
500004 Power Volleyball Net—One each
500005 Rope Tensioner—Two each
500006 Boundary Markers—One pair
500007 Net Antennas—One pair
500002 Two Court System includes:
(See page 13 for additional descriptions)
Telescopi ng A lu minu m St a nd a rd s —T hree 3½˝O.D. alu-
minum uprights. A power winch is located on the outside of
two posts. Center upright is equipped with double top pul-
leys and adjustable cable anchor collar to attach two nets.
500004 Power Volleyball Net—Two each
500005 Rope Tensioner—Four each
500006 Boundary Markers—Two pair
500007 Net Antennas—Two pair
For complete submittals, instructions or specifications,
visit Draper’s web site at www.draperinc.com.

Indoor Equipment
765-987-7999 • www.draperinc.com
Competition Volleyball System
CVS-01—Two standards stay in place: just lower net to 3´6˝for tennis or 5´1˝for badminton.
11
500010 Single Court System includes:
(See page 13 for additional descriptions)
Fixed Length Aluminum Standards—One pair of 3½˝O.D.
aluminum uprights. A power winch is located on the outside of
one post. The second upright is equipped with an adjustable cable
anchor collar.
500004 Power Volleyball Net—One each
500005 Rope Tensioner—Two each
500006 Boundary Markers—One pair
500007 Net Antennas—One pair
CVS-01 Competition Volleyball System incorporates all of
the top quality features of our PVS-01 with additional versatility.
The all-aluminum CVS-01 floor-sleeve type system adjusts to all
competition for tennis, badminton and volleyball or anywhere in
between. No need to change uprights —just move the net into
position, and the gym is equipped for a different sport.
Each post is manufactured with high-strength 3½˝O.D. aluminum.
Each upright is equipped with an adjustable protective rubber
bumper for fine adjustments. Power winch has a folding handle to
insure player safety.
Consider these CVS-01 features:
• Meets all NFHS, USVBA, NCAA and FIVB requirements for
competition equipment.
• Preset setting for tennis, badminton and volleyball competition
for both men and women—with infinite adjustment to any point
between.
• Clear anodized finish for professional-looking appearance.
• High maneuverability—lightweight and easy to handle.
• Easy setup—requires only one person just a few minutes.
• Secure cast-in-place 3½˝I.D. floor sleeves with choice of flush
cover plates provide rigid support—for the life of the installation.
• Tensioning winch is a heavy-duty, self-locking worm gear mecha-
nism. A heavy 2˝ wide, high-tensile strength, nylon strap with
heavy-duty snap guarantees safe connection to the net top cable.
• Easy storage—can be hung on wall
hooks, secure with vertical storage
brackets, stored on transporter/
storage cart or tucked in a closet.
• Heavy-duty construction—built
for years of trouble-free service and
rough use.
For complete submittals,
instructions or
specifications,
visit Draper’s
web site at
www.draperinc.com.
500011 Two Court System includes:
(See page 13 for additional descriptions)
Fixed Length Aluminum Standards—Three 3½˝O.D.
aluminum uprights. A power winch is located on the
outside of two posts. Center upright is equipped with
double top pulleys and adjustable cable anchor collar for
attaching two nets.
500004 Power Volleyball Net—Two each
500005 Rope Tensioner—Four each
500006 Boundary Markers—Two pair
500007 Net Antennas—Two pair

Indoor Equipment
765-987-7999 • www.draperinc.com
Volleyball Accessories
12
Draper offers a full line of volleyball accessories detailed below.
Additional equipment available upon request. Please call if you
require an accessory that’s not listed below.
Floor Plates
Floor plates in chrome or brass with secured covers and remov-
al key. Protects floor sleeves and mounts flush with all types
of flooring materials. 501001–501003 for new construction;
501004 for existing floors. May be combined with any floor
sleeve below.
Available floor plates: O.D. I.D.
501001 Chrome Plated 5³⁄₁₆˝ 4⅛˝ (swivel type cover)
501002 Solid Brass 7⅜˝ 4¼˝ (flanged)
501003 Solid Brass 6⁷⁄₁₆˝ 5⅛˝ (concealed)
501004 Chrome Plated 8˝ 5˝ (for existing floor)
Floor Anchors
Chrome-plated, one-piece floor anchors are designed for grout-
in installation. Anchors have spring-loaded flush fairings with
standard ½˝–13 NC threads. Specify model 501011 for wood
over concrete floors, or model 501012 for tile, concrete or rub-
ber floors.
Floor Sleeves
Cast-in-place floor sleeve rigidly
secures standards and is adaptable
for new construction and retrofit
on existing floors. Steel mechani-
cal tubing. Square plate welded to
bottom provides secure footing in
concrete.
Floor sleeves: I.D. Depth
501006 3½˝ 8½˝
501008 2⅜˝ 8¼˝
501009 3˝ 8¼˝
501010 4˝ 12¼˝
Transporter/Storage Cart
501016—Heavy-duty transporter is designed to store two
complete PVS-01 Systems, two center standard kits, padding
for standards, and numerous volleyballs in the storage pouch.
(Balls not included). Rolls easily on swivel casters.
501001 501002
501003 501004
501011 501012
Wall Storage Hooks
501017—Pair of steel hooks for mounting
on wood or masonry walls to store game
standards.
Vertical Storage Brackets
501015—Store volleyball posts
in a vertical position. Con-
structed from ¼˝ thick flat steel
and ³⁄₁₆˝ thick angle. Posts are
secured with nylon straps with
hook and loop fastener. Brack-
ets are sold in pairs. Each pair
of brackets is designed to store two posts. Weldment is fin-
ished in attactive gloss black powder coat.
Single Post Transporter
501023—Post Transporter
makes it easy to move volleyball
posts to and from storage area. Con-
structed with 3½˝ID tube welded
to ¼˝thick flat plate. Transporter
features two 1½˝non-marking nylon
casters. Entire unit finished in attractive
gloss black powder coat.

Indoor Equipment
765-987-7999 • www.draperinc.com
Volleyball Accessories
Judges Stand with Protective Padding
5013xx*—Official’s platform constructed of 1½˝, 14 ga., square
tubing uses quick-lock pin attachment to collar on post and rolls
on two non-marking wheels. Supplied with protective padding,
dark blue standard. Heavy-duty construction. *Last two digits in-
dicate color of pads. See page 8 for colors.
Protective Pads for Volleyball Standards
501018—One pair of upright pads for standards provide maxi-
mum player protection. Our 6´ high pads are constructed of 1¼˝
thick, cross-linked polyethylene foam filler covered with poly-
ester reinforced vinyl fabric. Each pad consists of two vertical
sections that attach to each other with hook and loop fasteners
for a quick, easy setup. Each section is hinged at the corners to
fold neatly around posts and tensioning winch. Protective Pads
work equally well when used with a Judges Stand (as seen at
right) or Center Standard Kit. Dark blue is standard, other col-
ors available.
PVS-01 Center Standard Kit
Center Standard Kit for multiple court use in conjunction with
PVS-01 Volleyball System. Same top quality features of PVS-01
standard, but with double top sheaves for attaching two nets. Kit
includes one center standard (501013), one winch with folding
handle, one net (500004), one pair of net antennae (500007)
and one pair of boundary markers (500006). Post pad optional.
CVS-01 Center Standard Kit
Center Standard Kit for multiple court use with CVS-01 Vol-
leyball System. Top collar has dual sheaves for attaching two
nets. Kit includes one center standard (501021), one winch with
folding handle, one net (500004), one pair of net antennae
(500007) and one pair of boundary markers (500006). Post pad
optional.
500004 Power Volleyball Net—32´ x 39⅜˝. Official competition
net. 4˝ square #36 black nylon cord with vinyl-coated polyester
hem double stitched around entire perimeter of net. Top hem
has a 42´6˝ long galvanized aircraft cable with a nylon coating for
top tensioning. Bottom of net has a braided white nylon rope for
bottom tensioning. Each side of net is equipped with three poly-
propylene tension straps with buckles.
500005 Rope Tensioner—A spring-loaded rope tensioner holds
the bottom of the net taut.
500006 Boundary Markers—A pair of 2˝ wide white polyester
reinforced vinyl strips, one for each end of the net.
500007 Antennae—A pair of ⅜˝ dia. fiberglass rods with alter-
nating red and white 4˝ stripes.
Other Net Game Systems
Draper offers a full line of game systems that are not pictured:
• 3½˝ Portable Volleyball System (500008)
• Badminton Game System (502100)
• 2⅜˝ Combination Game System (502105)
Please call if you require an accessory that’s not listed, or see our
Web Site: www.draperinc.com.
Above, a Judges Stand with Protective Padding. Its back leg is en-
cased in a Protective Pad for Standards. Dark Blue is our standard
color, but other colors are available.
13
Power Volleyball System Center Standard Kit

Indoor Equipment
765-987-7999 • www.draperinc.com
Physical Education Equipment
14
Multi-Sport Practice Cages
Draper has a solution to year–around practice: Move in-
doors with our Practice Cage. Our cage has a simple
design but various uses: Step inside and practice swinging
at baseballs, softballs, golf balls and tennis balls; practice
kicking footballs and soccer balls.
Practical in application and design, the unit is motor
operated. A turn of the key will raise or lower the cage sus-
pended from a rotating drive pipe. Four sides and the top
of the cage are fitted with white knotless nylon mesh golf
netting (opening is ¾˝ square). Two corners of the cage are
sewn together, and two are secured using zippers, allowing
one long sidewall to be raised if activity necessitates. Stan-
dard cage size is 10´ high x 12´ wide x 70´ long. Custom sizes
available.
Clock Guard
Draper Clock Guards pre-
vent shattered glass in an
activity area by shielding clock
from flying sports equipment.
Draper makes a heavy-duty
steel frame that fits over most
standard size gym clocks.
Constructed of ¼˝ diameter,
16-gauge steel rods welded to
a steel frame. All components are powder coat treated in a
glossy black finish for years of indestructible protection for
your clock.
The frame mounts securely to the wall. The guard’s inside
dimensions are 20˝ x 20˝ square. The clearance between the
wall and the front of the frame measures 4˝. A 1˝ space lets
the clock cord pass under the frame. For quick and easy ac-
cess to the clock, the clock protector is double hinged on
one side, with a wingnut fastener assembly on the other. No
tools are needed to open or close the guard.
Contrasting end panels added by facility owner.
Climbing Ropes
Draper offers climbing ropes in three different materials and a
variety of ends, optional knots, rubber balls and accessories to
improve muscle tone in the upper arms and shoulders. Standard
lengths of rope are 18´.
Choose the material:
①EZ Manila is 1½˝ rope twisted
from 3 strands of Grade A ma-
nila.
②EZ Rope looks and feels like
natural rope but is a synthetic
“unmanila” fiber. Even
at 1½˝, it is two-thirds the
weight and is superior in
strength to natural rope.
③EZ Poly is 1½˝ polypro core
covered with a soft, durable
cotton-like polyester.
Choose the end:
①Whipped
②Polyboot
③Leather seat on a turk knot
Choose optional climbing
aids; specify quantity and
desired location:
①Woven knots spliced
into the rope for assis-
tance and rest areas.
②Large tied knots used
to form platforms for
climbing assistance.
③Rubber balls available
only on EZ Manila
and EZ Poly ropes.
Choose accessories:
①502004—Tambourine
clamps to any position
on the rope to limit
climbing distance.
②502005—Climbing
Rope Hoist to raise
ropes to wall or ceiling after
use for easy storage.
③502003—Adjustable Beam
Clamp with EZ-link to at-
tach ropes to I-beams, bar
joists and trusses.
④ 502014—Safety cable at-
tachment. A backup safety
device for all ropes. Cable
loops up over your ceil-
ing attachment and secures
to the rope with a ¼˝ pipe
clamp.
①② ③
①
①② ③
①
②
③
②
For complete submittals, instructions
or specifications, visit Draper’s
web site at www.draperinc.com. Note: Custom attachment clamps available.
Contact your Draper dealer for details.

Indoor Equipment
15
765-987-7999 • www.draperinc.com
Physical Education Equipment
Adjustable Chinning Bar
502013—Mount Adjustable Chinning
Bar to the wall for a permanent installa-
tion or to the 2˝ x 4˝ x 54˝ wood wall pads
for adjustability and removal for storage.
Solid steel frame and 1⅛˝ diameter solid
steel bar are welded together for a lifetime
of chin-ups. With wood wall pads, bar is
adjustable in 6˝ increments within a 30˝
range. Frame and bar have a chrome finish.
Stall Bar with Extended Top Rail
502026—Mount single Stall Bar sections sepa-
rately or in a continuous row. Each section is 2´10˝
wide and 8´ high with 11 rungs of 1½˝ diameter sol-
id oak. Rungs are finished with a clear lacquer and
secured to the uprights to prevent turning. Each
section weighs 75 lbs. Assembly hardware and
mounting instructions included.
Arm Ladder
502027—Arm strengthening climbing
ladder is made from heavy-duty tubular
galvanized steel. Upper body strength de-
veloper angles away from the wall for safety.
Five rungs are bolted to the outside rails—
the first four are 8˝ apart and the top one is
approximately 10˝ above the others and 7˝
back toward the wall. Overall dimensions
are 45˝ long and 24˝ wide.
Floor Hockey Goal
502040—Draper’s Floor Hockey Goal
is 4´ h x 6´ w x 22˝ d and is constructed of
1⅜˝ O.D. galvanized tube frame with gal-
vanized steel fittings. Floor hockey goal
includes ¾˝white nylon net and non-
marking floor pads. Net has 14 oz. vinyl sleeves to fit tubing
frame and eliminate need for lacing. Goal can be used for indoor
or outdoor play. Sold in pairs.
Deluxe Adjustable Wall
Chinning Bar
502015—The finest bar
available. Wall mount-
ing brackets and bar are
constructed of galvanized
steel. Bar finished with
black powder coat and
adjusts easily in bracket
using 6˝ wall with lag
bolts and shields. Ready
to mount. 40˝ in length.
Stationary Chinning Bars
These one, two or three section chinning bars feature
the same quality
construction as
our Deluxe Ad-
justable Wall
Chinning Bar,
but are designed
to mount directly
to a wall.
502016—40˝ Single unit chinning bar
502017—82˝ Dual unit chinning Bar
502018—124˝ Three unit chinning bar
Deluxe Arm Strengthening Bar
502028—This Deluxe Arm Strengthening
Bar is made of 1¼˝ heavy gauge steel tubing. It
is powder coated for durability. Seven rungs are
in 7˝ increments for endurance training. Overall
measurements are 63˝ tall and 21˝ wide.
Wall Mounted Horizontal Ladder
502025—Side rails are 12´ long and 1½˝x 4˝ x .083˝ wall
rectangle tubing with capped ends. Side rails are electro-
statically painted. Twelve hardwood rungs are 1⅜˝ dia.
solid maple and are secured to the side rails to prevent
turning. Support frames of 1⅝˝ dia. heavy wall tubing will
position the inside of the ladder 2´-6´ from the wall. 2˝ x 6˝
wood wall pads included. Assembly hardware and mount-
ing instructions included.
For complete submittals, instructions
or specifications, visit Draper’s
web site at www.draperinc.com.

16
Outdoor Equipment
765-987-7999 • www.draperinc.com
Outdoor Basketball Backstop Systems
506993 Titan Adjustable Post Set
Titan’s 6˝square, 3⁄16˝thick post and heavy-duty, dual strut
extension arm makes it one of the toughest adjustable posts
sets available. Tubular H-Frame backboard mount with direct
goal attachment provides maximum rigidity. Post provides a 4´
extension for maximum player safety.
Crank style adjustment system with a double spring assist allows
virtually anyone of any size or age to easily adjust the goal to any
height between 10´and 4´6˝. Indicator shows the rim height.
All pivot points feature welded steel bushings, and post has a
welded top cap to provide long-term durability. Entire post and
extension finished in durable black powder coat. Post is attached
to concrete footing via threaded J-bolt anchoring system to allow
perfect pole leveling and easy removal.
Post set provided with 72˝x 42˝Acrylic Backboard and Outdoor
Breakaway Goal. 506980 Post Pad and 506986 Backboard
Edge Padding are optional.
506992 Force Adjustable Post Set
Force’s 5˝square, 3⁄16˝thick post and dual strut extension make
it a high-quality system that will stand up to even the toughest
play. Post set features the same Tubular H-Frame and direct goal
attachment design featured on our top of the line adjustable post
set. Backboard extends 4´in front of the post.
Crank style adjustment system with spring assist makes it easy
for most people to adjust the goal to any height between 10´and
5´. Indicator shows the rim height.
Post features welded steel bushings at all pivot points and a
welded top cap to provide durability. Post and extension finished
in durable black powder coat. Post is attached to concrete foot-
ing via threaded J-bolt anchoring system to allow perfect pole
leveling and easy removal.
Post set provided with 48˝x 36˝Acrylic Backboard and Outdoor
Breakaway Goal. 506983 Post Pad and 506988 Backboard
Edge Padding are optional.
506991 Slam Adjustable Post Set
Slam post set offers adjustability and durability at an affordable
price. Post is constructed in a single piece from 4˝Square 11-
gauge tubing. Vinyl cap seals post to prevent collection of water.
Backboard extends 24˝in front of the post when goal is set at 10´.
Extension distance increases as rim height is lowered.
Pin-style adjustment allows for the goal to be set at heights from
10´to 7´in 6˝increments. Post has a spring-aided design to make
adjustment virtually effort-free.
All steel components finished in black powder coat for maxi-
mum durability. Post is direct buried 36˝into concrete footing.
Post set provided with 48˝x 36˝Acrylic Backboard and Outdoor
Breakaway Goal. 506981 Post Pad and 506988 Backboard
Edge Padding are optional.
For complete submittals, instructions
or specifications, visit Draper’s
web site at www.draperinc.com.
Titan
Force
Slam

Outdoor Equipment
765-987-7999 • www.draperinc.com 17
Outdoor Basketball Backstop Systems
For complete submittals, instructions
or specifications, visit Draper’s
web site at www.draperinc.com.
506343—4½˝ OD
Gooseneck Post with 4´
Extension, A0133 Fan
Aluminum Backboard
with Border and Target
and A0575 Double Rim
Goal with Nylon Net.
506995
506997
506996
506998
506643—3½˝ OD
Straight Post with 3´
Extension, A0133 Fan
Aluminum Backboard
with Border and Target
and A0575 Double Rim
Goal with Nylon Net.
Gooseneck Style Posts
Gooseneck style posts are our most
popular choice for Outdoor Back-
stop Systems; 3sizes and 4extensions
meet any need and field condition.
Each style post is constructed with
heavy-wall galvanized pipe formed
with an 18˝ to 24˝ radius and horizon-
tal section to extend the board away
from the post. Posts provided with lug
at bottom to prevent rotation in foot-
ing. Goals bolt directly through the
backboard to post to eliminate stress
on the backboard, if a player hangs
on goal. Choose from backboards and
goals listed on page 18.
Rectangular
shaped backboards are supplied with
diagonal sway braces for added stability.
5061XY*—3½˝ O.D. with 3´ extension
5062XY—3½˝ O.D. with 4´ extension
5063XY—4½˝ O.D. with 4´ extension
5064XY—4½˝O.D. with 5´ extension
5065XY—5⁹⁄₁₆˝ O.D. with 6´ extension
* X used to indicate backboard. Y used to indicate goal.
Straight Style Posts
Three sizes and extensions meet any
need and field condition. Each style
post is constructed with heavy-wall
galvanized pipe with lug at bottom to
prevent rotation in footing. Horizontal
extensions are constructed of heavy-
wall galvanized tube and a fitting to
fit over vertical post. Goal height can
be set from 0´–10´. Goals bolt directly
through backboard to post to elimi-
nate stress on backboard, if a player
hangs on goal. Choose from back-
boards and goals listed on page 18.
Rectangular shaped backboards are
supplied with diagonal sway braces for
added stability.
5066XY*— 3½˝ O.D. with 3´ extension
5067XY—4½˝ O.D. with 4´ extension
5068XY— 5⁹⁄₁₆˝ O.D. with 6´ extension
* X used to indicate backboard. Y used to indicate goal.
Heavy-Duty Fixed Height Posts
Draper’s fi x e d h e i g h t p o s t s o f f e r e x c e p -
tional rigidity, uncompromising durability
and maximum safety on even
the toughest basketball courts!
Built from heavy 6˝square 3/16˝
thick steel tubing, our fixed
height posts provide unmatched
stability and durability. De-
signed for the most rugged
playgrounds, the posts performs
equally well on the home court.
The direct bury post is posi-
tioned 66˝behind the back-
board for safety.
The extension arm is attached
to the vertical post via six ⅝˝
high tensile bolts. Though
considered a “fixed height” goal,
the extension arm can be bolted
at any height along the post.
506995— Post set with 72˝x 42˝
acrylic backboards and Outdoor
Breakaway Goals with nylon nets.
506997—Post set with 72˝x 42˝
steel backboards and Super Play-
ground Goals with nylon nets.
Heavy-Duty Back-to-Back
Fixed Height Posts
Same premium construc-
tion and quality features
as our Heavy-Duty Fixed
Height Posts, except with
a second extension arm,
backboard and rim ex-
tending off opposite side.
506996—Post set with
72˝x 42˝acrylic back-
boards and Outdoor
Breakaway Goals with
nylon nets.
506998—Post set
with 72˝x 42˝steel
backboards and Super
Playground Goals with
nylon nets.
Optional 506982 6˝
Square Post Pad and
506986 Backboard Edge
Padding available for all Heavy-
Duty Fixed Height Post Sets.
Back-to-Back Style Posts
Same features and construction as straight style posts with sec-
ond extension for using a common post for two backboards.
Ideal for large playgrounds with courts located end to end.
5069XY*—4½˝ O.D. with two 4´extensions
5060XY—5⁹⁄₁₆˝ O.D. with two 6´ extensions
* X used to indicate backboard. Y used to indicate goal.

18
Outdoor Equipment
765-987-7999 • www.draperinc.com
Basketball Backstop Systems
A0133
A0579
A0018
Goals
A0570 Stationary Goal
See page 5for description.
A0572 Heavy-Duty Stationary Goal
See page 5for description.
A0575 Double Rim Goal with Nylon Net
Goal has a dual rim made with ⅝˝ diameter and ½˝ diame-
ter steel rods formed into 18˝ ID ring. Rim is reinforced with
7⁄₁₆˝ diameter braces welded to the ring and mounting plate.
Includes nylon net and mounting hardware.
A0579 Double Rim Goal with
Chain Net
Same construction as A0575 but pro-
vided with chain net and hooks for
net attachment.
503078 Super Playground Goal
with Nylon Net
Constructed with double ⅝˝ diam-
eter rings welded to a 3⁄₆˝ box design
gusseted backplate and rim support.
Supplied with nylon net and mount-
ing hardware. Lifetime Warranty.
503077 Super Playground Goal
with Premium Chain Net
Same construction as 503078 but
is supplied with zinc-plated 503076
Premium Steel Safety Net.
Lifetime Warranty.
503079 Outdoor Breakaway Goal
Low maintenance design to stand
up to outdoor use. Rim deflects
down 15° when excessive load is ap-
plied to the front of the ⅝˝ diameter
steel rim. Includes nylon net and
mounting hardware.
Backboards
A0018 Fan Fiberglass (shown) 54˝ x 39˝
See page 4 for description.
A0135 Fan Aluminum Backboard
Solid die cast aluminum with reinforc-
ing ribs for added strength. White powder
coat finish. Lifetime Warranty.
503042 Fan Aluminum Backboard
Same construction as A0135 in natural aluminum finish.
Lifetime Warranty.
A0133 Fan Aluminum Backboard
Same as A0135 but includes orange bor-
der and target. Lifetime Warranty.
A0267 72˝ x 42˝ Rectangular Steel Back-
board with border and target—See page
4 for description. Not for use with 3½˝
O.D. or 4½˝ O.D. posts.
503033 72˝ x 42˝ Rectangular
Perforated Steel Backboard
Ideal for windy areas. The 11-gauge
steel skin is perforated with ¼˝ holes
in a pattern to form border and
target. Backboard includes a steel
sub-frame for added strength. Not
for use with 3½˝ or 4½˝ O.D. posts.
503035 54˝ x 42˝ Rectangular Polycarbonate Backboard
Gives the look of glass but constructed with ½˝clear polycar-
bonate and framed with aluminum extrusions and steel corner
brackets. Includes a steel sub-frame for added strength. White
border and target. Not for use with 3½˝ O.D. posts.
503034 72˝ x 42˝ Rectangular Polycarbonate Backboard
This backboard features the same construction as the 503035 but in
a larger competition size. Not for use with 3½˝ or 4½˝ O.D. posts.
Outdoor Backboard Padding
Outdoor backboard padding. Molded urethane construction.
Padding secures to backboard with self-drilling screws. Fits most
48˝-72˝ wide backboards.
506988—48˝ padding
506987—60˝ padding
506986—72˝ padding
Replacement Nets
503046 Heavy-Duty Nylon Net
Braided nylon. Bright white.
503045 Heavy-Duty Anti-Whip
Nylon Net
Braided nylon with stiffened upper loops
to reduce net whip. Bright white.
503075 Chain Net
Chain net outperforms nylon nets. Resists
wear, stretch, shrink and tangle. Heavy-
duty S-hooks for attachment to goal.
503076 Premium Steel Safety Net
All links are welded into closed loops to
virtually eliminate the risk of loose and
dangling links. Extra heavy-duty S-hooks
for attachment to any style goal. Premium
Steel Safety Net is zinc plated.
Post Padding
Premium pole pad for outdoor posts. Foam pad (1½˝-2˝thick)
with sewn vinyl cover. All-weather. Velcro®wrap around or
Lace & Grommet attachment. Pole pad is 66˝tall.
506980 Titan Post Pad—Velcro attached
506981 Slam Post Pad—Velcro attached
506982 Heavy-Duty (6˝square) Post Pad—
Velcro attached
506983 Force Post Pad—Velcro attached
506984 Lace & Grommet Pad for 3½˝ to 4½˝ round
506985 Lace & Grommet Pad for 5⁹⁄₁₆˝ round

Outdoor Equipment
765-987-7999 • www.draperinc.com 19
Football Goalposts
Combination Football/Soccer Goals
for High School or College
505117, the goal can be easily changed to accommodate foot-
ball or soccer. Change uprights for high school or college width.
Soccer goal is official 24´ x 8´. Goals are constructed of 4˝ square
tube with a white powder coated finish. Posts bury 36˝ into
ground. European style bolt-on soccer back stays.
Order 505015 Soccer Net and 505008 Net Attachment Kit
separately. Sold in pairs.
H-Style Galvanized Goalposts
505116, the most affordable Draper goalpost option, features
3½˝ heavy wall galvanized uprights and crossbars. Posts bury di-
rectly into the ground approximately 3´. Official 23´4˝ wide x 10´
high uprights or crossbar can be field cut and installed at 18´6˝
college width.
Great for practice fields, youth fields and budget conscious pro-
grams. Rain caps keep water out of posts. Sold in pairs.
5⁹⁄₁₆˝Gooseneck Goalpost
Draper’s heaviest goalpost comes in styles for high school and
collegiate play. The Gooseneck has a 72˝ setback. Buries 48˝ in
ground. Can be used with 505101 Ground Sleeve. It features an
exclusive design for precise vertical and horizontal alignment and
ease of installation.
The 5⁹⁄₁₆˝ O.D. schedule 40 pipe is bent and then powder coated.
Features 3½˝ steel tube crossbar and 20´ high, 2⅜˝ diameter alu-
minum uprights. Goalposts ship in four pieces and are sold in
pairs. Hardware included.
Model # Description Details
505125 Collegiate 5⁹⁄₁₆˝ Safety Yellow 18´6˝ Between 20´ Uprights
505124 Collegiate 5⁹⁄₁₆˝ White 18´6˝ Between 20´ Uprights
505123 High School 5⁹⁄₁₆˝ Safety Yellow 23´4˝ Between 20´ Uprights
505122 High School 5⁹⁄₁₆˝ White 23´4˝ Between 20´ Uprights
4½˝Gooseneck Goalpost
An excellent value, Draper’s 4½˝ O.D. goalposts bury 48˝
into the ground for stability or use 505100 Ground Sleeves for
removable installation. Posts feature 60˝ setback and 20´ alumi-
num uprights. Crossbars are 3½˝ steel tube. Goalposts ship in
four pieces and are sold in pairs. Hardware included.
Model # Description Details
505121 Collegiate 4½˝ Safety Yellow 18´6˝ Between 20´ Uprights
505120 Collegiate 4½˝ White 18´6˝ Between 20´ Uprights
505119 High School 4½˝ Safety Yellow 23´4˝ Between 20´ Uprights
505118 High School 4½˝ White 23´4˝ Between 20´ Uprights
All Draper Football Goalposts
Have a Three-Year Limited Warranty
4½˝Gooseneck Goalpost
5⁹⁄₁₆˝Gooseneck Goalpost
Combination Football/SoccerGoalpost

20
Outdoor Equipment
765-987-7999 • www.draperinc.com
Soccer Goals
Portable Soccer Goals
Draper’s lightweight Portable Soccer Goals have a full
4˝ square aluminum post and crossbar design. A unique corner at-
tachment system allows for ease of installation and the elimination
of all protruding hardware on the front and sides of goal. Features a
white powder coated finish and full ¾˝ edge radius for player safety.
Backstays are 1⅝˝ galvanized steel tube and provide a 4´ top depth.
Net clips hold the net securely to the face of the goal. Order nets
with 4´ top depth separately.
All Draper Portable Soccer Goals come standard with built-in
wheel kits for easy transport and ground anchor kits for player safe-
ty (see page 21).
Official 24´ x 8´ Competition Aluminum Portable Goals
505003—Meets all NCAA, FIFA and National High School
Federation rules. Order 505015 nets separately.
Club 21´ x 7´ Aluminum Portable Goals
505002—Order 505014 nets separately.
Youth 12´ x 6½´ Aluminum Portable Goals
505001—Order 505012 nets separately.
In-Ground Steel Soccer Goals
Sturdy, economical, and easy to install and se-
cure with a corner attachment design. Can be
permanently mounted in concrete or removable
when used with 505009 Ground Sleeves. All
steel components feature phosphate and powder
coating to withstand any weather. Order nets,
optional backstays and ground sleeves separately.
Posts are 4˝ square with ⅛˝ wall thickness, and a
full ¾˝ soft edge radius for safety.
Official 24´ x 8´ Competition Steel In-Ground Goals
505006—Meets all NCAA, FIFA and National High School
Federation rules. Order 505016 nets separately.
Club 21´ x 7´ Steel In-Ground Goals
505005—Order 505013 nets separately.
Youth 12´ x 6½´ Steel In-Ground Goals
505004—Order 505011 nets separately.
Optional European 4´ Backstays
505007—Backstays can be mounted to all in-ground soccer
goals. Backstays feature white powder coated finish and 1⅝˝ di-
ameter tube construction. When using backstays, a 4´ top depth
net is needed instead of those specified above (see chart below).
Sold in sets of two backstays with mounting hardware.
Ground Sleeve for Steel In-Ground Soccer Goals
505009—Make Draper’s in-ground goals removable for multi-
purpose fields by adding ground sleeves. Aluminum extrusions are
24˝ deep and adjustable at installation to fit any 4˝ square post. Steel
caps keep out dirt and debris. Requires 30˝ deep x 8˝ minimum di-
ameter ground excavation. Order two per goal; four per field.
Woven Knotless Soccer Nets
Although designed specifically for Draper soccer goals, these nets
can be used on any goal with a 4´ top depth or with a zero top
depth. Nets are constructed of 3mm polypropylene knotless netting
with 4˝ square mesh. Nets are non-abrasive and follow the trend to-
ward reduced mesh size for superior durability and safety. Each pair
of nets comes with a mesh carry bag for easy transport or storage.
Soccer Nets:
Top Top
Model # Width Height Depth Depth
505015 24´ 8´ 4´ 10´
505016 24´ 8´ 0´ 8´
505014 21´ 7´ 4´ 7´
505013 21´ 7´ 0´ 7´
505012 12´ 6½´ 4´ 6½´
505011 12´ 6½´ 0´ 6½´
505006 In-ground goal
505006 with optional backstays
505003 Portable goal
Portable goal net clips Built-in Transporter
