Draper UCT600ML User manual

INSTRUCTIONS FOR
600ml Ultrasonic
Cleaning Tank
Stock No.60991 Part No.UCT600ML
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
WARNING!
NOT ALL ITEMS ARE SUITABLE
FOR ULTRASONIC CLEANING
- READ MANUAL AND
UNDERSTAND BEFORE USE.

1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR:
600ML ULTRASONIC CLEANING TANK
Stock no. 60991
Part no. UCT600ML
1.2 REVISIONS:
As our user manuals are continually updated, users should make sure that they use the very
latest version.
Manuals are available to download under products on: www.drapertools.com.
DRAPER TOOLS LIMITED WEBSITE: www.drapertools.com
HURSLEY ROAD PRODUCT HELPLINE: [phone]
CHANDLER’S FORD GENERAL FAX: [phone]
EASTLEIGH
HAMPSHIRE
SO53 1YF
UK
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! Information that draws attention to the risk of injury or death.
CAUTION! Information that draws attention to the risk of damage to the product or
surroundings.
NOTE! Important information.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal & educational use only.
Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any other
form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
Date first published June 2015.

2. CONTENTS
2.1 CONTENTS
PAGE CONTENT PAGE
1 TITLE PAGE
1.1 INTRODUCTION ............................................................................................... 2
1.2 REVISION HISTORY........................................................................................... 2
1.3 UNDERSTANDING THIS MANUAL ................................................................... 2
1.4 COPYRIGHT NOTICE......................................................................................... 2
2 CONTENTS
2.1 CONTENTS ........................................................................................................ 3
3 GUARANTEE
3.1 GUARANTEE ..................................................................................................... 4
4 INTRODUCTION
4.1 SCOPE ............................................................................................................... 5
4.2 SPECIFICATION ................................................................................................. 5
4.3 HANDLING & STORAGE ................................................................................... 5
5 HEALTH & SAFETY INFORMATION
5.1 TO PREVENT LIFE-THREATENING INJURIES..................................................... 6
5.2 CONNECTION TO THE POWER SUPPLY ........................................................... 6
6 TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ............................................................................................... 7
7 OPERATION & USE
7.1 OPERATION & USE ........................................................................................... 8
7.2 GENERAL CLEANING ........................................................................................ 8
7.3 ENHANCED CLEANING..................................................................................... 8
7.4 OVERSIZED ITEMS ............................................................................................ 8
8 MAINTENANCE
8.4 CARE AND MAINTENANCE .............................................................................. 9
DECLARATION OF CONFORMITY .....................................................................................ENCLOSED
3

4
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to
be free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: [phone] or Product Helpline [phone].
A proof of purchase must be provided with the tool.
If upon inspection it is found that the fault occurring is due to defective materials or
workmanship, repairs will be carried out free of charge. This guarantee period covering
parts/labour is 12 months from the date of purchase except where tools are hired out when the
guarantee period is ninety days from the date of purchase. The guarantee is extended to 24
months for parts only. This guarantee does not apply to normal wear and tear, nor does it cover
any damage caused by misuse, careless or unsafe handling, alterations, accidents, or repairs
attempted or made by any personnel other than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges
will be quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.

5
4. INTRODUCTION
4.2 SPECIFICATION
Stock no .................................................................................................................................. 60991
Part no ............................................................................................................................ UCT600ML
Rated voltage ........................................................................................................................ 230V~
Rated frequency .................................................................................................................... 40KHz
Rated input ............................................................................................................................... 35W
Capacity ...................................................................................................................................600ml
Timer........................................................................................................... 3 minute Auto shut-off
Tank Size.................................................................................................................... 155x95x52mm
Overall Size ............................................................................................................ 200x140x125mm
4.3 HANDLING & STORAGE
Although this machine is small in size, care must still be taken when handling and lifting.
Dropping this machine will have an effect on the accuracy and may also result in personal
injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air
is damp, components will rust. If the machine is unprotected from dust and debris;
components will become clogged: And if not cleaned and maintained correctly or regularly
the machine will not perform at its best.
4.1 SCOPE

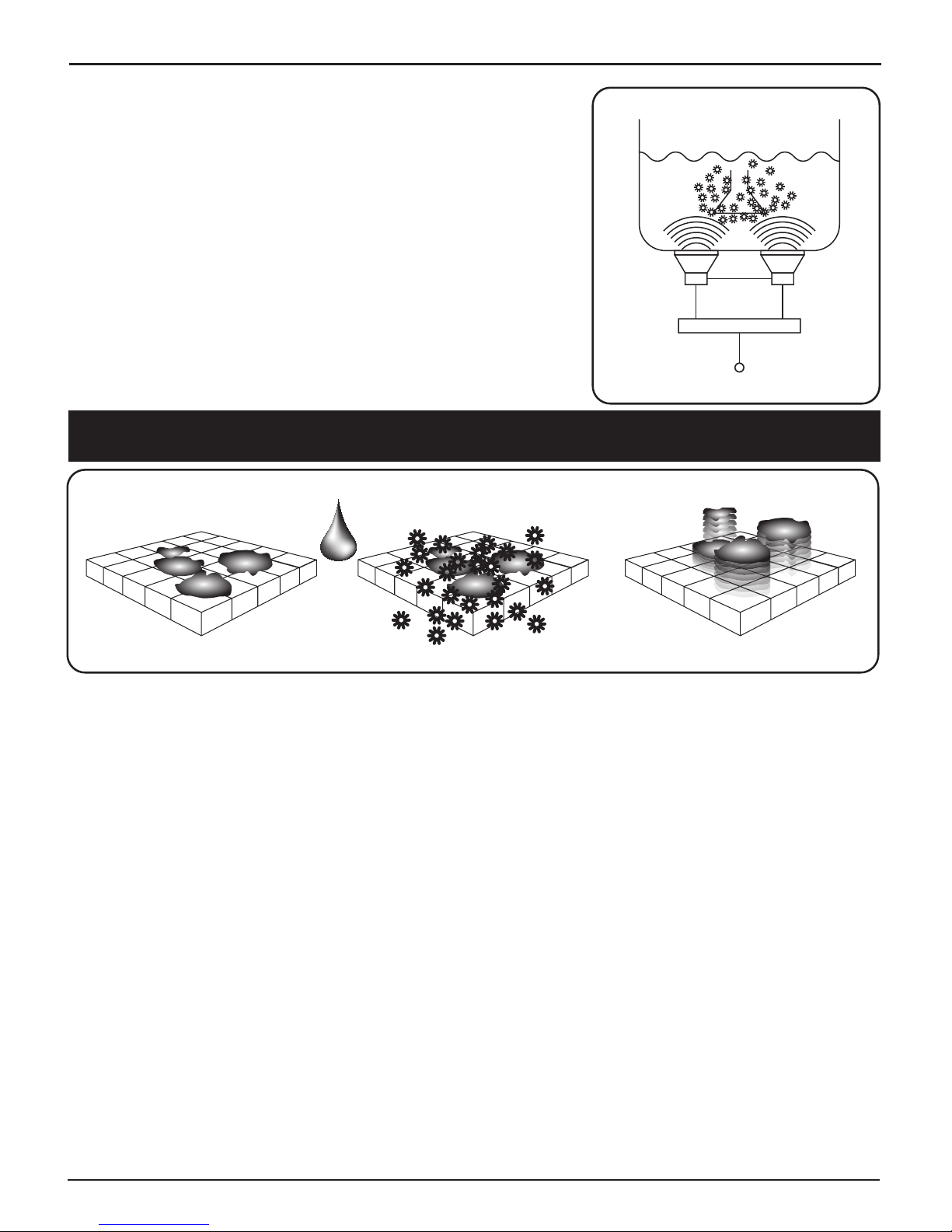

Ultrasonic cleaning is based on the cavitation effect caused
by high frequency ultrasonic wave vibration signal in fluid.
Microscopic bubbles are formed and they implode violently
causing the cavitation which creates an intense scrubbing
action on the surface of the item being cleaned.
The bubbles are small enough to penetrate microscopic
crevices, cleaning them thoroughly. Ultrasonic cleaning is
extremely effective at removing dirt and grime which
would normally require tedious manual cleaning.
To be used with just water or non volatile cleaning agent
can be added.
Ideal for cleaning jewellery, glasses, timepieces
(waterproof) and other small items.
NOTE: Ultrasonic cleaning is an intense microscopic cleaning process, it is NOT
designed to clean heavily soiled items, these will require manual cleaning first.
Tank
Solution
Transducer Generator
Tiny Vibrations Cavitation
Detergent can be added
Debris comes off

5. HEALTH & SAFETY INFORMATION
Keep it away from children!
This device is not intended for use by
individuals with restricted physical, sensory
or metal capacities or those with lack of
experience or knowledge, including
children, unless they are supervised by an
individual who is responsible for their safety
or have received training in operating the
device.
Store the unit where it is not reachable by
children.
Keep the package material away from
children.
5.1 TO PREVENT LIFE-THREATENING
INJURIES
Please read the following very carefully
1. Do NOT use the machine in a damp
place.
2. Never immerse the machine or power
cord in water or other liquid.
3. DO NOT touch the power plug with wet
hands, especially when inserting or
removing the plug.
4. DO NOT touch the machine if the
machine has fallen into water during
operation. Remove the power plug from
the socket first.
5. DO NOT spray water or liquid over the
device .
6. DO NOT operate the cleaner without
proper earthing.
7. When removing the power cord from the
socket, use the power plug not the cord.
8. Please protect the power cord. Do not
use the machine if there is damage to the
power plug or power cord.
9. Remove the power plug from the socket
- if malfunction occurs
- before cleaning the machine
- if the device is not going to be used for
a long time.
10. Never plug in the machine and leave
unattended.
11. DO NOT dismantle the machine.
12. DO NOT operate the unit without fluid in
the tank. Always ensure the fluid is no
higher than the max mark.
- Running dry will damage the machine.
13. DO NOT place the device on a soft
surface where the vents could be
blocked.
14. Keep machine away from heat and place
on a dry and level surface.
IMPORTANT CAUTION:
1. Not recommended for use with items
that can be discoloured, waterlogged, or
damaged easily. Loose, delicate, or inlaid
items may become dislodged by
ultrasonic vibrations.
For example: Semi-precious stones, cloth
items, leather products, wood
items,costume jewellery, or soft stones
like pearls, opals, turquoise, coral,
emeralds etc.
2. Do not place mobile phones or
non-waterproof watches into tank for
cleaning.
3. Do not place glass frames or articles that
are made from tortoise shell or abalone
shell.
4. When cleaning smaller pieces, place
items into the plastic basket, then place
basket into tank.
5.2 CONNECTION TO THE POWER
SUPPLY
Make sure the power supply information on the
machine’s rating plate are compatible with the
power supply you intend to connect it to.
This device comes supplied with a UK standard 3
pin plug fitted. It is designed for connection to a
domestic power supply rated at 230V AC.
Apart from replacing the fuse in the plug, no
other electrical work is recommended on this
device.
6

6. TECHNICAL DESCRIPTION

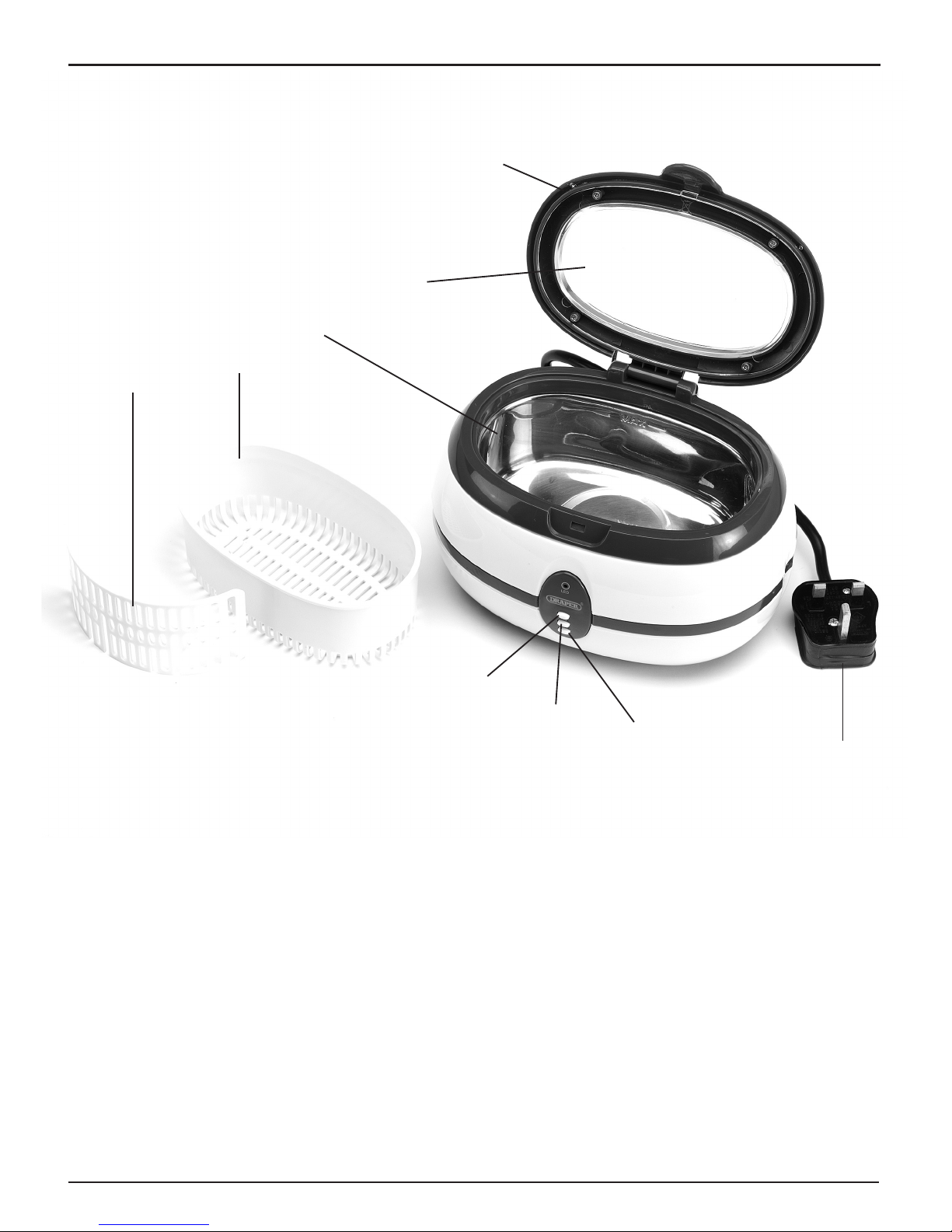

6.1 IDENTIFICATION
 Lid.
 View window.
 Stainless steel tank.
 Basket.
 Watch holder.
 “ON” button.
 “OFF” button.
 “RESET” button.
 Plug and cable.
7






 


8
7. OPERATION & USE
7.1 OPERATION & USE
1. Open the lid and fill the stainless steel tank with water. DO NOT exceed the “MAX” level.
Note: Running machine without water will damage the machine.
2. Place items into water. The items should be completely covered by water. Re-check the
water level does not exceed the "MAX" level. Remove some water if needed.
3. Close the lid, plug machine into power outlet.
4. Press the ON button to start default 180 seconds working time.
Note: While cleaning, a buzzing sound will be heard. This means the machine is working.
This machine is not designed to operate continuously. Do not use for more than 1 hour
per day.
5. Press the "RESET" button to restart the machine for 180 seconds working time.
6. During working, press OFF button to stop the machine
7. The cleaner will automatically stop after 180 seconds.
8. When cleaning is complete, unplug the machine, open lid, and remove cleaned items.
Then pour out dirty water from tank, Clean and wipe the tank.
7.2 GENERAL CLEANING
Use only tap water. The water level should cover the items to be cleaned, but not exceed
"MAX"mark.
7.3 ENHANCED CLEANING
When the items are very dirty, add 1-2 drops of washing up liquid into water to improve the
cleaning result.
7.4 OVERSIZED ITEMS
For large items, dismantle them first if applicable and clean components individually.

9
8. MAINTENANCE
8.1 CARE AND MAINTENANCE
1. Check the power plug and cord. Replace if damaged in any way.
2. DO NOT operate the machine for extended time or continuously.
3. DO NOT impact the machine. Handle with care when moving the machine.
4. Wipe machine housing and tank with a dry towel before storing.
5. Keep machine in a cool, dry place when storing.

10
NOTES

11
NOTES

CONTACTS
- DRAPER TOOLS LIMITED,
Hursley Road, Chandler's Ford,
Eastleigh, Hampshire. SO53 1YF. U.K.
- Helpline: [phone]
- Sales Desk: [phone]
- Website: www.drapertools.com
- E-mail: [email protected]
- Sales Fax: [phone]
- General Enquiries: [phone]
- Service/Warranty Repair Agent
For aftersales servicing or warranty repairs, please
contact the Draper Tools Helpline for details of an
agent in your local area.
YOUR DRAPER STOCKIST
DBDH150615
