Draytek Vigor2866 Series User manual

i
Vigor2866 Series
G.Fast Security Firewall
Quick Start Guide
(for RF Model)
Version: 1.32
Firmware Version: 4.4.2
(For future update, please visit DrayTek web site)
Date: November 01, 2023

ii
Intellectual Property Rights (IPR) Information
Copyrights © All rights reserved. This publication contains information that is protected
by copyright. No part may be reproduced, transmitted, transcribed, stored in
a retrieval system, or translated into any language without written
permission from the copyright holders.
Trademarks The following trademarks are used in this document:
 Microsoft is a registered trademark of Microsoft Corp.
 Windows, Windows 8, 10, 11 and Explorer are trademarks of Microsoft
Corp.
 Apple and Mac OS are registered trademarks of Apple Inc.
 Other products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety
Instructions
 Read the installation guide thoroughly before you set up the router.
 The router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the
router yourself.
 Do not place the router in a damp or humid place, e.g. a bathroom.
 Do not stack the routers.
 The router should be used in a sheltered area, within a temperature
range of +5 to +40 Celsius.
 Do not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight
or heat sources.
 Do not deploy the cable for LAN connection outdoor to prevent
electronic shock hazards.
 Do not power off the router when saving configurations or firmware
upgrades. It may damage the data in a flash. Please disconnect the
Internet connection on the router before powering it off when a TR-069/
ACS server manages the router.
 Keep the package out of reach of children.
 When you want to dispose of the router, please follow local regulations
on conservation of the environment.
Warranty
We warrant to the original end user (purchaser) that the router will be free
from any defects in workmanship or materials for a period of two (2) years
from the date of purchase from the dealer. Please keep your purchase
receipt in a safe place as it serves as proof of date of purchase. During the
warranty period, and upon proof of purchase, should the product have
indications of failure due to faulty workmanship and/or materials, we will, at
our discretion, repair or replace the defective products or components,
without charge for either parts or labor, to whatever extent we deem
necessary tore-store the product to proper operating condition. Any
replacement will consist of a new or re-manufactured functionally
equivalent product of equal value, and will be offered solely at our
discretion. This warranty will not apply if the product is modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal working
conditions. The warranty does not cover the bundled or licensed software of
other vendors. Defects which do not significantly affect the usability of the
product will not be covered by the warranty. We reserve the right to revise
the manual and online documentation and to make changes from time to
time in the contents hereof without obligation to notify any person of such
revision or changes.

iii
Declaration of Conformity
Hereby, DrayTek Corporation declares that the equipment type Vigor2866 is in compliance with Radio
Equipment Directive 2014/53/EU, Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU.
The full text of the EU Declaration of Conformity is available at the following internet address:
https://fw.draytek.com.tw/Vigor2866/Document/CE/
Manufacturer: DrayTek Corp.
Address: No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan
Product: Vigor2866 Wireless Series
Frequency Information for Europe area:
For ac series,
2400MHz - 2483MHz, max. TX power: 19.78dBm *1
2.4GHz WLAN For ax series,
2400MHz - 2483MHz, max. TX power: 19.86dBm *1
For ac series,
5150MHz - 5350MHz, max. TX power: 22.84dBm *2
5470MHz - 5725MHz, max. TX power: 27.88dBm *2
5GHz WLAN For ax series,
5150MHz - 5350MHz, max. TX power: 22.79dBm *2
5470MHz - 5725MHz, max. TX power: 29.78dBm *2
LTE B1[1920-1980 MHz (TX); 2110-2170 MHz (RX)]; B3[1710-1785 MHz (TX);
1805-1880 MHz (RX)]; B7[2500-2570 MHz (TX); 2620-2690 MHz (RX)];
B8[880-915 MHz (TX); 925-960 MHz (RX)]; B20[832-862 MHz (TX); 791-821
MHz (RX)]; B28[703-748 MHz (TX); 758-803 MHz (RX)]; B38[2570-2620 MHz
(TX); 2570-2620 MHz (RX)]; B40[2300-2400 MHz (TX); 2300-2400 MHz (RX)]*3
3G B1[1920-1980 MHz (TX); 2110-2170 MHz (RX)]; B8[880-915 MHz (TX); 925-960
MHz (RX)] *3
Requirements in AT/BE/BG/CZ/DK/EE/FR/DE/IS/IE/IT/EL/ES/
CY/LV/LI/LT/LU/HU/MT/NL/NO/PL/PT/RO/SI/SK/TR/FI/SE/CH/HR/UK(NI).
5150MHz~5350MHz is for indoor use only.
(*1: for 2.4GHz WLAN model; *2: for 5GHz WLAN model; *3: for LTE model))
This product is designed for LTE, DSL and 2.4GHz /5GHz WLAN network throughout the EC region.

iv
Declaration of Conformity
Hereby, DrayTek Corporation declares that the equipment type Vigor2866 is in compliance with the
Radio Equipment Regulations 2017 (SI 2017 No.1206, The Electrical Equipment (Safety) Regulations
2016 (SI 2016 No.1101), and The Restriction of the Use of Certain Hazardous Substances in Electrical
and Electronic Equipment Regulations 2012 (SI 2012 No. 3032).
The full text of the UKCA Declaration of Conformity is available at the following internet address:
https://fw.draytek.com.tw/Vigor2866/Document/CE/
Manufacturer: DrayTek Corp.
Address: No. 26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan
Product: Vigor2866 Wireless Series
Frequency Information for UK area:
For ac series,
2400MHz - 2483MHz, max. TX power: 19.78dBm *1
2.4GHz WLAN For ax series,
2400MHz - 2483MHz, max. TX power: 19.86dBm *1
For ac series,
5150MHz - 5350MHz, max. TX power: 22.84dBm *2
5470MHz - 5725MHz, max. TX power: 27.88dBm *2
5GHz WLAN For ax series,
5150MHz - 5350MHz, max. TX power: 22.79dBm *2
5470MHz - 5725MHz, max. TX power: 29.78dBm *2
LTE
B1[1920-1980 MHz (TX); 2110-2170 MHz (RX)]; B3[1710-1785 MHz (TX); 1805-1880 MHz
(RX)]; B7[2500-2570 MHz (TX); 2620-2690 MHz (RX)]; B8[880-915 MHz (TX); 925-960
MHz (RX)]; B20[832-862 MHz (TX); 791-821 MHz (RX)]; B28[703-748 MHz (TX); 758-803
MHz (RX)]; B38[2570-2620 MHz (TX); 2570-2620 MHz (RX)]; B40[2300-2400 MHz (TX);
2300-2400 MHz (RX)]*3
3G B1[1920-1980 MHz (TX); 2110-2170 MHz (RX)]; B8[880-915 MHz (TX); 925-960 MHz
(RX)] *3
Requirements in UK. 5150MHz~5350MHz is for indoor use only.
(*1: for 2.4GHz WLAN model; *2: for 5GHz WLAN model; *3: for LTE model)
This product is designed for LTE, DSL and 2.4GHz /5GHz WLAN network use in the UK & Ireland.
*The external power supply used for each product will be model dependent.
1 2 3 4 5 6 7 8 9
A Manufacturer CWT CWT CWT CWT CWT APD APD APD APD
B Address No. 222, Sec.
2, Nankan Rd.,
Lujhu
Township,
Taoyuan
County 338,
Taiwan
No. 222, Sec.
2, Nankan Rd.,
Lujhu
Township,
Taoyuan
County 338,
Taiwan
No. 222, Sec.
2, Nankan Rd.,
Lujhu
Township,
Taoyuan
County 338,
Taiwan
No. 222, Sec.
2, Nankan Rd.,
Lujhu
Township,
Taoyuan
County 338,
Taiwan
No. 222, Sec.
2, Nankan Rd.,
Lujhu
Township,
Taoyuan
County 338,
Taiwan
No.5, Lane 83,
Lung-Sou St.,
Taoyuan City
330, Taiwan
No.5, Lane 83,
Lung-Sou St.,
Taoyuan City
330, Taiwan
No.5, Lane 83,
Lung-Sou St.,
Taoyuan City
330, Taiwan
No.5, Lane 83,
Lung-Sou St.,
Taoyuan City
330, Taiwan
2ABB012F UK 2ABB018F UK 2ABL024F UK 2ABL030F UK 2ABN036F UK WA-12M12FG WB-18D12FG WA-24Q12FG WA-36A12FGC Model identifier 2ABB012F EU 2ABB018F EU 2ABL024F EU 2ABL030F EU 2ABN036F EU WA-12M12FK WB-18D12FK WA-24Q12FK WA-36A12FK
D Input voltage 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V 100~240V
Input AC frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60HzE Output voltage DC 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V 12.0V
F Output current 1.0A 1.5A 2.0A 2.5A 3.0A 1.0A 1.5A 2.0A 3.0A
G Output power 12.0W 18.0W 24.0W 30.0W 36.0W 12.0W 18.0W 24.0W 36.0W
H Average active
efficiency 84.9% 86.2% 87.6% 87.8% 89.8% 83.7% 85.4% 88.6% 88.2%
I Efficiency at low load
10% 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4%
J No-load power
consumption 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W
External power supply (Power Adapter) information. For more update, please visit www.draytek.com.

v
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
 Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause
undesired operation.
User Manual Information Agreement
This equipment complies with Part 68 of the FCC rules. Located on the equipment is a label that
contains, among other information, the ACTA registration number and ringer equivalence number
(REN.) If requested, this information must be provided to the telephone company.
The REN is used to determine the quantity of devices which may be connected to the telephone line.
Excessive REN’s on the telephone line may result in the devices not ringing in response to an incoming
call. In most, but not all areas, the sum of the REN’s should not exceed five (5.0). To be certain of the
number of devices that may be connected to the line, as determined by the total REN’s contact the
telephone company to determine the maximum REN for the calling area.
This equipment cannot be used on the telephone company-provided coin service. Connection to Party
Line Service is subject to State Tariffs.
If this equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. If advance notice isn’t practical,
the telephone company will notify the customer as soon as possible. Also, you will be advised of your
right the file a complaint with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures
that could affect the operation of the equipment. If this happens, the telephone company will
provide advance notice in order for you to make the necessary modifications in order to maintain
uninterrupted service.
It is recommended that the customer install an AC surge arrester in the AC outlet to which this device
is connected. This is to avoid damaging the equipment caused by local lightening strikes and other
electrical surges.
Company name ABP International Inc.
Address 13988 Diplomat Drive Suite 180 Dallas TX 75234
ZIP Code 75234 E-mail [email protected]m
USA Local
Representative Contact Person Mr. Henry N
Castillo Tel. [phone]

vi
Caution:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the equipment.
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
The antenna/transmitter should be kept at least 20 cm away from human body.

vii
T
Ta ab bl le e o of f C Co on nt te en nt ts s
1. Package Content .................................................................................................. 1
2. Panel Explanation................................................................................................. 2
2.1 Vigor2866L ................................................................................................................................. 2
2.2 Vigor2866ac / Vigor2866 ax / Vigor2866Lac.................................................................................... 4
2.3 Vigor2866Vac ............................................................................................................................. 8
3. Hardware Installation ..........................................................................................11
3.1 Network Connection..................................................................................................................11
3.2 Wall-Mounted Installation ......................................................................................................... 12
3.3 Antenna Installation (for “L” model) .......................................................................................... 13
Warning................................................................................................................................ 14
4. Software Configuration ...................................................................................... 15
4.1 Quick Start Wizard for Network Connection............................................................................. 15
5. Customer Service ............................................................................................... 21
Be a Registered Owner.................................................................................................................. 21
Firmware & Tools Updates ............................................................................................................. 21

1
1

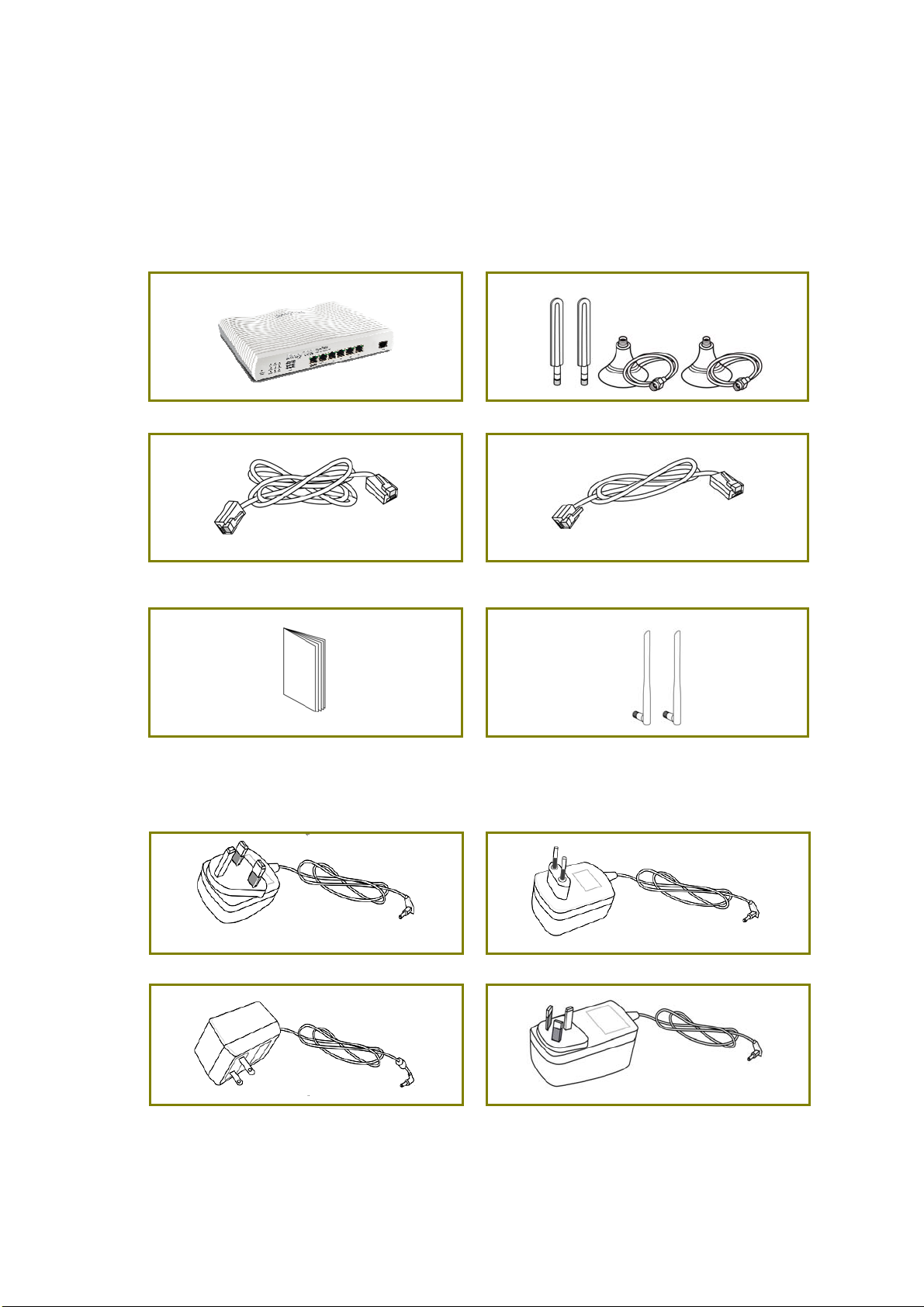

1. . P Pa ac ck ka ag ge e C Co on nt te en nt t
Take a look at the package content. If there is anything missed or damaged,
please contact DrayTek or dealer immediately. Besides, the content is subject to
the real package.
Vigor Router 2 sets (Antenna + Extension Base)
RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable or RJ-11 to RJ-45
Cable
Quick Start Guide Antenna (wireless models)
The type of the power adapter depends on the country that the router will be
installed. * The maximum power consumption is 28 Watt.
UK-type Power Adapter EU-type Power Adapter
USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter

2
2
2. . P Pa an ne el l E Ex xp pl la an na at ti io on n
2
2. .1 1 V Vi ig go or r2 28 86 66 6L L
LED Status Explanation
Off The router is powered off.
ACT Blinking The router is powered on and running normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2 Blinking The data is transmitting.
On The QoS function is active.
QoS Off The QoS function is inactive.
On LTE device is connected and ready for use.
Off LTE device is not detected, or has serious problem (e.g., no SIM card, SIM pin error, SIM
deactivated, and etc.).
LTE
Blinking Slowly: LTE device is in dialing up.
Quickly: The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The Web Content Filter is active. (It is enabled
from Firewall >> General Setup).
WCF Off WCF is disabled.
On USB device is connected and ready for use.
Off No USB device is connected.
USB Blinking The data is transmitting.
On The VPN tunnel is active.
Off VPN services are disabled
VPN Blinking Traffic is passing through VPN tunnel.
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ Blinking The data is transmitting.
WAN2 / P6
On The port is connected.
Off The port is disconnected.
Left LED Blinking The data is transmitting.

3
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps.
LAN P1-P5
On The port is connected.
Off The port is disconnected.
Left LED Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps
Interface Description
Factory Reset
Restore the default settings. Usage: Turn on the router (ACT
LED is blinking). Press the hole and keep for more than 5
seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart
with the factory default configuration.
USB Connecter for a USB device (for 3G/4G USB Modem or printer
or thermometer).
WAN2 / P6
Connecter for local network devices or modem for accessing
Internet.
It is a switchable port. It can be used for LAN connection or
WAN connection according to the settings configured in WUI.
LAN P1-P5 Connecters for local network devices.
DSL Connecter for accessing the Internet.
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Connecter for installing LTE antennas.
SIM Card Slots for installing SIM card(s).

4
2
2. .2 2 V Vi ig go or r2 28 86 66 6a ac c / / V Vi ig go or r2 28 86 66 6 a ax x / / V Vi ig go or r2 28 86 66 6L La ac c
LED Status Explanation
Off The router is powered off.
ACT Blinking The router is powered on and running normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2 Blinking The data is transmitting.
On The QoS function is active.
QoS Off The QoS function is inactive.
On USB device is connected and ready for use.
Off No USB device is connected.
USB Blinking The data is transmitting.
On LTE device is connected and ready for use.
Off LTE device is not detected, or has serious problem (e.g., no SIM card, SIM pin error, SIM
deactivated, and etc.).
LTE
Blinking Slowly: LTE device is in dialing up.
Quickly: The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The Web Content Filter is active. (It is enabled
from Firewall >> General Setup).
WCF Off WCF is disabled.
2.4G/5G On 2.4G/5G: Wireless access point with bandwidth
of 2.4GHz/5GHz is ready.
WLAN: Wireless access point is ready.

5
Off Wireless function is disabled.
Blinking
It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will
return to normal condition after two minutes.
(You need to setup WPS within 2 minutes.)
On The DMZ function is enabled.
Off The DMZ function is disabled.
DMZ Blinking The data is transmitting.
WAN2 / P6
On The port is connected.
Off The port is disconnected.
Left LED Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps.
LAN P1-P5
On The port is connected.
Off The port is disconnected.
Left LED Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps

6

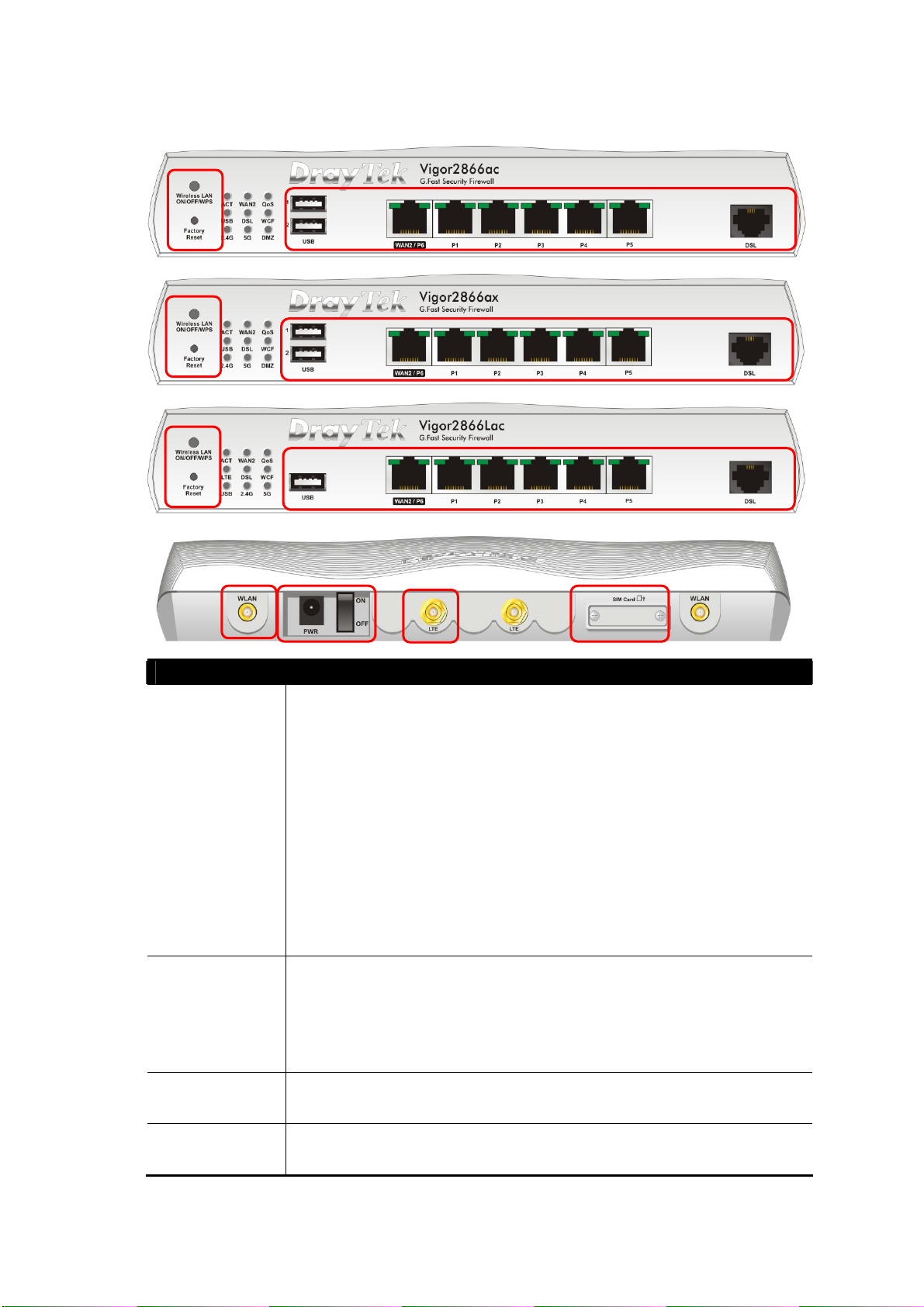

Interface Description
Wireless LAN
ON/OFF/WPS
Wireless band will be switched /changed according to the
button pressed and released. For example,
 2.4G (On) and 5G (On) – in default.
 2.4G (Off) and 5G (On) – pressed and released the button
once.
 2.4G (On) and 5G (Off) – pressed and released the button
twice.
 2.4G (Off) and 5G (Off) – pressed and released the button
three times.
When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client’s device
making
network connection through WPS.
Factory Reset
Restore the default settings. Usage: Turn on the router (ACT
LED is blinking). Press the hole and keep for more than 5
seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart
with the factory default configuration.
USB1~2 / USB Connecter for a USB device (for 3G/4G USB Modem or printer
or thermometer).
WAN2 / P6 Connecter for local network devices or modem for accessing
Internet.

7
The port “WAN2 / P6” is switchable. It can be used for LAN
connection or WAN connection according to the settings
configured in WUI.
LAN P1-P5 Connecters for local network devices.
DSL Connecter for accessing the Internet.
Connecter for installing WLAN antennas.
(For ac model)
PWR Connecter for a power adapter.
ON/OFF Power Switch.
Connecter for installing LTE antennas.
(For L model).
SIM Card Slots for installing SIM card(s) (for Vigor2866Lac only).

8
2
2. .3 3 V Vi ig go or r2 28 86 66 6V Va ac c
LED Status Explanation
Off The router is powered off.
ACT Blinking The router is powered on and running normally.
On Internet connection is ready.
Off Internet connection is not ready.
WAN2 Blinking The data is transmitting.
On The QoS function is active.
QoS Off The QoS function is inactive.
On USB device is connected and ready for use.
Off No USB device is connected.
USB Blinking The data is transmitting.
On The router is ready to access Internet through
DSL link.
DSL Blinking Slowly: The DSL connection is ready.
Quickly: The connection is training.
On The phone connected to this port is off-hook.
Off The phone connected to this port is on-hook.
Phone1/2 Blinking A phone call comes.
On 2.4G/5G: Wireless access point with bandwidth
of 2.4GHz/5GHz is ready.
WLAN: Wireless access point is ready.
Off Wireless function is disabled.
2.4G/5G
Blinking It will blink slowly while wireless traffic goes
through.
ACT and WLAN LEDs blink quickly and
simultaneously when WPS is working, and will
return to normal condition after two minutes.
(You need to setup WPS within 2 minutes.)
WAN2 / P6
On The port is connected.
Off The port is disconnected.
Left LED Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps.
LAN P1-P5
Left LED On The port is connected.

9
Off The port is disconnected.
Blinking The data is transmitting.
On The port is connected with 1000Mbps.
Right LED Off The port is connected with 10/100Mbps
Interface Description
Wireless LAN
ON/OFF/WPS
Wireless band will be switched /changed according to the
button pressed and released. For example,
 2.4G (On) and 5G (On) – in default.
 2.4G (Off) and 5G (On) – pressed and released the button
once.
 2.4G (On) and 5G (Off) – pressed and released the button
twice.
 2.4G (Off) and 5G (Off) – pressed and released the button
three times.
When WPS function is enabled by web user interface, press
this button for more than 2 seconds to wait for client’s device
making
network connection through WPS.
Factory Reset
Restore the default settings. Usage: Turn on the router (ACT
LED is blinking). Press the hole and keep for more than 5
seconds. When you see the ACT LED begins to blink rapidly
than usual, release the button. Then the router will restart
with the factory default configuration.
USB Connecter for a USB device (for 3G/4G USB Modem or printer
or thermometer).
WAN2 / P6
Connecter for local network devices or modem for accessing
Internet.
It is a switchable port. It can be used for LAN connection or
WAN connection according to the settings configured in WUI.
LAN P1-P5 Connecters for local network devices.
Phone 1/2 Connecter for analog phone(s).
DSL Connecter for accessing the Internet.
Connecter for installing WLAN antennas.

10
PWR Connecter for a power adapter.
ON/OFF Power Switch.

11
3
3. . H Ha ar rd dw wa ar re e I In ns st ta al ll la at ti io on n
This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
Before starting to configure the router, you have to connect your devices
correctly. (For the hardware connection, we take “ac” model as an example.)
3
3. .1 1 N Ne et tw wo or rk k C Co on nn ne ec ct ti io on n
1. Connect the DSL interface to the land line jack with a DSL line cable, or
Connect the cable Modem/DSL Modem/Media Converter to the WAN port of
router with Ethernet cable (RJ-45).
2. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of the
router and the other end of the cable (RJ-45) into the Ethernet port on your
computer.
3. Connect one end of the power adapter to the router’s power port on the
rear panel, and the other side into a wall outlet.
4. Power on the device by pressing down the power switch on the rear panel.
5. The system starts to initiate. After completing the system test, the ACT LED
will light up and start blinking. (For the detailed information of LED status,
please refer to section 2. Panel Explanation)

12
3
3. .2 2 W Wa al ll l- -M Mo ou un nt te ed d I In ns st ta al ll la at ti io on n
Vigor router has keyhole type mounting slots on the underside.
1. Drill two holes on the wall. The distance between the holes shall be 168mm.
2. Fit screws into the wall using the appropriate type of wall plug.
Note The recommended drill diameter shall be 6.5mm (1/4”).
3. When you finished about procedure, the router has been mounted on the
wall firmly.

13
3
3. .3 3 A An nt te en nn na a I In ns st ta al ll la at ti io on n ( (f fo or r “ “L L” ” m mo od de el l) )
Magnetic antenna must be installed on the extension base before connecting to
Vigor router.
The antenna with an extension base on the Vigor router must be installed
correctly. If only one antenna shall be installed, please use the connector (main
signal connector) near the power switch.
For installing the SIM card into the card slot, here, we take Vigor2865Lac as an
example.
(1) Assemble the extension base with the antenna.
(2) While installing the SIM card into the card slot, note that the back plate of
the SIM card slot must be removed first.
Extension
Base
