Draytek Vigor 2800 User manual

i
Vigor2800 Series
ADSL2/2+ Security Router
Quick Start Guide
Version: 2.2
Date: 2006/2/24

i
Copyright Information
Copyright
Declarations
Copyright 2005 All rights reserved. This publication contains information that is
protected by copyright. No part may be reproduced, transmitted, transcribed,
stored in a retrieval system, or translated into any language without written
permission from the copyright holders.
Trademarks
The following trademarks are used in this document:
zMicrosoft is a registered trademark of Microsoft Corp.
zWindows, Windows 95, 98, Me, NT, 2000, XP and Explorer are
trademarks of Microsoft Corp.
zApple and Mac OS are registered trademarks of Apple Computer Inc.
zOther products may be trademarks or registered trademarks of their
respective manufacturers.
Safety Instructions and Approval
Safety
Instructions
zRead the installation guide thoroughly before you set up the router.
zThe router is a complicated electronic unit that may be repaired only be
authorized and qualified personnel. Do not try to open or repair the router
yourself.
zDo not place the router in a damp or humid place, e.g. a bathroom.
zDo not stack the routers.
zThe router should be used in a sheltered area, within a temperature range
of +5 to +40 Celsius.
zDo not expose the router to direct sunlight or other heat sources. The
housing and electronic components may be damaged by direct sunlight or
heat sources.
zDo not deploy the cable for LAN connection outdoor to prevent electronic
shock hazards.
zKeep the package out of reach of children.
zWhen you want to dispose of the router, please follow local regulations on
conservation of the environment.
Warranty
We warrant to the original end user (purchaser) that the router will be free from
any defects in workmanship or materials for a period of two (2) years from the
date of purchase from the dealer. Please keep your purchase receipt in a safe
place as it serves as proof of date of purchase. During the warranty period, and
upon proof of purchase, should the product have indications of failure due to
faulty workmanship and/or materials, we will, at our discretion, repair or replace
the defective products or components, without charge for either parts or labor, to
whatever extent we deem necessary tore-store the product to proper operating
condition. Any replacement will consist of a new or re-manufactured
functionally equivalent product of equal value, and will be offered solely at our
discretion. This warranty will not apply if the product is modified, misused,
tampered with, damaged by an act of God, or subjected to abnormal working
conditions. The warranty does not cover the bundled or licensed software of
other vendors. Defects which do not significantly affect the usability of the
product will not be covered by the warranty. We reserve the right to revise the
manual and online documentation and to make changes from time to time in the
contents hereof without obligation to notify any person of such revision or
changes.
Be a Registered
Owner Web registration is preferred. You can register your Vigor router via
http://www.draytek.com. Alternatively, fill in the registration card and mail it to
the address found on the reverse side of the card.
Firmware & Tools
Updates Due to the continuous evolution of DrayTek corporation, all routers will be
regularly upgraded. Please consult the DrayTek web site for more information on
newest firmware, tools and documents.
http://www.draytek.com

ii
European Community Declarations
Manufacturer: DrayTek Corp.
Address: No. 26, Fu Shing Road, HuKou County, HsinChu Industrial Park, Hsin-Chu, Taiwan 303
Product: Vigor2800 Series Routers
DrayTek Corp. declares that Vigor2800 series of routers are in compliance with the following essential
requirements and other relevant provisions of R&TTE Directive 1999/5/EEC.
The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive
89/336/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
The product conforms to the requirements of Low Voltage (LVD) Directive 73/23/EEC by complying with
the requirements set forth in EN60950.
The Vigor2800 Series aredesigned for the WLAN 2.4GHz network throughput EC region, Switzerland,
and the restrictions of France.
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the use is encouraged to try to correct the interference
by one of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different form that to which the receiver is
connected.
zConsult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired
operation.
Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning:
Warning: This device might cause interference of radio frequency under the environment of dwelling. In
such condition, the users might be asked to adopt some proper strategies.
Please visit www.draytek.com/contact_us/WEEE.php.

iii
T
Ta ab bl le e o of f C Co on nt te en nt ts s
1. Introduction........................................................................................................... 1
1.1 LED Indicators and Connectors................................................................................................. 2
1.1.1 For Vigor2800 ............................................................................................................... 2
1.1.2 For Vigor2800G............................................................................................................. 3
1.1.3 For Vigor2800i............................................................................................................... 4
1.1.4 For Vigor2800Gi............................................................................................................ 5
1.1.5 For Vigor2800V............................................................................................................. 6
1.1.6 For Vigor2800VG.......................................................................................................... 7
1.1.7 For Vigor2800VGi ......................................................................................................... 8

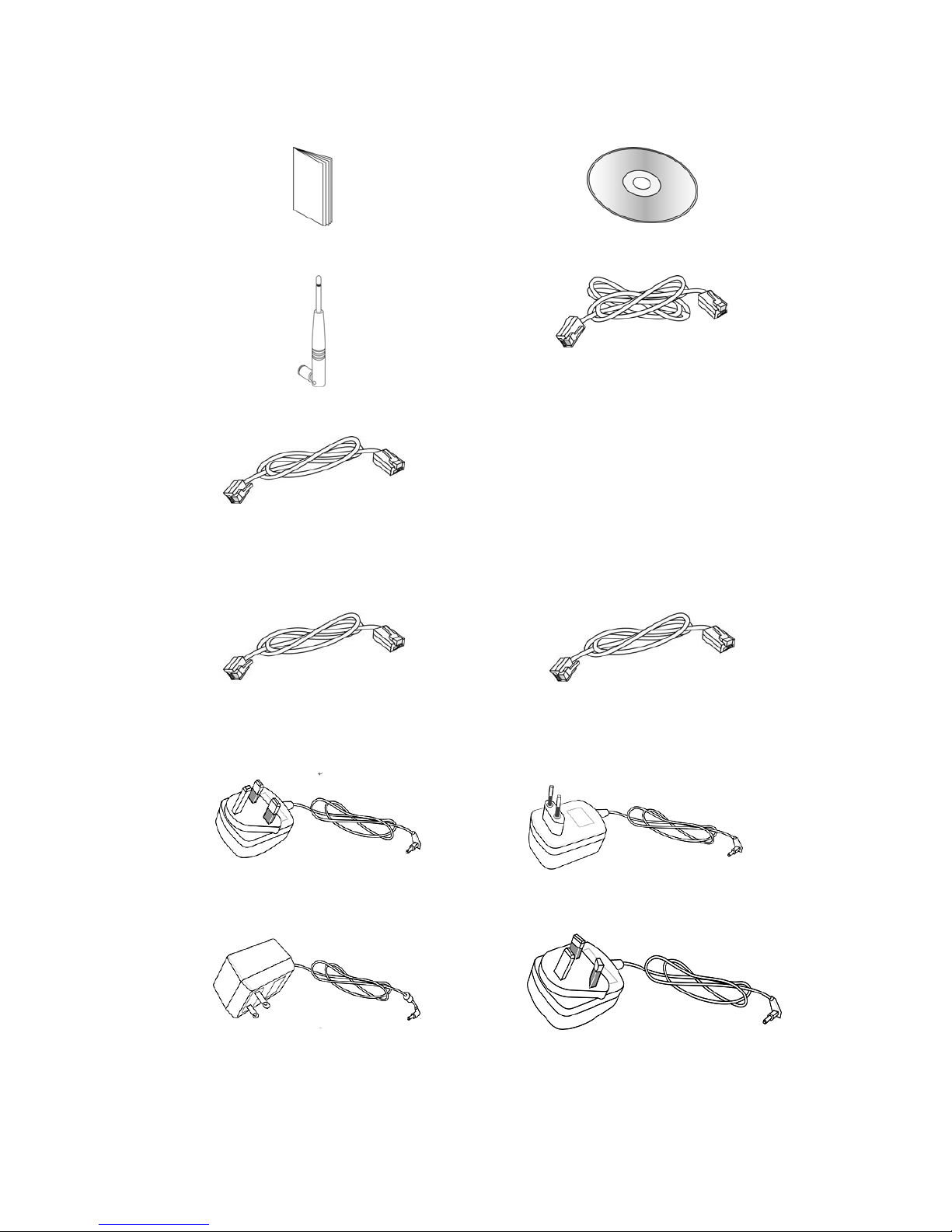

1.2 Package Content........................................................................................................................ 9
2. Installing Your Vigor Router................................................................................11
2.1 Hardware Installation.................................................................................................................11
3. Configuring Web Pages ..................................................................................... 13
3.1 Basic Configuration.................................................................................................................. 13
3.2 Wireless LAN Settings ............................................................................................................. 17
3.2.1 Basic Wireless LAN Concept...................................................................................... 17
3.2.2 General Settings ......................................................................................................... 18
3.2.3 Security Settings.........................................................................................................19
4. Trouble Shooting................................................................................................ 21
4.1 Checking If the Hardware Status Is OK or Not......................................................................... 21
4.2 Checking If the Network Connection Settings on Your Computer Is OK or Not ...................... 21
4.3 Pinging the Router from Your Computer.................................................................................. 24
4.4 Checking If the ISP Settings are OK or Not............................................................................. 26
4.5 Backing to Factory Default Setting If Necessary...................................................................... 27
4.6 Contacting Your Dealer ............................................................................................................ 28

1
1
1. . I In nt tr ro od du uc ct ti io on n
Targeting requirement for residential, SOHO (Small Office and Home Office) and
business users, the Vigor2800 series is ADSL2/2+ enabled integrated access devices.
With downstream speed up to 12Mbps (ADSL2) or 24Mbps (ADSL2+), the Vigor2800
series provide exceptional bandwidth for Internet access.
To secure your network, the Vigor2800 series provides an advanced firewall with
advanced features, such as NAT with multi VPN pass-through, Stateful Packet Inspection
(SPI) to offer network reliability by detecting and prohibiting malicious penetrating
packets, user-configurable web filtering for parental control against network abuse etc.
Vigor2800 G series is embedded with an 802.11g compliant wireless module which
provides wireless LAN access with data rate as much as 108Mbps, SuperG. As for data
privacy of wireless network, the Vigor2800 series can encode all transmissions data with
standard WEP and industrial strength WPA2 (IEEE 802.11i) encryption. Additional
features include Wireless Client List and MAC Address Control for maintaining control
over user’s authorization in your network, and Hidden SSID for being invisible to outside
intruders scanning.
C
Ch ha ar ra ac ct te er ri is st ti ic cs s
¾Easy Internet-sharing of your broadband connection
¾Robust firewall to help protect your network from external attacks

2
1
1. .1 1 L LE ED D I In nd di ic ca at to or rs s a an nd d C Co on nn ne ec ct to or rs s
1
1. .1 1. .1 1 F Fo or r V Vi ig go or r2 28 80 00 0
ACT QoS P2P Firewall VPN Printer
DSL P1P2 P3P4
LAN
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly. ACT
(Activity) On The router is powered on.
On The QoS function is active.QoS Off The QoS function is inactive.
On The P2P function is active.P2P
Blinking Starts to prohibit P2P data.
VPN On The VPN tunnel is launched.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its
corresponding port.
Green A normal 100Mbps connection is through its
corresponding port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole
and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the
router will restart with the factory default configuration.

3
1

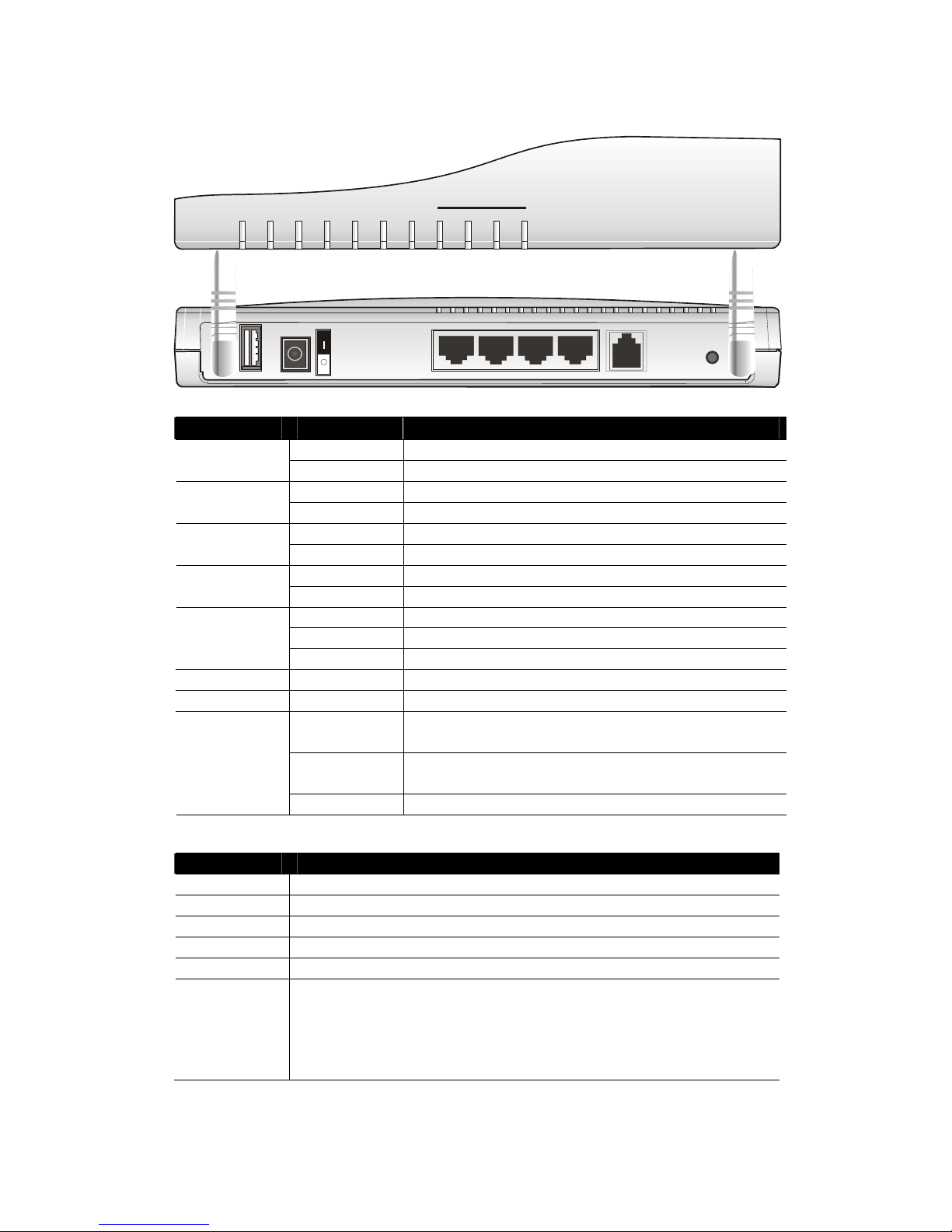

1. .1 1. .2 2 F Fo or r V Vi ig go or r2 28 80 00 0G G
ACT QoS P2P FirewallWLAN Printer
DSL P1 P2 P3 P4
LAN
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly.ACT
(Activity) On The router is powered on.
On The QoS function is active.QoS Off The QoS function is inactive.
On The P2P function is active.P2P Blinking Starts to prohibit P2P data.
On The DoS function is enabled.Firewall Blinking When encountered DoS attacks.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
WLAN
Off Wireless access point is turned off.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its
corresponding port.
Green A normal 100Mbps connection is through its
corresponding port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole
and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the
router will restart with the factory default configuration.

4
1
1. .1 1. .3 3 F Fo or r V Vi ig go or r2 28 80 00 0i i
A
CT ISDN P2P Firewall VPN Printer DSL P1 P2 P3 P4
LAN
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer ISDN
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly. ACT (Activity)
On The router is powered on.
On The ISDN network is correctly setup.
ISDN
Blinking A successful connection on the ISDN BRI B1/B2 channel.
On The P2P function is active.P2P
Blinking Starts to prohibit P2P data.
VPN On The VPN tunnel is launched.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its corresponding
port.
Green A normal 100Mbps connection is through its corresponding
port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
ISDN Connecter for NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.

5
1
1. .1 1. .4 4 F Fo or r V Vi ig go or r2 28 80 00 0G Gi i
A
CT P2P Firewall WLAN Printer DSL P1 P2 P3 P4
LAN
ISDN
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer ISDN
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly.
ACT (Activity) On The router is powered on.
On The ISDN network is correctly setup.
ISDN Blinking A successful connection on the ISDN BRI B1/B2 channel.
On The P2P function is active.
P2P Blinking Starts to prohibit P2P data.
On The DoS function is enabled.Firewall Blinking When encountered DoS attacks.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
WLAN
Off Wireless access point is turned off.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its corresponding
port.
Green A normal 100Mbps connection is through its corresponding
port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
ISDN Connecter for NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.

6
1
1. .1 1. .5 5 F Fo or r V Vi ig go or r2 28 80 00 0V V
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly. ACT
(Activity) On The router is powered on.
On The QoS function is active. QoS
Off The QoS function is inactive.
On The phone is off hook (the handset of phone is
hanging).
FXS1/FXS2
Blinking A phone call is incoming.
VPN On The VPN tunnel is launched.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its
corresponding port.
Green A normal 100Mbps connection is through its
corresponding port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
FXS2 &
FXS1 Connecters for telephone set and analog phone with VoIP communication.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole
and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the
router will restart with the factory default configuration.

7
1

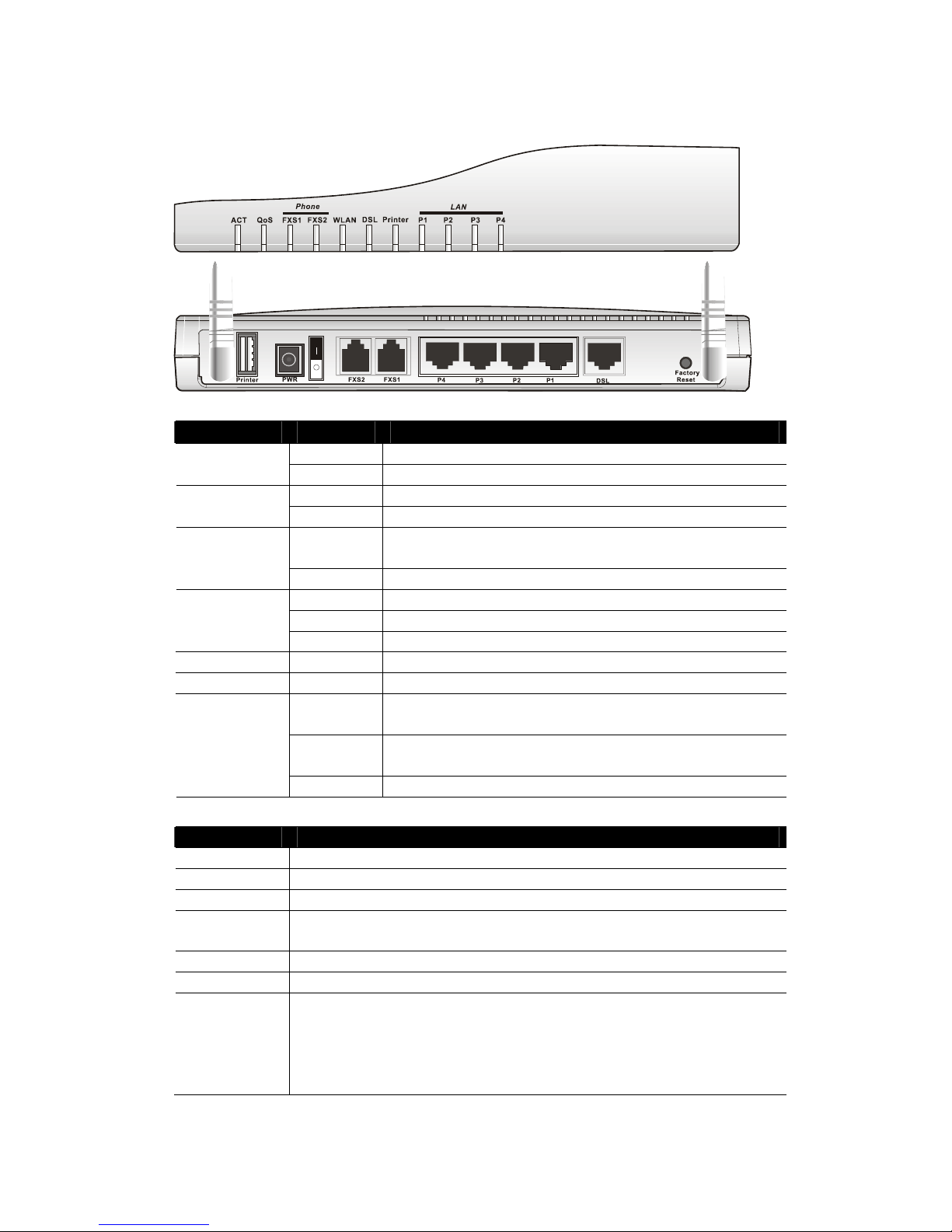

1. .1 1. .6 6 F Fo or r V Vi ig go or r2 28 80 00 0V VG G
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly.ACT
(Activity) On The router is powered on.
On The QoS function is active.QoS Off The QoS function is inactive.
On The phone is off hook (the handset of phone is
hanging).
FXS1/FXS2
Blinking A phone call is incoming.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
WLAN
Off Wireless access point is turned off.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its
corresponding port.
Green A normal 100Mbps connection is through its
corresponding port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with12-15VDC.
ON/OFF Power Switch.
FXS2 &
FXS1 Connecters for telephone set and the analog phone with VoIP communication.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole
and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the
router will restart with the factory default configuration.

8
1
1. .1 1. .7 7 F Fo or r V Vi ig go or r2 28 80 00 0V VG Gi i
A
CT ISDN FXS1 FXS2 WLAN Printer
DSL P1 P2 P3 P4
LAN
Phone
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer ISDN
FXS2 FXS1
L
LE ED D E Ex xp pl la an na at ti io on n
LED Status Explanation
Blinking The router is powered on and running properly.
ACT (Activity) On The router is powered on.
On The ISDN network is correctly setup.
ISDN Blinking A successful connection on the ISDN BRI B1/B2 channel.
On The phone is off hook (the handset of phone is hanging).FXS1/FXS2
Blinking A phone call is incoming.
On Wireless access point is ready.
Blinking Wireless traffic goes through.
WLAN
Off Wireless access point is turned off.
DSL On The ADSL, ADSL2/2+ line is connected.
Printer On The USB interface printer is ready.
Orange A normal 10Mbps connection is through its corresponding
port.
Green A normal 100Mbps connection is through its corresponding
port.
LAN (P1, P2,
P3, P4)
Blinking Ethernet packets are transmitting.
C
Co on nn ne ec ct to or r E Ex xp pl la an na at ti io on n
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with12-15VDC.
ON/OFF Power Switch.
FXS2 & FXS1 Connecters for telephone set and analog phone with VoIP communication.
LAN P4 – P1 Connecters for local networked devices.
DSL Connecter for accessing Internet with the ADSL,ADSL2/2+ line
ISDN Connecter for NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.

9
1
1. .2 2 P Pa ac ck ka ag ge e C Co on nt te en nt t
nQuick Start Guide oCD
pAntenna for Gmodels qRJ-45 Cable (Ethernet)
rRJ-45 to RJ-45 Cable for imodels
sThe type of the cable depends on the country that the router will be installed:
Or
RJ-11 to RJ-45 Cable RJ-11 to RJ-11 Cable
tThe type of the power adapter depends on the country that the router will be installed:
UK-type power adapter EU-type power adapter
USA/Taiwan-type power adapter AU/NZ-type power adapter

10
This page is left blank.

11
2
2. . I In ns st ta al ll li in ng g Y Yo ou ur r V Vi ig go or r R Ro ou ut te er r
This section will guide you to install the router through hardware connection and
configure the router’s settings through web browser.
2
2. .1 1 H Ha ar rd dw wa ar re e I In ns st ta al ll la at ti io on n
Before starting to configure the router, you have to connect your devices correctly.
1. Connect the DSL interface to the external ADSL splitter with an ADSL line cable.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device
allows you to connect 4 PCs directly.
3. Connect one end of the power cord to the power port of this device. Connect the
other end to the wall outlet of electricity.
4. Connect the telephone sets with phone lines (for using VoIP function). For the user
of the model without VoIP ports, skip this step.
5. Connect the ISDN NT1/1+ box with ISDN cable. This connection is available for
Europe only.
6. Power on the router.
7. Check the ACT LED to assure network connections.
(For the detailed information of LED status, please refer to section 1.1.)
A
CT
WLAN
ADSL2+
Link
Data
Factory
Reset
DSL
P1P2P3
P4
PWR
Printer FXS2 FXS1
Internet
ADSL
Splitter
or
(Microfilter) Land line jack
1
2
4
3
A
CT QoS FX
Analog PhoneAnalog Phone
Phone
Line
6
ISDN
7
NT1/1+
5
ISDN Network
Caution: Each of the FXS ports can be connected to an analog phone only. Do not
connect the FXS ports to the telephone wall jack. This connection might damage your
router.

12
This page is left blank.

13
3
3. . C Co on nf fi ig gu ur ri in ng g W We eb b P Pa ag ge es s
3
3. .1 1 B Ba as si ic c C Co on nf fi ig gu ur ra at ti io on n

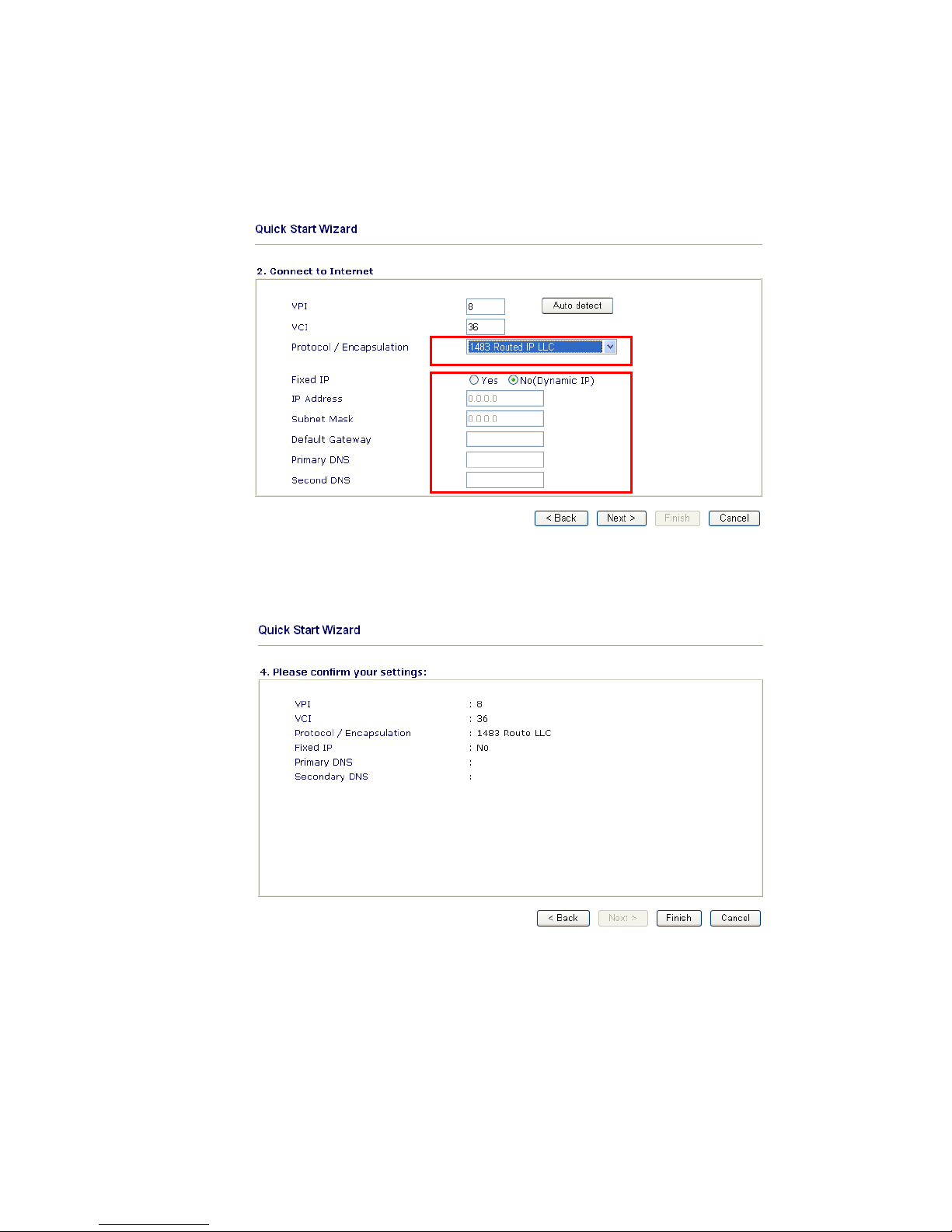

The Quick Start Wizard is designed for you to easily set up your router for Internet
access. You can directly access the Quick Start Wizard via Web Configurator.
1. Make sure your PC connects to the router correctly.
Notice: You may either simply set up your computer to get IP dynamically
from the router or set up the IP address of the computer to be the same
subnet as the default IP address of Vigor router 192.168.1.1. For the
detailed information, please refer to the later section - Trouble Shooting of
the guide.

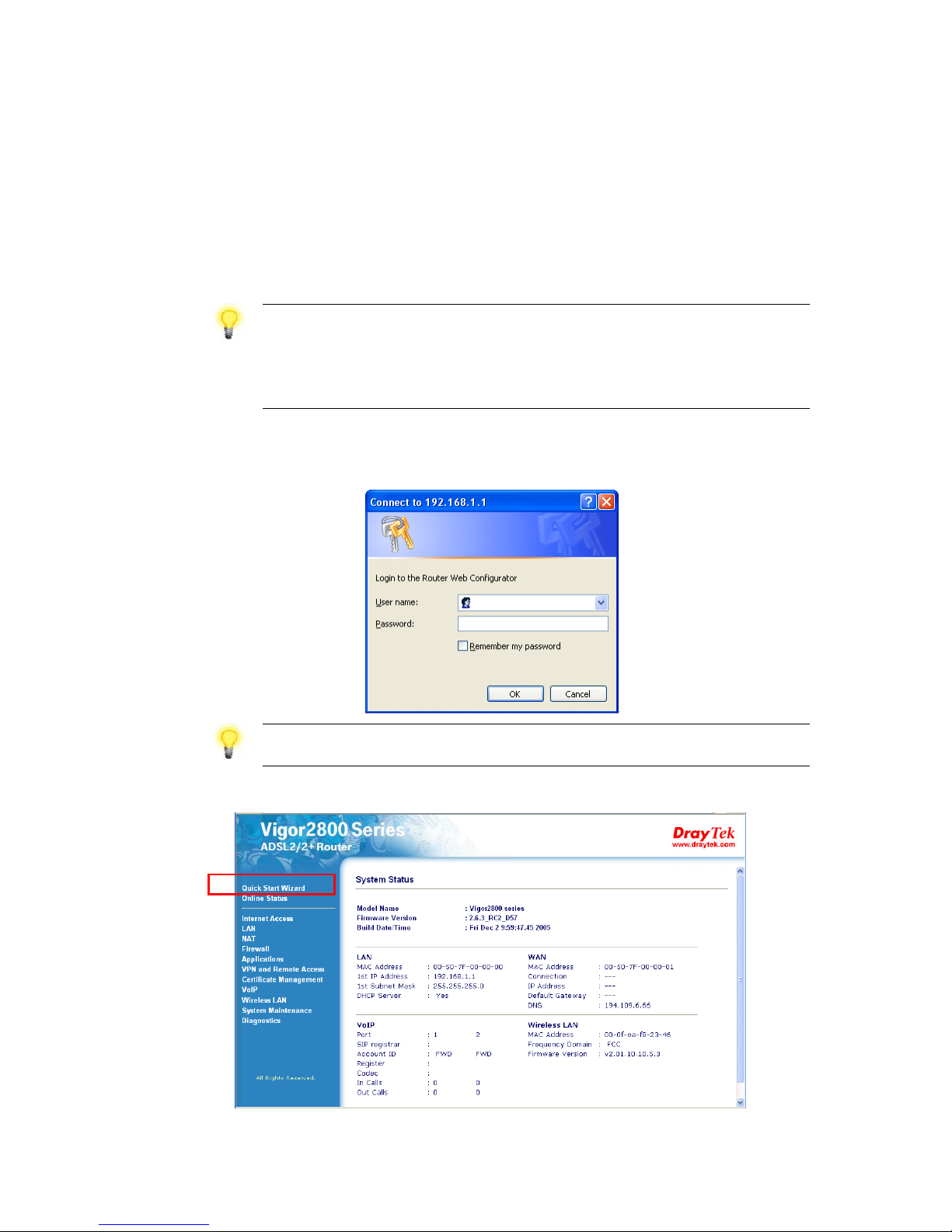

2. Open a web browser on your PC and type http://192.168.1.1. A pop-up window will
open to ask for username and password. Do not type any word on the window and
click OK for next screen.
Notice: If you fail to access to the web configuration, please go to “Trouble
Shooting” for detecting and solving your problem.
3. Now, the Main Screen will pop up. Click Quick Start Wizard.

14
4. Enter the login password on the field of New Password and retype it on the field of
Retype New Password. Then click Next to continue.
5. On the next page as shown below, please select the appropriate Internet access type
according to the information from your ISP or click Auto detect button to detect the
related DSL parameters automatically. Then click Next for next step.

15
PPPoE or PPPoA: if you click PPPoE or PPPoA as the protocol, please manually
enter the Username/Password provided by your ISP. Check Always On means
Internet access is always on regardless of Internet usage. Then click Next. Besides,
the protocol set here can be reviewed in the section of DSL Modem Settings –
Encapsulation on the web page of Internet Access – PPPoE/PPPoA.
1483 Bridged: if you click 1483 Bridged, you will get the following page. Please
type in all the information originally provided by your ISP. Then click Next for next
step. Besides, the protocol set here can be reviewed in the section of DSL Modem
Settings – Encapsulation on the web page of Internet Access – MPoA
(1483/2684).

16
1483 Routed IP: if you click 1483 Routed IP, you will get the following page.
Please type in all the information originally provided by your ISP. Then click Next
for next step. Besides, the protocol set here can be reviewed in the section of DSL
Modem Settings – Encapsulation on the web page of Internet Access – MPoA
(1483/2684).
6. Now you can see the following screen. It indicates that the setup is complete.
Different types of connection modes will have different summary. Click Finish and
then restart the router. Afterward, you will enjoy surfing on the Internet.
