Dreamline DUET User manual

Duet Tub Door & QWALL-TUB Kit
Tub Door AND SHOWER BACKWALLS KIT INSTALLATION
INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com web page.
STEP 1: Install Shower Backwalls
Shower Backwalls Installation Instructions
STEP 2: Install Shower Door
Shower Door Installation Instructions
Please read these instructions carefully before installing. If you have any questions regarding
installation, please call our technical support specialists Monday through Friday 9:00 AM –5:00
PM EST at Phone: [phone], Fax:[phone] or e-mail our technical support
group at [email protected].
For more information on DreamLine Shower Kit please visit www.BathAuthority.com

DUET
SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.bathauthority.com web page.
Please carefully read the instructions before installing. If you have any questions
regarding installation, please call our technical support specialists Monday through
Friday 9:00 AM – 5:00 PM EST at 1-866-731-8378, ext. 3 or e-mail our technical
support group at [email protected].
For more information on DreamLineTM Shower Doors please visit www.BathAuthority.com
Rev 1.1 1

Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of
the needed parts are included in the package, by marking all the components on the
“Detailed Diagram of Shower Door Components”. Examine boxes and packages for
shipping damage. If the unit has been damaged, has a finishing defect, or has missing
parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine TM will not replace any damaged products
or missing parts free of charge after 3 business days or if the product has been
installed. Feel free to contact DreamLineTM if you have any questions.
2. Please note that you should consult your local building codes with questions on
installation compliance standards. Building and plumbing codes may vary by
location, and DreamLine is not responsible for code compliance standards for your
project.
3. Please insure that prior to the installation the installation surface is leveled and solid and
will be able to support the total weight of the unit. Also make sure the walls are at right
angles. While some adjustment in leveling of the door is possible, irregular installation
surface level or improper angle of side walls will result in serious problems for your
installation. Please, note that some adjustments and drilling might be necessary during
the installation process.
4. Please, NOTE! This door has only ½” out-of-plumb adjustment. Make sure your
walls are as close to being plumb as possible.

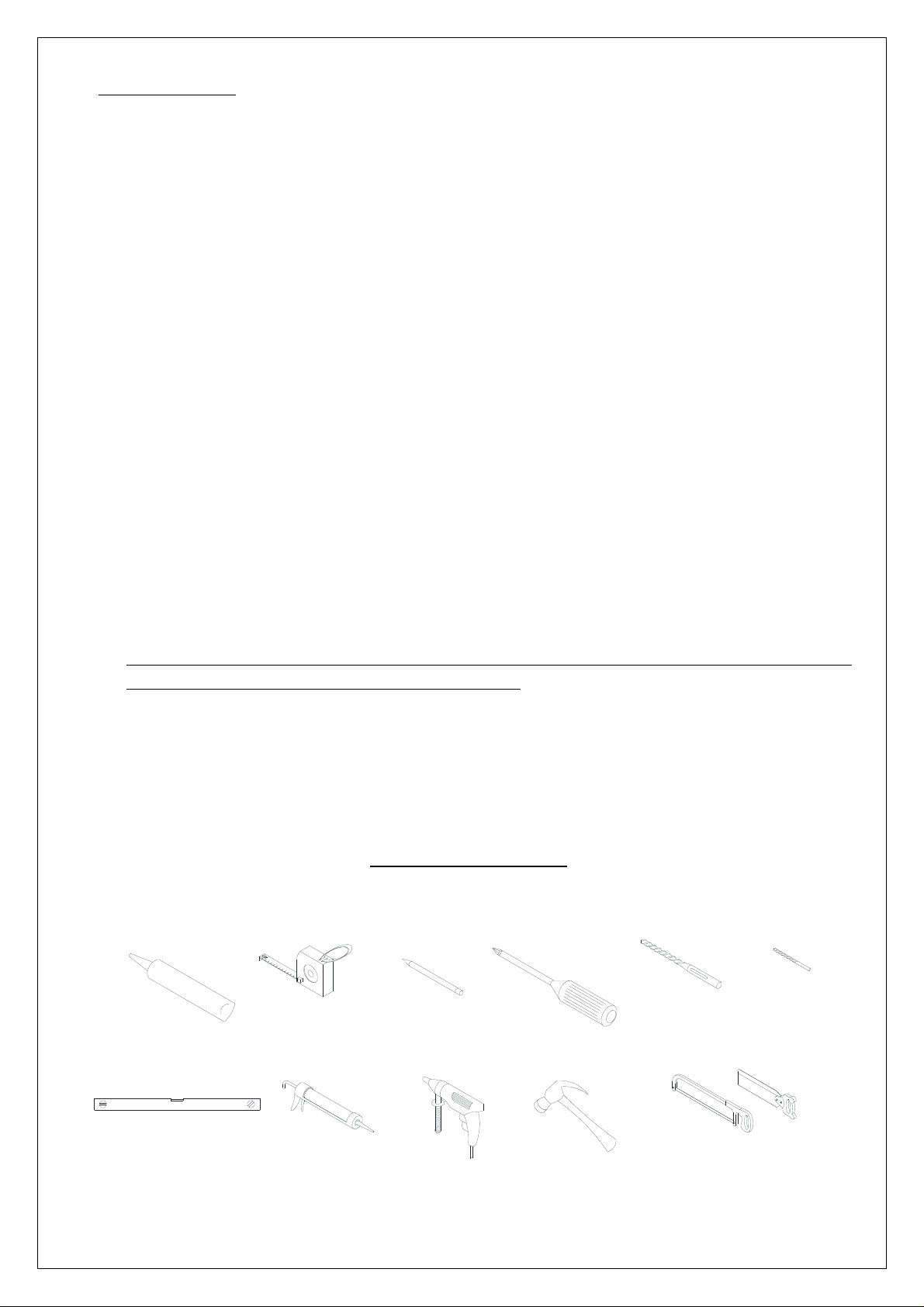

Tools Required
Caulk Tape
Measure Pencil Screwdriver
Phillips
Level Gun
Caulk Drill
Electric Hammer Miter saw or Hacksaw
Drill bit Drill bit
(Ø=5/16") (Ø=1/8")
Rev 1.1 2

Detailed Diagram of Shower Door Components
1
23
4
6
7
8
9
10
11
12
13
14
5
Packing List
01 Upper guide rail 1pc 08 Round head screw ST4.2×16 16pcs
02 Wall profile 2pcs 09 Round head screw ST4.2×30 18pcs
03 Glass profile 2pcs 10 Decorative cover 10pcs
04 Bottom guide rail 1pc 11 Roller 4pcs
05 Glass door 2pcs 12 Handle bracket 4pcs
06 Handle 2pcs 13 Guide block (left, right, middle) 1 set
07 Wall anchor 8pcs 14 Rubber stopper 6pcs
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the
carton, check for small hardware bags that tend to fall to the bottom of the box. If any parts
are damaged or missing, please contact DreamLineTM for replacement.
Rev 1.1 3

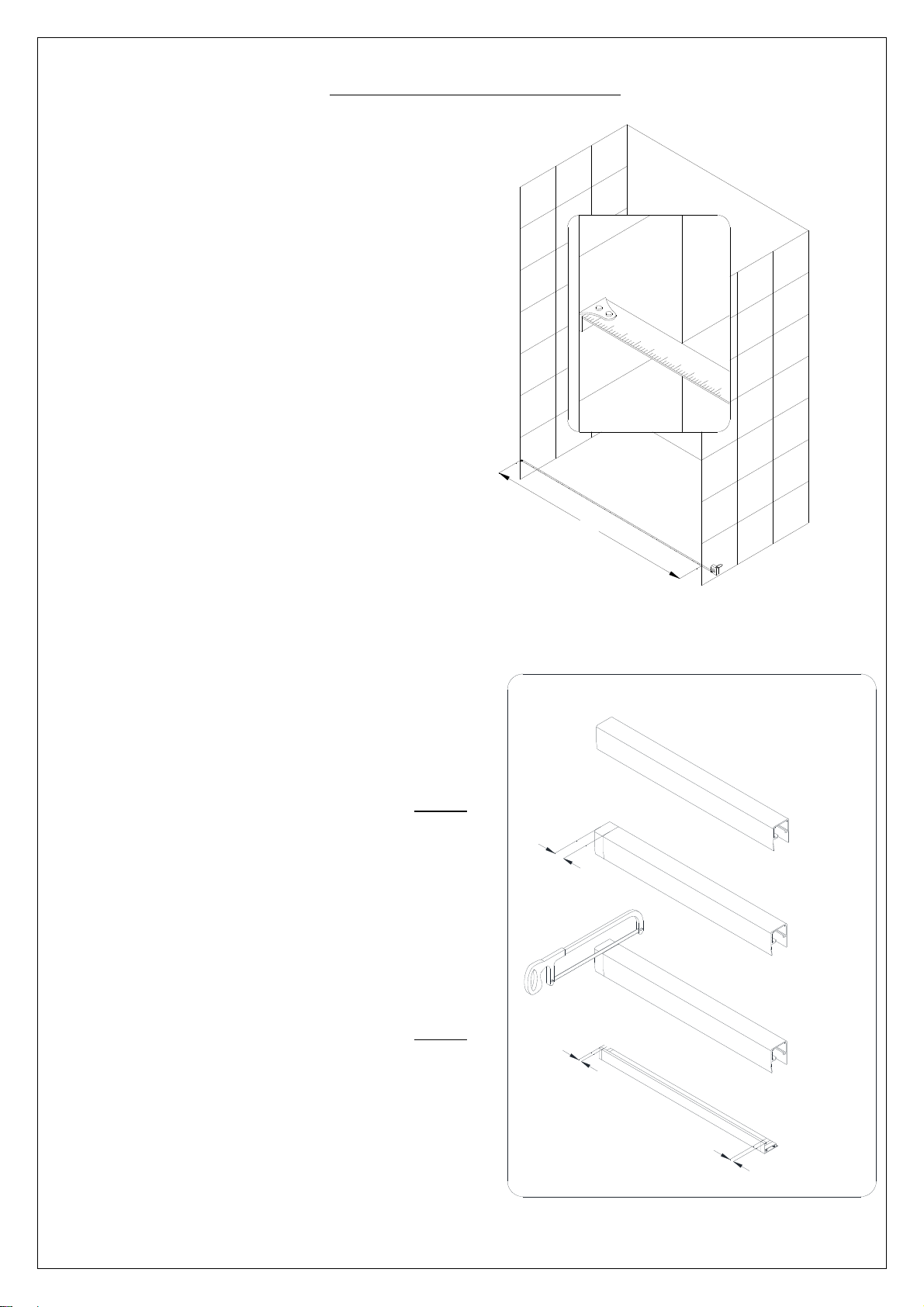

Shower Door Installation
1. Measure the distance between two walls.
This distance is marked as “W”.
See Fig. 1 for details.
Fig. 1
W
2. The Upper guide rail (01) and the Bottom
guide rail (04) has been precut for the
installation between the walls with a distance
of:
a) 48”
If W=48”, then it is unnecessary to cut the
Guide rails and you can continue to Step 3.
If W<48”,you will need to cut:
•Upper guide rail (01) from one end.
The cutting length will be D;
D=48”−W.
•Bottom guide rail (04) from both ends.
The cutting length will be D/2.
b) 60”
If W=60”, then it is unnecessary to cut the
Guide rails and you can continue to Step 3.
If W<60”,you will need to cut:
•Upper guide rail (01) from one end.
The cutting length will be D;
D=60”−W.
•Bottom guide rail (04) from both ends.
The cutting length will be D/2.
See Fig. 2 for details.
Fig. 2
D
D/2
D/2
Rev 1.1 4

3. Secure Upper guide rail (01) and Bottom
guide rail (04) to the Glass profiles (03)
with the Flat head screws ST4.2x25 (09).
See Fig. 3 and Fig. 4 for details.
Fig. 3
Fig. 4
1
2
3
4
Rev 1.1 5

4. Push the Wall profiles (02) all the way over the Glass
profiles (03) at both sides. Make sure the flange of the
wall profile faces inside the shower.
See Fig. 5 and Fig. 6 for details.
Fig. 5
Fig. 6
1
2
Rev 1.1 6

5. Move the finished frame to the
designated position and push it against
the walls. If your top and bottom wall
opening measurements are different or if
the walls are out-of-plumb, make
adjustment by slightly pulling the Wall
profiles out of the Glass Profiles.
Use the level to adjust the frame in the
vertical position.
See Fig. 7 for details.
Fig. 7
6. Using help to hold this frame in the right
position, mark the drill holes on the wall
through the holes on the flange of the
Wall Profile.
Gently set the assembled unit aside; drill
the holes using Ø 5/16” drill bit and
insert the Wall anchors (07).
See Fig. 8 for details.
Fig. 8
4
3
2
1
Ø 5/16”
Rev 1.1 7

7. Apply silicone along the wall profile and around the
holes on the wall. Also apply silicone under the bottom
guide rail. Place the shower frame back in to the
designated position and secure it to the walls using
Round head screws ST4.2×30 (09).
See Fig. 9 for details.
Fig. 9
8. Secure the Rollers (11) to the top of
the Glass door (05). Mind the position
of the rollers.
Attach the Handle brackets (12) to the
Glass doors (A & B). The handle
brackets should face the same direction
as the rollers. Then secure the Handles
(06) to the Handle brackets using
Round head screw ST4.2×16 (08).
Cover the holes with the Decorative
cover provided.
See Fig. 10 for details.
Fig. 10
1
2
4
3
2
1
Rev 1.1 8

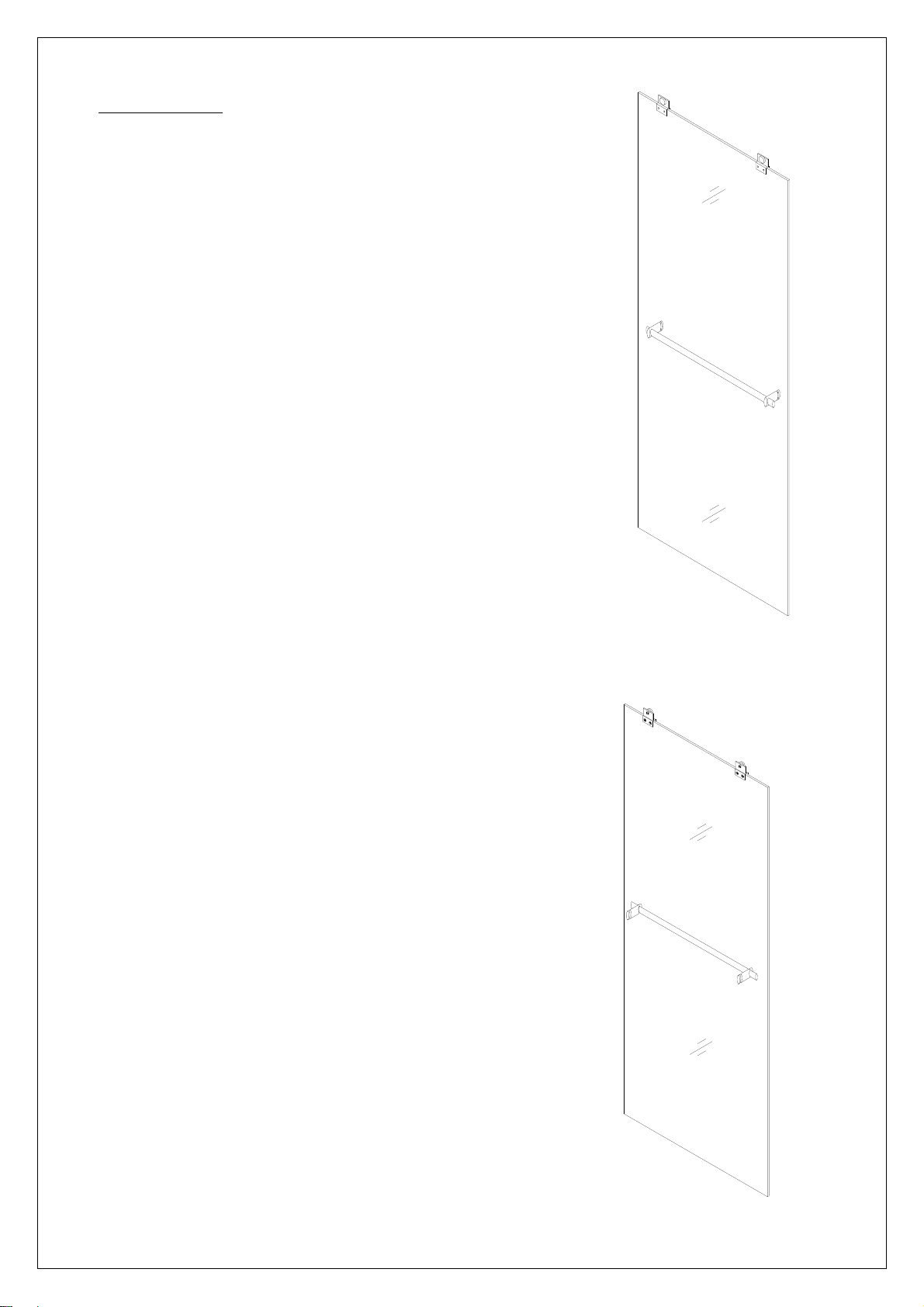

PLEASE NOTE:
•On the outside Glass door (A) the Handle and the
Rollers should face out.
•On the inside Glass door (B) the Handle and the Rollers
should face inside.
See Fig. 11 and Fig. 12 for details.
Fig. 11
Fig. 12
A
B
Rev 1.1 9

9. One by one suspend both Glass doors
onto the Upper guide rail as shown on
Fig.13. Tilt the Glass door (A) a little to
make the glass slide into the channel of
guide rail. Suspend the Glass door (B)
to the guide rail the same way.
See Fig. 13 and Fig. 14 for details
Fig. 13
Fig. 14
AB
3
2 4
1
Rev 1.1 10

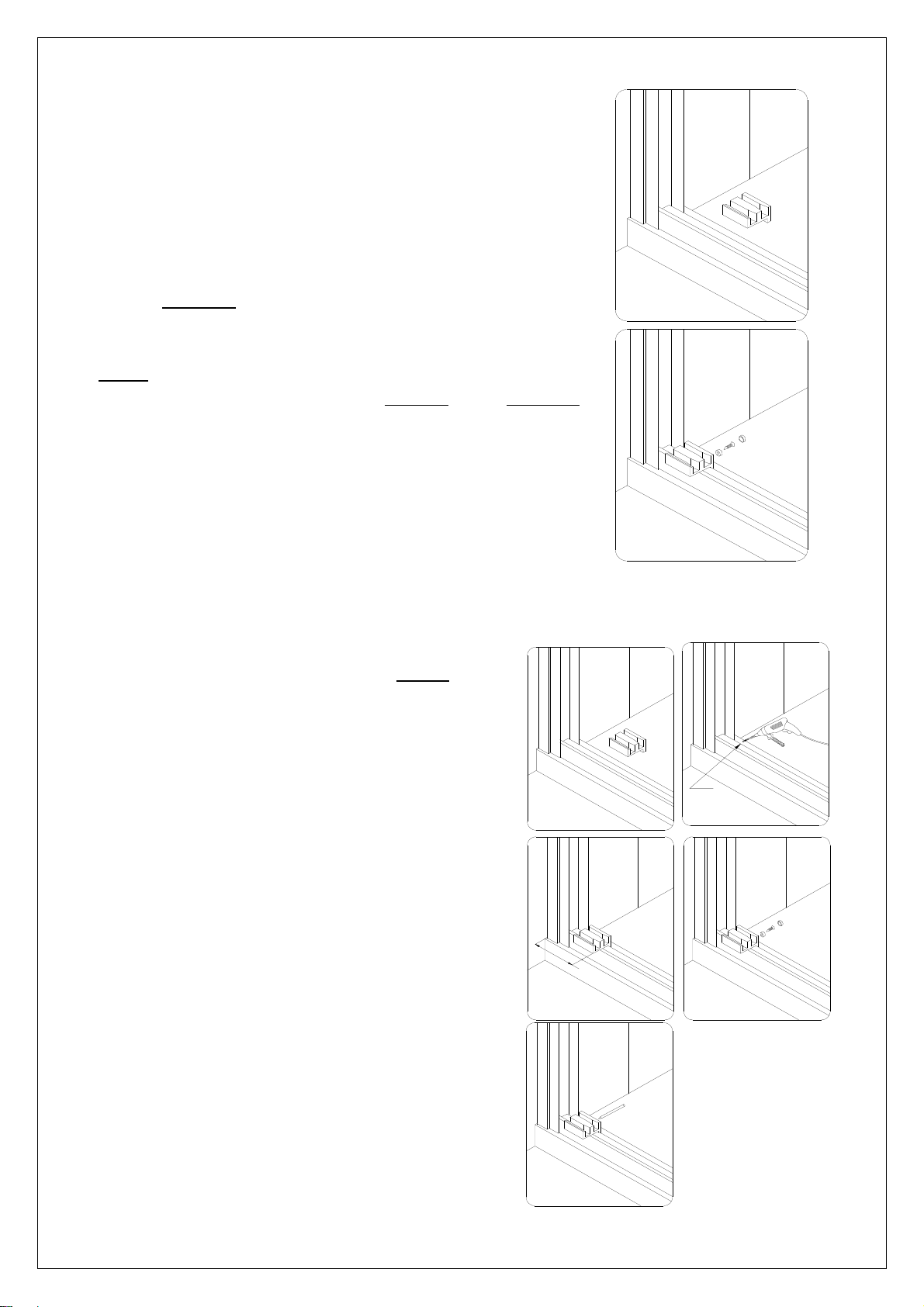

10. Slide both Glass Doors to the right. Insert the Left guide
block (13) into the channel on the left side of the Guide
rail and secure it using the Round head screw ST4.2 ×
16 (08).
Cover the screw head with Decorative cover (10).
See fig. 15 for details.
Repeat Step #10 to install the Right guide block and the
Middle guide block to the Guide rail.
NOTE:
If the guide rail has been cut off in Step #2, go to Step #11
Fig. 15
11. If the guide rail has been cut off in Step 2, place
the Guide block (13) to the end of the guide rail
and mark the drill hole in the Guide rail through
the pre-drilled hole on the block using 1/8” drill
bit.
Drill the hole and secure the Guide block with
the Round head screw ST4.2×16.
Cover the screw head with Decorative cover
(10).
See Fig. 16 for details.
Fig. 16
31/2"
2
1
Ø 1/8”
3
2
4
5
1
Rev 1.1 11

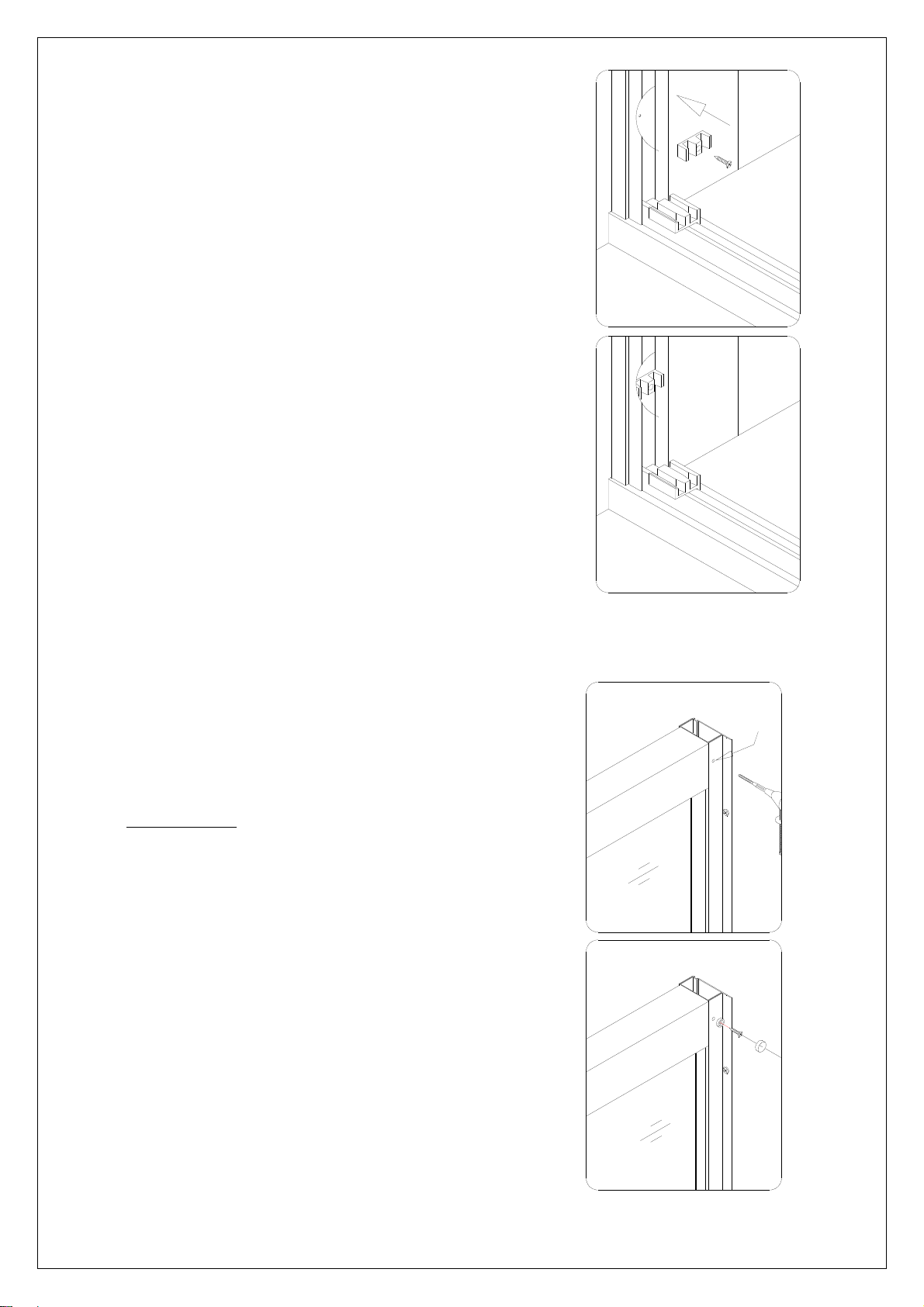

12. Fasten the Rubber stopper (14) inside the groove of
the Wall profile using the Round head screw
ST4.2×16 (08).
See Fig. 17 for details.
Fig. 17
13. Do the final adjustments of the assembled unit in the
Wall profiles.
Drill the holes in the Glass profiles through the
predrilled holes on the Wall profile.
ATTENTION: Make sure not to drill the holes
throughout, only the first layer of the wall
profile.
Secure the Wall profile to the Glass profile using the
Round head screw ST4.2×16 (08) and cover it with
the Decorative cover (10).
See Fig. 18 for details.
Fig. 18
1
2
2
1 Ø 1/8”
Rev 1.1 12

14. Apply the sealant along the profiles
and guide rails; on the seams between
the bottom guide rail and the profiles
as well as along the shower base or
threshold.
See Fig. 19 for details.
Fig. 19
Product Maintenance
To insure long lasting life for your acrylic back walls, wipe them off after each use with a soft cloth.
To clean the acrylic back walls use non-abrasive sprays or cream based cleaners. Never use abrasive
cleansers, metal brushes or scrapers that could scratch or dull the surface.
To insure long lasting life for your glass shower products, wipe them off after each use with a soft
cloth. Rinse and wipe of the glass using either soft cloth or squeegee to prevent soap buildup. Never
use abrasive cleaners and cleaning products that contain scoring agent because this may scratch the
surface. Never use bristle brushes or abrasive sponges.
To assure a long lasting finish wipe off the metal parts after each use with a soft cloth. Do not use
abrasive cleaners or cleaning products containing ammonia, bleach or acid. If accidentally used,
rinse the surface as soon as possible to prevent finish peeling or corrosion. After cleaning the shiny
finishes, rinse thoroughly and wipe dry with soft cloth. Clean stainless steel surfaces at least once
a week. When applying stainless steel cleaner or polish, work with (not across) the grain. Never
use abrasive sponge or cloth, steel wool or wired brushes.
caulk
Rev 1.1 13

QWALL TUB
TUB ACRYLIC BACK WALL INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time
without prior notice. For the latest up-to-date technical drawings, manuals or any
other details please refer to the support.BathAuthority.com web page.
Please carefully read the instructions before installing. If you have any questions
regarding installation, please call our technical support specialists Monday through
Friday 9:00 AM – 5:00 PM EST at 1-866-731-8378, ext. 3 or e-mail our technical support
group at [email protected].
Rev 1.1 1
For more information on DreamLineTM Tub Back Wall please visit www.BathAuthority.com

Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of
the needed parts are included in the package, by marking all the components on the
“Detailed Diagram of Tub Back Wall Components”. Examine boxes and packages for
shipping damage. If the unit has been damaged, has a finishing defect, or has missing
parts, please contact our customer support department within 3 business days of the
delivery date. Please note that DreamLine TM will not replace any damaged products or
missing parts free of charge after 3 business days or if the product has been
installed. Feel free to contact DreamLineTM if you have any questions.
2. Please note that you should consult your local building codes with questions on
installation compliance standards. Building and plumbing codes may vary by
location, and DreamLine is not responsible for code compliance standards for your
project.
3. This acrylic wall system is specially designed to be installed over any solid surface. If you
are installing the acrylic walls over the existing tiles, remove all loose tiles before the
installation. If you are installing over the existing painted walls, take all loose paint off.
Please, note that some cutting and drilling might be necessary during the installation
process.
4. Make sure to turn off the water supply, remove faucet, handles or any fixture trims
protruding from the wall. Clean the surface removing soap film and dirt from all wall
surfaces using regular household detergent, then wipe it dry.
Tools Required
Caulk Tape
Measure Pencil
Screwdriver
Phillips
(Ø 5/16")
Drill bit
Level Gun
Caulk Drill
Electric Hammer
Knife T-Square
Rev 1.1 2

Detailed Diagram of Tub Back Wall Components
12
4
3
7
5
8
9
10
6
Packing List
01 Side panel 2pcs 06 Wall anchor 21pcs
02 Back panel 2pcs 07 Countersunk screw ST4.2×30 21pcs
03 Decorative edge molding 2pcs 08 Decorative cover 15pcs
04 Corner cover 2pcs 09 Glass shelf 2pcs
05 Wall cover 1pc 10 Shelf bracket 6pcs
Rev 1.1 3
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the
detailed diagram and packing list in your manual as a reference. Before discarding the carton,
check for small hardware bags that tend to fall to the bottom of the box. If any parts are
damaged or missing, please contact DreamLineTM for replacement.

Back Panel Installation Instruction
1. Measure the distance of the back wall
of the tub (corner to corner)
The distance is “W”
See Fig. 1 for details.
Fig. 1
2. Divide the W measurement by 2
(W/2). Place a mark on the back wall
and draw a vertical line from top to
bottom.
See Fig. 2 for details.
Fig. 2
Rev 1.1 4
W
W/2
W/2

3. Measure the side walls from the
corner to the front point where the
Side panel (01) is going to end.
This distance is “D”.
See Fig. 3 for details.
Fig. 3
4. Verify on which side of your tub
wall the fixtures will be installed.
Place a mark on the side wall (NB:
not the side panel!) with a
distance of 1” (one inch) from the
corner and draw a vertical line from
top to bottom.
Take the exact measurements:
•from the fixture to the line:
(A, B, C)
•from the fixture to the bottom:
(E, F).
See Fig. 4 and Fig. 5 for details.

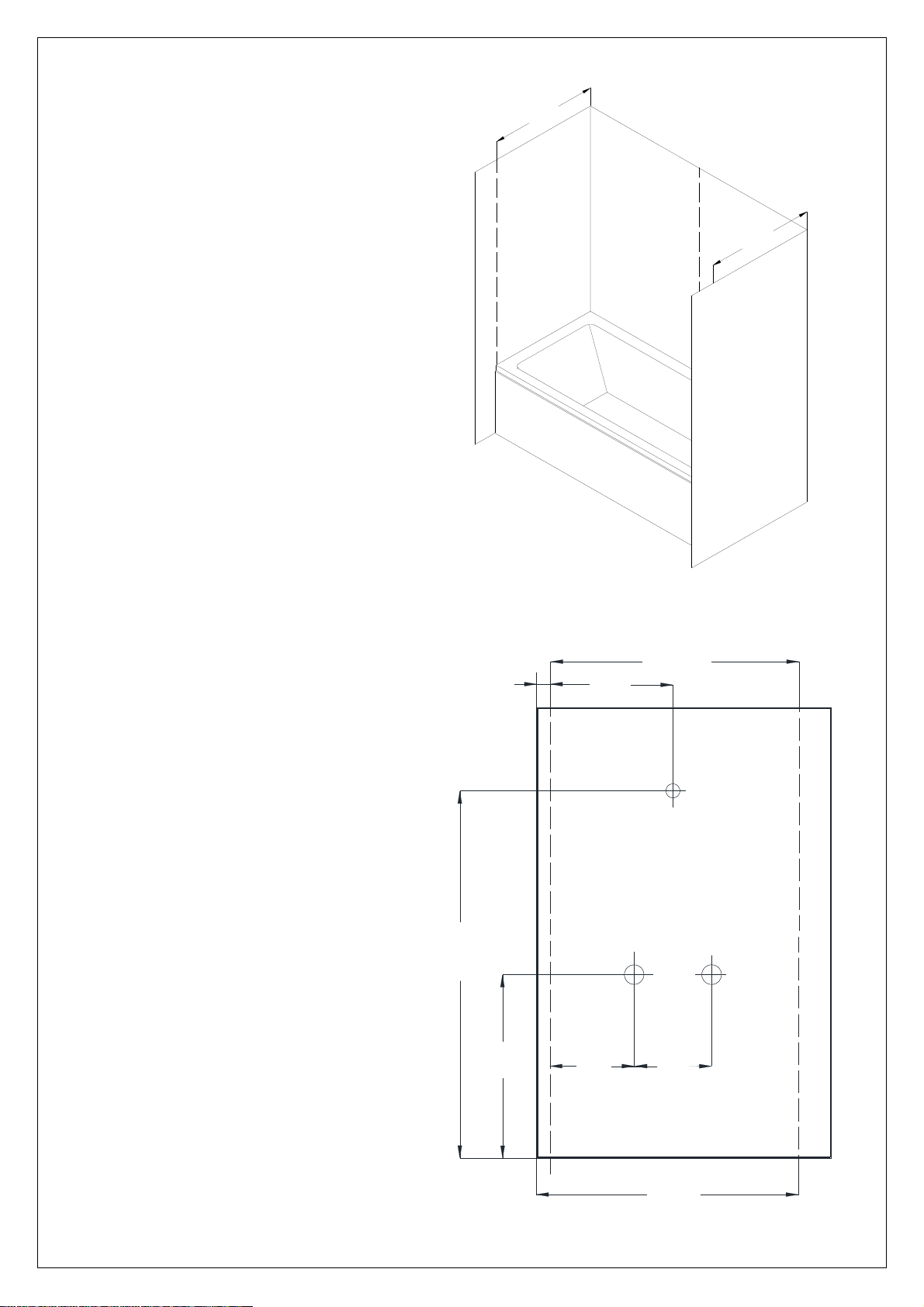

Fig. 4
Rev 1.1 5
D
D
CB
F
E
A
1
”
Trim line
D
D - 1”

Fig. 5

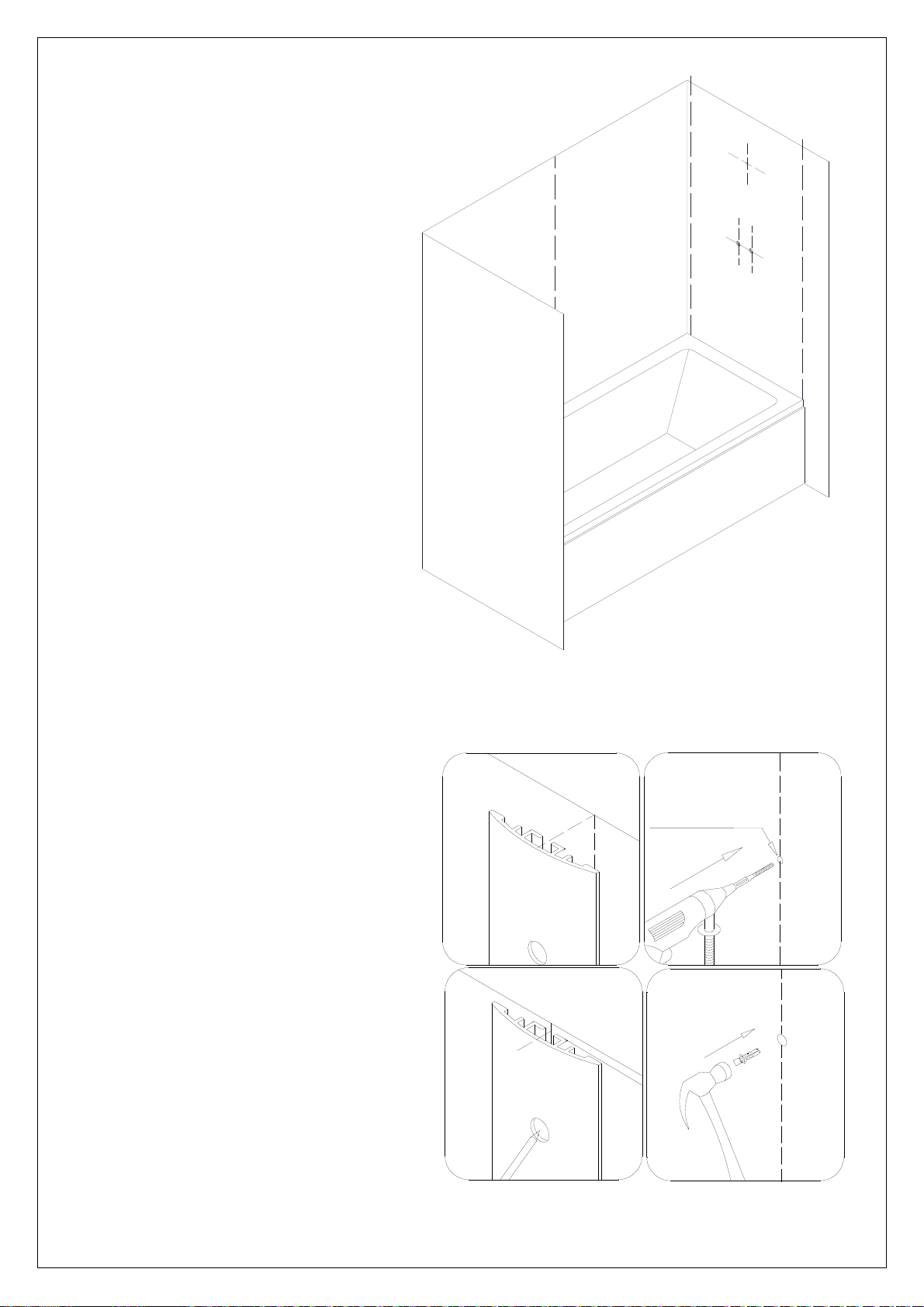

5. Attach the Center cover (05)
vertically at the center point
along the line and mark the
drilling holes through the
predrilled holes on the Center
cover.
Drill the holes using Ø5/16” drill
bit and insert the Wall Anchors
(06).
See Fig. 6 and Fig. 7 for details.
Fig. 6
Rev 1.1 6
Ø5/16”
1
2
3
4
