UNIDOOR PLUS (Style F)
SHOWER DOOR AND INLINE PANEL INSTALLATION INSTRUCTIONS
©2020 DreamLine®All Rights Reserved
UNIDOOR PLUS STYLE F Shower Door Cover Page Ver 2 012020
STEP 2: Install Inline Panel STYLE F
STEP 1: Install Shower Door
+=

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
UNIDOOR/UNIDOOR-LS/UNIDOOR LUX/UNIDOOR PLUS
SINGLE SHOWER DOOR INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLine®reserves the right to alter, modify or redesign products at any time without prior notice.
For the latest up-to-date technical drawings, manuals, warranty information or additional details
please refer to this model’s web page on DreamLine.com
Right-hand installation shown
Please review this entire manual prior to beginning installation.
For more information about DreamLine®products please visit DreamLine.com
ATTENTION: Please see specific installation instructions on page 2 when using the
Half-Frosted glass option.
Model #s
SHDR-20237210F-##
SHDR-20247210F-##
SHDR-20257210F-##
SHDR-20267210F-##
SHDR-20277210F-##
SHDR-20287210F-##
SHDR-20297210F-##
SHDR-20307210F-##
## = Finish
01 = Chrome
04 = Brushed Nickel
06 = Oil Rubbed Bronze
09 = Satin Black
HFR=Half-Frosted
NOTE: The glass-to-wall
hinges for this door must
be attached into studs or to
preinstalled 2” × 6” wood
reinforcement behind the
wall.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
2
Style “A” (single door installation shown) with Half-Frosted Glass:
NOTE: This model features the Half-Frosted glass option.
The textured surface on the door glass should be installed to face outside of the shower.
The door glass can be flipped for left or right-hand installation.
Hinged Left installation
Hinged Right installation

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
3
Table of Contents
Section Title
Page #
Unidoor Styles
4-7
Preparation
8
Tools
9
Required Reinforcement locations
10

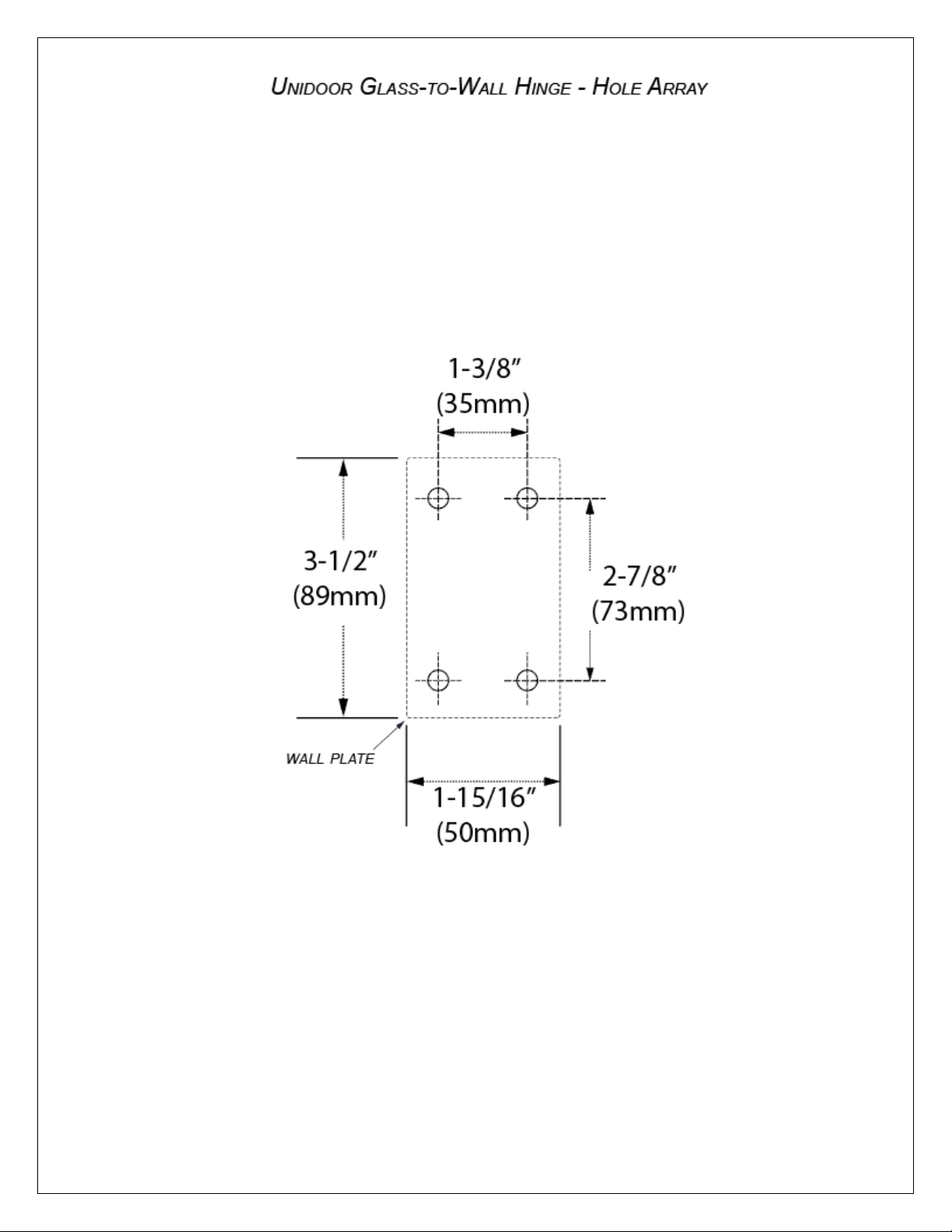

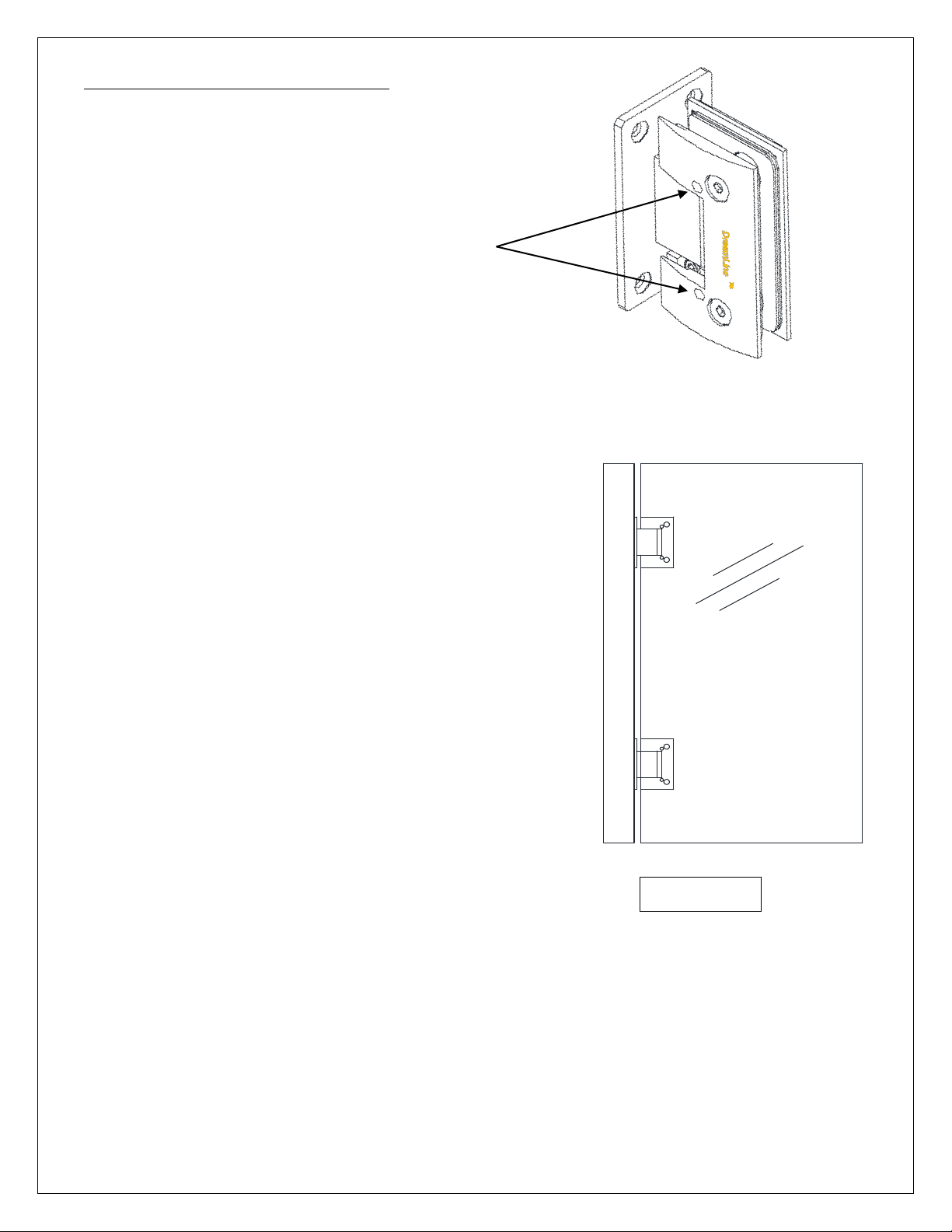

Glass and Hinge hole details
11-12
Detailed Diagram of Shower Door Components and Parts List
13
Installation Instructions
14-21
Adjustable Hinge Details
17-18
Handle
19
Vinyl Seals
19-20
Product Maintenance
22

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
4

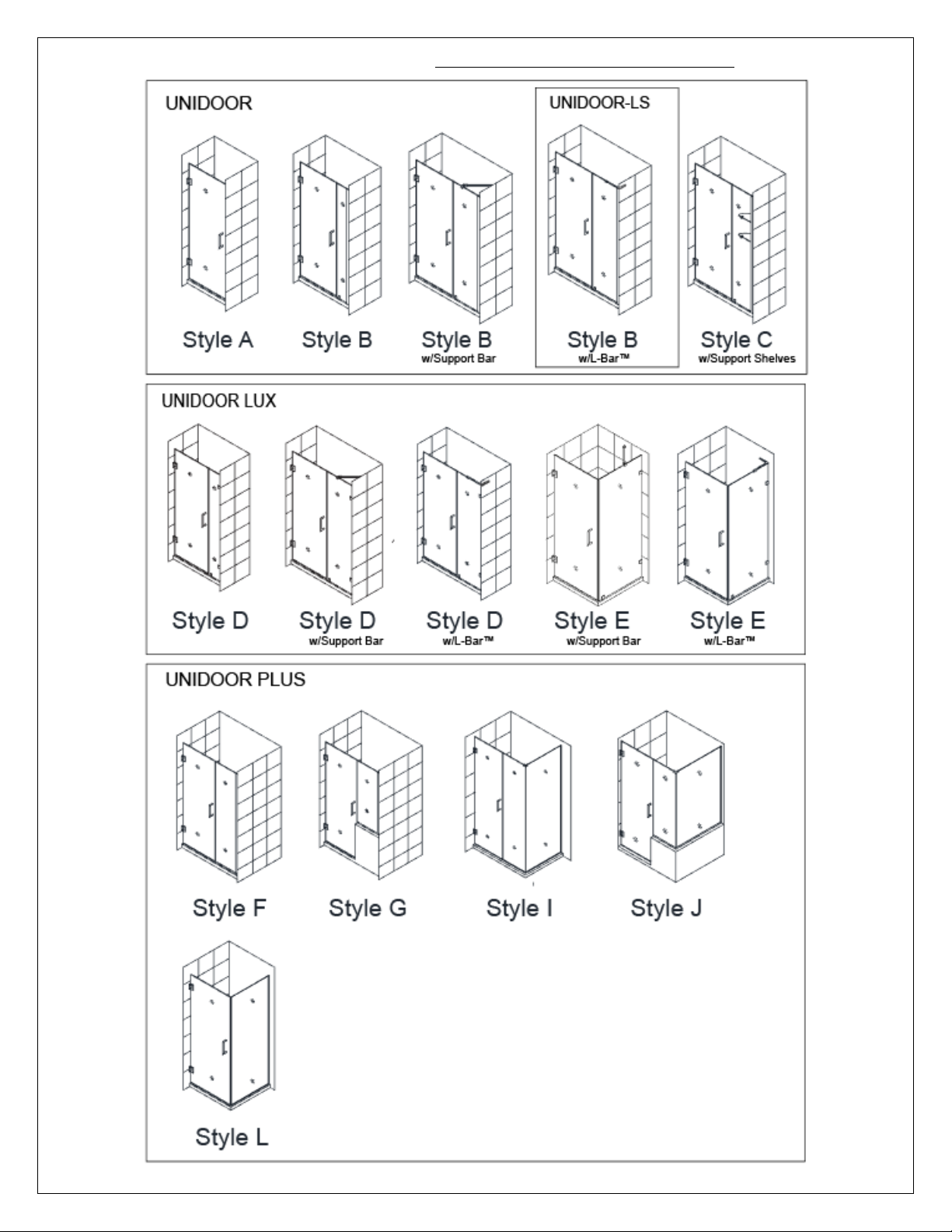

UNIDOOR STYLES- Models with Glass-to-Wall hinges

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
5
Models with Glass-to-Glass Hinge panels: For Glass-to-Glass Hinge Door models:
Use the installation manual that is packaged with the Hinge panel glass first.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
6
STYLE A
UNIDOOR Single shower door 23”- 30”
Refer to detailed diagram on page 12 of this manual to begin the installation.
STYLE B *
UNIDOOR Shower door 23” – 30” with 6” small or 12”-30” large stationary panel with a Support Bar
UNIDOOR-LS Shower door 23” – 30” with 12”-30” large stationary panel with an L-Bar™
STYLE C *
UNIDOOR Shower door with 12”-30” large stationary panel with Support shelves
STYLE D *
UNIDOOR LUX Shower door 23”~30” with 6” small or 14”-30” large stationary panel with glass-to-
wall brackets with an L-Bar™ or a Support Bar
STYLE E *
UNIDOOR LUX Shower enclosure with 30” return stationary panel with glass-to-wall brackets with an
L-Bar™ or a Support Bar
STYLE F *
UNIDOOR PLUS Shower door 23”~30” with 6”-34” in-line stationary panel secured using u-channel
STYLE G *
UNIDOOR PLUS Shower door 23”~30” with 6”-34” in-line half wall panel secured using u-channel
STYLE I *
UNIDOOR PLUS Shower enclosure with 6”-34” in-line stationary panel and 30”-34” return panel
secured using u-channel
STYLE J *
UNIDOOR PLUS Shower enclosure with 12”-36” in-line half wall panel and 30”-34” return panel
secured using u-channel
STYLE L *
UNIDOOR PLUS Shower enclosure with 30”- 34” return stationary panel secured using u-channel
STYLE L1 *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel and
with 30”- 34” full height return panel secured using u-channel
STYLE M *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel secured using u-channel
STYLE M1 *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel and
with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel secured using u-channel

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
7
STYLE M2 *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel with 12”, 18”, 24” or 26” inline buttress
panel secured using u-channel
STYLE M3 *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel,
with 6”, 6-1/2”, 14”, 14-1/2”, 22” or 22-1/2” full height inline panel and 30” - 34” full height return
panel secured using u-channel
STYLE M4 *^
UNIDOOR X Shower door 23”~30” with 6” or 24” hinge panel,
with 12”, 18”, 24” or 26” in-line buttress panel and 30”- 40” buttress return panel secured using
u-channel
* For the panel installation instructions, please refer to the separate manual included in the
panel glass packaging.
^ For Glass-to-Glass door installation, please refer to the separate manual included in the hinge
panel glass packaging.
NOTE: The Unidoor series doors and enclosures are reversible for left or right-hand installation. This
manual will show the right-hand installation. For a left-hand installation, simply begin on the opposite
wall and reverse the orientation of the parts as necessary.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
8
Preparation
1. Prior to installation, examine all boxes and packages for shipping damage and compare the piece
count with your packing slip. After opening all boxes and packages read this introduction carefully.
Check that all of the necessary parts are included in the package(s) by checking off the
components on the “Detailed Diagram of Shower Door Components”. If the unit has been
damaged, has a finishing defect, or is missing parts, please contact our customer support
department within 3 business days of the delivery date. Please note that DreamLine®will not
replace any damaged products or missing parts free of charge after 3 business days or if the
product has been installed. Please contact DreamLine®if you have any questions and please
provide an order number, job name or other proof of purchase to help identify the original order.
2. Please note that you should consult your local building codes with questions about
installation compliance standards. Building and plumbing codes may vary by location, and
DreamLine®is not responsible for code compliance standards for your project and will not
accept any returns.
3. If this unit is going to be installed in a new construction, install all of the required plumbing and
drainage before installing the shower. Use a competent and licensed (if required by local code)
plumber for all plumbing installation.
4. Make sure that prior to beginning the installation, the surfaces are leveled and solid and will be
able to support the total weight of the unit. Also make sure the walls are at right angles. Irregular
installation surface level, radius corners or improper angle of side walls will result in serious
problems for your installation. Please note that some adjustments and drilling will be necessary
during the installation process.
5. Protect all primary surfaces of the product during installation. Never set glass down directly onto
a hard surface unless instructed. Leave corner protectors in place until necessary to remove them.
Always use a piece of wood or cardboard to protect the bottom edge and corners of the glass
prior to and during installation to prevent damage.
6. This unit must be installed upon a level finished threshold and against plumb finished walls.
7. This door is extremely heavy and the hinges on this door must be attached into studs or to
preinstalled 2”× 6”wood reinforcement behind the wall. See pages 9, 10 & 11 for details.
8. The single Unidoor installation does NOT have any adjustment for out-of-plumb or out-of-level
conditions. Please verify that the walls are plumb and the threshold is level before proceeding
with the installation.
9. Professional installation is recommended for this heavy glass frameless shower door.
NOTE: DO NOT attach the handle to the door glass until instructed.
DO NOT use the handle to lift the glass during installation. This may result in damage to
the glass and/or serious injury. Always use an assistant and/or a professional grade glass
suction cup when handling heavy glass panels.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
9
Tools Required

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
10

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
11

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
12

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
13

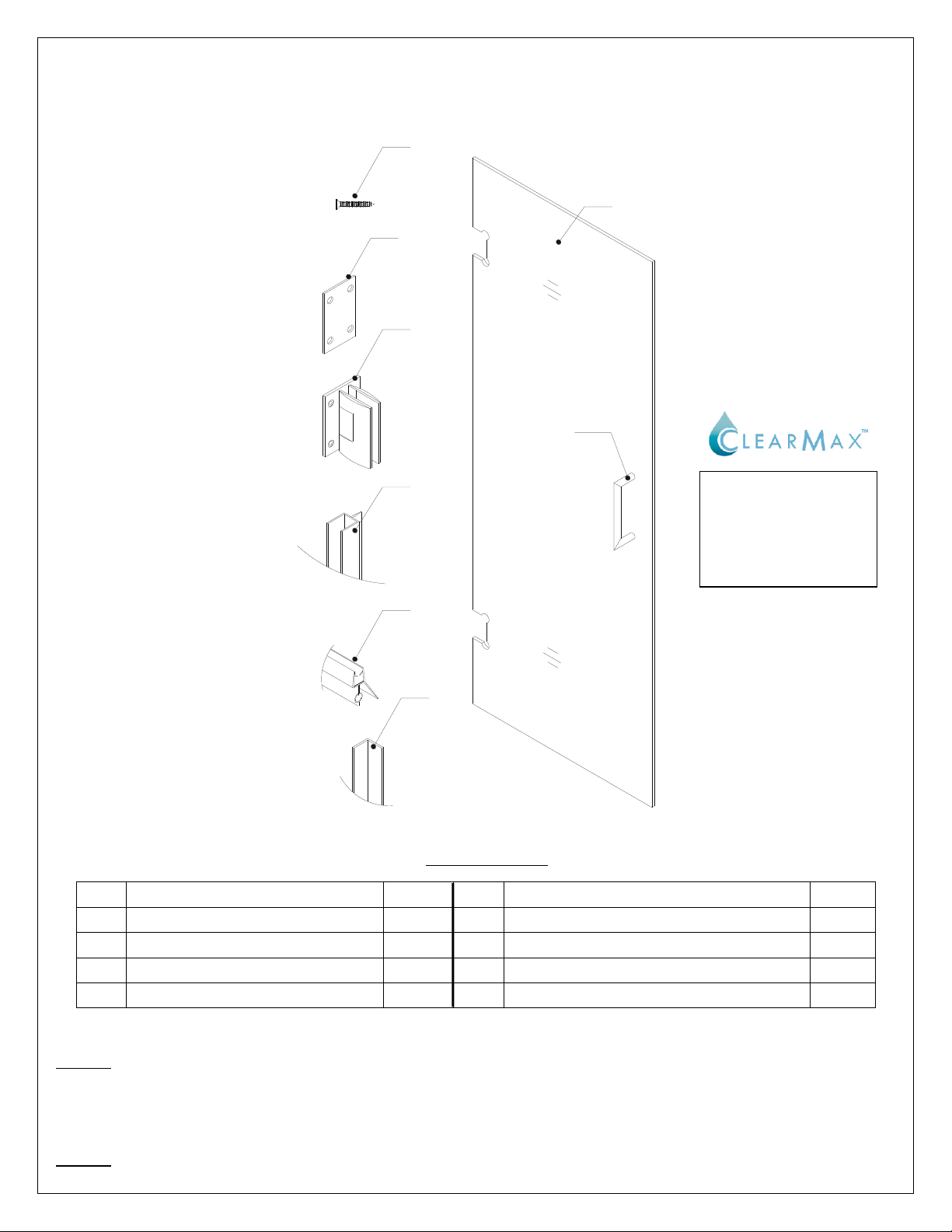

Detailed Diagram of Shower Door Components
1
2
4
5
6
7
8
31
Packing List
Part#
Description
Qty
Part#
Description
Qty
01
Door glass
1pc
06
Side strip (hinge side)
1pc
02
Handle
1pc
07
Bottom anti-water strip (sweep)
1pc
04
Countersunk screw ST5×70
8pcs
08*
L-shaped strip (strike)
1pc
05
Hinge with Adjustable angle
2pcs
31
PVC hinge spacer
4pcs
*Part #8 “L-shaped strip” used with single door installation only.
NOTE: Unpack your unit carefully and inspect it. Lay out and identify all parts using the detailed
diagram and packing list in this manual as a reference. Before discarding the carton, check for small
hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,
please contact DreamLine® for replacement.
NOTE: Retain these installation instructions for future reference.
The glass surface
with the ClearMax™
label must be
installed to face
inside of the shower

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
14
Never set the glass down directly onto a tile or concrete
floor. Always use a piece of wood or cardboard and leave
the corner pads and protective shims on the glass until it
becomes necessary to remove them. This will protect the
bottom edge and corners from damage which could lead
to breakage.
Single Shower Door Assembly and Installation
NOTE: The following shower door installation instructions should be used as a general
guide and prerequisite to the installation of the UNIDOOR, UNIDOOR-LS, UNIDOOR LUX
and UNIDOOR PLUS models. Before you begin the installation, please check your finished
opening size. Specific size information can be found on DreamLine.com
1. Attach the Hinges (05) to the Door Glass (01). Use one hinge
gasket per side. Attach the hinges centered in the notches and
square with the edge of the door glass. Fully tighten the hinge
bolts. (Fig 1)
ATTENTION:
For Styles E, I, J & L that have return panels:
Please check the model dimensions for proper placement of the Door Glass (01) so that the
door glass will align correctly with the return panel glass.
Fig. 1
ATTENTION:
This door is extremely heavy and
the hinges on this door must be
installed into studs or to
preinstalled 2×6 wood
reinforcement behind the wall.
inside
outside
NOTE: DO NOT attach the handle to the
door glass until instructed.
DO NOT use the handle to lift the glass
during installation. This may result in damage
to the glass and/or serious injury. Always use
an assistant or a professional grade glass
suction cup when handling the door glass.
TIP: Clean the hinge gaskets and the
glass around the hinge notch with an
ammonia free glass cleaner prior to
attaching the hinges to the glass.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
15

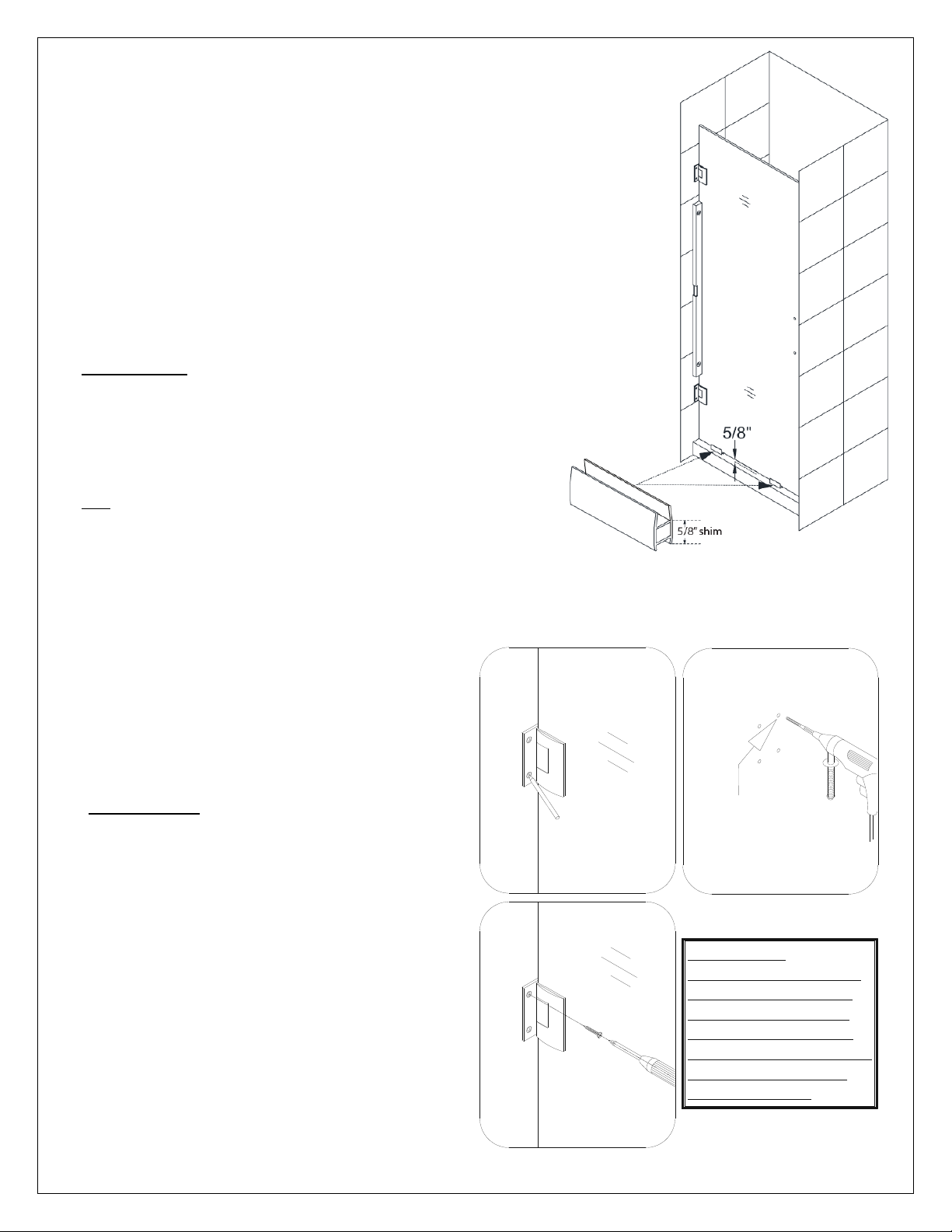

2. The Door Glass (01) ships with four 5/8” shims
attached to the top (2pcs) and bottom (2pcs).
Determine the swing of your door and only remove the
shims from the top of the door glass, leaving the
bottom shims in place. Set the Door Glass (01) onto
the threshold at the desired location and check for level.
These 5/8” shims will leave the proper spacing at the
bottom of the door glass and will ensure that the door
height finishes at 72”, but always confirm with a
measurement. Carefully butt the door with the hinged
side against the wall, adjust its position and check for
plumb with a level. (Fig 2)
ATTENTION:
Check the door glass with a level to verify that it is
plumb before marking the hinge positions.
TIP:
When installing the door along with panel glass, use
the 72" Anti-Water strip (Inline) (19) that is packed
with the panel glass as a height reference to be sure
that the door height will match the panel glass at 72".
3. Hold the door in place and mark the drill
holes for both Hinges (05) on the wall. Set
the door aside and use a Ø 1/4”drill bit to
drill holes up to the stud. Drill 1/8” pilot
holes into the stud if necessary.
IMPORTANT:
The included PVC hinge spacers (31) are
provided to compensate for minor out-
of-plumb wall conditions. Use only as
necessary as their use could compromise
the opening size of your shower. Please
see Fig 4 for an installation example*.
4. Place the Door Glass (01) back onto the
threshold along with the 5/8” spacers and
attach both hinges to the wall with two
Countersunk screws ST5×70 (04) on the
hinge from outside of the shower. Then
open the door and install the remaining
screws to both wall plates from the inside.
(Fig 3 and Fig 4)
2
1
3
Ø 1/4"
outside
outside
ATTENTION:
This door is extremely
heavy and the hinges
on this door must be
attached to the studs
or to preinstalled 2 ×6
wood reinforcement
behind the wall.
Fig. 2
Fig. 3

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
16
ATTENTION:
As viewed from inside the shower, the hinge
plate is very close to the drilled holes in the wall
and might get scratched while installing the long
screws. Be careful not to scratch the hinge
surfaces during installation.
(OPTIONAL)
5. Carefully remove the hinge plates from the Hinges
(05) (Fig 5.1), remove the Door Glass (01) and
carefully set it aside.
Install the remaining Countersunk screws ST5 x 70
(04) into the wall, place the Door Glass (01) (with
the 5/8” bottom spacers still attached) back into
position onto the Hinges (05) and re-assemble the
Hinges (05). Once the door glass is secure, remove
the 5/8” spacers from beneath the Door Glass (01).
(Fig 5)
1
2
3
Fig. 5
Fig. 4
TIP: The PVC hinge spacer can
also be used as a template to
assist with marking the hinge
mounting holes.
inside
1
3
2
4
inside inside
*Only use the PVC hinge spacer to
correct for minor out-of-plumb
wall conditions.

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
17
Setting the Adjustable Hinges
The Adjustable hinges are pre-set to overclose
to 85º and are adjustable up to 90º after the
door is installed. Once the door glass is
installed, simply loosen the Allen set screws
and position the door to the desired closed
position. While holding the door in the new
closed position, retighten the Allen screws and
your door will now self-center to the chosen
closed position.
5a. Make sure the door glass is plumb and the edge of the
hinge is installed flush with the glass edge. Center the hinge
in the glass notch and tighten the faceplate screws (Fig 5a).
Be careful not to scratch the finished surfaces of the hinge
during installation.
Fig 5a
view from inside the
shower

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
18
5b. The hinges are factory set to 85 degrees.
You can change this angle by using the adjustment screws
on the hinge plate.
(Fig 5b)
5c. Use the supplied Allen Key to loosen the adjustment screws on the inside hinge plate, adjust
the door to the desired angle (90 degrees for example) then retighten the adjustment screws
(Fig 5c). Be sure that you create a tight seal with the supplied strike vinyl when the door is in the
closed position.
Fig 5b
Fig 5c
inside outside
inside outside
View from inside
of shower

©2018 DreamLine. All Rights Reserved
UNIDOOR Single Shower Door manual Ver 2 Rev 6.1 03/2018
19
6. Mount the Handle (02) to the Door Glass (01).
(Fig 6)
7. Measure the bottom of the Door Glass
(01) from end to end to determine the
actual width of the door. Cut the
Bottom anti-water strip (07) to the
size of your measurement and notch
approximately 3/8”off the inner side of
the Bottom anti-water strip as shown.
Press the Bottom Anti-water strip (07)
tightly onto the bottom edge of the
Door Glass (01).
NOTICE:
Make sure the Bottom anti-water strip
is flush to the vertical edge of the
Handle side of the Door Glass.
(Fig 7)
Fig. 6
2
1
3
inside
outside
inside
outside
4
inside
outside
inside
outside
Handle side
strip end 3/8"
Fig. 7
+/-
