PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

MYSTERIE

SHOWER DOOR INSTALLATION INSTRUCTIONS

IMPORTANT

DreamLine® reserves the right to alter, modify or redesign products at any time without prior notice for the

purpose of product improvement and customer experience. Please refer to the model’s web page on

DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional

product details.

Model#s:

SHDR-61AMZ48-##

SHDR-61AMZ60-##

##=finish

07- Brushed Stainless Steel

08- Polished Stainless Steel

Right-hand door installation shown

This model is treated with DreamLine’s

exclusive ClearMaxTM Glass technology.

This is a specially formulated coating

that prevents the build up of soap and

water spots.

Install the surface with the ClearMaxTM

label towards the inside of the shower.

Please note that depending on the

model, the glass may be coated on

either one or both surfaces.

For best results, squeegee the glass after

each use and dry with a soft cloth.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Important Model Information

Table of Contents

Section title Page #

Reinforcement Instructions

Preparation

Tools

Detailed Diagram ‘A’ of Shower Door Components

Installation Steps

Guide Rail Bracket Adjustment

Guide Block Installation

Roller Wheel Adjustment Procedure

Vinyl Seals

Door Stopper Installation

Bumper Installation

Product Maintenance

21-22

17 & 24

8-23

Roller Guards 18

MYSTERIE shower door manual Ver 6 Rev 7 07/2018 2

MYSTERIE shower door manual Ver 6 Rev 7 07/2018 3

AGuide Rail Brackets must be firmly

attached to the wall. Installation into a

stud is strongly recommended.

All of the guide rail bracket set

screws must be tightened.

BThread Lock must be applied to both

stopper set screws.

Panel-side stopper must be installed

into the pre-drilled stopper hole in

the upper guide rail.

Door-side stopper must be installed

at the proper position to stop the

door from contacting the wall.

EBumper Vinyl Seal must be installed on

the closing edge of the door glass

DRoller Guards must be postioned and

secured within 1/16” of Upper Guide Rail.

Apply thread lock.

FThe Guide Block must be screwed to the

threshold and installed square to the panel

glass and door glass. Installing the guide

block crooked may damage the bottom edge

of the door glass and lead to breakage.

CRoller Wheel Safety Set Screws must

be retightened after installation.

Apply Thread lock.

DOOR

PANEL

Right-hand door installation shown as an example

PLEASE READ THE ENCLOSED INSTALLATION

MANUAL FOR DETAILS REGARDING PROPER

INSTALLATION.

THE LATEST VERSION OF THE INSTALLATION

MANUAL IS AVAILABLE TO VIEW OR PRINT

ON DREAMLINE.COM

IMPORTANT INFORMATION

REGARDING THE INSTALLATION

OF THIS SHOWER DOOR

GSafeStop™Bumper is secured in position with

3M tape or screwed to the wall.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018 4

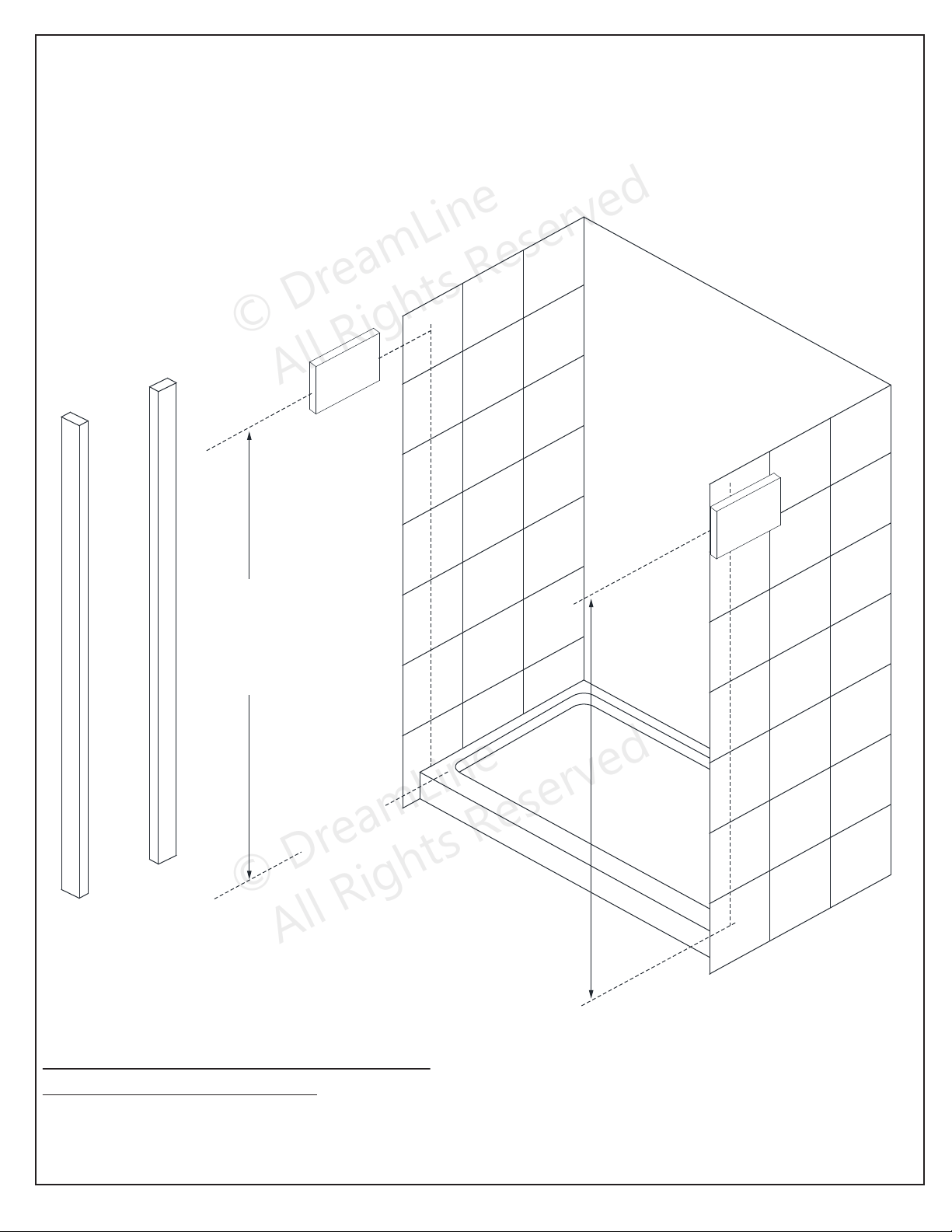

Install studs OR install 2”x 6” wood blocking between the studs where the

Guide Rail Brackets will attach to the wall

Reinforcement for MYSTERIE

Heavy Glass frameless sliding shower door

2” X 6”

Stud

threshold

measured

from threshold*

(see list below)

2” X 6”

*Blocking height requirement (to center)

as measured from threshold:

MYSTERIE = 72-1/2“ for shower height

threshold

Preparation

Do Not hang or drape a towel or wash cloth over the guide rail as this may cause the

roller wheels to get stuck and possibly cause serious damage or injury.

Attention: This door is extremely heavy and requires professional installation.

Two installers recommended.

NOTE: This door is reversible for right or left-hand door installation. The right-hand door

installation is shown as an example throughout this manual. For the left-hand door installation,

simply begin on the opposite wall and reverse the orientation of the steps shown.

1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed parts are

included in the package by marking all the components on the “Detailed Diagram of Shower Door

Components”. Examine boxes and packages for shipping damage. If the unit has been damaged, has a finishing

defect, or is missing parts, please contact our customer support department within

3 business days of the delivery date. Please note that DreamLine®will not replace any damaged products or

missing parts free of charge after 3 business days or if the product has been installed. Please contact

DreamLine®if you have any questions.

2. Please note that you should consult your local building codes with questions on installation compliance

standards. Building and plumbing codes may vary by location, and DreamLine®is not responsible for code

compliance standards for your project and will not accept any returns.

3. If this unit is going to be installed in a new construction, install all of the required plumbing and drainage before

installing the shower. Use a competent and licensed (if required by local code) plumber for all plumbing

installation.

4. Please make sure that prior to beginning the installation, the surfaces are leveled and solid and will be able to

support the total weight of the unit. Also make sure the walls are at right angles. Irregular

installation surface level, radius corners or improper angle of side walls will result in serious problems for your

installation. Please note that some adjustments and drilling might be necessary during the

installation process.

5. Please protect all primary surfaces of the product during installation. Never set your glass down directly onto a

tile floor. Leave corner protectors in place until necessary to remove them. Always use a piece of wood or

cardboard to protect the bottom edge and corners of the glass prior to and during installation.

6. This unit must be installed upon a finished threshold and against finished walls.

7. NOTE! This door does not have out-of-plumb adjustment. Make sure your walls are at right angles.

8. This door requires a minimum 2-3/4”of flat level threshold space for installation.

9. This model requires that you drill into the threshold for proper installation. Contact the manufacturer of

the base or threshold material with any questions regarding the drilling of holes into their product.

10. Please note that Step #11 has an option for installing the guide rail brackets to the wall using anchors.

However, the manufacturer strongly recommends installing these heavy doors to the studs or to

pre-installed 2”x 6” wood reinforcements behind the wall in the area where the guide rail brackets will be

attached to the wall.

11. Professional installation required.

5MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Tools

NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using the detailed

diagram and packing list in this manual as a reference. Before discarding the carton, check for small

hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing,

please contact DreamLine® for replacement. The shipping boxes may contain extra parts not used in

your model configuration.

NOTE: Retain these installation instructions for future reference.

Tip: Measure the finished opening before proceeding with the

installation to be sure that the correct model size has been ordered.

Be sure to cover the shower drain to prevent losing small parts.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Silicone

Tape Phillips

Measure Drill

Pencil

Level Power

Screwdriver

Hammer

(Ø=1/8")

(3mm)

Drill bit Drill bit

(Ø=5/16")

(8mm)

(Ø=1/4")

(6mm)

Drill bit Drill bit

(Ø=3/8")

(10mm)

Painter’s Tape

Razor Knife

Chop saw and Hacksaw

Professional-grade

Glass suction cup

Extender driver bit

#3 Phillips

driver bit

Packing List A

Detailed Diagram ‘A’of Shower Door Components

for Model #

SHDR-61AMZ48-07/08

SHDR-61AMZ60-07/08

DAMZ-61607610-07/08

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

** not used with the 72” configuration

The glass surface

with the ClearMax™

label must be

installed to face

inside of the shower

PART#

DESCRIPTION

QTY

01 Door stopper 2pcs

02 Stationary glass

03 Upper guide rail(for 48" or 60")

9a Wall anchor Ø 3/8"(10mm)

Guide rail bracket

Glass bracket

Handle

Door Glass

Roller

10 Large Truss Head Screw ST6x65

Wall anchor Ø 5/16"(8mm)

1pc

2pcs

1pc

2pcs

1pc

2pcs

3pcs

2pcs

11 Allen Wrench 3,4,5 mm 1set

Guide block (with caps) 1pc

PART#

DESCRIPTION

QTY

Bumper strip ** 1pc

Anti-water strip 2pcs

Anti-splash guard 1pc

Anti-splash guard cap 1pc

ST4.2x40 Countersunk screw 2pcs

ST4.2x55 Truss Head screw 2pcs

Wall bracket 1pc

Thread Lock adhesive 1pc

Roller Guard 2pcs

Bumper 1pc

9a/9b

Installation steps

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Note: The minimum threshold requirement for

the Mysterie is 2-3/4” of flat threshold space.

Fig 1

Fig 2

Top

Middle

Bottom

2-3/4”

minimum

Threshold must be level

Use a metal file to

deburr the cut end

door end

glass bracket

holes

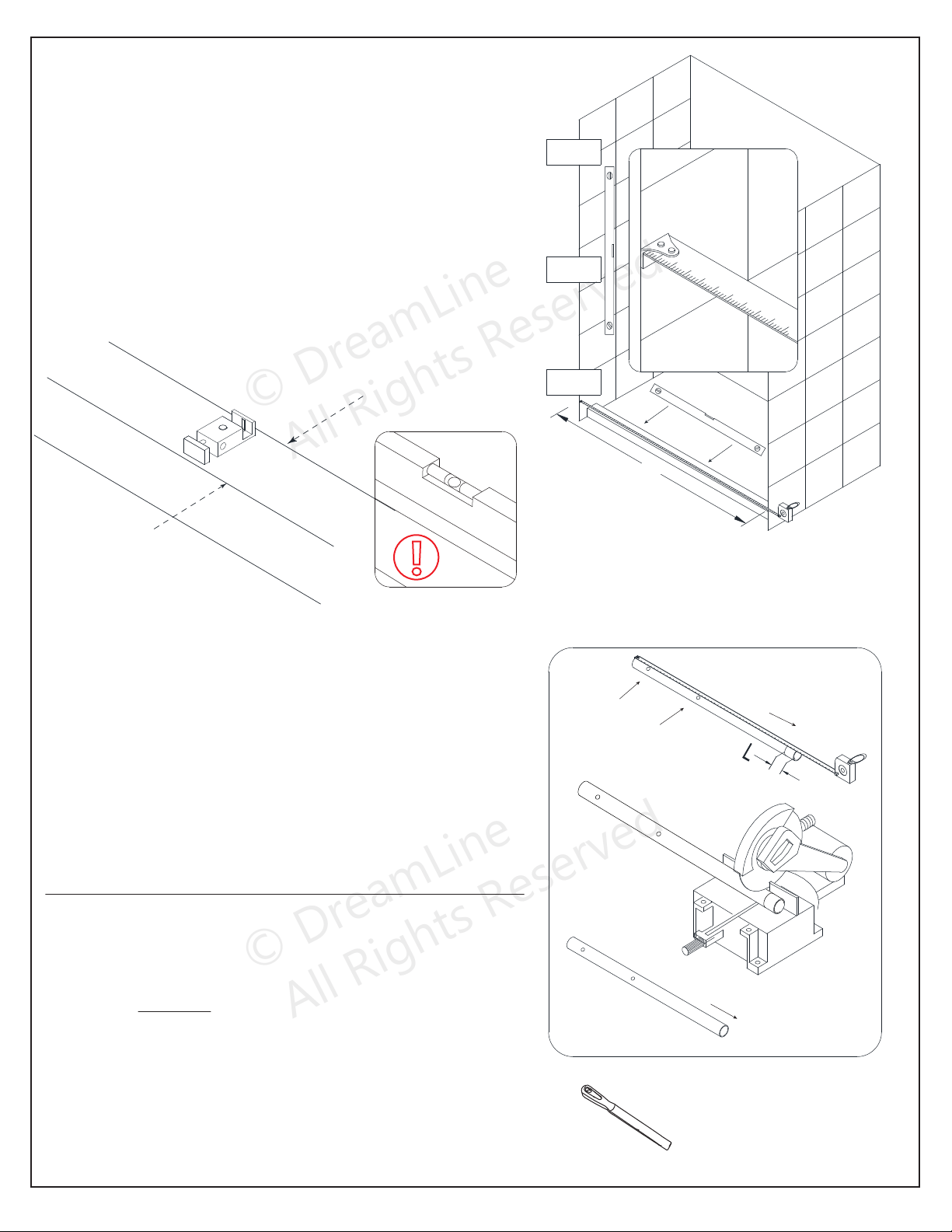

1. Measure the distance between the two finished

walls at the top, middle and bottom. Measure the

width at the model height.

This top measurement will be the “W” dimension

used to cut the guide rail to the correct size for

the finished opening.

Also, check the threshold for level and the walls

for plumb. (Fig 1)

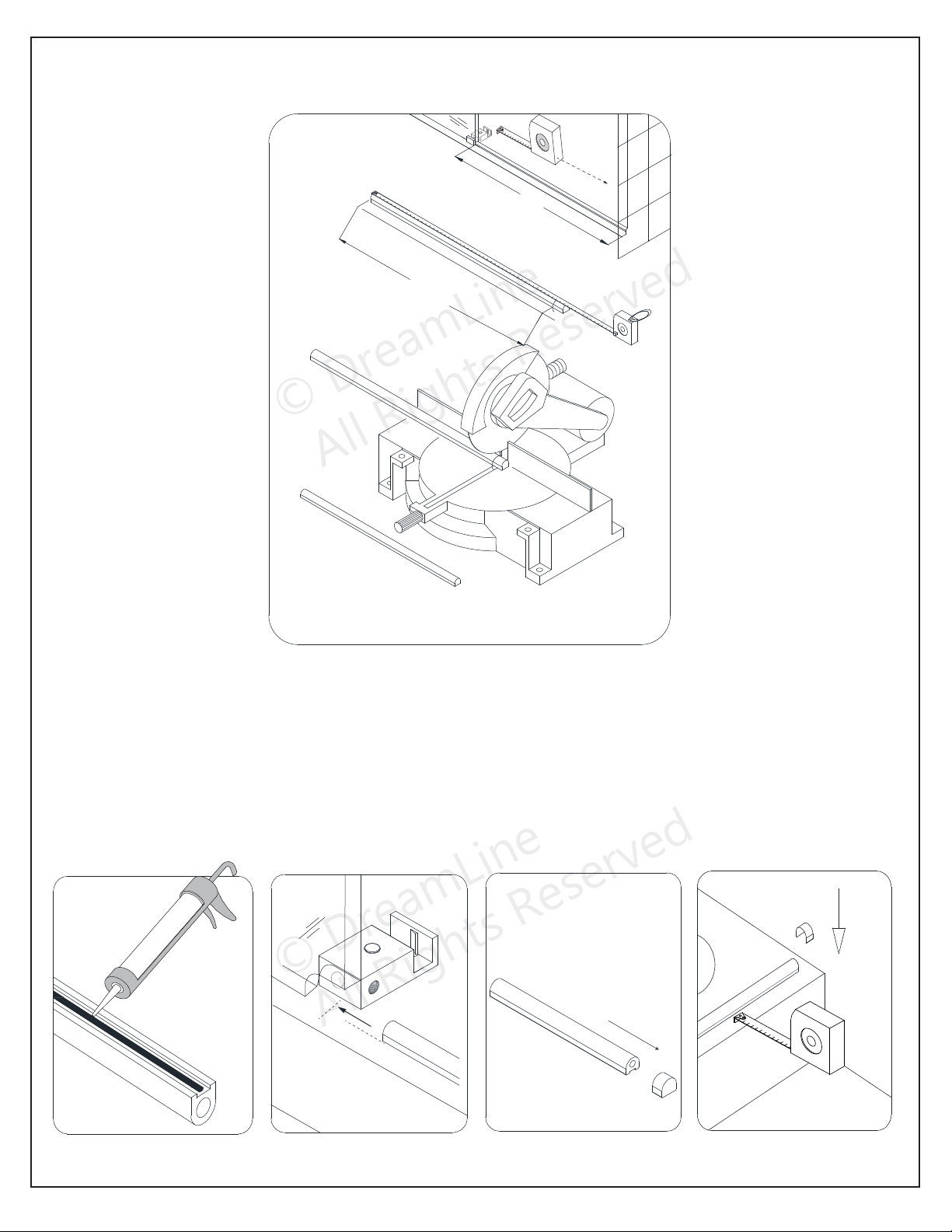

2. The Upper Guide Rail (#03) has been pre-cut

for the model width of 60”. (Note: The actual rail is

shorter than the model width by design).

Cut the Upper Guide Rail (#03) from the door end only,

which is the end that is farther from the Glass

Bracket (#07) holes. (Fig 2)

The length to cut off will be (L) :

Model Width – finished opening W = cut off length (L)

*FOR EXAMPLE:

If the model width is 60” and the finished opening is 58”,

then you will need to cut 2” off from the door end of the

Guide Rail: Example: 60” – 58” = 2” cut off

*Note that this is only an example and the actual

cut-off length will vary based on the actual finished

opening dimension.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Fig 3

Fig 4

Door end of guide rail

High spot of disk bushing

measure

glass bracket

disk

TIP: Mark the location of the high spot on the outer surface of the

adjustment disk with a felt tip pen to make adjustment easier to see.

2stopper hole

1panel end

stationary

panel-end

thread lock

door-end

outside

5 6

outside

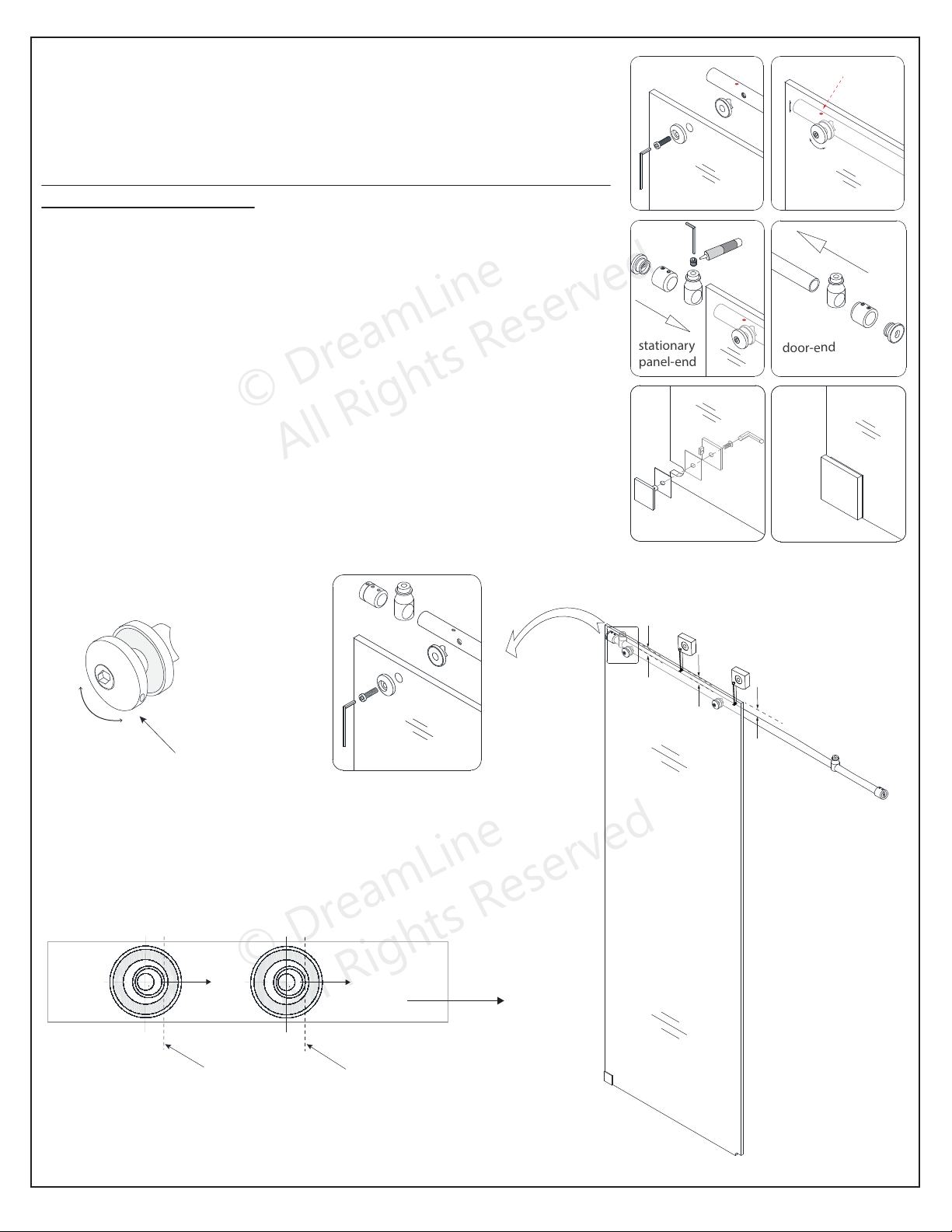

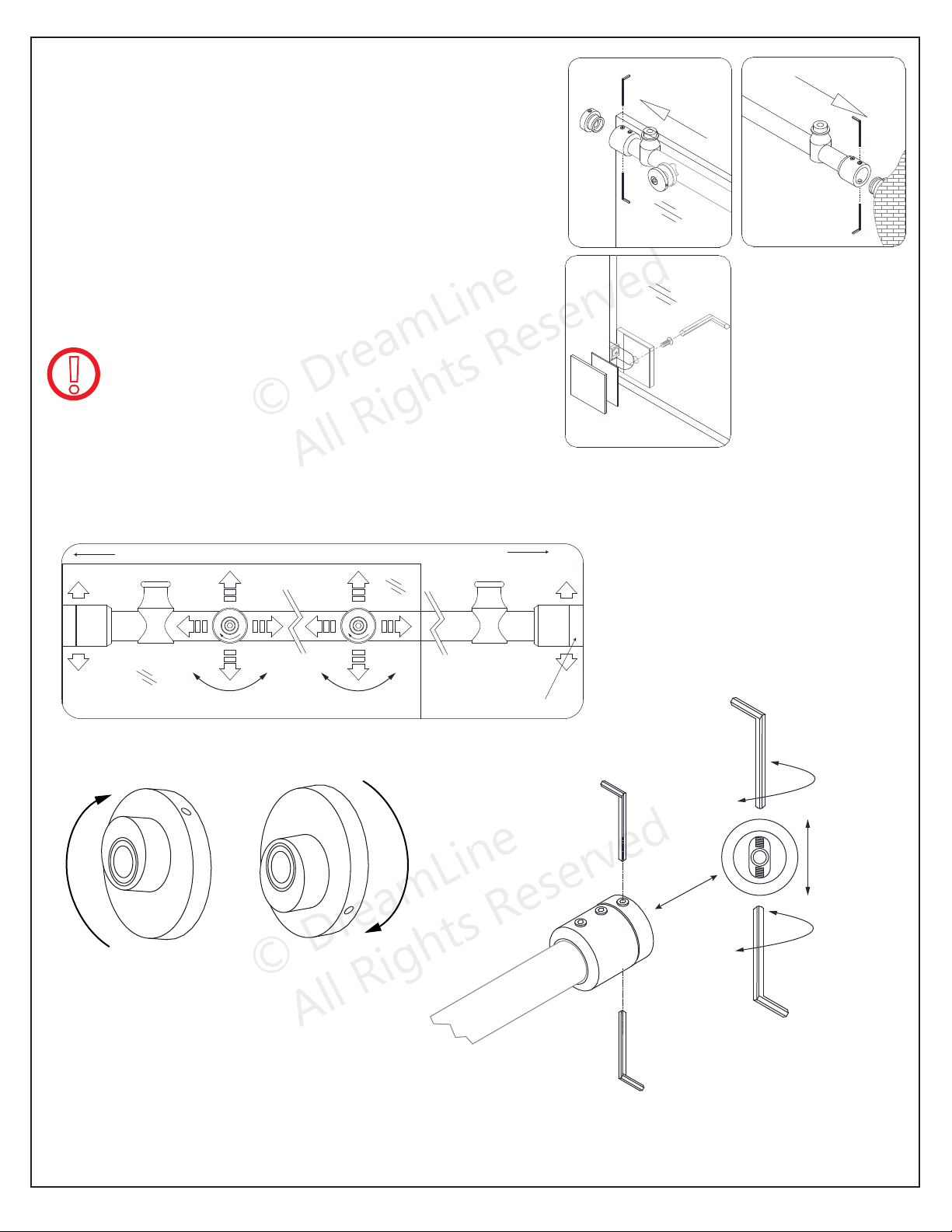

3a. Attach the Upper Guide Rail (#03) to the Stationary Glass (#02)

with the Glass Brackets (#07) and tighten the bolts into the holes in

the Upper Guide Rail (#03). Make sure both adjustment disks are

installed in the same direction with the high spot towards the door

end. (see *Note below)

Make sure that the guide rail is attached parallel with the top edge of

the stationary panel glass.

*NOTE: The outer glass bracket disk has an eccentric bushing

for adjustment. Be sure to install both glass bracket disks with

the high spot of the bushing pointed towards the door end of

the guide rail.

3b. Slide the Door Stoppers (#01) onto each end of the Upper

Guide Rail (#03). Secure them using the 4mm Allen Wrench (#11).

Install the panel-end stopper into the pre-drilled stopper hole in

the Upper Guide Rail and apply thread lock to the set screw.

(Fig 3.3) Install the door-end stopper approximately 4” from the end

of the guide rail. (The door-end stopper position will be adjusted

after the door glass is installed).

3c. Slide the Guide Rail Brackets (#08) onto each end of the

Upper Guide Rail (#03) and secure them. Next, assemble the

Wall Bracket (#19) onto the bottom corner of the Stationary

Glass (#02) with the bolt facing the inside of the shower as shown

in Fig 3.5. Use the supplied gaskets to protect the glass.

(Fig. 3 and Fig. 4)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Fig 9

Fig 10

inside

1 2 3

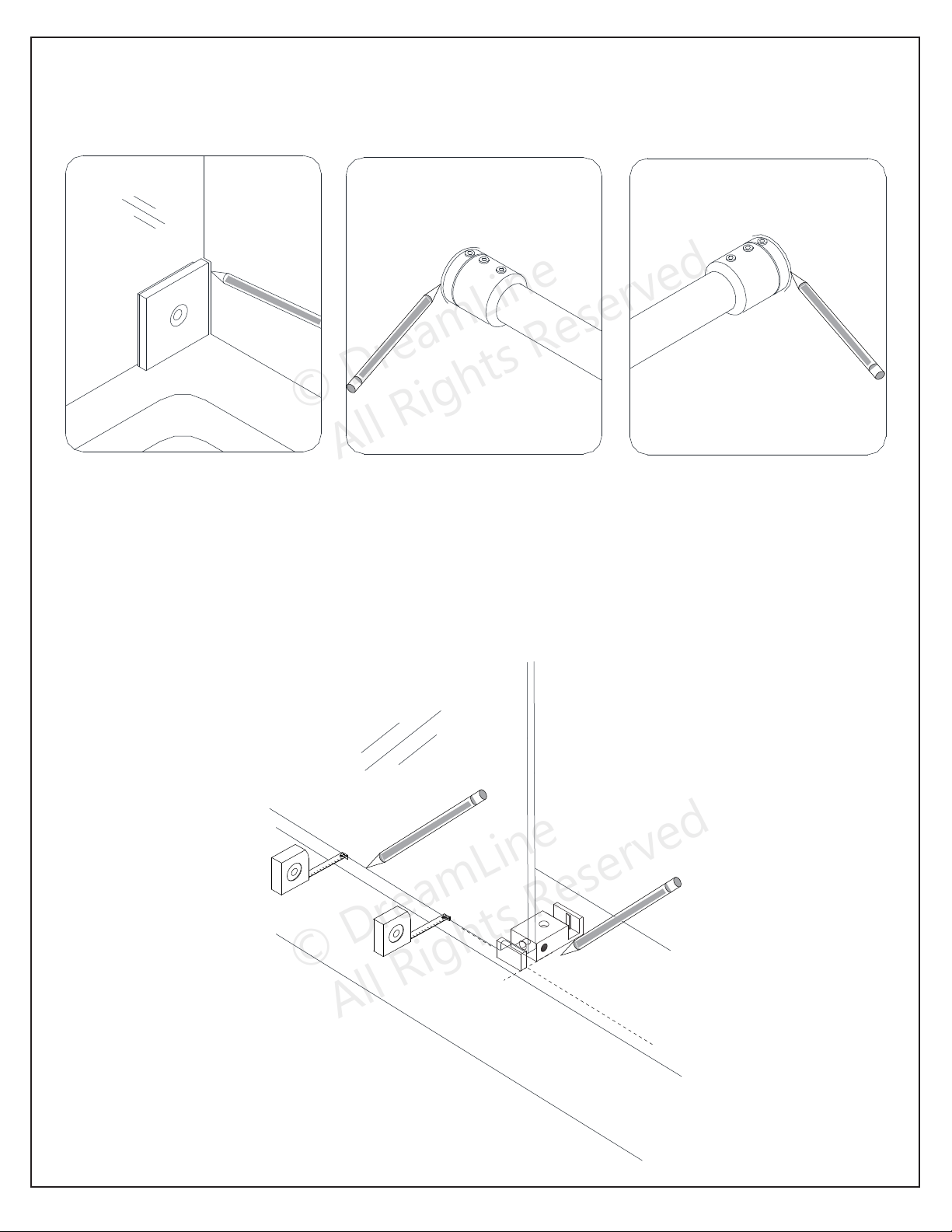

4. Once the Upper Guide Rail (#03) is level, mark the position of the Wall Bracket (#19) and Guide

Rail Brackets (#08) on the wall. (Fig 9)

5. Make sure that the Stationary Glass (#02) is parallel to the front edge of the threshold and mark it.

Slide the Guide Block (#12) into the notch of the Stationary Glass (#02), and align flush with the edge

(Fig 10). Mark its position and also mark the hole for drilling using a pencil (or center punch.)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

**NOTE: Step #11 has an option for installing the guide rail

brackets to the wall using anchors. However, the manufacturer

strongly recommends installing these heavy doors to the

studs or to pre-installed 2”x 6“ wood reinforcements behind

the wall in the area where the guide rail brackets will be

attached to the wall.

Ø5/16”

(8mm)

1 2

4**

3** Ø3/8”

(10mm)

see Note

Fig 11

Fig 12

Ø3/8”

(10mm)

see Note

5** 6**

Separate the Guide Rail Bracket (#08)

sleeve from the base by loosening the set

screws (leave the sleeves on both ends of

the upper guide rail)

base

sleeve

!**For the recommended installation into a

stud, drill a Ø1/4” hole up to the stud and do

not use wall anchors. Drill an Ø1/8” pilot hole

into the stud and let the screw bore into the

wood.

7. Drill a hole for the Wall Bracket (#19) using a Ø5/16” (8mm)

drill bit and insert the Wall Anchor (#9b)

(see Fig. 12.1 and 12.2).

Drill the holes for the Guide Rail Brackets (#08) using a

Ø3/8” (10mm) drill bit and insert the Wall Anchors (#9a).

(see Fig. 12.3**~ 12.6**).

**If installing into a stud (recommended), drill a Ø1/4” hole

and do not use the wall anchors (see note above). (Fig 12)

6. After marking the positions of all the hardware, set the

Stationary Glass (#02) with the Upper Guide Rail (#03) aside.

Remove the Guide Rail Brackets (#08) from the Upper Guide

Rail (#03) and the Wall Bracket (#19) from the Stationary

Glass (#02). Place the Wall Bracket (#19) and Guide Rail

Brackets (#08) back to the outlined positions and mark the

holes for drilling.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Fig 14a

Fig 13

M5 X 10

ST4.2 X 40

Part#12 - Guide Block (with caps)

*see

note

1use a pencil or

a center-punch

to mark the hole

**only use anchor

with tile threshold

overhead view of threshold & guide block

Guide Block must be installed

square to the plane of the glass

90°

123

#3 Phillips

driver bit

8. Fasten the Wall Bracket (#19) to the wall using the ST4.2×55 Truss Head Screw (#18). (Fig 13.1)

Install the base parts of the Guide Rail Brackets (#08) onto both walls using the ST6×65 Large Truss

Head Screw (#10). Note that the adjustment set screws must be aligned vertically for easier access to

adjust for level if necessary after the glass is installed. Align the set screws vertically and tighten. (Fig 13)

9. To install Guide Block (#12): Loosen the set screw and

remove the guide block face plate (Fig 14a.5). Apply silicone to

the underside of the Guide Block (#12) and screw the Guide

Block (#12) to the threshold as described below:

*NOTE:

◾For installation into an Acrylic Threshold:

drill a Ø1/8”(3mm) hole and use the ST4.2 x 40mm

Countersunk Screw (#17)

◾For installation into a Tile Threshold:

drill a Ø5/16”(8mm) hole, install a Wall Anchor 5/16” (#09b)

and use the ST4.2 x 40mm Countersunk Screw (#17).

The Guide Block (#12) must be screwed down. (Fig 14a)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

NOTE: Before you install the Stationary Glass (#02), take the Door Glass (#05)

into the shower area and lean it against the wall with the handle holes on the

correct side. After the Stationary Glass (#02) is installed, it may not be possible

to easily get the door glass into the shower.

Always use padding to protect the glass and shower surfaces.

NOTE: DO NOT attach the handle to the door glass until instructed.

DO NOT attempt to lift the door glass with the handle as this may result

in damage to the glass and/or serious personal injury. Use a professional

grade glass suction cup and an assistant.

protective

padding

protective

padding

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

TIP: Adjust the installed Upper Guide Rail (#03) to level as

necessary using the Guide Rail Brackets (#08) first and

then the Glass Brackets (#07). Start adjustments from the

door end.

Fig 15

outside

Panel end Door end

Glass bracket Guide Rail Bracket

(Right hand door installation shown as example)

NOTE: Use the Guide Rail Bracket (#08)

set screws to adjust the Guide Rail (#03)

to level.

Lower guide rail Raise guide rail

To lower the rail:

Loosen the top set screw and

tighten the bottom set screw.

To raise the rail:

Loosen the bottom set screw and

tighten the top set screw.

Glass Bracket adjustments

10. Re-position the Stationary Glass (#02) and Upper Guide

Rail (#03) onto the threshold and fasten both sleeves of the

Guide Rail Brackets (#08) to the brackets on the walls.

Tighten the set screws on the Guide Rail Brackets (#08) to

secure the Upper Guide Rail (#03). Position the bracket set

screws so that they are accessible from the top and bottom

(Fig 15.1 and 15.2).

Assemble the Wall Bracket (#19) at the bottom corner of the

Stationary Glass (#02). Use the clear vinyl gasket between

the glass and the metal parts to avoid contact with the glass,

then tighten the bolt with the supplied allen wrench. (Fig 15)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Fig 16

Fig 15

X + 3/8”

measure the distance‘X’ from the guide block to the

wall and add 3/8”

1 42 3 only use cap

when installing

up to a wall

for 48” & 60”

model

11. Measure the distance from the edge of the Guide Block (#12) to the wall. This distance will be

“X”. Cut the Anti-Splash Guard (#15) to the size of: (X) + 3/8”. (Fig 15)

12. Apply silicone to the bottom of the Anti-Splash Guard (#15). Insert one end of the

Anti-Splash Guard (#15) into the Guide Block (#12).

Align the Anti-Splash Guard (#15) parallel with the front edge of the shower base or threshold.

Cover the other end of the Anti-Splash Guard (#15) with the Anti-Splash Guard Cap (#16)

against the wall (see Fig 16.4). (Fig 16)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

face plate

Fig 18

Fig 17

13. Secure the Anti-Splash Guard (#15) to the threshold with several pieces of painter’s tape to hold it

in position and tight to the threshold until the silicone fully cures. (Fig 17)

14. Attach the Guide block face plate to the installed

Guide Block (#12) and tighten the set screw with the

supplied allen wrench. Use the supplied Decorative caps

to cover the screw holes. (Fig 18)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

TIP: Use a 3/16” shim

beneath the door glass when

adjusting the level of the

door so that the glass does

not make contact with the

guide block.

TIP: Mark the location of the high

spot on the outer surface of the

adjustment disk with a felt tip pen to

make adjustment easier to see.

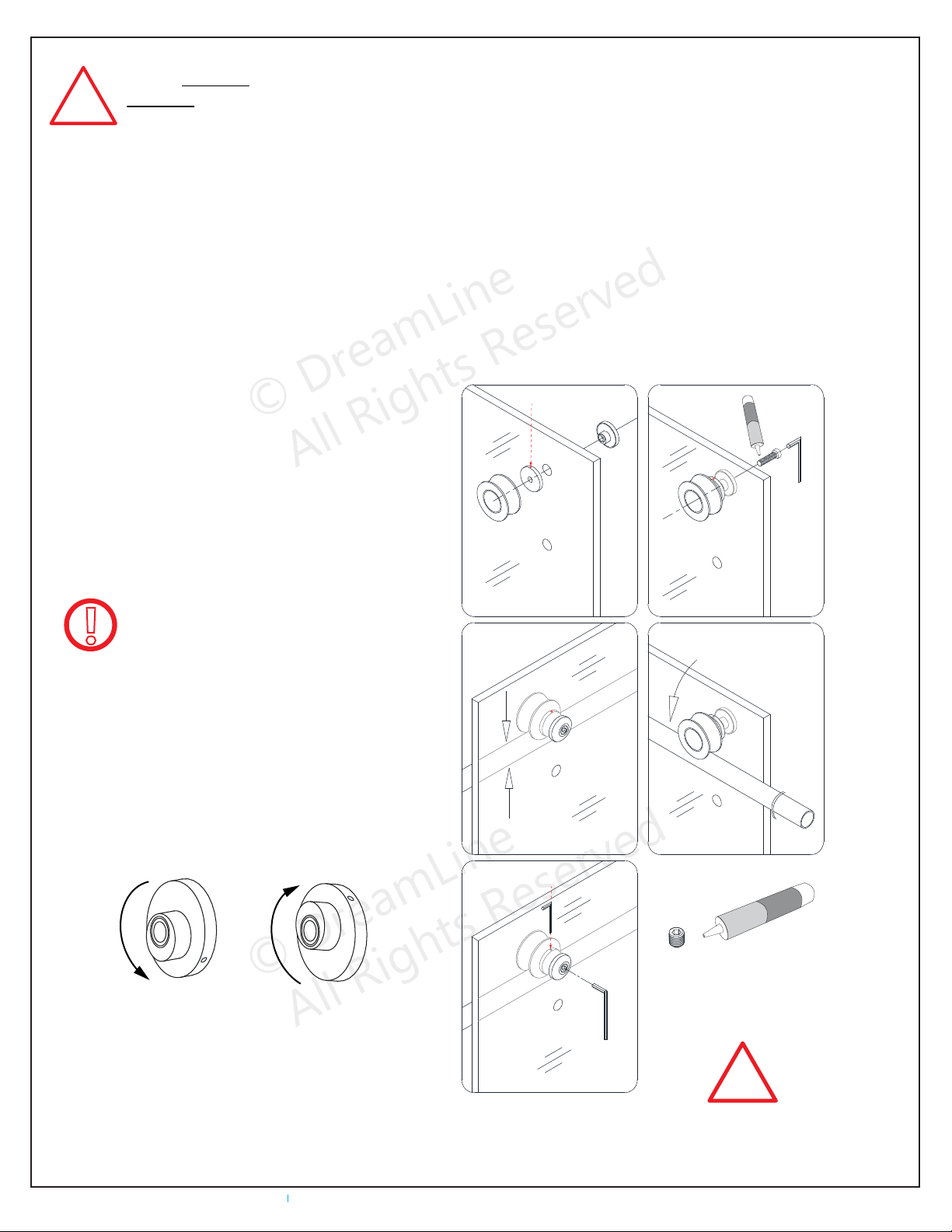

Note: The adjustment disks in

the wheels are the same as the

disks in the Glass brackets and

can be rotated to adjust the

door glass to create a seal with

the wall. See detailed

description on page 30.

Fig 21

Roller wheel adjustment disks

Raise glassLower glass

outside

safety set screw 2

inside

safety set screw

add threadlock to

the safety set screw

and wheel bolt

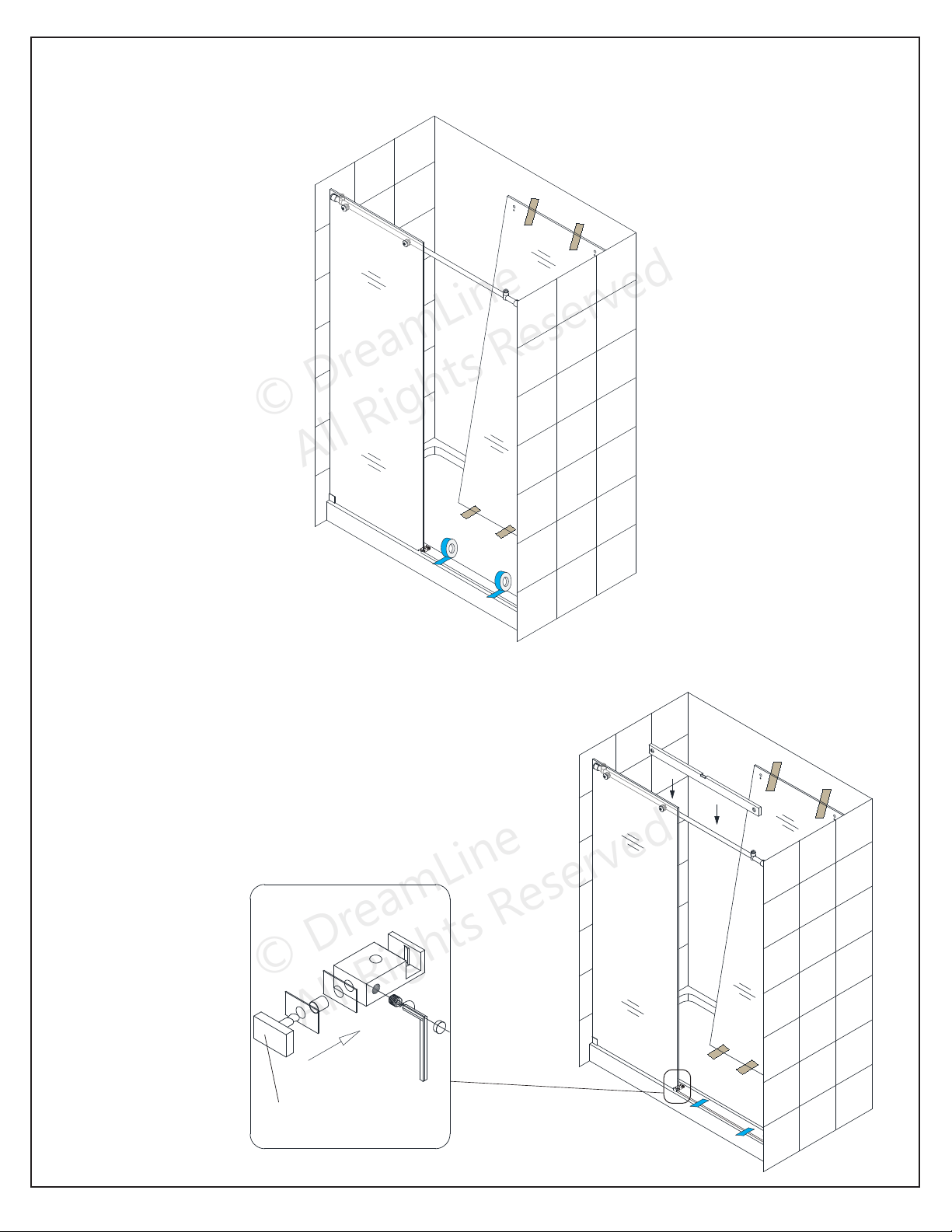

15. Attach the two Rollers (#04) to the Door Glass (#05) with the wheels facing the outside of the

shower. Align the safety set screw toward the top for easier access (See Fig 21.5 and page 24 for

details). Lift the door and position the Rollers (#04) onto the Upper Guide Rail (#03) while carefully

sliding the bottom edge of the Door Glass (#05) into the groove of the Guide Block (#12).

If necessary, adjust the disks on both Rollers (#04) to ensure that the bottom edge of the Door Glass

(#05) does not touch the bottom of the Guide Block (#12) and the bulb vinyl seals evenly with the

wall. (see details on page 24). (Fig 21)

NOTE: DO NOT attach the handle to the door glass until instructed to do so.

DO NOT attempt to lift the door glass with the handle as this may result in damage to the glass

and/or serious personal injury.

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Fig 22

1/16”

Upper Guide Rail

Roller Guard Roller Guard

front view

side view

TIP: Position the roller guard 1/16”

below the rail, hold the roller guard

bolt with the allen wrench and tighten

the interior post using the small allen

wrench (Fig 22.2*)

16. Attach the two Roller Guards (#29) onto the door to secure the door to the Upper Guide Rail

(#03). Apply Thread Lock Adhesive (#26) to the bolts. Leave no more than a 1/16” gap between the

Roller Guards (#29) and the Upper Guide Rail (#03). Tighten the bolt and screw on the cap. (Fig 22)

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

Note: The Safety set screw on both wheels MUST BE

re-tightened after installation to prevent the large

bolt from coming loose. Apply thread lock during

installation. (See details Fig 23 and also on Page 24)

Fig 23

Fig 24

door

wall

(Right-hand door installation shown as an example)

outside

door

inline panel

inside

add threadlock to

the safety set screw

and wheel bolt

17. Press the Anti-Water Strip (#14) onto the vertical edge

of the Stationary Glass (#02) and the Door Glass (#05)

(Fig 24.1).

Press the Bumper Strip (#13) onto the vertical edge of the

Door Glass (#05) (Fig 24.2)

Attach the Handle (#06) to the Door Glass (#05). (Fig 24)

Note: Use a razor knife to trim the Anti-Water Strip

(#14) at the top to avoid interfering with the

Roller Guards (#29) and at the bottom where the

door meets the Bumper (#30).

This manual suits for next models

Table of contents

Other Dreamline Shower Cabin manuals

Dreamline

Dreamline ENIGMA AIR SHEN-6434480 Series User manual

Dreamline

Dreamline Charisma SHDR-1348760 Series User manual

Dreamline

Dreamline AQUA-Q SWING SD-373472Q Series User manual

Dreamline

Dreamline LINEA SHDR-3230721 Series User manual

Dreamline

Dreamline DUET User manual

Dreamline

Dreamline Elegance User manual

Dreamline

Dreamline ENIGMA-X User manual

Dreamline

Dreamline Oceana DLG-63 User manual

Dreamline

Dreamline ENIGMA SHDR-6060791272 User manual

Dreamline

Dreamline SHEN-1332460 Series User manual

Dreamline

Dreamline HORIZON User manual

Dreamline

Dreamline SHDR-22287200-01 User manual

Dreamline

Dreamline UNIDOOR PLUS STYLE F User manual

Dreamline

Dreamline UNIDOOR MADRID D245872MB01 Series User manual

Dreamline

Dreamline SPARKLE User manual

Dreamline

Dreamline Prism DLT-1132320 User manual

Dreamline

Dreamline FLEX User manual

Dreamline

Dreamline MIRAGE-X SHDR-1948723L Series User manual

Popular Shower Cabin manuals by other brands

AM.PM

AM.PM ADMIRE STEAM CABIN A Assembly instructions

AM.PM

AM.PM SENSE 6 Assembly, installation and maintenance instructions

Kalia

Kalia KLASS DR1198 002 Series Installation instructions / warranty

RAVAK

RAVAK SUPERNOVA APSS 75 quick start guide

ERLIT

ERLIT Elegance ER 5508TP Installation and operation instruction

Burlington

Burlington C6S manual

Hornbach

Hornbach 1837-1 Assembly instructions

Lakes Bathrooms

Lakes Bathrooms COASTLINE LEVANZO Cannes Installation & maintenance instructions

ERLIT

ERLIT CITIES OF THE WORLD SYDNEY 150 manual

Kohler

Kohler Finial K-705728-L quick start guide

Tylo

Tylo i110/c manual

Dolphin

Dolphin K1113A installation instructions

Kinedo

Kinedo DES1272D installation instructions

Insignia

Insignia PR12L-OBF-CG-S installation manual

BOX DOCCIA

BOX DOCCIA NADIA Assembly instructions

Insignia

Insignia INS8721 manual

Deco

Deco oxi.SLIDE N2FS user manual

Insignia

Insignia 9008 Assembly & fitting instructions

Dreamline MYSTERIE SHDR-61AMZ48 Series User manual

Popular Shower Cabin manuals by other brands
