Owner's Manual
DefendAir®HEPA 500
Air Scrubber
115v Model
1
Quick Reference
Table of Contents
How the DefendAir HEPA 500 works
(pg. 2)
Getting to Know Your New
DefendAir HEPA 500 (pg. 2)
• Location of key features
Operating Instructions (pg. 3)
• Set-up
• The control panel
• Filters
Applications for the DefendAir HEPA
500 (pg. 4)
• Primary uses
• Specialized features
Maintenance (pg. 5)
Specifications (pg. 6)
®
07-01489B Copyright 2004 Dri-Eaz Products, Inc.

Owner's Manual
DefendAir® HEPA 500 Air Scrubber
115-volt model
WARNING
READ AND SAVE THESE INSTRUCTIONS
FIRE AND ELECTRIC SHOCK
HAZARD
Unit must be electrically grounded.
•Insert 3-prong plug on power cord
directly into matching grounded
receptacle.
•Do not use with an adapter
Keep wiring and motor dry.
•Do not operate in standing water
•If electrical components become
wet, allow them to dry completely
before using.
Read and understand manual
before use.
Use and Operation
INTRODUCTION
The DefendAir®HEPA 500 is a portable filtration system that draws air in from the
surrounding environment and passes it through an advanced filtration system. The
unit removes airborne particles like dust, mold spores, pollen, pet dander and mis-
cellaneous debris.
HOW THE DEFENDAIR®HEPA 500 WORKS
The HEPA 500 uses an efficient mix of airflow and filtration to create “cleaner” air.
The unit’s maximum 500 CFM motor draws air into two types of filters--a pre-filter
and a HEPA filter. The first stage of filtration captures larger particles, and the sec-
ond stage of filtration captures much smaller particles down to 0.3 microns.
What makes the Dri-Eaz DefendAir HEPA 500 unique is its Clean Air Delivery Rate
(CADR) capability. CADR is an Association of Home Appliance Manufacturers’
(AHAM) rating that tells you how efficiently the machine and filter work together to
remove particles from the air at the airflow rate you’re using.
You can use the DefendAir HEPA 500 for mold remediation and/or water damage
restoration. The unit is not intended for asbestos remediation.

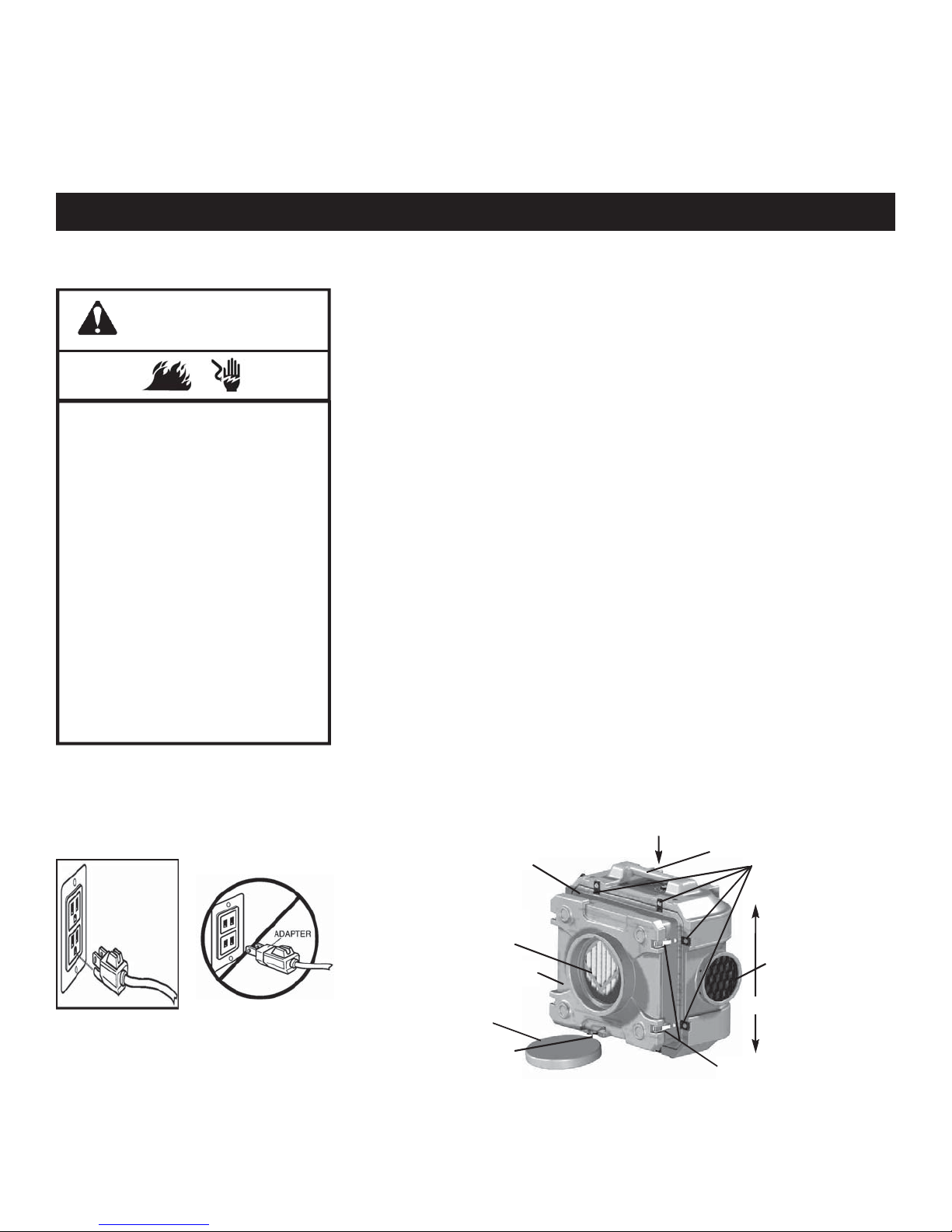

GETTING TO KNOW YOUR NEW DEFENDAIR HEPA 500
Location of key features
Use a 115V, 3-prong
grounded connection
Do not use with an
adapter
2
Inlet
(ductable, 12”)
Removable
foam cap
(with cap leash)
Handle
Retaining Clips
(2 per side, 8
total)
Outlet
Cord wrap
Control Panel
Located opposite of
the side showing
FIGURE 1
HEPA 500
Vertical, upright position
Latches (4 total)
Inlet panel, removable
07-01489B Copyright 2004 Dri-Eaz Products, Inc.

OPERATING INSTRUCTIONS
Setup
1. Unwrap the cord wrap completely
2. Place the HEPA 500 upright (vertical with handle at the top)
3. Plug in to a standard 115 volt outlet. Each HEPA 500 needs 3 amps to operate.
4. To switch the unit on, locate the control panel and turn the variable speed switch
clockwise to start the unit (see “Control Panel” below). Then select
either a maximum (500 CFM) or down to a minimum (250 CFM) airflow rate. To
maintain the optimal CFM, consult the IICRC S520 standards, 10.3.1. See
this manual’s “Resources” section (pg.5) for how to get an S520 standards guide.
5. The HEPA 500 is multi-positional. For more information, see “Specialized
Features” on (pg. 4).
The Control Panel
Variable Speed Control
Note that the MAX setting is located immediately left of the OFF button, and the MIN
setting requires an almost 360 degree clockwise turn.
Change Light
The change light illuminates when you need to change the HEPA filter.
The Auxiliary Outlet
You can “daisy chain” or interconnect up to 3 HEPA 500’s to customize your air filtra-
tion needs. The unit can conduct a maximum of 12 amps when it is turned off, and 9
amps when it is turned on. That means you can plug other equipment into the unit,
but the amperage is limited.
Red Circuit Breaker Switch
The primary purpose of the circuit breaker is to protect the machine. It turns the unit
off when more than 12 amps run through the on-unit circuit.
Ground Fault Circuit Interrupter (GFCI)
The GFCI helps protect the user should it detect a sudden “ground fault,” the GFCI
will interrupt the electric current. The GFCI will also trip when a short circuit or an
overload occurs.
When the GFCI “trips,” unplug the unit, and look for potential hazards standing
water, frayed cords, etc. anything that would cause a surge of electrical current.
Relocate the unit and plug it into a different outlet. Then push the “reset” button, and
check to see if it’s operating; if so, continue use, if not call a Dri-Eaz Technical
Specialist at 800-575-5152.
The Filters
About the filters
The HEPA 500 utilizes a 2-stage filtration system designed with the most advanced
HEPA filtration technology available. The first stage utilizes a pre-filter (Figure 3), and
the second a HEPA filter (Figure 4). The pre-filter captures larger particles, and the
HEPA filter captures 99.97% of smaller particles down to 0.3 microns.
For environments with a high volume of aerosolized particles, you can use 2 prefilters
to extend the life of the HEPA filter. See “Maintenance” for how often to replace filters.
Changing filters
1. With a 3/8" wrench, loosen the 8 latches holding the inlet panel in place. See
Figure 2.
2. Slide the latches outward, away from the center of the inlet panel.
3. Remove the inlet panel.
4. Remove used filters and replace.
See “Maintenance” for how often to replace filters.
READ AND SAVE THESE INSTRUCTIONS
3
WARNING
CONTAMINATION HAZARD
Wear NIOSH-approved
protective gear when
changing filters.
Change filters after
every remediation job.
Change HEPA filter when the filter
indicator light comes on.
Dispose of used filters according to
your local regulations.
Read and understand manual
before use.
Latch
Loosen 3/8”
hex head
bolt
Once the bolt
is loose slide
the latch out-
ward.
FIGURE 2
Loosening the latches
Inlet
panel
Pre-filter Latch
FIGURE 3
Pre-filter
HEPA filter
FIGURE 4
HEPA filter
Variable speed
control
HEPA filter
Change light
Circuit breaker
Auxiliary Outlet
w/GFCI
Filter
panel
07-01489B Copyright 2004 Dri-Eaz Products, Inc.

How to get replacement filters
Call your nearest distributor or Dri-Eaz at 800-932-3030.
APPLICATIONS FOR THE DEFENDAIR HEPA 500
Primary Uses
The primary uses for your DefendAir HEPA 500 are:
• Water damage restoration
• Mold remediation (including creating a negative air environment)
Other uses include fire damage restoration, dust control, odor control and sewage
remediation. To learn more about these, contact a Dri-Eaz Technical Specialist at 800-
575-5152.
Use for Water Damage
In a standard Category 1 water damage situation, place the DefendAir HEPA 500 in
the middle of the affected area. Utilize airmovers to lift particles into the air. The HEPA
500 filters the air in the affected area to reduce particle levels during the restoration
process.
Mold Remediation
In most cases, the remediation process requires containment of the affected area.
Containment prevents the spread of mold spores and other bioaerosols. Only a pro-
fessional with specialized training in remediation and containment techniques should
use the HEPA 500 (or any negative air machine) for remediation. For more information
about proper remediation techniques, consult the IICRC S520: The Standard and
Reference Guide for Professional Mold Remediation. You can get a copy and learn
more through the IICRC at [phone]. You can also contact the Dri-Eaz
Education Department for technical advice or to learn more about educational opportu-
nities at 800-575-5152.
Specialized Features
Daisy-chain capability
Dri-Eaz designed the HEPA 500 for optimal versatility. You can interconnect up to
three units to create a maximum of 500, 1000, or 1500 CFM using the auxiliary outlet
on the unit’s control panel. You can also daisy chain the units in a stacked position
(see “multi-positional” in this section).
Removable intake panel for remediation professionals
The DefendAir HEPA 500 has a specialized feature to assist containment (Figure 6).
There’s a removable panel on the intake side of the unit. Lift the 8 latches to release
the panel as shown in figure 3.Install the HEPA 500 outside the containment area to
draw air out. Cut a hole in the containment plastic the size of the unit’s inlet, insert the
inlet into the plastic, and seal the circumference tightly with duct tape (no air
READ AND SAVE THESE INSTRUCTIONS
4
Formally trained remediation professionals
Run the HEPA 500 as a negative air machine without interruption for the
duration of every remediation job. The HEPA 500 filters 99.97% of particles
0.3 microns and larger, such as mold spores and fungi.
If the Filter Change Light illuminates during the remediation process, imme-
diately change the HEPA filter. See "Changing Filters" and “Maintenance”
for more information.
To create a negative air environment
You can install the DefendAir HEPA 500 outside a containment area to draw
air out of an affected area. (see “Specialized Features,” Removable intake
panel for remediation professionals).
WARNING
BREATHING HAZARD
When using the HEPA 500 in a containment area, turn off all sources of
power to open combustion appliances such as fireplaces, boilers, furnaces,
water heaters and HVAC systems to avoid the risk of backdrafting deadly
carbon monoxide fumes.
FIGURE 5
Units daisy chained
WARNING
TIPPING HAZARD
When stacking units,
beware of tipping.
Do not stack more than
2 units on top of each
other.
Falling equipment
could cause bodily
harm.
Read and understand manual
before use.
07-01489B Copyright 2004 Dri-Eaz Products, Inc.

should be able to pass through). A tightly sealed containment area will aid in creating
an effective negative pressure. Use a manometer to monitor air pressure. Manometers
are available at most equipment supply houses.
Multi-Positional
You can stack and operate up to two
HEPA 500s vertically. The handle of
one unit fits into bottom of another
unit (see Figure 7). You can also
stack them horizontally for space-
saving storage, or operate a unit
with its outlet facing upward.
Resources
• Dri-Eaz Guide to Airscrubbing, call Dri-Eaz at 800-932-3030.
• S520: The Standard and Reference Guide for Professional Mold Remediation, call
the IICRC at 360-693-5675.
• Institute of Inspection, Cleaning and Restoration Certification (IICRC), 360-693-
5675.
• Dri-Eaz website and Virtual Training Center (VTC) at www.dri-eaz.com
• Dri-Eaz Education Department, 800-575-5152.
• NIOSH help line 800-35-NIOSH, for respirator and respirator filter information.
Maintenance
MAINTENANCE INTERVALS
Before Each Use
• Inspect the electrical cord for damage. Look for fraying, cuts, etc. Do not
use the unit if you find any. Call Dri-Eaz for the nearest Service Center.
• Check your GFCI protection. Plug the unit in and turn it on, depress the red GFCI
“Test” button. If it’s operating properly the “Reset” button should pop up. (Note:
you’ll need to depress the “reset” button again for operation.)
When using the DefendAir HEPA 500 for water damage restoration:
• Inspect pre-filter before each use. Look for accumulated dust and dirt
that could restrict airflow through the filter into the unit. If any is visible,
change out the pre-filter.
•Replace the HEPA filter when the Change Indicator Light comes on.
WARNING
Electric Shock Hazard
Unplug unit before performing
any maintenance.
Never use a water hose or pres-
sure washer to clean electrical
components; water could enter
the electrical compartment caus-
ing a shock hazard.
Follow cleaning instructions in
manual.
READ AND SAVE THESE INSTRUCTIONS
5
WARNING
ELECTRIC SHOCK HAZARD
Unplug the DefendAir HEPA 500 before performing maintenance.
Containment plastic
FIGURE 6
Containment (view from
inside containment area)
Inlet
Duct tape inlet
to plastic (the
entire circumfer-
ence)
Filter
Seal
plastic
to wall
FIGURE 7
Stacking 2 units
WARNING
CONTAMINATION HAZARD
Always wear an appropriate NIOSH-approved respirator and personal protec-
tive equipment when removing or replacing filters, or when cleaning the
DefendAir HEPA 500.
07-01489B Copyright 2004 Dri-Eaz Products, Inc.

Note:To be assured of true HEPA filtration, change the HEPA filter after
every water damage job, or when the indicator light comes on; whichever occurs
first.
When using the DefendAir HEPA 500 for remediation:
After every job
• Replace both the filters to prevent cross-contamination.
• Clean the unit thoroughly (vacuum and damp wipe per IICRC S520, 10.11)
after each job before removing it from the containment area to avoid cross-
contamination. Pay particular attention to the area around the air intake. Let
the unit dry before installing clean filters.
07-01489B Copyright 2004 Dri-Eaz Products, Inc.
6
READ AND SAVE THESE INSTRUCTIONS
TROUBLESHOOTING
For any problems not listed below, call your local distributor or contact our Service Department toll free at 888-867-
3235.
Unit does not operate • No power to machine
• Switch not turned on
• No power to outlet
• GFCI Tripped
• Plug in the unit; check power at outlet
• Turn on the switch
• Reset circuit breaker/GFCI
• Reset circuit breaker/GFCI
Change light illuminated • Primary filter is full
• Air intake restricted
• Replace the filters; refer to Maintenance section
• Eliminate bends/kinks in ducting, or remove
ducting
Blower wheel not turning • Obstructed blower
• Loosen blower wheel set screw
• Remove obstruction
• Tighten set screw
SSSOLUTION
PROBLEM CAUSE
SPECIFICATIONS
MODEL F284 CONTROLS TOUCHPAD
TYPE 115 V FILTERS PRE-FILTER
(P/N 13-00199)
PRIMARY HEPA
P/N (F321)
VARIABLE CFM 250-500 CFM HANDLE ROTOMOLDED
HEIGHT 24.6” (62.5 CM) HOUSING ROTOMOLDED
WIDTH 26.2” (66.5 CM) POWER 115V 3 AMPS
DEPTH 18.2” (46.2 CM) CORD LENGTH 25 FT (7.6 M)
USE WEIGHT 44 (19.9 KG) SAFETY UL LISTED
SHIP WEIGHT 46 (20.9 KG) FREQUENCY (HERTZ) 60
