Drija ALEMANIA 60 User manual

User Manual
ALEMANIA 60.
I N D U C T I O N
Voltage 220v-240v / 60Hz

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
1
1. Foreword......................................................................................................................... 2
2. Operation and maintenance............................................................................................ 3
3. ProductIntroduction......................................................................................................... 6
4. Theory of Work ............................................................................................................... 7
5. TechnicalSpecification.................................................................................................... 7
6. Operation of Product....................................................................................................... 8
7. How to use...................................................................................................................... 9
8. Cooking Guide lines...................................................................................................... 14
9. Detection of Small Articles............................................................................................ 16
10. Care and Cleaning...................................................................................................... 17
11. Hints and Tips............................................................................................................. 18
12. Installation.................................................................................................................. 23
13. Before locating the fixing brackets.............................................................................. 25

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
2
1.FOREWORD
SAFETY WARNINGS
Your safety is important to us. Please read this information before using your cook top.
INSTALLATION
ELECTRICAL SHOCK HAZARD
Disconnect the appliance from the mains electricity supply before carrying out any work or
maintenance on it.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a qualified electrician.
Failure to follow this advice may result in electrical shock or death.
CUTHAZARD
Take care - panel edges are Sharp.
Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions carefully before installing or using this appliance.
No combustible material or products should be placed on this appliance at any time.
Please make this information available to the person responsible for installing the appliance as
it could reduce your installation costs.
In order to avoid a hazard, this appliance must be installed according to these instructions for
installation.
This appliance is to be properly installed and earthed only by a suitably qualified person.
This appliance should be connected to a circuit which incorporates an isolating switch
providing full disconnection from the power supply.
Failure to install the appliance correctly could invalidate any warranty or liability claims.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
3
2.OPERATION AND MAINTENANCE
ELECTRICAL SHOCK HAZARD
Do not cook on a broken or cracked cook top. If the cook top surface should break or crack,
switch the appliance off immediately at the mains power supply (wall switch) and contact a
qualified technician.
•Switch the cook top off at the wall before cleaning or maintenance.
•Failure to follow this advice may result in electrical shock or death.
HEALTHHAZARD
This appliance complies with electromagnetic safety standards.
•However, persons with cardiac pacemakers or other electrical implants (such as insulin
pumps) must consult with their doctor or implant manufacturer before using this appliance to
make sure that their implants will not be affected by the electromagnetic field.
•Failure to follow this advice may result in death.
HOT SURFACE HAZARD
During use, accessible parts of this appliance will become hot enough to cause burns.
•Do not let your body, clothing or any item other than suitable cookware contact the Ceramic
glass until the surface is cool.
•Metallic objects such as knives, forks, spoons and lids should not be placed on the hob
surface since they can get hot
•Keep children away.
•Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other
cooking zones that are on. Keep handles out of reach of children.
•Failure to follow this advice could result in burns and scalds.
CUTHAZARD
The razor-sharp blade of a cook top scraper is exposed when the safety cover is retracted.
Use with extreme care and always store safely and out of reach of children.
•Failure to use caution could result in injury or cuts.
IMPORTANT SAFETY INSTRUCTIONS

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
4
Never leave the appliance unattended when in use. Boil over causes smoking and greasy
spillovers that may ignite.
Never use your appliance as a work or storage surface.
Never leave any objects or utensils on the appliance.
Do not place or leave any magnet sable objects (e.g. credit cards, memory cards) or electronic
devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its
electromagnetic field.
Never use your appliance for warming or heating the room.
After use, always turn off the cooking zones and the cook top as described in this manual (i.e.
by using the touch controls). Do not rely on the pan detection feature to turn off the cooking
zones when you remove the pans.
Do not allow children to play with the appliance or sit, stand, or climb on it.
Do not store items of interest to children in cabinets above the appliance. Children climbing on
the cook top could be seriously injured.
Do not leave children alone or unattended in the area where the appliance is in use.
Children or persons with a disability which limits their ability to use the appliance should have a
responsible and competent person to instruct them in its use. The instructor should be satisfied
that they can use the appliance without danger to themselves or their surroundings.
Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician.
Do not use a steam cleaner to clean your cook top.
Do not place or drop heavy objects on your cook top.
Do not stand on your cook top.
Do not use pans with jagged edges or drag pans across the Ceramic glass surface as this can
scratch the glass.
Do not use scourers or any other harsh abrasive cleaning agents to clean your cook top, as
these can scratch the Ceramic glass.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
This appliance is intended to be used in household and similar applications such as: -staff
kitchen areas in shops, offices and other working environments; -farm houses; -by clients in
hotels, motels and other residential type environments; -bed and breakfast type environments.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
5
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless continuously supervised.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in
fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover
flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric
shock, for hob surfaces of glass-ceramic or similar material which protect live parts
A steam cleaner is not to be used.
The appliance is not intended to be operated by means of an external timer or separate
remote-control system.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
6
Congratulations on the purchase of your new Ceramic Hob.
We recommend that you spend some time to read this Instruction / Installation Manual in
order to fully understand how to install correctly and operate it. For installation, please read the
installation section.
Read all the safety instructions carefully before use and keep this Instruction / Installation
Manual for future reference.
3.PRODUCTINTRODUCTION

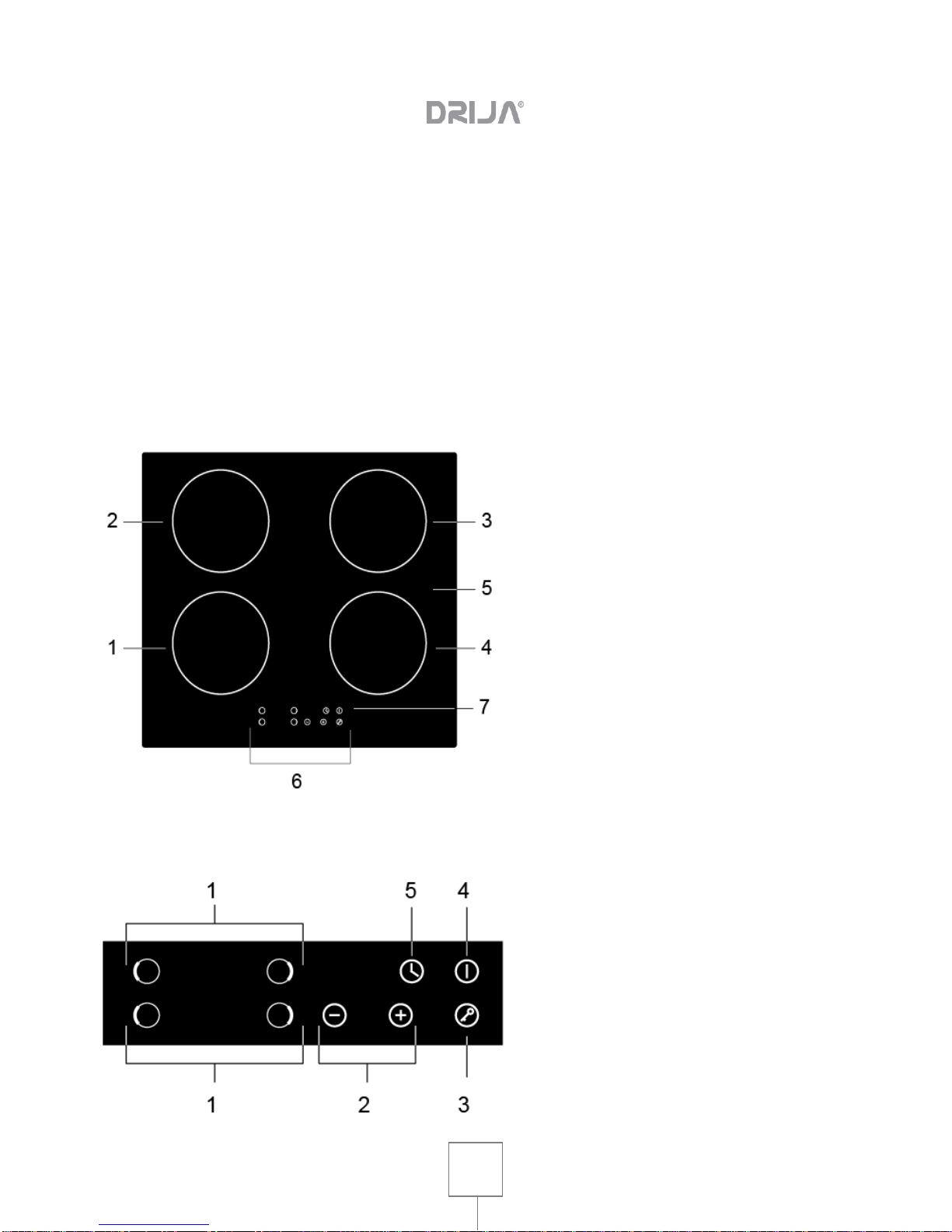

TOP VIEW
1. Max. 1500 W zone/ 180 mm
2. Max. 2000 W zone/ 180 mm
3. Max. 1500 W zone/ 180 mm
4. Max. 2000 W zone/ 180 mm
5. Glass plate
6. Control panel
7. ON/OFF control
CONTROL PANEL
1. Selection Controls heating zone
2. Control knob power / timer
3. Key Lock Control
4. ON / OFF control
5. Timer control

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
7
4.THEORY OF WORK
Induction cooking is a safe, advanced, efficient and economical cooking technology. It works
by the electromagnetic vibrations that generate heat directly in the pan, in place of indirectly
through the heating of the surface of the glass. The glass is heated only because the pan
eventually warms it.
BEFORE USING YOUR NEW CERAMIC HOB
•Read this guide, taking special note of the ‘Safety Warnings’ section.
•Remove any protective film that may still be on your ceramic hob.
5.TECHNICALSPECIFICATION
Model
Alemania 60Induction
Cooking Zones
4Zones
Supply Voltage
220-240V~ 50/60Hz
Installed Electric Power
6400 –7200w
Product Size D×W×H(mm)
590X520X56.5
Building-in Dimensions A×B (mm)
560X490
Weight and Dimensions are approximate. Because we continually strive to improve our
products we may change specifications and designs without prior notice.
Iron pot
Magnetic circuit
Ceramic Glass Plate
Induction Coil

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
8
6.OPERATION OF PRODUCT
TOUCHCONTROLS
The controls respond to touch, so you don’t need to apply any pressure. Use the ball of your
finger, not its tip.
You will hear a beep each time a touch is registered.
Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a
cloth) covering them. Even a thin film of water may make the controls difficult to operate.
CHOOSING THE RIGHT COOKWARE
• Only use cookware with a base suitable for induction cooking.
Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test. Move a
magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
• If you do not have a magnet:
1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made from the following materials is not suitable: pure stainless steel, aluminum or
copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
9
Do not use cookware with jagged edges or a curved base.
Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size
as the cooking zone. Always centre your pan on the cooking zone.
Always lift pans off the ceramic hob –do not slide, or they may scratch the glass.
7.HOW TO USE
START COOKING
After power on, the buzzer beeps once, all the indicators light up for 1 second then go out,
indicating that the ceramic hob has entered the stat of standby mode.
Touch the ON/OFF control. all the indicators show “-“
Place a suitable pan on the cooking zone that you wish
to use.
• Make sure the bottom of the pan and the surfaces of
the cooking zone are clean and dry.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
10
Touching the heating zone selection control ,and an
indicator next to the key will flash
Select a heat setting by touching the “-” or “+” control.
• If you don’t choose a heat setting within 1 minute, the
ceramic hob will automatically switch off. You will need
to start again at step 1.
• You can modify the heat setting at any time during
cooking.
• By holding down either of these buttons, the value will
adjust up or down.
If the display flashes alternately with the heat setting
This means that:
• You have not placed a pan on the correct cooking zone or,
• The pan you’re using is not suitable for induction cooking or,
• The pan is too small or not properly centered on the cooking zone.
No heating takes place unless there is a suitable pan on the cooking zone.
The display will automatically turn off after 1 minute if no suitable pan is placed on it.
FINISH COOKING
Touching the heating zone selection control that you
wish to switch off
Turn the cooking zone off by scrolling down to “0” or
touching “-” and “+” control together.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
11
Turn the whole cook top off by touching the ON/OFF
control
Beware of hot surfaces
“H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled
down to a safe temperature. It can also be used as an energy saving function if you want to
heat further pans, use the hotplate that is still hot.
LOCKING THE CONTROLS
You can lock the controls to prevent unintended use (for example children accidentally turning
the cooking zones on).
When the controls are locked, all the controls except the ON/OFF control are disabled.
To lock the controls
Touch the lock control
The timer indicator will show "Lo"
To unlock the controls
Make sure the ceramic hob is turned on Touch and hold the lock control for a while.
When the hob is in the lock mode, all the controls are disabling except the ON/OFF , you can always turn the
ceramic hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next
operation.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
12
TIMER CONTROL
You can use the timer in two different ways:
a) You can use it as a minute minder. In this case, the timer will not turn any cooking zone off
when the set time is up.
b) You can set it to turn one or more cooking zones off after the set time is up.
•The timer of maximum is 99 minutes
Using the Timer as a Minute Minder
If you are not selecting any cooking zone
Make sure the cook top is turned on.
Note: you can use the minute minder even if you’re
not selecting any cooking zone.
Touch “+” the controls of the timer. The minder
indicator will start flashing and “10” will show
In the timer display.
Set the time by touching the “-” or “+” control
Of the timer.
Hint: Touch the “-” or “+” control of the timer
Once to decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer to
decrease or increase by 10 minutes.
Touching the “-” and “+” together, the timer is
cancelled, and the “00” will show in the minute
display.
When the time is set, it will begin to count down
Immediately. The display will show the remaining
Time and the timer indicator will flash for 5
seconds.
Buzzer will beep for 30 seconds and the timer
indicator
Shows “- -” when the setting time finished.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
13
.
Setting the timer to turn one or more cooking zones off
Set one zone
Touching the heating zone selection control that you
want to set the timer for. (e.g. zone 3#)
Touch timer control, the minder indicator will start
flashing and “10” will show in the timer display.
Set the time by touching the or control of the timer
Hint: Touch the “-” or “+” control of the timer
Once will decrease or increase by 1 minute.
Touch and hold the “-” or “+” control of the timer
Will decrease or increase by 10 minutes.
Touching the “-” and “+” together, the timer is
cancelled, and the “00” will show in the minute display.
When the time is set, it will begin to count down
immediately. The display will show the remaining time
and the timer indicator flash for 5 seconds.
NOTE: The red dot next to power level indicator will
illuminate indicating that zone is selected.
When cooking timer expires, the corresponding
cooking zone will be switched off automatically.
Other cooking zone will keep operating if they are turned on previously.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
14
DEFAULT WORKING TIMES
Auto shut down is a safety protection function for your induction hob. It shut down
automatically if ever you forget to turn off your cooking. The default working times for various
power levels are shown in the below table:
Power level
1
2
3
4
5
6
7
8
9
Default working timer (hour)
8
8
8
4
4
4
2
2
2
People with a heart pace maker should consult with their doctor before using this unit.
8.COOKING GUIDE LINES
Take care when frying as the oil and fat heat up very quickly, particularly if you’re using
Power Boost. At extremely high temperatures oil and fat will ignite spontaneously and this
presents a serious fire risk.
COOKINGTIPS
When food comes to the boil, reduce the temperature setting.
Using a lid will reduce cooking times and save energy by retaining the heat.
Minimize the amount of liquid or fat to reduce cooking times.
Start cooking on a high setting and reduce the setting when the food has heated through.
SIMMERING, COOKING RICE
Simmering occurs below boiling point, at around 85˚C, when bubbles are just rising
occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender
stews because the flavors develop without overcooking the food. You should also cook
egg-based and flour thickened sauces below boiling point.
Some tasks, including cooking rice by the absorption method, may require a setting higher
than the lowest setting to ensure the food is cooked properly in the time recommended.
SEARINGSTEAK
To cook juicy flavorsome steaks:
1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
15
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and
then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the
thickness of the steak and how cooked you want it. Times may vary from about 2 –8 minutes
per side. Press the steak to gauge how cooked it is –the firmer it feels the more ‘well done’ it
will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become
tender before serving.
FORSTIR-FRYING
1. Choose an induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large
quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, put it aside and keeps warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower
setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
16
9.DETECTION OF SMALL ARTICLES
When an unsuitable size or non-magnetic pan (e.g. aluminum), or some other small item (e.g.
knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute.
The fan will keep cooking down the induction hob for a further 1 minute.
HEATSETTINGS
The settings below are guidelines only. The exact setting will depend on several factors,
including your cookware and the amount you are cooking. Experiment with the Ceramic hob to
find the settings that best suit you.
Control de temperature
Idoneidad
1 - 2
• delicate warming for small amounts of food
• melting chocolate, butter, and foods that burn quickly
• gentle simmering
• slow warming
3 - 4
• reheating
• rapid simmering
• cooking rice
5 - 6
• pancakes
7 - 8
• sautéing
• cooking pasta
9
• stir-frying
• searing
• bringing soup to the boil
• boiling water

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
17
10. CARE AND CLEANING
What?
How?
Important!
Everyday soiling on
glass (fingerprints,
marks, stains left by
food or non-sugary
spillovers on the
glass)
1. Switch the power to the cook
top off.
2. Apply a cook top cleaner
while the glass is still warm (but
not hot!)
3. Rinse and wipe dry with a
clean cloth or paper towel.
4. Switch the power to the cook
top back on.
• When the power to the cook top is
switched off, there will be no ‘hot surface’
indication but the cooking zone may still be
hot! Take extreme care.
• Heavy-duty scourers, some nylon
scourers and harsh/abrasive cleaning
agents may scratch the glass. Always read
the label to check if you’re cleaner or
scourer is suitable.
• Never leave cleaning residue on the cook
top: the glass may become stained.
Boil over’s, melts,
and
hot sugary spills on
the glass
Remove these immediately with
a fish slice, palette knife or
razor blade scraper suitable for
Ceramic glass cook tops, but
beware of hot cooking zone
surfaces:
1. Switch the power to the cook
top off at the wall.
2. Hold the blade or utensil at a
30° angle and scrape the soiling
or spill to a cool area of the
cook top.
3. Clean the soiling or spill up
with a dish cloth or paper towel.
4. Follow steps 2 to 4 for
‘Everyday soiling on glasses
above.
• Remove stains left by melts and sugary
food or spillovers as soon as possible. If
left to cool on the glass, they may be
difficult to remove or even permanently
damage the glass surface.
• Cut hazard: when the safety covers
retracted the blade in scrapers razor-
sharp. Use with extreme care and always
store safely and out of reach of children.
Spillovers on the
touch controls
1. Switch the power to the cook
top off.
2. Soak up the spill
3. Wipe the touch control area
with a clean damp sponge or
cloth.
4. Wipe the area completely dry
with a paper towel.
5. Switch the power to the cook
top back on.
• The cook top may beep and turn itself off,
and the touch controls may not function
while there is liquid on them. Make sure
you wipe the touch control area dry before
turning the cook top back on.

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
18
11. HINTS AND TIPS
Problem
Possible causes
What to do
The cook top cannot
Be turned on.
No power.
Make sure the ceramic hob is
connected to the power supply and
that it is switched on.
Check whether there is a power
outage in your home or area. If you’ve
checked everything and the problem
persists, call a qualified technician.
The touch controls
are unresponsive.
The controls are locked.
Unlock the controls. See section
‘Using your induction cook top’ for
instructions.
The touch controls
are difficult to
operate.
There may be a slight film of
water over the controls or
you may be using the tip of
your finger when touching
the controls.
Make sure the touch control area is
dry and use the ball of your finger
when touching the controls.
The glass is being
scratched.
Rough-edged cookware.
Unsuitable, abrasive scourer
or cleaning products being
used.
Use cookware with flat and smooth
bases. See ‘Choosing the right
cookware’.
See ‘Care and cleaning’.
Some pans make
crackling or clicking
noises.
This may be caused by the
Construction of your
cookware (layers of different
metals vibrating differently).
This is normal for cookware and
Does not indicate a fault.
The induction hob
makes a low
humming noise
when used one high
heat setting.
This is caused by the
technology
Of induction cooking.
This is normal and needs no action.
Do not switch the power to the
induction hob off at the wall while the
fan is running.
Pans do not become
hot and appears in
the display.
The induction hob cannot
detect the pan because it is
not suitable for induction
cooking.
The induction hob cannot
Use cookware suitable for induction
cooking. See section ‘Choosing the
right cookware’.
Centre the pan and make sure that its
base matches the size of the cooking

User Manual
STOVE BUILT-IN | ALEMANIA 60 INDUCTION
19
detect the pan because it is
too small for the cooking
zone or not properly centered
on it.
zone.
The induction hob or
a cooking zone has
turned itself off
unexpectedly, a
tone sounds and an
error code is
displayed (typically
alternating with one
or two digits in the
cooking timer
display).
Technical fault.
Please note down the error letters and
numbers, switch the power to the
induction hob off at the wall, and
contact qualified technician.
FAILUREDISPLAY AND INSPECTION
The induction hob is equipped with a self-diagnostic function. With this test the technician is
able to check the function of several components without disassembling or dismounting the
hob from the working surface.
TROUBLESHOOTING
1) Failure code occur during customer using & Solution;
Failure code
Problem
Solution
Auto-Recovery
E1
Supply voltage is above the rated
voltage.
Please inspect whether power supply
is normal.
Power on after the power supply is
normal.
E2
Supply voltage is below the rated
voltage.
E3
High temperature of ceramic plate
sensor .（1#）
Wait for the temperature of ceramic
plate return to normal.
Touch “ON/OFF” button to restart unit.
E4
High temperature of ceramic plate
