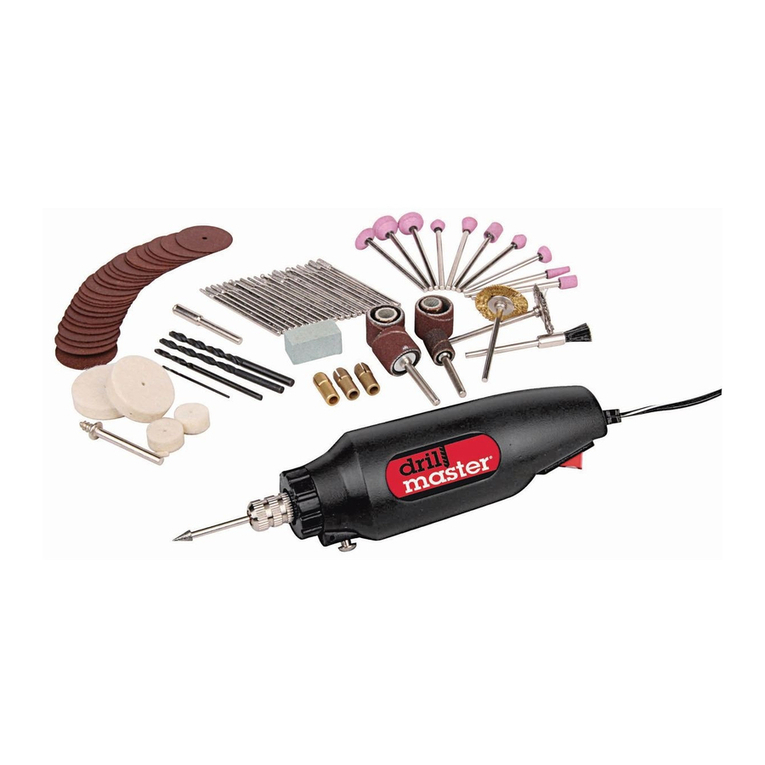

Drill Master 97626 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected]
REV 14i
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,
inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the
manual near the assembly diagram (or month and year of purchase if product has no number). Keep this
manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright©2008 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product
described herein. Tools required for assembly and service may not be included.
Read this material before using
this product. Failure to do so
can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Table of Contents
Safety .................................................3
Specifications .....................................9
Setup ..................................................9
Operation.......................................... 11
Maintenance.....................................13
Parts List and Diagram.....................14
Warranty ...........................................16
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a hazardous situation
which, if not avoided, could result
in minor or moderate injury.
Addresses practices not related
to personal injury.

Page 3For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
IMPORTANT SAFETY INFORMATION
General Power Tool Safety Warnings
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your
mains-operated (corded) power tool.
Work area safety
1. Keep work area clean and well lit.
Cluttered or dark areas
invite accidents.
2. Do not operate power tools
in explosive atmospheres,
such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which
may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a
power tool.
Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match
the outlet. Never modify the
plug in any way. Do not use any
adapter plugs with grounded
power tools. Unmodified plugs
and matching outlets will
reduce risk of electric shock.
2. Do not expose power tools
to rain or wet conditions.
Water entering a power tool will
increase the risk of electric shock.
3. Do not abuse the cord. Never
use the cord for carrying, pulling
or unplugging the power tool.
Keep cord away from heat, oil,
sharp edges or moving parts.
Damaged or entangled cords
increase the risk of electric shock.
4. If operating a power tool in a
damp location is unavoidable,
use a Ground Fault Circuit
Interrupter (GFCI) protected
supply. Use of a GFCI reduces
the risk of electric shock.

Page 4 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Personal safety
1. Stay alert, watch what you are
doing and use common sense
when operating a power tool.
Do not use a power tool while you
are tired or under the influence
of drugs, alcohol or medication.
A moment of inattention while
operating power tools may result
in serious personal injury.
2. Use personal protective
equipment. Always wear eye
protection. Safety equipment
such as dust mask, non-skid
safety shoes, hard hat, or
hearing protection used for
appropriate conditions will
reduce personal injuries.
3. Prevent unintentional starting.
Ensure the switch is in the
off-position before connecting
to power source, picking up or
carrying the tool.
Carrying power tools with your
finger on the switch or energizing
power tools that have the
switch on invites accidents.
4. Remove any adjusting
key or wrench before
turning the power tool on.
A wrench or a key left attached to
a rotating part of the power tool
may result in personal injury.
5. Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
6. Dress properly. Do not wear
loose clothing or jewelry.
Keep your hair, clothing and
gloves away from moving parts.
Loose clothes, jewelry or long hair
can be caught in moving parts.
7. If devices are provided for the
connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of these devices can
reduce dust-related hazards.
8. Only use safety equipment
that has been approved by an
appropriate standards agency.
Unapproved safety equipment
may not provide adequate
protection. Eye protection must be
ANSI-approved and
breathing protection must be
NIOSH-approved for the specific
hazards in the work area.

Page 5For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
Power tool use and care
1. Do not force the power
tool. Use the correct power
tool for your application.
The correct power tool will do
the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be
controlled with the switch is
dangerous and must be repaired.
3. Disconnect the plug from
the power source before
making any adjustments,
changing accessories,
or storing power tools.
Such preventive safety measures
reduce the risk of starting the
power tool accidentally.
4. Store idle power tools out of
the reach of children and do not
allow persons unfamiliar with the
power tool or these instructions
to operate the power tool.
Power tools are dangerous in
the hands of untrained users.
5. Maintain power tools. Check
for misalignment or binding
of moving parts, breakage of
parts and any other condition
that may affect the power tool’s
operation. If damaged, have
the power tool repaired before
use. Many accidents are caused
by poorly maintained power tools.
6. Keep cutting tools sharp and
clean. Properly maintained
cutting tools with sharp cutting
edges are less likely to bind
and are easier to control.
7. Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking
into account the working
conditions and the work to be
performed. Use of the power
tool for operations different from
those intended could result
in a hazardous situation.
Service
Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.

Page 6 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Rotary Tool Safety Warnings
1. Maintain labels and nameplates
on the tool. These carry
important safety information.
If unreadable or missing,
contact Harbor Freight Tools
for a replacement.
2. Avoid unintentional starting.
Prepare to begin work before
turning on the tool.
3. Do not lay the tool down until it
has come to a complete stop.
Moving parts can grab the surface
and pull the tool out of your control.
4. When using a handheld power tool,
maintain a firm grip on the tool with
both hands to resist starting torque.
5. Do not depress the spindle lock
when starting or during operation.
6. Do not leave the tool unattended
when it is plugged into an
electrical outlet. Turn off the
tool, and unplug it from its
electrical outlet before leaving.
7. This product is not a toy.
Keep it out of reach of children.
8. WARNING: Some dust created by
power sanding, sawing, grinding,
drilling, and other construction
activities, contains chemicals known
to the State of California to cause
cancer and birth defects or other
reproductive harm. Some examples
of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from
chemically treated lumber
Your risk from these exposures
varies, depending on how often
you do this type of work. To reduce
your exposure to these chemicals:
work in a well ventilated area,
and work with approved safety
equipment, such as those dust
masks that are specially designed
to filter out microscopic particles.
(California Health & Safety Code
§ 25249.5, et seq.)
9. WARNING: The cord of this
product contains lead and/
or di (2-ethylhexyl) phthalate
(DEHP), chemicals known to
the State of California to cause
cancer, and birth defects or other
reproductive harm. Wash hands
after handling. (California Health
& Safety Code § 25249.5, et seq.)
10.People with pacemakers should
consult their physician(s)
before use. Electromagnetic
fields in close proximity to heart
pacemaker could cause pacemaker
interference or pacemaker failure.
11. The warnings, precautions,
and instructions discussed in
this instruction manual cannot
cover all possible conditions and
situations that may occur. It must
be understood by the operator
that common sense and caution
are factors which cannot be
built into this product, but must
be supplied by the operator.

Page 7For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
Vibration Safety
This tool vibrates during use.
Repeated or long-term exposure
to vibration may cause temporary
or permanent physical injury,
particularly to the hands, arms
and shoulders. To reduce the risk
of vibration-related injury:
1. Anyone using vibrating tools
regularly or for an extended
period should first be examined
by a doctor and then have
regular medical check-ups to
ensure medical problems are
not being caused or worsened
from use. Pregnant women or
people who have impaired blood
circulation to the hand, past
hand injuries, nervous system
disorders, diabetes, or Raynaud’s
Disease should not use this tool.
If you feel any symptoms
related to vibration (such as
tingling, numbness, and white
or blue fingers), seek medical
advice as soon as possible.
2. Do not smoke during use.
Nicotine reduces the blood supply
to the hands and fingers, increasing
the risk of vibration-related injury.
3. Wear suitable gloves to reduce
the vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice.
5. Include vibration-free periods
each day of work.
6. Grip tool as lightly as possible
(while still keeping safe control of it).
Let the tool do the work.
7. To reduce vibration, maintain
the tool as explained in this
manual. If any abnormal vibration
occurs, stop use immediately.
SAVE THESE INSTRUCTIONS.

Page 8 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Grounding
TO PREVENT ELECTRIC SHOCK AND DEATH FROM
INCORRECT GROUNDING WIRE CONNECTION:
Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. Do not modify the power cord plug
provided with the tool. Do not use the tool if the power cord or plug is
damaged. If damaged, have it repaired by a service facility before use. If
the plug will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Figure A: Outlets for 2-Prong Plug
This tool’s power adapter may
be used in either of the 120 volt
outlets shown in the preceding
illustration. (See Figure A.)
Extension Cords
Note: Extension cords must not be used with this item’s power adapter.
Symbology
Table A: Symbology
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
V~ Volts Alternating Current
AAmperes
n0
xxxx/
min.
No Load Revolutions
per Minute (RPM)
Table A: Symbology
WARNING marking
concerning Risk of Eye Injury.
Wear ANSI-approved safety
goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover
ventilation ducts.
WARNING marking
concerning Risk of
Electric Shock.
Maintain Power cord properly.

Page 9For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
Specifications
Tool Input 12VDC
Adapter Input 120V~ / 60Hz
Rotation Speed 16,000 RPM
Collet Size 1mm, 3mm, 3/32″,
and 1/8″
Setup - Before Use:
Read the ENTIRE IMPORTANT SAFETY
INFORMATION section at the beginning of this
manual including all text under subheadings
therein before set up or use of this product.
Functions
Lock Button
Power Switch
1/8″ Shank with
Buffing Wheel
Collar

Page 10 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Accessories
Note: Refer to “Parts List and
Diagram” on page 14 for
accessory illustrations.
• Use the Diamond Burr
Bits (4) to drill hard, brittle
materials, such as tile.
• Use the Mounted Stones (5)
for sharpening cutting tools,
screwdrivers etc, deburring metal
after cutting, and removing excess
material on metal and ceramics.
• Use the Sanding Drums (6)
to smooth out rough areas
on soft materials.
• Use the Cut-off Wheels (7)
for cutting, carving and
slotting materials.
• Use the Buffing Wheels (8)
for polishing.
• Use the Wire Wheels (9) to
clean dirty or rusted surfaces.
• Use the Whet Stone (10)
for sharpening.
• Use the Drill Bits (11) to
bore small holes.
• Mandrels are the shanks
with a threaded or screw
head. Use them with the
cut-off wheels, polishing
wheels, and sanding discs.
The shank without threads on the
end is for the felt polishing wheels.

Page 11For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section
at the beginning of this manual including all text under
subheadings therein before set up or use of this product.
Tool Set Up
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position and unplug
the tool from its electrical outlet before installing accessories.
1. Hold the Lock Button down
and unscrew the Collar.
2. Choose the right
Accessory for the job (see
“Accessories” on page 10)
and the Collet that matches
the Accessory’s shank.
3. Insert the Collet into the Rotary Tool.
4. Place the Collar over the Collet,
but do not tighten yet.
5. Insert the Accessory’s
shank into the Collet.
6. Hold the Lock Button down,
and tighten the Collar.
7. Release the Lock Button. Pull on
the Shank to ensure that it is secure.
Work Piece and Work Area Set Up
1. Designate a work area that is clean
and well-lit. The work area must
not allow access by children or pets
to prevent distraction and injury.
2. Route the power cord along a
safe route to reach the work area
without creating a tripping hazard
or exposing the power cord to
possible damage. The power
cord must reach the work area
with enough extra length to allow
free movement while working.
3. Secure loose work pieces using
a vise or clamps (not included) to
prevent movement while working.
4. There must not be objects, such
as utility lines, nearby that will
present a hazard while working.

Page 12 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
General Operating Instructions
1. Plug the Power Adapter
into a standard, grounded
120V electrical outlet.
2. Connect the Rotary Tool
to the Power Adapter.
3. Turn the Power Switch “ON” and
allow the Rotary Tool to come up to
full speed before beginning work.
4. Contact the material lightly.
Do not press hard on the tool
while working; allow the tool to
work at its own pace. It is better
to make several shallow passes
than to make one deep pass.
5. To prevent accidents, turn off
the tool and disconnect its
power supply after use. Clean,
then store the tool indoors
out of children’s reach.

Page 13For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
User-Maintenance Instructions
Procedures not specifically explained in this manual
must be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the tool to its “OFF” position
and unplug the tool from its electrical outlet before any
inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general condition of the
tool. Check for loose screws, misalignment or binding of moving
parts, cracked or broken parts, damaged electrical wiring, and
any other condition that may affect its safe operation.
2. AFTER USE, clean external surfaces of the tool with clean, moist cloth.
3. WARNING! If the supply cord of this power tool is damaged,
it must be replaced only by a qualified service technician.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS
LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE
TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES
ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER
THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT,
OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS,
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND
LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF
HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 14 For technical questions, please call 1-888-866-5797. Item 97626
SAFETY OPERATION MAINTENANCESETUP
Parts List and Diagram
Parts List
Part Description Qty
1Rotary Tool 1
2Power Adapter 1
3 Collet 4
4Diamond Burr Bit
(3/32″ Shank) 20
5Mounted Stone
(3/32″ Shank) 10
6Sanding Drum
(3/32″ Shank) 2
Part Description Qty
7Cut-off Wheel
(1/8″ Shank) 25
8Buffing Wheel
(1/8″ Shank) 4
9Wire Wheel
(1/8″ Shank) 2
10 Whet Stone 1
11 Drill Bit (1mm,
3mm, 3/32″ & 1/8″) 4
Record Serial Number Here:
Note: If product has no serial
number, record month and
year of purchase instead.
Note: Some parts are listed and
shown for illustration purposes
only, and are not available
individually as replacement parts.

Page 15For technical questions, please call 1-888-866-5797.Item 97626
SAFETYOPERATIONMAINTENANCE SETUP
1
2
3
4
5
6
7
8
9
10
11
Assembly Diagram

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet
high quality and durability standards, and warrants to the original purchaser that
this product is free from defects in materials and workmanship for the period
of 90 days from the date of purchase. This warranty does not apply to damage
due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or
alterations outside our facilities, criminal activity, improper installation, normal
wear and tear, or to lack of maintenance. We shall in no event be liable for
death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation of exclusion may not apply to you. THIS WARRANTY IS
EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us
with transportation charges prepaid. Proof of purchase date and an explanation
of the complaint must accompany the merchandise. If our inspection verifies
the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you
with a replacement. We will return repaired products at our expense, but if we
determine there is no defect, or that the defect resulted from causes not within
the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may
also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • 1-888-866-5797
